New

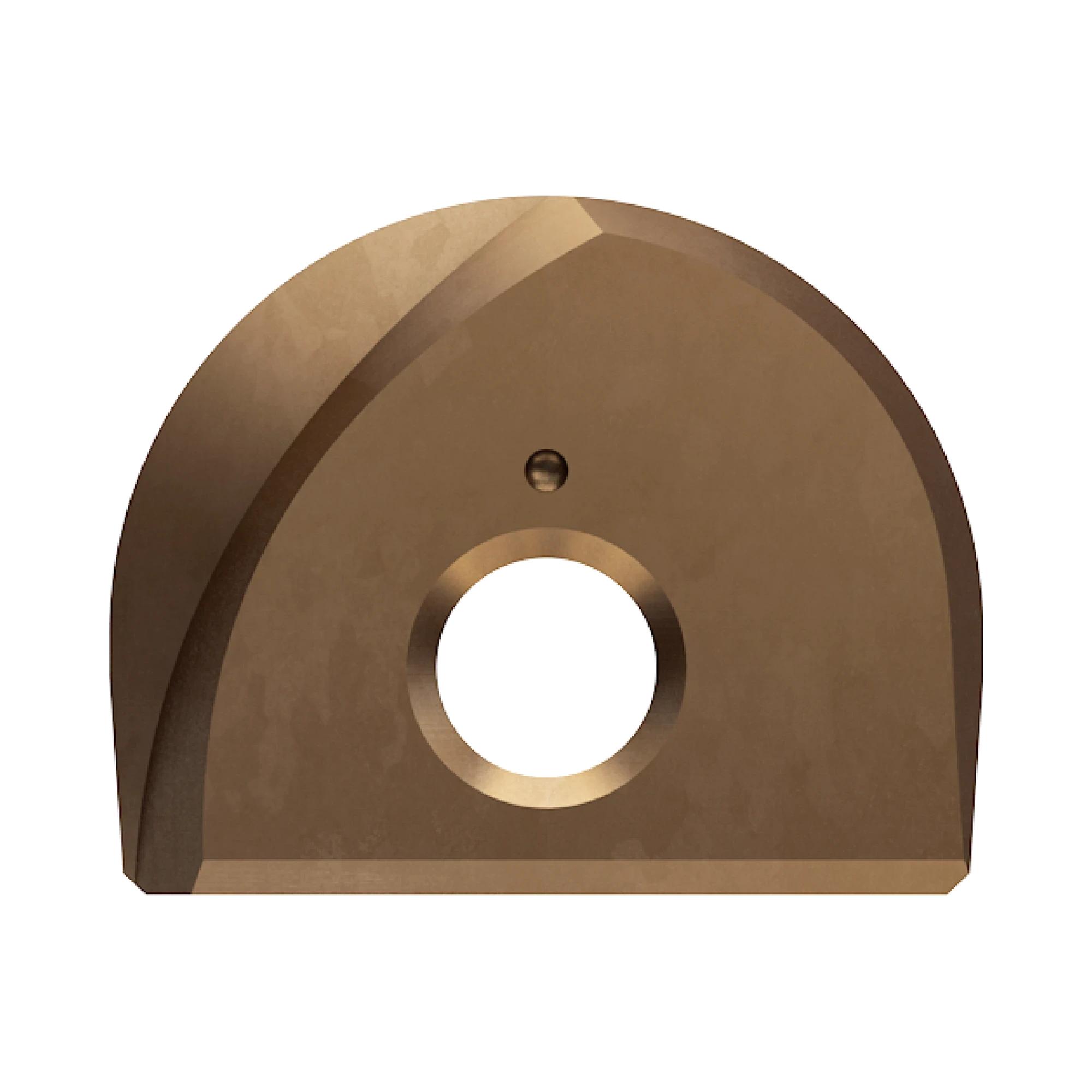

i-Xmill Ball Insert for High Hardened Material End Mill (XMB260T)

  • $43.89INC GST $39.90 EX GST
i-Xmill Ball Insert for High Hardened Material End Mill (XMB260T)
i-Xmill Ball Insert for High Hardened Material End Mill (XMB260T)
New

i-Xmill Ball Insert for High Hardened Material End Mill (XMB260T)

  • $43.89INC GST $39.90 EX GST

Code: XMB260T080

H
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-Xmill Ball Insert for High Hardened Material End Mill (XMB260T) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Indexable Ball End Mill for economic use
  • Three Types of Inserts are available
    1. For General Purpose (~HRc50)
    2. For Hardened Material (HRc40~HRc65)
    3. For Graphite
  • Special Geometry and Coating for Excellent Performance



Specifications

Flutes 2
Helix Angle -
Cutting Edge Shape BALL NOSE
Size Min R4.0
Size Max R16.5
Length -
Coating Z-Coating



Product Data
Workpiece Material H
Ball Radius Tolerance 0.01
Hardened Steels(HRc40~45) Great
No. Flutes 2
Operation Facing, Profiling, Small Part
Surface Treatment YG-1 Z Coating
Tool Material NG HM

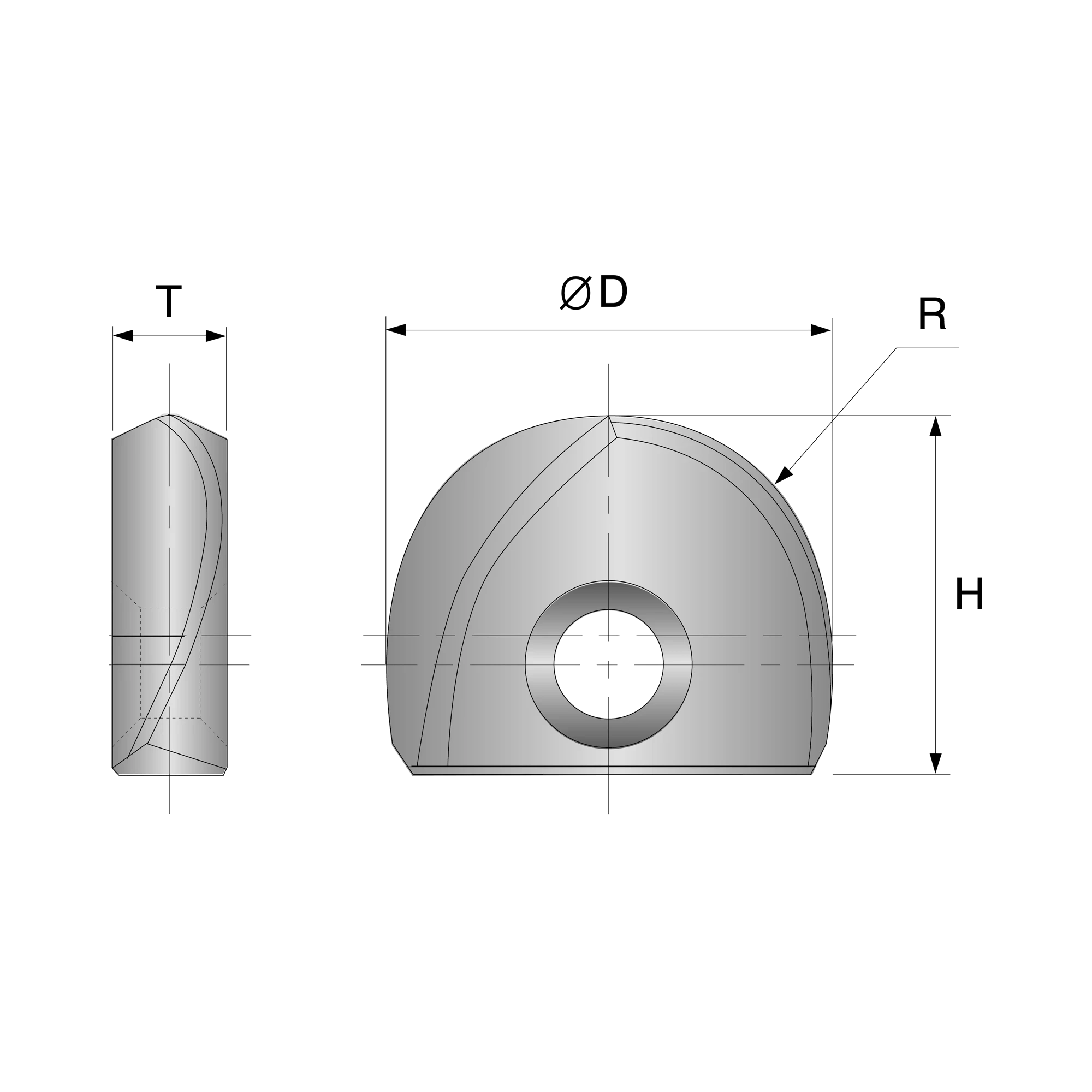

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMB260T080 8 R4.0 8 2.4 2 XMB260T100 10 R5.0 9.5 2.7 2 XMB260T110 11 R5.5 10 2.7 2 XMB260T120 12 R6.0 11 3.2 2 XMB260T130 13 R6.5 11.5 3.2 2 XMB260T160 16 R8.0 13 4.2 2 XMB260T170 17 R8.5 13.5 4.2 2 XMB260T200 20 R10.0 16 5.2 2 XMB260T210 21 R10.5 16.5 5.2 2 XMB260T250 25 R12.5 19.5 6.2 2 XMB260T260 26 R13.0 20 6.2 2 XMB260T300 30 R15.0 23.5 7.2 2 XMB260T320 32 R16.0 24.5 7.2 2 XMB260T330 33 R16.5 25 7.2 2
Profiling
Small Part
Facing
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
H Hardened Steels (HRc45~55)

Excellent

Good Great Excellent
H High Hardened Steels (HRc55~70)

Excellent

Good Great Excellent
EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMB260T080 8 R4.0 8 2.4 2 XMB260T100 10 R5.0 9.5 2.7 2 XMB260T110 11 R5.5 10 2.7 2 XMB260T120 12 R6.0 11 3.2 2 XMB260T130 13 R6.5 11.5 3.2 2 XMB260T160 16 R8.0 13 4.2 2 XMB260T170 17 R8.5 13.5 4.2 2 XMB260T200 20 R10.0 16 5.2 2 XMB260T210 21 R10.5 16.5 5.2 2 XMB260T250 25 R12.5 19.5 6.2 2 XMB260T260 26 R13.0 20 6.2 2 XMB260T300 30 R15.0 23.5 7.2 2 XMB260T320 32 R16.0 24.5 7.2 2 XMB260T330 33 R16.5 25 7.2 2
