New
Ball Radius Tolerance: 0.01
No. Flutes: 2
Surface Treatment: YG-1 Y Coating
Tool Material: NG HM
Made in South Korea

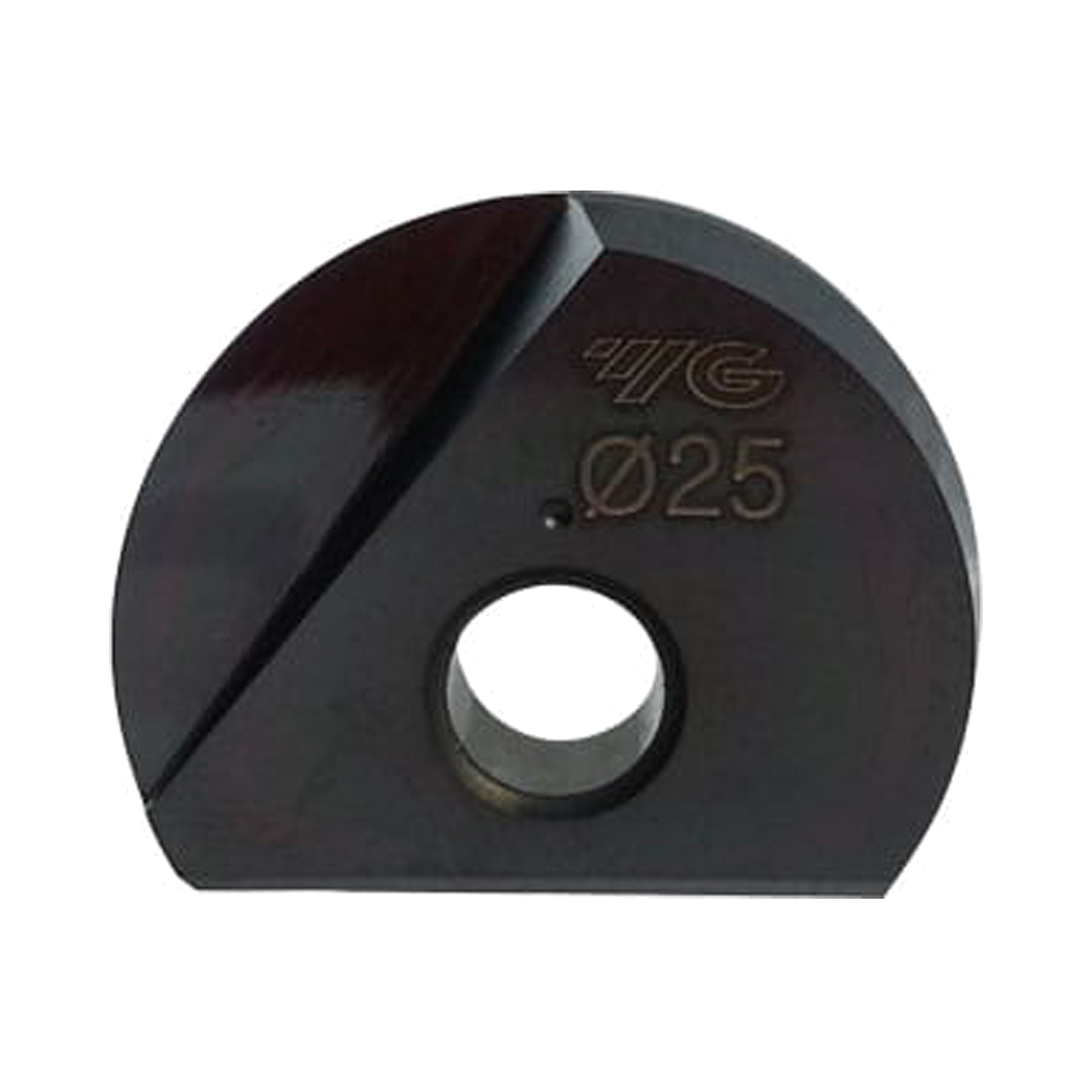

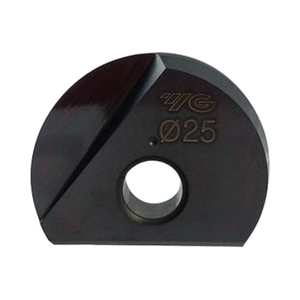

i-Xmill Full Radius Ball Insert for General Purpose End Mill (XMM110V)
Product Code: XMM110V-1
Ball Radius Tolerance: 0.01
No. Flutes: 2
Surface Treatment: YG-1 Y Coating
Tool Material: NG HM

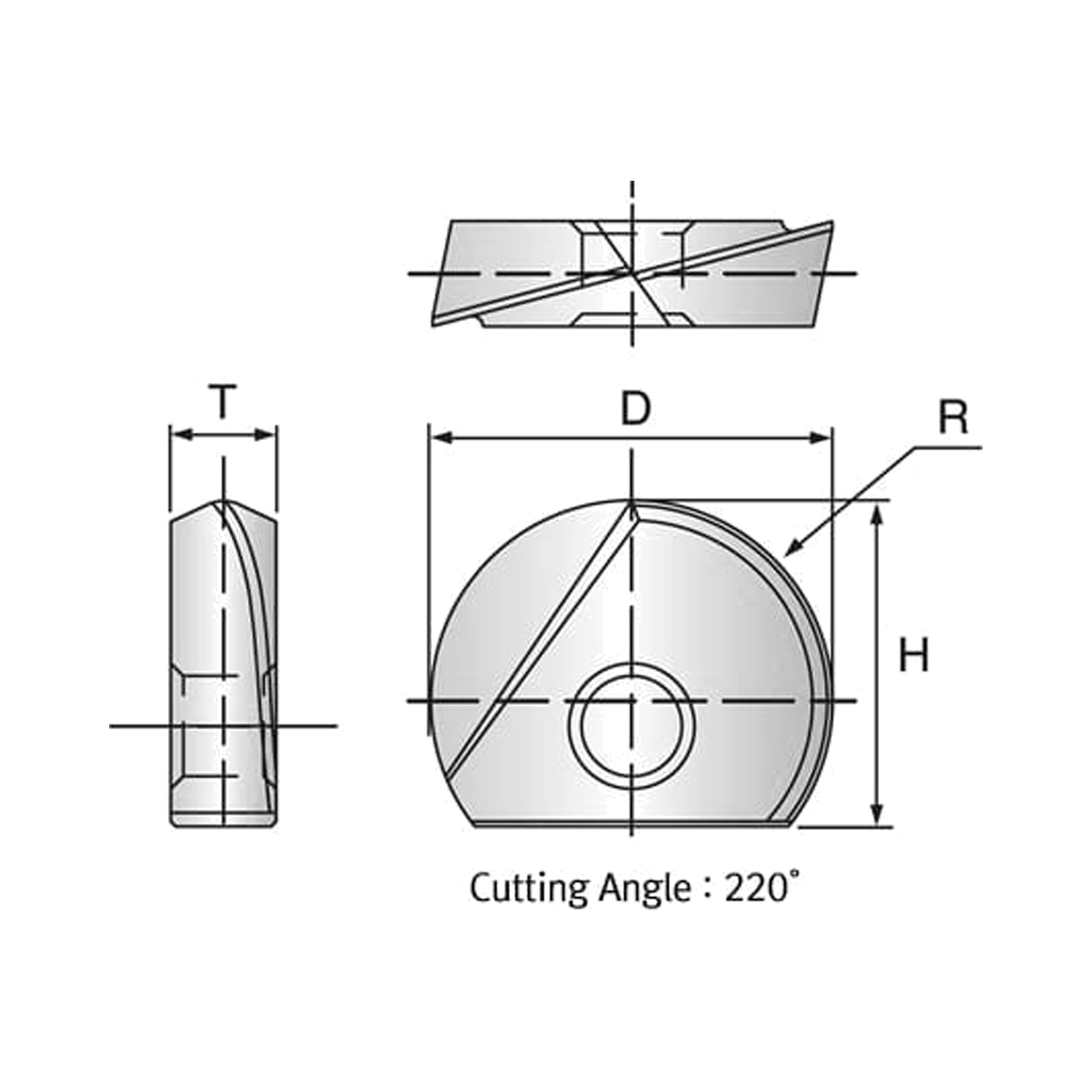

The YG-1 XMM11 series i-X Mill ball nose copy milling insert has a special 220° full radius geometry for 5 axis machining of carbon steels, alloy steels, tool steels and stainless steels. The i-Xmill Indexable Milling system is a high precision system for finishing applications. It provides an economical solution due to its indexable replaceable inserts and these inserts are available in 5 different types for various materials.
- Ball nose geometry.
- 220 degree full radius inserts ideal for machining carbon steels, alloy steels, tool steels and stainless steels.
- Insert diameters available from 8mm to 33mm.
- Full radius insert for complex 5 axis machining or creating an undercut in mould and die machining.
- Excellent tool life and chip control.
- Solid carbide substrate for great wear resistance.
- Each insert geometry is specially designed for machining different materials.
Specifications
| Flutes | 2 |
| Helix Angle | - |
| Cutting Edge Shape | BALL NOSE |
| Size Min | R4.0 |
| Size Max | R16.5 |
| Length | Full Radius |
| Coating | Y-Coating |
Product Data
| Workpiece Material | P |
| Ball Radius Tolerance | 0.01 |
| No. Flutes | 2 |
| Operation | Facing, Profiling, Small Part |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | NG HM |
Made in South Korea
Add i-Xmill Full Radius Ball Insert for General Purpose End Mill (XMM110V) to comparison
View ComparisonVideo
Operation
Profiling
Small Part
Facing
Work Material
Carbon Steels
Excellent
Good
Great
Excellent
Alloy Steels
Excellent
Good
Great
Excellent
Prehardened Steels
Excellent
Good
Great
Excellent
