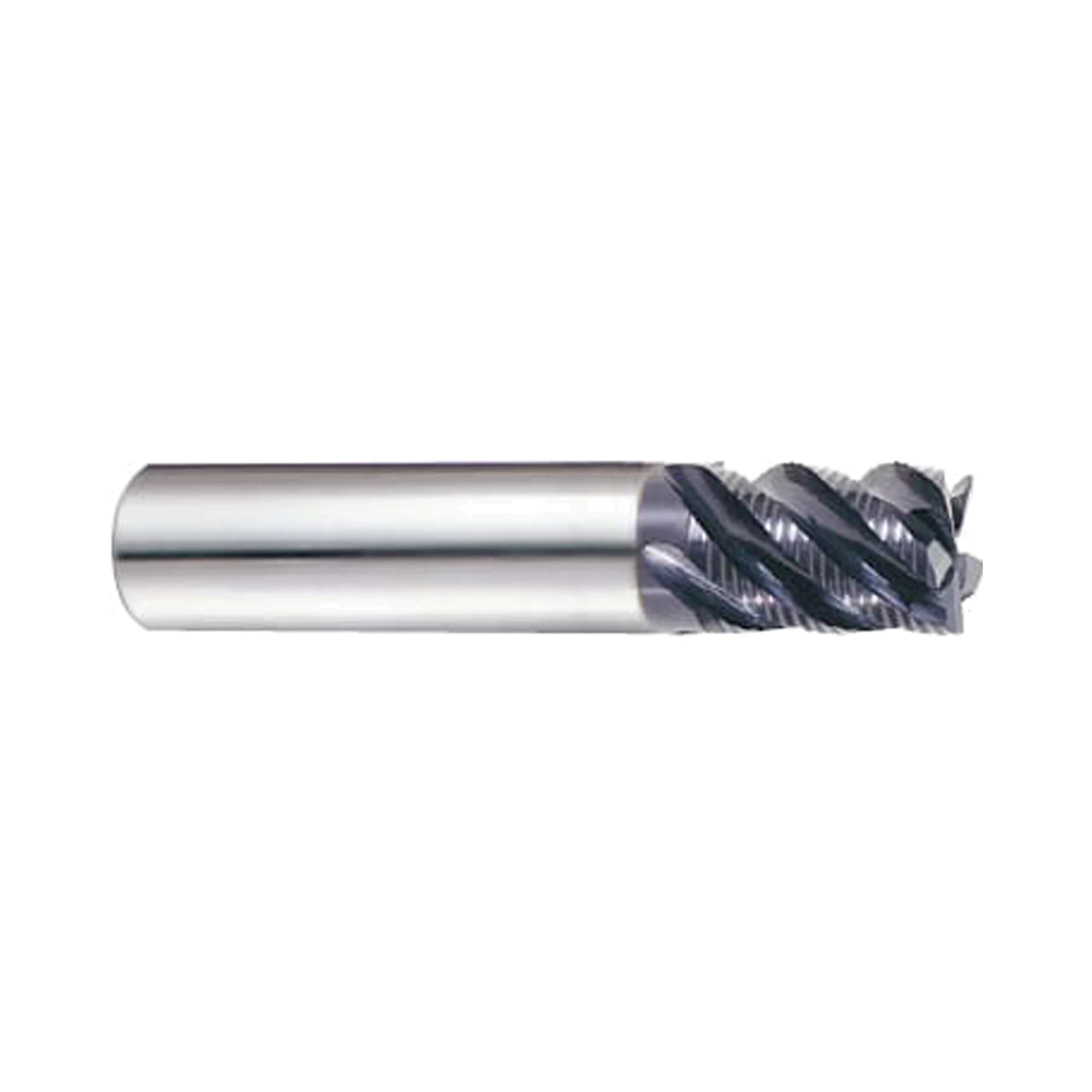

(EH917) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Plain Shank

45° Helix Short Roughing-Fine End Mill

(EH917) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Plain Shank
$72.16 INC GST $65.60 EX GST
SKU
EH917060
Work materials
PMSH

Key features

  • Carbide multi-flute 45° helix roughing-fine geometry
  • TiAlN-coated cutting tool
  • EH917 plain-shank series
Tool material Carbide
Mill Diameter (mm)
Chamfer (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Short roughing format

Short cutting lengths support compact roughing-fine milling setups.

Material-focused range

Suitable for stainless steel, titanium alloys and heat-resistant superalloys.

Matched plain shanks

Listed cutting diameters use matching plain-shank sizes.

SKUMill Diameter (mm)Chamfer (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)CAD filesStock Price Qty Add
EH9170606.00.1554.06.047.0STEPDXF In stock $65.60
EH9170808.00.1858.08.049.0STEPDXF Low stock $76.70
EH91710010.00.266.010.0414.0STEPDXF Low stock $114.60
EH91712012.00.273.012.0416.0STEPDXF Low stock $147.20

Add (EH917) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Plain Shank to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

YG-1 EH917 is a carbide multi-flute 45° helix short-length roughing-fine end mill with a plain shank. It is designed for roughing operations in stainless steel, titanium alloys and heat-resistant superalloys. The carbide tool has a TiAlN coating and is suitable for listed materials up to 45 HRc. Four flutes provide the cutting configuration throughout the available 6 to 12 mm diameter range.

The series includes 6, 8, 10 and 12 mm cutting diameters with matching plain shanks. Cutting lengths span 7 to 16 mm, while overall lengths span 54 to 73 mm. Each listed cutter includes a 0.15 to 0.20 mm chamfer. EH917 provides a short-length option for multi-flute roughing-fine milling applications.

  • Carbide multi-flute 45° helix roughing-fine geometry
  • TiAlN-coated cutting tool
  • EH917 plain-shank series
  • Four flutes on every listed variant
  • 6 to 12 mm cutting diameter range
  • Suitable for stainless steel titanium alloys and heat-resistant superalloys
Product Data
Cutting Shape Chamfer prep, Rougher
Length Short
No. Flutes 4
Tool Material Carbide

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 3–5
GoodVDI 1–2
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Superalloys & titanium

7 grades
Heat-resistant superalloys
GoodVDI 31–35
Titanium alloys
ExcellentVDI 36–37

Stainless steel

3 grades
Stainless steel
ExcellentVDI 14
GoodVDI 12–13

Hardened materials

1 grade
Chilled cast iron
GoodVDI 40
VDI grade reference22 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelGood20015
13MStainless steelGood24023
14MStainless steelExcellent18010
31SHeat-resistant superalloysGood20015
32SHeat-resistant superalloysGood28030
33SHeat-resistant superalloysGood25025
34SHeat-resistant superalloysGood35038
35SHeat-resistant superalloysGood32034
36STitanium alloysExcellent--
37STitanium alloysExcellent--
40HChilled cast ironGood40042

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
