(G9528) K-2 Carbide, 3Flute End Mill, Long Length

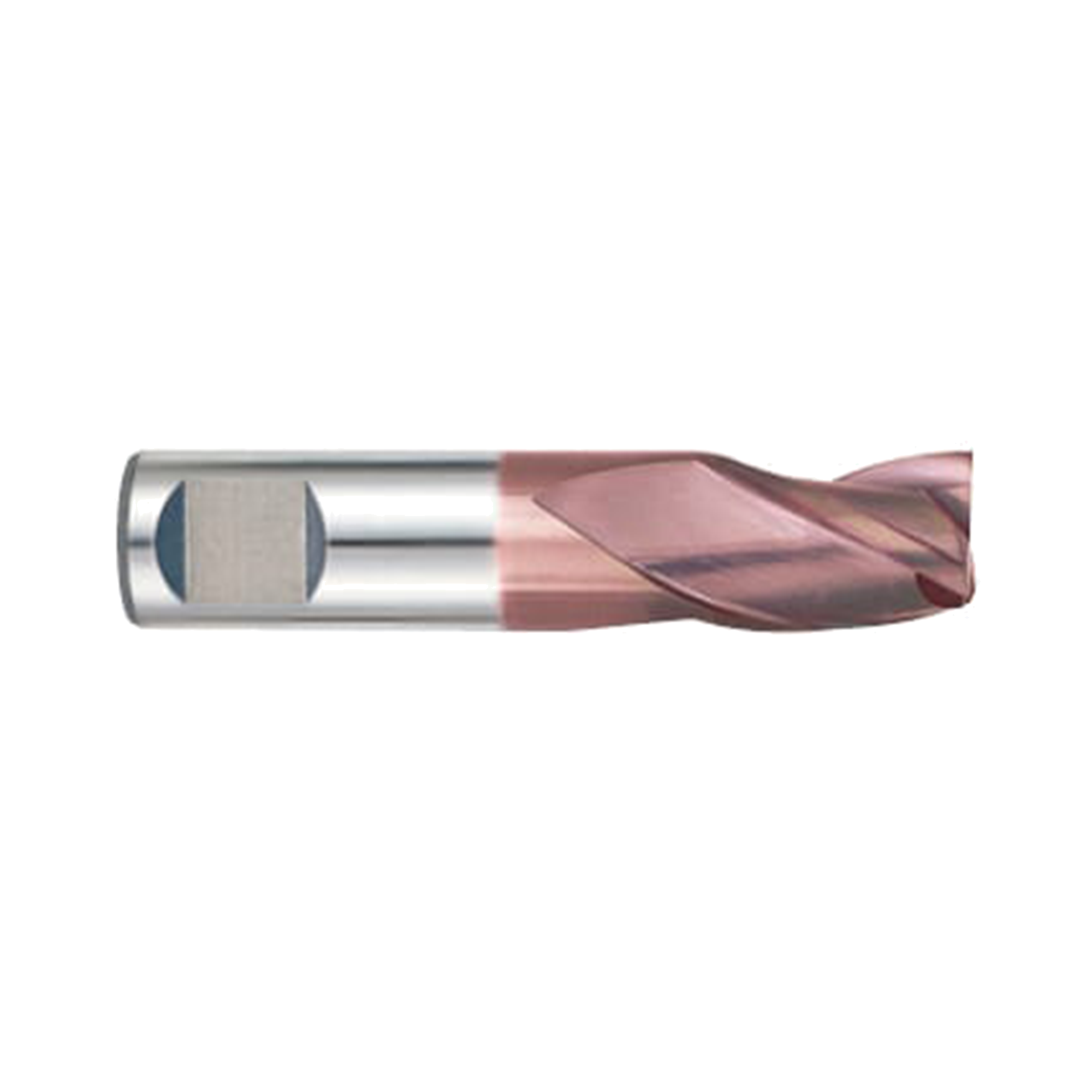

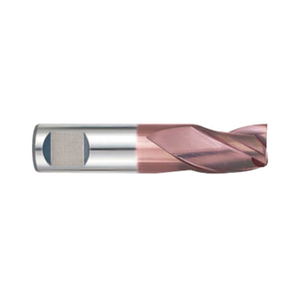

TiAlN-Coated 3 Flute Long-Length Carbide End Mill
Buy now from our online retailers:
Select your preferred distributor:

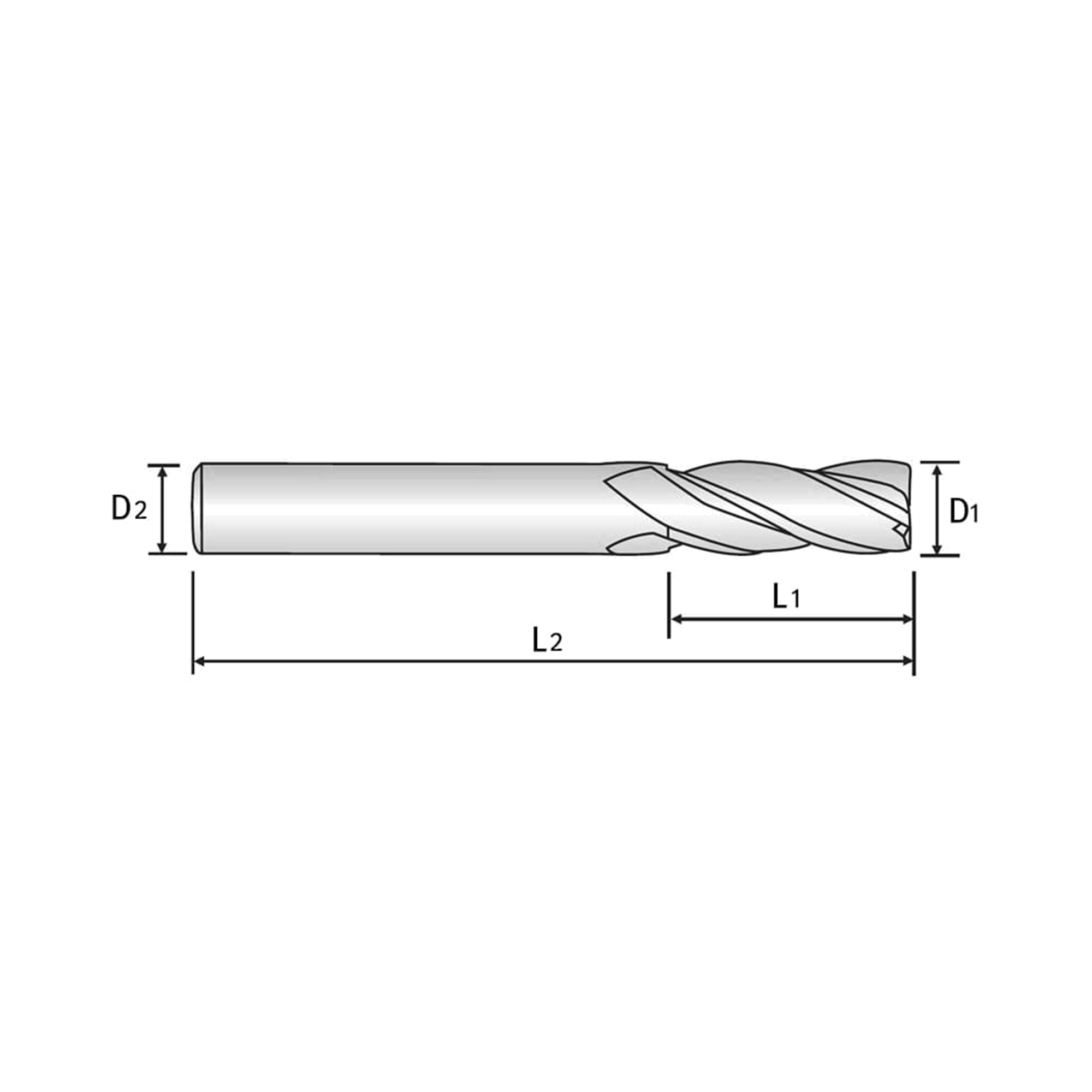

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| G9553005 | 0.5 | 38.0 | 3.0 | 1.5 | STEPDXF | 1-2 Weeks | $28.20 | ||
| G9553006 | 0.6 | 38.0 | 3.0 | 1.5 | STEPDXF | 1-2 Weeks | $28.20 | ||
| G9553008 | 0.8 | 38.0 | 3.0 | 2.0 | STEPDXF | 1-2 Weeks | $24.90 | ||
| G9553010 | 1.0 | 38.0 | 3.0 | 2.0 | STEPDXF | 1-2 Weeks | $22.60 | ||
| G9553012 | 1.2 | 38.0 | 3.0 | 2.0 | STEPDXF | 1-2 Weeks | $25.80 | ||
| G9553015 | 1.5 | 38.0 | 3.0 | 2.0 | STEPDXF | 1-2 Weeks | $22.60 | ||
| G9553018 | 1.8 | 38.0 | 3.0 | 2.0 | STEPDXF | 1-2 Weeks | $29.40 |
Add (G9553) K-2 Carbide, 3Flute End Mill, Short Length throw Away, Flat Shank to comparison
View ComparisonThe G9553/G9410 series K2 coated carbide milling cutters feature 3 flutes making them suitable for slotting & profiling applications. K2 carbide range from global market leaders YG-1 are the number 1 best selling tool for general purpose milling. Ideal for general milling steel <45HRc, stainless steel, cast iron, copper & aluminium.
| Workpiece Material | P M K S |
| Cutting Shape | Square |
| Helix Angle | 30 |
| Length | Short, Throw Away |
| No. Flutes | 3 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Shank Type | Plain YG-1 Standard |
| Surface Treatment | Titanium Aluminium Nitride Coating |
| Tool Material | Carbide |
| Flutes | 4 |
| Helix Angle | 30° |
| Cutting Edge Shape |
SQUARE
|
| Size Min | D3.5 |
| Size Max | D20.0 |
| Length |
LONG LENGTH
|
| Coating |
TiAlN
|
VDI 3323 recommendations for this tool.
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Excellent | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Excellent | 200 | 15 |
| 11 | PHigh-alloy and tool steel | Excellent | 325 | 35 |
| 12 | MStainless steel | Good | 200 | 15 |
| 13 | MStainless steel | Good | 240 | 23 |
| 14 | MStainless steel | Good | 180 | 10 |
| 15 | KGrey cast iron | Good | 180 | 10 |
| 16 | KGrey cast iron | Good | 260 | 26 |
| 17 | KNodular cast iron | Good | 160 | 3 |
| 18 | KNodular cast iron | Good | 250 | 25 |
| 19 | KMalleable cast iron | Good | 130 | - |
| 20 | KMalleable cast iron | Good | 230 | 21 |
| 21 | NWrought aluminium | Good | 60 | - |
| 22 | NWrought aluminium | Good | 100 | - |
| 23 | NCast aluminium | Good | 75 | - |
| 24 | NCast aluminium | Good | 90 | - |
| 25 | NCast aluminium | Good | 130 | - |
| 26 | NCopper, bronze and brass | Good | 110 | - |
| 27 | NCopper, bronze and brass | Good | 90 | - |
| 28 | NCopper, bronze and brass | Good | 100 | - |
| 29 | NNon-metallic materials | Good | - | - |
| 31 | SHeat-resistant superalloys | Good | 200 | 15 |
| 32 | SHeat-resistant superalloys | Good | 280 | 30 |
| 33 | SHeat-resistant superalloys | Good | 250 | 25 |
| 34 | SHeat-resistant superalloys | Good | 350 | 38 |
| 35 | SHeat-resistant superalloys | Good | 320 | 34 |
| 36 | STitanium alloys | Good | - | - |
| 37 | STitanium alloys | Good | - | - |
| 40 | HChilled cast iron | Good | 400 | 42 |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
TiAlN-Coated 3 Flute Long-Length Carbide End Mill
