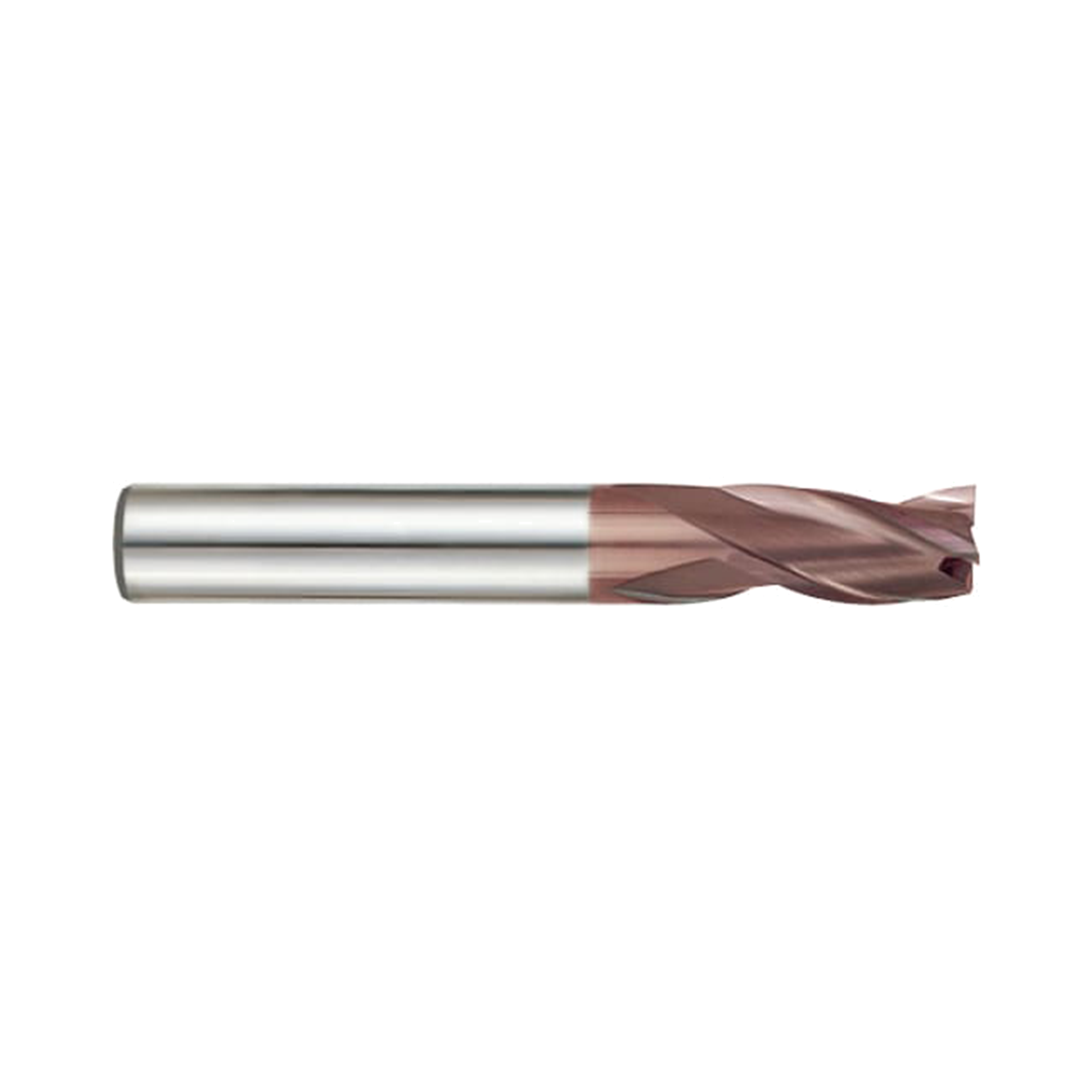

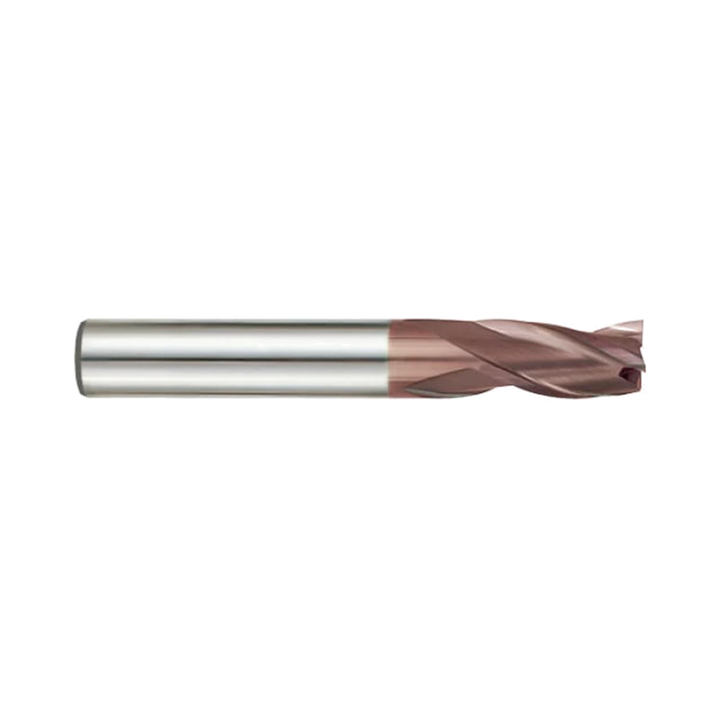

(G9528) K-2 Carbide, 3Flute End Mill, Long Length
TiAlN-Coated 3 Flute Long-Length Carbide End Mill
- SKU
- G9528035
Key features
- TiAlN-coated solid carbide construction
- Three-flute long-length end mill design
- Suitable for dry milling at high temperatures
Made in South Korea
Dry milling capability
Suitable for dry milling applications at high temperatures.
Balanced flute design
Three flutes combine the stated advantages of two-flute and four-flute end mills.
Metric long-length range
Select from 3.5 to 20 mm diameters with cutting lengths up to 32 mm.

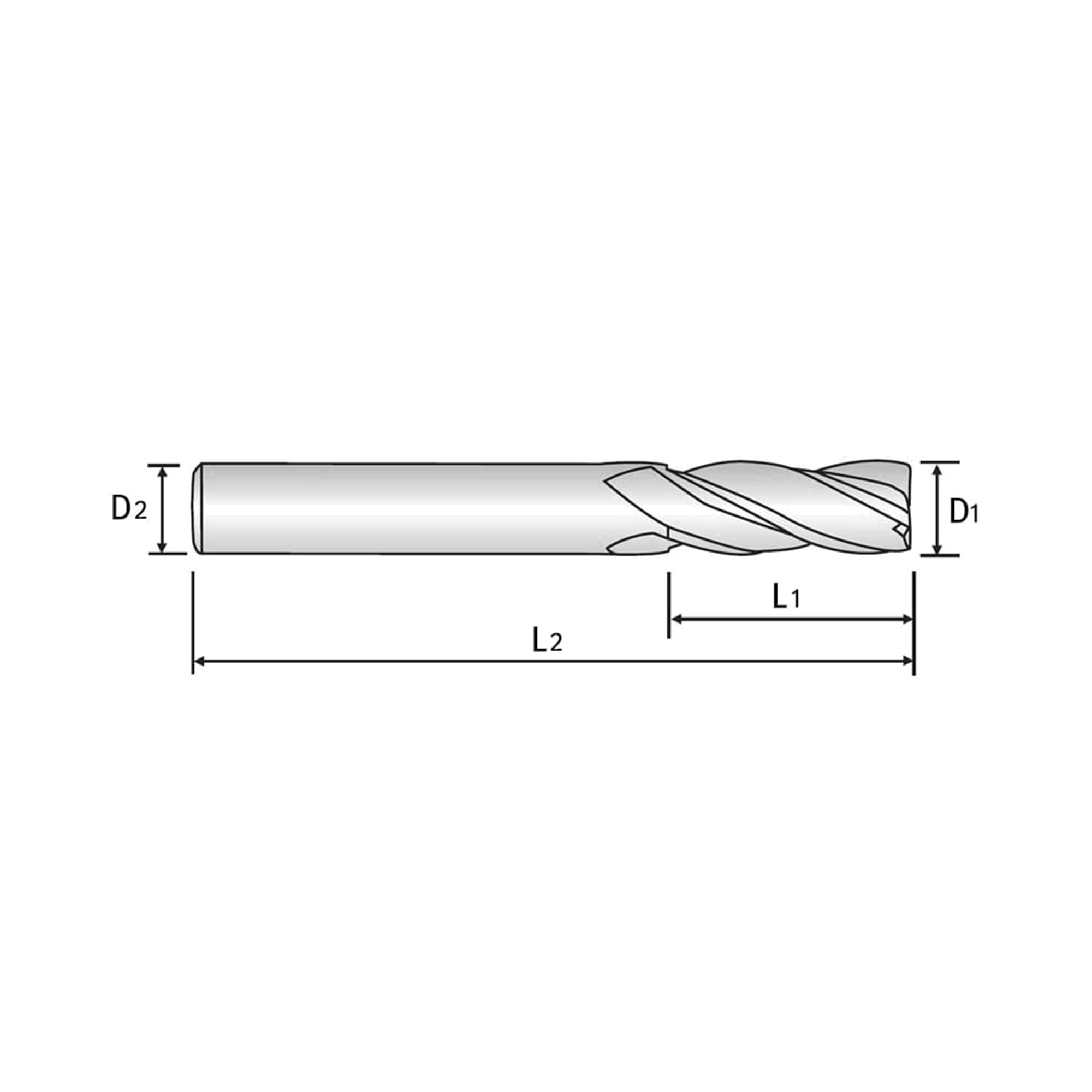

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| G9528035 | 3.5 | 50.0 | 3.5 | 7.0 | Low stock | $26.80 | ||
| G9528040 | 4 | 50.0 | 4.0 | 8.0 | 1-2 Weeks | $26.80 | ||
| G9528045 | 4.5 | 50.0 | 4.5 | 8.0 | 1-2 Weeks | $28.50 | ||
| G9528050 | 5 | 50.0 | 5.0 | 10.0 | 1-2 Weeks | $27.60 | ||
| G9528055 | 5.5 | 57.0 | 5.5 | 10.0 | 1-2 Weeks | $40.60 | ||
| G9528060 | 6 | 57.0 | 6.0 | 10.0 | In stock | $31.60 | ||
| G9528065 | 6.5 | 60.0 | 6.5 | 13.0 | In stock | $42.60 | ||
| G9528070 | 7 | 60.0 | 7.0 | 13.0 | 1-2 Weeks | $46.90 | ||
| G9528075 | 7.5 | 63.0 | 7.5 | 16.0 | 1-2 Weeks | $51.00 | ||
| G9528080 | 8 | 63.0 | 8.0 | 16.0 | Low stock | $46.30 | ||
| G9528085 | 8.5 | 67.0 | 8.5 | 16.0 | 1-2 Weeks | $73.40 | ||
| G9528090 | 9 | 67.0 | 9.0 | 16.0 | 1-2 Weeks | $73.40 | ||
| G9528095 | 9.5 | 72.0 | 9.5 | 19.0 | 1-2 Weeks | $81.20 | ||
| G9528100 | 10 | 72.0 | 10.0 | 19.0 | 1-2 Weeks | $76.60 | ||
| G9528110 | 11 | 83.0 | 11.0 | 22.0 | 1-2 Weeks | $114.00 | ||
| G9528120 | 12 | 83.0 | 12.0 | 22.0 | 1-2 Weeks | $92.60 | ||
| G9528130 | 13 | 83.0 | 13.0 | 22.0 | 1-2 Weeks | $144.30 | ||
| G9528140 | 14 | 83.0 | 14.0 | 22.0 | 1-2 Weeks | $145.20 | ||
| G9528150 | 15 | 92.0 | 15.0 | 26.0 | 1-2 Weeks | $158.70 | ||
| G9528160 | 16 | 92.0 | 16.0 | 26.0 | 1-2 Weeks | $175.00 | ||
| G9528180 | 18 | 92.0 | 18.0 | 26.0 | 1-2 Weeks | $251.30 | ||
| G9528200 | 20 | 104.0 | 20.0 | 32.0 | 1-2 Weeks | $214.50 |
Add (G9528) K-2 Carbide, 3Flute End Mill, Long Length to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 G9528 K-2 Carbide is a TiAlN-coated solid carbide, three-flute long-length end mill. Its three-flute design combines advantages attributed to two-flute and four-flute end mills. It is suitable for dry milling applications at high temperatures. The plain-shank series covers 3.5 to 20 mm milling diameters. Cutting lengths range from 7 to 32 mm, with overall lengths from 50 to 104 mm. All variants list h5 shank tolerances and zero to minus 0.03 mm mill diameter tolerances. YG-1 identifies these as excellent high-performance end mills for milling applications. Each size matches the milling diameter and shank diameter specified in the series table.
- TiAlN-coated solid carbide construction
- Three-flute long-length end mill design
- Suitable for dry milling at high temperatures
- Plain shank configuration
- 3.5 to 20 mm milling diameter range
- h5 shank tolerance with 0 to minus 0.03 mm mill diameter tolerance
No specifications available.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
