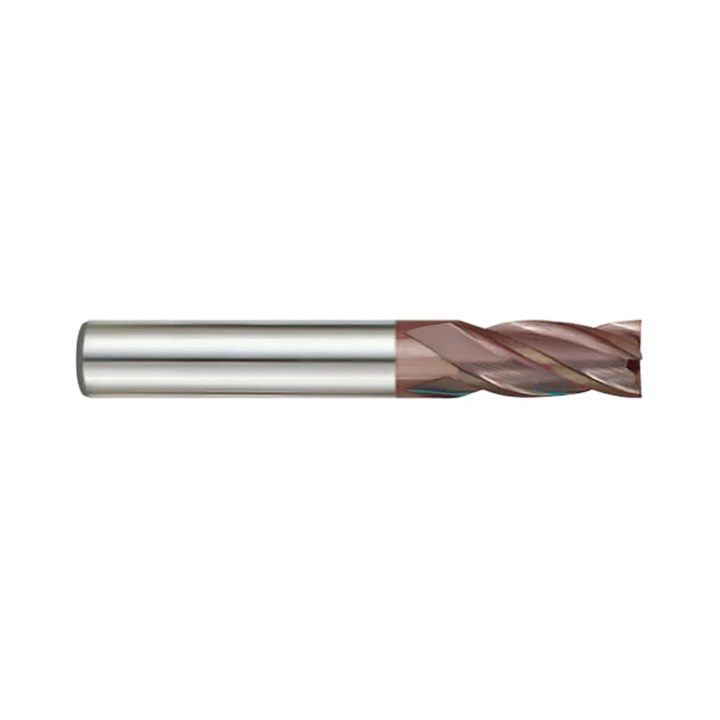

(G9A69) K-2 Carbide, 2Flute End Mill, Short Length

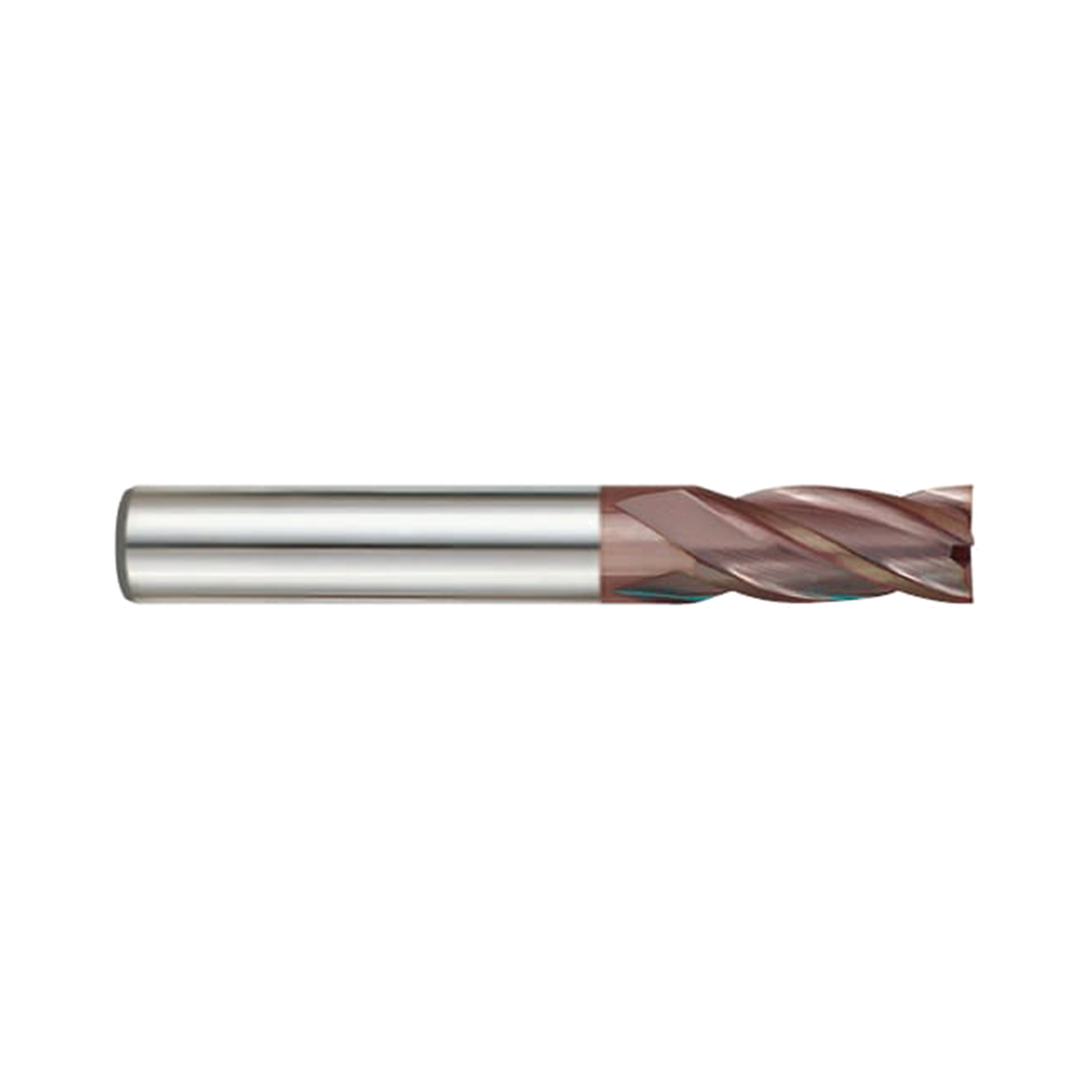

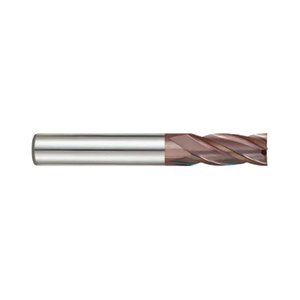

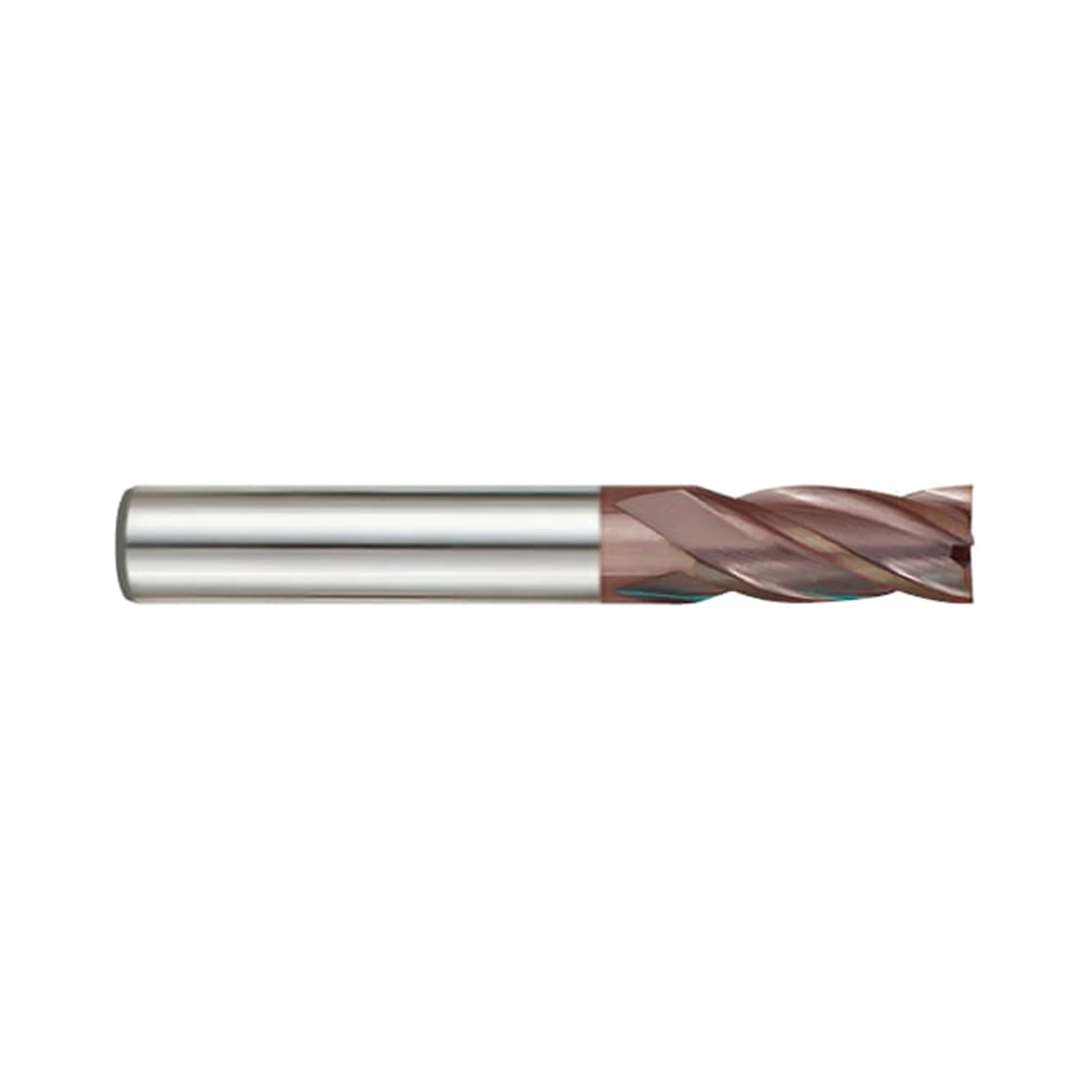

Four-Flute TiAlN-Coated Short-Length Carbide End Mill
  • $22.33INC GST $20.30 EX GST
(G9A69) K-2 Carbide, 2Flute End Mill, Short Length
(G9A69) K-2 Carbide, 2Flute End Mill, Short Length
(G9A69) K-2 Carbide, 2Flute End Mill, Short Length
(G9A69) K-2 Carbide, 2Flute End Mill, Short Length
(G9A69) K-2 Carbide, 2Flute End Mill, Short Length
(G9A69) K-2 Carbide, 2Flute End Mill, Short Length

(G9A69) K-2 Carbide, 2Flute End Mill, Short Length

Four-Flute TiAlN-Coated Short-Length Carbide End Mill
  • $22.33INC GST $20.30 EX GST

Code: G9A69010

    Key Features
  • Carbide square end mills with a TiAlN coating
  • Four-flute geometry supports improved workpiece finishes
  • Suitable for dry milling applications at high temperatures
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Dry milling capability

Suitable for dry milling applications at high temperatures.

Improved surface finish

Four flutes are designed to support better workpiece finishes.

Useful size coverage

Mill diameters from 1.0 to 20.0 mm cover common short-length milling needs.

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
G9A69010139.03.03.0 5 days $20.30
G9A690151.539.03.05.0 In stock $20.30
G9A69020239.03.07.0 5 days $20.30
G9A690252.539.03.07.0 5 days $24.40
G9A69030339.03.010.0 Low stock $20.30
G9A69040451.04.014.0 Low stock $24.90
G9A69050551.05.016.0 5 days $27.60
G9A69060664.06.019.0 Low stock $35.60
G9A69080864.08.021.0 Low stock $48.60
G9A691001070.010.022.0 Low stock $73.40
G9A691201276.012.025.0 5 days $91.70
G9A691601689.016.032.0 5 days $160.20
G9A6920020102.020.038.0 5 days $315.60

Add (G9A69) K-2 Carbide, 2Flute End Mill, Short Length to comparison

View Comparison
  • Overview
  • Specifications
  • Speeds & Feeds
  • Reviews
Product Description

YG-1 G9A69 K-2 Carbide four-flute short-length end mills combine TiAlN coating with square cutting geometry. They are designed for dry milling at high temperatures and support improved workpiece finishes. Carbide construction and a plain shank suit practical machining applications requiring compact cutter lengths. The range covers 1.0 to 20.0 mm mill diameters for common milling requirements. Matching shank diameters span 3 to 20 mm throughout the available range. Length of cut increases from 3 to 38 mm between the smallest and largest sizes. Overall lengths span 39 to 102 mm, supporting selection for short-length milling operations. This high-performance K-2 series provides a focused solution for dry milling applications.

  • Carbide square end mills with a TiAlN coating
  • Four-flute geometry supports improved workpiece finishes
  • Suitable for dry milling applications at high temperatures
  • Short-length plain-shank design
  • Mill diameter range from 1.0 to 20.0 mm
  • Length of cut range from 3 to 38 mm
Product Data

No specifications available.

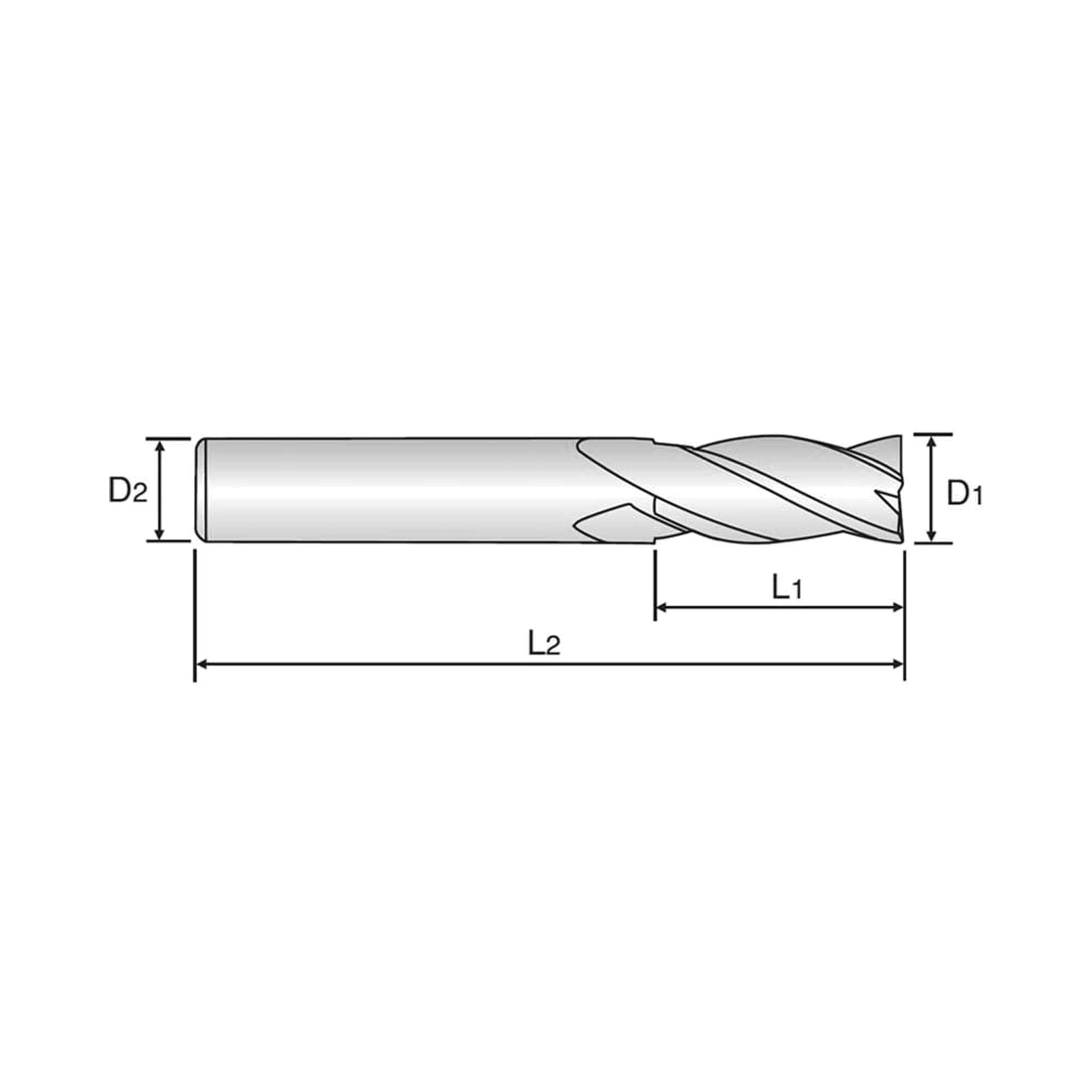

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9A69010 1 3 3 39 0~-0.030 h5 4 G9A69015 1.5 3 5 39 0~-0.030 h5 4 G9A69020 2 3 7 39 0~-0.030 h5 4 G9A69025 2.5 3 7 39 0~-0.030 h5 4 G9A69030 3 3 10 39 0~-0.030 h5 4 G9A69040 4 4 14 51 0~-0.030 h5 4 G9A69050 5 5 16 51 0~-0.030 h5 4 G9A69060 6 6 19 64 0~-0.030 h5 4 G9A69080 8 8 21 64 0~-0.030 h5 4 G9A69100 10 10 22 70 0~-0.030 h5 4 G9A69120 12 12 25 76 0~-0.030 h5 4 G9A69160 16 16 32 89 0~-0.030 h5 4 G9A69200 20 20 38 102 0~-0.030 h5 4

Speeds & Feeds

ISO VDI 3323  Material Description Ae Ap Parameter Diameter (Ø)
1.0 1.5 2.0 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 20.0
P 1-4 Non-Alloy Steel 0.1D 1.0D Vc 55 55 60 70 80 85 90 90 85 90 90 95 90
fz 0.002 0.005 0.006 0.009 0.019 0.024 0.029 0.043 0.047 0.047 0.047 0.047 0.047
RPM 17507 11671 9549 7427 6366 5411 4775 3581 2706 2387 2046 1890 1432
FEED 140 233 229 267 484 519 554 616 509 449 385 355 269
5 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
6-7 Low-Alloy Steel 0.1D 1.0D Vc 55 55 60 70 80 85 90 90 85 90 90 95 90
fz 0.002 0.005 0.006 0.009 0.019 0.024 0.029 0.043 0.047 0.047 0.047 0.047 0.047
RPM 17507 11671 9549 7427 6366 5411 4775 3581 2706 2387 2046 1890 1432
FEED 140 233 229 267 484 519 554 616 509 449 385 355 269
8-9 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
10 High-Alloyed Steel, and Tool Steel 0.1D 1.0D Vc 55 55 60 70 80 85 90 90 85 90 90 95 90
fz 0.002 0.005 0.006 0.009 0.019 0.024 0.029 0.043 0.047 0.047 0.047 0.047 0.047
RPM 17507 11671 9549 7427 6366 5411 4775 3581 2706 2387 2046 1890 1432
FEED 140 233 229 267 484 519 554 616 509 449 385 355 269
11.1-11.2 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
M 14.1 Stainless steel 0.1D 1.0D Vc 25 35 35 35 40 40 45 45 45 45 45 50 45
fz 0.002 0.004 0.006 0.009 0.018 0.024 0.020 0.042 0.044 0.045 0.045 0.045 0.046
RPM 7958 7427 5570 3714 3183 2546 2387 1790 1432 1194 1023 895 716
FEED 64 119 134 134 229 244 277 301 252 215 184 179 132
K 15-20 Grey cast iron Nodular cast iron Malleable cast iron 0.1D 1.5D Vc 60 55 60 55 60 55 55 55 60 55 55 55 55
fz 0.008 0.013 0.017 0.026 0.035 0.044 0.065 0.093 0.116 0.155 0.182 0.22 0.288
RPM 19099 11671 9549 5836 4775 3501 2918 2188 1910 1459 1251 1094 875
FEED 611 607 649 607 668 616 759 814 886 905 910 963 1008
N 21~22 Aluminum-wrought alloy 0.1D 1.5D Vc 140 130 140 145 140 145 145 145 145 140 145 145 140
fz 0.006 0.011 0.015 0.021 0.03 0.036 0.047 0.063 0.078 0.095 0.108 0.125 0.163
RPM 44563 27587 22282 15385 11141 9231 7692 5769 4615 3714 3297 2885 2228
FEED 1070 1214 1337 1292 1337 1329 1446 1454 1440 1411 1424 1442 1453
23~25 Aluminum-cast,alloyed 0.1D 1.5D Vc 140 130 140 145 140 145 145 145 145 140 145 145 140
fz 0.006 0.011 0.015 0.021 0.03 0.036 0.047 0.063 0.078 0.095 0.108 0.125 0.163
RPM 44563 27587 22282 15385 11141 9231 7692 5769 4615 3714 3297 2885 2228
FEED 1070 1214 1337 1292 1337 1329 1446 1454 1440 1411 1424 1442 1453
26-28 Copper Alloys (Bronze / Brass) 0.1D 1.5D Vc 80 95 105 105 110 105 105 110 105 105 105 110 105
fz 0.006 0.011 0.016 0.024 0.029 0.038 0.048 0.063 0.081 0.096 0.115 0.125 0.162
RPM 25465 20160 16711 11141 8754 6685 5570 4377 3342 2785 2387 2188 1671
FEED 611 887 1070 1070 1015 1016 1070 1103 1083 1070 1098 1094 1083
29.1 Non Metallic Materials 1.0D 1.5D Vc 80 95 105 105 110 105 105 110 105 105 105 110 105
fz 0.006 0.011 0.016 0.024 0.029 0.038 0.048 0.063 0.081 0.096 0.115 0.125 0.162
RPM 25465 20160 16711 11141 8754 6685 5570 4377 3342 2785 2387 2188 1671
FEED 611 887 1070 1070 1015 1016 1070 1103 1083 1070 1098 1094 1083
H 40 Chilled Cast Iron 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9A69010 1 3 3 39 0~-0.030 h5 4 G9A69015 1.5 3 5 39 0~-0.030 h5 4 G9A69020 2 3 7 39 0~-0.030 h5 4 G9A69025 2.5 3 7 39 0~-0.030 h5 4 G9A69030 3 3 10 39 0~-0.030 h5 4 G9A69040 4 4 14 51 0~-0.030 h5 4 G9A69050 5 5 16 51 0~-0.030 h5 4 G9A69060 6 6 19 64 0~-0.030 h5 4 G9A69080 8 8 21 64 0~-0.030 h5 4 G9A69100 10 10 22 70 0~-0.030 h5 4 G9A69120 12 12 25 76 0~-0.030 h5 4 G9A69160 16 16 32 89 0~-0.030 h5 4 G9A69200 20 20 38 102 0~-0.030 h5 4
