(G9F45) K-2 Carbide, 4&6 Flute End Mill, Short Length, 45° Helix Angle

TiAIN-Coated 45° Helix Short-Length End Mill

(G9F45) K-2 Carbide, 4&6 Flute End Mill, Short Length, 45° Helix Angle
$0.00 INC GST $0.00 EX GST Price available on request
SKU
GF945030
Work materials
PKH

Key features

  • TiAIN-coated solid carbide construction
  • 45° helix angle
  • Short-length end mill design
Tool material Carbide
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Dry milling capability

TiAIN coating supports dry milling applications at high temperatures.

Selected multi-flute geometry

Four- and six-flute options match the supplied diameter selection.

Short-length range

Selected 3 mm to 20 mm diameters cover compact and larger milling requirements.

SKUMill Diameter (mm)Overall length (mm)FlutesLength of cut (mm)Stock Price Qty Add
GF9450303.050.048.0 1-2 Weeks -
GF9450404.050.0411.0 1-2 Weeks -
GF9450505.050.0613.0 1-2 Weeks -
GF9450606.050.0616.0 1-2 Weeks -
GF94510010.075.0622.0 1-2 Weeks -
GF94512012.075.0626.0 1-2 Weeks -
GF94516016.0100.0632.0 1-2 Weeks -
GF94518018.0100.0638.0 1-2 Weeks -
GF94520020.0100.0638.0 1-2 Weeks -

Add (G9F45) K-2 Carbide, 4&6 Flute End Mill, Short Length, 45° Helix Angle to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

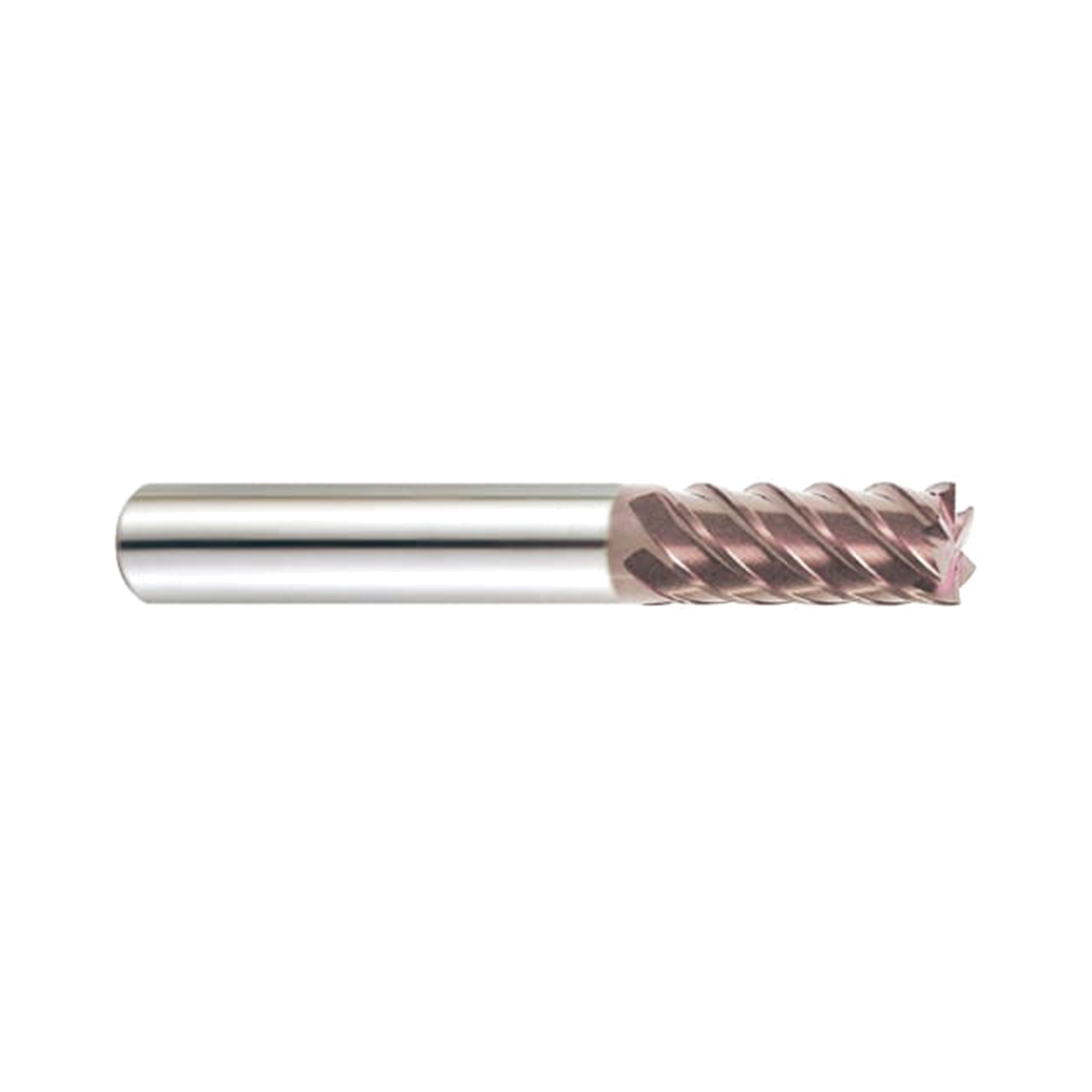

YG-1 G9F45 K-2 is a TiAIN-coated solid carbide short-length end mill with a 45° helix. It provides four or six flutes for dry milling applications at high temperatures. The plain-shank design suits standard milling toolholding arrangements in practical workshop environments. This short-length end mill family is offered in selected diameters from 3 to 20 mm. The 3 mm and 4 mm cutters use four flutes for compact machining requirements. Larger supplied sizes from 5 mm to 20 mm use six-flute cutter geometry. TiAIN coating supports applications where dry milling generates elevated cutting temperatures. Solid carbide construction provides the material platform specified throughout the G9F45 range. Choose G9F45 tools where a short-length, 45° helix carbide end mill is required.

  • TiAIN-coated solid carbide construction
  • 45° helix angle
  • Short-length end mill design
  • Four flutes in 3 mm and 4 mm sizes
  • Six flutes in supplied 5 mm to 20 mm sizes
  • Plain shank mounting format
Product Data
Tool Material Carbide
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9F45030 3 4 8 50 0~-0.030 h5 4 G9F45040 4 4 11 50 0~-0.030 h5 4 G9F45050 5 6 13 50 0~-0.030 h5 6 G9F45060 6 6 16 50 0~-0.030 h5 6 G9F45080 8 8 19 60 0~-0.030 h5 6 G9F45100 10 10 22 75 0~-0.030 h5 6 G9F45120 12 12 26 75 0~-0.030 h5 6 G9F45140 14 14 30 90 0~-0.030 h5 6 G9F45160 16 16 32 100 0~-0.030 h5 6 G9F45180 18 18 38 100 0~-0.030 h5 6 G9F45200 20 20 38 100 0~-0.030 h5 6

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
GoodVDI 1–5
Low-alloy steel
ExcellentVDI 9
GoodVDI 6–8
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Hardened materials

4 grades
Hardened steel
GoodVDI 38–39
Chilled cast iron
GoodVDI 40
Hardened cast iron
GoodVDI 41

Cast iron

6 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17–18
Malleable cast iron
GoodVDI 19–20
VDI grade reference21 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelGood25025
4PNon-alloy steelGood27028
5PNon-alloy steelGood30032
6PLow-alloy steelGood18010
7PLow-alloy steelGood27529
8PLow-alloy steelGood30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
18KNodular cast ironGood25025
19KMalleable cast ironGood130-
20KMalleable cast ironGood23021
38HHardened steelGood55055
39HHardened steelGood63060
40HChilled cast ironGood40042
41HHardened cast ironGood55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for (G9F45) K-2 Carbide, 4&6 Flute End Mill, Short Length, 45° Helix Angle

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9F45030 3 4 8 50 0~-0.030 h5 4 G9F45040 4 4 11 50 0~-0.030 h5 4 G9F45050 5 6 13 50 0~-0.030 h5 6 G9F45060 6 6 16 50 0~-0.030 h5 6 G9F45080 8 8 19 60 0~-0.030 h5 6 G9F45100 10 10 22 75 0~-0.030 h5 6 G9F45120 12 12 26 75 0~-0.030 h5 6 G9F45140 14 14 30 90 0~-0.030 h5 6 G9F45160 16 16 32 100 0~-0.030 h5 6 G9F45180 18 18 38 100 0~-0.030 h5 6 G9F45200 20 20 38 100 0~-0.030 h5 6
