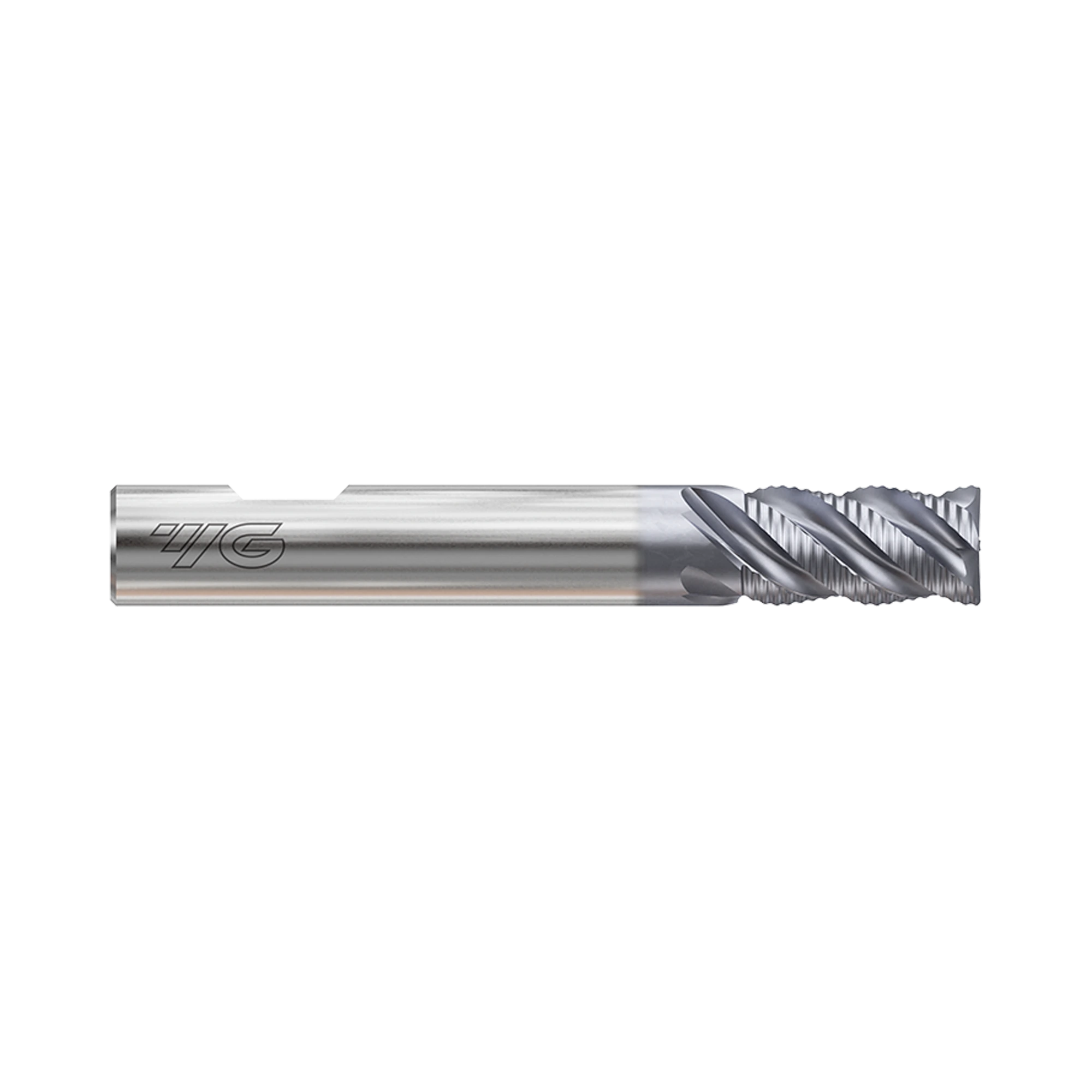

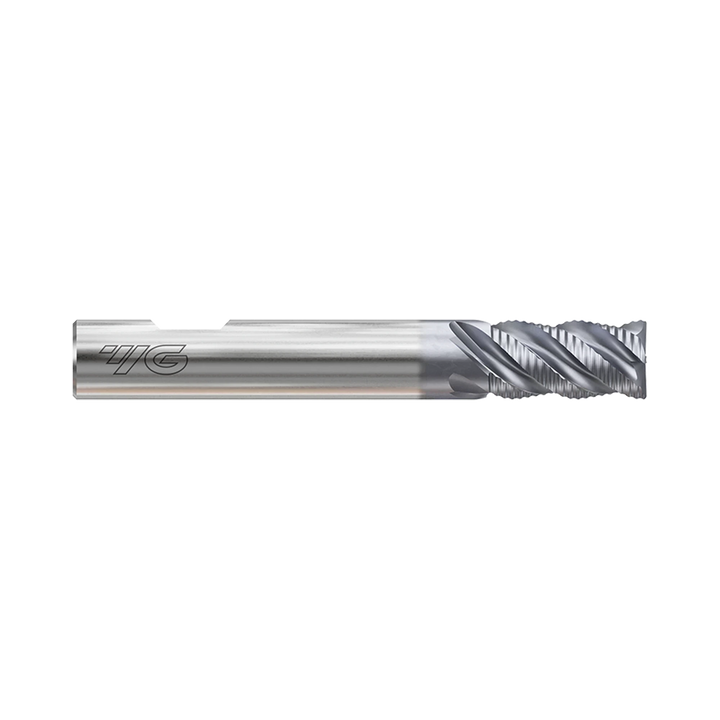

(GYF95) HSS-PM, Only One Multi Flute, Multiple Helix Corner Radius Coated Roughing End Mill, Short L
Coated PM60 multiple-helix corner-radius roughing end mill
- SKU
- GYF95060
Key features
- Coated PM60 multiple-helix corner-radius roughing end mill
- Centre-cutting fine roughing geometry
- Short-length flat-shank construction
Made in South Korea
Fine roughing profile
Fine roughing geometry supports controlled material removal in short-length milling operations.
Centre-cutting design
Centre-cutting geometry supports milling applications requiring direct tool entry.
Defined corner radii
R0.5 and R1.0 options provide radiused cutting edges across the available size range.
| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Length below shank (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GYF95060 | 6 | R0.5 | 57.0 | 6.0 | 4 | 13.0 | - | 1-2 Weeks | $59.80 | ||
| GYF95070 | 7 | R0.5 | 66.0 | 10.0 | 4 | 16.0 | - | 1-2 Weeks | $67.90 | ||
| GYF95080 | 8 | R0.5 | 69.0 | 10.0 | 4 | 19.0 | - | 1-2 Weeks | $67.90 | ||
| GYF95090 | 9 | R0.5 | 69.0 | 10.0 | 4 | 19.0 | - | 1-2 Weeks | $72.50 | ||
| GYF95100 | 10 | R0.5 | 72.0 | 10.0 | 4 | 22.0 | 31.0 | 1-2 Weeks | $72.50 | ||
| GYF95120 | 12 | R0.5 | 83.0 | 12.0 | 4 | 26.0 | 37.0 | 1-2 Weeks | $99.00 | ||
| GYF95140 | 14 | R1.0 | 83.0 | 12.0 | 5 | 26.0 | - | 1-2 Weeks | $118.70 | ||
| GYF95160 | 16 | R1.0 | 92.0 | 16.0 | 5 | 32.0 | 44.0 | 1-2 Weeks | $148.20 | ||
| GYF95180 | 18 | R1.0 | 92.0 | 16.0 | 5 | 32.0 | - | 1-2 Weeks | $160.60 | ||
| GYF95200 | 20 | R1.0 | 104.0 | 20.0 | 5 | 38.0 | 54.0 | 1-2 Weeks | $212.70 | ||
| GYF95250 | 25 | R1.0 | 121.0 | 25.0 | 5 | 45.0 | 63.0 | 1-2 Weeks | $318.70 |
Add (GYF95) HSS-PM, Only One Multi Flute, Multiple Helix Corner Radius Coated Roughing End Mill, Short L to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GYF95 is a coated PM60 multiple-helix corner-radius roughing end mill with short length. Its centre-cutting geometry and fine roughing form support short-length milling where radiused edges are required. The flat-shank range combines four-flute tools from 6 to 12 mm. Five-flute options cover 14 to 25 mm diameters for larger milling requirements. Corner radii are R0.5 on 6 to 12 mm tools. R1.0 radii are supplied on 14 to 25 mm tools. Lengths of cut extend from 13 to 45 mm, with overall lengths from 57 to 121 mm. Multiple-helix geometry distinguishes this series within the coated PM60 roughing end mill range.
- Coated PM60 multiple-helix corner-radius roughing end mill
- Centre-cutting fine roughing geometry
- Short-length flat-shank construction
- Four flutes from 6 to 12 mm diameters
- Five flutes from 14 to 25 mm diameters
- R0.5 and R1.0 corner-radius options
No specifications available.
