(GMF54) V7 Plus Carbide, 4Flute Multi Helix Corner Radius End Mill, Short length, Plain Shank

Short-Length Four-Flute Corner Radius End Mill

(GMF54) V7 Plus Carbide, 4Flute Multi Helix Corner Radius End Mill, Short length, Plain Shank
$73.04 INC GST $66.40 EX GST
SKU
GMF54030
Work materials
PMKS

Key features

  • Solid carbide four-flute corner radius end mill
  • 35°/37° multiple helix and special flute geometry
  • Y-Coating for stainless steels mild steels and cast iron
Mill Diameter (mm)
Corner Radius (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Vibration-Controlled Geometry

Multiple helix and special flute geometry are designed to eliminate vibration during milling.

Supported Material Range

Y-Coating supports machining stainless steels, mild steels, cast iron and materials below HRc40.

Compact Corner Radius Range

Short-length plain-shank options cover 3 to 20 mm diameters and R0.3 to R1.0 radii.

SKUMill Diameter (mm)Corner Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
GMF540303.0R0.354.06.07.0 In stock $66.40
GMF540404.0R0.354.06.08.0 1-2 Weeks $66.40
GMF540505.0R0.354.06.010.0 1-2 Weeks $66.40
GMF540606.0R0.354.06.010.0 1-2 Weeks $66.40
GMF5410010.0R0.566.010.014.0 1-2 Weeks $135.60
GMF5412012.0R0.573.012.016.0 1-2 Weeks $174.90
GMF5414014.0R0.575.014.018.0 1-2 Weeks $231.10
GMF5416016.0R1.082.016.022.0 1-2 Weeks $294.90
GMF5418018.0R1.084.018.024.0 1-2 Weeks $435.40
GMF5420020.0R1.092.020.026.0 1-2 Weeks $440.60

Add (GMF54) V7 Plus Carbide, 4Flute Multi Helix Corner Radius End Mill, Short length, Plain Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

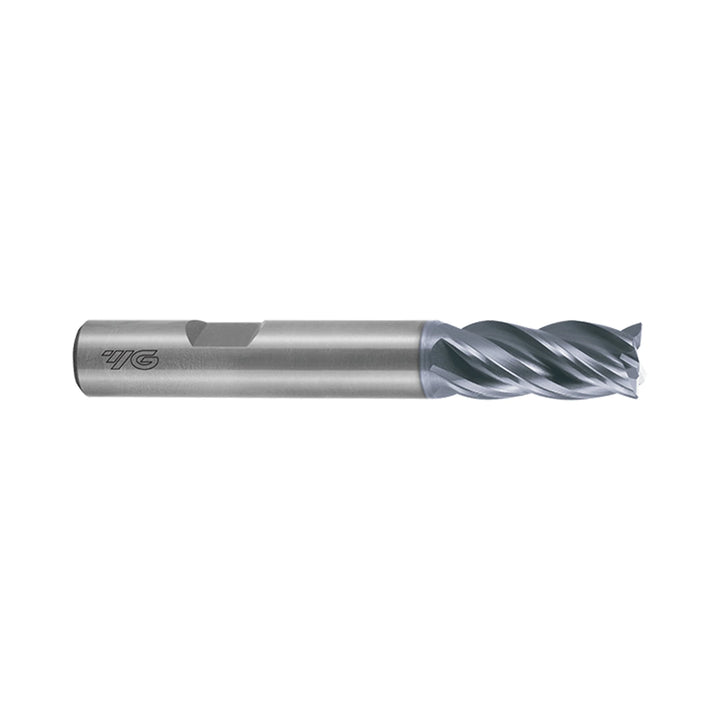

YG-1 GMF54 V7 Plus is a solid carbide four-flute corner radius end mill with a short length. Its 35°/37° multiple helix and special flute geometry are designed to eliminate vibration during milling. Y-Coating supports machining stainless steels, mild steels, cast iron and low-to-medium hardness materials below HRc40. The plain-shank range covers 3 to 20 mm mill diameters and R0.3 to R1.0 corner radii. Listed cutting lengths extend from 7 to 26 mm, with overall lengths from 54 to 92 mm. Short cutting lengths provide a compact tool format for stable general milling work. Four flutes combine with the corner radius profile for controlled milling in supported materials.

  • Solid carbide four-flute corner radius end mill
  • 35°/37° multiple helix and special flute geometry
  • Y-Coating for stainless steels mild steels and cast iron
  • Suitable for low-to-medium hardness materials below HRc40
  • Short-length plain-shank design for stable milling
  • 3 to 20 mm diameters with R0.3 to R1.0 corner radii
Product Data
Cutting Shape Corner Radius
Length Short
No. Flutes 4
EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMF54030 R0.30 3 6 7 54 0~-0.02 h5 4 GMF54030 R0.30 3 6 7 54 0~-0.030 h5 4 GMF54040 R0.30 4 6 8 54 0~-0.02 h5 4 GMF54040 R0.30 4 6 8 54 0~-0.030 h5 4 GMF54050 R0.30 5 6 10 54 0~-0.02 h5 4 GMF54050 R0.30 5 6 10 54 0~-0.030 h5 4 GMF54060 R0.30 6 6 10 54 0~-0.02 h5 4 GMF54060 R0.30 6 6 10 54 0~-0.030 h5 4 GMF54080 R0.50 8 8 12 58 0~-0.02 h5 4 GMF54080 R0.50 8 8 12 58 0~-0.030 h5 4 GMF54100 R0.50 10 10 14 66 0~-0.02 h5 4 GMF54100 R0.50 10 10 14 66 0~-0.030 h5 4 GMF54120 R0.50 12 12 16 73 0~-0.02 h6 4 GMF54120 R0.50 12 12 16 73 0~-0.030 h6 4 GMF54140 R0.50 14 14 18 75 0~-0.030 h6 4 GMF54200 R1.0 20 20 26 92 0~-0.030 h6 4 GMF54901 R0.50 3 6 7 54 0~-0.02 h5 4 GMF54901 R0.50 3 6 7 54 0~-0.030 h5 4 GMF54902 R0.50 4 6 8 54 0~-0.02 h5 4 GMF54902 R0.50 4 6 8 54 0~-0.030 h5 4 GMF54904 R0.50 6 6 10 54 0~-0.02 h5 4 GMF54904 R0.50 6 6 10 54 0~-0.030 h5 4 GMF54906 R1.0 8 8 12 58 0~-0.02 h5 4 GMF54906 R1.0 8 8 12 58 0~-0.030 h5 4 GMF54909 R2.0 12 12 16 73 0~-0.02 h6 4 GMF54909 R2.0 12 12 16 73 0~-0.030 h6 4 GMF54912 R2.0 16 16 22 82 0~-0.030 h6 4 GMF54913 R3.0 16 16 22 82 0~-0.030 h6 4 GMF54916 R2.0 20 20 26 92 0~-0.030 h6 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 1–5
Low-alloy steel
ExcellentVDI 6–9
High-alloy and tool steel
ExcellentVDI 10–11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18
Malleable cast iron
ExcellentVDI 19–20

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Superalloys & titanium

7 grades
Heat-resistant superalloys
GoodVDI 31–35
Titanium alloys
GoodVDI 36–37
VDI grade reference27 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironExcellent23021
31SHeat-resistant superalloysGood20015
32SHeat-resistant superalloysGood28030
33SHeat-resistant superalloysGood25025
34SHeat-resistant superalloysGood35038
35SHeat-resistant superalloysGood32034
36STitanium alloysGood--
37STitanium alloysGood--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for (GMF54) V7 Plus Carbide, 4Flute Multi Helix Corner Radius End Mill, Short length, Plain Shank

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMF54030 R0.30 3 6 7 54 0~-0.02 h5 4 GMF54030 R0.30 3 6 7 54 0~-0.030 h5 4 GMF54040 R0.30 4 6 8 54 0~-0.02 h5 4 GMF54040 R0.30 4 6 8 54 0~-0.030 h5 4 GMF54050 R0.30 5 6 10 54 0~-0.02 h5 4 GMF54050 R0.30 5 6 10 54 0~-0.030 h5 4 GMF54060 R0.30 6 6 10 54 0~-0.02 h5 4 GMF54060 R0.30 6 6 10 54 0~-0.030 h5 4 GMF54080 R0.50 8 8 12 58 0~-0.02 h5 4 GMF54080 R0.50 8 8 12 58 0~-0.030 h5 4 GMF54100 R0.50 10 10 14 66 0~-0.02 h5 4 GMF54100 R0.50 10 10 14 66 0~-0.030 h5 4 GMF54120 R0.50 12 12 16 73 0~-0.02 h6 4 GMF54120 R0.50 12 12 16 73 0~-0.030 h6 4 GMF54140 R0.50 14 14 18 75 0~-0.030 h6 4 GMF54200 R1.0 20 20 26 92 0~-0.030 h6 4 GMF54901 R0.50 3 6 7 54 0~-0.02 h5 4 GMF54901 R0.50 3 6 7 54 0~-0.030 h5 4 GMF54902 R0.50 4 6 8 54 0~-0.02 h5 4 GMF54902 R0.50 4 6 8 54 0~-0.030 h5 4 GMF54904 R0.50 6 6 10 54 0~-0.02 h5 4 GMF54904 R0.50 6 6 10 54 0~-0.030 h5 4 GMF54906 R1.0 8 8 12 58 0~-0.02 h5 4 GMF54906 R1.0 8 8 12 58 0~-0.030 h5 4 GMF54909 R2.0 12 12 16 73 0~-0.02 h6 4 GMF54909 R2.0 12 12 16 73 0~-0.030 h6 4 GMF54912 R2.0 16 16 22 82 0~-0.030 h6 4 GMF54913 R3.0 16 16 22 82 0~-0.030 h6 4 GMF54916 R2.0 20 20 26 92 0~-0.030 h6 4
