(GMG17) V7 Plus Carbide, 4Flute Corner Radius End Mill, Long length, Flat Shank

Six-Flute Corner Radius End Mill with Flat Shank

(GMG17) V7 Plus Carbide, 4Flute Corner Radius End Mill, Long length, Flat Shank
$92.29 INC GST $83.90 EX GST
SKU
GMG17060
Work materials
PMKS

Key features

  • Solid carbide six-flute corner radius end mill
  • Variable-pitch geometry for chatter-free high-speed and trochoidal milling
  • Plain flat shank design
Mill Diameter (mm)
Corner Radius (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Chatter-free geometry

Variable pitch supports high-speed and trochoidal milling with reduced chatter.

Corner radius profile

Corner radii provide the specified edge form for milling applications.

Long-reach family

Select from 6 to 25 mm diameters with extended cutting lengths.

SKUMill Diameter (mm)Corner Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
GMG170606.0R0.557.06.013.0 1-2 Weeks $83.90
GMG170808.0R0.563.08.019.0 1-2 Weeks $116.60
GMG1710010.0R0.572.010.022.0 1-2 Weeks $183.70
GMG1712012.0R0.583.012.026.0 1-2 Weeks $220.90
GMG1716016.0R1.092.016.032.0 1-2 Weeks $382.40
GMG1720020.0R1.0104.020.038.0 1-2 Weeks $686.30
GMG1725025.0R1.0104.025.044.0 1-2 Weeks $965.90

Add (GMG17) V7 Plus Carbide, 4Flute Corner Radius End Mill, Long length, Flat Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

YG-1 GMG17 V7 Plus is a solid carbide six-flute corner radius end mill with a flat shank. Its variable-pitch geometry supports chatter-free high-speed and trochoidal milling in suitable machining conditions. This long-length cutter is intended for stainless steels, mild steels, cast iron and materials below HRc40. The selected family spans 6 to 25 mm cutting diameters. Corner radii are R0.5 on 6–12 mm tools and R1.0 on 16–25 mm tools. Long cutting lengths range from 13 to 44 mm, with overall lengths of 57 to 104 mm. Use it for high-speed milling and trochoidal toolpaths where a corner radius is required.

  • Solid carbide six-flute corner radius end mill
  • Variable-pitch geometry for chatter-free high-speed and trochoidal milling
  • Plain flat shank design
  • Suitable for stainless steels mild steels and cast iron
  • Suitable for materials below HRc40
  • 6 to 25 mm cutting diameter range with R0.5 or R1.0 corner radii
Product Data
Cutting Shape Corner Radius
Length Long

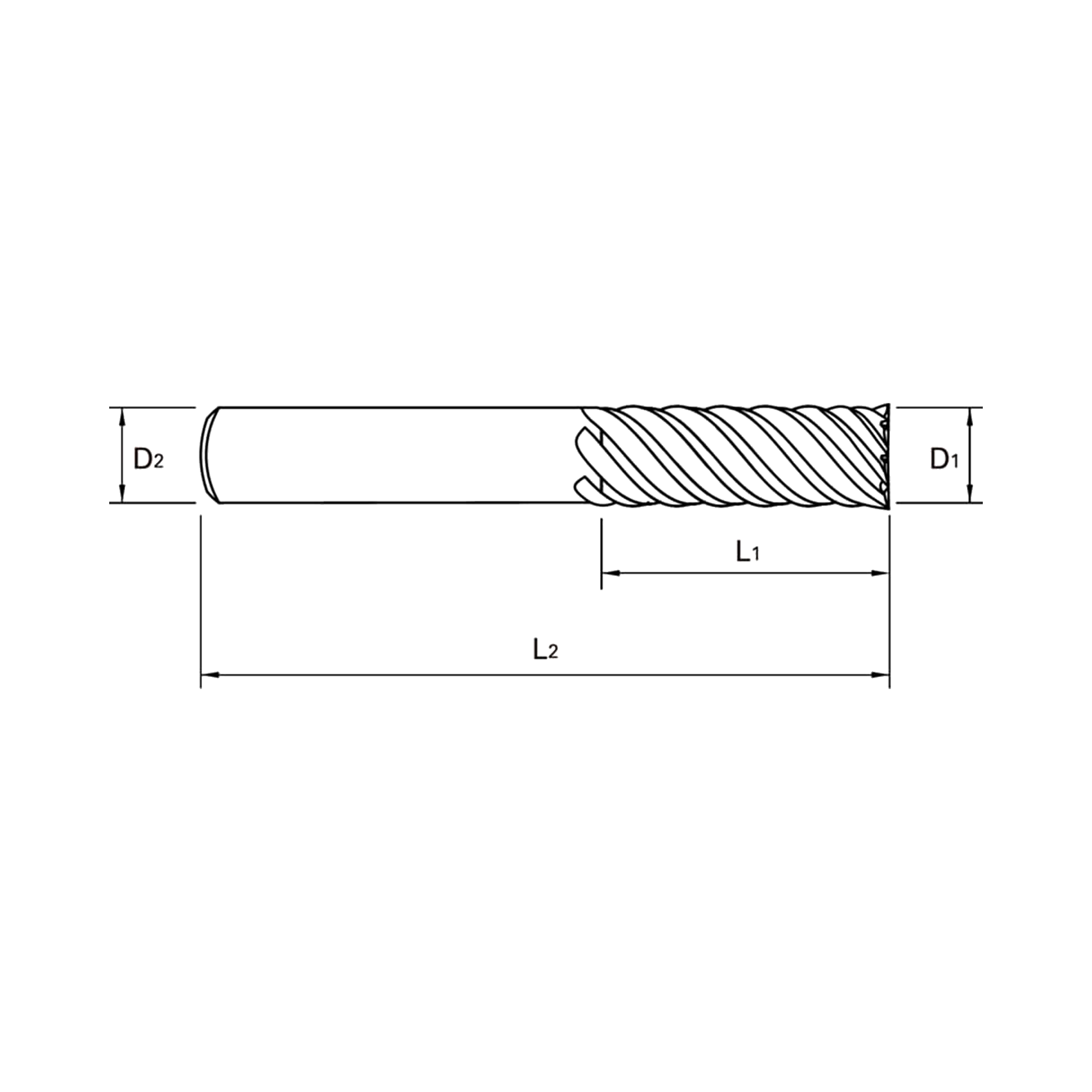

EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMG17060 R0.50 6 6 13 57 0~-0.02 h5 6 GMG17060 R0.50 6 6 13 57 0~-0.030 h5 6 GMG17080 R0.50 8 8 19 63 0~-0.02 h5 6 GMG17080 R0.50 8 8 19 63 0~-0.030 h5 6 GMG17100 R0.50 10 10 22 72 0~-0.02 h5 6 GMG17100 R0.50 10 10 22 72 0~-0.030 h5 6 GMG17120 R0.50 12 12 26 83 0~-0.02 h6 6 GMG17120 R0.50 12 12 26 83 0~-0.030 h6 6 GMG17160 R1.0 16 16 32 92 0~-0.030 h6 6 GMG17200 R1.0 20 20 38 104 0~-0.030 h6 6 GMG17250 R1.0 25 25 44 104 0~-0.030 h6 6 GMG17901 R1.0 6 6 13 57 0~-0.02 h5 6 GMG17901 R1.0 6 6 13 57 0~-0.030 h5 6 GMG17902 R1.0 8 8 19 63 0~-0.02 h5 6 GMG17902 R1.0 8 8 19 63 0~-0.030 h5 6 GMG17903 R1.0 10 10 22 72 0~-0.02 h5 6 GMG17903 R1.0 10 10 22 72 0~-0.030 h5 6 GMG17904 R1.5 10 10 22 72 0~-0.02 h5 6 GMG17904 R1.5 10 10 22 72 0~-0.030 h5 6 GMG17905 R2.0 10 10 22 72 0~-0.02 h5 6 GMG17905 R2.0 10 10 22 72 0~-0.030 h5 6 GMG17906 R1.0 12 12 26 83 0~-0.02 h6 6 GMG17906 R1.0 12 12 26 83 0~-0.030 h6 6 GMG17907 R1.5 12 12 26 83 0~-0.02 h6 6 GMG17907 R1.5 12 12 26 83 0~-0.030 h6 6 GMG17908 R2.0 12 12 26 83 0~-0.02 h6 6 GMG17908 R2.0 12 12 26 83 0~-0.030 h6 6 GMG17909 R3.0 12 12 26 83 0~-0.02 h6 6 GMG17909 R3.0 12 12 26 83 0~-0.030 h6 6 GMG17910 R1.5 16 16 32 92 0~-0.030 h6 6 GMG17911 R2.0 16 16 32 92 0~-0.030 h6 6 GMG17912 R3.0 16 16 32 92 0~-0.030 h6 6 GMG17913 R1.5 20 20 38 104 0~-0.030 h6 6 GMG17914 R2.0 20 20 38 104 0~-0.030 h6 6 GMG17915 R3.0 20 20 38 104 0~-0.030 h6 6 GMG17916 R1.5 25 25 44 104 0~-0.030 h6 6 GMG17917 R2.0 25 25 44 104 0~-0.030 h6 6 GMG17918 R3.0 25 25 44 104 0~-0.030 h6 6

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 1–5
Low-alloy steel
ExcellentVDI 6–9
High-alloy and tool steel
ExcellentVDI 10–11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18
Malleable cast iron
ExcellentVDI 19–20

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Superalloys & titanium

7 grades
Heat-resistant superalloys
GoodVDI 31–35
Titanium alloys
GoodVDI 36–37
VDI grade reference27 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironExcellent23021
31SHeat-resistant superalloysGood20015
32SHeat-resistant superalloysGood28030
33SHeat-resistant superalloysGood25025
34SHeat-resistant superalloysGood35038
35SHeat-resistant superalloysGood32034
36STitanium alloysGood--
37STitanium alloysGood--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for (GMG17) V7 Plus Carbide, 4Flute Corner Radius End Mill, Long length, Flat Shank

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMG17060 R0.50 6 6 13 57 0~-0.02 h5 6 GMG17060 R0.50 6 6 13 57 0~-0.030 h5 6 GMG17080 R0.50 8 8 19 63 0~-0.02 h5 6 GMG17080 R0.50 8 8 19 63 0~-0.030 h5 6 GMG17100 R0.50 10 10 22 72 0~-0.02 h5 6 GMG17100 R0.50 10 10 22 72 0~-0.030 h5 6 GMG17120 R0.50 12 12 26 83 0~-0.02 h6 6 GMG17120 R0.50 12 12 26 83 0~-0.030 h6 6 GMG17160 R1.0 16 16 32 92 0~-0.030 h6 6 GMG17200 R1.0 20 20 38 104 0~-0.030 h6 6 GMG17250 R1.0 25 25 44 104 0~-0.030 h6 6 GMG17901 R1.0 6 6 13 57 0~-0.02 h5 6 GMG17901 R1.0 6 6 13 57 0~-0.030 h5 6 GMG17902 R1.0 8 8 19 63 0~-0.02 h5 6 GMG17902 R1.0 8 8 19 63 0~-0.030 h5 6 GMG17903 R1.0 10 10 22 72 0~-0.02 h5 6 GMG17903 R1.0 10 10 22 72 0~-0.030 h5 6 GMG17904 R1.5 10 10 22 72 0~-0.02 h5 6 GMG17904 R1.5 10 10 22 72 0~-0.030 h5 6 GMG17905 R2.0 10 10 22 72 0~-0.02 h5 6 GMG17905 R2.0 10 10 22 72 0~-0.030 h5 6 GMG17906 R1.0 12 12 26 83 0~-0.02 h6 6 GMG17906 R1.0 12 12 26 83 0~-0.030 h6 6 GMG17907 R1.5 12 12 26 83 0~-0.02 h6 6 GMG17907 R1.5 12 12 26 83 0~-0.030 h6 6 GMG17908 R2.0 12 12 26 83 0~-0.02 h6 6 GMG17908 R2.0 12 12 26 83 0~-0.030 h6 6 GMG17909 R3.0 12 12 26 83 0~-0.02 h6 6 GMG17909 R3.0 12 12 26 83 0~-0.030 h6 6 GMG17910 R1.5 16 16 32 92 0~-0.030 h6 6 GMG17911 R2.0 16 16 32 92 0~-0.030 h6 6 GMG17912 R3.0 16 16 32 92 0~-0.030 h6 6 GMG17913 R1.5 20 20 38 104 0~-0.030 h6 6 GMG17914 R2.0 20 20 38 104 0~-0.030 h6 6 GMG17915 R3.0 20 20 38 104 0~-0.030 h6 6 GMG17916 R1.5 25 25 44 104 0~-0.030 h6 6 GMG17917 R2.0 25 25 44 104 0~-0.030 h6 6 GMG17918 R3.0 25 25 44 104 0~-0.030 h6 6

Video

V7 Plus Endmills

You Might Also Like

K-2 Plus 2FL 35deg. Helix Long Endmill K-2 Plus 2FL 35deg. Helix Long Endmill

K-2 Plus 2FL 35deg. Helix Long Endmill

From $7.20INC GST
From $6.55 EX GST
Available in Mill Diameter (mm)
2.0 3.0 4.0 +5
In stock
YG-1 LEGEND AlTiN YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX 30 YG-1 LEGEND SHANK PLAIN
Add to Cart
(E5E47) Alu-Power Carbide 1Flute End Mill, Plain Shank (E5E47) Alu-Power Carbide 1Flute End Mill, Plain Shank

(E5E47) Alu-Power Carbide 1Flute End Mill, Plain Shank

Uncoated one-flute carbide end mill for non-ferrous materials
From $14.34INC GST
From $13.04 EX GST
Available in Mill Diameter (mm)
2.0 3.0 4.0 +5
In stock
Add to Cart

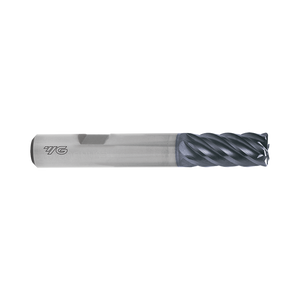

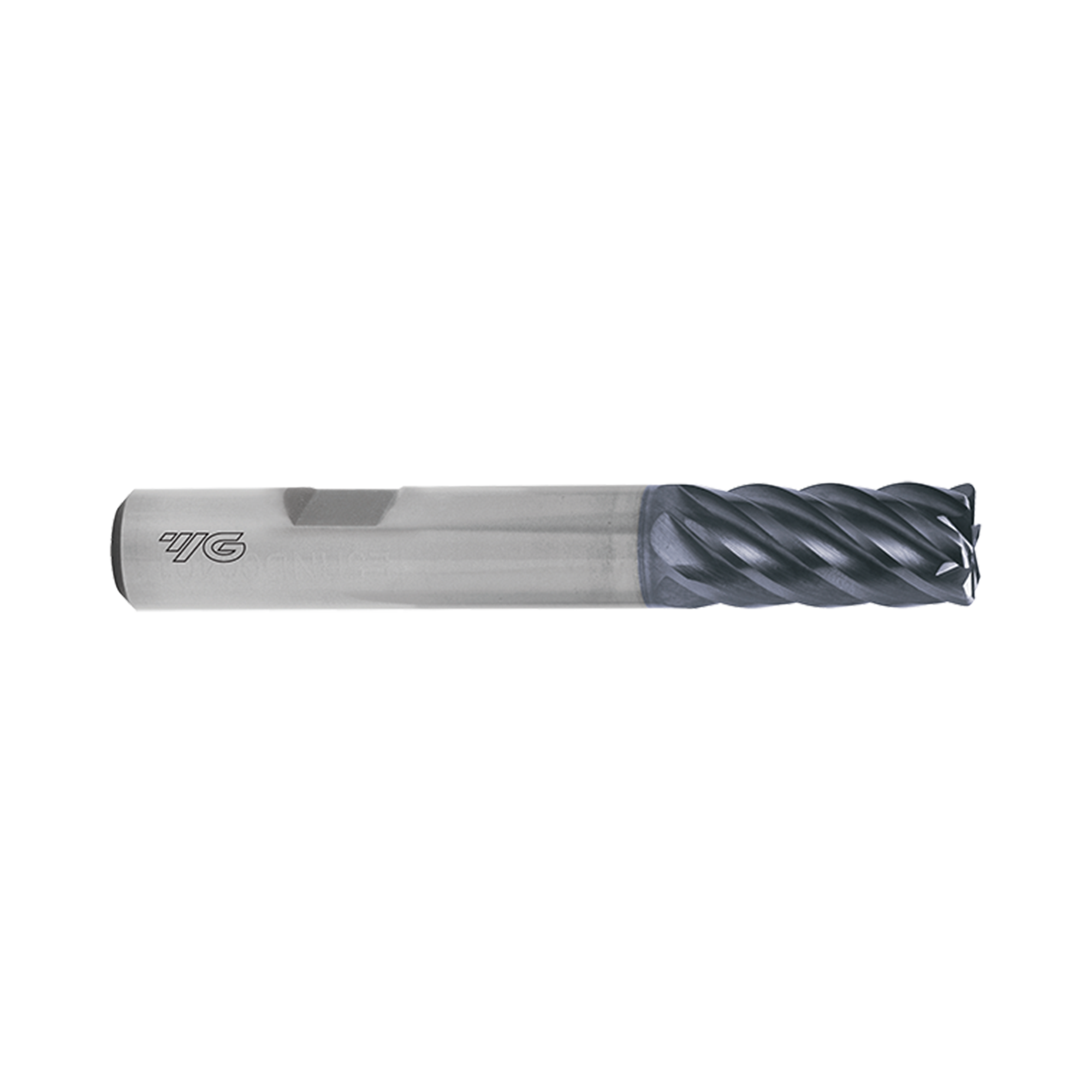

(GMG12) V7 Plus Carbide, 6Flute End Mill, Long length, Plain Shank (GMG12) V7 Plus Carbide, 6Flute End Mill, Long length, Plain Shank
