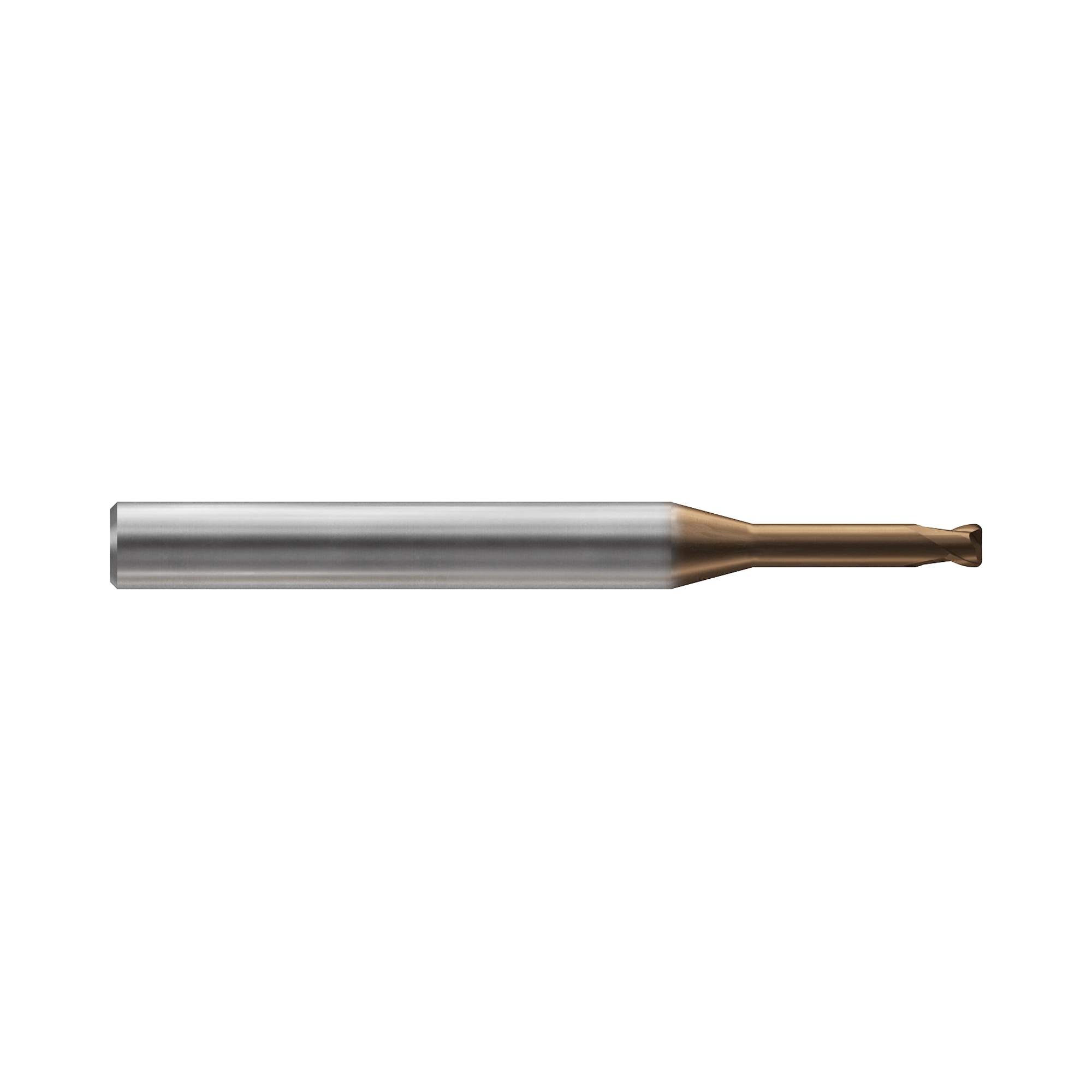

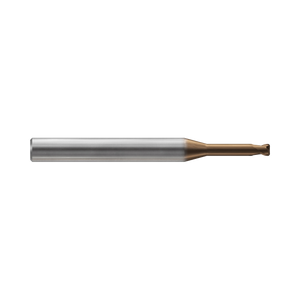

X1-EH 2FL 35 ° Helix Corner Radius End Mill (HP189)

New

X1-EH 2FL 35 ° Helix Corner Radius End Mill (HP189)

Product Code: HP189

Quantity

Buy Local

The YG-1 HPI89 series X1-EH nanograin solid carbide end mills provide extraordinary tool life. With excellent wear and heat resistance, these corner radius cutters for rib processing have a C-coating offering exceptional toughness and thermal shock stability. Designed for ultra-performance machining of high hardened steels HRC50-70, they have a plain shank and provide a superior finish. Diameters range from 0.2-3mm. X1-EH milling cutters offer the highest accuracy and are suitable for roughing to fine finishing applications for optimum tool life and performance.

Offers outstanding machining accuracy due to its extremely tight tolerances
With a C-coating providing excellent wear and heat resistance
Superior surface finish with exceptional tool life
Premium nanograin carbide for high hardened steels
High runout accuracy and high feed rates for fine finishing applications
Comes with a plain shank - corner radius for rib processing
Manufactured by global leading supplier YG-1
To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck)

Specifications

Flutes	2
Helix Angle	35°
Cutting Edge Shape	Corner Radius
Size Min	R0.02
Size Max	R0.1
Length	-
Coating	C-Coating

Product Data

Workpiece Material	P H
Corner Radius Tolerance	0.005
Hardened Steels(HRc40~45)	Excellent
No. Flutes	2
Operation	Corner, Die Sinking, Facing, Helical-Interpol, Profiling, Side Milling
Shank Type	Plain
Surface Treatment	YG-1 C Coating
Tool Material	Carbide

Made in South Korea

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add X1-EH 2FL 35 ° Helix Corner Radius End Mill (HP189) to comparison

View Comparison

Specifications Video Operation Work Material

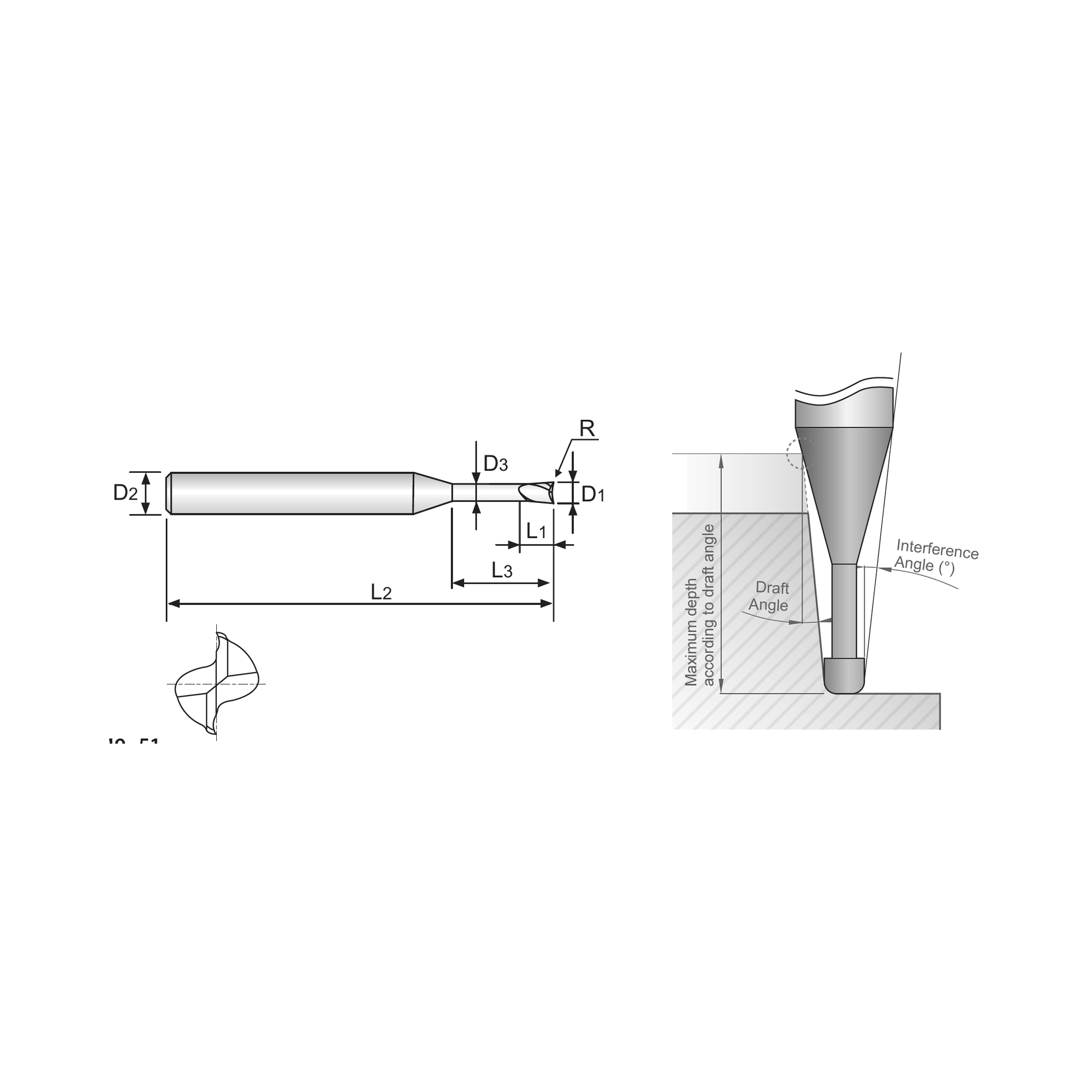

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute HPI89002 0.2 4 0.15 45 0~-0.010 h5 2 HPI89003 0.3 4 0.25 45 0~-0.010 h5 2 HPI89004 0.4 4 0.3 45 0~-0.010 h5 2 HPI89005 0.5 4 0.4 45 0~-0.010 h5 2 HPI89006 0.6 4 0.5 45 0~-0.010 h5 2 HPI89007 0.7 4 0.55 45 0~-0.010 h5 2 HPI89008 0.8 4 0.65 45 0~-0.010 h5 2 HPI89009 0.9 4 0.7 45 0~-0.010 h5 2 HPI89010 1.0 4 0.8 50 0~-0.010 h5 2 HPI89015 1.5 4 1.35 50 0~-0.010 h5 2 HPI89020 2.0 4 1.7 50 0~-0.010 h5 2 HPI89030 3.0 6 2.5 55 0~-0.010 h5 2 HPI89801 1.0 4 0.8 55 0~-0.010 h5 2 HPI89802 1.0 4 0.8 60 0~-0.010 h5 2 HPI89803 1.0 4 0.8 60 0~-0.010 h5 2 HPI89804 1.0 4 0.8 60 0~-0.010 h5 2 HPI89805 1.0 4 0.8 60 0~-0.010 h5 2 HPI89806 1.0 4 0.8 60 0~-0.010 h5 2 HPI89807 1.0 4 0.8 60 0~-0.010 h5 2 HPI89808 1.5 4 1.35 50 0~-0.010 h5 2 HPI89809 1.5 4 1.35 50 0~-0.010 h5 2 HPI89810 1.5 4 1.35 50 0~-0.010 h5 2 HPI89811 1.5 4 1.35 50 0~-0.010 h5 2 HPI89812 1.5 4 1.35 55 0~-0.010 h5 2 HPI89813 1.5 4 1.35 55 0~-0.010 h5 2 HPI89814 1.5 4 1.35 55 0~-0.010 h5 2 HPI89815 1.5 4 1.35 55 0~-0.010 h5 2 HPI89816 1.5 4 1.35 60 0~-0.010 h5 2 HPI89817 1.5 4 1.35 60 0~-0.010 h5 2 HPI89818 1.5 4 1.35 60 0~-0.010 h5 2 HPI89819 2.0 4 1.7 50 0~-0.010 h5 2 HPI89820 2.0 4 1.7 50 0~-0.010 h5 2 HPI89821 2.0 4 1.7 50 0~-0.010 h5 2 HPI89822 2.0 4 1.7 50 0~-0.010 h5 2 HPI89823 2.0 4 1.7 50 0~-0.010 h5 2 HPI89824 2.0 4 1.7 55 0~-0.010 h5 2 HPI89825 2.0 4 1.7 55 0~-0.010 h5 2 HPI89826 2.0 4 1.7 55 0~-0.010 h5 2 HPI89827 2.0 4 1.7 55 0~-0.010 h5 2 HPI89828 2.0 4 1.7 55 0~-0.010 h5 2 HPI89829 2.0 4 1.7 55 0~-0.010 h5 2 HPI89830 2.0 4 1.7 60 0~-0.010 h5 2 HPI89831 2.0 4 1.7 60 0~-0.010 h5 2 HPI89832 2.0 4 1.7 60 0~-0.010 h5 2 HPI89833 2.0 4 1.7 60 0~-0.010 h5 2 HPI89834 2.0 4 1.7 65 0~-0.010 h5 2 HPI89835 2.0 4 1.7 65 0~-0.010 h5 2 HPI89836 2.0 4 1.7 70 0~-0.010 h5 2 HPI89837 2.0 4 1.7 70 0~-0.010 h5 2 HPI89838 3.0 6 2.5 55 0~-0.010 h5 2 HPI89839 3.0 6 2.5 55 0~-0.010 h5 2 HPI89840 3.0 6 2.5 60 0~-0.010 h5 2 HPI89841 3.0 6 2.5 60 0~-0.010 h5 2 HPI89842 3.0 6 2.5 60 0~-0.010 h5 2 HPI89843 3.0 6 2.5 60 0~-0.010 h5 2 HPI89844 3.0 6 2.5 60 0~-0.010 h5 2 HPI89845 3.0 6 2.5 65 0~-0.010 h5 2 HPI89846 3.0 6 2.5 65 0~-0.010 h5 2 HPI89847 3.0 6 2.5 65 0~-0.010 h5 2 HPI89848 3.0 6 2.5 75 0~-0.010 h5 2 HPI89849 3.0 6 2.5 75 0~-0.010 h5 2 HPI89850 3.0 6 2.5 75 0~-0.010 h5 2 HPI89851 3.0 6 2.5 80 0~-0.010 h5 2 HPI89852 3.0 6 2.5 80 0~-0.010 h5 2 HPI89901 0.2 4 0.15 45 0~-0.010 h5 2 HPI89902 0.2 4 0.15 45 0~-0.010 h5 2 HPI89903 0.2 4 0.15 45 0~-0.010 h5 2 HPI89904 0.2 4 0.15 45 0~-0.010 h5 2 HPI89905 0.2 4 0.15 45 0~-0.010 h5 2 HPI89906 0.2 4 0.15 45 0~-0.010 h5 2 HPI89907 0.2 4 0.15 45 0~-0.010 h5 2 HPI89908 0.3 4 0.25 45 0~-0.010 h5 2 HPI89909 0.3 4 0.25 45 0~-0.010 h5 2 HPI89910 0.3 4 0.25 45 0~-0.010 h5 2 HPI89911 0.3 4 0.25 45 0~-0.010 h5 2 HPI89912 0.3 4 0.25 45 0~-0.010 h5 2 HPI89913 0.3 4 0.25 45 0~-0.010 h5 2 HPI89914 0.3 4 0.25 45 0~-0.010 h5 2 HPI89915 0.3 4 0.25 45 0~-0.010 h5 2 HPI89916 0.3 4 0.25 45 0~-0.010 h5 2 HPI89917 0.4 4 0.3 45 0~-0.010 h5 2 HPI89918 0.4 4 0.3 45 0~-0.010 h5 2 HPI89919 0.4 4 0.3 45 0~-0.010 h5 2 HPI89920 0.4 4 0.3 45 0~-0.010 h5 2 HPI89921 0.4 4 0.3 45 0~-0.010 h5 2 HPI89922 0.4 4 0.3 45 0~-0.010 h5 2 HPI89923 0.4 4 0.3 45 0~-0.010 h5 2 HPI89924 0.4 4 0.3 45 0~-0.010 h5 2 HPI89925 0.4 4 0.3 45 0~-0.010 h5 2 HPI89926 0.4 4 0.3 45 0~-0.010 h5 2 HPI89927 0.4 4 0.3 45 0~-0.010 h5 2 HPI89928 0.4 4 0.3 45 0~-0.010 h5 2 HPI89929 0.4 4 0.3 45 0~-0.010 h5 2 HPI89930 0.4 4 0.3 45 0~-0.010 h5 2 HPI89931 0.4 4 0.3 45 0~-0.010 h5 2 HPI89932 0.5 4 0.4 45 0~-0.010 h5 2 HPI89933 0.5 4 0.4 45 0~-0.010 h5 2 HPI89934 0.5 4 0.4 45 0~-0.010 h5 2 HPI89935 0.5 4 0.4 45 0~-0.010 h5 2 HPI89936 0.5 4 0.4 45 0~-0.010 h5 2 HPI89937 0.5 4 0.4 45 0~-0.010 h5 2 HPI89938 0.5 4 0.4 45 0~-0.010 h5 2 HPI89939 0.5 4 0.4 45 0~-0.010 h5 2 HPI89940 0.5 4 0.4 45 0~-0.010 h5 2 HPI89941 0.5 4 0.4 45 0~-0.010 h5 2 HPI89942 0.5 4 0.4 45 0~-0.010 h5 2 HPI89943 0.5 4 0.4 45 0~-0.010 h5 2 HPI89944 0.5 4 0.4 45 0~-0.010 h5 2 HPI89945 0.5 4 0.4 45 0~-0.010 h5 2 HPI89946 0.5 4 0.4 45 0~-0.010 h5 2 HPI89947 0.5 4 0.4 45 0~-0.010 h5 2 HPI89948 0.5 4 0.4 45 0~-0.010 h5 2 HPI89949 0.6 4 0.5 45 0~-0.010 h5 2 HPI89950 0.6 4 0.5 45 0~-0.010 h5 2 HPI89951 0.6 4 0.5 45 0~-0.010 h5 2 HPI89952 0.6 4 0.5 45 0~-0.010 h5 2 HPI89953 0.6 4 0.5 45 0~-0.010 h5 2 HPI89954 0.6 4 0.5 45 0~-0.010 h5 2 HPI89955 0.6 4 0.5 45 0~-0.010 h5 2 HPI89956 0.6 4 0.5 45 0~-0.010 h5 2 HPI89957 0.6 4 0.5 50 0~-0.010 h5 2 HPI89958 0.6 4 0.5 50 0~-0.010 h5 2 HPI89959 0.6 4 0.5 50 0~-0.010 h5 2 HPI89960 0.6 4 0.5 50 0~-0.010 h5 2 HPI89961 0.6 4 0.5 50 0~-0.010 h5 2 HPI89962 0.6 4 0.5 50 0~-0.010 h5 2 HPI89963 0.7 4 0.55 45 0~-0.010 h5 2 HPI89964 0.7 4 0.55 45 0~-0.010 h5 2 HPI89965 0.7 4 0.55 45 0~-0.010 h5 2 HPI89966 0.7 4 0.55 45 0~-0.010 h5 2 HPI89967 0.7 4 0.55 45 0~-0.010 h5 2 HPI89968 0.7 4 0.55 45 0~-0.010 h5 2 HPI89969 0.7 4 0.55 45 0~-0.010 h5 2 HPI89970 0.7 4 0.55 45 0~-0.010 h5 2 HPI89971 0.8 4 0.65 45 0~-0.010 h5 2 HPI89972 0.8 4 0.65 45 0~-0.010 h5 2 HPI89973 0.8 4 0.65 45 0~-0.010 h5 2 HPI89974 0.8 4 0.65 45 0~-0.010 h5 2 HPI89975 0.8 4 0.65 45 0~-0.010 h5 2 HPI89976 0.8 4 0.65 45 0~-0.010 h5 2 HPI89977 0.8 4 0.65 45 0~-0.010 h5 2 HPI89978 0.8 4 0.65 45 0~-0.010 h5 2 HPI89979 0.8 4 0.65 45 0~-0.010 h5 2 HPI89980 0.8 4 0.65 45 0~-0.010 h5 2 HPI89981 0.8 4 0.65 45 0~-0.010 h5 2 HPI89982 0.8 4 0.65 50 0~-0.010 h5 2 HPI89983 0.8 4 0.65 50 0~-0.010 h5 2 HPI89984 0.8 4 0.65 50 0~-0.010 h5 2 HPI89985 0.8 4 0.65 50 0~-0.010 h5 2 HPI89986 0.8 4 0.65 50 0~-0.010 h5 2 HPI89987 0.8 4 0.65 50 0~-0.010 h5 2 HPI89988 0.8 4 0.65 50 0~-0.010 h5 2 HPI89989 0.9 4 0.7 50 0~-0.010 h5 2 HPI89990 1.0 4 0.8 50 0~-0.010 h5 2 HPI89991 1.0 4 0.8 50 0~-0.010 h5 2 HPI89992 1.0 4 0.8 50 0~-0.010 h5 2 HPI89993 1.0 4 0.8 50 0~-0.010 h5 2 HPI89994 1.0 4 0.8 50 0~-0.010 h5 2 HPI89995 1.0 4 0.8 50 0~-0.010 h5 2 HPI89996 1.0 4 0.8 50 0~-0.010 h5 2 HPI89997 1.0 4 0.8 50 0~-0.010 h5 2 HPI89998 1.0 4 0.8 50 0~-0.010 h5 2 HPI89999 1.0 4 0.8 55 0~-0.010 h5 2

Video

Operation

Profiling

Side Milling

Die Sinking

Facing

Corner

Helical Interpol

Work Material

P Alloy Steels

Great

Good Great Excellent

H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent

H Hardened Steels (HRc45~55)

Excellent

Good Great Excellent

H High Hardened Steels (HRc55~70)

Excellent

Good Great Excellent
