X5070 2 Flute 30°Helix Rib Corner Radius End Mill (G8A53)

2-Flute Miniature Ball Nose for HRc45–70

X5070 2 Flute 30°Helix Rib Corner Radius End Mill (G8A53)
$75.33 INC GST $68.49 EX GST
Was $103.51 Save 27%
SKU
G8A53005
Work materials
PH
Tool material Carbide
Surface treatment Blue
Mill Diameter (mm)
Ball Nose Radius (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Ball Nose Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)CAD filesStock Price Qty Add
G8A530050.5R0.2550.06.00.5STEPDXF In stock $68.49
G8A530060.6R0.350.06.00.6STEPDXF 1-2 Weeks $86.30
G8A530080.8R0.450.06.00.8STEPDXF In stock $41.72
G8A530151.5R0.7550.06.01.5STEPDXF In stock $40.20

Add X5070 2 Flute 30°Helix Rib Corner Radius End Mill (G8A53) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

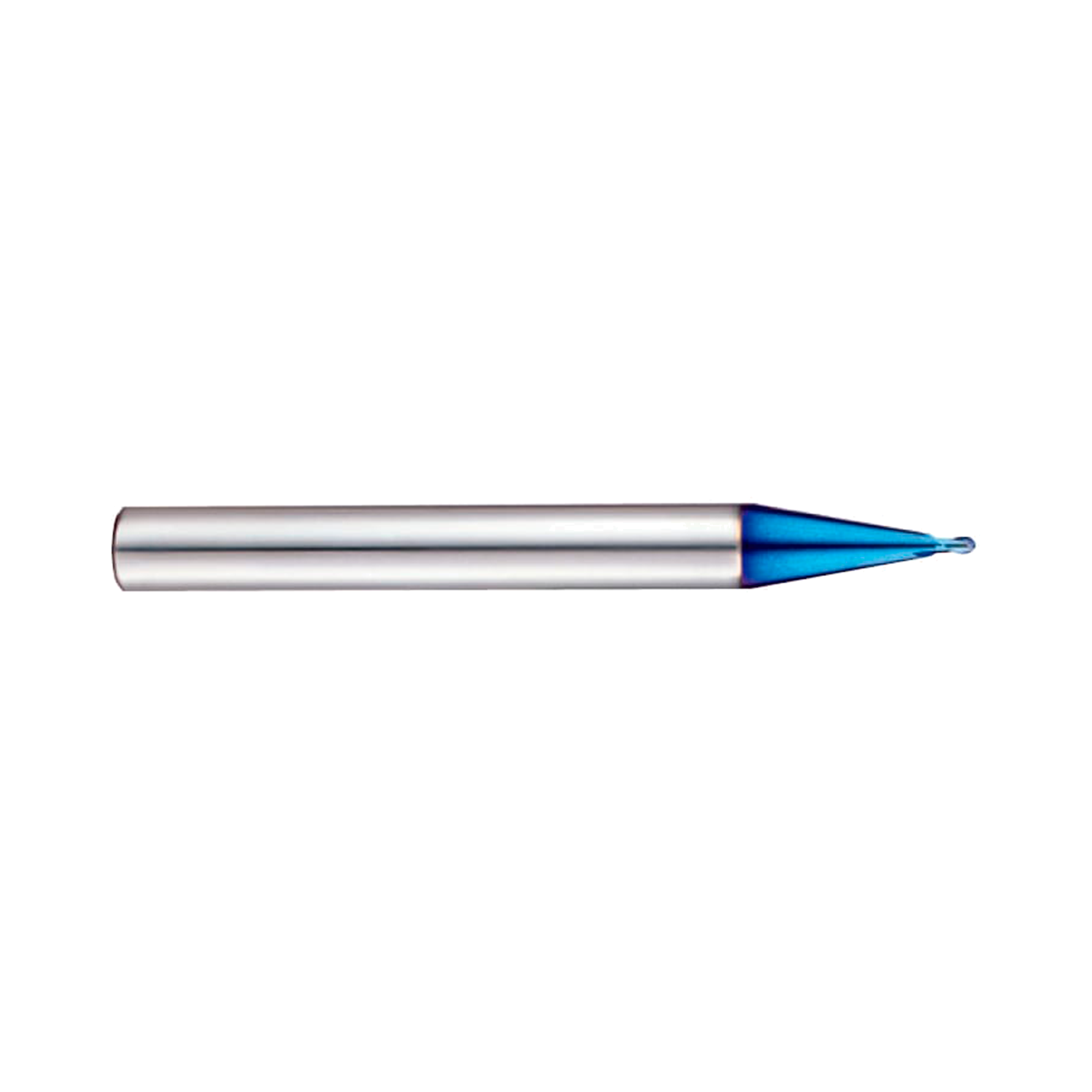

The YG-1 G8A53 series miniature X5070 Blue ultrafine micrograin carbide cutter has 2 flutes and a plain shank. The ball nosed slot drills are ideal for ultra-high precision machining. They range in diameter from 0.4mm-2mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.

  • Nanograin carbide substrate with blue silicone based coating.
  • Dry machining in steels and hardened steeld < HRc70.
  • Suitable for machining at extreme cutting speeds.
  • High abrasion resistance with a mirror surface finish.
  • Strong negative land provides tool strength for high hardness machining.
  • Ultimate tool life.
  • Can cope with extreme heat (up to 1400°).
  • Excellent workplace finish.
  • Designed for high precision milling operation.
  • To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
Product Data
Workpiece Material P H
Ball Radius Tolerance ±0.005
Cutting Shape Ball Nose, Corner Radius
Hardened Steels(HRc40~45) Great
Helix Angle 30°, Ball Nose 30
Length Throw Away
No. Flutes 2
Operation Profiling, Side Milling, Small Part
Shank Type Plain
Surface Treatment Blue, YG-1 Blue Coating
Tool Material Carbide
Flutes 2
Helix Angle 30°
Cutting Edge Shape Ball Nose
Size Min R0.2
Size Max R1.0
Length Miniature
Coating Blue Coating

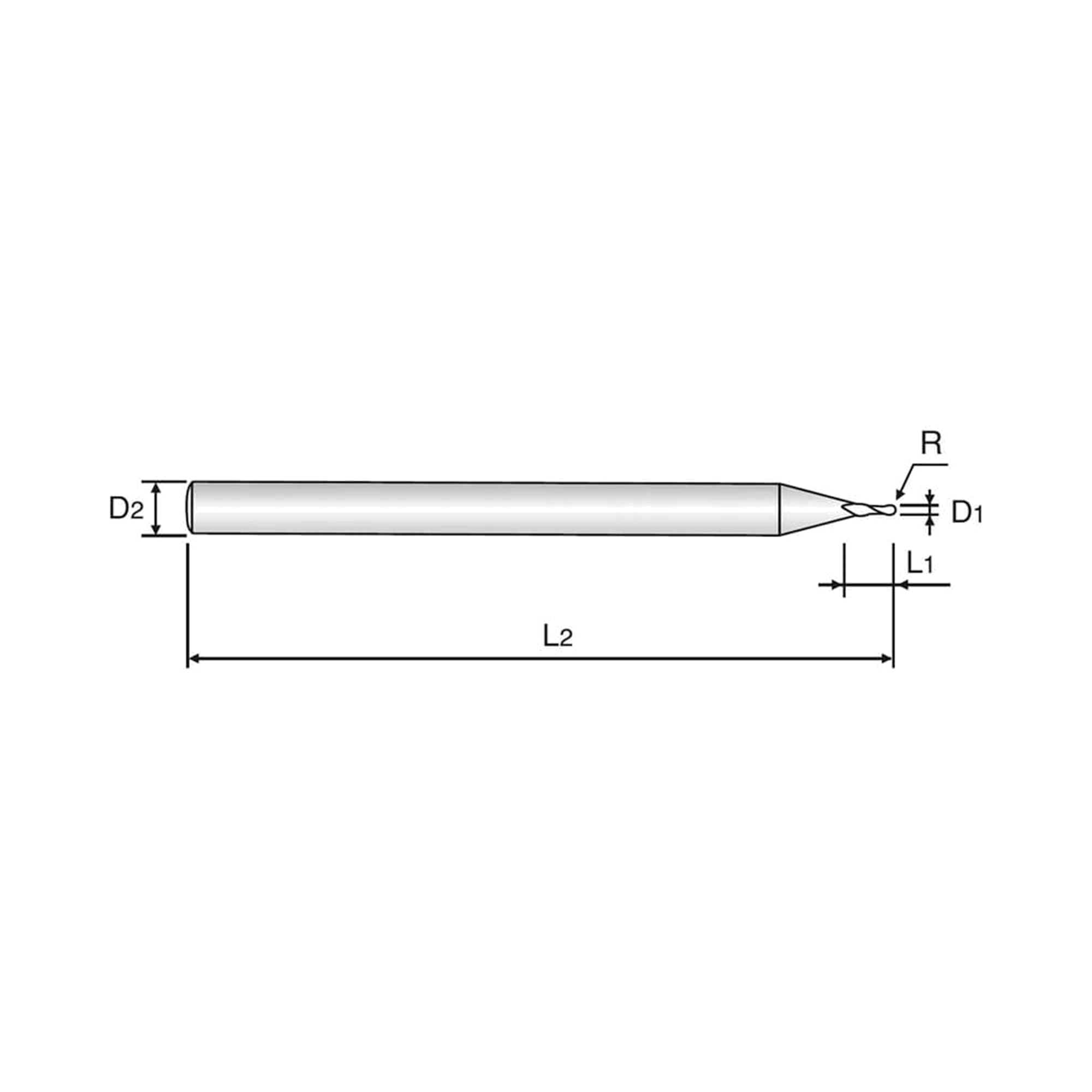

EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G8A53004 R0.20 0.4 6 0.4 50 0~-0.012 h5 2 G8A53005 R0.25 0.5 6 0.5 50 0~-0.012 h5 2 G8A53006 R0.30 0.6 6 0.6 50 0~-0.012 h5 2 G8A53008 R0.40 0.8 6 0.8 50 0~-0.012 h5 2 G8A53010 R0.50 1 6 1 50 0~-0.012 h5 2 G8A53012 R0.60 1.2 6 1.2 50 0~-0.012 h5 2 G8A53015 R0.75 1.5 6 1.5 50 0~-0.012 h5 2 G8A53020 R1.0 2 6 2 50 0~-0.012 h5 2
Profiling
Side Milling
Small Part

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

4 grades
Non-alloy steel
GoodVDI 5
Low-alloy steel
GoodVDI 8–9
High-alloy and tool steel
GoodVDI 11

Hardened materials

4 grades
Hardened steel
ExcellentVDI 38–39
Chilled cast iron
GoodVDI 40
Hardened cast iron
ExcellentVDI 41
VDI grade reference8 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
5PNon-alloy steelGood30032
8PLow-alloy steelGood30032
9PLow-alloy steelGood35038
11PHigh-alloy and tool steelGood32535
38HHardened steelExcellent55055
39HHardened steelExcellent63060
40HChilled cast ironGood40042
41HHardened cast ironExcellent55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G8A53004 R0.20 0.4 6 0.4 50 0~-0.012 h5 2 G8A53005 R0.25 0.5 6 0.5 50 0~-0.012 h5 2 G8A53006 R0.30 0.6 6 0.6 50 0~-0.012 h5 2 G8A53008 R0.40 0.8 6 0.8 50 0~-0.012 h5 2 G8A53010 R0.50 1 6 1 50 0~-0.012 h5 2 G8A53012 R0.60 1.2 6 1.2 50 0~-0.012 h5 2 G8A53015 R0.75 1.5 6 1.5 50 0~-0.012 h5 2 G8A53020 R1.0 2 6 2 50 0~-0.012 h5 2
