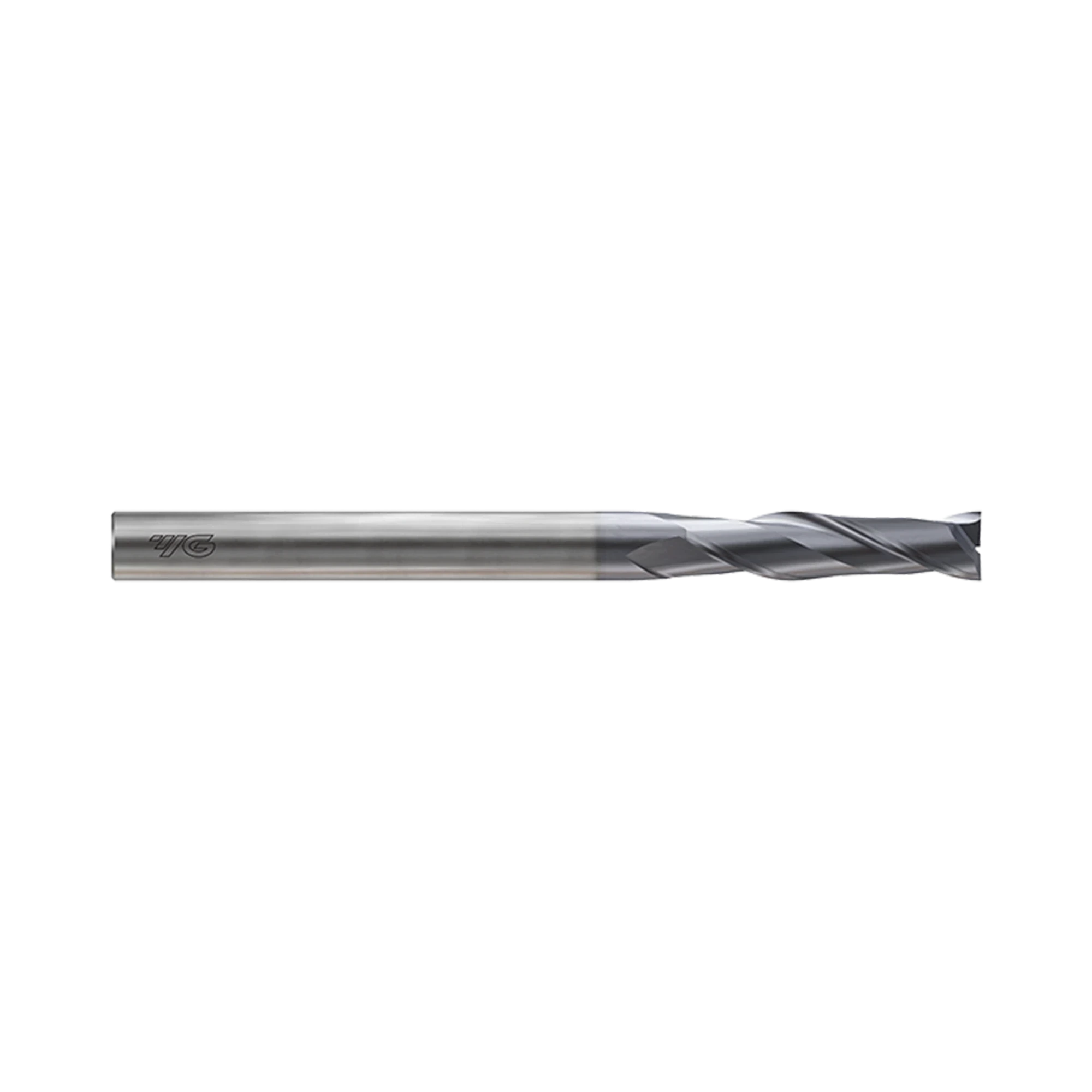

4G MILL 2 Flute 30°Helix Long End Mill (SEME70)

  • $51.37INC GST $46.70 EX GST
4G MILL 2 Flute 30°Helix Long End Mill (SEME70)
4G MILL 2 Flute 30°Helix Long End Mill (SEME70)

4G MILL 2 Flute 30°Helix Long End Mill (SEME70)

  • $51.37INC GST $46.70 EX GST

Code: SEME7001003E

P K H
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
SEME7001003E160.06.03.0 5 days $46.70
SEME7001204E1.260.06.04.0 5 days $46.70
SEME7001506E1.560.06.06.0 5 days $46.70
SEME7002008E260.06.08.0 5 days $59.70
SEME7002510E2.560.06.010.0 5 days $46.70
SEME7003010E370.06.010.0 5 days $48.50
SEME7004012E470.04.012.0 5 days $62.90
SEME7005020E570.06.020.0 5 days $48.50
SEME7006015E660.06.015.0 5 days $46.70
SEME7008025E880.08.025.0 5 days $82.80
SEME7010030E1080.010.030.0 5 days $106.60
SEME7012035E1290.012.035.0 5 days $139.60
SEME7014050E14110.016.050.0 5 days $367.10
SEME7016040E16150.016.040.0 5 days $425.70
SEME7018050E18120.020.050.0 5 days $538.60
SEME7020050E20110.020.050.0 5 days $519.50
SEME7022075E22150.020.075.0 5 days $648.50
SEME7025090E25150.025.090.0 5 days $735.10

Add 4G MILL 2 Flute 30°Helix Long End Mill (SEME70) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The SEME70 series 2 flute slot drills range from 1-20mm diameter and are available in a wide range of lengths. The 4G Mill range from YG-1 offers unbeatable performance and accuracy in high speed machining of all carbon or alloy steels, pre-hardened steels (up to HRc55), stainless steel and cast iron. The micrograin carbide substrate and Y1200 coating offers extreme cutting life in temperatures up to 1,200°C.

    • Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
    • YG-1's Y1200 coating & premium micrograin carbide substrate
    • HSC - High speed cutting
    • Due to new coating and tool geometry, 4G Mills can machine up to 1200°C with outstanding wear resistance
    • Cutting ability is increased due to sharp edge geometry

SEME7001003 SEME7001003E SEME7001004 SEME7001004E SEME7001005 SEME7001005E SEME7001006 SEME7001006E SEME7001007 SEME7001007E SEME7001008 SEME7001008E SEME7001010 SEME7001010E SEME7001012 SEME7001012E SEME7001204 SEME7001204E SEME7001206 SEME7001206E SEME7001208 SEME7001208E SEME7001210 SEME7001210E SEME7001212 SEME7001212E SEME7001506 SEME7001506E SEME7001508 SEME7001508E SEME7001510 SEME7001510E SEME7001512 SEME7001512E SEME7001514 SEME7001514E SEME7001516 SEME7001516E SEME7002008 SEME7002008E SEME7002010 SEME7002010E SEME7002012 SEME7002012E SEME7002014 SEME7002014E SEME7002016 SEME7002016E SEME7002510 SEME7002510E SEME7002512 SEME7002512E SEME7002516 SEME7002516E SEME7002520 SEME7002520E SEME7002526 SEME7002526E SEME7003010 SEME7003010E SEME7003012 SEME7003012E SEME7003014 SEME7003014E SEME7003016 SEME7003016E SEME7003020 SEME7003020E SEME7003026 SEME7003026E SEME7003030 SEME7003030E SEME7004012 SEME7004012E SEME7004016 SEME7004016E SEME7004020 SEME7004020E SEME7004026 SEME7004026E SEME7004030 SEME7004030E SEME7005020 SEME7005020E SEME7005025 SEME7005025E SEME7005030 SEME7005030E SEME7005035 SEME7005035E SEME7005040 SEME7005040E SEME7006015 SEME7006015E SEME7006020 SEME7006020E SEME7006025 SEME7006025E SEME7006030 SEME7006030E SEME7006035 SEME7006035E SEME7006040 SEME7006040E SEME7006045 SEME7006045E SEME7008025 SEME7008025E SEME7008030 SEME7008030E SEME7008035 SEME7008035E SEME7008040 SEME7008040E SEME7008045 SEME7008045E SEME7008050 SEME7008050E SEME7010030 SEME7010030E SEME7010035 SEME7010035E SEME7010040 SEME7010040E SEME7010045 SEME7010045E SEME7010050 SEME7010050E SEME7010055 SEME7010055E SEME7010060 SEME7010060E SEME7012035 SEME7012035E SEME7012040 SEME7012040E SEME7012045 SEME7012045E SEME7012050 SEME7012050E SEME7012055 SEME7012055E SEME7012060 SEME7012060E SEME7012065 SEME7012065E SEME7012070 SEME7012070E SEME7014050 SEME7014050E SEME7014060 SEME7014060E SEME7016040 SEME7016040E SEME7016050 SEME7016050E SEME7016060 SEME7016060E SEME7016070 SEME7016070E SEME7016080 SEME7016080E SEME7016090 SEME7016090E SEME7018050 SEME7018050E SEME7018070 SEME7018070E SEME7020050 SEME7020050E SEME7020060 SEME7020060E SEME7020070 SEME7020070E SEME7020080 SEME7020080E SEME7020090 SEME7020090E SEME7022075 SEME7022075E SEME7025070 SEME7025070E SEME7025090 SEME7025090E SEME70030163S SEME70030163SE SEME70040204S SEME70040204SE SEME70160110 SEME70160110E SEME70160120 SEME70160120E SEME70180100 SEME70180100E SEME70200110 SEME70200110E SEME70200120 SEME70200120E SEME70220110 SEME70220110E SEME70250110 SEME70250110E SEME70250120 SEME70250120E SEME7005025100 SEME7005025100E SEME7006015080 SEME7006015080E SEME7006020090 SEME7006020090E SEME7006030100 SEME7006030100E SEME7006030150 SEME7006030150E SEME7006040120 SEME7006040120E SEME7008030100 SEME7008030100E SEME7008040120 SEME7008040120E SEME7008040150 SEME7008040150E SEME7008050150 SEME7008050150E SEME7010030100 SEME7010030100E SEME7010040120 SEME7010040120E SEME7010050150 SEME7010050150E SEME7010050200 SEME7010050200E SEME7010060200 SEME7010060200E SEME7012040120 SEME7012040120E SEME7012050150 SEME7012050150E SEME7012060150 SEME7012060150E SEME7012060200 SEME7012060200E SEME7012070200 SEME7012070200E SEME7016050150 SEME7016050150E SEME7016070150 SEME7016070150E SEME7016070200 SEME7016070200E SEME7020050150 SEME7020050150E SEME7020090200 SEME7020090200E

Product Data
Workpiece Material P K H
Cutting Shape Square
Hardened Steels(HRc40~45) Excellent
Helix Angle Square 30
Length Long
No. Flutes 2
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide
Flutes 2
Helix Angle 30°
Cutting Edge Shape SQUARE
Size Min DO.1
Size Max D3.0
Length LONG LENGTH
Coating Y-Coating
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME7001003 1 6 3 60 0~0.030 h5 2 SEME7001003E 1 6 3 60 0~0.030 h5 2 SEME7001004 1 6 4 60 0~0.030 h5 2 SEME7001004E 1 6 4 60 0~0.030 h5 2 SEME7001005 1 6 5 60 0~0.030 h5 2 SEME7001005E 1 6 5 60 0~0.030 h5 2 SEME7001006 1 6 6 60 0~0.030 h5 2 SEME7001006E 1 6 6 60 0~0.030 h5 2 SEME7001007 1 6 7 60 0~0.030 h5 2 SEME7001007E 1 6 7 60 0~0.030 h5 2 SEME7001008 1 6 8 60 0~0.030 h5 2 SEME7001008E 1 6 8 60 0~0.030 h5 2 SEME7001010 1 6 10 60 0~0.030 h5 2 SEME7001010E 1 6 10 60 0~0.030 h5 2 SEME7001012 1 6 12 60 0~0.030 h5 2 SEME7001012E 1 6 12 60 0~0.030 h5 2 SEME7001204 1.2 6 4 60 0~0.030 h5 2 SEME7001204E 1.2 6 4 60 0~0.030 h5 2 SEME7001206 1.2 6 6 60 0~0.030 h5 2 SEME7001206E 1.2 6 6 60 0~0.030 h5 2 SEME7001208 1.2 6 8 60 0~0.030 h5 2 SEME7001208E 1.2 6 8 60 0~0.030 h5 2 SEME7001210 1.2 6 10 60 0~0.030 h5 2 SEME7001210E 1.2 6 10 60 0~0.030 h5 2 SEME7001212 1.2 6 12 60 0~0.030 h5 2 SEME7001212E 1.2 6 12 60 0~0.030 h5 2 SEME7001506 1.5 6 6 60 0~0.030 h5 2 SEME7001506E 1.5 6 6 60 0~0.030 h5 2 SEME7001508 1.5 6 8 60 0~0.030 h5 2 SEME7001508E 1.5 6 8 60 0~0.030 h5 2 SEME7001510 1.5 6 10 60 0~0.030 h5 2 SEME7001510E 1.5 6 10 60 0~0.030 h5 2 SEME7001512 1.5 6 12 60 0~0.030 h5 2 SEME7001512E 1.5 6 12 60 0~0.030 h5 2 SEME7001514 1.5 6 14 60 0~0.030 h5 2 SEME7001514E 1.5 6 14 60 0~0.030 h5 2 SEME7001516 1.5 6 16 60 0~0.030 h5 2 SEME7001516E 1.5 6 16 60 0~0.030 h5 2 SEME7002008 2 6 8 60 0~0.030 h5 2 SEME7002008E 2 6 8 60 0~0.030 h5 2 SEME7002010 2 6 10 60 0~0.030 h5 2 SEME7002010E 2 6 10 60 0~0.030 h5 2 SEME7002012 2 6 12 60 0~0.030 h5 2 SEME7002012E 2 6 12 60 0~0.030 h5 2 SEME7002014 2 6 14 60 0~0.030 h5 2 SEME7002014E 2 6 14 60 0~0.030 h5 2 SEME7002016 2 6 16 60 0~0.030 h5 2 SEME7002016E 2 6 16 60 0~0.030 h5 2 SEME7002510 2.5 6 10 60 0~0.030 h5 2 SEME7002510E 2.5 6 10 60 0~0.030 h5 2 SEME7002512 2.5 6 12 60 0~0.030 h5 2 SEME7002512E 2.5 6 12 60 0~0.030 h5 2 SEME7002516 2.5 6 16 60 0~0.030 h5 2 SEME7002516E 2.5 6 16 60 0~0.030 h5 2 SEME7002520 2.5 6 20 60 0~0.030 h5 2 SEME7002520E 2.5 6 20 60 0~0.030 h5 2 SEME7002526 2.5 6 26 60 0~0.030 h5 2 SEME7002526E 2.5 6 26 60 0~0.030 h5 2 SEME7003010 3 6 10 70 0~0.030 h5 2 SEME7003010E 3 6 10 70 0~0.030 h5 2 SEME7003012 3 6 12 70 0~0.030 h5 2 SEME7003012E 3 6 12 70 0~0.030 h5 2 SEME7003014 3 6 14 70 0~0.030 h5 2 SEME7003014E 3 6 14 70 0~0.030 h5 2 SEME7003016 3 6 16 70 0~0.030 h5 2 SEME7003016E 3 6 16 70 0~0.030 h5 2 SEME7003020 3 6 20 70 0~0.030 h5 2 SEME7003020E 3 6 20 70 0~0.030 h5 2 SEME7003026 3 6 26 70 0~0.030 h5 2 SEME7003026E 3 6 26 70 0~0.030 h5 2 SEME7003030 3 6 30 70 0~0.030 h5 2 SEME7003030E 3 6 30 70 0~0.030 h5 2 SEME7004012 4 6 12 70 0~0.030 h5 2 SEME7004012E 4 6 12 70 0~0.030 h5 2 SEME7004016 4 6 16 70 0~0.030 h5 2 SEME7004016E 4 6 16 70 0~0.030 h5 2 SEME7004020 4 6 20 70 0~0.030 h5 2 SEME7004020E 4 6 20 70 0~0.030 h5 2 SEME7004026 4 6 26 70 0~0.030 h5 2 SEME7004026E 4 6 26 70 0~0.030 h5 2 SEME7004030 4 6 30 70 0~0.030 h5 2 SEME7004030E 4 6 30 70 0~0.030 h5 2 SEME7005020 5 6 20 70 0~0.030 h5 2 SEME7005020E 5 6 20 70 0~0.030 h5 2 SEME7005025 5 6 25 70 0~0.030 h5 2 SEME7005025E 5 6 25 70 0~0.030 h5 2 SEME7005030 5 6 30 80 0~0.030 h5 2 SEME7005030E 5 6 30 80 0~0.030 h5 2 SEME7005035 5 6 35 90 0~0.030 h5 2 SEME7005035E 5 6 35 90 0~0.030 h5 2 SEME7005040 5 6 40 100 0~0.030 h5 2 SEME7005040E 5 6 40 100 0~0.030 h5 2 SEME7006015 6 6 15 60 0~0.030 h5 2 SEME7006015E 6 6 15 60 0~0.030 h5 2 SEME7006020 6 6 20 70 0~0.030 h5 2 SEME7006020E 6 6 20 70 0~0.030 h5 2 SEME7006025 6 6 25 75 0~0.030 h5 2 SEME7006025E 6 6 25 75 0~0.030 h5 2 SEME7006030 6 6 30 80 0~0.030 h5 2 SEME7006030E 6 6 30 80 0~0.030 h5 2 SEME7006035 6 6 35 90 0~0.030 h5 2 SEME7006035E 6 6 35 90 0~0.030 h5 2 SEME7006040 6 6 40 90 0~0.030 h5 2 SEME7006040E 6 6 40 90 0~0.030 h5 2 SEME7006045 6 6 45 150 0~0.030 h5 2 SEME7006045E 6 6 45 150 0~0.030 h5 2 SEME7008025 8 8 25 80 0~0.030 h5 2 SEME7008025E 8 8 25 80 0~0.030 h5 2 SEME7008030 8 8 30 80 0~0.030 h5 2 SEME7008030E 8 8 30 80 0~0.030 h5 2 SEME7008035 8 8 35 90 0~0.030 h5 2 SEME7008035E 8 8 35 90 0~0.030 h5 2 SEME7008040 8 8 40 90 0~0.030 h5 2 SEME7008040E 8 8 40 90 0~0.030 h5 2 SEME7008045 8 8 45 100 0~0.030 h5 2 SEME7008045E 8 8 45 100 0~0.030 h5 2 SEME7008050 8 8 50 100 0~0.030 h5 2 SEME7008050E 8 8 50 100 0~0.030 h5 2 SEME7010030 10 10 30 80 0~0.030 h5 2 SEME7010030E 10 10 30 80 0~0.030 h5 2 SEME7010035 10 10 35 90 0~0.030 h5 2 SEME7010035E 10 10 35 90 0~0.030 h5 2 SEME7010040 10 10 40 90 0~0.030 h5 2 SEME7010040E 10 10 40 90 0~0.030 h5 2 SEME7010045 10 10 45 100 0~0.030 h5 2 SEME7010045E 10 10 45 100 0~0.030 h5 2 SEME7010050 10 10 50 100 0~0.030 h5 2 SEME7010050E 10 10 50 100 0~0.030 h5 2 SEME7010055 10 10 55 150 0~0.030 h5 2 SEME7010055E 10 10 55 150 0~0.030 h5 2 SEME7010060 10 10 60 110 0~0.030 h5 2 SEME7010060E 10 10 60 110 0~0.030 h5 2 SEME7012035 12 12 35 90 0~0.030 h5 2 SEME7012035E 12 12 35 90 0~0.030 h5 2 SEME7012040 12 12 40 100 0~0.030 h5 2 SEME7012040E 12 12 40 100 0~0.030 h5 2 SEME7012045 12 12 45 130 0~0.030 h5 2 SEME7012045E 12 12 45 130 0~0.030 h5 2 SEME7012050 12 12 50 100 0~0.030 h5 2 SEME7012050E 12 12 50 100 0~0.030 h5 2 SEME7012055 12 12 55 110 0~0.030 h5 2 SEME7012055E 12 12 55 110 0~0.030 h5 2 SEME7012060 12 12 60 110 0~0.030 h5 2 SEME7012060E 12 12 60 110 0~0.030 h5 2 SEME7012065 12 12 65 150 0~0.030 h5 2 SEME7012065E 12 12 65 150 0~0.030 h5 2 SEME7012070 12 12 70 120 0~0.030 h5 2 SEME7012070E 12 12 70 120 0~0.030 h5 2 SEME7014050 14 16 50 110 0~0.030 h5 2 SEME7014050E 14 16 50 110 0~0.030 h5 2 SEME7014060 14 16 60 150 0~0.030 h5 2 SEME7014060E 14 16 60 150 0~0.030 h5 2 SEME7016040 16 16 40 150 0~0.030 h5 2 SEME7016040E 16 16 40 150 0~0.030 h5 2 SEME7016050 16 16 50 110 0~0.030 h5 2 SEME7016050E 16 16 50 110 0~0.030 h5 2 SEME7016060 16 16 60 120 0~0.030 h5 2 SEME7016060E 16 16 60 120 0~0.030 h5 2 SEME7016070 16 16 70 130 0~0.030 h5 2 SEME7016070E 16 16 70 130 0~0.030 h5 2 SEME7016080 16 16 80 150 0~0.030 h5 2 SEME7016080E 16 16 80 150 0~0.030 h5 2 SEME7016090 16 16 90 150 0~0.030 h5 2 SEME7016090E 16 16 90 150 0~0.030 h5 2 SEME7018050 18 20 50 120 0~0.030 h5 2 SEME7018050E 18 20 50 120 0~0.030 h5 2 SEME7018070 18 20 70 130 0~0.030 h5 2 SEME7018070E 18 20 70 130 0~0.030 h5 2 SEME7020050 20 20 50 110 0~0.030 h5 2 SEME7020050E 20 20 50 110 0~0.030 h5 2 SEME7020060 20 20 60 130 0~0.030 h5 2 SEME7020060E 20 20 60 130 0~0.030 h5 2 SEME7020070 20 20 70 130 0~0.030 h5 2 SEME7020070E 20 20 70 130 0~0.030 h5 2 SEME7020080 20 20 80 150 0~0.030 h5 2 SEME7020080E 20 20 80 150 0~0.030 h5 2 SEME7020090 20 20 90 150 0~0.030 h5 2 SEME7020090E 20 20 90 150 0~0.030 h5 2 SEME7022075 22 20 75 150 0~0.030 h5 2 SEME7022075E 22 20 75 150 0~0.030 h5 2 SEME7025070 25 25 70 150 0~0.030 h5 2 SEME7025070E 25 25 70 150 0~0.030 h5 2 SEME7025090 25 25 90 150 0~0.030 h5 2 SEME7025090E 25 25 90 150 0~0.030 h5 2 SEME70030163S 3 3 16 100 0~0.030 h5 2 SEME70030163SE 3 3 16 100 0~0.030 h5 2 SEME70040204S 4 4 20 100 0~0.030 h5 2 SEME70040204SE 4 4 20 100 0~0.030 h5 2 SEME70160110 16 16 110 200 0~0.030 h5 2 SEME70160110E 16 16 110 200 0~0.030 h5 2 SEME70160120 16 16 120 250 0~0.030 h5 2 SEME70160120E 16 16 120 250 0~0.030 h5 2 SEME70180100 18 20 100 200 0~0.030 h5 2 SEME70180100E 18 20 100 200 0~0.030 h5 2 SEME70200110 20 20 110 200 0~0.030 h5 2 SEME70200110E 20 20 110 200 0~0.030 h5 2 SEME70200120 20 20 120 250 0~0.030 h5 2 SEME70200120E 20 20 120 250 0~0.030 h5 2 SEME70220110 22 20 110 200 0~0.030 h5 2 SEME70220110E 22 20 110 200 0~0.030 h5 2 SEME70250110 25 25 110 200 0~0.030 h5 2 SEME70250110E 25 25 110 200 0~0.030 h5 2 SEME70250120 25 25 120 250 0~0.030 h5 2 SEME70250120E 25 25 120 250 0~0.030 h5 2 SEME7005025100 5 6 25 100 0~0.030 h5 2 SEME7005025100E 5 6 25 100 0~0.030 h5 2 SEME7006015080 6 6 15 80 0~0.030 h5 2 SEME7006015080E 6 6 15 80 0~0.030 h5 2 SEME7006020090 6 6 20 90 0~0.030 h5 2 SEME7006020090E 6 6 20 90 0~0.030 h5 2 SEME7006030100 6 6 30 100 0~0.030 h5 2 SEME7006030100E 6 6 30 100 0~0.030 h5 2 SEME7006030150 6 6 30 150 0~0.030 h5 2 SEME7006030150E 6 6 30 150 0~0.030 h5 2 SEME7006040120 6 6 40 120 0~0.030 h5 2 SEME7006040120E 6 6 40 120 0~0.030 h5 2 SEME7008030100 8 8 30 100 0~0.030 h5 2 SEME7008030100E 8 8 30 100 0~0.030 h5 2 SEME7008040120 8 8 40 120 0~0.030 h5 2 SEME7008040120E 8 8 40 120 0~0.030 h5 2 SEME7008040150 8 8 40 150 0~0.030 h5 2 SEME7008040150E 8 8 40 150 0~0.030 h5 2 SEME7008050150 8 8 50 150 0~0.030 h5 2 SEME7008050150E 8 8 50 150 0~0.030 h5 2 SEME7010030100 10 10 30 100 0~0.030 h5 2 SEME7010030100E 10 10 30 100 0~0.030 h5 2 SEME7010040120 10 10 40 120 0~0.030 h5 2 SEME7010040120E 10 10 40 120 0~0.030 h5 2 SEME7010050150 10 10 50 150 0~0.030 h5 2 SEME7010050150E 10 10 50 150 0~0.030 h5 2 SEME7010050200 10 10 50 200 0~0.030 h5 2 SEME7010050200E 10 10 50 200 0~0.030 h5 2 SEME7010060200 10 10 60 200 0~0.030 h5 2 SEME7010060200E 10 10 60 200 0~0.030 h5 2 SEME7012040120 12 12 40 120 0~0.030 h5 2 SEME7012040120E 12 12 40 120 0~0.030 h5 2 SEME7012050150 12 12 50 150 0~0.030 h5 2 SEME7012050150E 12 12 50 150 0~0.030 h5 2 SEME7012060150 12 12 60 150 0~0.030 h5 2 SEME7012060150E 12 12 60 150 0~0.030 h5 2 SEME7012060200 12 12 60 200 0~0.030 h5 2 SEME7012060200E 12 12 60 200 0~0.030 h5 2 SEME7012070200 12 12 70 200 0~0.030 h5 2 SEME7012070200E 12 12 70 200 0~0.030 h5 2 SEME7016050150 16 16 50 150 0~0.030 h5 2 SEME7016050150E 16 16 50 150 0~0.030 h5 2 SEME7016070150 16 16 70 150 0~0.030 h5 2 SEME7016070150E 16 16 70 150 0~0.030 h5 2 SEME7016070200 16 16 70 200 0~0.030 h5 2 SEME7016070200E 16 16 70 200 0~0.030 h5 2 SEME7020050150 20 20 50 150 0~0.030 h5 2 SEME7020050150E 20 20 50 150 0~0.030 h5 2 SEME7020090200 20 20 90 200 0~0.030 h5 2 SEME7020090200E 20 20 90 200 0~0.030 h5 2
Side Milling
Small Part
Slotting
Die Sinking
Facing
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Good

Good Great Excellent
H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
P

Non-alloy steel

Excellent Excellent
HRc
13252832
HB
125190250270300
P

Low alloy steel

Excellent Excellent
HRc
10293238
HB
180275300350
P

High alloy & tool steel

Excellent Excellent
HRc
1535
HB
200325
K

Grey cast iron

Good Good
HRc
1026
HB
180260
K

Nodular cast iron

Good Good
HRc
325
HB
160250
K

Malleable cast iron

Good Good
HRc
21
HB
130230
H

Hardened steels & cast irons

Excellent Excellent
HRc
384041
HB
400630
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME7001003 1 6 3 60 0~0.030 h5 2 SEME7001003E 1 6 3 60 0~0.030 h5 2 SEME7001004 1 6 4 60 0~0.030 h5 2 SEME7001004E 1 6 4 60 0~0.030 h5 2 SEME7001005 1 6 5 60 0~0.030 h5 2 SEME7001005E 1 6 5 60 0~0.030 h5 2 SEME7001006 1 6 6 60 0~0.030 h5 2 SEME7001006E 1 6 6 60 0~0.030 h5 2 SEME7001007 1 6 7 60 0~0.030 h5 2 SEME7001007E 1 6 7 60 0~0.030 h5 2 SEME7001008 1 6 8 60 0~0.030 h5 2 SEME7001008E 1 6 8 60 0~0.030 h5 2 SEME7001010 1 6 10 60 0~0.030 h5 2 SEME7001010E 1 6 10 60 0~0.030 h5 2 SEME7001012 1 6 12 60 0~0.030 h5 2 SEME7001012E 1 6 12 60 0~0.030 h5 2 SEME7001204 1.2 6 4 60 0~0.030 h5 2 SEME7001204E 1.2 6 4 60 0~0.030 h5 2 SEME7001206 1.2 6 6 60 0~0.030 h5 2 SEME7001206E 1.2 6 6 60 0~0.030 h5 2 SEME7001208 1.2 6 8 60 0~0.030 h5 2 SEME7001208E 1.2 6 8 60 0~0.030 h5 2 SEME7001210 1.2 6 10 60 0~0.030 h5 2 SEME7001210E 1.2 6 10 60 0~0.030 h5 2 SEME7001212 1.2 6 12 60 0~0.030 h5 2 SEME7001212E 1.2 6 12 60 0~0.030 h5 2 SEME7001506 1.5 6 6 60 0~0.030 h5 2 SEME7001506E 1.5 6 6 60 0~0.030 h5 2 SEME7001508 1.5 6 8 60 0~0.030 h5 2 SEME7001508E 1.5 6 8 60 0~0.030 h5 2 SEME7001510 1.5 6 10 60 0~0.030 h5 2 SEME7001510E 1.5 6 10 60 0~0.030 h5 2 SEME7001512 1.5 6 12 60 0~0.030 h5 2 SEME7001512E 1.5 6 12 60 0~0.030 h5 2 SEME7001514 1.5 6 14 60 0~0.030 h5 2 SEME7001514E 1.5 6 14 60 0~0.030 h5 2 SEME7001516 1.5 6 16 60 0~0.030 h5 2 SEME7001516E 1.5 6 16 60 0~0.030 h5 2 SEME7002008 2 6 8 60 0~0.030 h5 2 SEME7002008E 2 6 8 60 0~0.030 h5 2 SEME7002010 2 6 10 60 0~0.030 h5 2 SEME7002010E 2 6 10 60 0~0.030 h5 2 SEME7002012 2 6 12 60 0~0.030 h5 2 SEME7002012E 2 6 12 60 0~0.030 h5 2 SEME7002014 2 6 14 60 0~0.030 h5 2 SEME7002014E 2 6 14 60 0~0.030 h5 2 SEME7002016 2 6 16 60 0~0.030 h5 2 SEME7002016E 2 6 16 60 0~0.030 h5 2 SEME7002510 2.5 6 10 60 0~0.030 h5 2 SEME7002510E 2.5 6 10 60 0~0.030 h5 2 SEME7002512 2.5 6 12 60 0~0.030 h5 2 SEME7002512E 2.5 6 12 60 0~0.030 h5 2 SEME7002516 2.5 6 16 60 0~0.030 h5 2 SEME7002516E 2.5 6 16 60 0~0.030 h5 2 SEME7002520 2.5 6 20 60 0~0.030 h5 2 SEME7002520E 2.5 6 20 60 0~0.030 h5 2 SEME7002526 2.5 6 26 60 0~0.030 h5 2 SEME7002526E 2.5 6 26 60 0~0.030 h5 2 SEME7003010 3 6 10 70 0~0.030 h5 2 SEME7003010E 3 6 10 70 0~0.030 h5 2 SEME7003012 3 6 12 70 0~0.030 h5 2 SEME7003012E 3 6 12 70 0~0.030 h5 2 SEME7003014 3 6 14 70 0~0.030 h5 2 SEME7003014E 3 6 14 70 0~0.030 h5 2 SEME7003016 3 6 16 70 0~0.030 h5 2 SEME7003016E 3 6 16 70 0~0.030 h5 2 SEME7003020 3 6 20 70 0~0.030 h5 2 SEME7003020E 3 6 20 70 0~0.030 h5 2 SEME7003026 3 6 26 70 0~0.030 h5 2 SEME7003026E 3 6 26 70 0~0.030 h5 2 SEME7003030 3 6 30 70 0~0.030 h5 2 SEME7003030E 3 6 30 70 0~0.030 h5 2 SEME7004012 4 6 12 70 0~0.030 h5 2 SEME7004012E 4 6 12 70 0~0.030 h5 2 SEME7004016 4 6 16 70 0~0.030 h5 2 SEME7004016E 4 6 16 70 0~0.030 h5 2 SEME7004020 4 6 20 70 0~0.030 h5 2 SEME7004020E 4 6 20 70 0~0.030 h5 2 SEME7004026 4 6 26 70 0~0.030 h5 2 SEME7004026E 4 6 26 70 0~0.030 h5 2 SEME7004030 4 6 30 70 0~0.030 h5 2 SEME7004030E 4 6 30 70 0~0.030 h5 2 SEME7005020 5 6 20 70 0~0.030 h5 2 SEME7005020E 5 6 20 70 0~0.030 h5 2 SEME7005025 5 6 25 70 0~0.030 h5 2 SEME7005025E 5 6 25 70 0~0.030 h5 2 SEME7005030 5 6 30 80 0~0.030 h5 2 SEME7005030E 5 6 30 80 0~0.030 h5 2 SEME7005035 5 6 35 90 0~0.030 h5 2 SEME7005035E 5 6 35 90 0~0.030 h5 2 SEME7005040 5 6 40 100 0~0.030 h5 2 SEME7005040E 5 6 40 100 0~0.030 h5 2 SEME7006015 6 6 15 60 0~0.030 h5 2 SEME7006015E 6 6 15 60 0~0.030 h5 2 SEME7006020 6 6 20 70 0~0.030 h5 2 SEME7006020E 6 6 20 70 0~0.030 h5 2 SEME7006025 6 6 25 75 0~0.030 h5 2 SEME7006025E 6 6 25 75 0~0.030 h5 2 SEME7006030 6 6 30 80 0~0.030 h5 2 SEME7006030E 6 6 30 80 0~0.030 h5 2 SEME7006035 6 6 35 90 0~0.030 h5 2 SEME7006035E 6 6 35 90 0~0.030 h5 2 SEME7006040 6 6 40 90 0~0.030 h5 2 SEME7006040E 6 6 40 90 0~0.030 h5 2 SEME7006045 6 6 45 150 0~0.030 h5 2 SEME7006045E 6 6 45 150 0~0.030 h5 2 SEME7008025 8 8 25 80 0~0.030 h5 2 SEME7008025E 8 8 25 80 0~0.030 h5 2 SEME7008030 8 8 30 80 0~0.030 h5 2 SEME7008030E 8 8 30 80 0~0.030 h5 2 SEME7008035 8 8 35 90 0~0.030 h5 2 SEME7008035E 8 8 35 90 0~0.030 h5 2 SEME7008040 8 8 40 90 0~0.030 h5 2 SEME7008040E 8 8 40 90 0~0.030 h5 2 SEME7008045 8 8 45 100 0~0.030 h5 2 SEME7008045E 8 8 45 100 0~0.030 h5 2 SEME7008050 8 8 50 100 0~0.030 h5 2 SEME7008050E 8 8 50 100 0~0.030 h5 2 SEME7010030 10 10 30 80 0~0.030 h5 2 SEME7010030E 10 10 30 80 0~0.030 h5 2 SEME7010035 10 10 35 90 0~0.030 h5 2 SEME7010035E 10 10 35 90 0~0.030 h5 2 SEME7010040 10 10 40 90 0~0.030 h5 2 SEME7010040E 10 10 40 90 0~0.030 h5 2 SEME7010045 10 10 45 100 0~0.030 h5 2 SEME7010045E 10 10 45 100 0~0.030 h5 2 SEME7010050 10 10 50 100 0~0.030 h5 2 SEME7010050E 10 10 50 100 0~0.030 h5 2 SEME7010055 10 10 55 150 0~0.030 h5 2 SEME7010055E 10 10 55 150 0~0.030 h5 2 SEME7010060 10 10 60 110 0~0.030 h5 2 SEME7010060E 10 10 60 110 0~0.030 h5 2 SEME7012035 12 12 35 90 0~0.030 h5 2 SEME7012035E 12 12 35 90 0~0.030 h5 2 SEME7012040 12 12 40 100 0~0.030 h5 2 SEME7012040E 12 12 40 100 0~0.030 h5 2 SEME7012045 12 12 45 130 0~0.030 h5 2 SEME7012045E 12 12 45 130 0~0.030 h5 2 SEME7012050 12 12 50 100 0~0.030 h5 2 SEME7012050E 12 12 50 100 0~0.030 h5 2 SEME7012055 12 12 55 110 0~0.030 h5 2 SEME7012055E 12 12 55 110 0~0.030 h5 2 SEME7012060 12 12 60 110 0~0.030 h5 2 SEME7012060E 12 12 60 110 0~0.030 h5 2 SEME7012065 12 12 65 150 0~0.030 h5 2 SEME7012065E 12 12 65 150 0~0.030 h5 2 SEME7012070 12 12 70 120 0~0.030 h5 2 SEME7012070E 12 12 70 120 0~0.030 h5 2 SEME7014050 14 16 50 110 0~0.030 h5 2 SEME7014050E 14 16 50 110 0~0.030 h5 2 SEME7014060 14 16 60 150 0~0.030 h5 2 SEME7014060E 14 16 60 150 0~0.030 h5 2 SEME7016040 16 16 40 150 0~0.030 h5 2 SEME7016040E 16 16 40 150 0~0.030 h5 2 SEME7016050 16 16 50 110 0~0.030 h5 2 SEME7016050E 16 16 50 110 0~0.030 h5 2 SEME7016060 16 16 60 120 0~0.030 h5 2 SEME7016060E 16 16 60 120 0~0.030 h5 2 SEME7016070 16 16 70 130 0~0.030 h5 2 SEME7016070E 16 16 70 130 0~0.030 h5 2 SEME7016080 16 16 80 150 0~0.030 h5 2 SEME7016080E 16 16 80 150 0~0.030 h5 2 SEME7016090 16 16 90 150 0~0.030 h5 2 SEME7016090E 16 16 90 150 0~0.030 h5 2 SEME7018050 18 20 50 120 0~0.030 h5 2 SEME7018050E 18 20 50 120 0~0.030 h5 2 SEME7018070 18 20 70 130 0~0.030 h5 2 SEME7018070E 18 20 70 130 0~0.030 h5 2 SEME7020050 20 20 50 110 0~0.030 h5 2 SEME7020050E 20 20 50 110 0~0.030 h5 2 SEME7020060 20 20 60 130 0~0.030 h5 2 SEME7020060E 20 20 60 130 0~0.030 h5 2 SEME7020070 20 20 70 130 0~0.030 h5 2 SEME7020070E 20 20 70 130 0~0.030 h5 2 SEME7020080 20 20 80 150 0~0.030 h5 2 SEME7020080E 20 20 80 150 0~0.030 h5 2 SEME7020090 20 20 90 150 0~0.030 h5 2 SEME7020090E 20 20 90 150 0~0.030 h5 2 SEME7022075 22 20 75 150 0~0.030 h5 2 SEME7022075E 22 20 75 150 0~0.030 h5 2 SEME7025070 25 25 70 150 0~0.030 h5 2 SEME7025070E 25 25 70 150 0~0.030 h5 2 SEME7025090 25 25 90 150 0~0.030 h5 2 SEME7025090E 25 25 90 150 0~0.030 h5 2 SEME70030163S 3 3 16 100 0~0.030 h5 2 SEME70030163SE 3 3 16 100 0~0.030 h5 2 SEME70040204S 4 4 20 100 0~0.030 h5 2 SEME70040204SE 4 4 20 100 0~0.030 h5 2 SEME70160110 16 16 110 200 0~0.030 h5 2 SEME70160110E 16 16 110 200 0~0.030 h5 2 SEME70160120 16 16 120 250 0~0.030 h5 2 SEME70160120E 16 16 120 250 0~0.030 h5 2 SEME70180100 18 20 100 200 0~0.030 h5 2 SEME70180100E 18 20 100 200 0~0.030 h5 2 SEME70200110 20 20 110 200 0~0.030 h5 2 SEME70200110E 20 20 110 200 0~0.030 h5 2 SEME70200120 20 20 120 250 0~0.030 h5 2 SEME70200120E 20 20 120 250 0~0.030 h5 2 SEME70220110 22 20 110 200 0~0.030 h5 2 SEME70220110E 22 20 110 200 0~0.030 h5 2 SEME70250110 25 25 110 200 0~0.030 h5 2 SEME70250110E 25 25 110 200 0~0.030 h5 2 SEME70250120 25 25 120 250 0~0.030 h5 2 SEME70250120E 25 25 120 250 0~0.030 h5 2 SEME7005025100 5 6 25 100 0~0.030 h5 2 SEME7005025100E 5 6 25 100 0~0.030 h5 2 SEME7006015080 6 6 15 80 0~0.030 h5 2 SEME7006015080E 6 6 15 80 0~0.030 h5 2 SEME7006020090 6 6 20 90 0~0.030 h5 2 SEME7006020090E 6 6 20 90 0~0.030 h5 2 SEME7006030100 6 6 30 100 0~0.030 h5 2 SEME7006030100E 6 6 30 100 0~0.030 h5 2 SEME7006030150 6 6 30 150 0~0.030 h5 2 SEME7006030150E 6 6 30 150 0~0.030 h5 2 SEME7006040120 6 6 40 120 0~0.030 h5 2 SEME7006040120E 6 6 40 120 0~0.030 h5 2 SEME7008030100 8 8 30 100 0~0.030 h5 2 SEME7008030100E 8 8 30 100 0~0.030 h5 2 SEME7008040120 8 8 40 120 0~0.030 h5 2 SEME7008040120E 8 8 40 120 0~0.030 h5 2 SEME7008040150 8 8 40 150 0~0.030 h5 2 SEME7008040150E 8 8 40 150 0~0.030 h5 2 SEME7008050150 8 8 50 150 0~0.030 h5 2 SEME7008050150E 8 8 50 150 0~0.030 h5 2 SEME7010030100 10 10 30 100 0~0.030 h5 2 SEME7010030100E 10 10 30 100 0~0.030 h5 2 SEME7010040120 10 10 40 120 0~0.030 h5 2 SEME7010040120E 10 10 40 120 0~0.030 h5 2 SEME7010050150 10 10 50 150 0~0.030 h5 2 SEME7010050150E 10 10 50 150 0~0.030 h5 2 SEME7010050200 10 10 50 200 0~0.030 h5 2 SEME7010050200E 10 10 50 200 0~0.030 h5 2 SEME7010060200 10 10 60 200 0~0.030 h5 2 SEME7010060200E 10 10 60 200 0~0.030 h5 2 SEME7012040120 12 12 40 120 0~0.030 h5 2 SEME7012040120E 12 12 40 120 0~0.030 h5 2 SEME7012050150 12 12 50 150 0~0.030 h5 2 SEME7012050150E 12 12 50 150 0~0.030 h5 2 SEME7012060150 12 12 60 150 0~0.030 h5 2 SEME7012060150E 12 12 60 150 0~0.030 h5 2 SEME7012060200 12 12 60 200 0~0.030 h5 2 SEME7012060200E 12 12 60 200 0~0.030 h5 2 SEME7012070200 12 12 70 200 0~0.030 h5 2 SEME7012070200E 12 12 70 200 0~0.030 h5 2 SEME7016050150 16 16 50 150 0~0.030 h5 2 SEME7016050150E 16 16 50 150 0~0.030 h5 2 SEME7016070150 16 16 70 150 0~0.030 h5 2 SEME7016070150E 16 16 70 150 0~0.030 h5 2 SEME7016070200 16 16 70 200 0~0.030 h5 2 SEME7016070200E 16 16 70 200 0~0.030 h5 2 SEME7020050150 20 20 50 150 0~0.030 h5 2 SEME7020050150E 20 20 50 150 0~0.030 h5 2 SEME7020090200 20 20 90 200 0~0.030 h5 2 SEME7020090200E 20 20 90 200 0~0.030 h5 2
