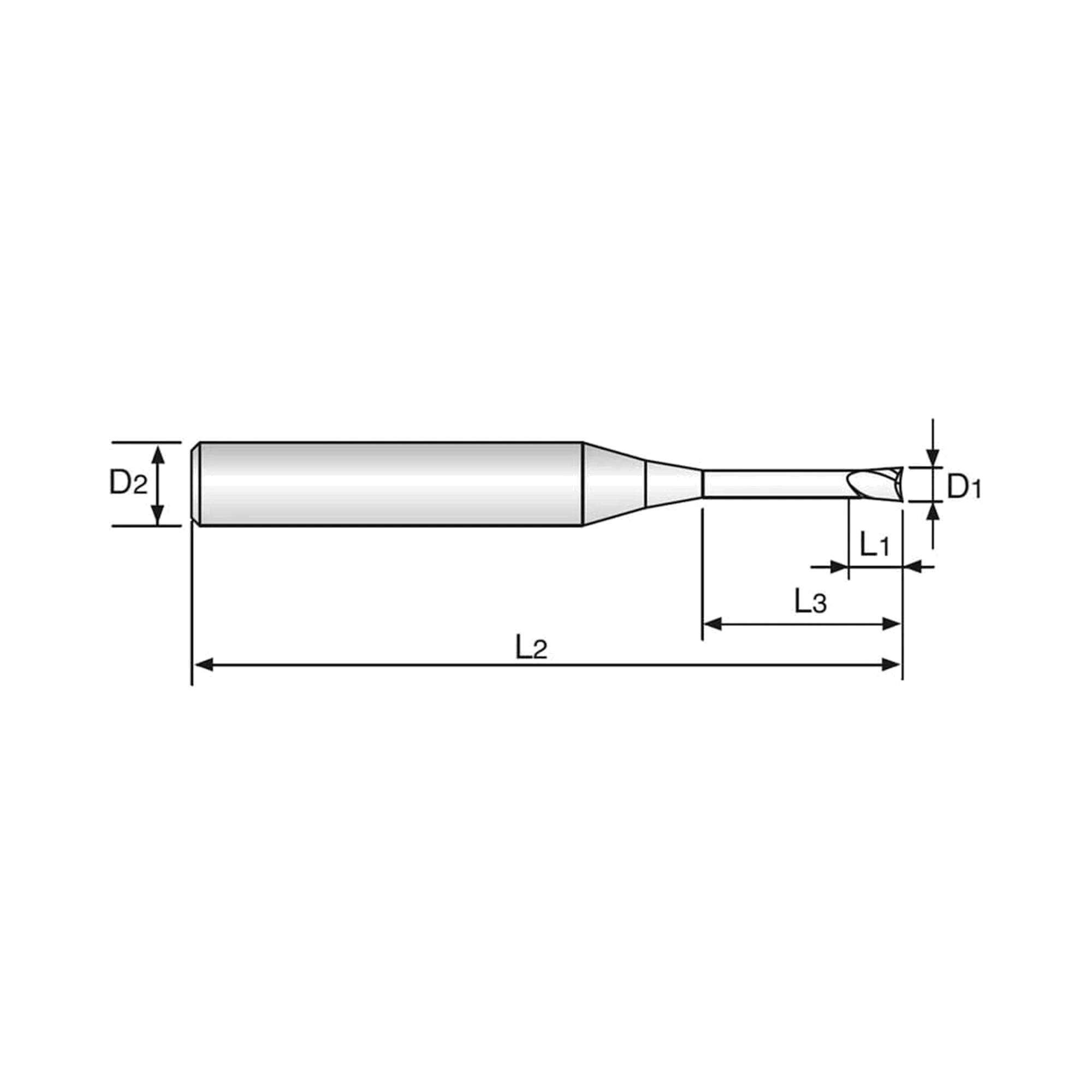

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| SEM84500101E | 0.1 | 40.0 | 4.0 | 0.15 | 0.5 | 0.085 | 5 days | $107.10 | ||
| SEM84500201E | 0.2 | 40.0 | 4.0 | 0.3 | 0.5 | 0.17 | 5 days | $76.40 | ||
| SEM84500301E | 0.3 | 40.0 | 4.0 | 0.5 | 1.0 | 0.27 | 5 days | $82.50 | ||
| SEM84500401E | 0.4 | 40.0 | 4.0 | 0.6 | 1.0 | 0.37 | 5 days | $60.40 | ||
| SEM84500501E | 0.5 | 45.0 | 4.0 | 0.7 | 1.0 | 0.45 | 5 days | $55.80 | ||
| SEM84500602E | 0.6 | 45.0 | 4.0 | 0.9 | 2.0 | 0.55 | 5 days | $55.80 | ||
| SEM84500702E | 0.7 | 45.0 | 4.0 | 1.2 | 2.0 | 0.65 | 5 days | $55.80 | ||
| SEM84500802E | 0.8 | 45.0 | 4.0 | 1.2 | 2.0 | 0.75 | 5 days | $55.80 | ||
| SEM84500908E | 0.9 | 45.0 | 4.0 | 1.3 | 8.0 | 0.85 | 5 days | $64.50 | ||
| SEM84501002E | 1 | 50.0 | 4.0 | 1.5 | 2.0 | 0.95 | 5 days | $49.10 | ||
| SEM84501204E | 1.2 | 50.0 | 4.0 | 1.8 | 4.0 | 1.15 | 5 days | $49.10 | ||
| SEM84501406E | 1.4 | 50.0 | 4.0 | 2.1 | 6.0 | 1.35 | 5 days | $49.10 | ||
| SEM84501504E | 1.5 | 50.0 | 4.0 | 2.3 | 4.0 | 1.45 | 5 days | $49.10 | ||
| SEM84501608E | 1.6 | 50.0 | 4.0 | 2.3 | 8.0 | 1.55 | 5 days | $49.10 | ||
| SEM84501808E | 1.8 | 50.0 | 4.0 | 2.7 | 8.0 | 1.75 | 5 days | $49.10 | ||
| SEM84502006E | 2 | 50.0 | 4.0 | 4.0 | 6.0 | 1.95 | 5 days | $67.00 | ||
| SEM84502508E | 2.5 | 50.0 | 4.0 | 4.0 | 8.0 | 2.4 | 5 days | $49.10 | ||
| SEM84503006E | 3 | 50.0 | 6.0 | 4.5 | 6.0 | 2.85 | Low stock | $75.60 | ||
| SEM84504008E | 4 | 50.0 | 6.0 | 6.0 | 8.0 | 3.85 | 5 days | $55.80 | ||
| SEM84505016E | 5 | 60.0 | 6.0 | 8.0 | 16.0 | 4.85 | 5 days | $57.40 | ||
| SEM84506015E | 6 | 60.0 | 6.0 | 9.0 | 15.0 | 5.85 | 5 days | $57.40 | ||
| SEM84508025E | 8 | 70.0 | 8.0 | 12.0 | 25.0 | 7.7 | 5 days | $93.50 | ||
| SEM84510030E | 10 | 75.0 | 10.0 | 15.0 | 30.0 | 9.7 | 5 days | $121.40 | ||
| SEM84512035E | 12 | 80.0 | 12.0 | 20.0 | 35.0 | 11.7 | 5 days | $163.40 |
Add 4G MILL 2 Flute 30°Helix Rib End Mill (SEM845) to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Reviews

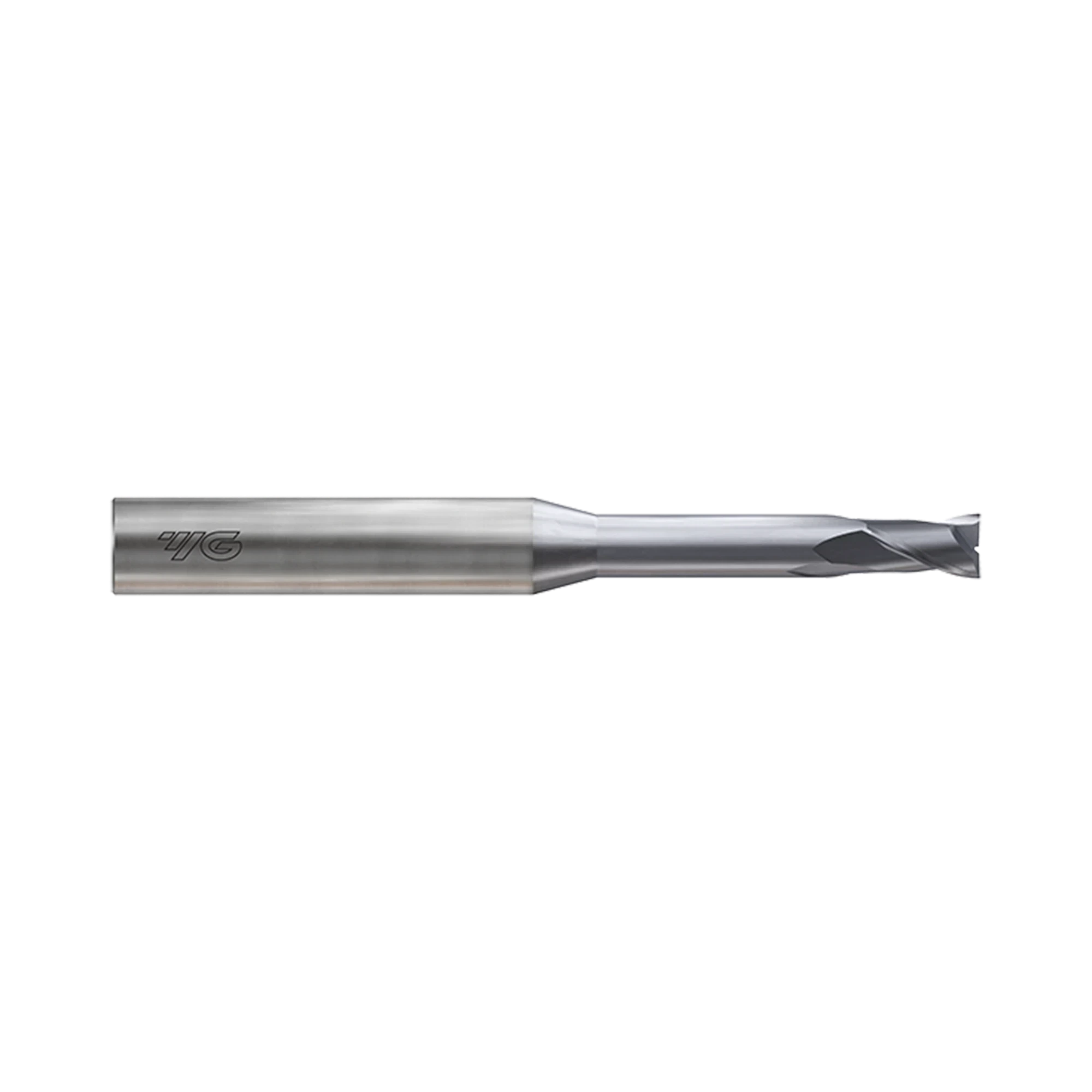

The SEM845 series range from 0.5-12mm diameter. These long neck slot drills come with 2 flutes and a plain shank. The 4G Mill range from YG-1 have excellent performance for either dry or wet cutting of all steels, stainless steel, cast iron & hardened steels (Under HRc55).
- Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
- YG-1's Y1200 coating & premium micrograin carbide substrate
- HSC - High speed cutting
- Due to new coating and tool geometry, 4G Mills can machine up to 1200°C with outstanding wear resistance
- For 1.0mm and below, designed with double neck for increasing tool rigidity and minimizing vibration
- Wide range of neck lengths for rib processing/pocket milling operations
| Workpiece Material | P M K H |
| Cutting Shape | Square |
| Hardened Steels(HRc40~45) | Great |
| Helix Angle | Square 30 |
| Length | Extended Neck |
| No. Flutes | 2 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | Carbide |
| Flutes | 2 |
| Helix Angle | 30° |
| Cutting Edge Shape | Square |
| Size Min | D0.1 |
| Size Max | D12.0 |
| Length | Extended Neck |
| Coating | Y-Coating |
Great
Excellent
Excellent
Great
Great
Great
Great
