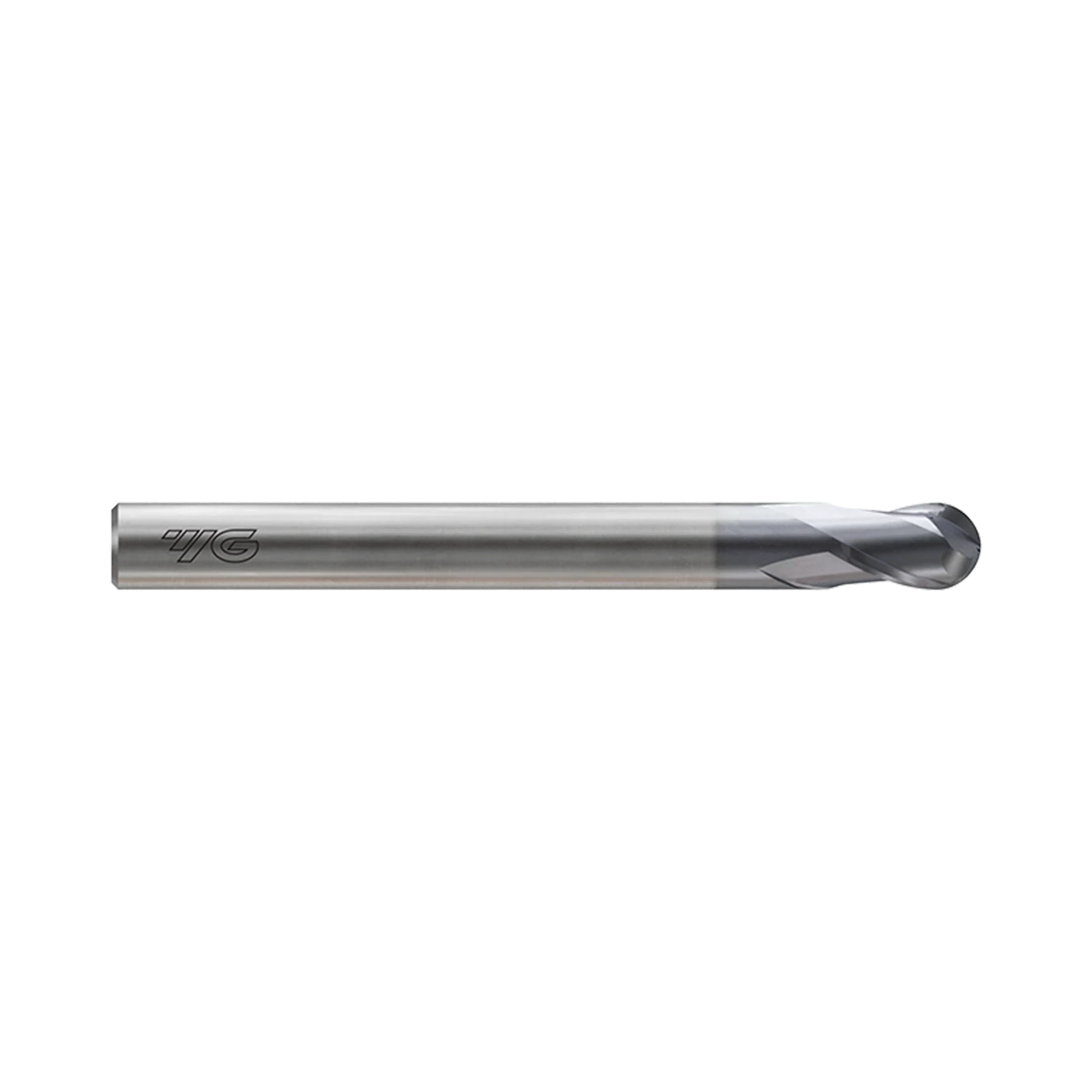

4G MILL 2 Flute 30°Helix Ball End Mill (SEMD98)

  • $143.66INC GST $130.60 EX GST
4G MILL 2 Flute 30°Helix Ball End Mill (SEMD98)
4G MILL 2 Flute 30°Helix Ball End Mill (SEMD98)

4G MILL 2 Flute 30°Helix Ball End Mill (SEMD98)

  • $143.66INC GST $130.60 EX GST

Code: SEMD98001SE

P K H
Mill Diameter (mm)
Ball Nose Radius (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Ball Nose Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
SEMD98001SE0.1R0.0540.04.00.1 5 days $130.60
SEMD980015E0.15R0.07540.04.00.3 5 days $140.10
SEMD98002E0.2R0.140.04.00.4 5 days $89.40
SEMD98003E0.3R0.1540.04.00.6 5 days $77.20
SEMD98004E0.4R0.240.04.00.8 5 days $84.50
SEMD98005E0.5R0.2540.04.01.0 5 days $63.10
SEMD98006E0.6R0.340.04.01.2 5 days $72.80
SEMD98007E0.7R0.3540.04.01.4 5 days $63.10
SEMD98008E0.8R0.440.04.01.6 5 days $72.80
SEMD98009E0.9R0.4540.04.01.8 5 days $63.10
SEMD98010E1R0.550.06.02.5 5 days $59.50
SEMD98012E1.2R0.650.06.03.0 5 days $59.50
SEMD98015E1.5R0.7550.06.04.0 Low stock $59.50
SEMD98020E2R1.050.06.05.0 5 days $59.50
SEMD98025E2.5R1.2560.06.06.0 5 days $62.00
SEMD98030E3R1.560.06.06.0 5 days $62.00
SEMD98035E3.5R1.7570.06.08.0 5 days $64.20
SEMD98040E4R2.070.06.08.0 In stock $80.80
SEMD98045E4.5R2.2580.06.09.0 5 days $66.70
SEMD98050E5R2.580.06.010.0 5 days $66.70
SEMD98055E5.5R2.7590.06.011.0 5 days $69.70
SEMD98060E6R3.090.06.012.0 In stock $87.40
SEMD98065E6.5R3.2590.08.013.0 In stock $124.60
SEMD98070E7R3.590.08.014.0 5 days $133.70
SEMD98080E8R4.0100.08.014.0 5 days $110.90
SEMD98085E8.5R4.25100.010.016.0 5 days $144.00
SEMD98090E9R4.5100.010.018.0 5 days $144.00
SEMD98100E10R5.0100.010.018.0 5 days $154.50
SEMD98110E11R5.5100.012.020.0 5 days $190.60
SEMD98120E12R6.0110.012.022.0 5 days $198.20
SEMD98130E13R6.5100.012.024.0 5 days $313.10
SEMD98140E14R7.0100.012.026.0 5 days $332.60
SEMD98150E15R7.5140.016.028.0 Low stock $431.70
SEMD98160E16R8.0150.016.030.0 5 days $512.50
SEMD9818018SE18R9.0150.018.034.0 5 days -
SEMD98200E20R10.0150.020.038.0 5 days $612.30
SEMD98250E25R12.5180.025.050.0 5 days $1,070.80

Add 4G MILL 2 Flute 30°Helix Ball End Mill (SEMD98) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The SEME98 series range from 1-20mm diameter. These slot drills come with 2 flutes and a plain shank. The 4G Mill range from YG-1 have excellent performance for either dry or wet cutting of all steels, stainless steel, cast iron & hardened steels (Under HRc55).

  • Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
  • YG-1's Y1200 coating & premium micrograin carbide substrate
  • HSC - High speed cutting
  • Due to new coating and tool geometry, 4G Mills can machine up to 1200°C with outstanding wear resistance
  • Due to it's unique ball nose geometry and cutting edges, exceptional surface can be achieved)
Product Data
Workpiece Material P K H
Ball Radius Tolerance 0.01
Corner Radius Tolerance 0.005
Cutting Shape Ball Nose
Hardened Steels(HRc40~45) Excellent
Helix Angle Square 30
Length Regular
No. Flutes 2
Operation Profiling, Side Milling, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide
Flutes 2
Helix Angle 30°
Cutting Edge Shape BALL NOSE
Size Min R0.05
Size Max R12.5
Length -
Coating Y-Coating

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEMD98001 0.1 4 0.2 40 0~-0.012 h5 2 SEMD98001E 0.1 4 0.2 40 0~-0.012 h5 2 SEMD98001H 0.1 4 0.2 40 0~-0.012 h5 2 SEMD98001S 0.1 4 0.1 40 0~-0.012 h5 2 SEMD98001SE 0.1 4 0.1 40 0~-0.012 h5 2 SEMD98002 0.2 4 0.4 40 0~-0.012 h5 2 SEMD98002H 0.2 4 0.4 40 0~-0.012 h5 2 SEMD98002S 0.2 4 0.2 40 0~-0.012 h5 2 SEMD98002SE 0.2 4 0.2 40 0~-0.012 h5 2 SEMD98003 0.3 4 0.6 40 0~-0.012 h5 2 SEMD98003H 0.3 4 0.6 40 0~-0.012 h5 2 SEMD98004 0.4 4 0.8 40 0~-0.012 h5 2 SEMD98004H 0.4 4 0.8 40 0~-0.012 h5 2 SEMD98004SE 0.4 4 0.4 40 0~-0.012 h5 2 SEMD98005E 0.5 4 1 40 0~-0.012 h5 2 SEMD98005S 0.5 4 0.5 40 0~-0.012 h5 2 SEMD98005SE 0.5 4 0.5 40 0~-0.012 h5 2 SEMD98006 0.6 4 1.2 40 0~-0.012 h5 2 SEMD98006E 0.6 4 1.2 40 0~-0.012 h5 2 SEMD98006H 0.6 4 1.2 40 0~-0.012 h5 2 SEMD98006S 0.6 4 0.6 40 0~-0.012 h5 2 SEMD98006SE 0.6 4 0.6 40 0~-0.012 h5 2 SEMD98007E 0.7 4 1.4 40 0~-0.012 h5 2 SEMD98007SE 0.7 4 0.7 40 0~-0.012 h5 2 SEMD98008H 0.8 4 1.6 40 0~-0.012 h5 2 SEMD98009S 0.9 4 0.9 40 0~-0.012 h5 2 SEMD98009SE 0.9 4 0.9 40 0~-0.012 h5 2 SEMD98010 1 6 2.5 50 0~-0.012 h5 2 SEMD98012 1.2 6 3 50 0~-0.012 h5 2 SEMD98012H 1.2 6 3 50 0~-0.012 h5 2 SEMD98015 1.5 6 4 50 0~-0.012 h5 2 SEMD98020E 2 6 5 50 0~-0.012 h5 2 SEMD98025E 2.5 6 6 60 0~-0.012 h5 2 SEMD98030H 3 6 6 60 0~-0.012 h5 2 SEMD98035 3.5 6 8 70 0~-0.012 h5 2 SEMD98035E 3.5 6 8 70 0~-0.012 h5 2 SEMD98040 4 6 8 70 0~-0.012 h5 2 SEMD98040H 4 6 8 70 0~-0.012 h5 2 SEMD98045 4.5 6 9 80 0~-0.012 h5 2 SEMD98050 5 6 10 80 0~-0.012 h5 2 SEMD98050E 5 6 10 80 0~-0.012 h5 2 SEMD98050H 5 6 10 80 0~-0.012 h5 2 SEMD98055 5.5 6 11 90 0~-0.012 h5 2 SEMD98055E 5.5 6 11 90 0~-0.012 h5 2 SEMD98065 6.5 8 13 90 0~-0.015 h5 2 SEMD98065E 6.5 8 13 90 0~-0.015 h5 2 SEMD98070 7 8 14 90 0~-0.015 h5 2 SEMD98080 8 8 14 100 0~-0.015 h5 2 SEMD98080H 8 8 14 100 0~-0.015 h5 2 SEMD98085 8.5 10 16 100 0~-0.015 h5 2 SEMD98085E 8.5 10 16 100 0~-0.015 h5 2 SEMD98090 9 10 18 100 0~-0.015 h5 2 SEMD98100 10 10 18 100 0~-0.015 h5 2 SEMD98100E 10 10 18 100 0~-0.015 h5 2 SEMD98100H 10 10 18 100 0~-0.015 h5 2 SEMD98110 11 12 20 100 0~-0.015 h5 2 SEMD98110E 11 12 20 100 0~-0.015 h5 2 SEMD98130 13 12 24 100 0~-0.015 h5 2 SEMD98130E 13 12 24 100 0~-0.015 h5 2 SEMD98140E 14 12 26 100 0~-0.015 h5 2 SEMD98180 18 16 34 150 0~-0.015 h5 2 SEMD98180E 18 16 34 150 0~-0.015 h5 2 SEMD98200E 20 20 38 150 0~-0.015 h5 2 SEMD98250 25 25 50 180 0~-0.015 h5 2 SEMD98250E 25 25 50 180 0~-0.015 h5 2 SEMD980013S 0.1 3 0.2 40 0~-0.012 h5 2 SEMD980013SE 0.1 3 0.2 40 0~-0.012 h5 2 SEMD980015 0.15 4 0.3 40 0~-0.012 h5 2 SEMD980015E 0.15 4 0.3 40 0~-0.012 h5 2 SEMD980015H 0.15 4 0.3 40 0~-0.012 h5 2 SEMD980015S 0.15 4 0.15 40 0~-0.012 h5 2 SEMD980015SE 0.15 4 0.15 40 0~-0.012 h5 2 SEMD980023S 0.2 3 0.4 40 0~-0.012 h5 2 SEMD980023SE 0.2 3 0.4 40 0~-0.012 h5 2 SEMD980033S 0.3 3 0.6 40 0~-0.012 h5 2 SEMD980033SE 0.3 3 0.6 40 0~-0.012 h5 2 SEMD980043S 0.4 3 0.8 40 0~-0.012 h5 2 SEMD980043SE 0.4 3 0.8 40 0~-0.012 h5 2 SEMD980063SE 0.6 3 1.2 40 0~-0.012 h5 2 SEMD980073SE 0.7 3 1.4 40 0~-0.012 h5 2 SEMD980083S 0.8 3 1.6 40 0~-0.012 h5 2 SEMD980093S 0.9 3 1.8 40 0~-0.012 h5 2 SEMD980093SE 0.9 3 1.8 40 0~-0.012 h5 2 SEMD980103S 1 3 2.5 50 0~-0.012 h5 2 SEMD980103SE 1 3 2.5 50 0~-0.012 h5 2 SEMD980123S 1.2 3 3 50 0~-0.012 h5 2 SEMD980124S 1.2 4 3 50 0~-0.012 h5 2 SEMD980124SE 1.2 4 3 50 0~-0.012 h5 2 SEMD980153S 1.5 3 4 50 0~-0.012 h5 2 SEMD980153SE 1.5 3 4 50 0~-0.012 h5 2 SEMD980203S 2 3 5 50 0~-0.012 h5 2 SEMD980204S 2 4 5 50 0~-0.012 h5 2 SEMD980253S 2.5 3 6 60 0~-0.012 h5 2 SEMD980254S 2.5 4 6 60 0~-0.012 h5 2 SEMD980303S 3 3 6 60 0~-0.012 h5 2 SEMD980304SE 3 4 6 60 0~-0.012 h5 2 SEMD980404S 4 4 8 70 0~-0.012 h5 2 SEMD980505SE 5 5 10 80 0~-0.012 h5 2 SEMD9800153S 0.15 3 0.3 40 0~-0.012 h5 2 SEMD9800153SE 0.15 3 0.3 40 0~-0.012 h5 2 SEMD9814014S 14 14 26 100 0~-0.015 h5 2 SEMD9814016SE 14 16 26 100 0~-0.015 h5 2 SEMD9818018S 18 18 34 150 0~-0.015 h5 2 SEMD9818018SE 18 18 34 150 0~-0.015 h5 2 SEMD98010040 1 6 1.5 40 0~-0.012 h5 2 SEMD98010070 1 6 2.5 70 0~-0.012 h5 2 SEMD98010100 1 6 2.5 100 0~-0.012 h5 2 SEMD98012040 1.2 6 2 40 0~-0.012 h5 2 SEMD98012040E 1.2 6 2 40 0~-0.012 h5 2 SEMD98012100 1.2 6 3 100 0~-0.012 h5 2 SEMD98015100E 1.5 6 4 100 0~-0.012 h5 2 SEMD98020040 2 6 3 40 0~-0.012 h5 2 SEMD98020040E 2 6 3 40 0~-0.012 h5 2 SEMD98020080 2 6 5 80 0~-0.012 h5 2 SEMD98020080E 2 6 5 80 0~-0.012 h5 2 SEMD98030040 3 6 4.5 40 0~-0.012 h5 2 SEMD98030040E 3 6 4.5 40 0~-0.012 h5 2 SEMD98040050E 4 6 6 50 0~-0.012 h5 2 SEMD98040100 4 6 8 100 0~-0.012 h5 2 SEMD98040100E 4 6 8 100 0~-0.012 h5 2 SEMD98040120E 4 6 8 120 0~-0.012 h5 2 SEMD98050060 5 6 7.5 60 0~-0.012 h5 2 SEMD98050060E 5 6 7.5 60 0~-0.012 h5 2 SEMD98060050 6 6 9 50 0~-0.012 h5 2 SEMD98060060E 6 6 9 60 0~-0.012 h5 2 SEMD98060080 6 6 9 80 0~-0.012 h5 2 SEMD98080050 8 8 12 50 0~-0.015 h5 2 SEMD98080050E 8 8 12 50 0~-0.015 h5 2 SEMD98080060 8 8 12 60 0~-0.015 h5 2 SEMD98080060E 8 8 12 60 0~-0.015 h5 2 SEMD98080080 8 8 12 80 0~-0.015 h5 2 SEMD98080080E 8 8 12 80 0~-0.015 h5 2 SEMD98080090 8 8 12 90 0~-0.015 h5 2 SEMD98080090E 8 8 12 90 0~-0.015 h5 2 SEMD98080130 8 8 14 130 0~-0.015 h5 2 SEMD98080150 8 8 14 150 0~-0.015 h5 2 SEMD98080150E 8 8 14 150 0~-0.015 h5 2 SEMD98100050 10 10 15 50 0~-0.015 h5 2 SEMD98100060 10 10 15 60 0~-0.015 h5 2 SEMD98100060E 10 10 15 60 0~-0.015 h5 2 SEMD98100090 10 10 15 90 0~-0.015 h5 2 SEMD98100090E 10 10 15 90 0~-0.015 h5 2 SEMD98100130E 10 10 18 130 0~-0.015 h5 2 SEMD98100150 10 10 18 150 0~-0.015 h5 2 SEMD98100150E 10 10 18 150 0~-0.015 h5 2 SEMD98100180E 10 10 18 180 0~-0.015 h5 2 SEMD98100200 10 10 18 200 0~-0.015 h5 2 SEMD98120060 12 12 18 60 0~-0.015 h5 2 SEMD98120060E 12 12 18 60 0~-0.015 h5 2 SEMD98120080 12 12 18 80 0~-0.015 h5 2 SEMD98120080E 12 12 18 80 0~-0.015 h5 2 SEMD98120090E 12 12 18 90 0~-0.015 h5 2 SEMD98120130 12 12 22 130 0~-0.015 h5 2 SEMD98120130E 12 12 22 130 0~-0.015 h5 2 SEMD98160100 16 16 24 100 0~-0.015 h5 2 SEMD98160130E 16 16 24 130 0~-0.015 h5 2 SEMD98160180E 16 16 30 180 0~-0.015 h5 2 SEMD98160200E 16 16 30 200 0~-0.015 h5 2 SEMD98200100E 20 20 30 100 0~-0.015 h5 2 SEMD98200130E 20 20 30 130 0~-0.015 h5 2 SEMD98200200E 20 20 38 200 0~-0.015 h5 2 SEMD98250120E 25 25 50 120 0~-0.015 h5 2 SEMD980401004S 4 4 8 100 0~-0.012 h5 2
Profiling
Side Milling
Small Part
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
P

Non-alloy steel

Excellent Excellent
HRc
13252832
HB
125190250270300
P

Low alloy steel

Excellent Excellent
HRc
10293238
HB
180275300350
P

High alloy & tool steel

Excellent Excellent
HRc
1535
HB
200325
K

Grey cast iron

Good Good
HRc
1026
HB
180260
K

Nodular cast iron

Good Good
HRc
325
HB
160250
K

Malleable cast iron

Good Good
HRc
21
HB
130230
H

Hardened steels & cast irons

Excellent Excellent
HRc
384041
HB
400630
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEMD98001 0.1 4 0.2 40 0~-0.012 h5 2 SEMD98001E 0.1 4 0.2 40 0~-0.012 h5 2 SEMD98001H 0.1 4 0.2 40 0~-0.012 h5 2 SEMD98001S 0.1 4 0.1 40 0~-0.012 h5 2 SEMD98001SE 0.1 4 0.1 40 0~-0.012 h5 2 SEMD98002 0.2 4 0.4 40 0~-0.012 h5 2 SEMD98002H 0.2 4 0.4 40 0~-0.012 h5 2 SEMD98002S 0.2 4 0.2 40 0~-0.012 h5 2 SEMD98002SE 0.2 4 0.2 40 0~-0.012 h5 2 SEMD98003 0.3 4 0.6 40 0~-0.012 h5 2 SEMD98003H 0.3 4 0.6 40 0~-0.012 h5 2 SEMD98004 0.4 4 0.8 40 0~-0.012 h5 2 SEMD98004H 0.4 4 0.8 40 0~-0.012 h5 2 SEMD98004SE 0.4 4 0.4 40 0~-0.012 h5 2 SEMD98005E 0.5 4 1 40 0~-0.012 h5 2 SEMD98005S 0.5 4 0.5 40 0~-0.012 h5 2 SEMD98005SE 0.5 4 0.5 40 0~-0.012 h5 2 SEMD98006 0.6 4 1.2 40 0~-0.012 h5 2 SEMD98006E 0.6 4 1.2 40 0~-0.012 h5 2 SEMD98006H 0.6 4 1.2 40 0~-0.012 h5 2 SEMD98006S 0.6 4 0.6 40 0~-0.012 h5 2 SEMD98006SE 0.6 4 0.6 40 0~-0.012 h5 2 SEMD98007E 0.7 4 1.4 40 0~-0.012 h5 2 SEMD98007SE 0.7 4 0.7 40 0~-0.012 h5 2 SEMD98008H 0.8 4 1.6 40 0~-0.012 h5 2 SEMD98009S 0.9 4 0.9 40 0~-0.012 h5 2 SEMD98009SE 0.9 4 0.9 40 0~-0.012 h5 2 SEMD98010 1 6 2.5 50 0~-0.012 h5 2 SEMD98012 1.2 6 3 50 0~-0.012 h5 2 SEMD98012H 1.2 6 3 50 0~-0.012 h5 2 SEMD98015 1.5 6 4 50 0~-0.012 h5 2 SEMD98020E 2 6 5 50 0~-0.012 h5 2 SEMD98025E 2.5 6 6 60 0~-0.012 h5 2 SEMD98030H 3 6 6 60 0~-0.012 h5 2 SEMD98035 3.5 6 8 70 0~-0.012 h5 2 SEMD98035E 3.5 6 8 70 0~-0.012 h5 2 SEMD98040 4 6 8 70 0~-0.012 h5 2 SEMD98040H 4 6 8 70 0~-0.012 h5 2 SEMD98045 4.5 6 9 80 0~-0.012 h5 2 SEMD98050 5 6 10 80 0~-0.012 h5 2 SEMD98050E 5 6 10 80 0~-0.012 h5 2 SEMD98050H 5 6 10 80 0~-0.012 h5 2 SEMD98055 5.5 6 11 90 0~-0.012 h5 2 SEMD98055E 5.5 6 11 90 0~-0.012 h5 2 SEMD98065 6.5 8 13 90 0~-0.015 h5 2 SEMD98065E 6.5 8 13 90 0~-0.015 h5 2 SEMD98070 7 8 14 90 0~-0.015 h5 2 SEMD98080 8 8 14 100 0~-0.015 h5 2 SEMD98080H 8 8 14 100 0~-0.015 h5 2 SEMD98085 8.5 10 16 100 0~-0.015 h5 2 SEMD98085E 8.5 10 16 100 0~-0.015 h5 2 SEMD98090 9 10 18 100 0~-0.015 h5 2 SEMD98100 10 10 18 100 0~-0.015 h5 2 SEMD98100E 10 10 18 100 0~-0.015 h5 2 SEMD98100H 10 10 18 100 0~-0.015 h5 2 SEMD98110 11 12 20 100 0~-0.015 h5 2 SEMD98110E 11 12 20 100 0~-0.015 h5 2 SEMD98130 13 12 24 100 0~-0.015 h5 2 SEMD98130E 13 12 24 100 0~-0.015 h5 2 SEMD98140E 14 12 26 100 0~-0.015 h5 2 SEMD98180 18 16 34 150 0~-0.015 h5 2 SEMD98180E 18 16 34 150 0~-0.015 h5 2 SEMD98200E 20 20 38 150 0~-0.015 h5 2 SEMD98250 25 25 50 180 0~-0.015 h5 2 SEMD98250E 25 25 50 180 0~-0.015 h5 2 SEMD980013S 0.1 3 0.2 40 0~-0.012 h5 2 SEMD980013SE 0.1 3 0.2 40 0~-0.012 h5 2 SEMD980015 0.15 4 0.3 40 0~-0.012 h5 2 SEMD980015E 0.15 4 0.3 40 0~-0.012 h5 2 SEMD980015H 0.15 4 0.3 40 0~-0.012 h5 2 SEMD980015S 0.15 4 0.15 40 0~-0.012 h5 2 SEMD980015SE 0.15 4 0.15 40 0~-0.012 h5 2 SEMD980023S 0.2 3 0.4 40 0~-0.012 h5 2 SEMD980023SE 0.2 3 0.4 40 0~-0.012 h5 2 SEMD980033S 0.3 3 0.6 40 0~-0.012 h5 2 SEMD980033SE 0.3 3 0.6 40 0~-0.012 h5 2 SEMD980043S 0.4 3 0.8 40 0~-0.012 h5 2 SEMD980043SE 0.4 3 0.8 40 0~-0.012 h5 2 SEMD980063SE 0.6 3 1.2 40 0~-0.012 h5 2 SEMD980073SE 0.7 3 1.4 40 0~-0.012 h5 2 SEMD980083S 0.8 3 1.6 40 0~-0.012 h5 2 SEMD980093S 0.9 3 1.8 40 0~-0.012 h5 2 SEMD980093SE 0.9 3 1.8 40 0~-0.012 h5 2 SEMD980103S 1 3 2.5 50 0~-0.012 h5 2 SEMD980103SE 1 3 2.5 50 0~-0.012 h5 2 SEMD980123S 1.2 3 3 50 0~-0.012 h5 2 SEMD980124S 1.2 4 3 50 0~-0.012 h5 2 SEMD980124SE 1.2 4 3 50 0~-0.012 h5 2 SEMD980153S 1.5 3 4 50 0~-0.012 h5 2 SEMD980153SE 1.5 3 4 50 0~-0.012 h5 2 SEMD980203S 2 3 5 50 0~-0.012 h5 2 SEMD980204S 2 4 5 50 0~-0.012 h5 2 SEMD980253S 2.5 3 6 60 0~-0.012 h5 2 SEMD980254S 2.5 4 6 60 0~-0.012 h5 2 SEMD980303S 3 3 6 60 0~-0.012 h5 2 SEMD980304SE 3 4 6 60 0~-0.012 h5 2 SEMD980404S 4 4 8 70 0~-0.012 h5 2 SEMD980505SE 5 5 10 80 0~-0.012 h5 2 SEMD9800153S 0.15 3 0.3 40 0~-0.012 h5 2 SEMD9800153SE 0.15 3 0.3 40 0~-0.012 h5 2 SEMD9814014S 14 14 26 100 0~-0.015 h5 2 SEMD9814016SE 14 16 26 100 0~-0.015 h5 2 SEMD9818018S 18 18 34 150 0~-0.015 h5 2 SEMD9818018SE 18 18 34 150 0~-0.015 h5 2 SEMD98010040 1 6 1.5 40 0~-0.012 h5 2 SEMD98010070 1 6 2.5 70 0~-0.012 h5 2 SEMD98010100 1 6 2.5 100 0~-0.012 h5 2 SEMD98012040 1.2 6 2 40 0~-0.012 h5 2 SEMD98012040E 1.2 6 2 40 0~-0.012 h5 2 SEMD98012100 1.2 6 3 100 0~-0.012 h5 2 SEMD98015100E 1.5 6 4 100 0~-0.012 h5 2 SEMD98020040 2 6 3 40 0~-0.012 h5 2 SEMD98020040E 2 6 3 40 0~-0.012 h5 2 SEMD98020080 2 6 5 80 0~-0.012 h5 2 SEMD98020080E 2 6 5 80 0~-0.012 h5 2 SEMD98030040 3 6 4.5 40 0~-0.012 h5 2 SEMD98030040E 3 6 4.5 40 0~-0.012 h5 2 SEMD98040050E 4 6 6 50 0~-0.012 h5 2 SEMD98040100 4 6 8 100 0~-0.012 h5 2 SEMD98040100E 4 6 8 100 0~-0.012 h5 2 SEMD98040120E 4 6 8 120 0~-0.012 h5 2 SEMD98050060 5 6 7.5 60 0~-0.012 h5 2 SEMD98050060E 5 6 7.5 60 0~-0.012 h5 2 SEMD98060050 6 6 9 50 0~-0.012 h5 2 SEMD98060060E 6 6 9 60 0~-0.012 h5 2 SEMD98060080 6 6 9 80 0~-0.012 h5 2 SEMD98080050 8 8 12 50 0~-0.015 h5 2 SEMD98080050E 8 8 12 50 0~-0.015 h5 2 SEMD98080060 8 8 12 60 0~-0.015 h5 2 SEMD98080060E 8 8 12 60 0~-0.015 h5 2 SEMD98080080 8 8 12 80 0~-0.015 h5 2 SEMD98080080E 8 8 12 80 0~-0.015 h5 2 SEMD98080090 8 8 12 90 0~-0.015 h5 2 SEMD98080090E 8 8 12 90 0~-0.015 h5 2 SEMD98080130 8 8 14 130 0~-0.015 h5 2 SEMD98080150 8 8 14 150 0~-0.015 h5 2 SEMD98080150E 8 8 14 150 0~-0.015 h5 2 SEMD98100050 10 10 15 50 0~-0.015 h5 2 SEMD98100060 10 10 15 60 0~-0.015 h5 2 SEMD98100060E 10 10 15 60 0~-0.015 h5 2 SEMD98100090 10 10 15 90 0~-0.015 h5 2 SEMD98100090E 10 10 15 90 0~-0.015 h5 2 SEMD98100130E 10 10 18 130 0~-0.015 h5 2 SEMD98100150 10 10 18 150 0~-0.015 h5 2 SEMD98100150E 10 10 18 150 0~-0.015 h5 2 SEMD98100180E 10 10 18 180 0~-0.015 h5 2 SEMD98100200 10 10 18 200 0~-0.015 h5 2 SEMD98120060 12 12 18 60 0~-0.015 h5 2 SEMD98120060E 12 12 18 60 0~-0.015 h5 2 SEMD98120080 12 12 18 80 0~-0.015 h5 2 SEMD98120080E 12 12 18 80 0~-0.015 h5 2 SEMD98120090E 12 12 18 90 0~-0.015 h5 2 SEMD98120130 12 12 22 130 0~-0.015 h5 2 SEMD98120130E 12 12 22 130 0~-0.015 h5 2 SEMD98160100 16 16 24 100 0~-0.015 h5 2 SEMD98160130E 16 16 24 130 0~-0.015 h5 2 SEMD98160180E 16 16 30 180 0~-0.015 h5 2 SEMD98160200E 16 16 30 200 0~-0.015 h5 2 SEMD98200100E 20 20 30 100 0~-0.015 h5 2 SEMD98200130E 20 20 30 130 0~-0.015 h5 2 SEMD98200200E 20 20 38 200 0~-0.015 h5 2 SEMD98250120E 25 25 50 120 0~-0.015 h5 2 SEMD980401004S 4 4 8 100 0~-0.012 h5 2
