4G MILL 2 Flute 30°Helix Rib Ball End Mill (SEM846)

Extended-Neck Ball Nose End Mill for Rib Processing

$157.19INC GST $142.90 EX GST
Unit price per

4G MILL 2 Flute 30°Helix Rib Ball End Mill (SEM846)

Extended-Neck Ball Nose End Mill for Rib Processing

$157.19INC GST $142.90 EX GST Price available on request

Unit price per

Code: SEM84600101E

Key Features

Solid carbide ball nose end mill for precision rib processing
Two-flute geometry with a 30° helix angle
Extended neck design for the SEM846 series

Mill Diameter (mm)

Ball Nose Radius (mm)

Quantity

Loading stock…

Buy Local

Minimum order: $100.00

$100.00 to go

Spend $100.00 or more to enable checkout.

Made in South Korea

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Precision rib profiles

Ball nose geometry supports detailed rib processing and contoured milling work.

Extended-neck access

Extended neck geometry suits applications requiring a longer reach tool profile.

Steel machining capability

Designed for high-speed cutting of pre-hardened steels up to HRc55.

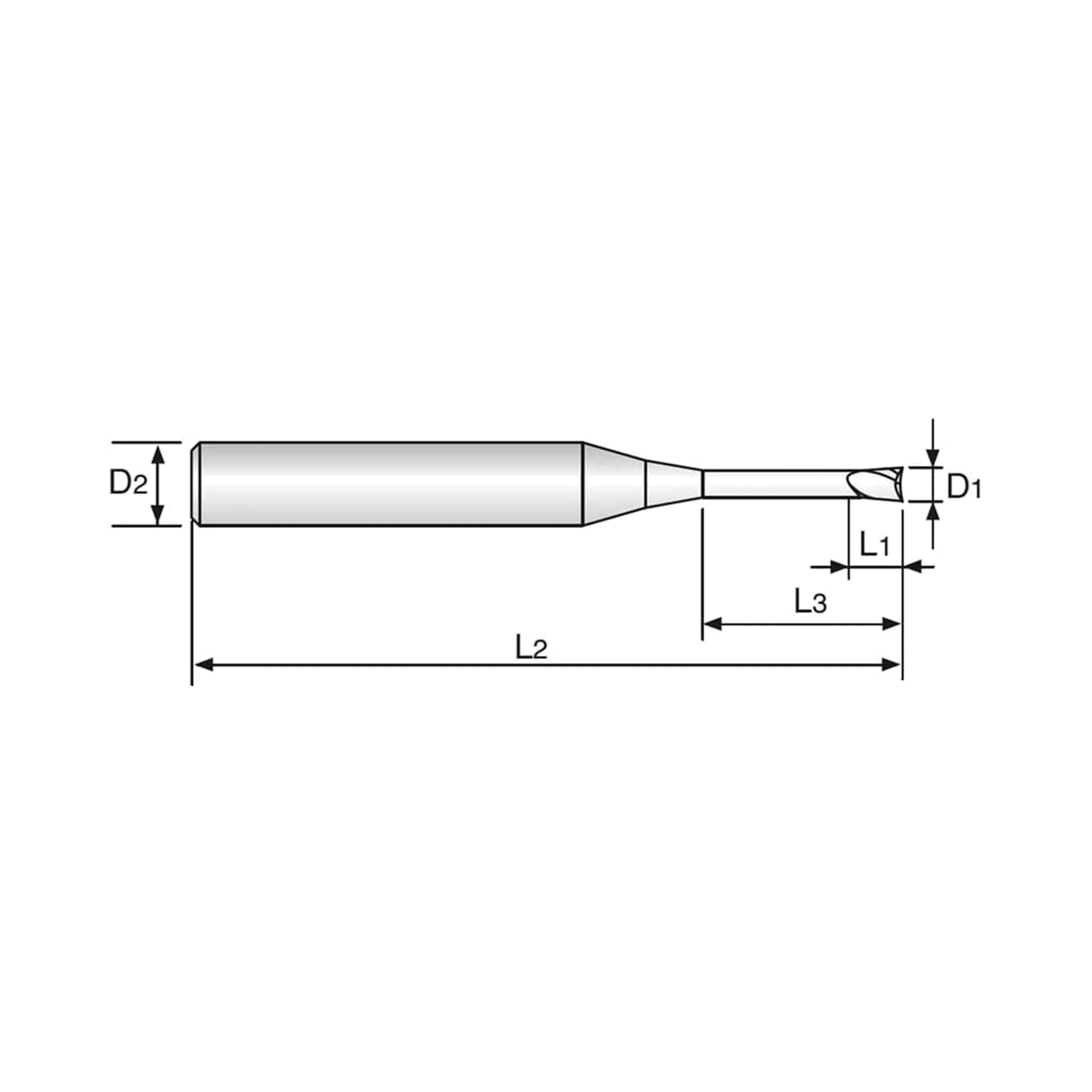

SKU	Mill Diameter (mm)	Ball Nose Radius (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	Length below shank (mm)	Neck dia. (mm)	Stock	Price
SEM84600101E	0.1	R0.05	40.0	4.0	0.1	1.0	0.085	5 days	$142.90
SEM84600201E	0.2	R0.1	40.0	4.0	0.2	1.0	0.17	5 days	$137.20
SEM84600301E	0.3	R0.15	40.0	4.0	0.3	1.0	0.27	5 days	$108.20
SEM84600401E	0.4	R0.2	40.0	4.0	0.4	1.0	0.37	5 days	$88.00
SEM84600502E	0.5	R0.25	45.0	4.0	0.5	2.0	0.45	5 days	$94.70
SEM84600601E	0.6	R0.3	45.0	4.0	0.6	1.0	0.55	5 days	$73.20
SEM84600702E	0.7	R0.35	45.0	4.0	0.7	2.0	0.65	5 days	$100.00
SEM84600801E	0.8	R0.4	45.0	4.0	0.8	1.0	0.75	5 days	$73.20
SEM84600904E	0.9	R0.45	45.0	4.0	0.9	4.0	0.85	5 days	$73.20
SEM84601002E	1	R0.5	50.0	4.0	1.0	2.0	0.95	In stock	$87.70
SEM84601204E	1.2	R0.6	50.0	4.0	1.2	4.0	1.15	5 days	$64.20
SEM84601406E	1.4	R0.7	50.0	4.0	1.4	6.0	1.35	5 days	$64.20
SEM84601503E	1.5	R0.75	50.0	4.0	1.5	3.0	1.45	In stock	$87.70
SEM84601604E	1.6	R0.8	50.0	4.0	1.6	4.0	1.55	5 days	$64.20
SEM84601804E	1.8	R0.9	50.0	4.0	1.8	4.0	1.75	5 days	$64.20
SEM84602004E	2	R1.0	50.0	4.0	2.0	4.0	1.95	5 days	$64.20
SEM84602508E	2.5	R1.25	50.0	4.0	2.5	8.0	2.4	5 days	$64.20
SEM84603006E	3	R1.5	50.0	6.0	3.0	6.0	2.85	5 days	$72.60
SEM84604008E	4	R2.0	50.0	6.0	4.0	8.0	3.85	5 days	$72.60
SEM84605015E	5	R2.5	60.0	6.0	6.0	15.0	4.85	5 days	$75.00
SEM84606020E	6	R3.0	60.0	6.0	8.0	20.0	5.85	5 days	$102.30
SEM84608025E	8	R4.0	70.0	8.0	10.0	25.0	7.7	5 days	$116.10
SEM84610030E	10	R5.0	75.0	10.0	12.0	30.0	9.7	5 days	$206.70
SEM84612032E	12	R6.0	80.0	12.0	14.0	32.0	11.7	5 days	$204.00

Add 4G MILL 2 Flute 30°Helix Rib Ball End Mill (SEM846) to comparison

View Comparison

Overview
Specifications
Reviews

Product Description

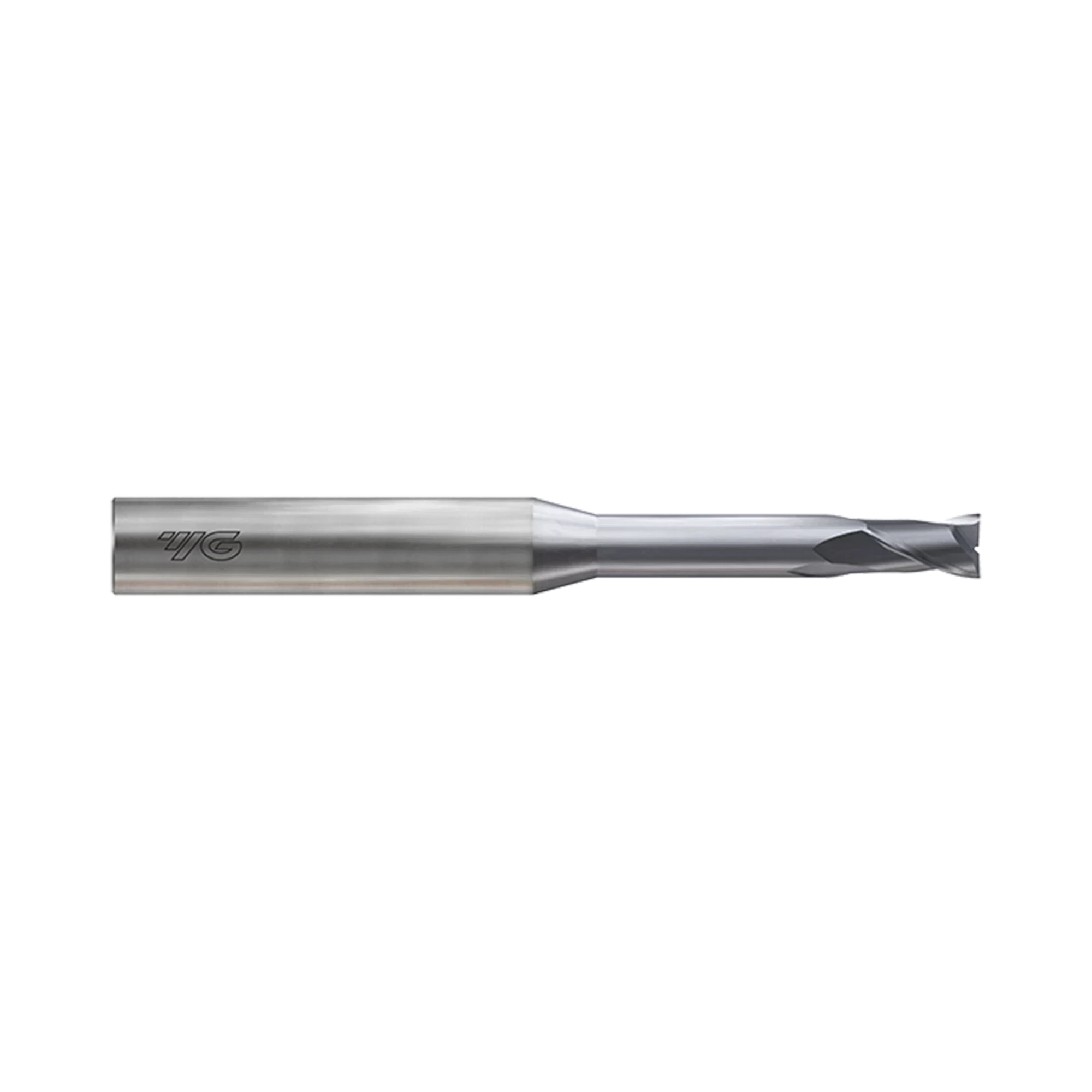

YG-1 4G Mill SEM846 is a two-flute, 30° helix rib ball end mill with extended neck geometry. This solid carbide milling cutter is intended for high-speed cutting of pre-hardened steels up to HRc55. The ball nose cutting edge is suited to precision rib processing and contoured milling operations. Y-Coating supports the SEM846 series for carbon steels, alloy steels, stainless steels and cast iron. Two flutes and a 30° helix provide the specified geometry for this series. The range spans 0.1 mm to 12 mm diameters, with radii from R0.05 to R6.0. Select the required SEM846 variant for extended-neck ball nose milling in compatible materials.

Solid carbide ball nose end mill for precision rib processing
Two-flute geometry with a 30° helix angle
Extended neck design for the SEM846 series
Y-Coating for steel, stainless steel and cast iron machining
Suitable for high-speed cutting of pre-hardened steels up to HRc55
Diameter range from 0.1 mm to 12 mm with R0.05 to R6.0 radii

Product Data

No specifications available.

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEM84600101 0.1 4 0.1 40 0~-0.012 h5 2 SEM84600101E 0.1 4 0.1 40 0~-0.012 h5 2 SEM84600201 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600201E 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600202 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600202E 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600203 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600203E 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600301 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600301E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600302 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600302E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600303 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600303E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600304 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600304E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600305 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600305E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600401 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600401E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600402 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600402E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600403 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600403E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600404 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600404E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600405 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600405E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600406 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600406E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600408 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600408E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600410 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600410E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600501 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600501E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600502 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600502E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600503 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600503E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600504 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600504E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600505 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600505E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600506 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600506E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600508 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600508E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600510 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600510E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600512 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600512E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600514 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600514E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600516 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600516E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600601 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600601E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600602 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600602E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600603 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600603E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600604 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600604E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600605 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600605E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600606 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600606E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600608 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600608E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600610 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600610E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600612 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600612E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600614 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600614E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600616 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600616E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600702 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600702E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600704 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600704E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600706 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600706E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600708 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600708E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600710 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600710E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600712 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600712E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600801 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600801E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600802 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600802E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600803 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600803E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600804 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600804E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600805 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600805E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600806 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600806E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600808 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600808E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600810 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600810E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600812 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600812E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600814 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600814E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600816 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600816E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600820 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600820E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600904 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600904E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600906 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600906E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600908 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600908E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600910 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600910E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84601002 1 4 1 50 0~-0.012 h5 2 SEM84601002E 1 4 1 50 0~-0.012 h5 2 SEM84601003 1 4 1 50 0~-0.012 h5 2 SEM84601003E 1 4 1 50 0~-0.012 h5 2 SEM84601004 1 4 1 50 0~-0.012 h5 2 SEM84601004E 1 4 1 50 0~-0.012 h5 2 SEM84601005 1 4 1 50 0~-0.012 h5 2 SEM84601005E 1 4 1 50 0~-0.012 h5 2 SEM84601006 1 4 1 50 0~-0.012 h5 2 SEM84601006E 1 4 1 50 0~-0.012 h5 2 SEM84601007 1 4 1 50 0~-0.012 h5 2 SEM84601007E 1 4 1 50 0~-0.012 h5 2 SEM84601008 1 4 1 50 0~-0.012 h5 2 SEM84601008E 1 4 1 50 0~-0.012 h5 2 SEM84601009 1 4 1 50 0~-0.012 h5 2 SEM84601009E 1 4 1 50 0~-0.012 h5 2 SEM84601010 1 4 1 50 0~-0.012 h5 2 SEM84601010E 1 4 1 50 0~-0.012 h5 2 SEM84601012 1 4 1 50 0~-0.012 h5 2 SEM84601012E 1 4 1 50 0~-0.012 h5 2 SEM84601014 1 4 1 50 0~-0.012 h5 2 SEM84601014E 1 4 1 50 0~-0.012 h5 2 SEM84601016 1 4 1 50 0~-0.012 h5 2 SEM84601016E 1 4 1 50 0~-0.012 h5 2 SEM84601018 1 4 1 50 0~-0.012 h5 2 SEM84601018E 1 4 1 50 0~-0.012 h5 2 SEM84601020 1 4 1 50 0~-0.012 h5 2 SEM84601020E 1 4 1 50 0~-0.012 h5 2 SEM84601022 1 4 1 60 0~-0.012 h5 2 SEM84601022E 1 4 1 60 0~-0.012 h5 2 SEM84601026 1 4 1 60 0~-0.012 h5 2 SEM84601026E 1 4 1 60 0~-0.012 h5 2 SEM84601030 1 4 1 70 0~-0.012 h5 2 SEM84601030E 1 4 1 70 0~-0.012 h5 2 SEM84601040 1 4 1 80 0~-0.012 h5 2 SEM84601040E 1 4 1 80 0~-0.012 h5 2 SEM84601050 1 4 1 100 0~-0.012 h5 2 SEM84601050E 1 4 1 100 0~-0.012 h5 2 SEM84601204 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601204E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601206 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601206E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601208 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601208E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601210 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601210E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601212 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601212E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601216 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601216E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601220 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601220E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601226 1.2 4 1.2 60 0~-0.012 h5 2 SEM84601226E 1.2 4 1.2 60 0~-0.012 h5 2 SEM84601406 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601406E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601408 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601408E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601410 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601410E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601412 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601412E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601416 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601416E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601503 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601503E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601504 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601504E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601505 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601505E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601506 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601506E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601507 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601507E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601508 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601508E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601510 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601510E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601512 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601512E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601514 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601514E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601516 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601516E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601518 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601518E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601520 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601520E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601522 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601522E 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601526 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601526E 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601530 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601530E 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601535 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601535E 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601540 1.5 4 1.5 80 0~-0.012 h5 2 SEM84601540E 1.5 4 1.5 80 0~-0.012 h5 2 SEM84601604 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601604E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601606 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601606E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601608 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601608E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601610 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601610E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601612 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601612E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601616 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601616E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601620 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601620E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601804 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601804E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601806 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601806E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601808 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601808E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601810 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601810E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601812 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601812E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601816 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601816E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601820 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601820E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84602004 2 4 2 50 0~-0.012 h5 2 SEM84602004E 2 4 2 50 0~-0.012 h5 2 SEM84602006 2 4 2 50 0~-0.012 h5 2 SEM84602006E 2 4 2 50 0~-0.012 h5 2 SEM84602008 2 4 2 50 0~-0.012 h5 2 SEM84602008E 2 4 2 50 0~-0.012 h5 2 SEM84602010 2 4 2 50 0~-0.012 h5 2 SEM84602010E 2 4 2 50 0~-0.012 h5 2 SEM84602012 2 4 2 50 0~-0.012 h5 2 SEM84602012E 2 4 2 50 0~-0.012 h5 2 SEM84602014 2 4 2 50 0~-0.012 h5 2 SEM84602014E 2 4 2 50 0~-0.012 h5 2 SEM84602016 2 4 2 50 0~-0.012 h5 2 SEM84602016E 2 4 2 50 0~-0.012 h5 2 SEM84602018 2 4 2 50 0~-0.012 h5 2 SEM84602018E 2 4 2 50 0~-0.012 h5 2 SEM84602020 2 4 2 50 0~-0.012 h5 2 SEM84602020E 2 4 2 50 0~-0.012 h5 2 SEM84602022 2 4 2 60 0~-0.012 h5 2 SEM84602022E 2 4 2 60 0~-0.012 h5 2 SEM84602026 2 4 2 60 0~-0.012 h5 2 SEM84602026E 2 4 2 60 0~-0.012 h5 2 SEM84602030 2 4 2 70 0~-0.012 h5 2 SEM84602030E 2 4 2 70 0~-0.012 h5 2 SEM84602035 2 4 2 70 0~-0.012 h5 2 SEM84602035E 2 4 2 70 0~-0.012 h5 2 SEM84602040 2 4 2 80 0~-0.012 h5 2 SEM84602040E 2 4 2 80 0~-0.012 h5 2 SEM84602045 2 4 2 90 0~-0.012 h5 2 SEM84602045E 2 4 2 90 0~-0.012 h5 2 SEM84602050 2 4 2 100 0~-0.012 h5 2 SEM84602050E 2 4 2 100 0~-0.012 h5 2 SEM84602060 2 4 2 110 0~-0.012 h5 2 SEM84602060E 2 4 2 110 0~-0.012 h5 2 SEM84602508 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602508E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602510 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602510E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602512 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602512E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602516 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602516E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602520 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602520E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602522 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602522E 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602526 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602526E 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602530 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602530E 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602535 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602535E 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602540 2.5 4 2.5 80 0~-0.012 h5 2 SEM84602540E 2.5 4 2.5 80 0~-0.012 h5 2 SEM84602545 2.5 4 2.5 90 0~-0.012 h5 2 SEM84602545E 2.5 4 2.5 90 0~-0.012 h5 2 SEM84602550 2.5 4 2.5 100 0~-0.012 h5 2 SEM84602550E 2.5 4 2.5 100 0~-0.012 h5 2 SEM84603006 3 6 3 50 0~-0.012 h5 2 SEM84603006E 3 6 3 50 0~-0.012 h5 2 SEM84603008 3 6 3 50 0~-0.012 h5 2 SEM84603008E 3 6 3 50 0~-0.012 h5 2 SEM84603010 3 6 3 50 0~-0.012 h5 2 SEM84603010E 3 6 3 50 0~-0.012 h5 2 SEM84603012 3 6 3 50 0~-0.012 h5 2 SEM84603012E 3 6 3 50 0~-0.012 h5 2 SEM84603014 3 6 3 60 0~-0.012 h5 2 SEM84603014E 3 6 3 60 0~-0.012 h5 2 SEM84603016 3 6 3 60 0~-0.012 h5 2 SEM84603016E 3 6 3 60 0~-0.012 h5 2 SEM84603018 3 6 3 60 0~-0.012 h5 2 SEM84603018E 3 6 3 60 0~-0.012 h5 2 SEM84603020 3 6 3 60 0~-0.012 h5 2 SEM84603020E 3 6 3 60 0~-0.012 h5 2 SEM84603022 3 6 3 65 0~-0.012 h5 2 SEM84603022E 3 6 3 65 0~-0.012 h5 2 SEM84603026 3 6 3 65 0~-0.012 h5 2 SEM84603026E 3 6 3 65 0~-0.012 h5 2 SEM84603030 3 6 3 70 0~-0.012 h5 2 SEM84603030E 3 6 3 70 0~-0.012 h5 2 SEM84603035 3 6 3 70 0~-0.012 h5 2 SEM84603035E 3 6 3 70 0~-0.012 h5 2 SEM84603040 3 6 3 80 0~-0.012 h5 2 SEM84603040E 3 6 3 80 0~-0.012 h5 2 SEM84603045 3 6 3 90 0~-0.012 h5 2 SEM84603045E 3 6 3 90 0~-0.012 h5 2 SEM84603050 3 6 3 100 0~-0.012 h5 2 SEM84603050E 3 6 3 100 0~-0.012 h5 2 SEM84603060 3 6 3 100 0~-0.012 h5 2 SEM84603060E 3 6 3 100 0~-0.012 h5 2 SEM84604008 4 6 4 50 0~-0.012 h5 2 SEM84604008E 4 6 4 50 0~-0.012 h5 2 SEM84604010 4 6 4 50 0~-0.012 h5 2 SEM84604010E 4 6 4 50 0~-0.012 h5 2 SEM84604012 4 6 4 50 0~-0.012 h5 2 SEM84604012E 4 6 4 50 0~-0.012 h5 2 SEM84604014 4 6 4 60 0~-0.012 h5 2 SEM84604014E 4 6 4 60 0~-0.012 h5 2 SEM84604016 4 6 4 60 0~-0.012 h5 2 SEM84604016E 4 6 4 60 0~-0.012 h5 2 SEM84604018 4 6 4 60 0~-0.012 h5 2 SEM84604018E 4 6 4 60 0~-0.012 h5 2 SEM84604020 4 6 4 60 0~-0.012 h5 2 SEM84604020E 4 6 4 60 0~-0.012 h5 2 SEM84604022 4 6 4 65 0~-0.012 h5 2 SEM84604022E 4 6 4 65 0~-0.012 h5 2 SEM84604026 4 6 4 65 0~-0.012 h5 2 SEM84604026E 4 6 4 65 0~-0.012 h5 2 SEM84604030 4 6 4 70 0~-0.012 h5 2 SEM84604030E 4 6 4 70 0~-0.012 h5 2 SEM84604035 4 6 4 70 0~-0.012 h5 2 SEM84604035E 4 6 4 70 0~-0.012 h5 2 SEM84604040 4 6 4 80 0~-0.012 h5 2 SEM84604040E 4 6 4 80 0~-0.012 h5 2 SEM84604045 4 6 4 90 0~-0.012 h5 2 SEM84604045E 4 6 4 90 0~-0.012 h5 2 SEM84604050 4 6 4 100 0~-0.012 h5 2 SEM84604050E 4 6 4 100 0~-0.012 h5 2 SEM84604055 4 6 4 100 0~-0.012 h5 2 SEM84604055E 4 6 4 100 0~-0.012 h5 2 SEM84604060 4 6 4 100 0~-0.012 h5 2 SEM84604060E 4 6 4 100 0~-0.012 h5 2 SEM84605015 5 6 6 60 0~-0.012 h5 2 SEM84605015E 5 6 6 60 0~-0.012 h5 2 SEM84605020 5 6 6 60 0~-0.012 h5 2 SEM84605020E 5 6 6 60 0~-0.012 h5 2 SEM84605026 5 6 6 65 0~-0.012 h5 2 SEM84605026E 5 6 6 65 0~-0.012 h5 2 SEM84605030 5 6 6 70 0~-0.012 h5 2 SEM84605030E 5 6 6 70 0~-0.012 h5 2 SEM84605035 5 6 6 70 0~-0.012 h5 2 SEM84605035E 5 6 6 70 0~-0.012 h5 2 SEM84605040 5 6 6 80 0~-0.012 h5 2 SEM84605040E 5 6 6 80 0~-0.012 h5 2 SEM84605045 5 6 6 90 0~-0.012 h5 2 SEM84605045E 5 6 6 90 0~-0.012 h5 2 SEM84605050 5 6 6 100 0~-0.012 h5 2 SEM84605050E 5 6 6 100 0~-0.012 h5 2 SEM84605055 5 6 6 100 0~-0.012 h5 2 SEM84605055E 5 6 6 100 0~-0.012 h5 2 SEM84605060 5 6 6 100 0~-0.012 h5 2 SEM84605060E 5 6 6 100 0~-0.012 h5 2 SEM84606020 6 6 8 60 0~-0.012 h5 2 SEM84606020E 6 6 8 60 0~-0.012 h5 2 SEM84606030 6 6 8 60 0~-0.012 h5 2 SEM84606030E 6 6 8 60 0~-0.012 h5 2 SEM84608025 8 8 10 70 0~-0.015 h5 2 SEM84608025E 8 8 10 70 0~-0.015 h5 2 SEM84608035 8 8 10 70 0~-0.015 h5 2 SEM84608035E 8 8 10 70 0~-0.015 h5 2 SEM84610030 10 10 12 75 0~-0.015 h5 2 SEM84610030E 10 10 12 75 0~-0.015 h5 2 SEM84610040 10 10 12 75 0~-0.015 h5 2 SEM84610040E 10 10 12 75 0~-0.015 h5 2 SEM84612032 12 12 14 80 0~-0.015 h5 2 SEM84612032E 12 12 14 80 0~-0.015 h5 2 SEM84612045 12 12 14 80 0~-0.015 h5 2 SEM84612045E 12 12 14 80 0~-0.015 h5 2 SEM846001002 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001002E 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001003 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001003E 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001005 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001005E 0.1 4 0.1 40 0~-0.012 h5 2 SEM846002005 0.2 4 0.2 40 0~-0.012 h5 2 SEM846002005E 0.2 4 0.2 40 0~-0.012 h5 2 SEM846002015 0.2 4 0.2 40 0~-0.012 h5 2 SEM846002015E 0.2 4 0.2 40 0~-0.012 h5 2 SEM846003015 0.3 4 0.3 40 0~-0.012 h5 2 SEM846003015E 0.3 4 0.3 40 0~-0.012 h5 2 SEM846003025 0.3 4 0.3 40 0~-0.012 h5 2 SEM846003025E 0.3 4 0.3 40 0~-0.012 h5 2 SEM846004015 0.4 4 0.4 40 0~-0.012 h5 2 SEM846004015E 0.4 4 0.4 40 0~-0.012 h5 2 SEM846004025 0.4 4 0.4 40 0~-0.012 h5 2 SEM846004025E 0.4 4 0.4 40 0~-0.012 h5 2 SEM846005015 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005015E 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005016S 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005016SE 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005025 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005025E 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005026S 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005026SE 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005046S 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005046SE 0.5 6 0.5 45 0~-0.012 h5 2 SEM846006016S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006016SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006026S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006026SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006036S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006036SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006046S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006046SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006056S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006056SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006066S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006066SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006086S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006086SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006106S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006106SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006126S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006126SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006146S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006146SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006166S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006166SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846008016S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008016SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008026S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008026SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008036S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008036SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008046S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008046SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008056S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008056SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008066S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008066SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008086S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008086SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008106S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008106SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008126S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008126SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008146S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008146SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008166S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008166SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008206S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008206SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846010026S 1 6 1 50 0~-0.012 h5 2 SEM846010026SE 1 6 1 50 0~-0.012 h5 2 SEM846010036S 1 6 1 50 0~-0.012 h5 2 SEM846010036SE 1 6 1 50 0~-0.012 h5 2 SEM846010046S 1 6 1 50 0~-0.012 h5 2 SEM846010046SE 1 6 1 50 0~-0.012 h5 2 SEM846010056S 1 6 1 50 0~-0.012 h5 2 SEM846010056SE 1 6 1 50 0~-0.012 h5 2 SEM846010066S 1 6 1 50 0~-0.012 h5 2 SEM846010066SE 1 6 1 50 0~-0.012 h5 2 SEM846010076S 1 6 1 50 0~-0.012 h5 2 SEM846010076SE 1 6 1 50 0~-0.012 h5 2 SEM846010086S 1 6 1 50 0~-0.012 h5 2 SEM846010086SE 1 6 1 50 0~-0.012 h5 2 SEM846010096S 1 6 1 50 0~-0.012 h5 2 SEM846010096SE 1 6 1 50 0~-0.012 h5 2 SEM846010106S 1 6 1 50 0~-0.012 h5 2 SEM846010106SE 1 6 1 50 0~-0.012 h5 2 SEM846010126S 1 6 1 50 0~-0.012 h5 2 SEM846010126SE 1 6 1 50 0~-0.012 h5 2 SEM846010146S 1 6 1 50 0~-0.012 h5 2 SEM846010146SE 1 6 1 50 0~-0.012 h5 2 SEM846010166S 1 6 1 50 0~-0.012 h5 2 SEM846010166SE 1 6 1 50 0~-0.012 h5 2 SEM846010186S 1 6 1 50 0~-0.012 h5 2 SEM846010186SE 1 6 1 50 0~-0.012 h5 2 SEM846010206S 1 6 1 50 0~-0.012 h5 2 SEM846010206SE 1 6 1 50 0~-0.012 h5 2 SEM846010226S 1 6 1 60 0~-0.012 h5 2 SEM846010226SE 1 6 1 60 0~-0.012 h5 2 SEM846010266S 1 6 1 60 0~-0.012 h5 2 SEM846010266SE 1 6 1 60 0~-0.012 h5 2 SEM846010306S 1 6 1 70 0~-0.012 h5 2 SEM846010306SE 1 6 1 70 0~-0.012 h5 2 SEM846015036S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015036SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015046S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015046SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015066S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015066SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015086S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015086SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015106S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015106SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015126S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015126SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015146S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015146SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015166S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015166SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015186S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015186SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015206S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015206SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015226S 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015226SE 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015266S 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015266SE 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015306S 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015306SE 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015356S 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015356SE 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015406S 1.5 6 1.5 80 0~-0.012 h5 2 SEM846015406SE 1.5 6 1.5 80 0~-0.012 h5 2 SEM846020046S 2 6 2 50 0~-0.012 h5 2 SEM846020046SE 2 6 2 50 0~-0.012 h5 2 SEM846020066S 2 6 2 50 0~-0.012 h5 2 SEM846020066SE 2 6 2 50 0~-0.012 h5 2 SEM846020086S 2 6 2 50 0~-0.012 h5 2 SEM846020086SE 2 6 2 50 0~-0.012 h5 2 SEM846020106S 2 6 2 50 0~-0.012 h5 2 SEM846020106SE 2 6 2 50 0~-0.012 h5 2 SEM846020126S 2 6 2 50 0~-0.012 h5 2 SEM846020126SE 2 6 2 50 0~-0.012 h5 2 SEM846020146S 2 6 2 50 0~-0.012 h5 2 SEM846020146SE 2 6 2 50 0~-0.012 h5 2 SEM846020166S 2 6 2 50 0~-0.012 h5 2 SEM846020166SE 2 6 2 50 0~-0.012 h5 2 SEM846020186S 2 6 2 50 0~-0.012 h5 2 SEM846020186SE 2 6 2 50 0~-0.012 h5 2 SEM846020206S 2 6 2 50 0~-0.012 h5 2 SEM846020206SE 2 6 2 50 0~-0.012 h5 2 SEM846020226S 2 6 2 60 0~-0.012 h5 2 SEM846020226SE 2 6 2 60 0~-0.012 h5 2 SEM846020266S 2 6 2 60 0~-0.012 h5 2 SEM846020266SE 2 6 2 60 0~-0.012 h5 2 SEM846020306S 2 6 2 70 0~-0.012 h5 2 SEM846020306SE 2 6 2 70 0~-0.012 h5 2 SEM846020356S 2 6 2 70 0~-0.012 h5 2 SEM846020356SE 2 6 2 70 0~-0.012 h5 2 SEM846020406S 2 6 2 80 0~-0.012 h5 2 SEM846020406SE 2 6 2 80 0~-0.012 h5 2 SEM846020456S 2 6 2 90 0~-0.012 h5 2 SEM846020456SE 2 6 2 90 0~-0.012 h5 2 SEM846020506S 2 6 2 100 0~-0.012 h5 2 SEM846020506SE 2 6 2 100 0~-0.012 h5 2 SEM84606020090 6 6 12 90 0~-0.012 h5 2 SEM84606020090E 6 6 12 90 0~-0.012 h5 2 SEM84606030090 6 6 12 90 0~-0.012 h5 2 SEM84606030090E 6 6 12 90 0~-0.012 h5 2 SEM84608025100 8 8 14 100 0~-0.015 h5 2 SEM84608025100E 8 8 14 100 0~-0.015 h5 2 SEM84608035100 8 8 14 100 0~-0.015 h5 2 SEM84608035100E 8 8 14 100 0~-0.015 h5 2 SEM84610030100 10 10 18 100 0~-0.015 h5 2 SEM84610030100E 10 10 18 100 0~-0.015 h5 2 SEM84610040100 10 10 18 100 0~-0.015 h5 2 SEM84610040100E 10 10 18 100 0~-0.015 h5 2 SEM84612032110 12 12 22 110 0~-0.015 h5 2 SEM84612032110E 12 12 22 110 0~-0.015 h5 2 SEM84612045110 12 12 22 110 0~-0.015 h5 2 SEM84612045110E 12 12 22 110 0~-0.015 h5 2
