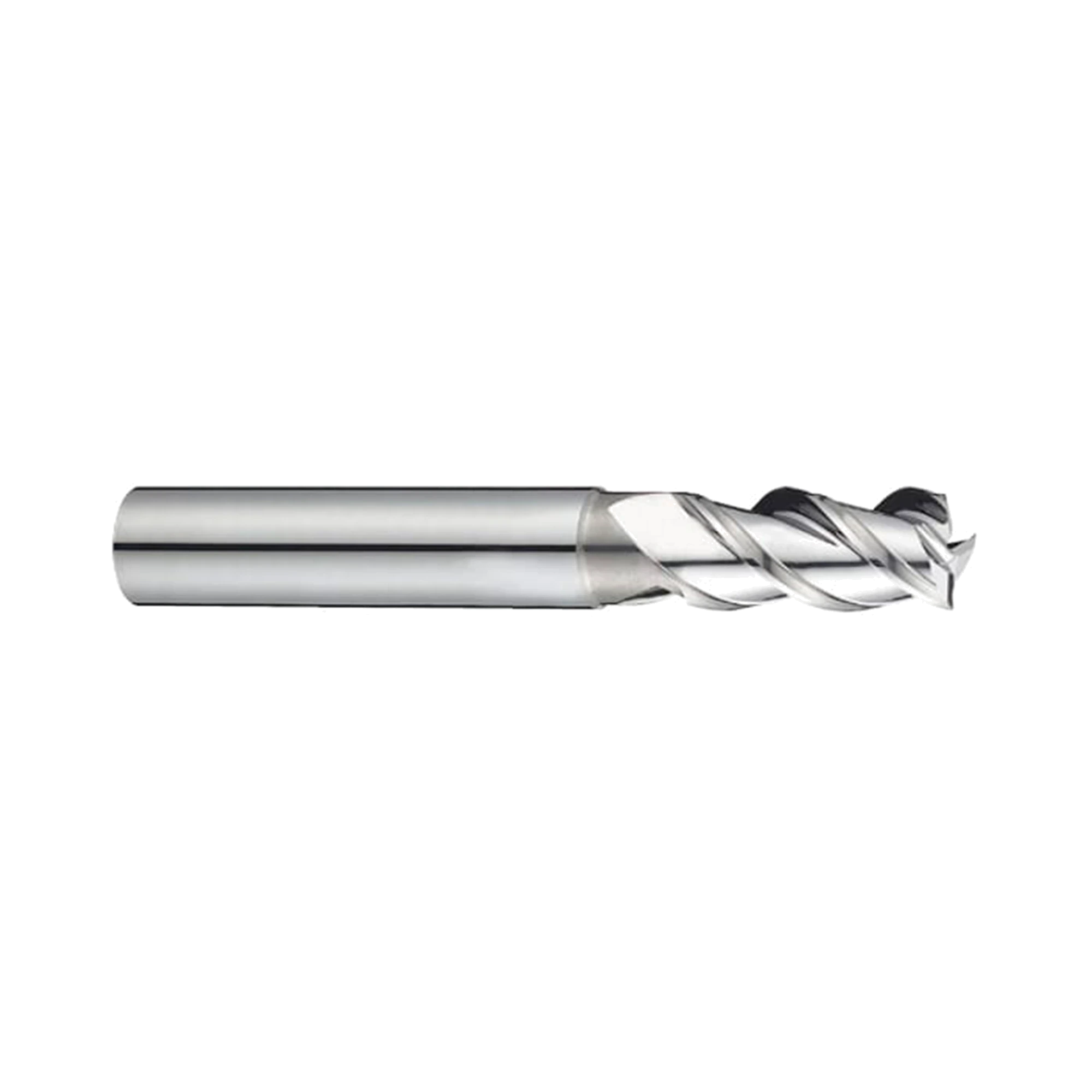

(E5E50) Alu-Power Carbide 3Flute End Mill, Regular Length, Plain Shank
Three-flute 45° helix carbide end mill with neckCode: E5E50030
-
Key Features
- Solid carbide three-flute end mill with a 45° helix and neck
- Uncoated cutter with mirror-surface flutes
- Optimised cutting edges support increased tool life
Made in South Korea
Purpose-built for non-ferrous milling
Recommended for aluminium wrought alloys, alloyed aluminium castings, copper, bronze and brass.
Mirror-finished flute surfaces
Mirror-surface flutes support effective chip evacuation and surface finish.
Necked cutter geometry
The reduced neck profile provides a practical cutter form for recessed milling features.

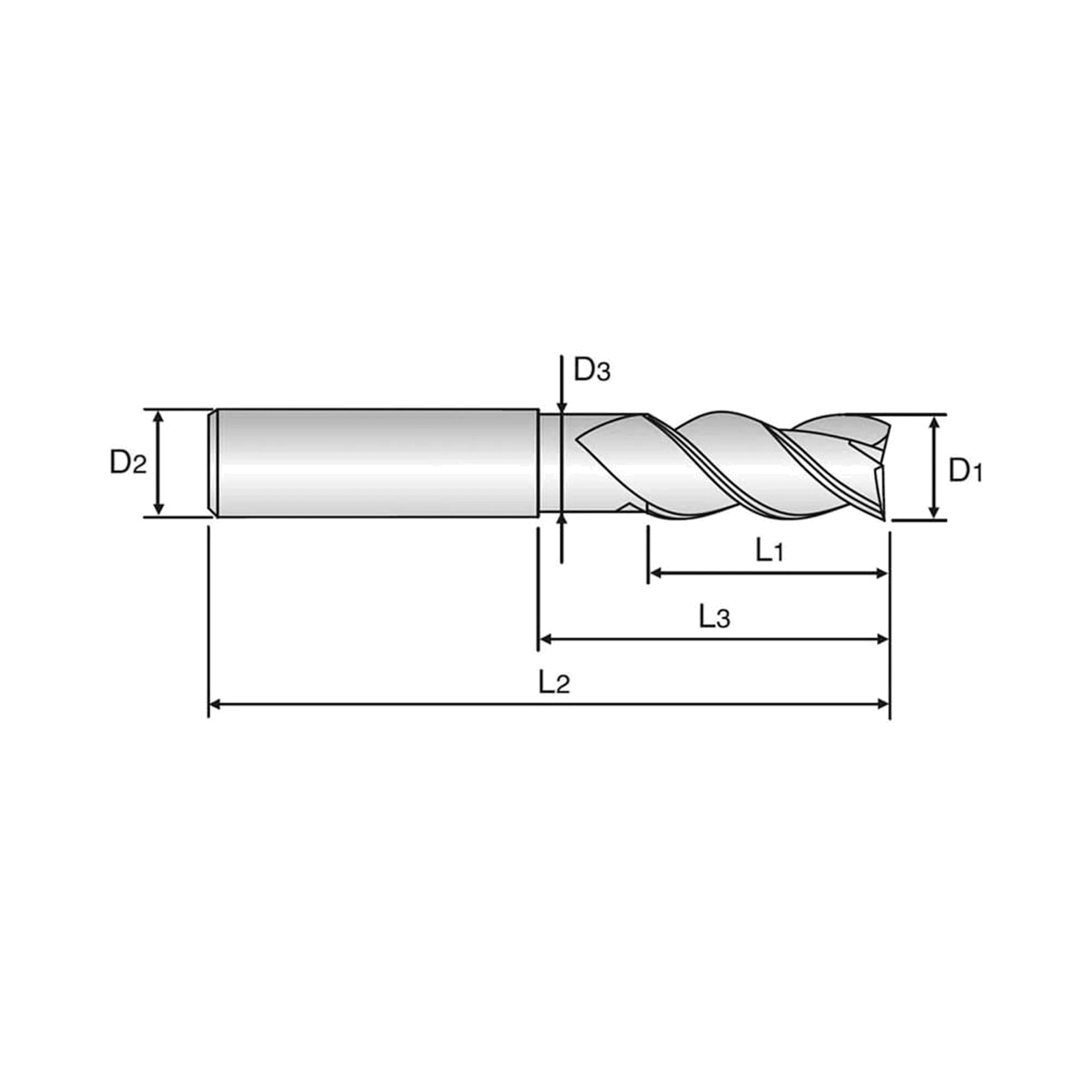

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| E5E50030 | 3.0 | 57.0 | 6.0 | 8.0 | 12.0 | 2.7 | Quantity unavailable | $30.40 | ||
| E5E50040 | 4.0 | 57.0 | 6.0 | 11.0 | 18.0 | 3.7 | In stock | $45.90 | ||
| E5E50050 | 5.0 | 57.0 | 6.0 | 13.0 | 18.0 | 4.7 | In stock | $45.90 | ||
| E5E50060 | 6.0 | 57.0 | 6.0 | 13.0 | 18.0 | 5.7 | In stock | $45.90 | ||
| E5E50080 | 8.0 | 63.0 | 8.0 | 21.0 | 25.0 | 7.4 | In stock | $63.20 | ||
| E5E50100 | 10.0 | 72.0 | 10.0 | 22.0 | 30.0 | 9.2 | In stock | $77.90 | ||
| E5E50120 | 12.0 | 83.0 | 12.0 | 26.0 | 36.0 | 11.0 | In stock | $118.30 | ||
| E5E50160 | 16.0 | 92.0 | 16.0 | 36.0 | 42.0 | 15.0 | Low stock | $187.80 | ||
| E5E50200 | 20.0 | 104.0 | 20.0 | 41.0 | 52.0 | 19.0 | Low stock | $316.00 |
Add (E5E50) Alu-Power Carbide 3Flute End Mill, Regular Length, Plain Shank to comparison
View Comparison- Overview
- Speeds & Feeds
- Reviews
YG-1 E5E50 Alu-Power solid carbide end mills are uncoated three-flute, 45° helix cutters with a neck. Designed for aluminium and copper materials, they provide a square-end profile for non-ferrous milling applications. Mirror-surface flutes promote chip evacuation and surface finish, while optimised cutting edges support increased tool life. The regular-length plain-shank family covers 3 to 20 mm milling diameters.
Each cutter combines a reduced neck diameter with an h6 plain shank. The three-flute geometry and 45° helix are specified consistently throughout the E5E50 range. Available variants use 6, 8, 10, 12, 16 and 20 mm shank diameters. Use them on aluminium wrought alloys, alloyed aluminium castings, copper, bronze and brass.
- Solid carbide three-flute end mill with a 45° helix and neck
- Uncoated cutter with mirror-surface flutes
- Optimised cutting edges support increased tool life
- Suitable for aluminium and copper materials
- Square-end profile for non-ferrous milling
- Regular-length plain-shank sizes from 3 to 20 mm
No specifications available.
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 65 | 0.045 | 7000 | 940 |
| 4.0 | 90 | 0.055 | 7000 | 1150 |
| 5.0 | 110 | 0.065 | 7000 | 1360 |
| 6.0 | 130 | 0.075 | 7000 | 1580 |
| 8.0 | 140 | 0.113 | 5600 | 1900 |
| 9.0 | 160 | 0.122 | 5600 | 2050 |
| 10.0 | 175 | 0.131 | 5600 | 2200 |
| 12.0 | 210 | 0.163 | 5600 | 2740 |
| 16.0 | 210 | 0.200 | 4200 | 2520 |
| 20.0 | 175 | 0.238 | 2800 | 2000 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 65 | 0.035 | 7000 | 730 |
| 4.0 | 90 | 0.045 | 7000 | 940 |
| 5.0 | 110 | 0.050 | 7000 | 1050 |
| 6.0 | 130 | 0.060 | 7000 | 1250 |
| 8.0 | 140 | 0.088 | 5600 | 1470 |
| 9.0 | 160 | 0.097 | 5600 | 1630 |
| 10.0 | 175 | 0.106 | 5600 | 1780 |
| 12.0 | 210 | 0.131 | 5600 | 2200 |
| 16.0 | 210 | 0.158 | 4200 | 1990 |
| 20.0 | 175 | 0.200 | 2800 | 1680 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
