(EIB88) D-Power Carbide 4Flute End Mill, With Neck for Graphite (Diamond Coated)
Diamond-coated four-flute graphite end millCode: EIB88060
-
Key Features
- Diamond-coated carbide construction for graphite machining
- Four-flute corner-radius geometry with R0.5 corners
- Selected mill diameters from 6 to 12 mm
Made in South Korea
Graphite-focused cutting
Four flutes and R0.5 corners support graphite milling applications
Diamond-coated durability
High coating hardness and wear resistance support longer tool life
Useful clearance options
6 and 8 mm variants provide 40 mm length below shank

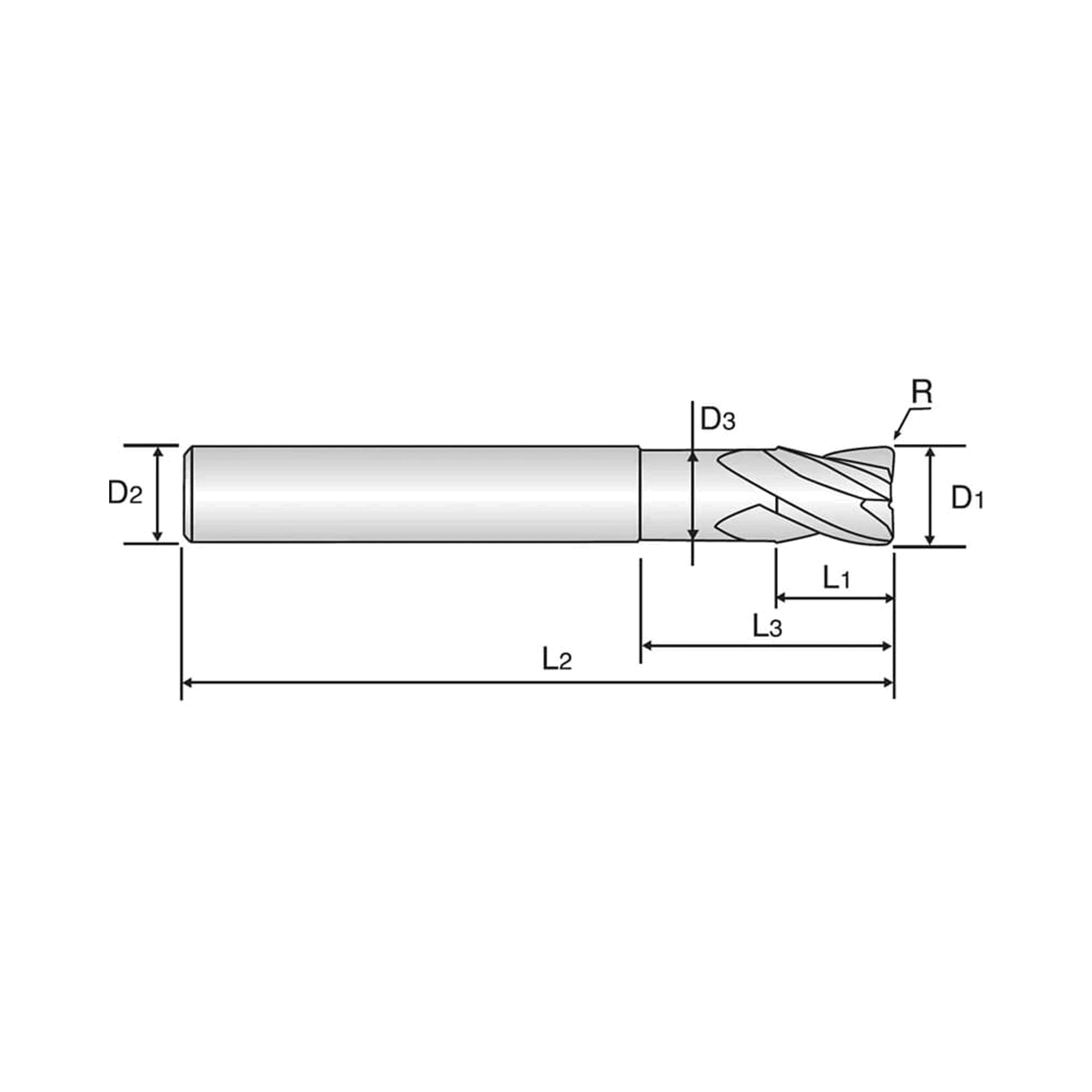

| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EIB88060 | 6 | R0.5 | 80.0 | 6.0 | 10.0 | 40.0 | 5.9 | 5 days | $226.30 | ||
| EIB88080 | 8 | R0.5 | 80.0 | 8.0 | 10.0 | 40.0 | 7.8 | 5 days | $302.60 | ||
| EIB88100 | 10 | R0.5 | 75.0 | 10.0 | 25.0 | - | - | 5 days | $320.50 | ||
| EIB88120 | 12 | R0.5 | 80.0 | 12.0 | 25.0 | - | - | 5 days | $374.00 |
Add (EIB88) D-Power Carbide 4Flute End Mill, With Neck for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews

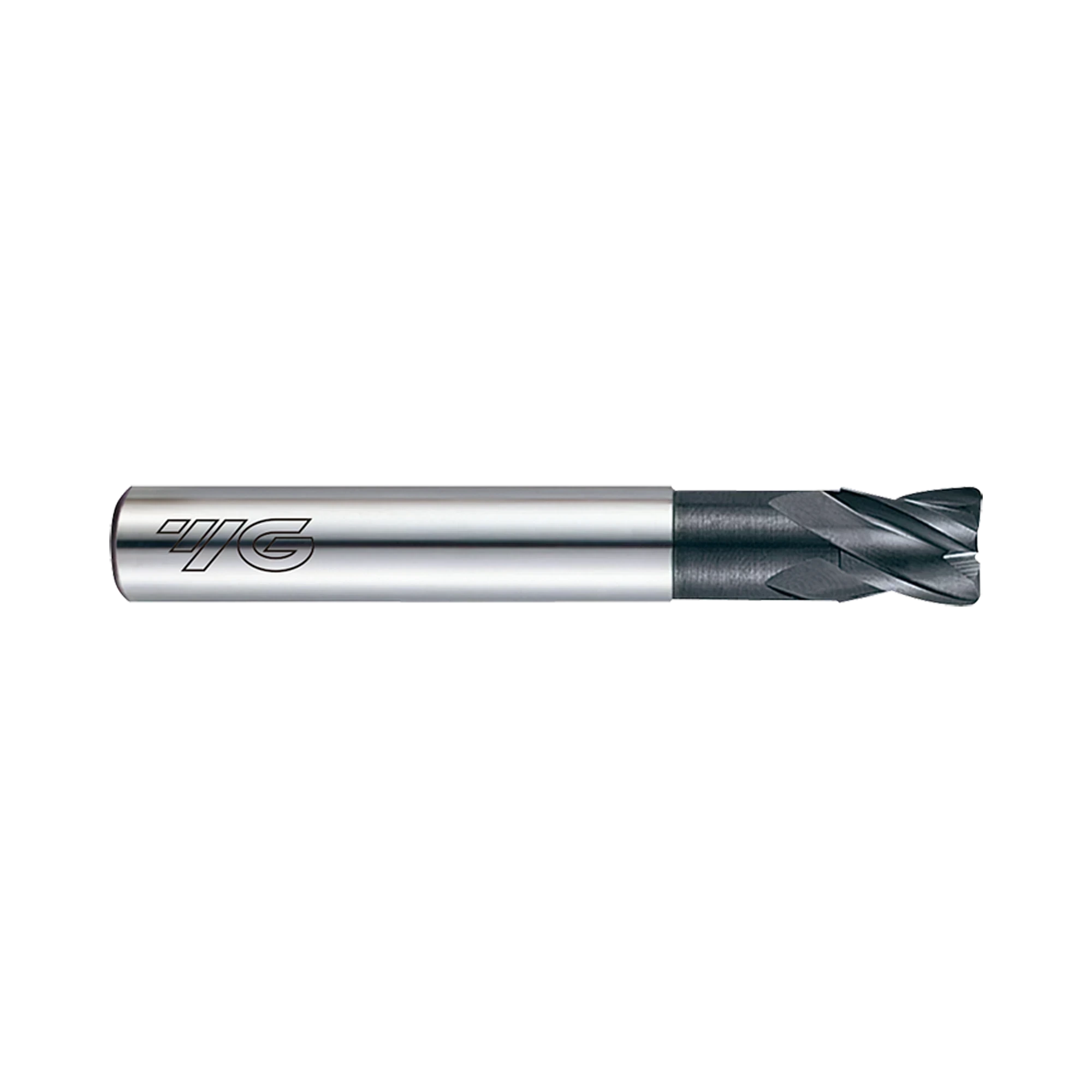

YG-1 EIB88 is a diamond-coated carbide four-flute corner-radius end mill for graphite machining. Its R0.5 cutting geometry supports graphite milling, with necked configurations providing clearance below the shank. Selected SKUs cover 6, 8, 10 and 12 mm mill diameters, each with a matching shank diameter. The 6 and 8 mm tools have 10 mm lengths of cut and 40 mm lengths below shank. The 10 and 12 mm options use 25 mm lengths of cut. Diamond coating offers high film hardness and excellent wear resistance for longer tool life. Its ultrafine coating film supports smooth, excellent surface finishes on suitable materials.
- Diamond-coated carbide construction for graphite machining
- Four-flute corner-radius geometry with R0.5 corners
- Selected mill diameters from 6 to 12 mm
- Matching nominal shank diameters on selected tools
- 40 mm length below shank on 6 and 8 mm variants
- Diamond coating provides high hardness and wear resistance
