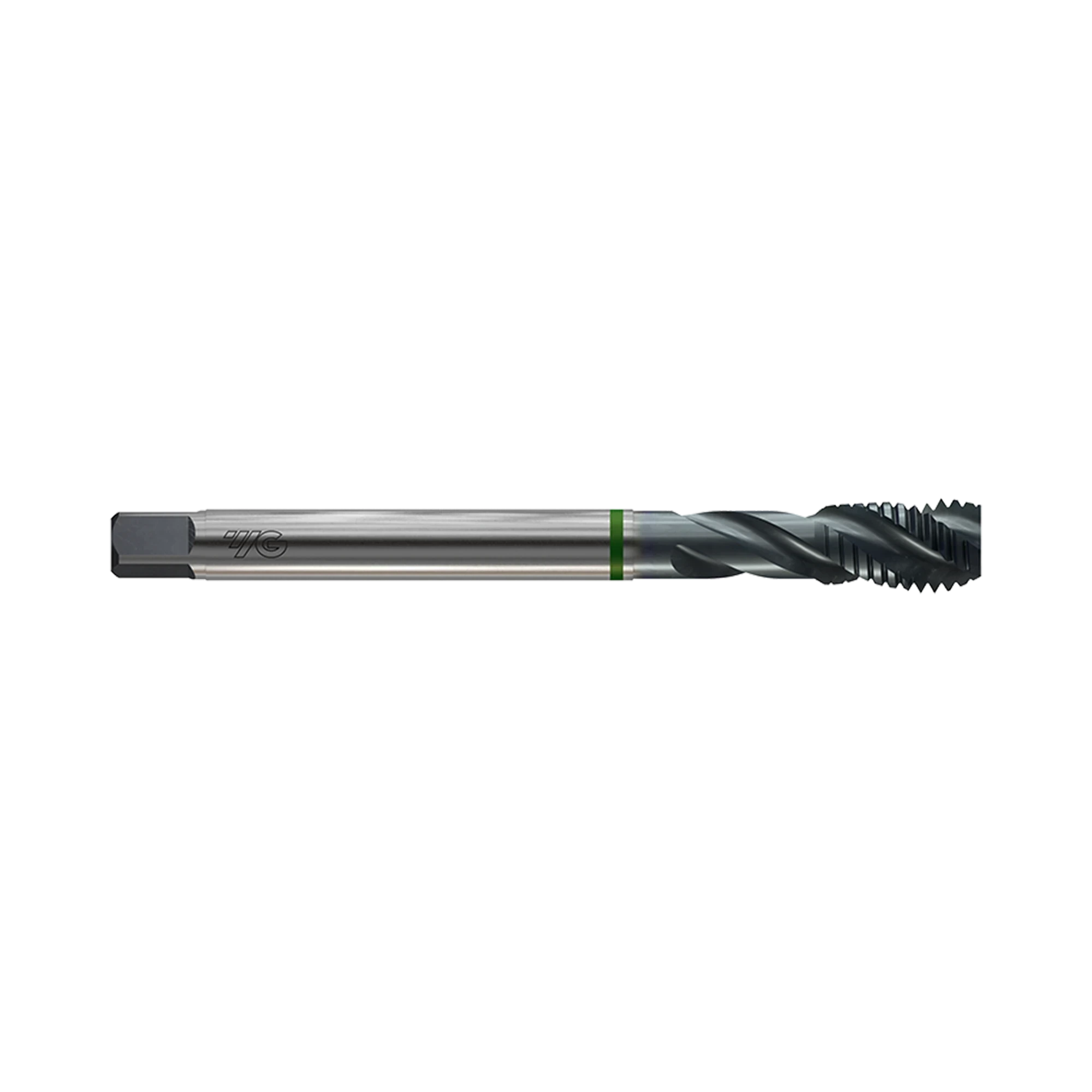

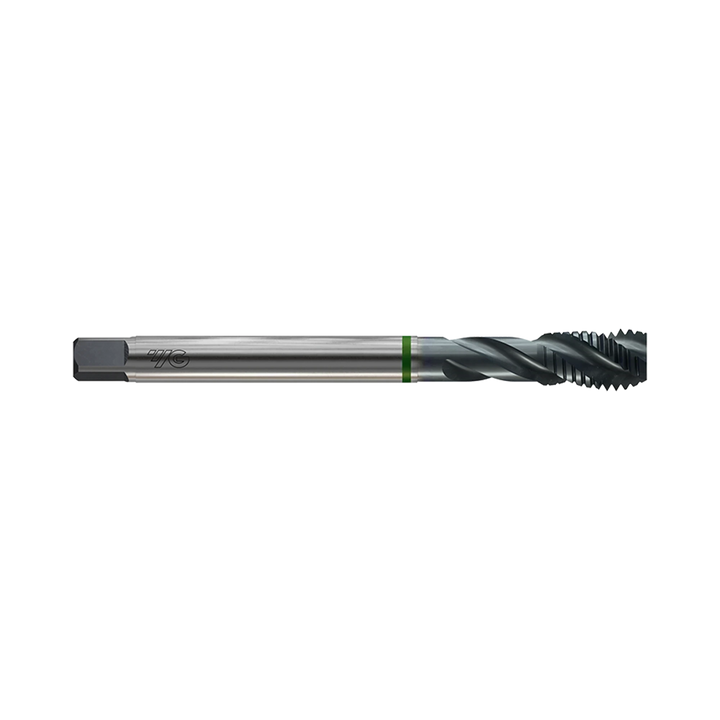

(TB914) HSS-E (M35) Metric Spiral Flute for Stainless Steel
Deep Blind-Hole Metric Spiral Tap for Stainless Steel
- SKU
- TB914136
Key features
- HSS-E (M35) with 5% cobalt for strength and longevity
- Steam tempered finish for added wear protection
- Recessed threads for deep blind hole tapping
Made in South Korea
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TB914136 | M2 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.6 | – | 1-2 Weeks | $28.90 | ||
| TB914176 | M2.5 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.1 | – | No stock | $40.63 | ||
| TB914206 | M3 | 0.5 | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.5 | DXF | In stock | $19.20 | ||
| TB914226 | M3.5 | 0.6 | 7.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 2.9 | – | No stock | $37.75 | ||
| TB914246 | M4 | 0.7 | 7.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | – | Restocking | $19.40 | ||
| TB914286 | M5 | 0.8 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.2 | – | In stock | $20.00 | ||
| TB914316 | M6 | 1.0 | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | – | In stock | $20.00 | ||
| TB914346 | M7 | 1.0 | 10.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 6.0 | – | In stock | $25.40 | ||
| TB914366 | M8 | 1.25 | 13.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.8 | – | In stock | $25.40 | ||
| TB914396 | M9 | 1.25 | 13.0 | 90.0 | 35.0 | 9.0 | 7.0 | 10.0 | 3 | 7.8 | – | In stock | $30.60 | ||
| TB914426 | M10 | 1.5 | 15.0 | 100.0 | 39.0 | 10.0 | 8.0 | 11.0 | 3 | 8.5 | – | In stock | $36.20 | ||
| TB914506 | M12 | 1.75 | 18.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.2 | – | In stock | $45.80 | ||
| TB914546 | M14 | 2.0 | 20.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | – | In stock | $55.70 | ||
| TB914606 | M16 | 2.0 | 20.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 14.0 | – | In stock | $64.60 | ||
| TB914656 | M18 | 2.5 | 25.0 | 125.0 | 50.0 | 14.0 | 11.0 | 14.0 | 4 | 15.5 | – | In stock | $85.40 | ||
| TB914706 | M20 | 2.5 | 25.0 | 140.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 17.5 | – | In stock | $101.90 | ||
| TB914746 | M22 | 2.5 | 25.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | 19.5 | – | Low stock | $126.30 | ||
| TB914786 | M24 | 3.0 | 30.0 | 160.0 | 60.0 | 18.0 | 14.5 | 17.0 | 4 | 21.0 | – | Low stock | $137.50 | ||
| TB914866 | M27 | 3.0 | 30.0 | 160.0 | 60.0 | 20.0 | 16.0 | 19.0 | 4 | 24.0 | – | Low stock | $197.60 | ||
| TB914946 | M30 | 3.5 | 35.0 | 180.0 | 70.0 | 22.0 | 18.0 | 21.0 | 4 | 26.5 | – | Low stock | $306.00 |
Add (TB914) HSS-E (M35) Metric Spiral Flute for Stainless Steel to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Reviews
The YG-1 TB914 Series HSS-E (M35) Spiral Flute Tap is built for precise, high-performance tapping in steel and stainless steel. Its 5% cobalt substrate provides excellent heat and wear resistance, while the steam tempered finish enhances durability. The recessed thread design and spiral flute geometry ensure reliable chip evacuation for deep blind holes during machine tapping.
- HSS-E (M35) with 5% cobalt for strength and longevity
- Steam tempered finish for added wear protection
- Recessed threads for deep blind hole tapping
- Spiral flute geometry for clean chip evacuation
- Suitable for steel and stainless steel applications
| Workpiece Material | P M |
| Helix Angle | Square 40 |
| Operation | Blind Drilling |
| Surface Treatment | Steam Oxide Coating |
| Thread Angle | 60 |
| Thread Class | 6H |
| Thread Form | C |
| Thread Shape | M |
| Tool Material | HSS-E |
| Tool Standard | DIN 371-376 |
Work materials
VDI 3323 recommendations for this tool.
Steel
5 gradesSuperalloys & titanium
2 gradesStainless steel
3 gradesVDI grade reference10 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Excellent | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Good | 250 | 25 |
| 4 | PNon-alloy steel | Good | 270 | 28 |
| 6 | PLow-alloy steel | Good | 180 | 10 |
| 12 | MStainless steel | Excellent | 200 | 15 |
| 13 | MStainless steel | Excellent | 240 | 23 |
| 14 | MStainless steel | Excellent | 180 | 10 |
| 31 | SHeat-resistant superalloys | Good | 200 | 15 |
| 36 | STitanium alloys | Good | - | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
