(EH919) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Plain Shank
Long-length carbide fine roughing end millCode: EH919040
-
Key Features
- Carbide multi-flute roughing end mill with 45° helix
- TiAlN coating with ultra micro grain carbide construction
- Long-length plain-shank design
Made in South Korea
Efficient roughing
Fine roughing geometry supports high chip removal while helping minimise cutting-edge breakages.
Built for demanding metals
Suitable for stainless steels, titanium alloys and selected steels below 45 HRc.
Useful size coverage
Plain-shank options cover 4.0–25.0 mm diameters for long-length roughing work.
| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| EH919040 | 4.0 | 0.1 | 57.0 | 6.0 | 3 | 11.0 | Low stock | $70.50 | ||
| EH919050 | 5.0 | 0.13 | 57.0 | 6.0 | 4 | 13.0 | Low stock | $70.50 | ||
| EH919060 | 6.0 | 0.15 | 57.0 | 6.0 | 4 | 16.0 | In stock | $70.50 | ||
| EH919070 | 7.0 | 0.15 | 63.0 | 8.0 | 4 | 16.0 | 5 days | $82.50 | ||
| EH919080 | 8.0 | 0.18 | 63.0 | 8.0 | 4 | 16.0 | Low stock | $82.50 | ||
| EH919090 | 9.0 | 0.18 | 72.0 | 10.0 | 4 | 19.0 | 5 days | $123.20 | ||
| EH919100 | 10.0 | 0.2 | 72.0 | 10.0 | 4 | 22.0 | Low stock | $123.20 | ||
| EH919120 | 12.0 | 0.2 | 83.0 | 12.0 | 4 | 26.0 | Low stock | $158.30 | ||
| EH919140 | 14.0 | 0.2 | 83.0 | 14.0 | 5 | 26.0 | 5 days | $192.00 | ||
| EH919160 | 16.0 | 0.2 | 92.0 | 16.0 | 5 | 32.0 | Low stock | $257.80 | ||
| EH919200 | 20.0 | 0.2 | 104.0 | 20.0 | 6 | 38.0 | Low stock | $414.90 | ||
| EH919250 | 25.0 | 0.2 | 121.0 | 25.0 | 6 | 45.0 | 5 days | $727.50 |
Add (EH919) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Plain Shank to comparison
View Comparison- Overview
- Reviews

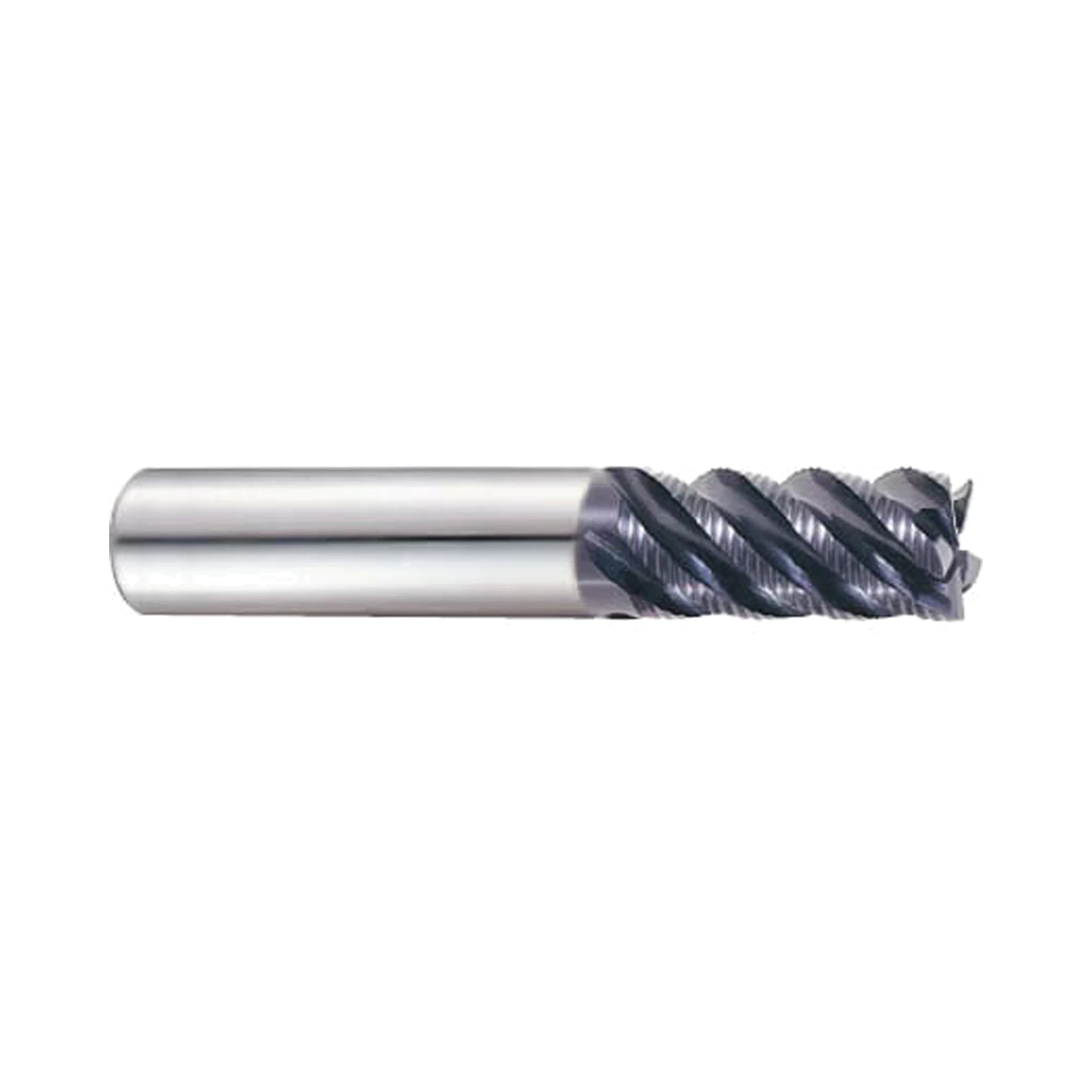

YG-1 EH919 Jet-Power is a carbide multi-flute 45° helix long roughing end mill with a plain shank. It is designed for high chip removal when roughing stainless steels, titanium alloys and materials under 45 HRc. Its TiAlN coating and ultra micro grain carbide construction support demanding roughing applications.
The EH919 plain-shank range spans 4.0–25.0 mm diameters, with three to six flutes and 0.1–0.2 mm chamfers. Fine roughing geometry helps remove material efficiently while minimising cutting-edge breakages. Suitable materials include alloy, tool, carbon and prehardened steels alongside stainless steels. Use it for side cutting in steel, stainless steel and titanium alloy machining.
- Carbide multi-flute roughing end mill with 45° helix
- TiAlN coating with ultra micro grain carbide construction
- Long-length plain-shank design
- Fine roughing geometry for high chip removal
- Suitable for materials under 45 HRc
- 4.0–25.0 mm diameter range with three to six flutes
No specifications available.
