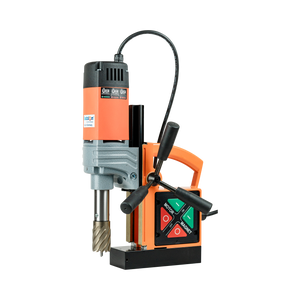

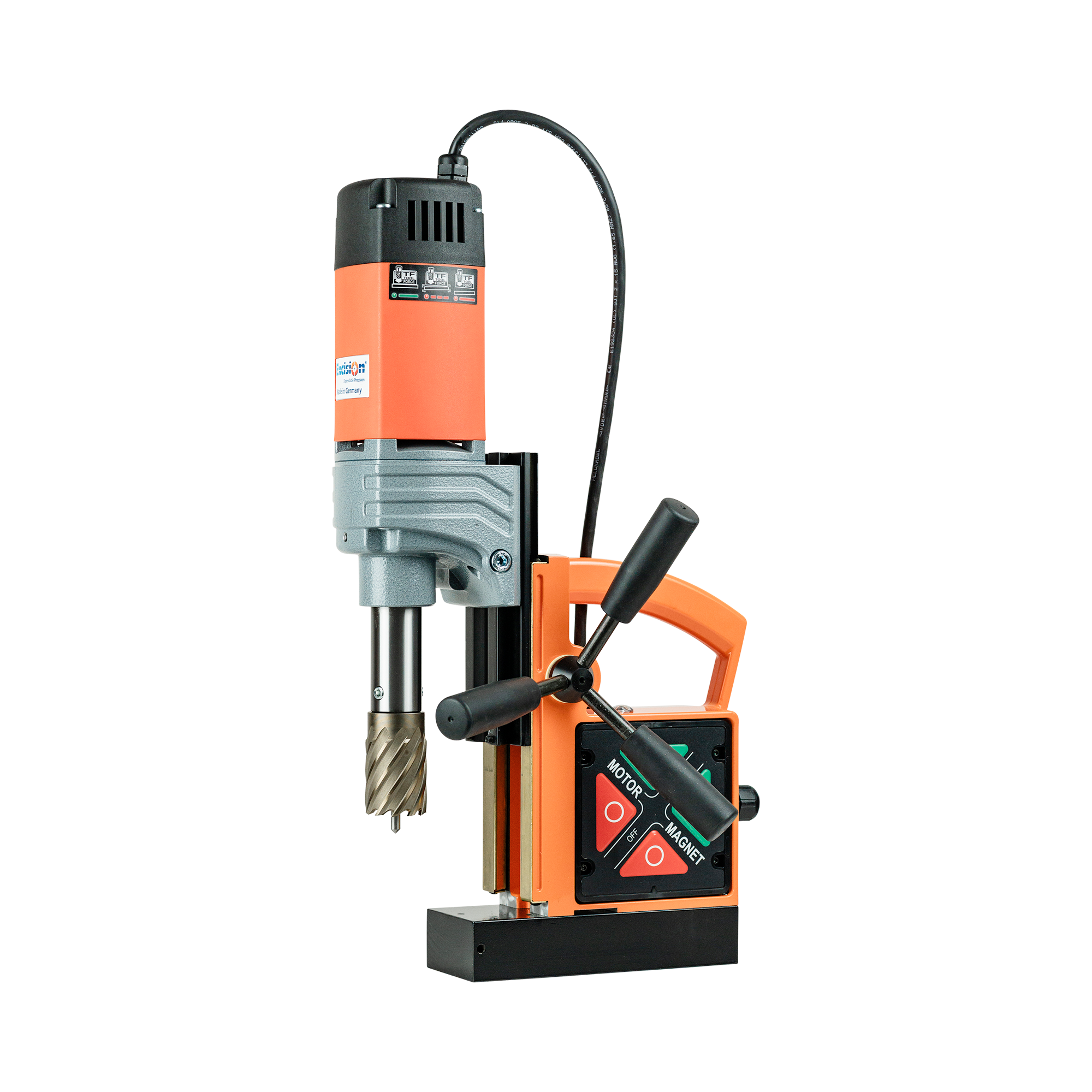

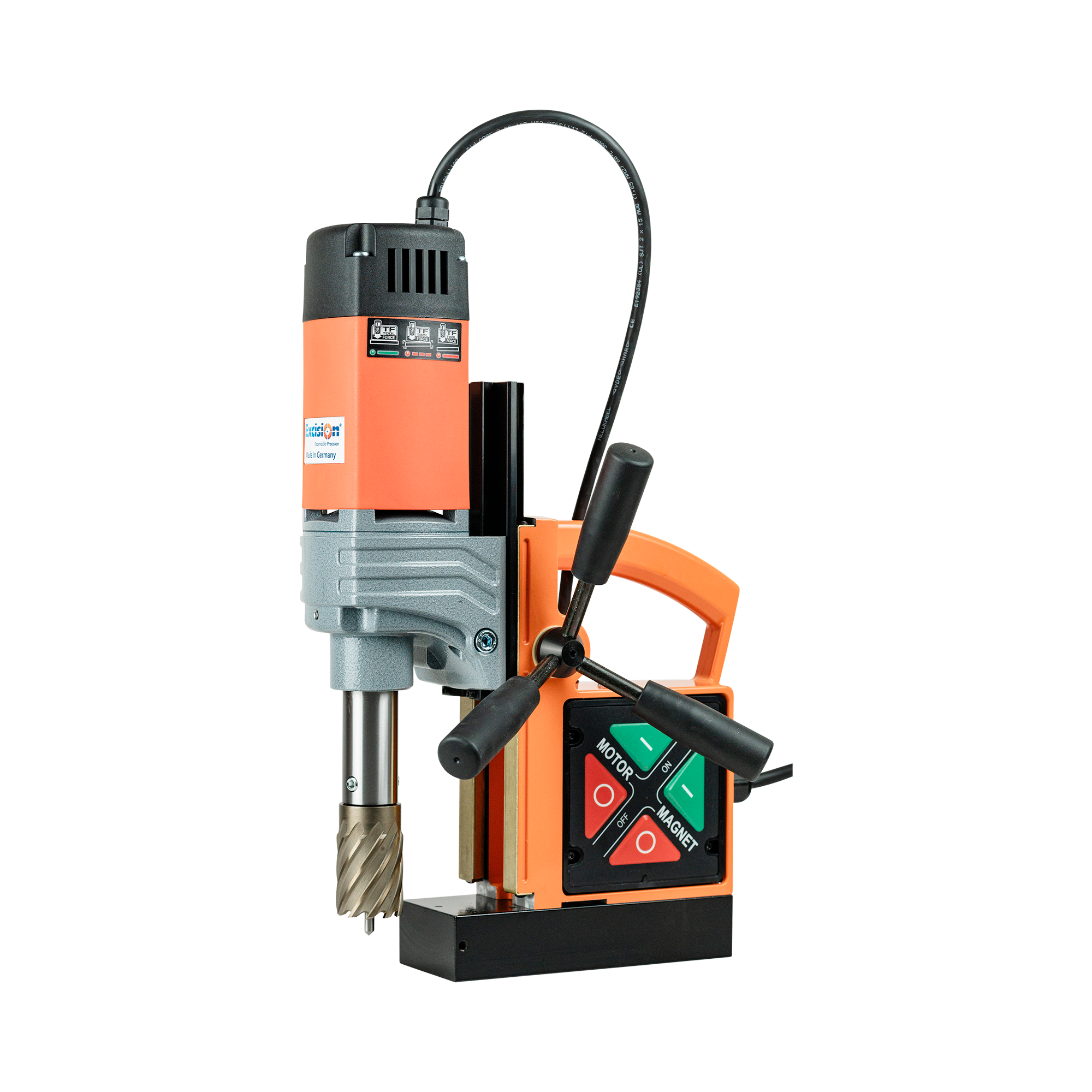

EM40 Magnetic Drill
Code: 18500
Made in Germany
2
2 Year Warranty
Add EM40 Magnetic Drill to comparison
View Comparison- Overview
- Downloads & Documents
- Reviews
Product Description
The EM40 is compact but loaded with premium features. Its double-dove-tailed design adds height, letting you use a keyless drill chuck on a smaller drill. Built-in magnetic adhesion sensor and solid brass guides ensure safe, smooth operation with no vibration. With 9,000N magnetic adhesion and an integrated coolant system, it's perfect for industrial use and versatile applications.
- 2 coil 9,000N magnetic adhesion for industrial use

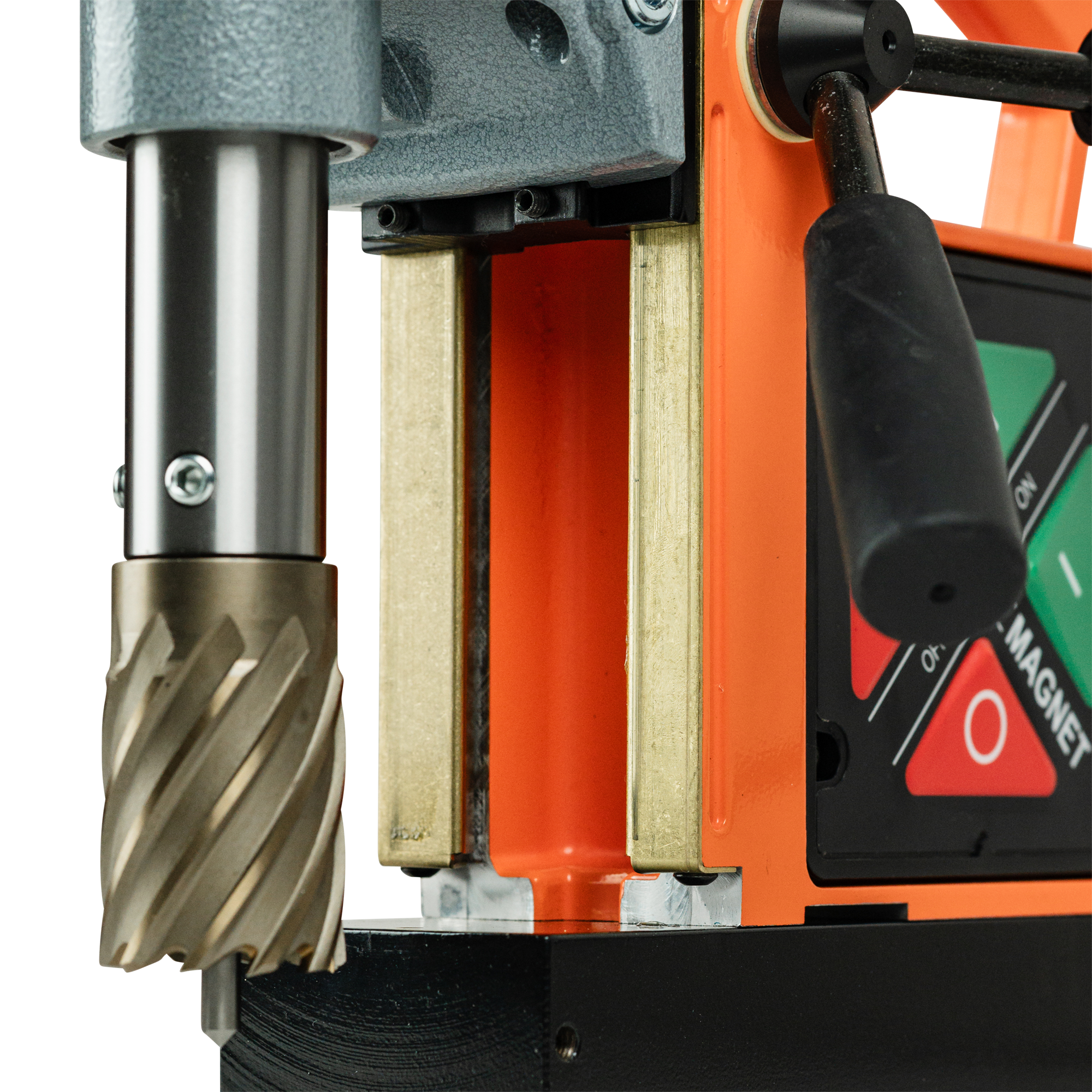

- Solid brass guides with spring loading for rigid gliding and no vibration

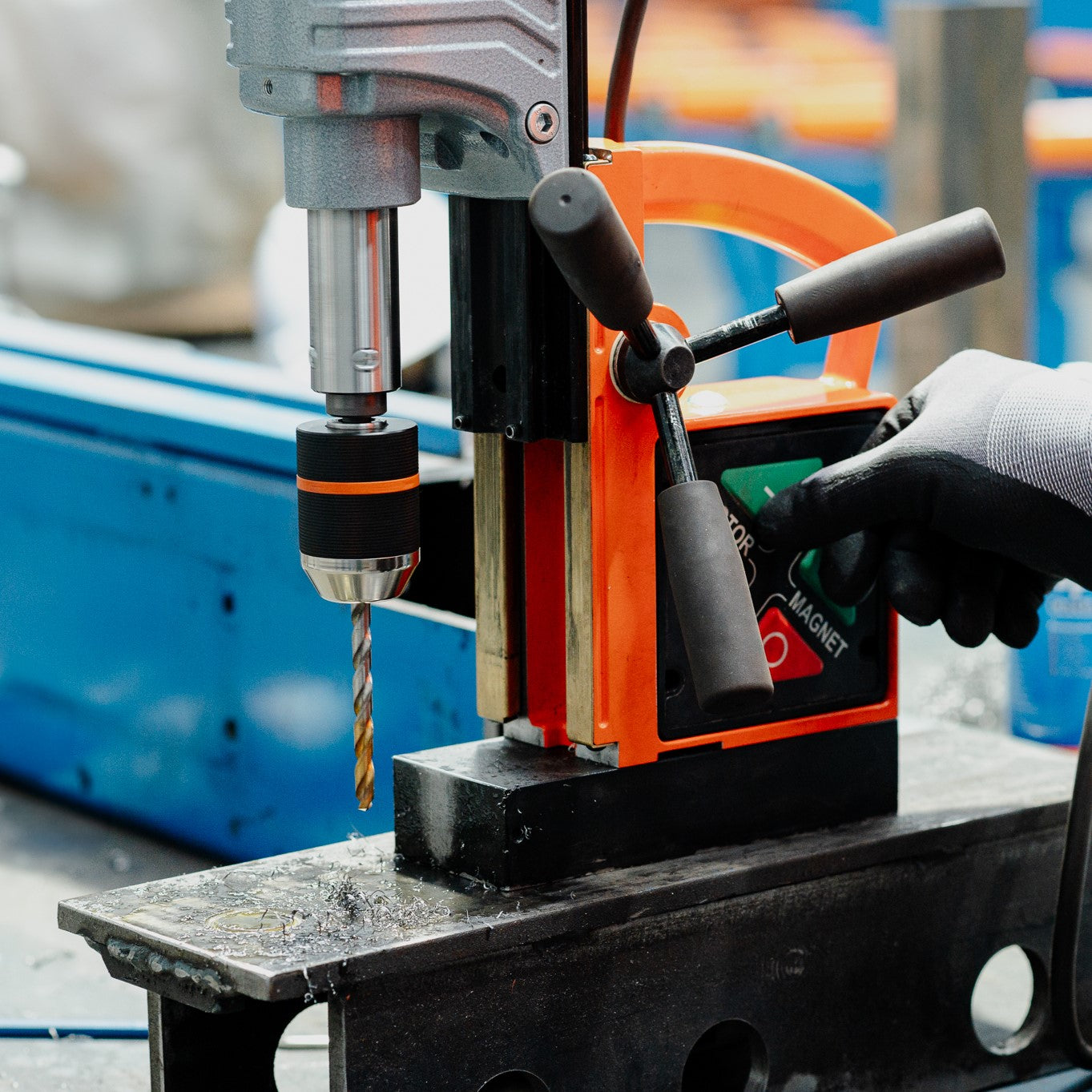

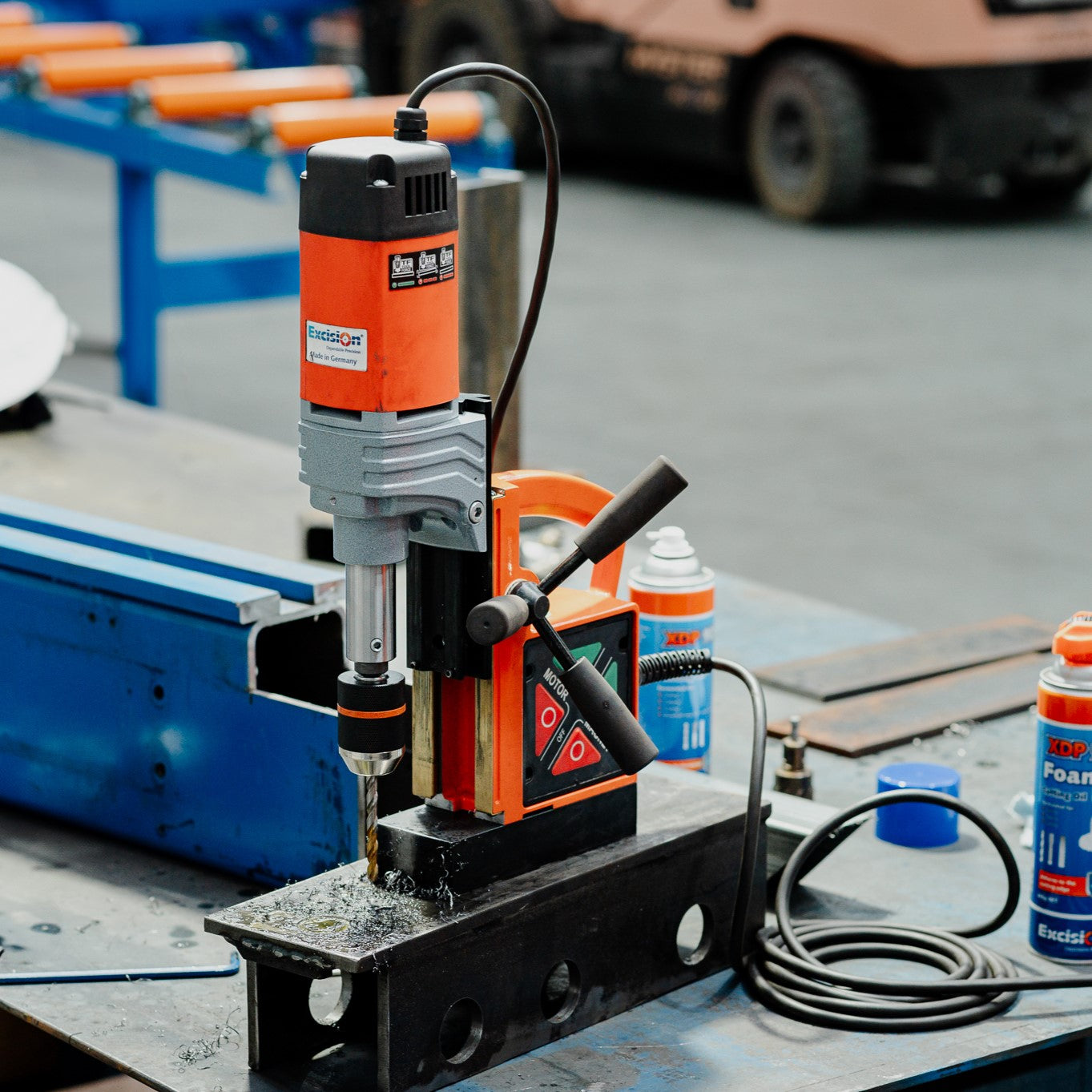

- Height adjustable slide enables an increased range of applications including standard twist drills
- Direct Weldon arbor type spindle for use with all 19mm shank core drills

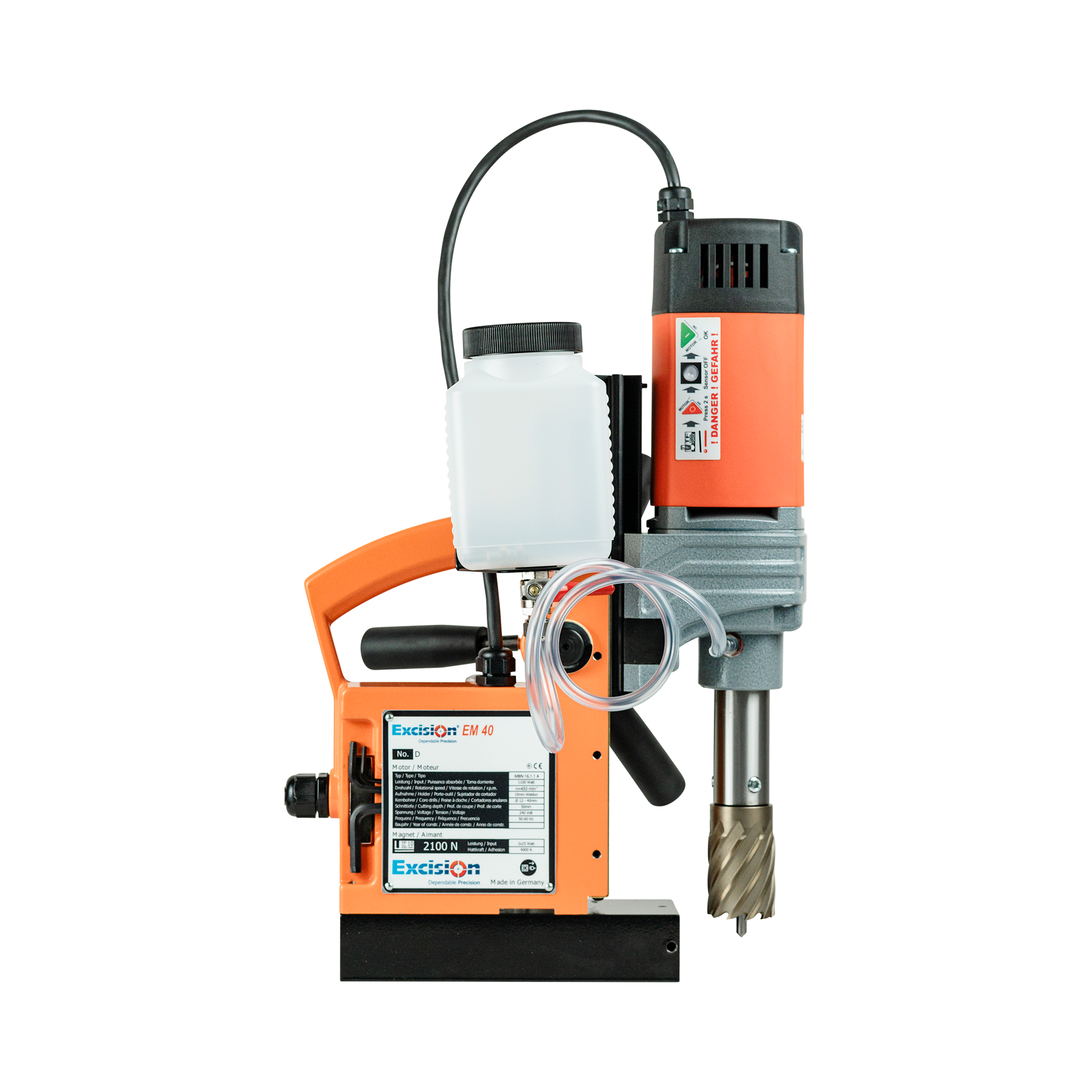

- Integrated coolant system to increase the life of your core drills

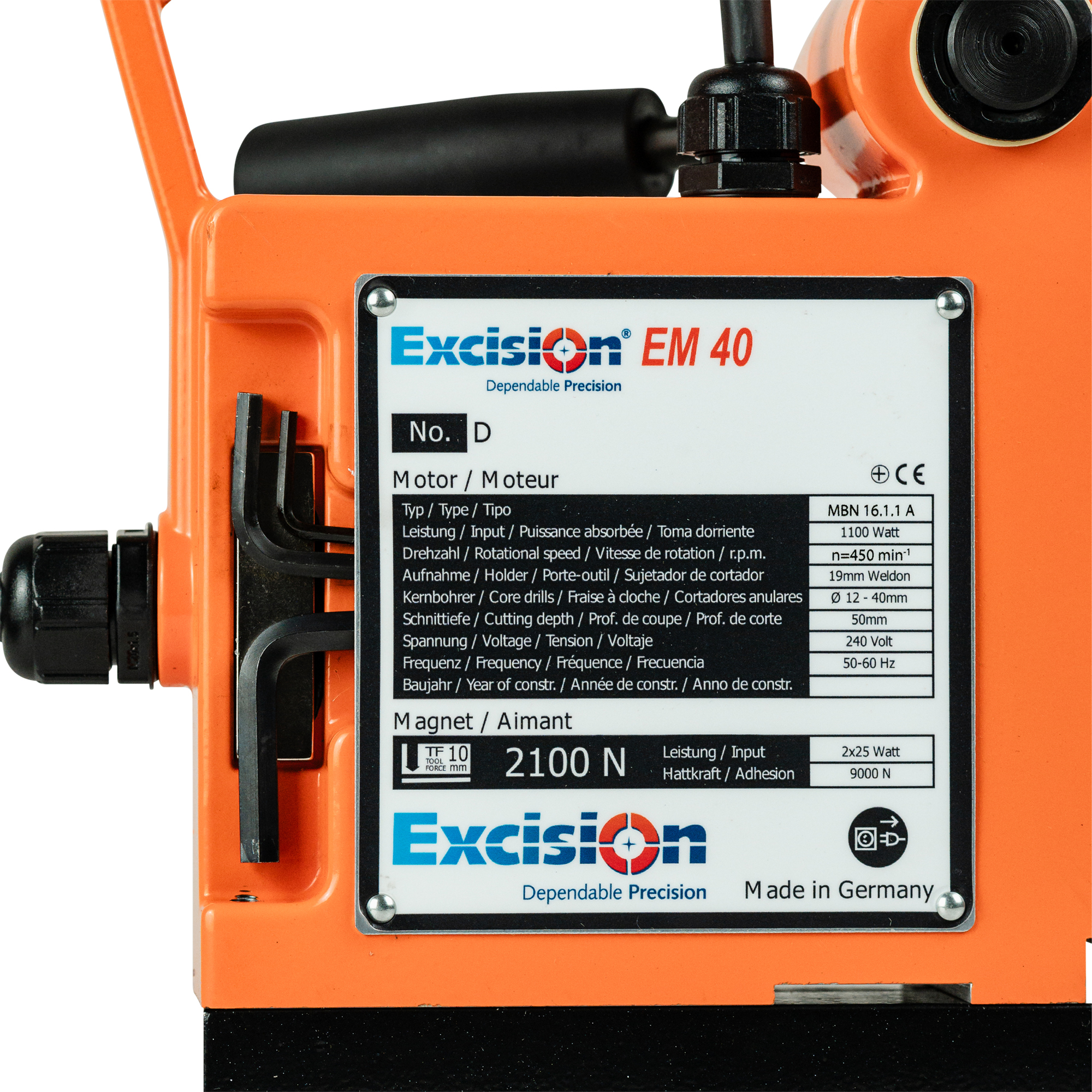

Specifications
| Product Specifications | |
 |
|
| Core Drill Dimensions | 12.0-40.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill |
1.0-13.0mm |
| Counter-Boring |
10.0-40.0mm |
| Arbors |
Quick-Release Chuck |
| Stroke |
129mm |
| Height Adjustment |
86mm |
| Gearbox-On-load Speed |
450rpm |
| Power Consumption |
1,100W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
2,100N/9,000N |
| Magnetic Base |
70×185mm |
| Weight |
11.5Kg |

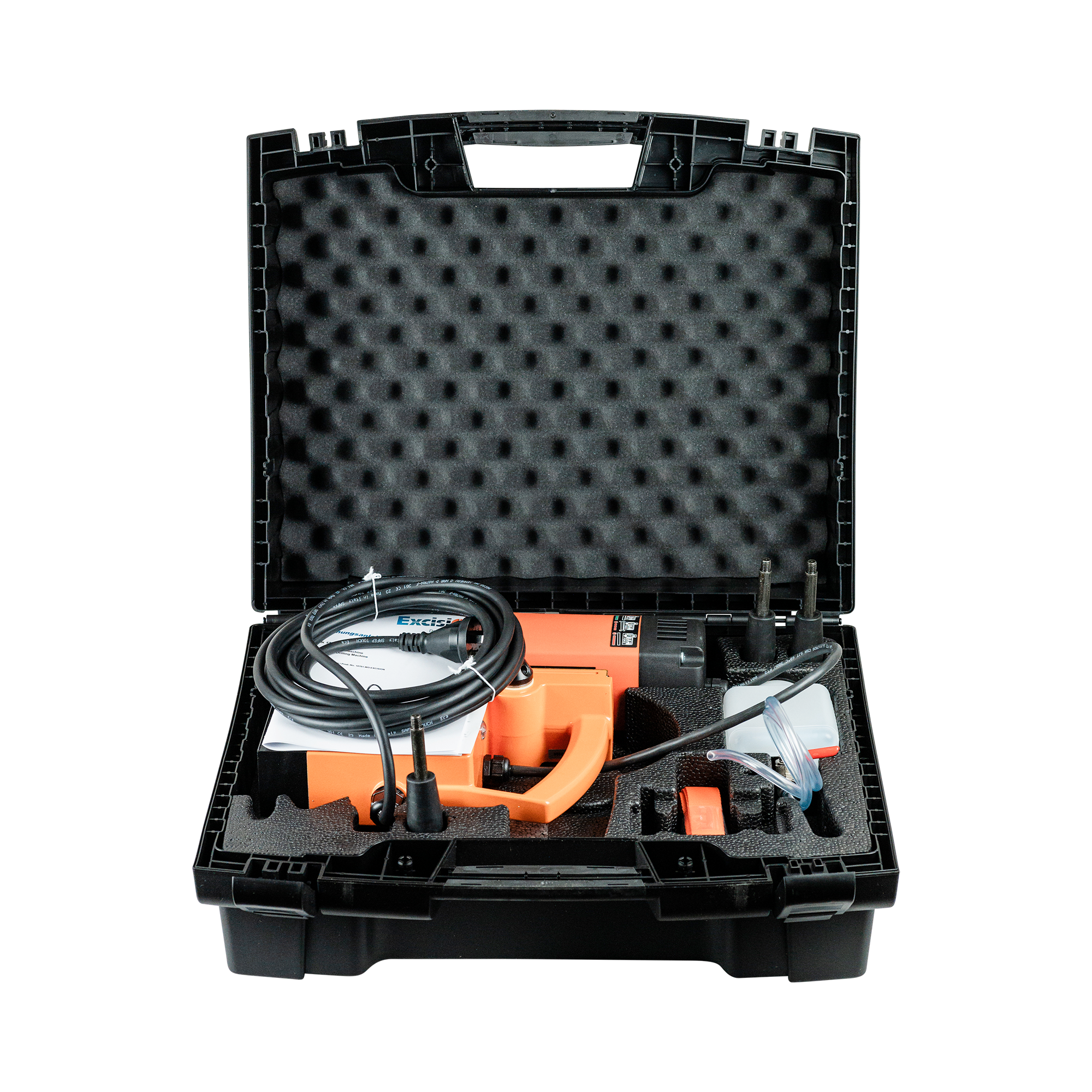

| Scope of Delivery | |
| EM40 Magnetic Drill |
⚫ |
| Carrying Case |
⚫ |
| Safety Strap |
⚫ |
| Coolant Device |
⚫ |
| Operating Instructions |
⚫ |
Product Data
| Adhesion Force | 9000 N |
| Core Drill Diameter | 40mm |
| Counter Boring Diameter | 40mm |
| Cutting Depth | 50mm |
| Ecom | Section |
| Gearbox Speed | 450 RPM |
| Height Adjustment | 86mm |
| Magnet Type | Electric |
| Shank Type | 19mm Weldon |
| Stroke | 129mm |
| Twist Drill Diameter | 13mm |
| Weight | 11.5 kg |
