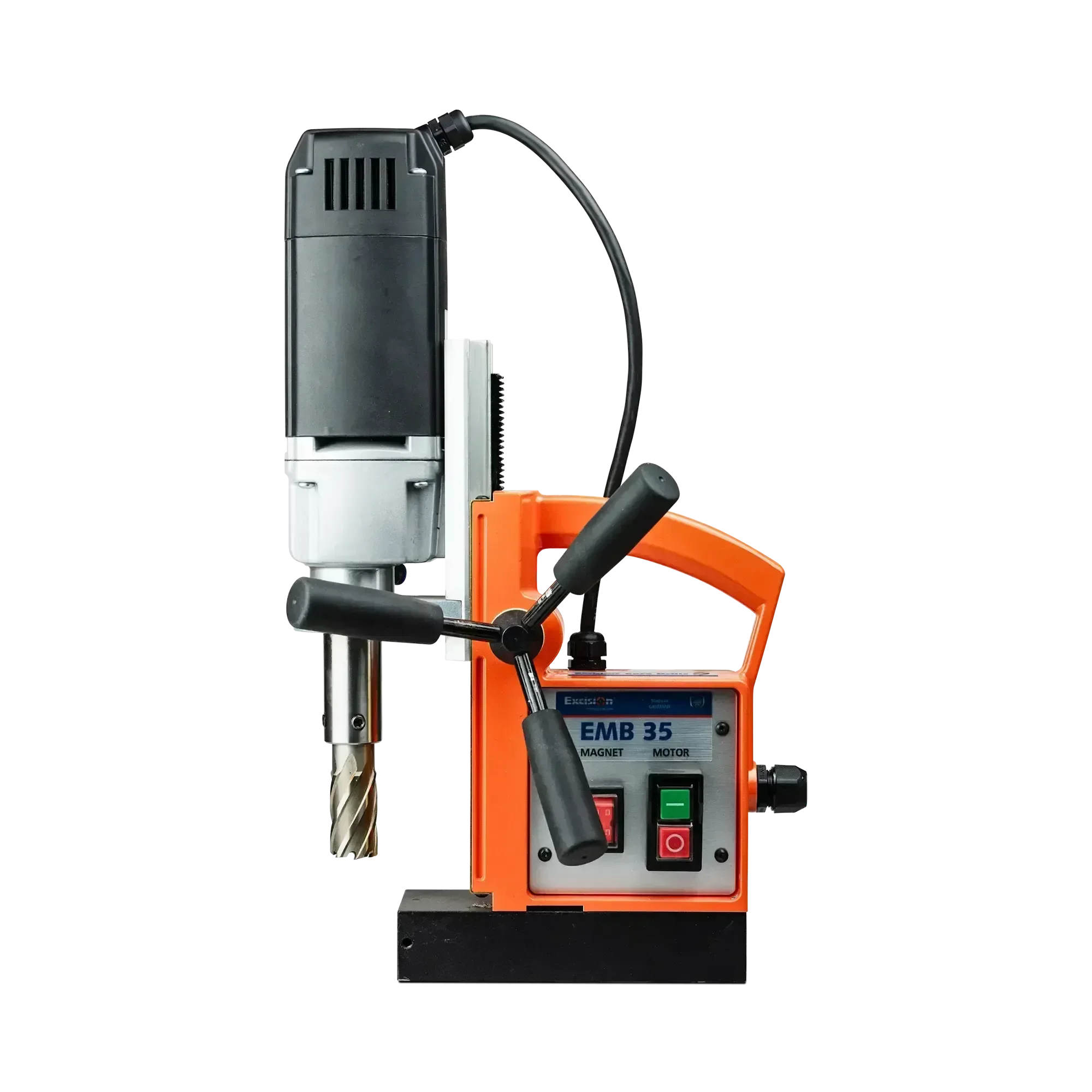

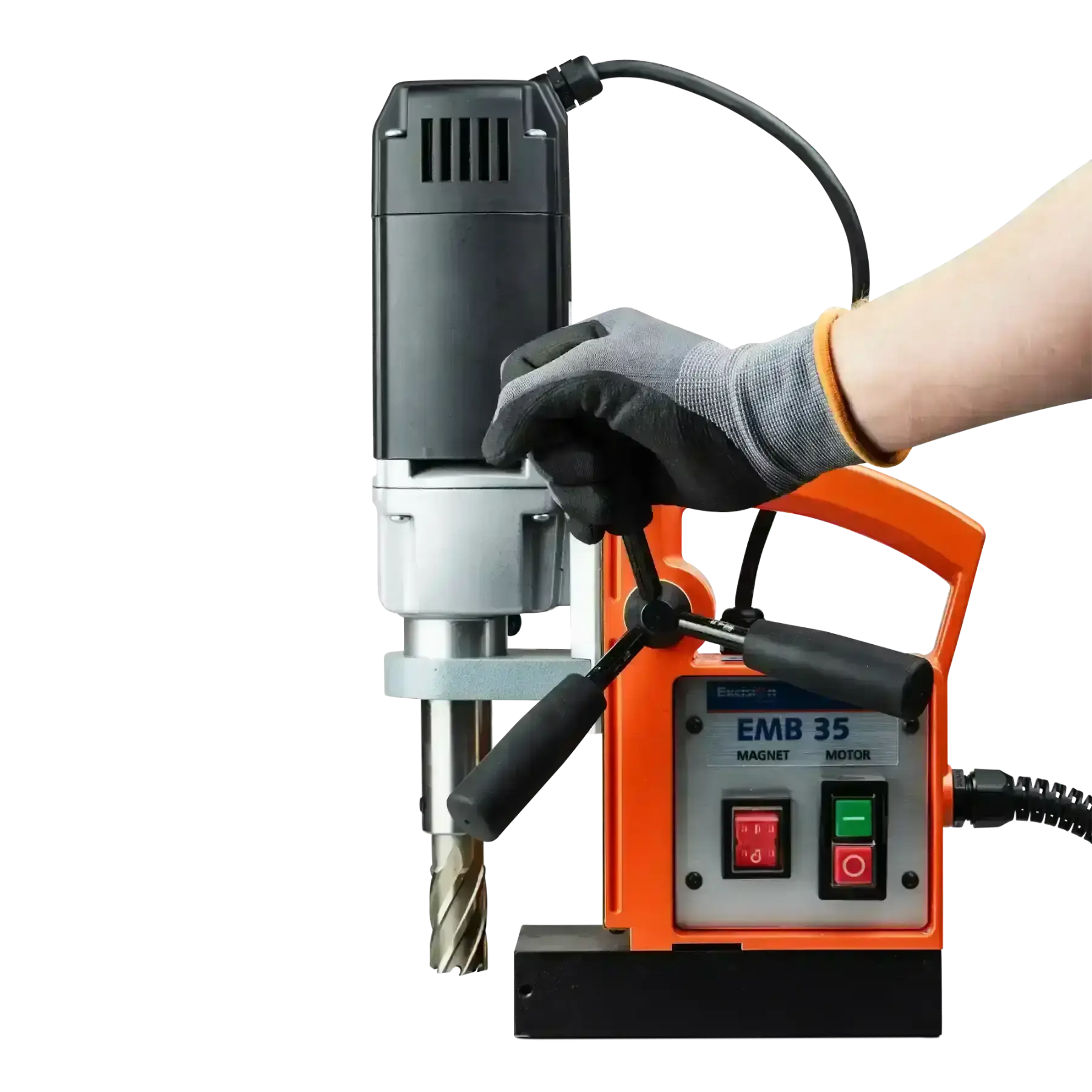

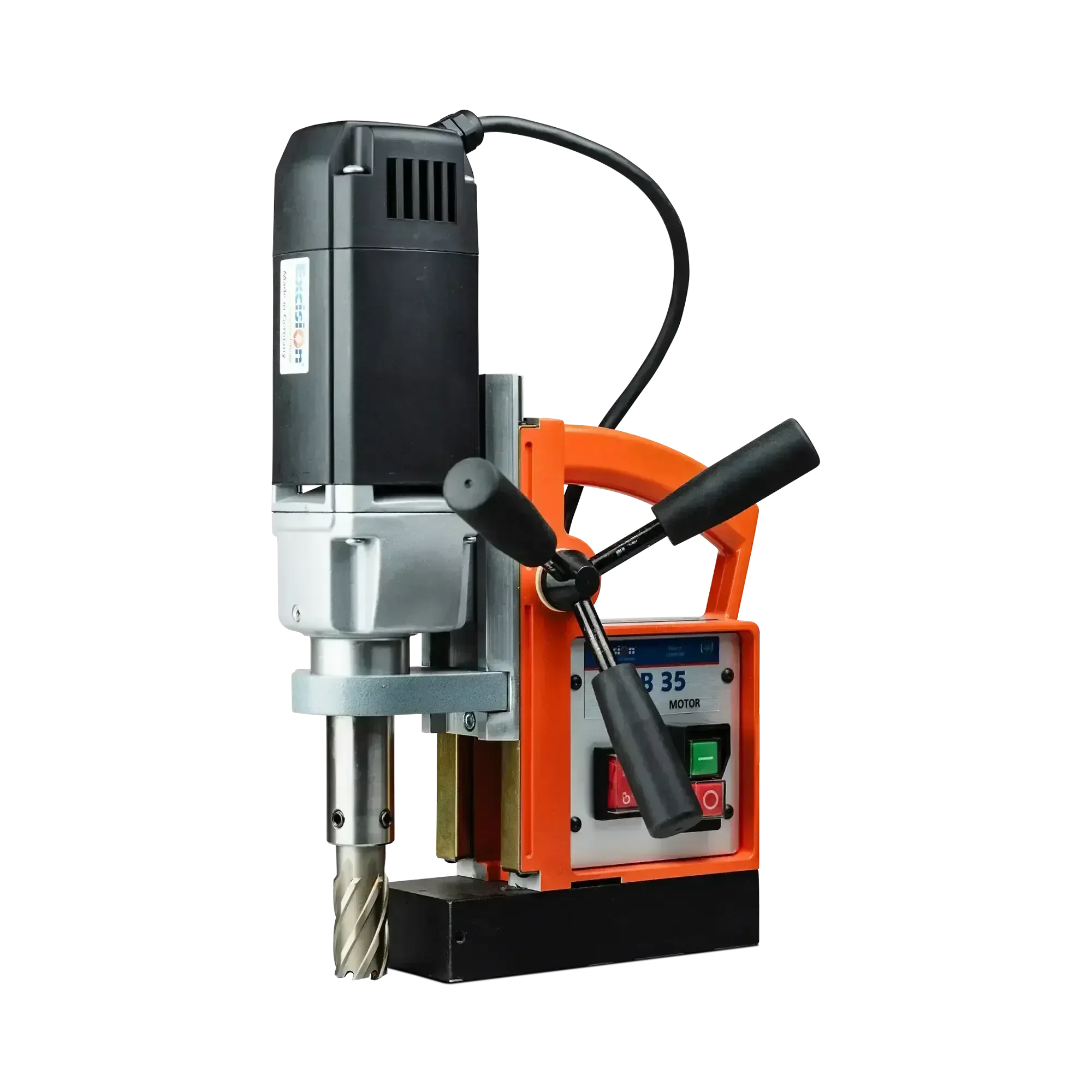

EMB35 Magnetic Drill
Product Code: 18400
Shank Type: 19mm Weldon
Magnet Type: Electric
The Excision EMB35 magnetic based drill is perfect for drilling holes under 35mm. Weighing only 10.6kg, this ultra-portable German made drill is suitable for any small engineering application. The direct Weldon arbor type spindle is capable of handling all 19mm shank core drills.
- Solid brass guides with spring loading for rigid gliding and no vibration
- 2 coil 9,000N magnetic adhesion for industrial use
- Durable switches for long lasting use

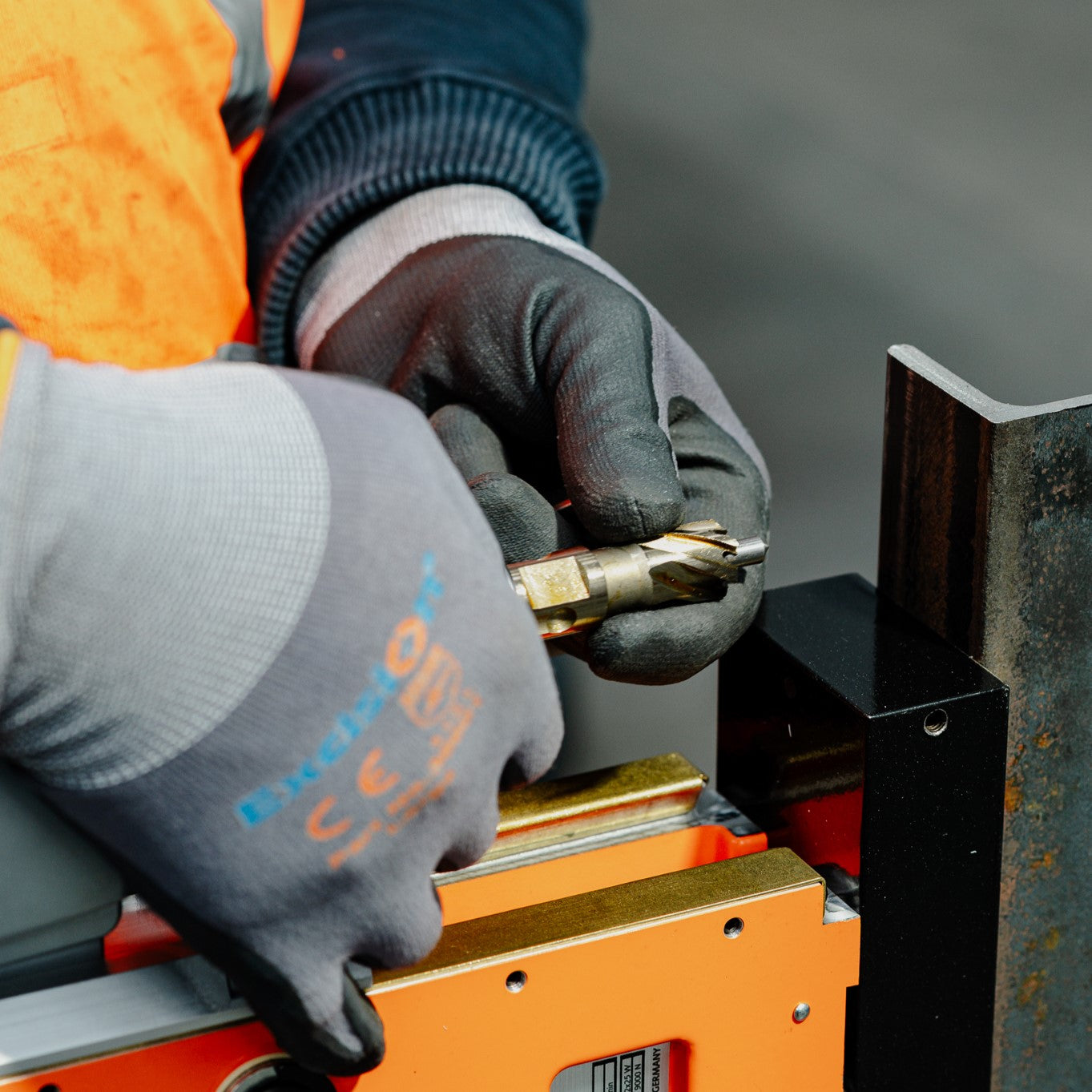

- Direct Weldon arbor type spindle for use with all 19mm shank core drills
- Lightweight and compact at only 10.6 kg
Specifications
| Product Specifications | |
 |
|
| Core Drill Dimensions | 12.0-35.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill |
1.0-13.0mm with MT3 DIN 1897 short |
| Arbors |
19mm Weldon Shank |
| Stroke |
120mm |
| Gearbox-On-load speed |
450rpm |
| Power Consumption |
1,100 W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion |
2,100N/9,000N |
| Magnetic Base |
70×185mm |
| Weight |
10.6kg |
| Scope of Delivery | |
| EMB35 Magnetic Drill |
⚫ |
| Carrying Case |
⚫ |
| Safety Strap |
⚫ |
| Coolant Device |
⚫ |
| Operating Instructions |
⚫ |
Product Data
| Core Drill Diameter | 35mm |
| Counter Boring Diameter | 40mm |
| Cutting Depth | 50mm |
| ecom | section |
| Gearbox Speed | 450 RPM |
| Magnet Type | Electric |
| Shank Type | 19mm Weldon |
| Stroke | 120mm |
| Twist Drill Diameter | 13mm |
| Weight | 10.6 kg |
Made in Germany
2 Year Warranty
Add EMB35 Magnetic Drill to comparison
View ComparisonBuilt Tough for Aussies.
The EMB35 drill is lightweight at 10.6kg with durable switches and solid brass guides. It handles 19mm shank core drills with ease, and is built tough for tough conditions.

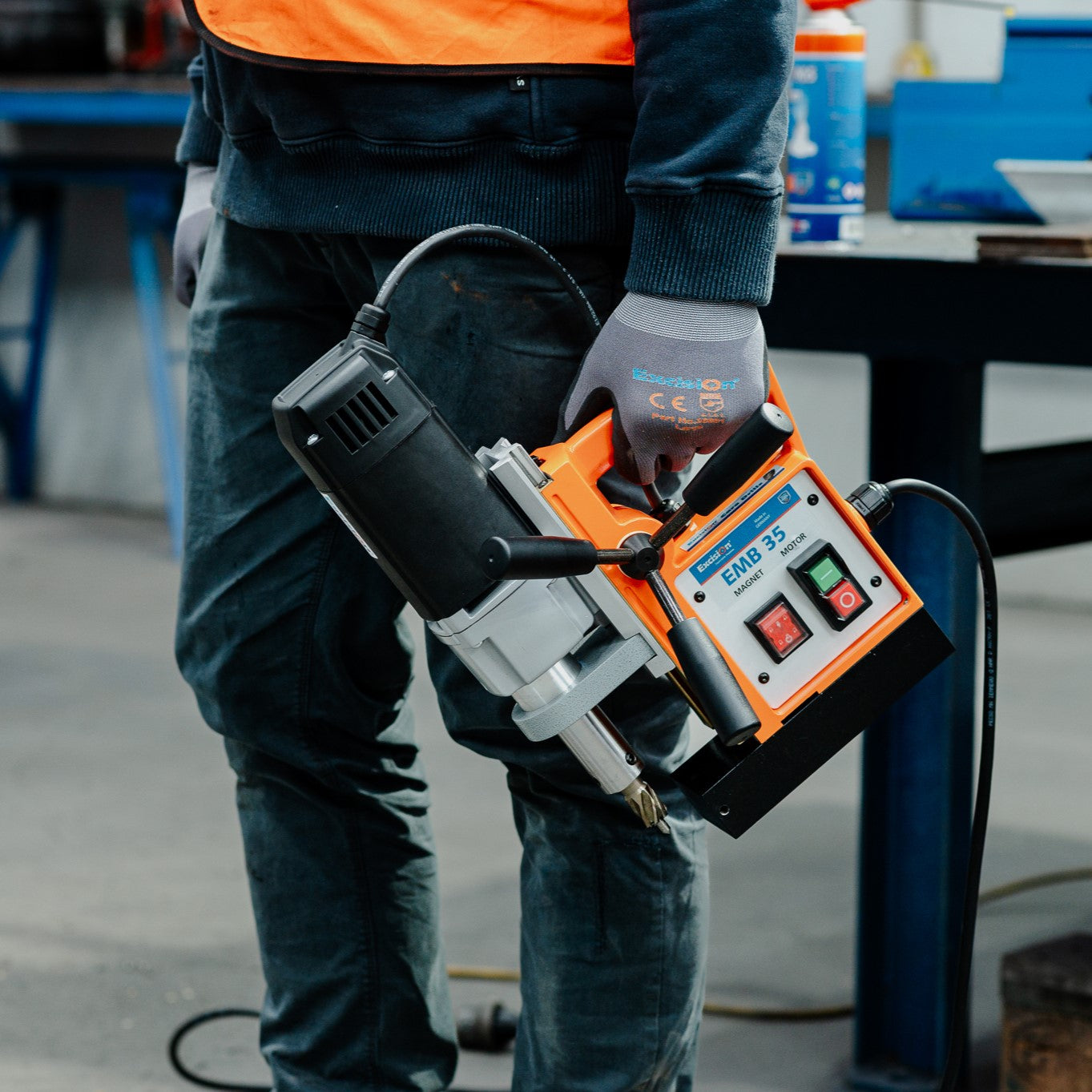

Lightweight Design
Weighing only 10.6kg, the EMB35 is one of the lightest Magnetic Drills on the market.

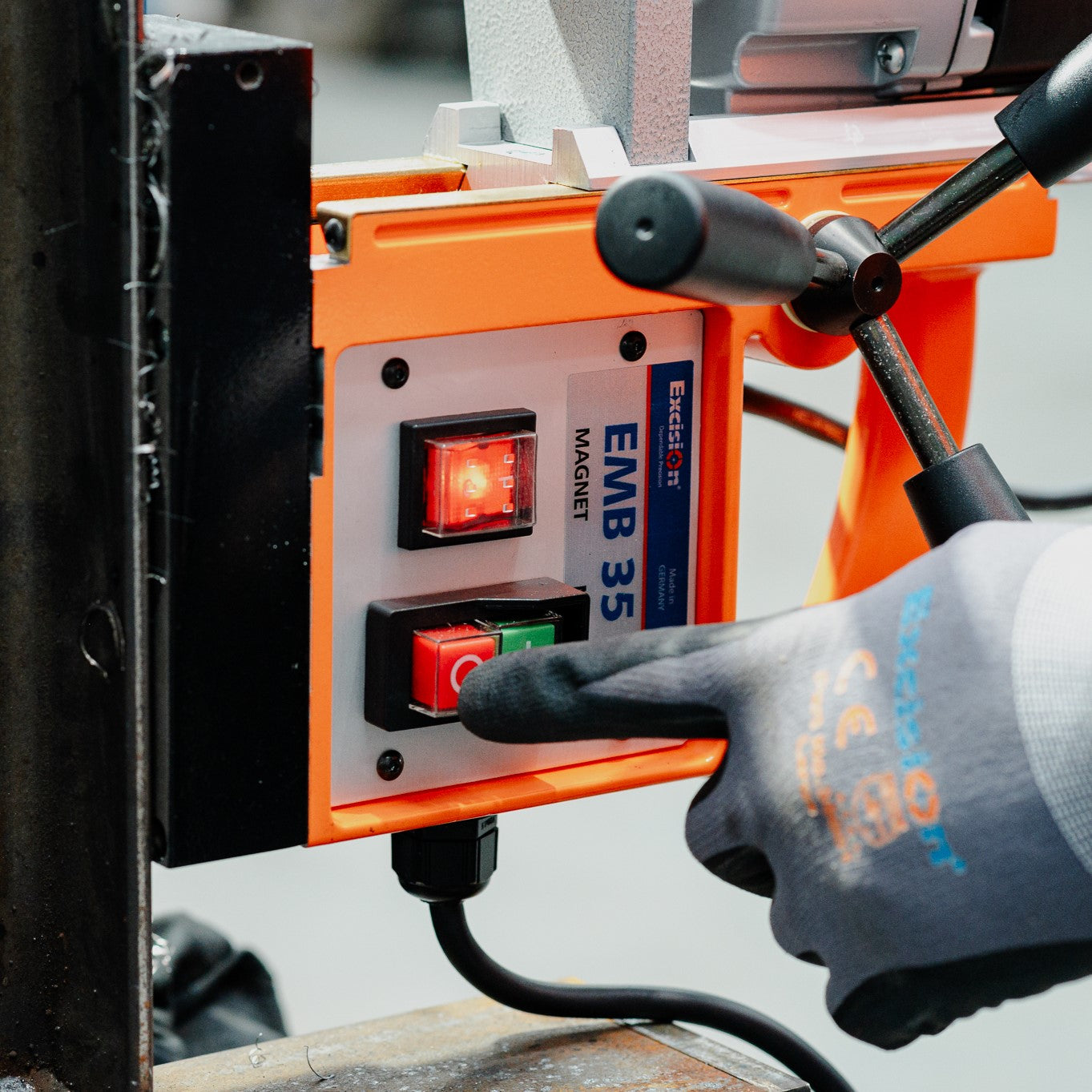

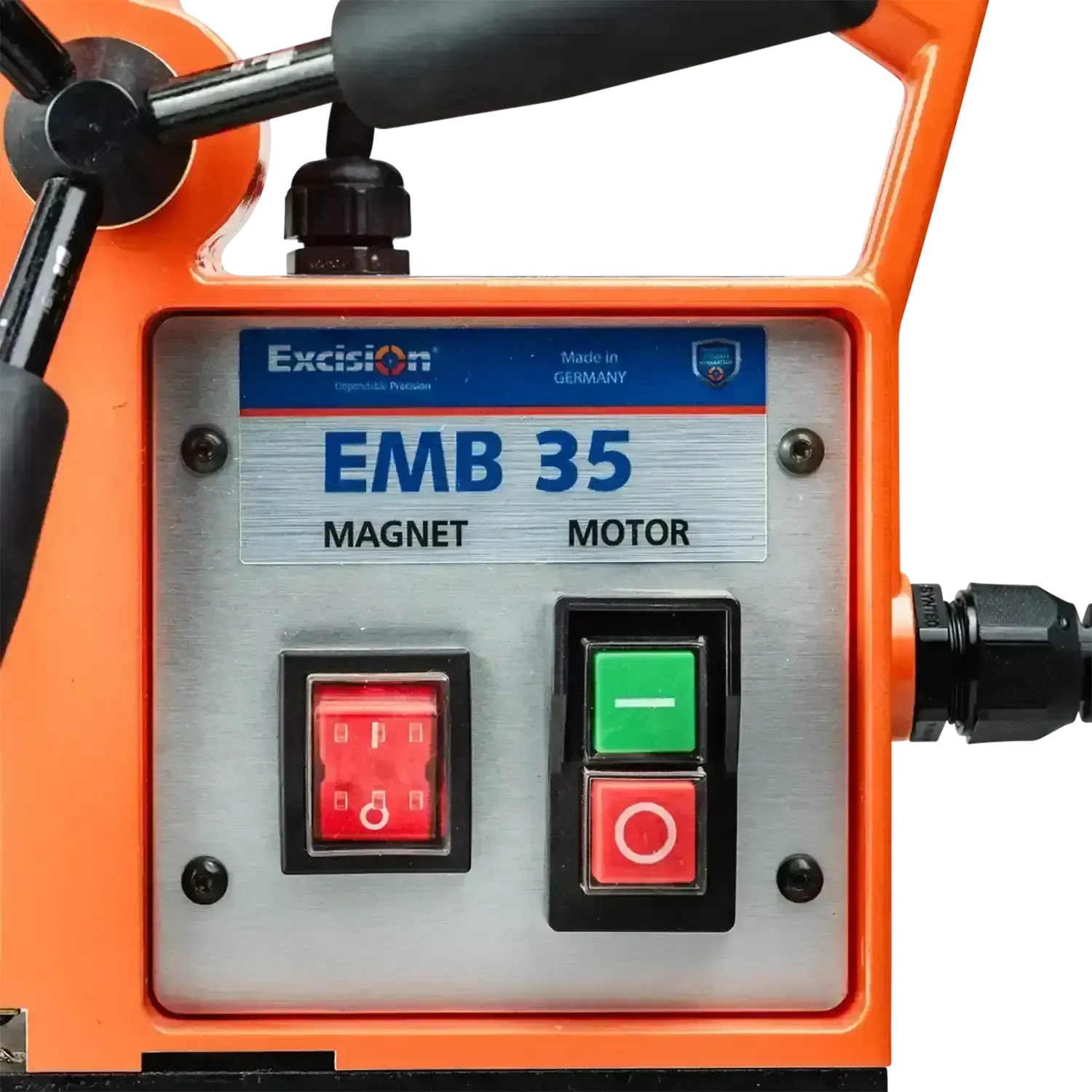

Durable Switches
The EMB35 features durable switches for long lasting use.
Solid Brass Guides
The EMB35 features solid brass guides for rigid gliding and long-lasting use.
