Product Description
If you need top-notch tool life and finish when machining aluminum, we'd recommend our XDP1400. It's perfect for heavy-duty tasks and complex operations.

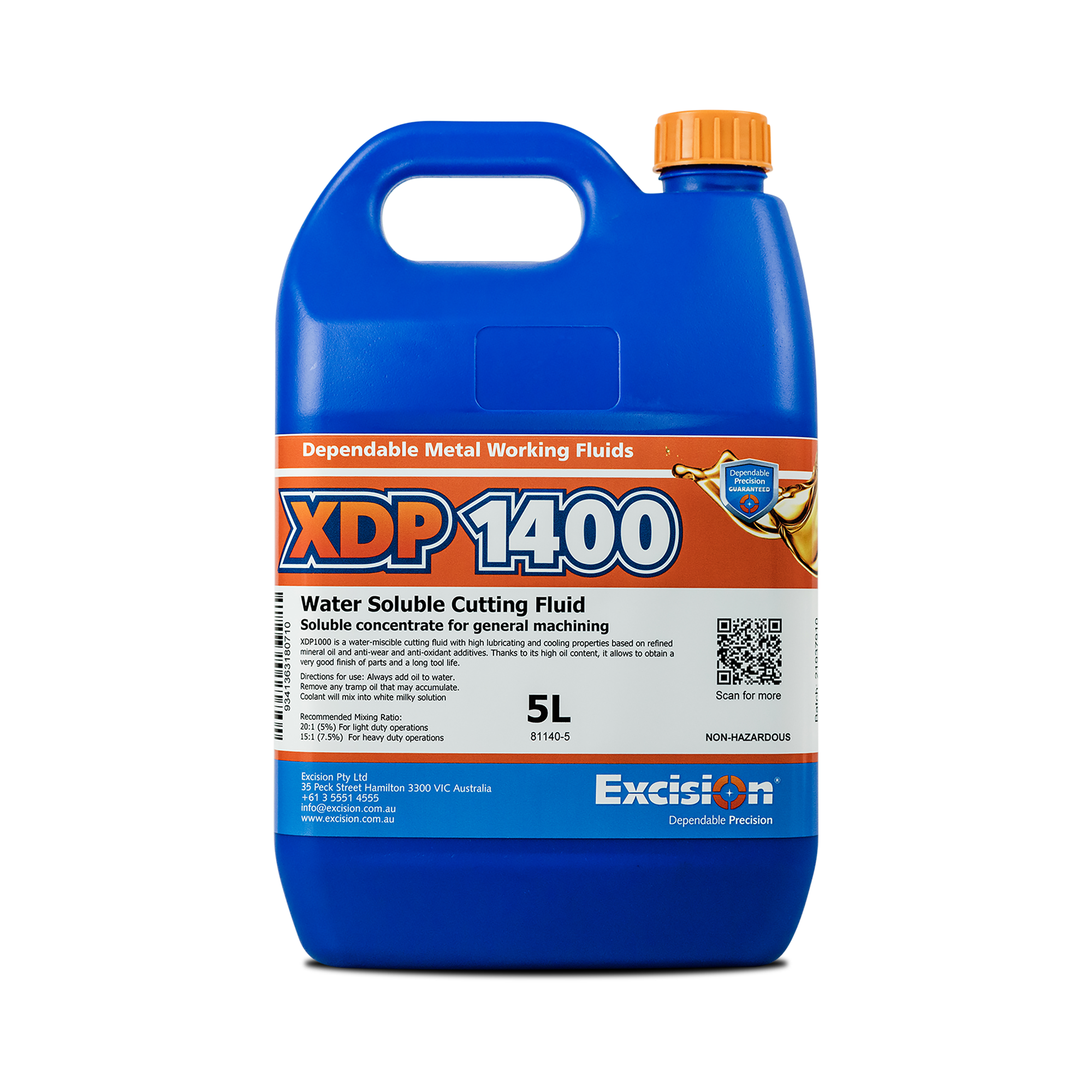

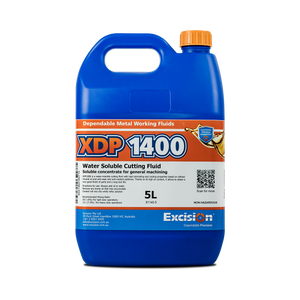

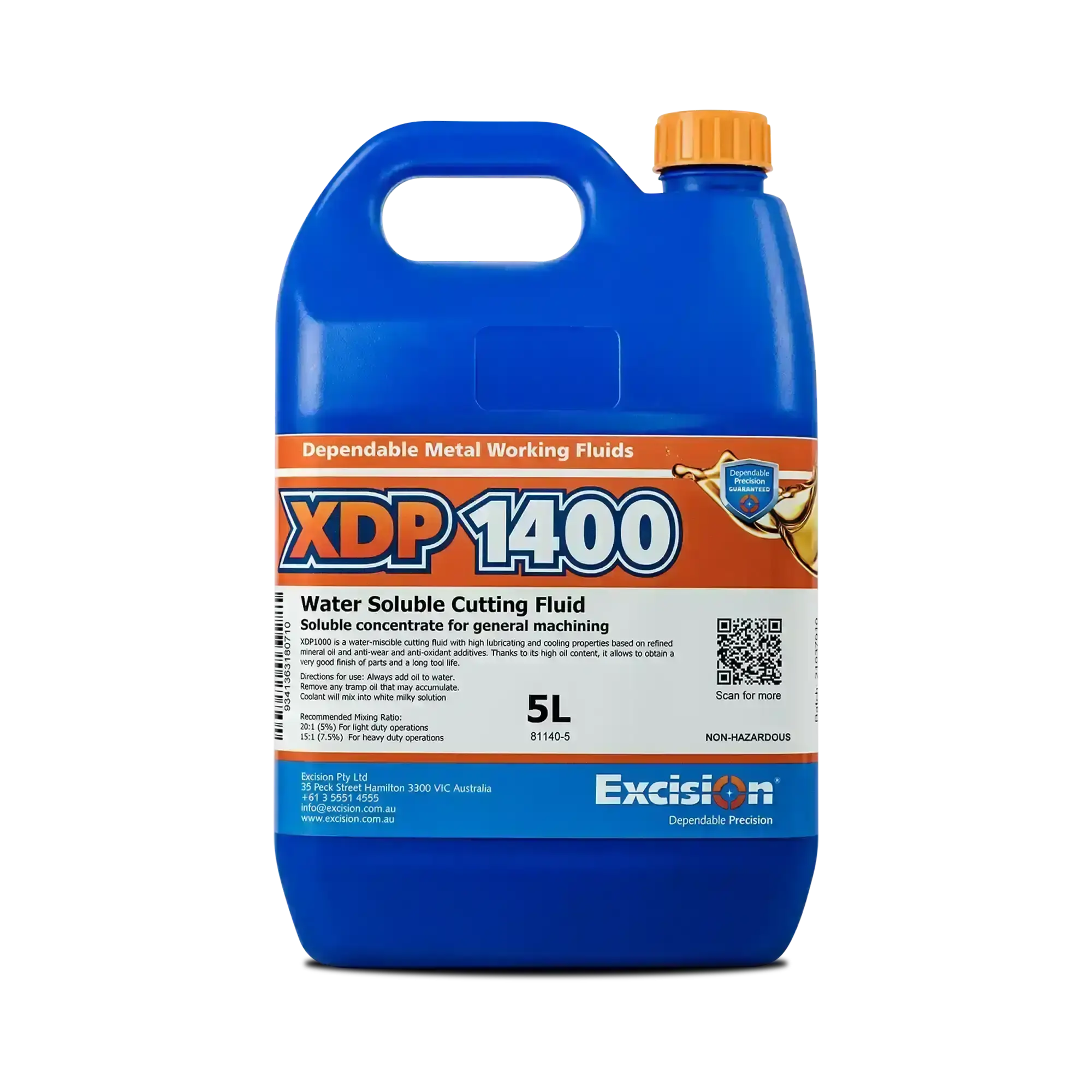

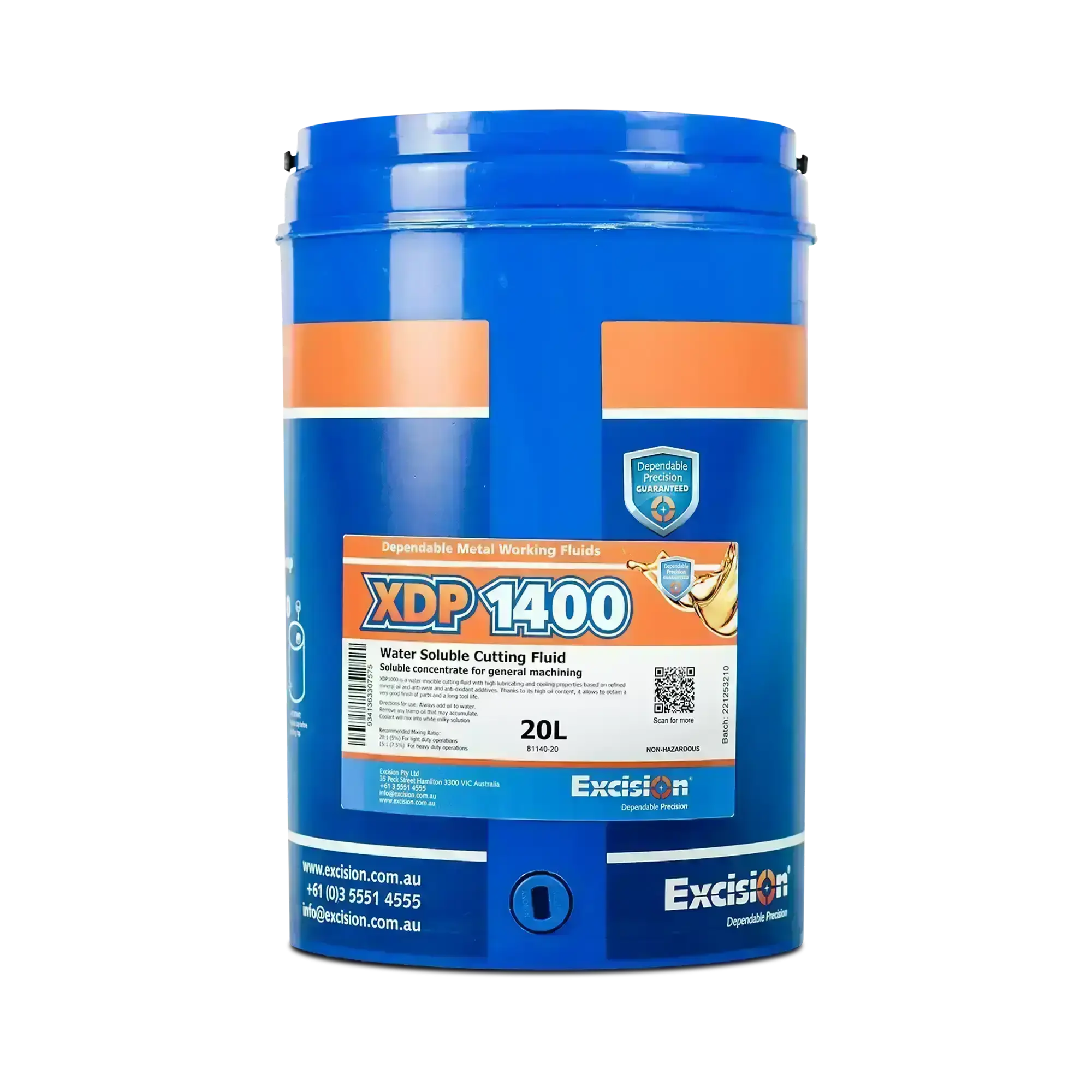

XDP1400 is a highly stable, premium soluble coolant based on refined mineral oil. Designed for excellent finishing on cast iron, steel, aluminum, copper, and brass alloys, it offers superior lubrication, unmatched corrosion protection, and long sump life.
- Exceptional lubrication extends tool life
- Unrivaled corrosion protection
- Long sump life reduces maintenance
- Low environmental impact
- Low foam for smoother operation
Exceptional performance on Aluminium Superior corrosion protection Excellent tool life performance Higher cost
Product Data
| Workpiece Material | P M K N S |
| Cooling Power | Good |
| Corrosion Protection | Excellent |
| Drag-Out | Good |
| Lubrication | Excellent |
| Size | 5L |
XDP1400 is highly stable in water with a hardness range between 50 and 300 ppm. To use it, add the concentrate to water at a minimum concentration of 5%. The final concentration should be adjusted according to the specific requirements of the operation and the water hardness.
Good +
Better ++
Best +++
| Type | Soluble |
|
Lubrication Lubrication is the key to longer tool life. |
+++ |
|
Drag-Out Drag-out is the amount of coolant that sticks on each workpiece that is removed. |
+ |
|
Cooling Power Heat causes premature wear, fracturing and deforming of the tooling and the workpiece. You need to keep the tool cool. |
+ |
| Corrosion Protection | +++ |
|
Water Hardness Range One of the most common causes of foaming in coolant is soft water. The lower the water hardness, the more likely the coolant is to foam. |
50-300 ppm |
- Store between 5ºC and 40ºC in a closed area
- Shelf life: 1 year
| Appearance | Transparent liquid |
| Colour | Amber |
| Density at 20ºC | 0.96 g/ml |
| Refractometric factor | 0.99 (Measure in Brix x 0.99 = % of dilution) |
| pH (5%) | 9 |
Carbon Steels
Great
Good
Great
Excellent
Stainless Steels
Great
Good
Great
Excellent
Cast Iron
Great
Good
Great
Excellent
Aluminium
Excellent
Good
Great
Excellent
Copper
Great
Good
Great
Excellent
Titanium
Great
Good
Great
Excellent
