New

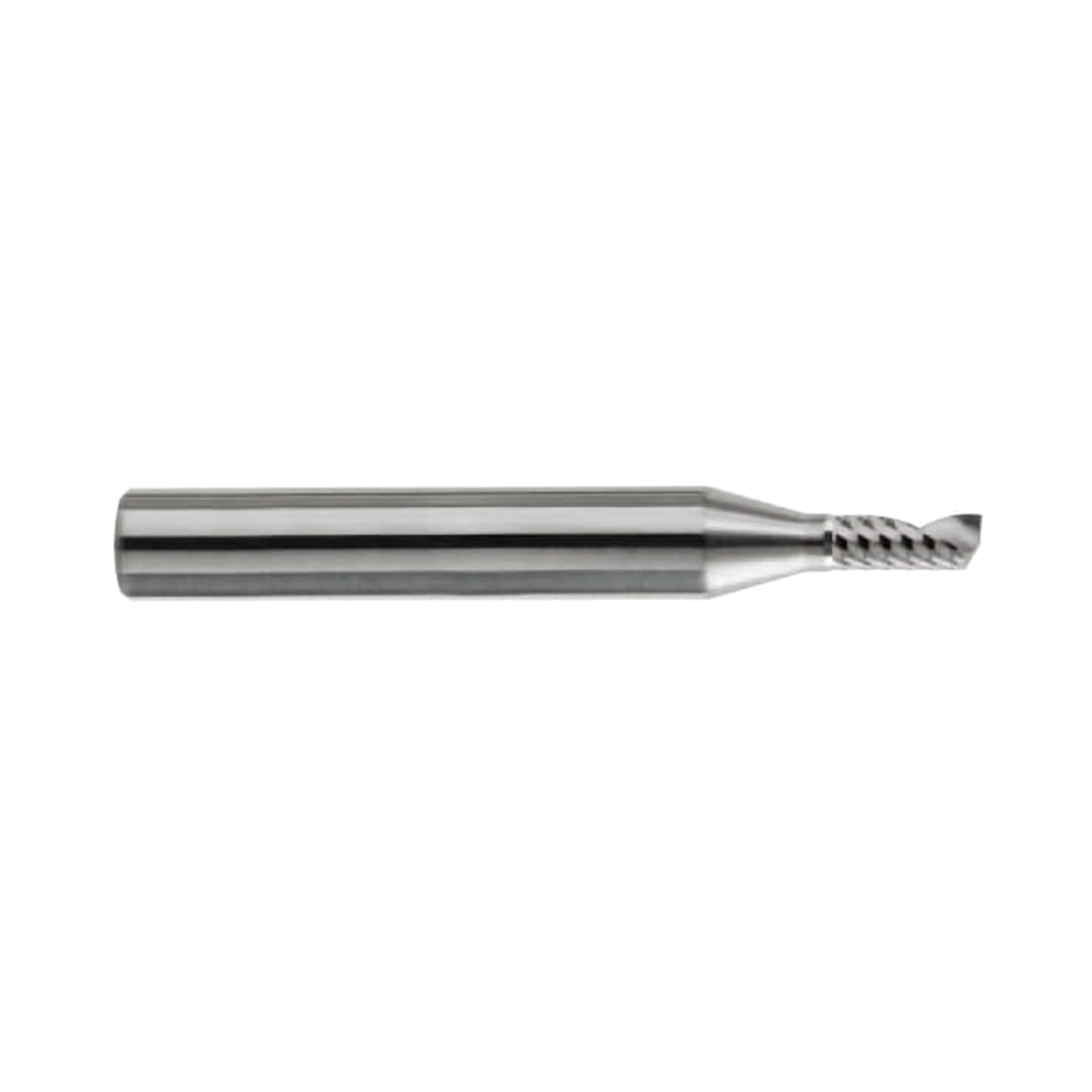

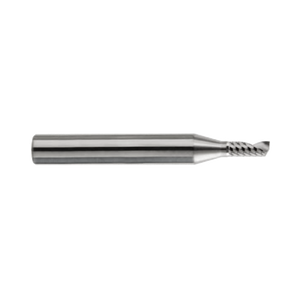

ALU-POWER 1 Flute 30°Helix End Mill (E5C33)

ALU-POWER 1 Flute 30°Helix End Mill (E5C33)
New

ALU-POWER 1 Flute 30°Helix End Mill (E5C33)

Product Code: E5C33

No. Flutes: 1 YG-1 LEGEND UNCOATED Surface Treatment: Uncoated YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND SHANK PLAIN Shank Type: Plain
Buy Local
  • Designed to non-ferrous metals and non-metals like aluminum and acryilic.
  • 1-Flute allows for excellent workpiece finishes and chip-evacuation.
  • Regular and long length types are suitable to apply the variable size of workpieces.
Product Data
Workpiece Material K N
Helix Angle Square 30
No. Flutes 1
Operation Facing, Side Milling, Small Part
Shank Type Plain
Surface Treatment Uncoated
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ALU-POWER 1 Flute 30°Helix End Mill (E5C33) to comparison

View Comparison
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E5C33020 2 6 7 40 0~-0.030 h5 1 E5C33030 3 6 8 45 0~-0.030 h5 1 E5C33030A 3 6 12 45 0~-0.030 h5 1 E5C33040 4 6 12 50 0~-0.030 h5 1 E5C33040A 4 6 16 55 0~-0.030 h5 1 E5C33050 5 6 22 60 0~-0.030 h5 1 E5C33060 6 6 27 65 0~-0.030 h5 1 E5C33080 8 8 32 70 0~-0.030 h5 1 E5C3302012 2 6 12 50 0~-0.030 h5 1 E5C3303020 3 6 20 55 0~-0.030 h5 1 E5C3304022 4 6 22 60 0~-0.030 h5 1 E5C3305028 5 6 28 65 0~-0.030 h5 1 E5C3306032 6 6 32 75 0~-0.030 h5 1

Operation

Side Milling
Small Part
Facing

Work Material

K Cast Iron

Great

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
