New
Made in South Korea

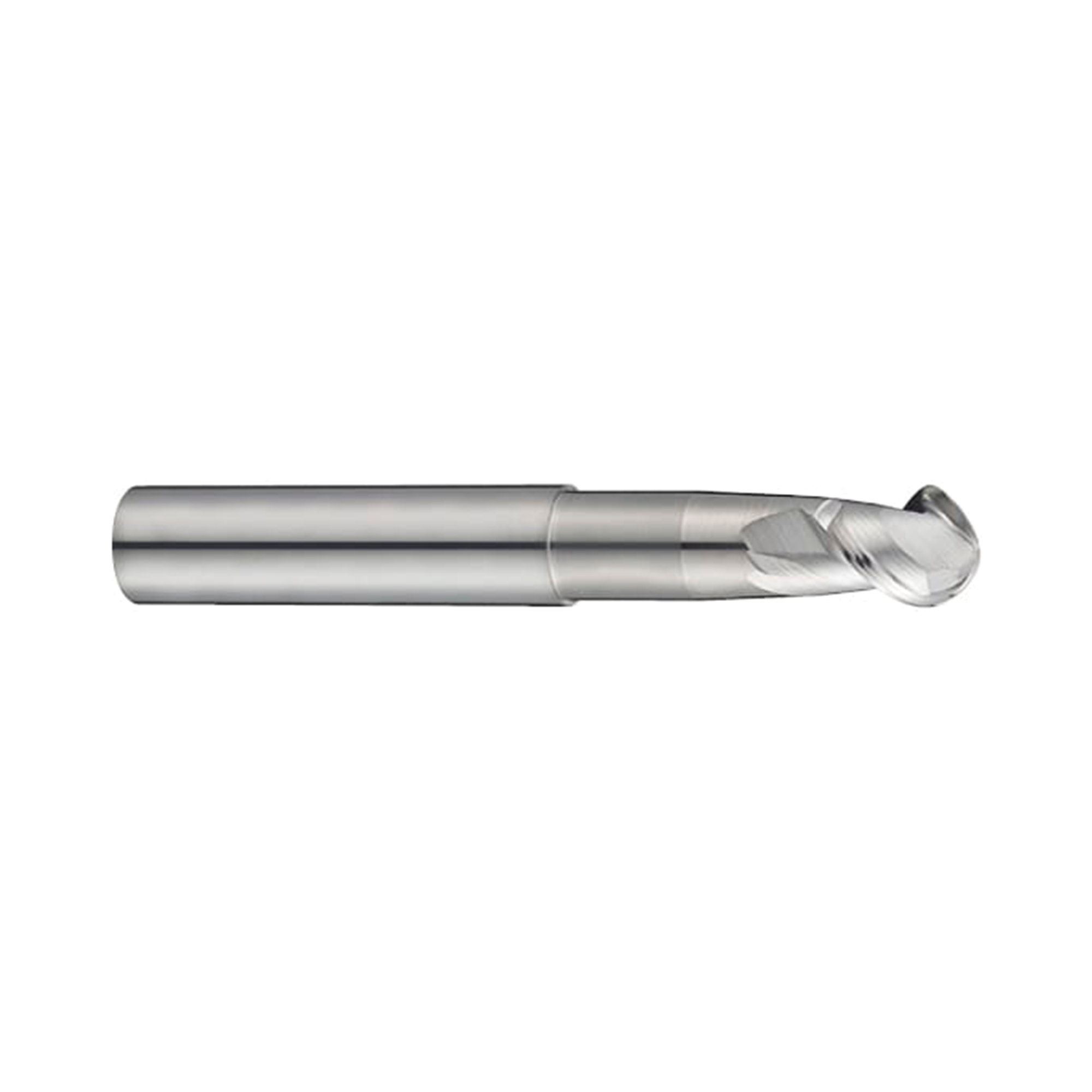

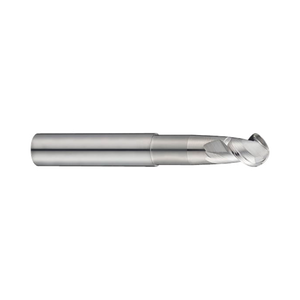

ALU-POWER 2 Flute 50°Helix Ball End Mill (E5910)
Code: E5910060
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

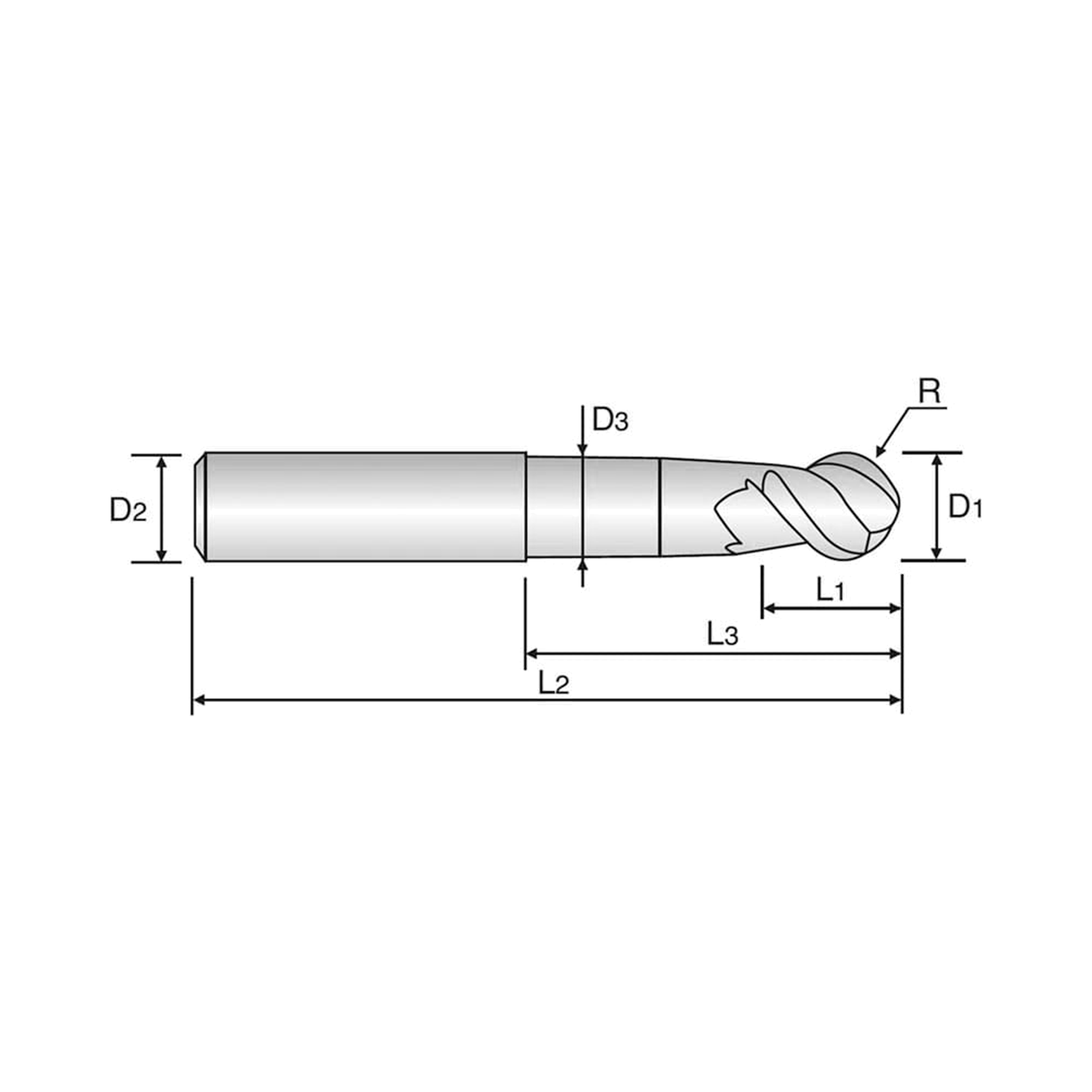

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank diameter (mm) | Length of cut (mm) | Length below shank (mm) | Neck diameter (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E5910060 | 6.0 | R3.0 | 55.0 | 6.0 | 5.5 | 25.0 | 5.4 | Quantity unavailable | $45.80 | ||
| E5910080 | 8.0 | R4.0 | 65.0 | 8.0 | 7.0 | 30.0 | 7.2 | In stock | $73.70 | ||
| E5910100 | 10.0 | R5.0 | 75.0 | 10.0 | 8.5 | 35.0 | 9.0 | In stock | $97.30 | ||
| E5910120 | 12.0 | R6.0 | 75.0 | 12.0 | 10.5 | 40.0 | 11.0 | Low stock | $126.70 | ||
| E5910160 | 16.0 | R8.0 | 90.0 | 16.0 | 14.0 | 50.0 | 14.5 | In stock | $213.10 | ||
| E5910200 | 20.0 | R10.0 | 100.0 | 20.0 | 17.0 | 50.0 | 18.0 | Low stock | $318.80 |
Add ALU-POWER 2 Flute 50°Helix Ball End Mill (E5910) to comparison
View Comparison- Overview
- Operation
- Work Material
- Speeds & Feeds
- Reviews
Product Description
The E5910 series carbide Alu-Power cutters from YG-1 range from 6-20mm in diameter. These 2 flute ball nose cutters have lapped flutes that are ideal for mirror finish machining on Aluminium and Non-Ferrous materials.
- Suitable for high speed machining of aluminium and other non-ferrous materials.
- Special geometries & lapped flutes ensures the best chip control and surface finish on aluminium.
- Deep flute pockets prevent swarf clogging up the tool.
- Increased tool life and higher cutting accuracy.
- Reduced neck for longer reach.
- Micrograin Carbide Substrate.
- Sharp cutting edges with mirror finish machining.
- Ultra-high metal removal rates possible with WAVE-CUT.
Product Data
| Workpiece Material | N |
| Ball Radius Tolerance | 0.02 |
| Cutting Shape | Ball Nose |
| Helix Angle | Square 50 |
| No. Flutes | 2 |
| Operation | Profiling, Side Milling, Small Part |
| Shank Type | Plain |
| Surface Treatment | Uncoated |
| Tool Material | Carbide |
Profiling
Side Milling
Small Part
Aluminium
Excellent
Good
Great
Excellent
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 6.0 | 270 | 0.049 | 14400 | 1400 |
| 8.0 | 280 | 0.071 | 11200 | 1600 |
| 10.0 | 350 | 0.084 | 11200 | 1880 |
| 12.0 | 420 | 0.107 | 11200 | 2400 |
| 16.0 | 440 | 0.123 | 8800 | 2160 |
| 20.0 | 350 | 0.157 | 5600 | 1760 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 6.0 | 85 | 0.040 | 4400 | 350 |
| 8.0 | 85 | 0.060 | 3360 | 400 |
| 10.0 | 105 | 0.069 | 3360 | 465 |
| 12.0 | 125 | 0.089 | 3360 | 600 |
| 16.0 | 135 | 0.101 | 2640 | 535 |
| 20.0 | 105 | 0.131 | 1680 | 440 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
