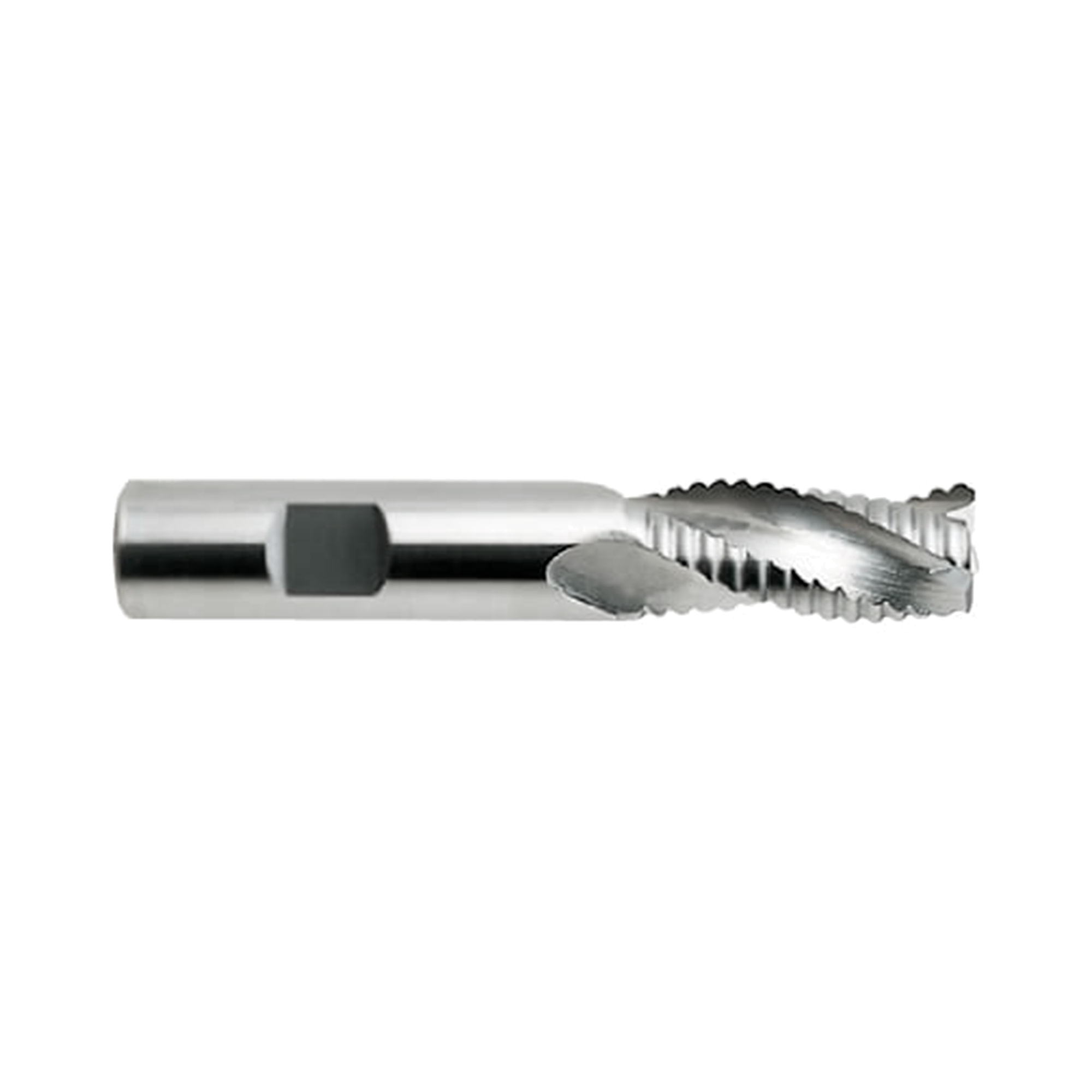

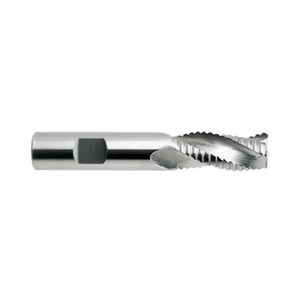

ALU-POWER 3 Flute 30°Helix Long Roughing (Coarse) Long End Mill (E5711)
Coarse Roughing 3-Flute Long End MillCode: E5711060
-
Key Features
- Micrograin Carbide Substrate
- Aluminium pitch prevents built up edge
- Chamfer prep protects the tool on first contact with the work piece
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

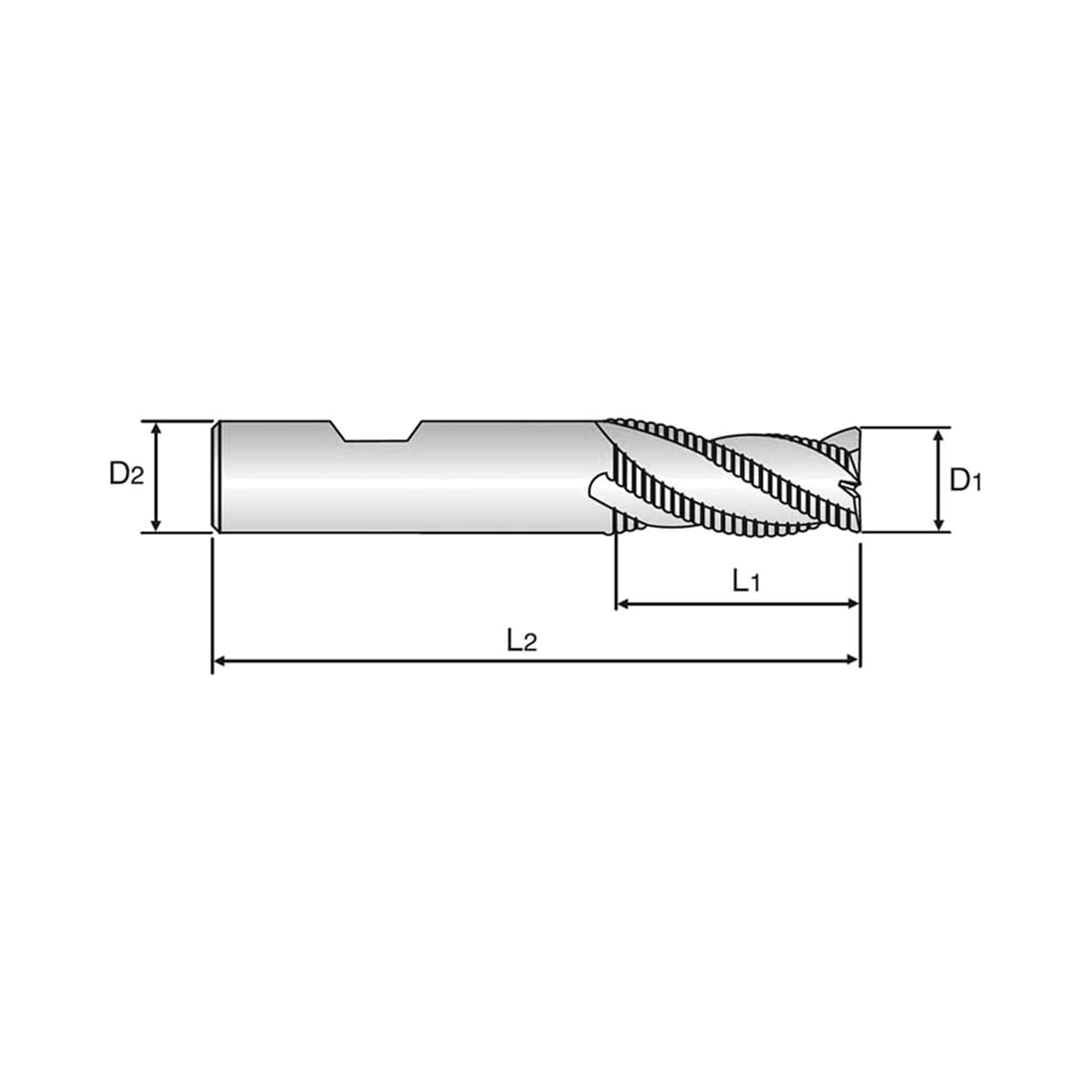

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank diameter (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| E5711060 | 6.0 | 57.0 | 6.0 | 16.0 | 5 days | $51.40 | ||
| E5711070 | 7.0 | 63.0 | 8.0 | 16.0 | 5 days | $70.30 | ||
| E5711080 | 8.0 | 63.0 | 8.0 | 16.0 | 5 days | $55.40 | ||
| E5711090 | 9.0 | 72.0 | 10.0 | 19.0 | 5 days | $112.30 | ||
| E5711100 | 10.0 | 72.0 | 10.0 | 22.0 | 5 days | $79.30 | ||
| E5711120 | 12.0 | 83.0 | 12.0 | 26.0 | 5 days | $147.70 | ||
| E5711140 | 14.0 | 83.0 | 14.0 | 26.0 | 5 days | $180.60 | ||
| E5711160 | 16.0 | 92.0 | 16.0 | 32.0 | 5 days | $248.60 | ||
| E5711180 | 18.0 | 92.0 | 18.0 | 32.0 | 5 days | $320.90 | ||
| E5711200 | 20.0 | 104.0 | 20.0 | 38.0 | 5 days | $393.00 |
Add ALU-POWER 3 Flute 30°Helix Long Roughing (Coarse) Long End Mill (E5711) to comparison
View Comparison- Overview
- Operation
- Work Material
- Speeds & Feeds
- Reviews
Product Description
ALU-POWER 3 Flute 30° Helix Long Roughing (Coarse) End Mill E5711 machines aluminium and non-ferrous fast. The flat/weldon shank and aluminium pitch prevent built up edge under load. Special geometries and lapped flutes improve chip control and surface finish in aluminium. Deep flute pockets aid evacuation, while WAVE-CUT supports heavy, high speed metal removal.
- Micrograin Carbide Substrate
- Aluminium pitch prevents built up edge
- Chamfer prep protects the tool on first contact with the work piece
- Flat/weldon shank
- 6 to 25mm diameter range
Product Data
| Workpiece Material | P K N |
| Chamfer Angle | 45 |
| Cutting Shape | Roughing |
| Helix Angle | Square 30 |
| No. Flutes | 3 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Periphery Type | Roughing - Aluminium |
| Surface Treatment | Uncoated |
| Tool Material | Carbide |
| Tool Standard | YG-1 Standard |
Side Milling
Small Part
Slotting
Die Sinking
Facing
Carbon Steels
Great
Good
Great
Excellent
Alloy Steels
Great
Good
Great
Excellent
Cast Iron
Great
Good
Great
Excellent
Aluminium
Excellent
Good
Great
Excellent
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 6.0 | 254 | 0.168 | 13500 | 6800 |
| 8.0 | 264 | 0.168 | 10500 | 5300 |
| 10.0 | 267 | 0.169 | 8500 | 4300 |
| 12.0 | 320 | 0.165 | 8500 | 4200 |
| 16.0 | 322 | 0.167 | 6400 | 3200 |
| 20.0 | 320 | 0.163 | 5100 | 2500 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 6.0 | 198 | 0.168 | 10500 | 5300 |
| 8.0 | 201 | 0.167 | 8000 | 4000 |
| 10.0 | 204 | 0.179 | 6500 | 3500 |
| 12.0 | 241 | 0.167 | 6400 | 3200 |
| 16.0 | 241 | 0.167 | 4800 | 2400 |
| 20.0 | 242 | 0.165 | 3850 | 1900 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
