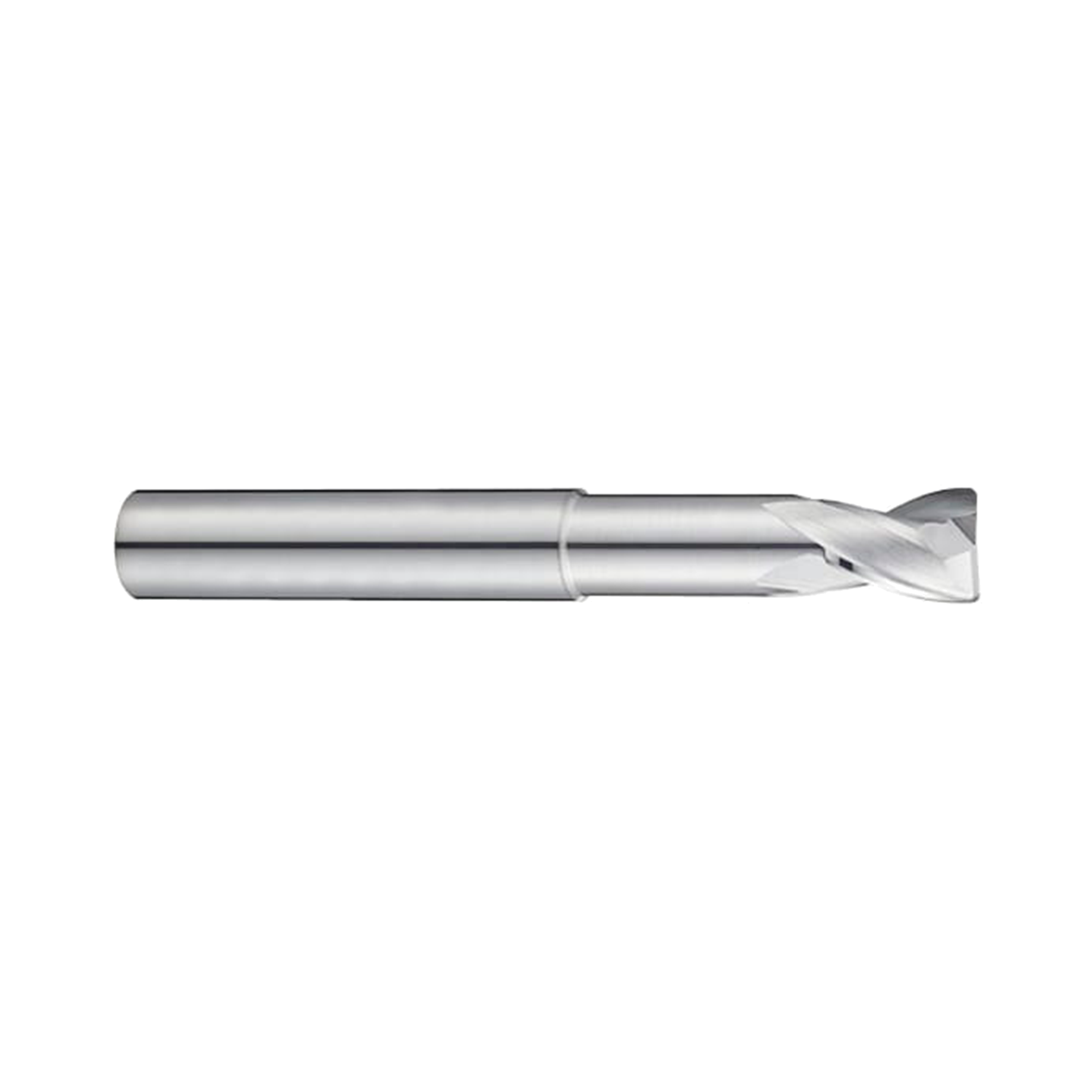

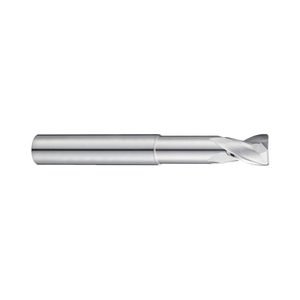

ALU-POWER 2 Flute 30°Helix Corner Radius End Mill (E5909)
2-Flute Corner-Radius Plain-Shank End MillCode: E5909060
-
Key Features
- Lapped flutes for surface finish on Aluminium
- Deep flute pockets for chip clearance
- Reduced neck diameter for longer reach
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

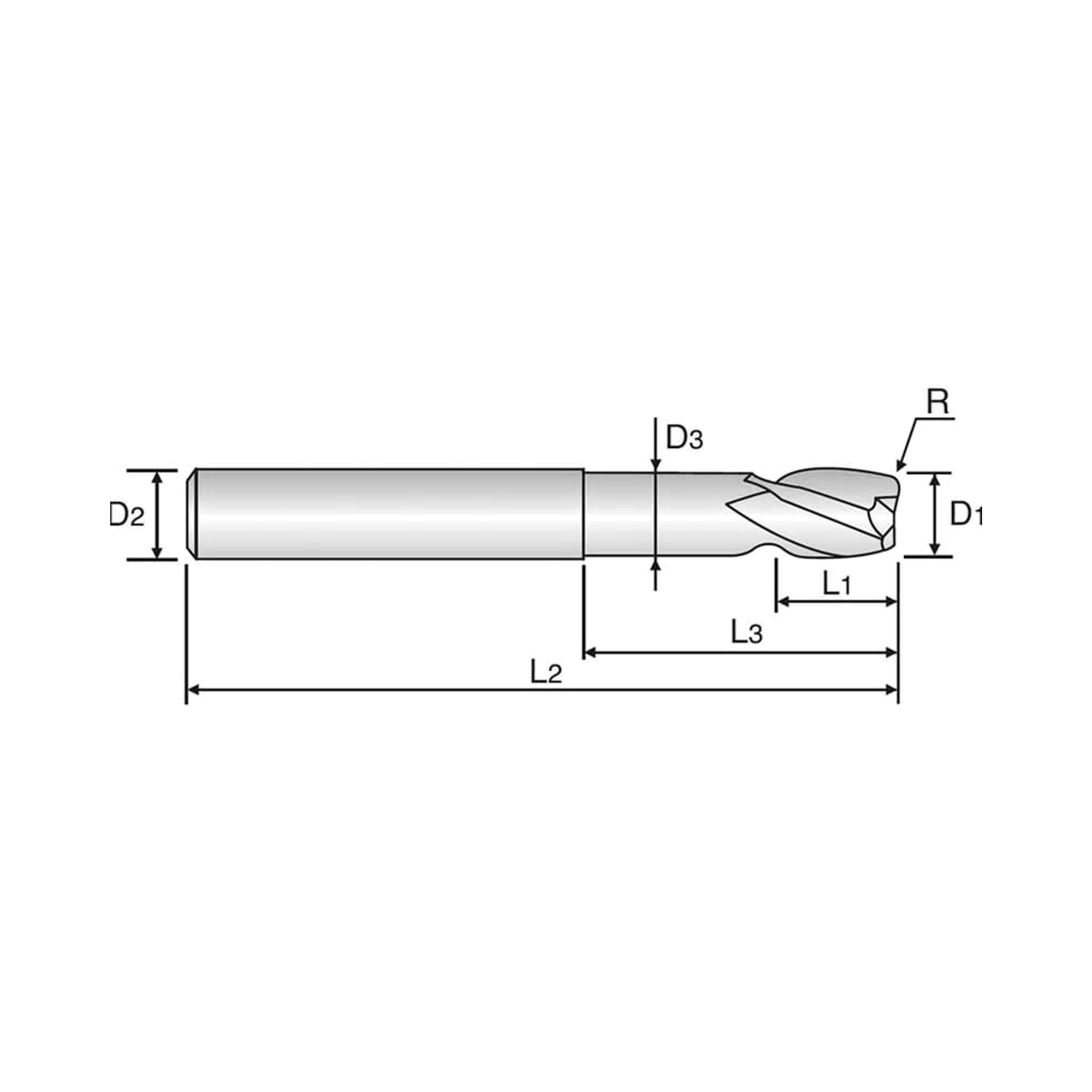

| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank diameter (mm) | Length of cut (mm) | Length below shank (mm) | Neck diameter (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E5909040 | 4.0 | R0.3 | 50.0 | 6.0 | 5.0 | 10.0 | 3.6 | No stock | - | ||
| E5909060 | 6.0 | R0.5 | 60.0 | 6.0 | 8.0 | 20.0 | 5.4 | 5 days | $36.20 | ||
| E5909080 | 8.0 | R0.6 | 70.0 | 8.0 | 10.0 | 30.0 | 7.2 | In stock | $50.40 | ||
| E5909100 | 10.0 | R0.8 | 80.0 | 10.0 | 12.0 | 36.0 | 9.0 | 5 days | - | ||
| E5909120 | 12.0 | R1.0 | 90.0 | 12.0 | 14.0 | 40.0 | 11.0 | 5 days | - | ||
| E5909160 | 16.0 | R1.3 | 100.0 | 16.0 | 18.0 | 45.0 | 14.5 | 5 days | - | ||
| E5909200 | 20.0 | R1.6 | 100.0 | 20.0 | 24.0 | 45.0 | 18.0 | 5 days | - |
Add ALU-POWER 2 Flute 30°Helix Corner Radius End Mill (E5909) to comparison
View Comparison- Overview
- Operation
- Work Material
- Speeds & Feeds
- Reviews
Product Description
The E5909 ALU-POWER 2 Flute 30°Helix Corner Radius End Mill machines Aluminium and Non-Ferrous materials. Diameters from 4–20mm and lapped flutes support high speed cutting with reliable surface finish. Deep flute pockets improve chip evacuation, while a reduced neck diameter enables longer reach. Micrograin Carbide Substrate and sharp cutting edges enhance tool life and WAVE-CUT removal.
- Lapped flutes for surface finish on Aluminium
- Deep flute pockets for chip clearance
- Reduced neck diameter for longer reach
- 2 flute corner radius geometry
- 4–20mm diameter range
Product Data
| Workpiece Material | N |
| Corner Radius Tolerance | 0.01 |
| Cutting Shape | Corner Radius |
| Helix Angle | Square 30 |
| No. Flutes | 2 |
| Operation | Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | Uncoated |
| Tool Material | Carbide |
Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol
Aluminium
Excellent
Good
Great
Excellent
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 4.0 | 130 | 0.046 | 10400 | 960 |
| 6.0 | 195 | 0.058 | 10400 | 1200 |
| 8.0 | 200 | 0.090 | 8000 | 1440 |
| 10.0 | 250 | 0.110 | 8000 | 1760 |
| 12.0 | 300 | 0.135 | 8000 | 2160 |
| 16.0 | 320 | 0.156 | 6400 | 2000 |
| 20.0 | 250 | 0.200 | 4000 | 1600 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 4.0 | 40 | 0.038 | 3120 | 240 |
| 6.0 | 60 | 0.049 | 3120 | 305 |
| 8.0 | 60 | 0.075 | 2400 | 360 |
| 10.0 | 75 | 0.092 | 2400 | 440 |
| 12.0 | 90 | 0.114 | 2400 | 545 |
| 16.0 | 95 | 0.132 | 1920 | 505 |
| 20.0 | 75 | 0.167 | 1200 | 400 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 4.0 | 130 | 0.054 | 10400 | 1120 |
| 6.0 | 195 | 0.077 | 10400 | 1600 |
| 8.0 | 200 | 0.115 | 8000 | 1840 |
| 10.0 | 250 | 0.135 | 8000 | 2160 |
| 12.0 | 300 | 0.170 | 8000 | 2720 |
| 16.0 | 320 | 0.194 | 6400 | 2480 |
| 20.0 | 250 | 0.250 | 4000 | 2000 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 4.0 | 40 | 0.045 | 3120 | 280 |
| 6.0 | 60 | 0.064 | 3120 | 400 |
| 8.0 | 60 | 0.097 | 2400 | 465 |
| 10.0 | 75 | 0.114 | 2400 | 545 |
| 12.0 | 90 | 0.142 | 2400 | 680 |
| 16.0 | 95 | 0.163 | 1920 | 625 |
| 20.0 | 75 | 0.210 | 1200 | 505 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
