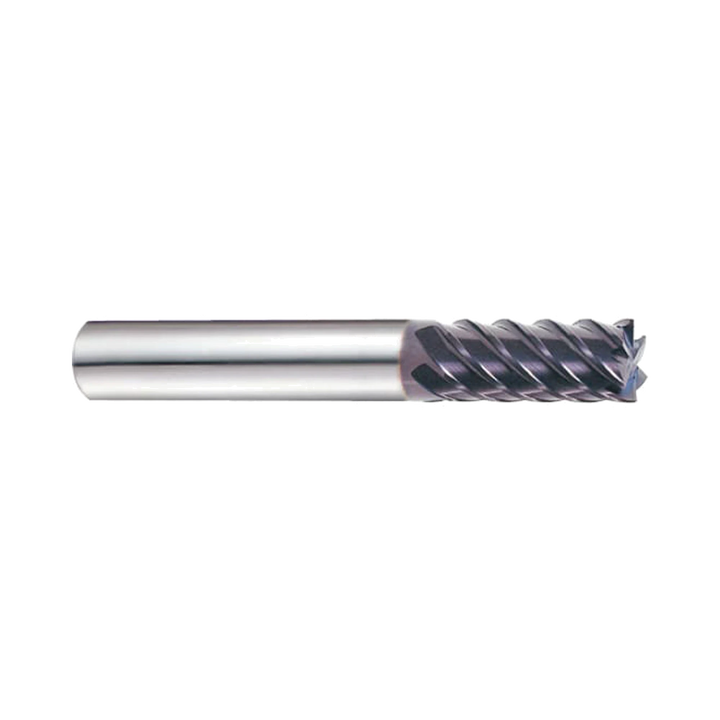

(EH915) Jet-Power Carbide 6&8Flute End Mill, Long Length for Stainless/Titanium, Plain Shank
Long-length 45° helix carbide end mills
- SKU
- EH915060
Key features
- Features a 45° helix and positive rake angle
- Uses TiAlN-coated ultra micro grain carbide
- Includes reinforced cutting edges to reduce corner-edge chipping
Made in South Korea
Long-length reach
Long-length geometry supports milling applications requiring additional reach.
Reduced corner-edge chipping
Reinforced cutting edges are specified to reduce corner-edge chipping.
Multi-flute range
Six- and eight-flute options cover 6 to 25 mm diameters.
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| EH915060 | 6.0 | 57.0 | 6.0 | 6 | 13.0 | 1-2 Weeks | $62.10 | ||
| EH915070 | 7.0 | 63.0 | 8.0 | 6 | 16.0 | 1-2 Weeks | $102.80 | ||
| EH915080 | 8.0 | 63.0 | 8.0 | 6 | 19.0 | In stock | $78.60 | ||
| EH915090 | 9.0 | 72.0 | 10.0 | 6 | 19.0 | 1-2 Weeks | $153.90 | ||
| EH915100 | 10.0 | 72.0 | 10.0 | 6 | 22.0 | 1-2 Weeks | $117.70 | ||
| EH915120 | 12.0 | 83.0 | 12.0 | 6 | 26.0 | 1-2 Weeks | $209.20 | ||
| EH915140 | 14.0 | 83.0 | 14.0 | 6 | 26.0 | 1-2 Weeks | $261.70 | ||
| EH915160 | 16.0 | 92.0 | 16.0 | 6 | 32.0 | 1-2 Weeks | $351.80 | ||
| EH915180 | 18.0 | 92.0 | 18.0 | 8 | 32.0 | 1-2 Weeks | $411.30 | ||
| EH915200 | 20.0 | 104.0 | 20.0 | 8 | 38.0 | 1-2 Weeks | $516.80 | ||
| EH915250 | 25.0 | 104.0 | 25.0 | 8 | 44.0 | 1-2 Weeks | $911.80 |
Add (EH915) Jet-Power Carbide 6&8Flute End Mill, Long Length for Stainless/Titanium, Plain Shank to comparison
View Comparison- Overview
- Reviews
YG-1 JET-POWER EH915 is a long-length carbide square end mill with a 45° helix and plain shank. It provides multi-flute milling for stainless steel, titanium alloys, heat-resistant super alloys and selected steels. TiAlN coating and ultra micro grain carbide support machining of suitable materials below HRc45. Reinforced cutting edges are designed to reduce corner-edge chipping in demanding milling work. Diameter options run from 6 to 25 mm, with six flutes through 16 mm. Sizes from 18 to 25 mm use eight flutes for the listed EH915 family. Positive rake-angle geometry is specified throughout this long-length milling range. A plain shank is specified for each listed tool diameter.
- Features a 45° helix and positive rake angle
- Uses TiAlN-coated ultra micro grain carbide
- Includes reinforced cutting edges to reduce corner-edge chipping
- Provides six flutes from 6 to 16 mm
- Provides eight flutes from 18 to 25 mm
- Uses a plain shank throughout the EH915 series
No specifications available.
