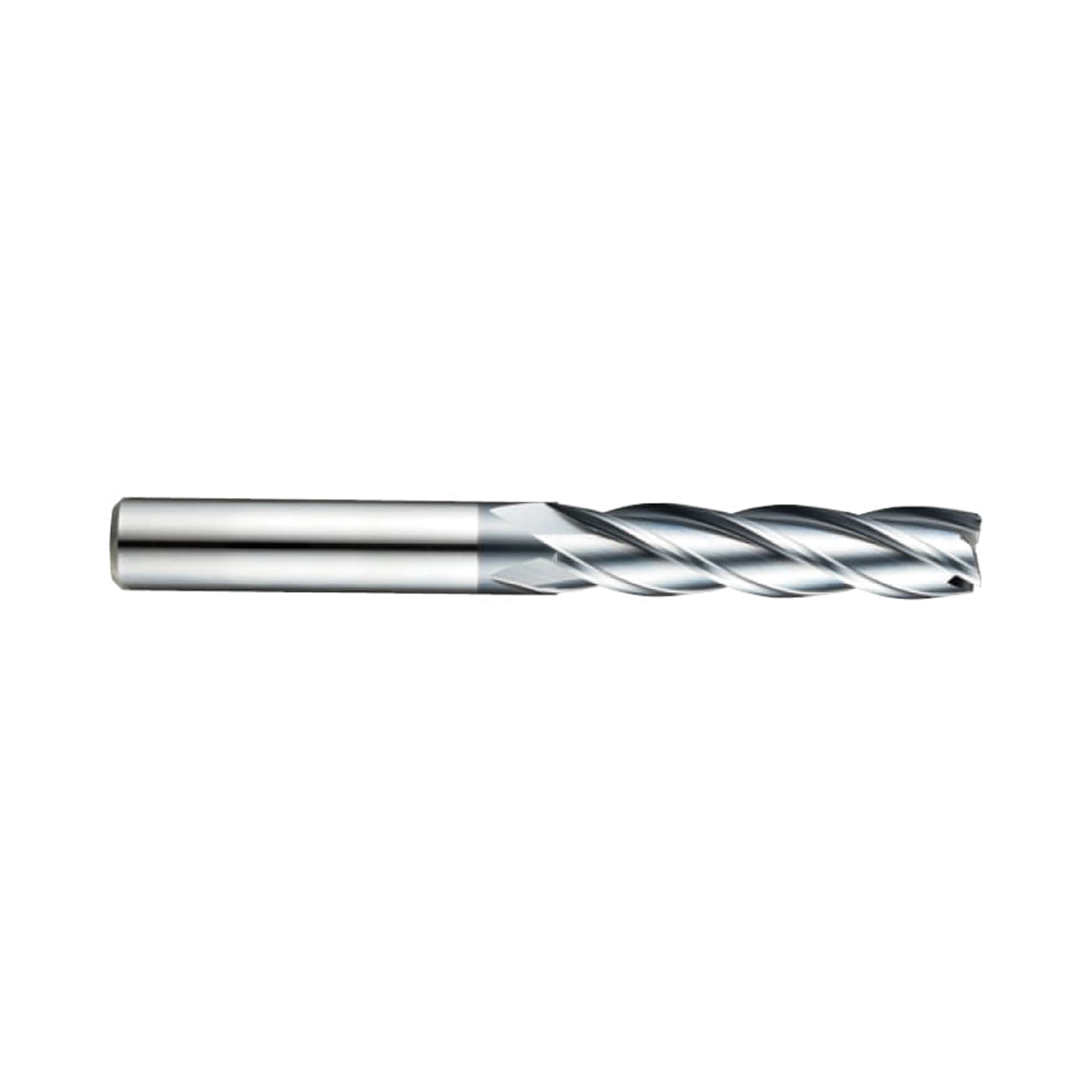

ONLY ONE PM60 4 Flute 30°Helix Long End Mill (GYG76)

  • $0.00INC GST $0.00 EX GST
ONLY ONE PM60 4 Flute 30°Helix Long End Mill (GYG76)
New

ONLY ONE PM60 4 Flute 30°Helix Long End Mill (GYG76)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: GYG76

P M K N
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ONLY ONE PM60 4 Flute 30°Helix Long End Mill (GYG76) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description



Product Data
Workpiece Material P M K N
Cutting Shape Square
Hardened Steels(HRc40~45) Great
Helix Angle Square 30
No. Flutes 4
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material PM 60
Flutes 4
Helix Angle 30°
Cutting Edge Shape SQUARE
Size Min D2.0
Size Max D25.0
Length LONG LENGTH (Center Cut)
Coating Y-Coating



EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYG76020 2 6 10 54 0~-0.030 h6 4 GYG76030 3 6 12 56 0~-0.030 h6 4 GYG76040 4 6 19 63 0~-0.030 h6 4 GYG76050 5 6 24 68 0~-0.030 h6 4 GYG76060 6 6 24 68 0~-0.030 h6 4 GYG76070 7 8 30 80 0~-0.030 h6 4 GYG76080 8 8 38 88 0~-0.030 h6 4 GYG76090 9 10 38 88 0~-0.030 h6 4 GYG76100 10 10 45 95 0~-0.030 h6 4 GYG76120 12 12 53 110 0~-0.030 h6 4 GYG76140 14 12 53 110 0~-0.030 h6 4 GYG76160 16 16 63 123 0~-0.030 h6 4 GYG76180 18 16 63 123 0~-0.030 h6 4 GYG76200 20 20 75 141 0~-0.030 h6 4 GYG76220 22 20 75 141 0~-0.030 h6 4 GYG76250 25 25 90 166 0~-0.030 h6 4
Side Milling
Small Part
Slotting
Die Sinking
Facing
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYG76020 2 6 10 54 0~-0.030 h6 4 GYG76030 3 6 12 56 0~-0.030 h6 4 GYG76040 4 6 19 63 0~-0.030 h6 4 GYG76050 5 6 24 68 0~-0.030 h6 4 GYG76060 6 6 24 68 0~-0.030 h6 4 GYG76070 7 8 30 80 0~-0.030 h6 4 GYG76080 8 8 38 88 0~-0.030 h6 4 GYG76090 9 10 38 88 0~-0.030 h6 4 GYG76100 10 10 45 95 0~-0.030 h6 4 GYG76120 12 12 53 110 0~-0.030 h6 4 GYG76140 14 12 53 110 0~-0.030 h6 4 GYG76160 16 16 63 123 0~-0.030 h6 4 GYG76180 18 16 63 123 0~-0.030 h6 4 GYG76200 20 20 75 141 0~-0.030 h6 4 GYG76220 22 20 75 141 0~-0.030 h6 4 GYG76250 25 25 90 166 0~-0.030 h6 4
