Product Description

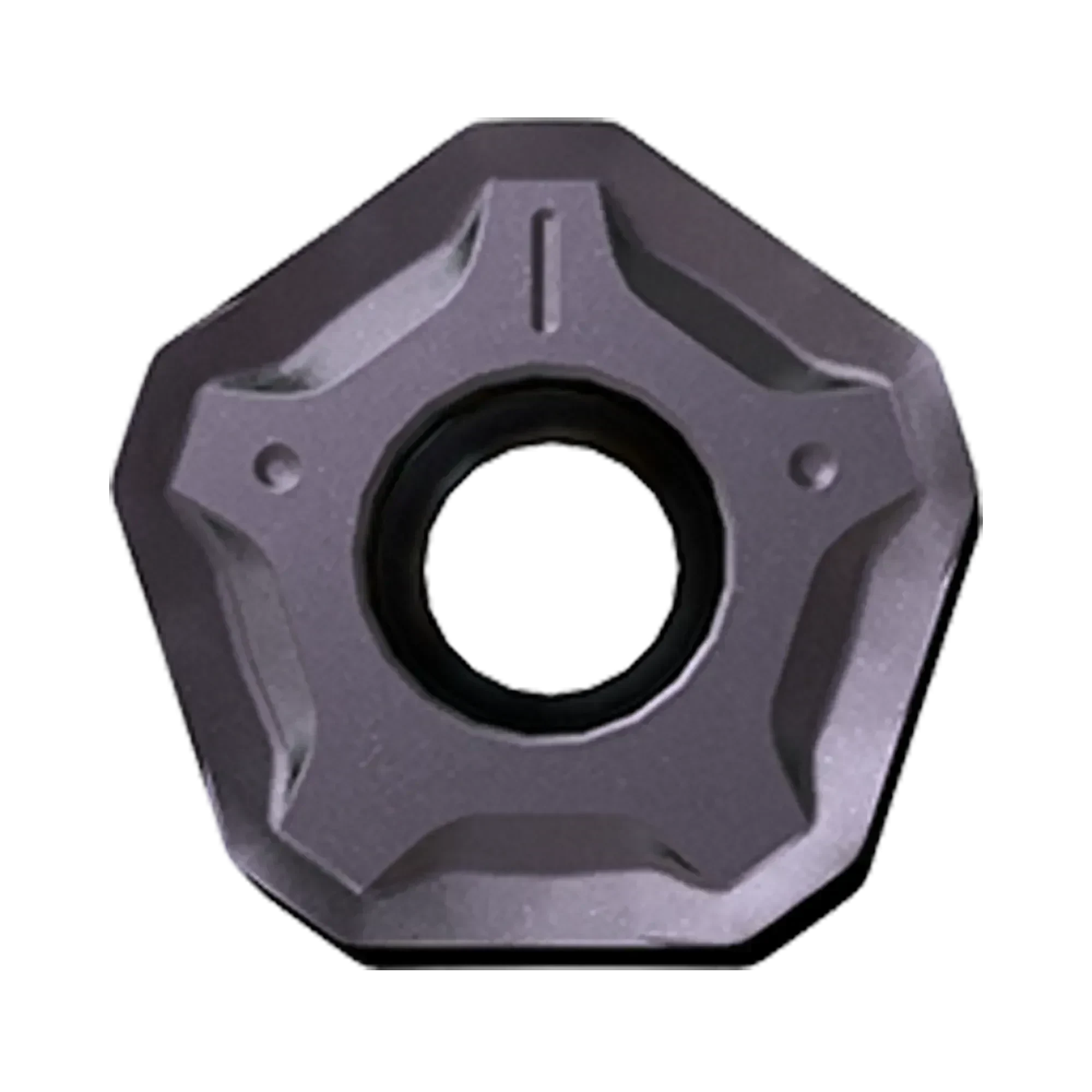

PNMU Inserts offer an increased feed rate due to chip thinning and outstanding stability due to direction of force into the spindle. Featuring a curved cutting edge & wiper reduce cutting forces to improve surface finish. The seperation of the cutting edge and wiper gives full use of all 10 insert edges, resulting in outstanding value.

  • Economical pentagonal double sided insert with 10 cutting edges
  • Higher depth of cut than high feed mill and higher feed rate than conventional face mill
  • Optimised insert grades for steel and cast iron
Product Data
Operation Facing

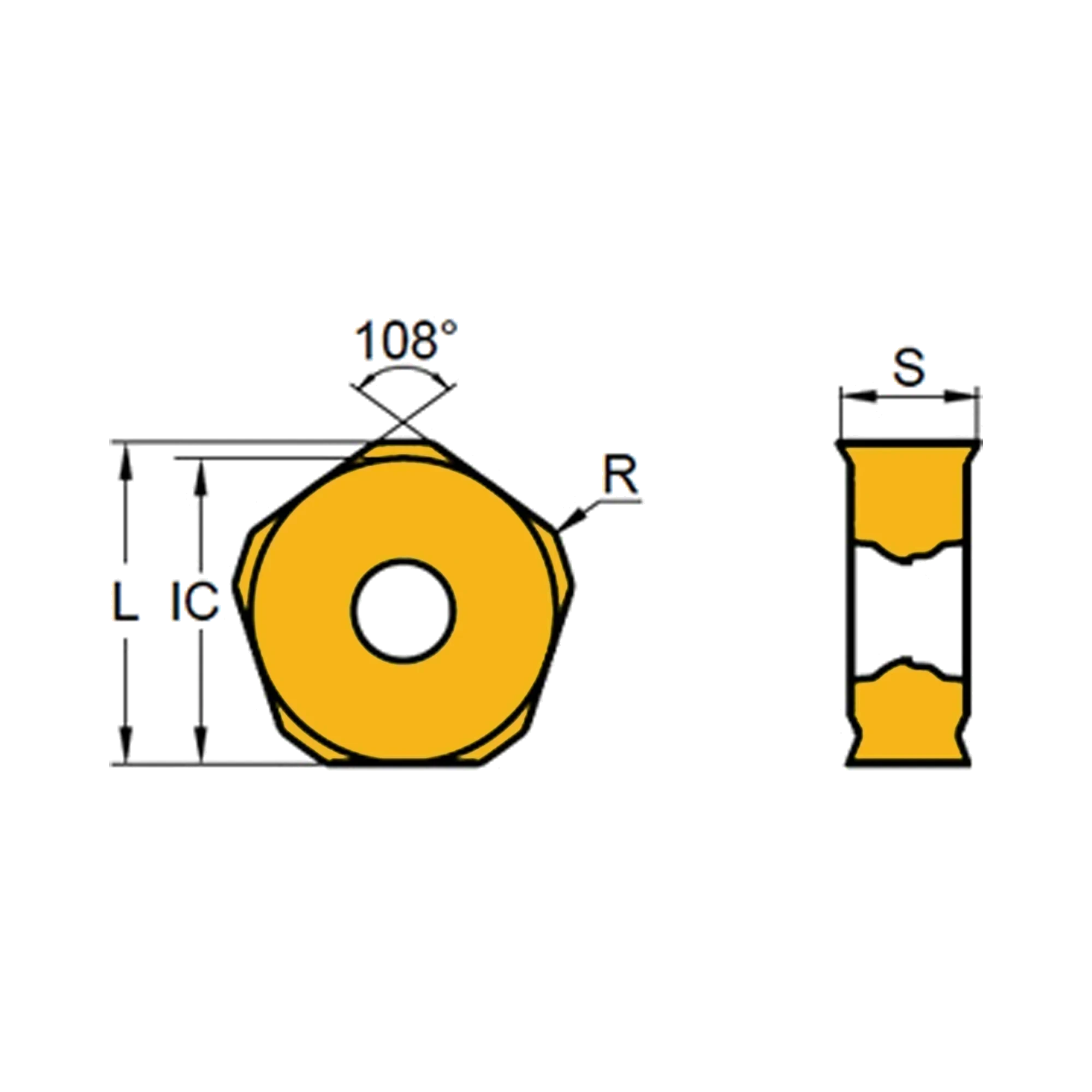

EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000534 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG5020 12000535 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG602 12000596 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG712 12000645 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG713 12000671 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG613 12000753 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG012 12000760 PNMU1206-ST 0.8 2.1 4 36° 14 5.84 -ST YG613 12000761 PNMU1206-ST 0.8 2.1 4 36° 14 5.84 -ST YG602 12000826 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG612 12000978 PNMU1206-ST 0.8 2.1 4 36° 14 5.84 -ST YG612
Facing
EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000534 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG5020 12000535 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG602 12000596 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG712 12000645 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG713 12000671 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG613 12000753 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG012 12000760 PNMU1206-ST 0.8 2.1 4 36° 14 5.84 -ST YG613 12000761 PNMU1206-ST 0.8 2.1 4 36° 14 5.84 -ST YG602 12000826 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG612 12000978 PNMU1206-ST 0.8 2.1 4 36° 14 5.84 -ST YG612
