PNMU12 Cutter

PNMU12 Cutter
New

PNMU12 Cutter

Product Code: PNMU12

Buy Local

PNMU Inserts offer an increased feed rate due to chip thinning and outstanding stability due to direction of force into the spindle. Featuring a curved cutting edge & wiper reduce cutting forces to improve surface finish. The seperation of the cutting edge and wiper gives full use of all 10 insert edges, resulting in outstanding value.

  • Face Milling Cutter for PNMU (10 Corners Negative)
Product Data
Operation Facing
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add PNMU12 Cutter to comparison

View Comparison

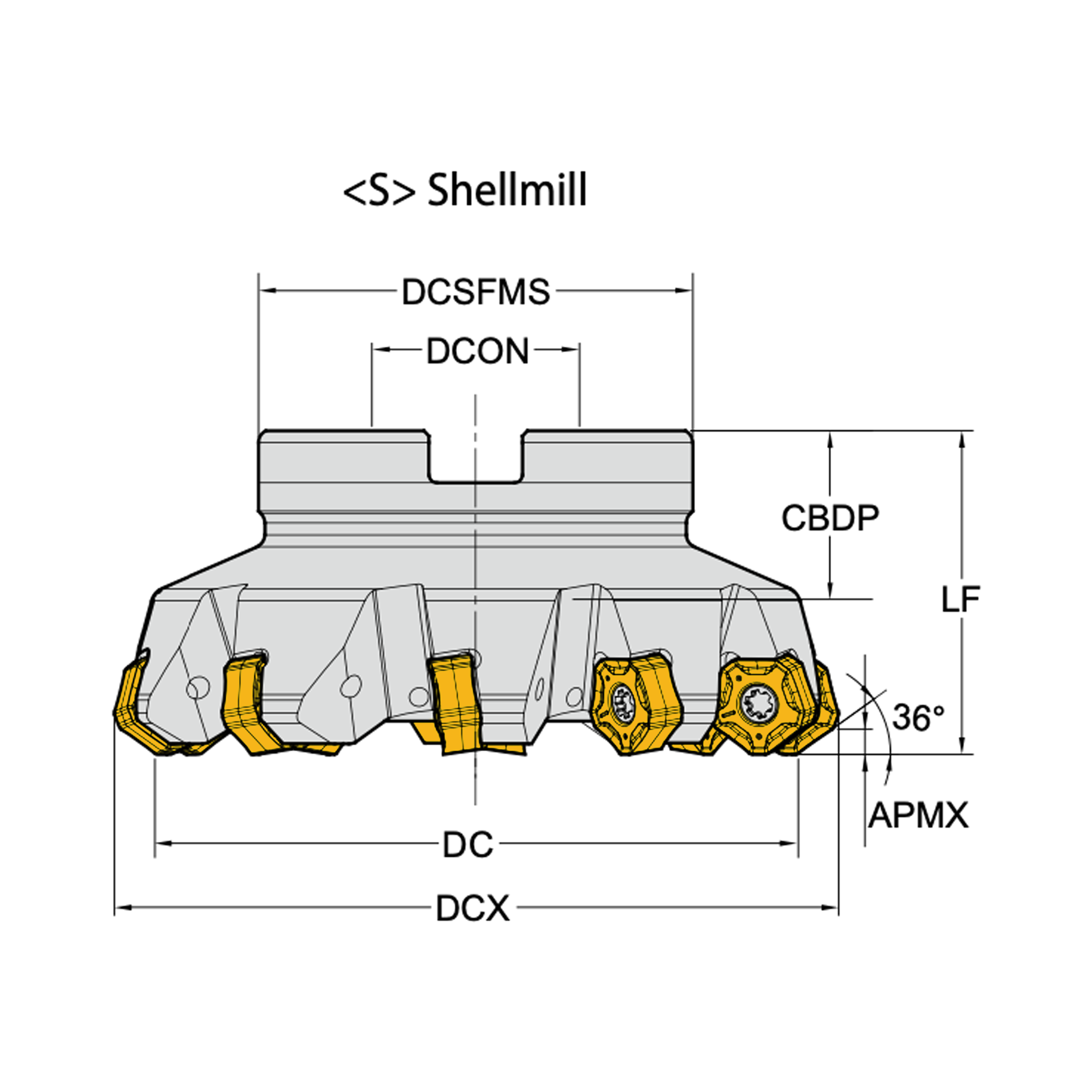

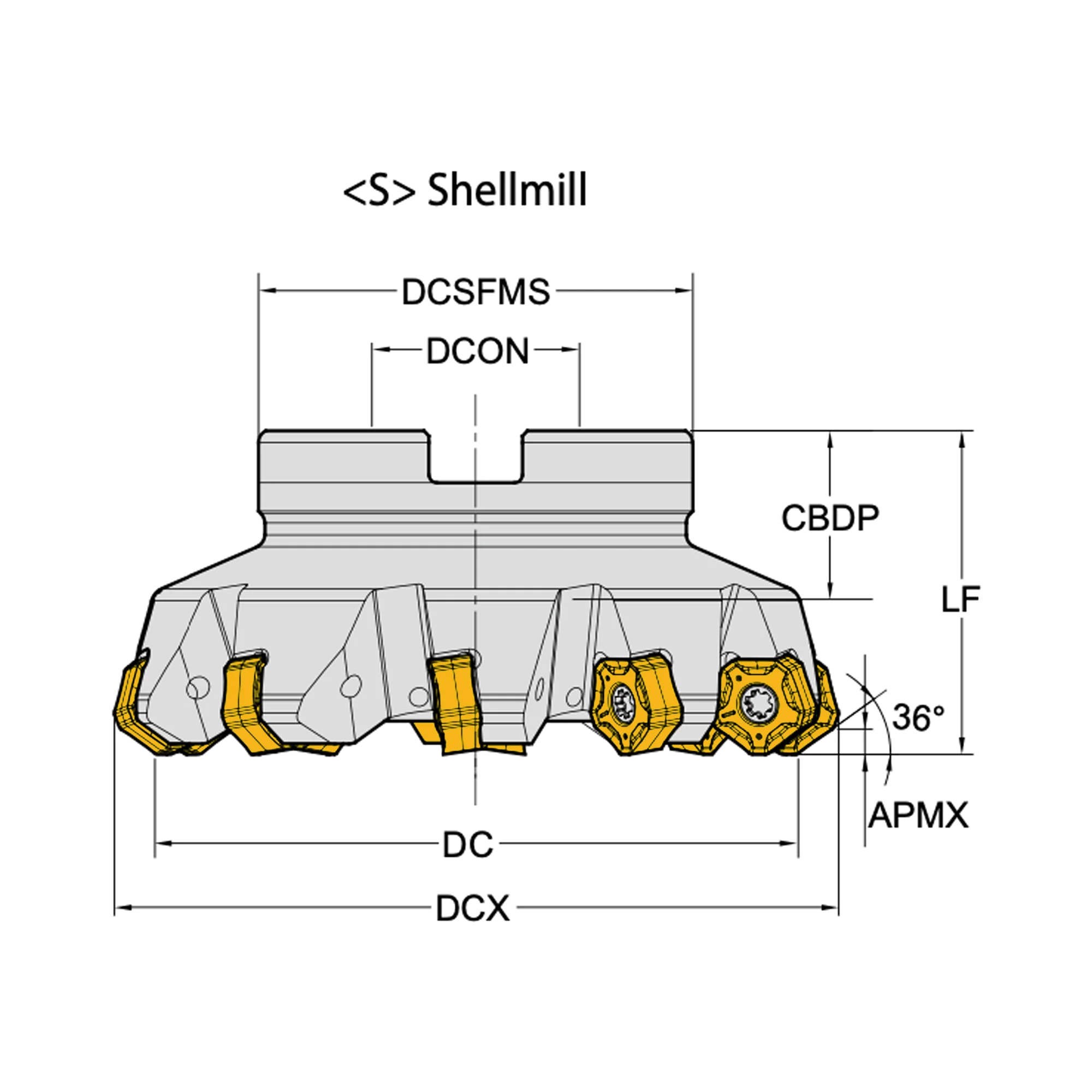

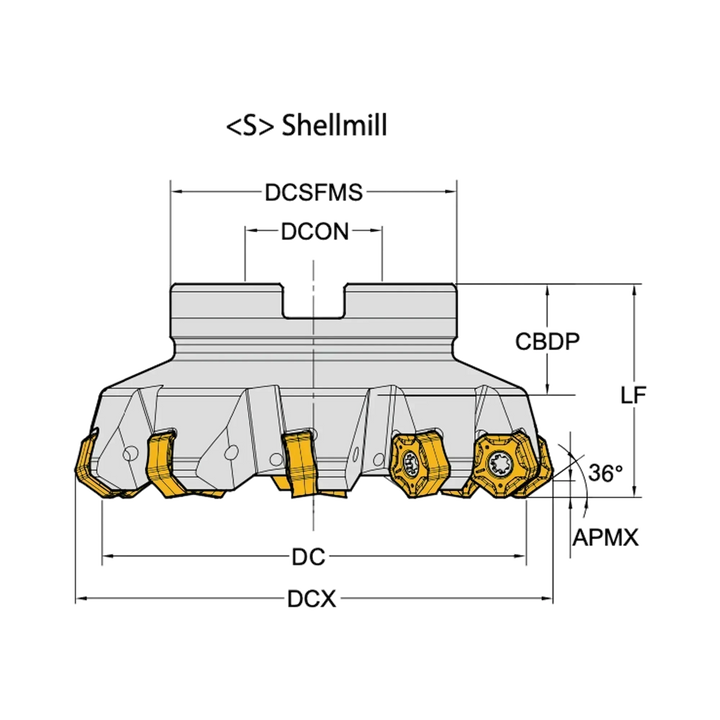

EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000466 F36-PNMU12-D80Z8S27 O 8 80 113.6 50 27 23 58 4 Shell Mill 17000467 F36-PNMU12-D100Z10S32 O 10 100 133.6 50 32 26 67 4 Shell Mill 17000483 F36-PNMU12-D63Z6S22 O 6 63 96.6 40 22 20 42 4 Shell Mill 17000774 F36-PNMU12-D50Z4S22 O 4 50 83.6 40 22 20 42 4 Shell Mill 17000775 F36-PNMU12-D63Z5S22 O 5 63 96.6 40 22 20 42 4 Shell Mill 17000785 F36-PNMU12-D50Z5S22 O 5 50 83.6 40 22 20 42 4 Shell Mill 17000786 F36-PNMU12-D125Z10S40 O 10 125 158.6 63 40 29 89 4 Shell Mill 17000826 F36-PNMU12-D80Z6S27 O 6 80 113.6 50 27 23 58 4 Shell Mill 17000827 F36-PNMU12-D100Z7S32 O 7 100 133.6 50 32 26 67 4 Shell Mill 17000828 F36-PNMU12-D125Z8S40 O 8 125 158.6 63 40 29 89 4 Shell Mill 17000829 F36-PNMU12-D160Z10S40 O 10 160 196.6 63 40 29 89 4 Shell Mill 17000830 F36-PNMU12-D200Z12S60 O 12 200 236.6 63 60 32 150 4 Shell Mill

Operation

Facing
