Product Description

PNMU Inserts offer an increased feed rate due to chip thinning and outstanding stability due to direction of force into the spindle. Featuring a curved cutting edge & wiper reduce cutting forces to improve surface finish. The seperation of the cutting edge and wiper gives full use of all 10 insert edges, resulting in outstanding value.

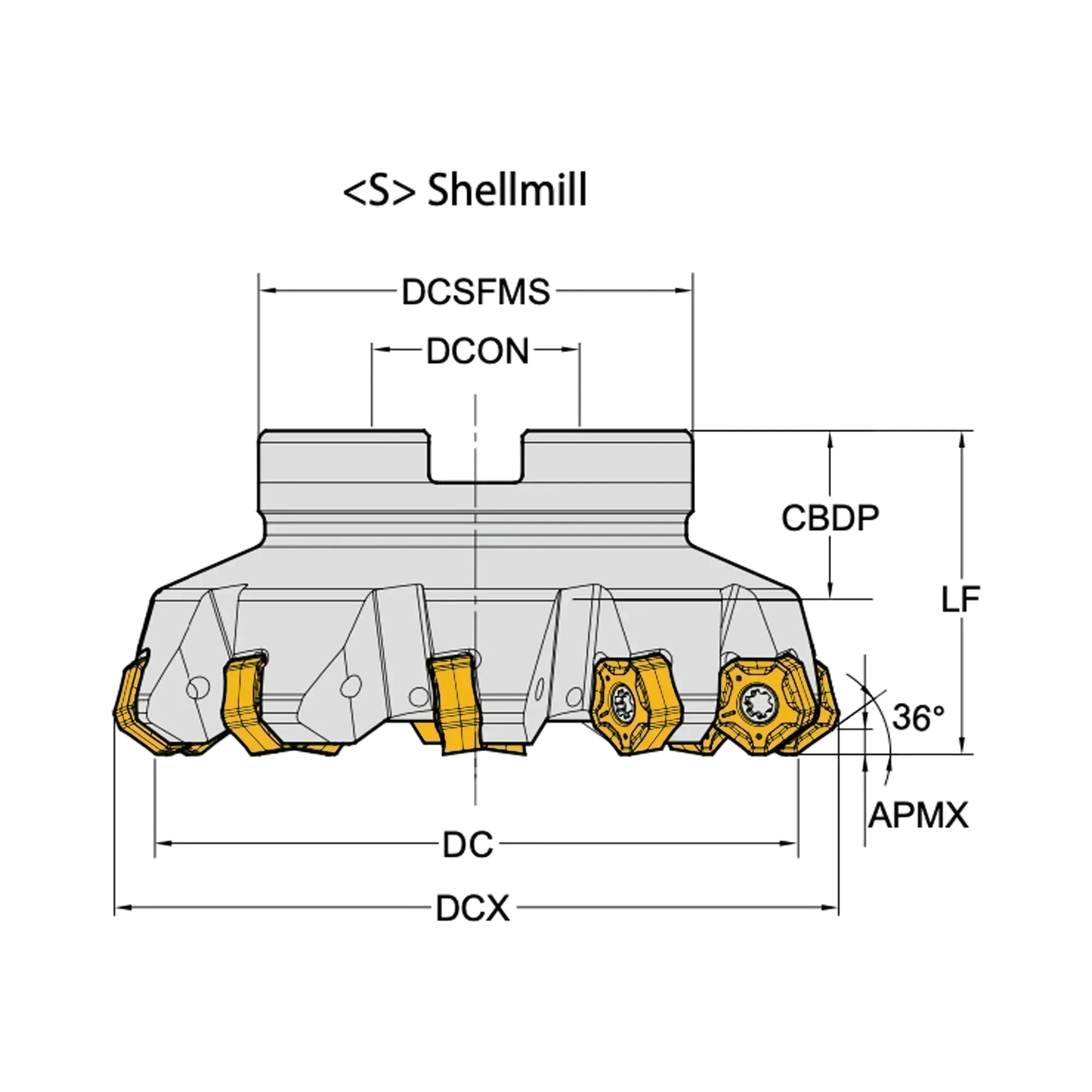

  • Face Milling Cutter for PNMU (10 Corners Negative)
Product Data
Operation Facing
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000466 F36-PNMU12-D80Z8S27 O 8 80 113.6 50 27 23 58 4 Shell Mill 17000467 F36-PNMU12-D100Z10S32 O 10 100 133.6 50 32 26 67 4 Shell Mill 17000483 F36-PNMU12-D63Z6S22 O 6 63 96.6 40 22 20 42 4 Shell Mill 17000774 F36-PNMU12-D50Z4S22 O 4 50 83.6 40 22 20 42 4 Shell Mill 17000775 F36-PNMU12-D63Z5S22 O 5 63 96.6 40 22 20 42 4 Shell Mill 17000785 F36-PNMU12-D50Z5S22 O 5 50 83.6 40 22 20 42 4 Shell Mill 17000786 F36-PNMU12-D125Z10S40 O 10 125 158.6 63 40 29 89 4 Shell Mill 17000826 F36-PNMU12-D80Z6S27 O 6 80 113.6 50 27 23 58 4 Shell Mill 17000827 F36-PNMU12-D100Z7S32 O 7 100 133.6 50 32 26 67 4 Shell Mill 17000828 F36-PNMU12-D125Z8S40 O 8 125 158.6 63 40 29 89 4 Shell Mill 17000829 F36-PNMU12-D160Z10S40 O 10 160 196.6 63 40 29 89 4 Shell Mill 17000830 F36-PNMU12-D200Z12S60 O 12 200 236.6 63 60 32 150 4 Shell Mill
Facing
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000466 F36-PNMU12-D80Z8S27 O 8 80 113.6 50 27 23 58 4 Shell Mill 17000467 F36-PNMU12-D100Z10S32 O 10 100 133.6 50 32 26 67 4 Shell Mill 17000483 F36-PNMU12-D63Z6S22 O 6 63 96.6 40 22 20 42 4 Shell Mill 17000774 F36-PNMU12-D50Z4S22 O 4 50 83.6 40 22 20 42 4 Shell Mill 17000775 F36-PNMU12-D63Z5S22 O 5 63 96.6 40 22 20 42 4 Shell Mill 17000785 F36-PNMU12-D50Z5S22 O 5 50 83.6 40 22 20 42 4 Shell Mill 17000786 F36-PNMU12-D125Z10S40 O 10 125 158.6 63 40 29 89 4 Shell Mill 17000826 F36-PNMU12-D80Z6S27 O 6 80 113.6 50 27 23 58 4 Shell Mill 17000827 F36-PNMU12-D100Z7S32 O 7 100 133.6 50 32 26 67 4 Shell Mill 17000828 F36-PNMU12-D125Z8S40 O 8 125 158.6 63 40 29 89 4 Shell Mill 17000829 F36-PNMU12-D160Z10S40 O 10 160 196.6 63 40 29 89 4 Shell Mill 17000830 F36-PNMU12-D200Z12S60 O 12 200 236.6 63 60 32 150 4 Shell Mill
