Product Code: PNMU12

Buy Local

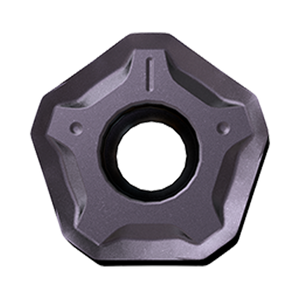

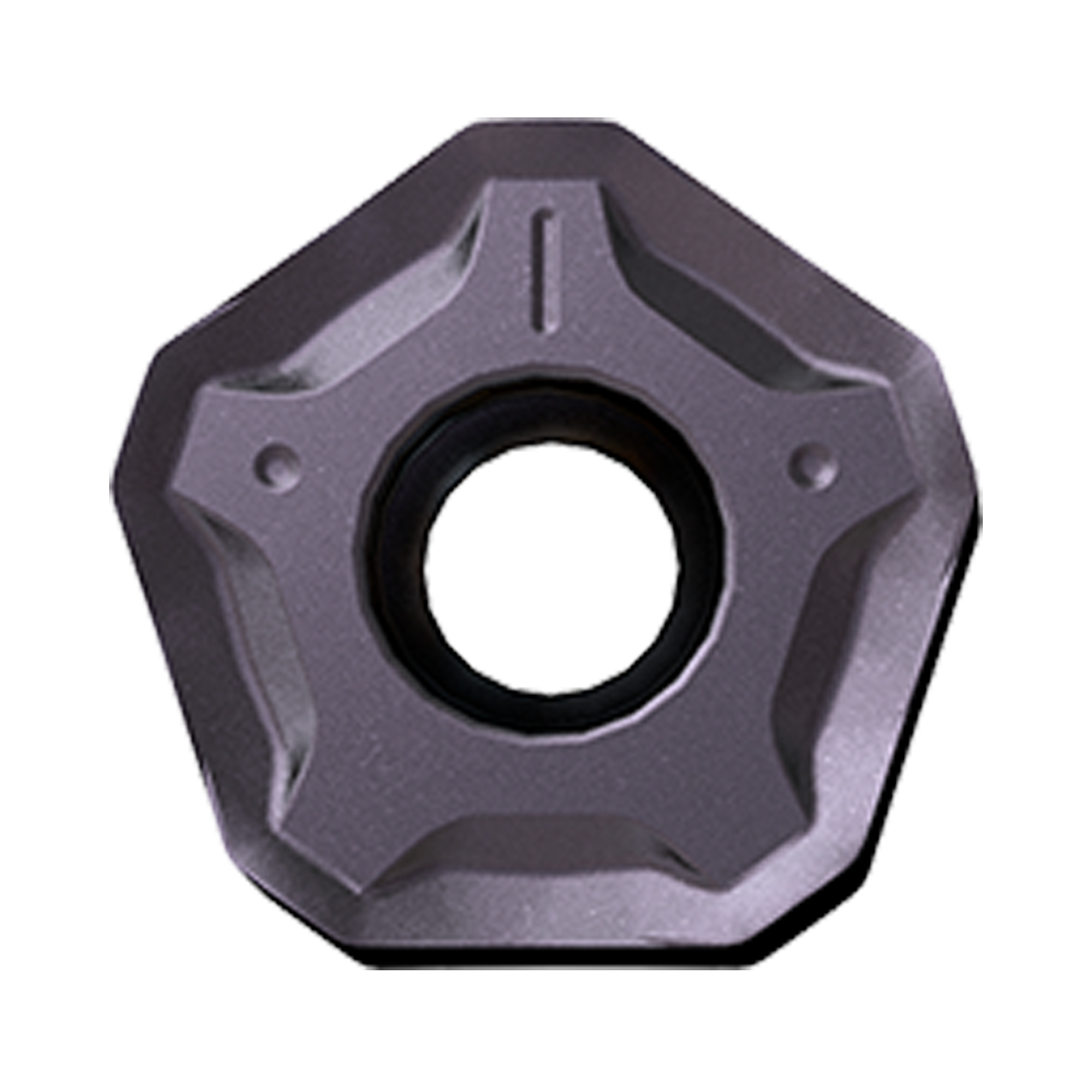

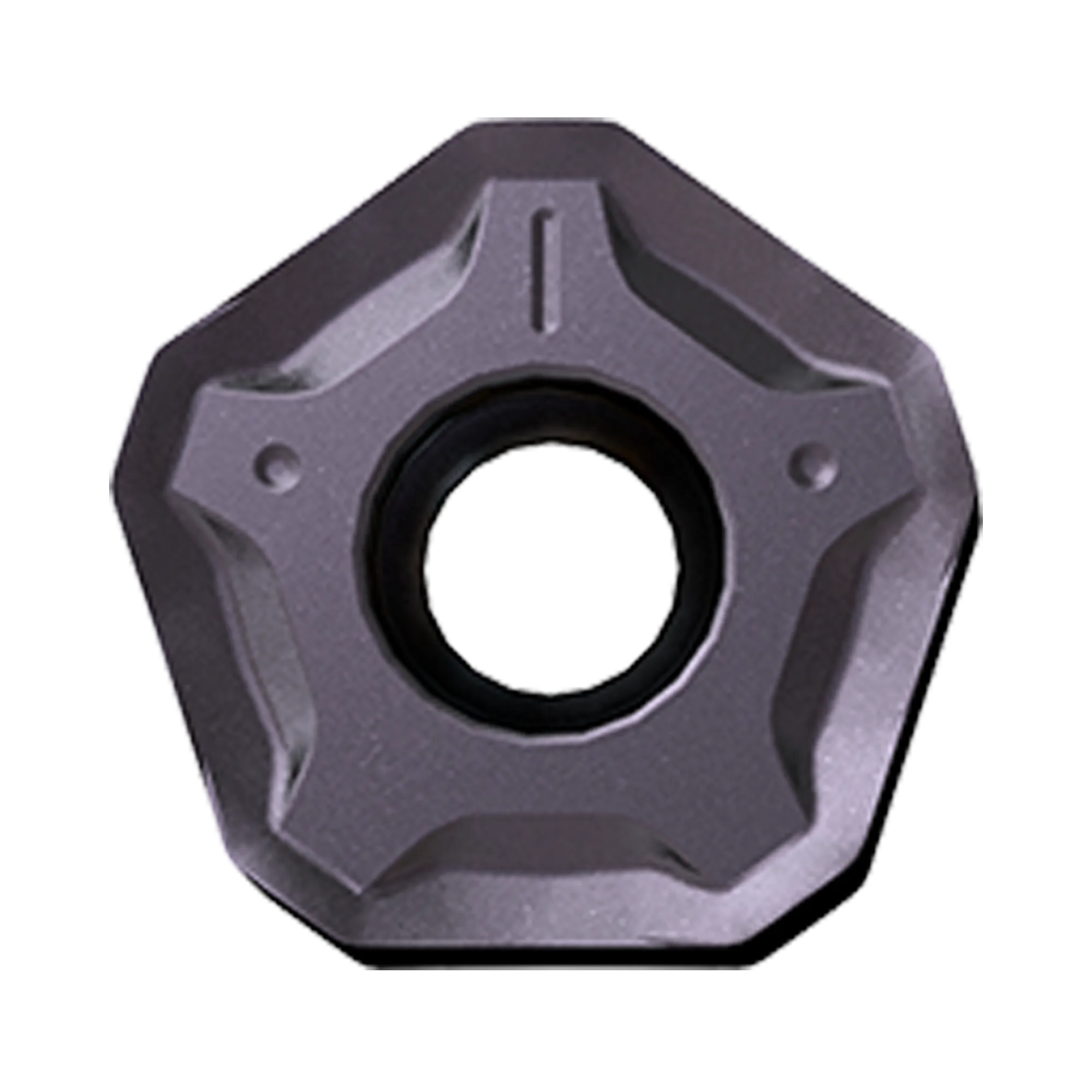

PNMU Inserts offer an increased feed rate due to chip thinning and outstanding stability due to direction of force into the spindle. Featuring a curved cutting edge & wiper reduce cutting forces to improve surface finish. The seperation of the cutting edge and wiper gives full use of all 10 insert edges, resulting in outstanding value.

  • Economical pentagonal double sided insert with 10 cutting edges
  • Higher depth of cut than high feed mill and higher feed rate than conventional face mill
  • Optimised insert grades for steel and cast iron
Product Data
Operation Facing
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add PNMU12 to comparison

View Comparison

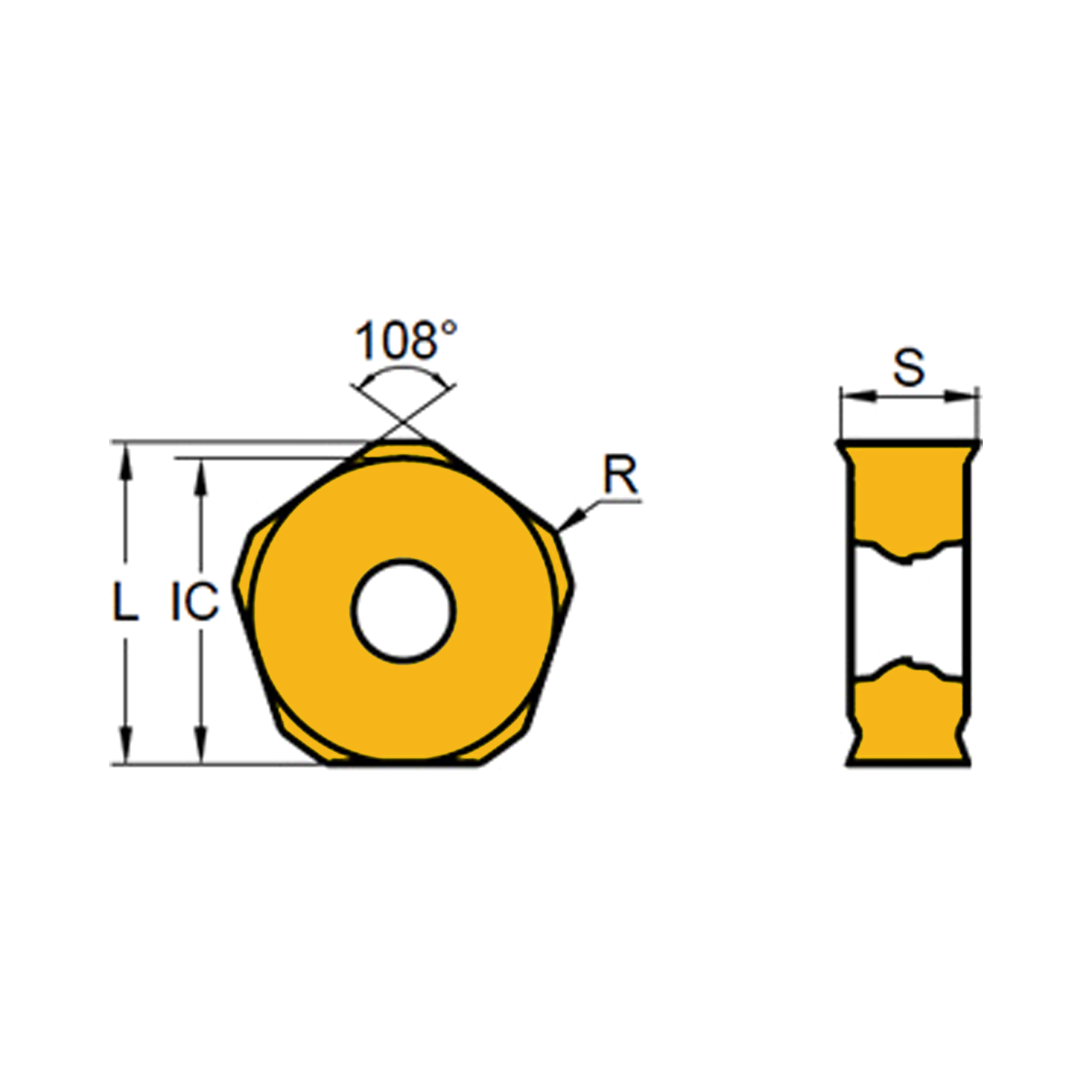

EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000534 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG5020 12000535 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG602 12000596 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG712 12000645 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG713 12000671 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG613 12000753 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG012 12000760 PNMU1206-ST 0.8 2.1 4 36° 14 5.84 -ST YG613 12000761 PNMU1206-ST 0.8 2.1 4 36° 14 5.84 -ST YG602 12000826 PNMU1206ZNN 0.8 2.1 4 36° 14 5.84 General YG612 12000978 PNMU1206-ST 0.8 2.1 4 36° 14 5.84 -ST YG612

Operation

Facing
