4G MILL 2 Flute 30°Helix Long End Mill (SEME70)

Long-length 2 flute carbide square end mills

4G MILL 2 Flute 30°Helix Long End Mill (SEME70)
$51.37 INC GST $46.70 EX GST
SKU
SEME7001003E

Key features

  • Long-length two-flute carbide square end mill family
  • 30° helix geometry for the SEME70 series
  • Y1200 coated ultrafine micrograin carbide substrate
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Long-length access

Long-length geometry provides a practical option for milling deeper workpiece features.

Coated carbide construction

Y1200 coating and ultrafine micrograin carbide support wear resistance in demanding machining.

Broad material capability

Specified for high-speed milling of steel, stainless steel, cast iron and hardened steel.

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
SEME7001003E160.06.03.0 1-2 Weeks $46.70
SEME7001204E1.260.06.04.0 1-2 Weeks $46.70
SEME7001506E1.560.06.06.0 1-2 Weeks $46.70
SEME7002008E260.06.08.0 1-2 Weeks $59.70
SEME7002510E2.560.06.010.0 1-2 Weeks $46.70
SEME7003010E370.06.010.0 1-2 Weeks $48.50
SEME7004012E470.04.012.0 1-2 Weeks $62.90
SEME7005020E570.06.020.0 1-2 Weeks $48.50
SEME7006015E660.06.015.0 1-2 Weeks $46.70
SEME7008025E880.08.025.0 1-2 Weeks $82.80
SEME7010030E1080.010.030.0 1-2 Weeks $106.60
SEME7012035E1290.012.035.0 1-2 Weeks $139.60
SEME7014050E14110.016.050.0 1-2 Weeks $367.10
SEME7016040E16150.016.040.0 1-2 Weeks $425.70
SEME7018050E18120.020.050.0 1-2 Weeks $538.60
SEME7020050E20110.020.050.0 1-2 Weeks $519.50
SEME7022075E22150.020.075.0 1-2 Weeks $648.50
SEME7025090E25150.025.090.0 1-2 Weeks $735.10

Add 4G MILL 2 Flute 30°Helix Long End Mill (SEME70) to comparison

View Comparison
  • Overview
  • Specifications
  • Reviews
Product Description

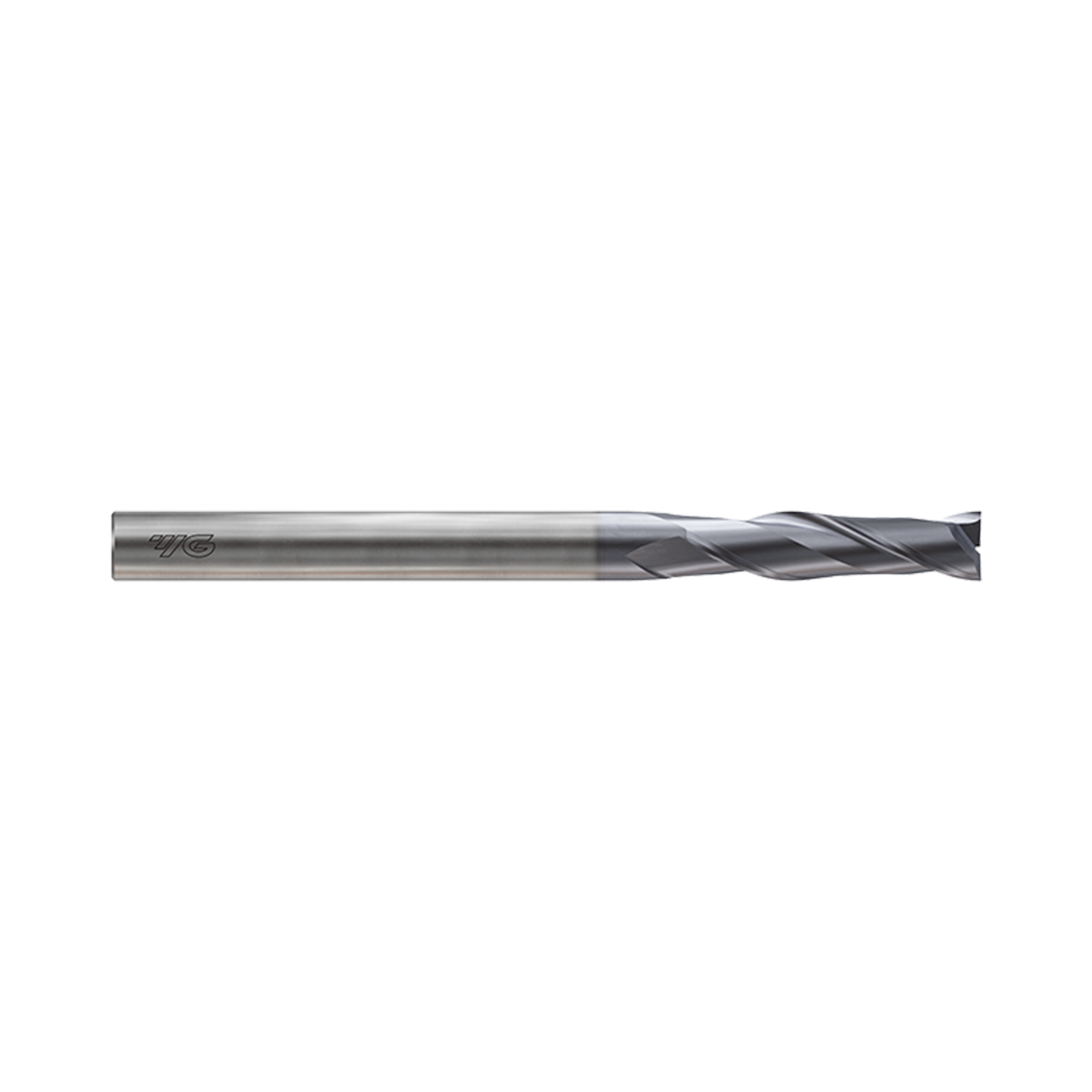

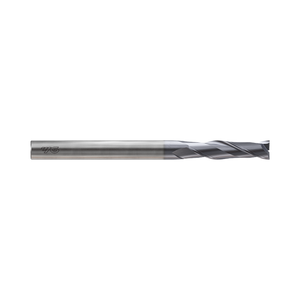

YG-1 SEME70 4G Mill is a long-length, two-flute carbide square end mill with a 30° helix. It is designed for high-speed milling of steels, stainless steel, cast iron and hardened steels under HRc55. Y1200 coating and an ultrafine micrograin carbide substrate support wear resistance during demanding machining. The plain shank and square end profile are specified throughout the SEME70 range. Selected variants span 1 to 25 mm milling diameters, with long flute lengths and overall lengths. Two-flute, 30° helix geometry is retained throughout this long-length carbide end mill family. Choose the diameter and flute length required for the workpiece feature and machine setup.

  • Long-length two-flute carbide square end mill family
  • 30° helix geometry for the SEME70 series
  • Y1200 coated ultrafine micrograin carbide substrate
  • Plain shank with square end profile
  • Suitable for steels stainless steel cast iron and hardened steels under HRc55
  • Selected milling diameters from 1 to 25 mm
Product Data

No specifications available.

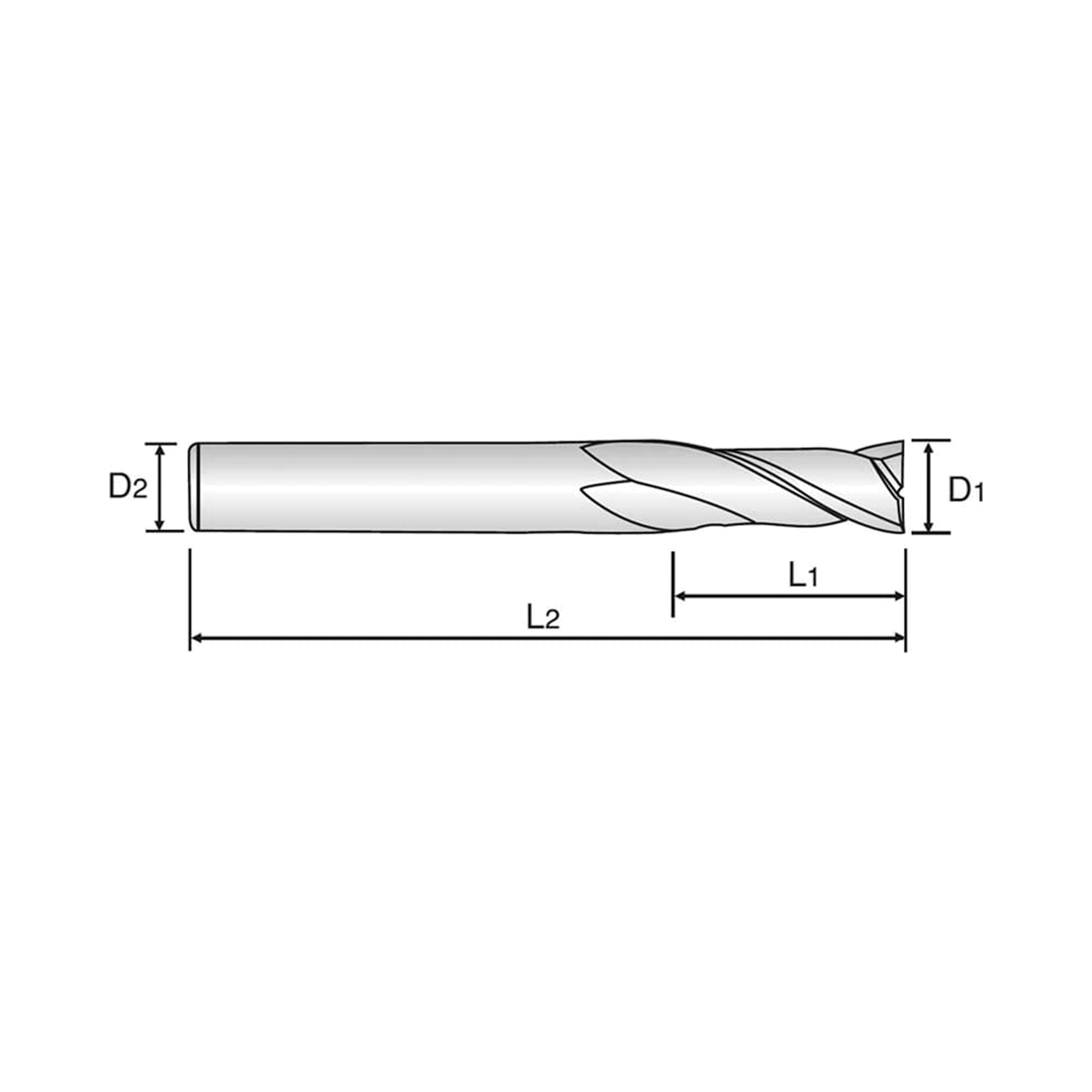

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME7001003 1 6 3 60 0~0.030 h5 2 SEME7001003E 1 6 3 60 0~0.030 h5 2 SEME7001004 1 6 4 60 0~0.030 h5 2 SEME7001004E 1 6 4 60 0~0.030 h5 2 SEME7001005 1 6 5 60 0~0.030 h5 2 SEME7001005E 1 6 5 60 0~0.030 h5 2 SEME7001006 1 6 6 60 0~0.030 h5 2 SEME7001006E 1 6 6 60 0~0.030 h5 2 SEME7001007 1 6 7 60 0~0.030 h5 2 SEME7001007E 1 6 7 60 0~0.030 h5 2 SEME7001008 1 6 8 60 0~0.030 h5 2 SEME7001008E 1 6 8 60 0~0.030 h5 2 SEME7001010 1 6 10 60 0~0.030 h5 2 SEME7001010E 1 6 10 60 0~0.030 h5 2 SEME7001012 1 6 12 60 0~0.030 h5 2 SEME7001012E 1 6 12 60 0~0.030 h5 2 SEME7001204 1.2 6 4 60 0~0.030 h5 2 SEME7001204E 1.2 6 4 60 0~0.030 h5 2 SEME7001206 1.2 6 6 60 0~0.030 h5 2 SEME7001206E 1.2 6 6 60 0~0.030 h5 2 SEME7001208 1.2 6 8 60 0~0.030 h5 2 SEME7001208E 1.2 6 8 60 0~0.030 h5 2 SEME7001210 1.2 6 10 60 0~0.030 h5 2 SEME7001210E 1.2 6 10 60 0~0.030 h5 2 SEME7001212 1.2 6 12 60 0~0.030 h5 2 SEME7001212E 1.2 6 12 60 0~0.030 h5 2 SEME7001506 1.5 6 6 60 0~0.030 h5 2 SEME7001506E 1.5 6 6 60 0~0.030 h5 2 SEME7001508 1.5 6 8 60 0~0.030 h5 2 SEME7001508E 1.5 6 8 60 0~0.030 h5 2 SEME7001510 1.5 6 10 60 0~0.030 h5 2 SEME7001510E 1.5 6 10 60 0~0.030 h5 2 SEME7001512 1.5 6 12 60 0~0.030 h5 2 SEME7001512E 1.5 6 12 60 0~0.030 h5 2 SEME7001514 1.5 6 14 60 0~0.030 h5 2 SEME7001514E 1.5 6 14 60 0~0.030 h5 2 SEME7001516 1.5 6 16 60 0~0.030 h5 2 SEME7001516E 1.5 6 16 60 0~0.030 h5 2 SEME7002008 2 6 8 60 0~0.030 h5 2 SEME7002008E 2 6 8 60 0~0.030 h5 2 SEME7002010 2 6 10 60 0~0.030 h5 2 SEME7002010E 2 6 10 60 0~0.030 h5 2 SEME7002012 2 6 12 60 0~0.030 h5 2 SEME7002012E 2 6 12 60 0~0.030 h5 2 SEME7002014 2 6 14 60 0~0.030 h5 2 SEME7002014E 2 6 14 60 0~0.030 h5 2 SEME7002016 2 6 16 60 0~0.030 h5 2 SEME7002016E 2 6 16 60 0~0.030 h5 2 SEME7002510 2.5 6 10 60 0~0.030 h5 2 SEME7002510E 2.5 6 10 60 0~0.030 h5 2 SEME7002512 2.5 6 12 60 0~0.030 h5 2 SEME7002512E 2.5 6 12 60 0~0.030 h5 2 SEME7002516 2.5 6 16 60 0~0.030 h5 2 SEME7002516E 2.5 6 16 60 0~0.030 h5 2 SEME7002520 2.5 6 20 60 0~0.030 h5 2 SEME7002520E 2.5 6 20 60 0~0.030 h5 2 SEME7002526 2.5 6 26 60 0~0.030 h5 2 SEME7002526E 2.5 6 26 60 0~0.030 h5 2 SEME7003010 3 6 10 70 0~0.030 h5 2 SEME7003010E 3 6 10 70 0~0.030 h5 2 SEME7003012 3 6 12 70 0~0.030 h5 2 SEME7003012E 3 6 12 70 0~0.030 h5 2 SEME7003014 3 6 14 70 0~0.030 h5 2 SEME7003014E 3 6 14 70 0~0.030 h5 2 SEME7003016 3 6 16 70 0~0.030 h5 2 SEME7003016E 3 6 16 70 0~0.030 h5 2 SEME7003020 3 6 20 70 0~0.030 h5 2 SEME7003020E 3 6 20 70 0~0.030 h5 2 SEME7003026 3 6 26 70 0~0.030 h5 2 SEME7003026E 3 6 26 70 0~0.030 h5 2 SEME7003030 3 6 30 70 0~0.030 h5 2 SEME7003030E 3 6 30 70 0~0.030 h5 2 SEME7004012 4 6 12 70 0~0.030 h5 2 SEME7004012E 4 6 12 70 0~0.030 h5 2 SEME7004016 4 6 16 70 0~0.030 h5 2 SEME7004016E 4 6 16 70 0~0.030 h5 2 SEME7004020 4 6 20 70 0~0.030 h5 2 SEME7004020E 4 6 20 70 0~0.030 h5 2 SEME7004026 4 6 26 70 0~0.030 h5 2 SEME7004026E 4 6 26 70 0~0.030 h5 2 SEME7004030 4 6 30 70 0~0.030 h5 2 SEME7004030E 4 6 30 70 0~0.030 h5 2 SEME7005020 5 6 20 70 0~0.030 h5 2 SEME7005020E 5 6 20 70 0~0.030 h5 2 SEME7005025 5 6 25 70 0~0.030 h5 2 SEME7005025E 5 6 25 70 0~0.030 h5 2 SEME7005030 5 6 30 80 0~0.030 h5 2 SEME7005030E 5 6 30 80 0~0.030 h5 2 SEME7005035 5 6 35 90 0~0.030 h5 2 SEME7005035E 5 6 35 90 0~0.030 h5 2 SEME7005040 5 6 40 100 0~0.030 h5 2 SEME7005040E 5 6 40 100 0~0.030 h5 2 SEME7006015 6 6 15 60 0~0.030 h5 2 SEME7006015E 6 6 15 60 0~0.030 h5 2 SEME7006020 6 6 20 70 0~0.030 h5 2 SEME7006020E 6 6 20 70 0~0.030 h5 2 SEME7006025 6 6 25 75 0~0.030 h5 2 SEME7006025E 6 6 25 75 0~0.030 h5 2 SEME7006030 6 6 30 80 0~0.030 h5 2 SEME7006030E 6 6 30 80 0~0.030 h5 2 SEME7006035 6 6 35 90 0~0.030 h5 2 SEME7006035E 6 6 35 90 0~0.030 h5 2 SEME7006040 6 6 40 90 0~0.030 h5 2 SEME7006040E 6 6 40 90 0~0.030 h5 2 SEME7006045 6 6 45 150 0~0.030 h5 2 SEME7006045E 6 6 45 150 0~0.030 h5 2 SEME7008025 8 8 25 80 0~0.030 h5 2 SEME7008025E 8 8 25 80 0~0.030 h5 2 SEME7008030 8 8 30 80 0~0.030 h5 2 SEME7008030E 8 8 30 80 0~0.030 h5 2 SEME7008035 8 8 35 90 0~0.030 h5 2 SEME7008035E 8 8 35 90 0~0.030 h5 2 SEME7008040 8 8 40 90 0~0.030 h5 2 SEME7008040E 8 8 40 90 0~0.030 h5 2 SEME7008045 8 8 45 100 0~0.030 h5 2 SEME7008045E 8 8 45 100 0~0.030 h5 2 SEME7008050 8 8 50 100 0~0.030 h5 2 SEME7008050E 8 8 50 100 0~0.030 h5 2 SEME7010030 10 10 30 80 0~0.030 h5 2 SEME7010030E 10 10 30 80 0~0.030 h5 2 SEME7010035 10 10 35 90 0~0.030 h5 2 SEME7010035E 10 10 35 90 0~0.030 h5 2 SEME7010040 10 10 40 90 0~0.030 h5 2 SEME7010040E 10 10 40 90 0~0.030 h5 2 SEME7010045 10 10 45 100 0~0.030 h5 2 SEME7010045E 10 10 45 100 0~0.030 h5 2 SEME7010050 10 10 50 100 0~0.030 h5 2 SEME7010050E 10 10 50 100 0~0.030 h5 2 SEME7010055 10 10 55 150 0~0.030 h5 2 SEME7010055E 10 10 55 150 0~0.030 h5 2 SEME7010060 10 10 60 110 0~0.030 h5 2 SEME7010060E 10 10 60 110 0~0.030 h5 2 SEME7012035 12 12 35 90 0~0.030 h5 2 SEME7012035E 12 12 35 90 0~0.030 h5 2 SEME7012040 12 12 40 100 0~0.030 h5 2 SEME7012040E 12 12 40 100 0~0.030 h5 2 SEME7012045 12 12 45 130 0~0.030 h5 2 SEME7012045E 12 12 45 130 0~0.030 h5 2 SEME7012050 12 12 50 100 0~0.030 h5 2 SEME7012050E 12 12 50 100 0~0.030 h5 2 SEME7012055 12 12 55 110 0~0.030 h5 2 SEME7012055E 12 12 55 110 0~0.030 h5 2 SEME7012060 12 12 60 110 0~0.030 h5 2 SEME7012060E 12 12 60 110 0~0.030 h5 2 SEME7012065 12 12 65 150 0~0.030 h5 2 SEME7012065E 12 12 65 150 0~0.030 h5 2 SEME7012070 12 12 70 120 0~0.030 h5 2 SEME7012070E 12 12 70 120 0~0.030 h5 2 SEME7014050 14 16 50 110 0~0.030 h5 2 SEME7014050E 14 16 50 110 0~0.030 h5 2 SEME7014060 14 16 60 150 0~0.030 h5 2 SEME7014060E 14 16 60 150 0~0.030 h5 2 SEME7016040 16 16 40 150 0~0.030 h5 2 SEME7016040E 16 16 40 150 0~0.030 h5 2 SEME7016050 16 16 50 110 0~0.030 h5 2 SEME7016050E 16 16 50 110 0~0.030 h5 2 SEME7016060 16 16 60 120 0~0.030 h5 2 SEME7016060E 16 16 60 120 0~0.030 h5 2 SEME7016070 16 16 70 130 0~0.030 h5 2 SEME7016070E 16 16 70 130 0~0.030 h5 2 SEME7016080 16 16 80 150 0~0.030 h5 2 SEME7016080E 16 16 80 150 0~0.030 h5 2 SEME7016090 16 16 90 150 0~0.030 h5 2 SEME7016090E 16 16 90 150 0~0.030 h5 2 SEME7018050 18 20 50 120 0~0.030 h5 2 SEME7018050E 18 20 50 120 0~0.030 h5 2 SEME7018070 18 20 70 130 0~0.030 h5 2 SEME7018070E 18 20 70 130 0~0.030 h5 2 SEME7020050 20 20 50 110 0~0.030 h5 2 SEME7020050E 20 20 50 110 0~0.030 h5 2 SEME7020060 20 20 60 130 0~0.030 h5 2 SEME7020060E 20 20 60 130 0~0.030 h5 2 SEME7020070 20 20 70 130 0~0.030 h5 2 SEME7020070E 20 20 70 130 0~0.030 h5 2 SEME7020080 20 20 80 150 0~0.030 h5 2 SEME7020080E 20 20 80 150 0~0.030 h5 2 SEME7020090 20 20 90 150 0~0.030 h5 2 SEME7020090E 20 20 90 150 0~0.030 h5 2 SEME7022075 22 20 75 150 0~0.030 h5 2 SEME7022075E 22 20 75 150 0~0.030 h5 2 SEME7025070 25 25 70 150 0~0.030 h5 2 SEME7025070E 25 25 70 150 0~0.030 h5 2 SEME7025090 25 25 90 150 0~0.030 h5 2 SEME7025090E 25 25 90 150 0~0.030 h5 2 SEME70030163S 3 3 16 100 0~0.030 h5 2 SEME70030163SE 3 3 16 100 0~0.030 h5 2 SEME70040204S 4 4 20 100 0~0.030 h5 2 SEME70040204SE 4 4 20 100 0~0.030 h5 2 SEME70160110 16 16 110 200 0~0.030 h5 2 SEME70160110E 16 16 110 200 0~0.030 h5 2 SEME70160120 16 16 120 250 0~0.030 h5 2 SEME70160120E 16 16 120 250 0~0.030 h5 2 SEME70180100 18 20 100 200 0~0.030 h5 2 SEME70180100E 18 20 100 200 0~0.030 h5 2 SEME70200110 20 20 110 200 0~0.030 h5 2 SEME70200110E 20 20 110 200 0~0.030 h5 2 SEME70200120 20 20 120 250 0~0.030 h5 2 SEME70200120E 20 20 120 250 0~0.030 h5 2 SEME70220110 22 20 110 200 0~0.030 h5 2 SEME70220110E 22 20 110 200 0~0.030 h5 2 SEME70250110 25 25 110 200 0~0.030 h5 2 SEME70250110E 25 25 110 200 0~0.030 h5 2 SEME70250120 25 25 120 250 0~0.030 h5 2 SEME70250120E 25 25 120 250 0~0.030 h5 2 SEME7005025100 5 6 25 100 0~0.030 h5 2 SEME7005025100E 5 6 25 100 0~0.030 h5 2 SEME7006015080 6 6 15 80 0~0.030 h5 2 SEME7006015080E 6 6 15 80 0~0.030 h5 2 SEME7006020090 6 6 20 90 0~0.030 h5 2 SEME7006020090E 6 6 20 90 0~0.030 h5 2 SEME7006030100 6 6 30 100 0~0.030 h5 2 SEME7006030100E 6 6 30 100 0~0.030 h5 2 SEME7006030150 6 6 30 150 0~0.030 h5 2 SEME7006030150E 6 6 30 150 0~0.030 h5 2 SEME7006040120 6 6 40 120 0~0.030 h5 2 SEME7006040120E 6 6 40 120 0~0.030 h5 2 SEME7008030100 8 8 30 100 0~0.030 h5 2 SEME7008030100E 8 8 30 100 0~0.030 h5 2 SEME7008040120 8 8 40 120 0~0.030 h5 2 SEME7008040120E 8 8 40 120 0~0.030 h5 2 SEME7008040150 8 8 40 150 0~0.030 h5 2 SEME7008040150E 8 8 40 150 0~0.030 h5 2 SEME7008050150 8 8 50 150 0~0.030 h5 2 SEME7008050150E 8 8 50 150 0~0.030 h5 2 SEME7010030100 10 10 30 100 0~0.030 h5 2 SEME7010030100E 10 10 30 100 0~0.030 h5 2 SEME7010040120 10 10 40 120 0~0.030 h5 2 SEME7010040120E 10 10 40 120 0~0.030 h5 2 SEME7010050150 10 10 50 150 0~0.030 h5 2 SEME7010050150E 10 10 50 150 0~0.030 h5 2 SEME7010050200 10 10 50 200 0~0.030 h5 2 SEME7010050200E 10 10 50 200 0~0.030 h5 2 SEME7010060200 10 10 60 200 0~0.030 h5 2 SEME7010060200E 10 10 60 200 0~0.030 h5 2 SEME7012040120 12 12 40 120 0~0.030 h5 2 SEME7012040120E 12 12 40 120 0~0.030 h5 2 SEME7012050150 12 12 50 150 0~0.030 h5 2 SEME7012050150E 12 12 50 150 0~0.030 h5 2 SEME7012060150 12 12 60 150 0~0.030 h5 2 SEME7012060150E 12 12 60 150 0~0.030 h5 2 SEME7012060200 12 12 60 200 0~0.030 h5 2 SEME7012060200E 12 12 60 200 0~0.030 h5 2 SEME7012070200 12 12 70 200 0~0.030 h5 2 SEME7012070200E 12 12 70 200 0~0.030 h5 2 SEME7016050150 16 16 50 150 0~0.030 h5 2 SEME7016050150E 16 16 50 150 0~0.030 h5 2 SEME7016070150 16 16 70 150 0~0.030 h5 2 SEME7016070150E 16 16 70 150 0~0.030 h5 2 SEME7016070200 16 16 70 200 0~0.030 h5 2 SEME7016070200E 16 16 70 200 0~0.030 h5 2 SEME7020050150 20 20 50 150 0~0.030 h5 2 SEME7020050150E 20 20 50 150 0~0.030 h5 2 SEME7020090200 20 20 90 200 0~0.030 h5 2 SEME7020090200E 20 20 90 200 0~0.030 h5 2
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME7001003 1 6 3 60 0~0.030 h5 2 SEME7001003E 1 6 3 60 0~0.030 h5 2 SEME7001004 1 6 4 60 0~0.030 h5 2 SEME7001004E 1 6 4 60 0~0.030 h5 2 SEME7001005 1 6 5 60 0~0.030 h5 2 SEME7001005E 1 6 5 60 0~0.030 h5 2 SEME7001006 1 6 6 60 0~0.030 h5 2 SEME7001006E 1 6 6 60 0~0.030 h5 2 SEME7001007 1 6 7 60 0~0.030 h5 2 SEME7001007E 1 6 7 60 0~0.030 h5 2 SEME7001008 1 6 8 60 0~0.030 h5 2 SEME7001008E 1 6 8 60 0~0.030 h5 2 SEME7001010 1 6 10 60 0~0.030 h5 2 SEME7001010E 1 6 10 60 0~0.030 h5 2 SEME7001012 1 6 12 60 0~0.030 h5 2 SEME7001012E 1 6 12 60 0~0.030 h5 2 SEME7001204 1.2 6 4 60 0~0.030 h5 2 SEME7001204E 1.2 6 4 60 0~0.030 h5 2 SEME7001206 1.2 6 6 60 0~0.030 h5 2 SEME7001206E 1.2 6 6 60 0~0.030 h5 2 SEME7001208 1.2 6 8 60 0~0.030 h5 2 SEME7001208E 1.2 6 8 60 0~0.030 h5 2 SEME7001210 1.2 6 10 60 0~0.030 h5 2 SEME7001210E 1.2 6 10 60 0~0.030 h5 2 SEME7001212 1.2 6 12 60 0~0.030 h5 2 SEME7001212E 1.2 6 12 60 0~0.030 h5 2 SEME7001506 1.5 6 6 60 0~0.030 h5 2 SEME7001506E 1.5 6 6 60 0~0.030 h5 2 SEME7001508 1.5 6 8 60 0~0.030 h5 2 SEME7001508E 1.5 6 8 60 0~0.030 h5 2 SEME7001510 1.5 6 10 60 0~0.030 h5 2 SEME7001510E 1.5 6 10 60 0~0.030 h5 2 SEME7001512 1.5 6 12 60 0~0.030 h5 2 SEME7001512E 1.5 6 12 60 0~0.030 h5 2 SEME7001514 1.5 6 14 60 0~0.030 h5 2 SEME7001514E 1.5 6 14 60 0~0.030 h5 2 SEME7001516 1.5 6 16 60 0~0.030 h5 2 SEME7001516E 1.5 6 16 60 0~0.030 h5 2 SEME7002008 2 6 8 60 0~0.030 h5 2 SEME7002008E 2 6 8 60 0~0.030 h5 2 SEME7002010 2 6 10 60 0~0.030 h5 2 SEME7002010E 2 6 10 60 0~0.030 h5 2 SEME7002012 2 6 12 60 0~0.030 h5 2 SEME7002012E 2 6 12 60 0~0.030 h5 2 SEME7002014 2 6 14 60 0~0.030 h5 2 SEME7002014E 2 6 14 60 0~0.030 h5 2 SEME7002016 2 6 16 60 0~0.030 h5 2 SEME7002016E 2 6 16 60 0~0.030 h5 2 SEME7002510 2.5 6 10 60 0~0.030 h5 2 SEME7002510E 2.5 6 10 60 0~0.030 h5 2 SEME7002512 2.5 6 12 60 0~0.030 h5 2 SEME7002512E 2.5 6 12 60 0~0.030 h5 2 SEME7002516 2.5 6 16 60 0~0.030 h5 2 SEME7002516E 2.5 6 16 60 0~0.030 h5 2 SEME7002520 2.5 6 20 60 0~0.030 h5 2 SEME7002520E 2.5 6 20 60 0~0.030 h5 2 SEME7002526 2.5 6 26 60 0~0.030 h5 2 SEME7002526E 2.5 6 26 60 0~0.030 h5 2 SEME7003010 3 6 10 70 0~0.030 h5 2 SEME7003010E 3 6 10 70 0~0.030 h5 2 SEME7003012 3 6 12 70 0~0.030 h5 2 SEME7003012E 3 6 12 70 0~0.030 h5 2 SEME7003014 3 6 14 70 0~0.030 h5 2 SEME7003014E 3 6 14 70 0~0.030 h5 2 SEME7003016 3 6 16 70 0~0.030 h5 2 SEME7003016E 3 6 16 70 0~0.030 h5 2 SEME7003020 3 6 20 70 0~0.030 h5 2 SEME7003020E 3 6 20 70 0~0.030 h5 2 SEME7003026 3 6 26 70 0~0.030 h5 2 SEME7003026E 3 6 26 70 0~0.030 h5 2 SEME7003030 3 6 30 70 0~0.030 h5 2 SEME7003030E 3 6 30 70 0~0.030 h5 2 SEME7004012 4 6 12 70 0~0.030 h5 2 SEME7004012E 4 6 12 70 0~0.030 h5 2 SEME7004016 4 6 16 70 0~0.030 h5 2 SEME7004016E 4 6 16 70 0~0.030 h5 2 SEME7004020 4 6 20 70 0~0.030 h5 2 SEME7004020E 4 6 20 70 0~0.030 h5 2 SEME7004026 4 6 26 70 0~0.030 h5 2 SEME7004026E 4 6 26 70 0~0.030 h5 2 SEME7004030 4 6 30 70 0~0.030 h5 2 SEME7004030E 4 6 30 70 0~0.030 h5 2 SEME7005020 5 6 20 70 0~0.030 h5 2 SEME7005020E 5 6 20 70 0~0.030 h5 2 SEME7005025 5 6 25 70 0~0.030 h5 2 SEME7005025E 5 6 25 70 0~0.030 h5 2 SEME7005030 5 6 30 80 0~0.030 h5 2 SEME7005030E 5 6 30 80 0~0.030 h5 2 SEME7005035 5 6 35 90 0~0.030 h5 2 SEME7005035E 5 6 35 90 0~0.030 h5 2 SEME7005040 5 6 40 100 0~0.030 h5 2 SEME7005040E 5 6 40 100 0~0.030 h5 2 SEME7006015 6 6 15 60 0~0.030 h5 2 SEME7006015E 6 6 15 60 0~0.030 h5 2 SEME7006020 6 6 20 70 0~0.030 h5 2 SEME7006020E 6 6 20 70 0~0.030 h5 2 SEME7006025 6 6 25 75 0~0.030 h5 2 SEME7006025E 6 6 25 75 0~0.030 h5 2 SEME7006030 6 6 30 80 0~0.030 h5 2 SEME7006030E 6 6 30 80 0~0.030 h5 2 SEME7006035 6 6 35 90 0~0.030 h5 2 SEME7006035E 6 6 35 90 0~0.030 h5 2 SEME7006040 6 6 40 90 0~0.030 h5 2 SEME7006040E 6 6 40 90 0~0.030 h5 2 SEME7006045 6 6 45 150 0~0.030 h5 2 SEME7006045E 6 6 45 150 0~0.030 h5 2 SEME7008025 8 8 25 80 0~0.030 h5 2 SEME7008025E 8 8 25 80 0~0.030 h5 2 SEME7008030 8 8 30 80 0~0.030 h5 2 SEME7008030E 8 8 30 80 0~0.030 h5 2 SEME7008035 8 8 35 90 0~0.030 h5 2 SEME7008035E 8 8 35 90 0~0.030 h5 2 SEME7008040 8 8 40 90 0~0.030 h5 2 SEME7008040E 8 8 40 90 0~0.030 h5 2 SEME7008045 8 8 45 100 0~0.030 h5 2 SEME7008045E 8 8 45 100 0~0.030 h5 2 SEME7008050 8 8 50 100 0~0.030 h5 2 SEME7008050E 8 8 50 100 0~0.030 h5 2 SEME7010030 10 10 30 80 0~0.030 h5 2 SEME7010030E 10 10 30 80 0~0.030 h5 2 SEME7010035 10 10 35 90 0~0.030 h5 2 SEME7010035E 10 10 35 90 0~0.030 h5 2 SEME7010040 10 10 40 90 0~0.030 h5 2 SEME7010040E 10 10 40 90 0~0.030 h5 2 SEME7010045 10 10 45 100 0~0.030 h5 2 SEME7010045E 10 10 45 100 0~0.030 h5 2 SEME7010050 10 10 50 100 0~0.030 h5 2 SEME7010050E 10 10 50 100 0~0.030 h5 2 SEME7010055 10 10 55 150 0~0.030 h5 2 SEME7010055E 10 10 55 150 0~0.030 h5 2 SEME7010060 10 10 60 110 0~0.030 h5 2 SEME7010060E 10 10 60 110 0~0.030 h5 2 SEME7012035 12 12 35 90 0~0.030 h5 2 SEME7012035E 12 12 35 90 0~0.030 h5 2 SEME7012040 12 12 40 100 0~0.030 h5 2 SEME7012040E 12 12 40 100 0~0.030 h5 2 SEME7012045 12 12 45 130 0~0.030 h5 2 SEME7012045E 12 12 45 130 0~0.030 h5 2 SEME7012050 12 12 50 100 0~0.030 h5 2 SEME7012050E 12 12 50 100 0~0.030 h5 2 SEME7012055 12 12 55 110 0~0.030 h5 2 SEME7012055E 12 12 55 110 0~0.030 h5 2 SEME7012060 12 12 60 110 0~0.030 h5 2 SEME7012060E 12 12 60 110 0~0.030 h5 2 SEME7012065 12 12 65 150 0~0.030 h5 2 SEME7012065E 12 12 65 150 0~0.030 h5 2 SEME7012070 12 12 70 120 0~0.030 h5 2 SEME7012070E 12 12 70 120 0~0.030 h5 2 SEME7014050 14 16 50 110 0~0.030 h5 2 SEME7014050E 14 16 50 110 0~0.030 h5 2 SEME7014060 14 16 60 150 0~0.030 h5 2 SEME7014060E 14 16 60 150 0~0.030 h5 2 SEME7016040 16 16 40 150 0~0.030 h5 2 SEME7016040E 16 16 40 150 0~0.030 h5 2 SEME7016050 16 16 50 110 0~0.030 h5 2 SEME7016050E 16 16 50 110 0~0.030 h5 2 SEME7016060 16 16 60 120 0~0.030 h5 2 SEME7016060E 16 16 60 120 0~0.030 h5 2 SEME7016070 16 16 70 130 0~0.030 h5 2 SEME7016070E 16 16 70 130 0~0.030 h5 2 SEME7016080 16 16 80 150 0~0.030 h5 2 SEME7016080E 16 16 80 150 0~0.030 h5 2 SEME7016090 16 16 90 150 0~0.030 h5 2 SEME7016090E 16 16 90 150 0~0.030 h5 2 SEME7018050 18 20 50 120 0~0.030 h5 2 SEME7018050E 18 20 50 120 0~0.030 h5 2 SEME7018070 18 20 70 130 0~0.030 h5 2 SEME7018070E 18 20 70 130 0~0.030 h5 2 SEME7020050 20 20 50 110 0~0.030 h5 2 SEME7020050E 20 20 50 110 0~0.030 h5 2 SEME7020060 20 20 60 130 0~0.030 h5 2 SEME7020060E 20 20 60 130 0~0.030 h5 2 SEME7020070 20 20 70 130 0~0.030 h5 2 SEME7020070E 20 20 70 130 0~0.030 h5 2 SEME7020080 20 20 80 150 0~0.030 h5 2 SEME7020080E 20 20 80 150 0~0.030 h5 2 SEME7020090 20 20 90 150 0~0.030 h5 2 SEME7020090E 20 20 90 150 0~0.030 h5 2 SEME7022075 22 20 75 150 0~0.030 h5 2 SEME7022075E 22 20 75 150 0~0.030 h5 2 SEME7025070 25 25 70 150 0~0.030 h5 2 SEME7025070E 25 25 70 150 0~0.030 h5 2 SEME7025090 25 25 90 150 0~0.030 h5 2 SEME7025090E 25 25 90 150 0~0.030 h5 2 SEME70030163S 3 3 16 100 0~0.030 h5 2 SEME70030163SE 3 3 16 100 0~0.030 h5 2 SEME70040204S 4 4 20 100 0~0.030 h5 2 SEME70040204SE 4 4 20 100 0~0.030 h5 2 SEME70160110 16 16 110 200 0~0.030 h5 2 SEME70160110E 16 16 110 200 0~0.030 h5 2 SEME70160120 16 16 120 250 0~0.030 h5 2 SEME70160120E 16 16 120 250 0~0.030 h5 2 SEME70180100 18 20 100 200 0~0.030 h5 2 SEME70180100E 18 20 100 200 0~0.030 h5 2 SEME70200110 20 20 110 200 0~0.030 h5 2 SEME70200110E 20 20 110 200 0~0.030 h5 2 SEME70200120 20 20 120 250 0~0.030 h5 2 SEME70200120E 20 20 120 250 0~0.030 h5 2 SEME70220110 22 20 110 200 0~0.030 h5 2 SEME70220110E 22 20 110 200 0~0.030 h5 2 SEME70250110 25 25 110 200 0~0.030 h5 2 SEME70250110E 25 25 110 200 0~0.030 h5 2 SEME70250120 25 25 120 250 0~0.030 h5 2 SEME70250120E 25 25 120 250 0~0.030 h5 2 SEME7005025100 5 6 25 100 0~0.030 h5 2 SEME7005025100E 5 6 25 100 0~0.030 h5 2 SEME7006015080 6 6 15 80 0~0.030 h5 2 SEME7006015080E 6 6 15 80 0~0.030 h5 2 SEME7006020090 6 6 20 90 0~0.030 h5 2 SEME7006020090E 6 6 20 90 0~0.030 h5 2 SEME7006030100 6 6 30 100 0~0.030 h5 2 SEME7006030100E 6 6 30 100 0~0.030 h5 2 SEME7006030150 6 6 30 150 0~0.030 h5 2 SEME7006030150E 6 6 30 150 0~0.030 h5 2 SEME7006040120 6 6 40 120 0~0.030 h5 2 SEME7006040120E 6 6 40 120 0~0.030 h5 2 SEME7008030100 8 8 30 100 0~0.030 h5 2 SEME7008030100E 8 8 30 100 0~0.030 h5 2 SEME7008040120 8 8 40 120 0~0.030 h5 2 SEME7008040120E 8 8 40 120 0~0.030 h5 2 SEME7008040150 8 8 40 150 0~0.030 h5 2 SEME7008040150E 8 8 40 150 0~0.030 h5 2 SEME7008050150 8 8 50 150 0~0.030 h5 2 SEME7008050150E 8 8 50 150 0~0.030 h5 2 SEME7010030100 10 10 30 100 0~0.030 h5 2 SEME7010030100E 10 10 30 100 0~0.030 h5 2 SEME7010040120 10 10 40 120 0~0.030 h5 2 SEME7010040120E 10 10 40 120 0~0.030 h5 2 SEME7010050150 10 10 50 150 0~0.030 h5 2 SEME7010050150E 10 10 50 150 0~0.030 h5 2 SEME7010050200 10 10 50 200 0~0.030 h5 2 SEME7010050200E 10 10 50 200 0~0.030 h5 2 SEME7010060200 10 10 60 200 0~0.030 h5 2 SEME7010060200E 10 10 60 200 0~0.030 h5 2 SEME7012040120 12 12 40 120 0~0.030 h5 2 SEME7012040120E 12 12 40 120 0~0.030 h5 2 SEME7012050150 12 12 50 150 0~0.030 h5 2 SEME7012050150E 12 12 50 150 0~0.030 h5 2 SEME7012060150 12 12 60 150 0~0.030 h5 2 SEME7012060150E 12 12 60 150 0~0.030 h5 2 SEME7012060200 12 12 60 200 0~0.030 h5 2 SEME7012060200E 12 12 60 200 0~0.030 h5 2 SEME7012070200 12 12 70 200 0~0.030 h5 2 SEME7012070200E 12 12 70 200 0~0.030 h5 2 SEME7016050150 16 16 50 150 0~0.030 h5 2 SEME7016050150E 16 16 50 150 0~0.030 h5 2 SEME7016070150 16 16 70 150 0~0.030 h5 2 SEME7016070150E 16 16 70 150 0~0.030 h5 2 SEME7016070200 16 16 70 200 0~0.030 h5 2 SEME7016070200E 16 16 70 200 0~0.030 h5 2 SEME7020050150 20 20 50 150 0~0.030 h5 2 SEME7020050150E 20 20 50 150 0~0.030 h5 2 SEME7020090200 20 20 90 200 0~0.030 h5 2 SEME7020090200E 20 20 90 200 0~0.030 h5 2
