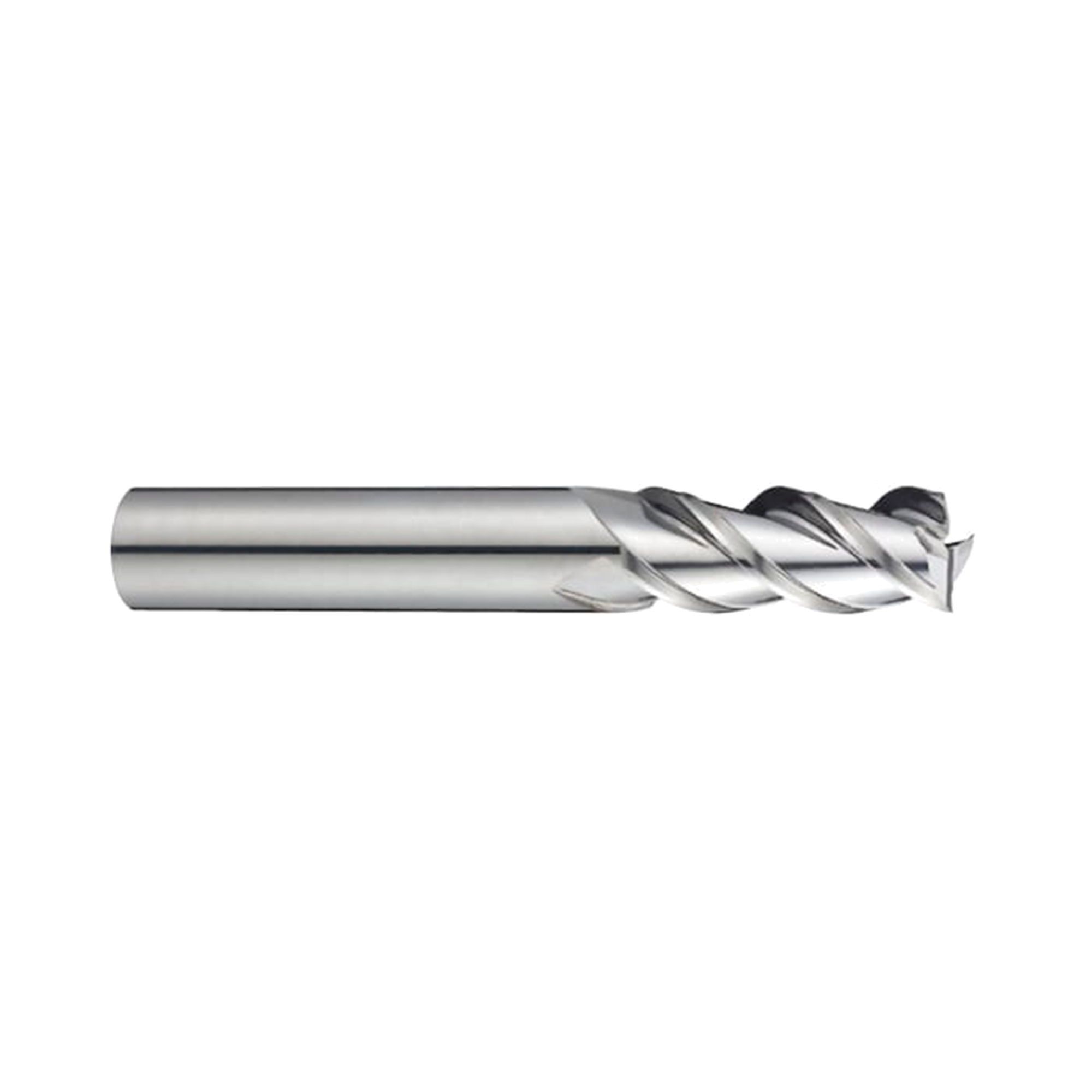

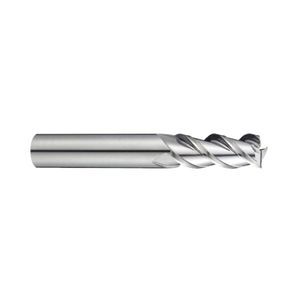

ALU-POWER 3 Flute 45°Helix Long End Mill (E5E49)
Code: E5E49030
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

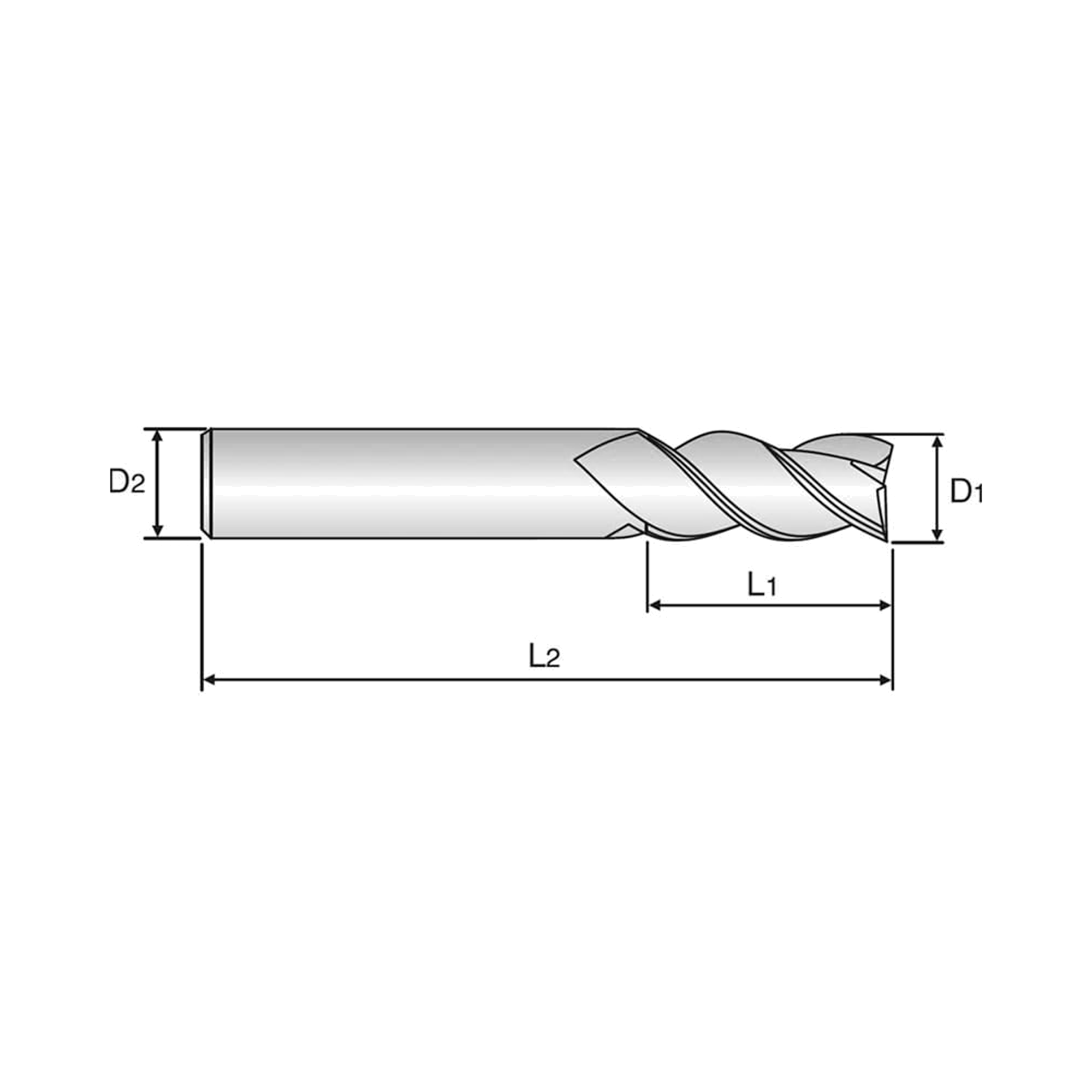

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank diameter (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| E5E49030 | 3.0 | 92.0 | 20.0 | 26.0 | Low stock | $27.80 | ||
| E5E49040 | 4.0 | 57.0 | 6.0 | 15.0 | No stock | $39.10 | ||
| E5E49050 | 5.0 | 57.0 | 6.0 | 20.0 | In stock | $39.10 | ||
| E5E49060 | 6.0 | 65.0 | 6.0 | 20.0 | In stock | $42.90 | ||
| E5E49080 | 8.0 | 65.0 | 8.0 | 22.0 | In stock | $60.00 | ||
| E5E49100 | 10.0 | 70.0 | 10.0 | 25.0 | No stock | $73.40 | ||
| E5E49120 | 12.0 | 75.0 | 12.0 | 25.0 | In stock | $98.30 | ||
| E5E49160 | 16.0 | 90.0 | 16.0 | 35.0 | In stock | $168.80 | ||
| E5E49200 | 20.0 | 100.0 | 20.0 | 40.0 | Low stock | $289.60 |
Add ALU-POWER 3 Flute 45°Helix Long End Mill (E5E49) to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Speeds & Feeds
Product Description
The E5E49 series carbide Alu-Power cutters from YG-1 range from 1-20mm in diameter. These 3 flute cutters are ideal for mirror finish machining Aluminium and Non-Ferrous materials.
- Suitable for machining of aluminium and other non-ferrous machining.
- Special geometries & lapped flutes ensures the best chip control and surface finish on aluminium.
- Deep flute pockets prevent swarf clogging up the tool.
- Increased tool life and higher cutting accuracy achieved.
- Cylindrical relief reduces chipping of corner edges.
- Micrograin Carbide Substrate.
- Sharp cutting edges with mirror finish machining.
- Ultra-high metal removal rates possible with WAVE-CUT.
Product Data
| Workpiece Material | N |
| Cutting Shape | Square |
| Helix Angle | Square 45 |
| No. Flutes | 3 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | Uncoated |
| Tool Material | Carbide |
| Flutes | 3 |
| Helix Angle | 45° |
| Cutting Edge Shape | Square |
| Size Min | D3.0 |
| Size Max | D20.0 |
| Length | Short Length |
| Coated | Uncoated |
Side Milling
Small Part
Slotting
Die Sinking
Facing
Aluminium
Excellent
Good
Great
Excellent
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 65 | 0.045 | 7000 | 940 |
| 4.0 | 90 | 0.055 | 7000 | 1150 |
| 5.0 | 110 | 0.065 | 7000 | 1360 |
| 6.0 | 130 | 0.075 | 7000 | 1580 |
| 8.0 | 140 | 0.113 | 5600 | 1900 |
| 9.0 | 160 | 0.122 | 5600 | 2050 |
| 10.0 | 175 | 0.131 | 5600 | 2200 |
| 12.0 | 210 | 0.163 | 5600 | 2740 |
| 16.0 | 210 | 0.200 | 4200 | 2520 |
| 20.0 | 175 | 0.238 | 2800 | 2000 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 65 | 0.035 | 7000 | 730 |
| 4.0 | 90 | 0.045 | 7000 | 940 |
| 5.0 | 110 | 0.050 | 7000 | 1050 |
| 6.0 | 130 | 0.060 | 7000 | 1250 |
| 8.0 | 140 | 0.088 | 5600 | 1470 |
| 9.0 | 160 | 0.097 | 5600 | 1630 |
| 10.0 | 175 | 0.106 | 5600 | 1780 |
| 12.0 | 210 | 0.131 | 5600 | 2200 |
| 16.0 | 210 | 0.158 | 4200 | 1990 |
| 20.0 | 175 | 0.200 | 2800 | 1680 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
