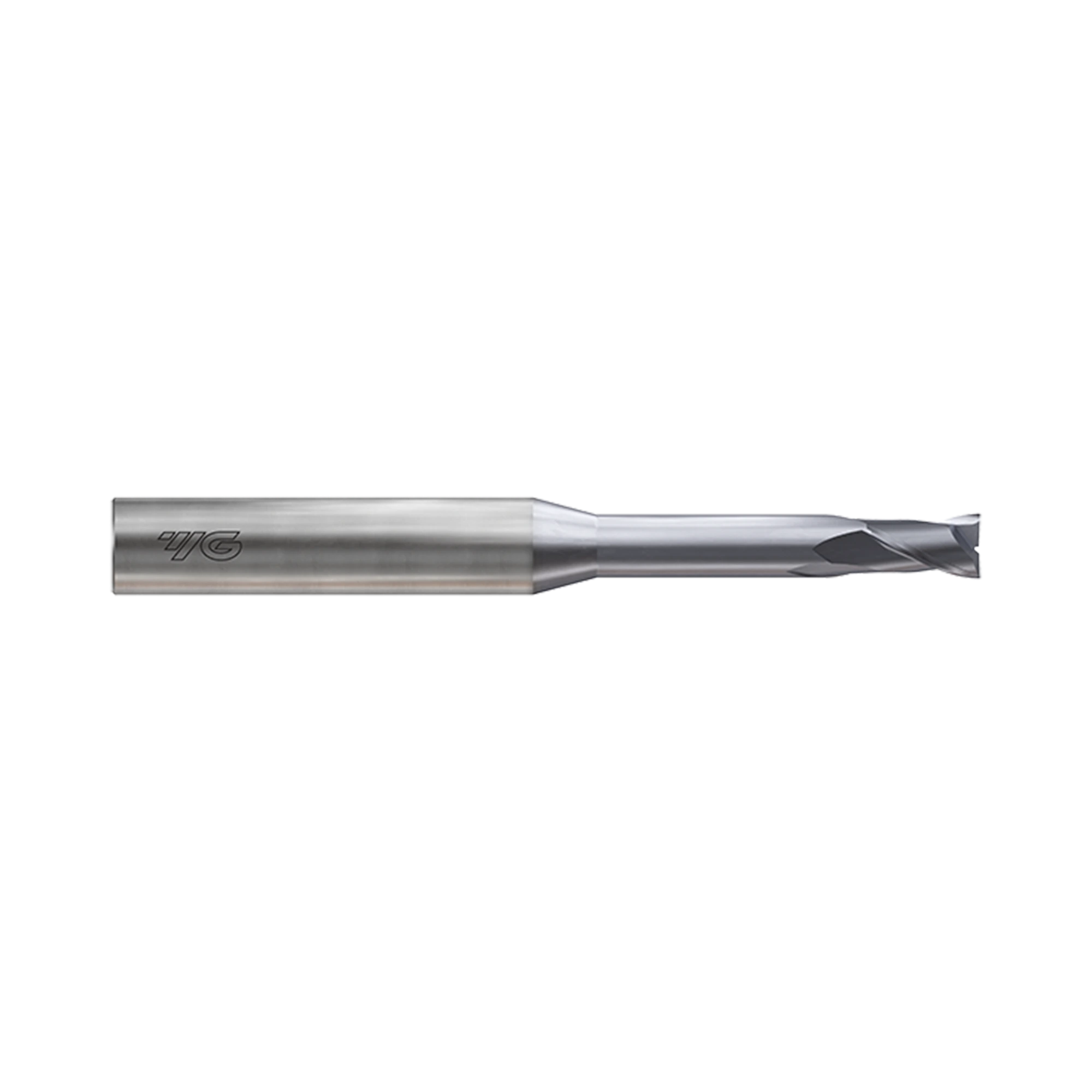

4G MILL 2 Flute 30°Helix Rib Ball End Mill (SEM846)

  • $157.19INC GST $142.90 EX GST
4G MILL 2 Flute 30°Helix Rib Ball End Mill (SEM846)
4G MILL 2 Flute 30°Helix Rib Ball End Mill (SEM846)

4G MILL 2 Flute 30°Helix Rib Ball End Mill (SEM846)

  • $157.19INC GST $142.90 EX GST

Code: SEM84600101E

P M K H
Mill Diameter (mm)
Ball Nose Radius (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Ball Nose Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Length below shank (mm)Neck dia. (mm)Stock Price Qty Add
SEM84600101E0.1R0.0540.04.00.11.00.085 5 days $142.90
SEM84600201E0.2R0.140.04.00.21.00.17 5 days $137.20
SEM84600301E0.3R0.1540.04.00.31.00.27 5 days $108.20
SEM84600401E0.4R0.240.04.00.41.00.37 5 days $88.00
SEM84600502E0.5R0.2545.04.00.52.00.45 5 days $94.70
SEM84600601E0.6R0.345.04.00.61.00.55 5 days $73.20
SEM84600702E0.7R0.3545.04.00.72.00.65 5 days $100.00
SEM84600801E0.8R0.445.04.00.81.00.75 5 days $73.20
SEM84600904E0.9R0.4545.04.00.94.00.85 5 days $73.20
SEM84601002E1R0.550.04.01.02.00.95 In stock $87.70
SEM84601204E1.2R0.650.04.01.24.01.15 5 days $64.20
SEM84601406E1.4R0.750.04.01.46.01.35 5 days $64.20
SEM84601503E1.5R0.7550.04.01.53.01.45 In stock $87.70
SEM84601604E1.6R0.850.04.01.64.01.55 5 days $64.20
SEM84601804E1.8R0.950.04.01.84.01.75 5 days $64.20
SEM84602004E2R1.050.04.02.04.01.95 5 days $64.20
SEM84602508E2.5R1.2550.04.02.58.02.4 5 days $64.20
SEM84603006E3R1.550.06.03.06.02.85 5 days $72.60
SEM84604008E4R2.050.06.04.08.03.85 5 days $72.60
SEM84605015E5R2.560.06.06.015.04.85 5 days $75.00
SEM84606020E6R3.060.06.08.020.05.85 5 days $102.30
SEM84608025E8R4.070.08.010.025.07.7 5 days $116.10
SEM84610030E10R5.075.010.012.030.09.7 5 days $206.70
SEM84612032E12R6.080.012.014.032.011.7 5 days $204.00

Add 4G MILL 2 Flute 30°Helix Rib Ball End Mill (SEM846) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The SEME846 ball nose series has a long neck design, ideal for applications where clearance is required to prevent interference from the shank. It is available in diameters ranging from 0.1-12mm with a huge range of lengths. The 4G Mill range from YG-1 offers unbeatable performance and accuracy in high speed machining of all carbon or alloy steels, pre-hardened steels (uptoHRc55), stainless steel and cast iron. The nanograin carbide substrate and Y1200 coating offers extreme cutting life in temperatures up to 1,200°C.

  • Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
  • YG-1's Y1200 coating & premium micrograin carbide substrate
  • HSC - High speed cutting
  • Due to new coating and tool geometry, 4G Mills can machine up to 1200°C with outstanding wear resistance
  • Due to it's unique ball nose geometry and cutting edges, exceptional surface can be achieved)
  • Available with various reach lengths and overall lengths

SEM84600101 SEM84600101E SEM84600201 SEM84600201E SEM84600202 SEM84600202E SEM84600203 SEM84600203E SEM84600301 SEM84600301E SEM84600302 SEM84600302E SEM84600303 SEM84600303E SEM84600304 SEM84600304E SEM84600305 SEM84600305E SEM84600401 SEM84600401E SEM84600402 SEM84600402E SEM84600403 SEM84600403E SEM84600404 SEM84600404E SEM84600405 SEM84600405E SEM84600406 SEM84600406E SEM84600408 SEM84600408E SEM84600410 SEM84600410E SEM84600501 SEM84600501E SEM84600502 SEM84600502E SEM84600503 SEM84600503E SEM84600504 SEM84600504E SEM84600505 SEM84600505E SEM84600506 SEM84600506E SEM84600508 SEM84600508E SEM84600510 SEM84600510E SEM84600512 SEM84600512E SEM84600514 SEM84600514E SEM84600516 SEM84600516E SEM84600601 SEM84600601E SEM84600602 SEM84600602E SEM84600603 SEM84600603E SEM84600604 SEM84600604E SEM84600605 SEM84600605E SEM84600606 SEM84600606E SEM84600608 SEM84600608E SEM84600610 SEM84600610E SEM84600612 SEM84600612E SEM84600614 SEM84600614E SEM84600616 SEM84600616E SEM84600702 SEM84600702E SEM84600704 SEM84600704E SEM84600706 SEM84600706E SEM84600708 SEM84600708E SEM84600710 SEM84600710E SEM84600712 SEM84600712E SEM84600801 SEM84600801E SEM84600802 SEM84600802E SEM84600803 SEM84600803E SEM84600804 SEM84600804E SEM84600805 SEM84600805E SEM84600806 SEM84600806E SEM84600808 SEM84600808E SEM84600810 SEM84600810E SEM84600812 SEM84600812E SEM84600814 SEM84600814E SEM84600816 SEM84600816E SEM84600820 SEM84600820E SEM84600904 SEM84600904E SEM84600906 SEM84600906E SEM84600908 SEM84600908E SEM84600910 SEM84600910E SEM84601002 SEM84601002E SEM84601003 SEM84601003E SEM84601004 SEM84601004E SEM84601005 SEM84601005E SEM84601006 SEM84601006E SEM84601007 SEM84601007E SEM84601008 SEM84601008E SEM84601009 SEM84601009E SEM84601010 SEM84601010E SEM84601012 SEM84601012E SEM84601014 SEM84601014E SEM84601016 SEM84601016E SEM84601018 SEM84601018E SEM84601020 SEM84601020E SEM84601022 SEM84601022E SEM84601026 SEM84601026E SEM84601030 SEM84601030E SEM84601040 SEM84601040E SEM84601050 SEM84601050E SEM84601204 SEM84601204E SEM84601206 SEM84601206E SEM84601208 SEM84601208E SEM84601210 SEM84601210E SEM84601212 SEM84601212E SEM84601216 SEM84601216E SEM84601220 SEM84601220E SEM84601226 SEM84601226E SEM84601406 SEM84601406E SEM84601408 SEM84601408E SEM84601410 SEM84601410E SEM84601412 SEM84601412E SEM84601416 SEM84601416E SEM84601503 SEM84601503E SEM84601504 SEM84601504E SEM84601505 SEM84601505E SEM84601506 SEM84601506E SEM84601507 SEM84601507E SEM84601508 SEM84601508E SEM84601510 SEM84601510E SEM84601512 SEM84601512E SEM84601514 SEM84601514E SEM84601516 SEM84601516E SEM84601518 SEM84601518E SEM84601520 SEM84601520E SEM84601522 SEM84601522E SEM84601526 SEM84601526E SEM84601530 SEM84601530E SEM84601535 SEM84601535E SEM84601540 SEM84601540E SEM84601604 SEM84601604E SEM84601606 SEM84601606E SEM84601608 SEM84601608E SEM84601610 SEM84601610E SEM84601612 SEM84601612E SEM84601616 SEM84601616E SEM84601620 SEM84601620E SEM84601804 SEM84601804E SEM84601806 SEM84601806E SEM84601808 SEM84601808E SEM84601810 SEM84601810E SEM84601812 SEM84601812E SEM84601816 SEM84601816E SEM84601820 SEM84601820E SEM84602004 SEM84602004E SEM84602006 SEM84602006E SEM84602008 SEM84602008E SEM84602010 SEM84602010E SEM84602012 SEM84602012E SEM84602014 SEM84602014E SEM84602016 SEM84602016E SEM84602018 SEM84602018E SEM84602020 SEM84602020E SEM84602022 SEM84602022E SEM84602026 SEM84602026E SEM84602030 SEM84602030E SEM84602035 SEM84602035E SEM84602040 SEM84602040E SEM84602045 SEM84602045E SEM84602050 SEM84602050E SEM84602060 SEM84602060E SEM84602508 SEM84602508E SEM84602510 SEM84602510E SEM84602512 SEM84602512E SEM84602516 SEM84602516E SEM84602520 SEM84602520E SEM84602522 SEM84602522E SEM84602526 SEM84602526E SEM84602530 SEM84602530E SEM84602535 SEM84602535E SEM84602540 SEM84602540E SEM84602545 SEM84602545E SEM84602550 SEM84602550E SEM84603006 SEM84603006E SEM84603008 SEM84603008E SEM84603010 SEM84603010E SEM84603012 SEM84603012E SEM84603014 SEM84603014E SEM84603016 SEM84603016E SEM84603018 SEM84603018E SEM84603020 SEM84603020E SEM84603022 SEM84603022E SEM84603026 SEM84603026E SEM84603030 SEM84603030E SEM84603035 SEM84603035E SEM84603040 SEM84603040E SEM84603045 SEM84603045E SEM84603050 SEM84603050E SEM84603060 SEM84603060E SEM84604008 SEM84604008E SEM84604010 SEM84604010E SEM84604012 SEM84604012E SEM84604014 SEM84604014E SEM84604016 SEM84604016E SEM84604018 SEM84604018E SEM84604020 SEM84604020E SEM84604022 SEM84604022E SEM84604026 SEM84604026E SEM84604030 SEM84604030E SEM84604035 SEM84604035E SEM84604040 SEM84604040E SEM84604045 SEM84604045E SEM84604050 SEM84604050E SEM84604055 SEM84604055E SEM84604060 SEM84604060E SEM84605015 SEM84605015E SEM84605020 SEM84605020E SEM84605026 SEM84605026E SEM84605030 SEM84605030E SEM84605035 SEM84605035E SEM84605040 SEM84605040E SEM84605045 SEM84605045E SEM84605050 SEM84605050E SEM84605055 SEM84605055E SEM84605060 SEM84605060E SEM84606020 SEM84606020E SEM84606030 SEM84606030E SEM84608025 SEM84608025E SEM84608035 SEM84608035E SEM84610030 SEM84610030E SEM84610040 SEM84610040E SEM84612032 SEM84612032E SEM84612045 SEM84612045E SEM846001002 SEM846001002E SEM846001003 SEM846001003E SEM846001005 SEM846001005E SEM846002005 SEM846002005E SEM846002015 SEM846002015E SEM846003015 SEM846003015E SEM846003025 SEM846003025E SEM846004015 SEM846004015E SEM846004025 SEM846004025E SEM846005015 SEM846005015E SEM846005016S SEM846005016SE SEM846005025 SEM846005025E SEM846005026S SEM846005026SE SEM846005046S SEM846005046SE SEM846006016S SEM846006016SE SEM846006026S SEM846006026SE SEM846006036S SEM846006036SE SEM846006046S SEM846006046SE SEM846006056S SEM846006056SE SEM846006066S SEM846006066SE SEM846006086S SEM846006086SE SEM846006106S SEM846006106SE SEM846006126S SEM846006126SE SEM846006146S SEM846006146SE SEM846006166S SEM846006166SE SEM846008016S SEM846008016SE SEM846008026S SEM846008026SE SEM846008036S SEM846008036SE SEM846008046S SEM846008046SE SEM846008056S SEM846008056SE SEM846008066S SEM846008066SE SEM846008086S SEM846008086SE SEM846008106S SEM846008106SE SEM846008126S SEM846008126SE SEM846008146S SEM846008146SE SEM846008166S SEM846008166SE SEM846008206S SEM846008206SE SEM846010026S SEM846010026SE SEM846010036S SEM846010036SE SEM846010046S SEM846010046SE SEM846010056S SEM846010056SE SEM846010066S SEM846010066SE SEM846010076S SEM846010076SE SEM846010086S SEM846010086SE SEM846010096S SEM846010096SE SEM846010106S SEM846010106SE SEM846010126S SEM846010126SE SEM846010146S SEM846010146SE SEM846010166S SEM846010166SE SEM846010186S SEM846010186SE SEM846010206S SEM846010206SE SEM846010226S SEM846010226SE SEM846010266S SEM846010266SE SEM846010306S SEM846010306SE SEM846015036S SEM846015036SE SEM846015046S SEM846015046SE SEM846015066S SEM846015066SE SEM846015086S SEM846015086SE SEM846015106S SEM846015106SE SEM846015126S SEM846015126SE SEM846015146S SEM846015146SE SEM846015166S SEM846015166SE SEM846015186S SEM846015186SE SEM846015206S SEM846015206SE SEM846015226S SEM846015226SE SEM846015266S SEM846015266SE SEM846015306S SEM846015306SE SEM846015356S SEM846015356SE SEM846015406S SEM846015406SE SEM846020046S SEM846020046SE SEM846020066S SEM846020066SE SEM846020086S SEM846020086SE SEM846020106S SEM846020106SE SEM846020126S SEM846020126SE SEM846020146S SEM846020146SE SEM846020166S SEM846020166SE SEM846020186S SEM846020186SE SEM846020206S SEM846020206SE SEM846020226S SEM846020226SE SEM846020266S SEM846020266SE SEM846020306S SEM846020306SE SEM846020356S SEM846020356SE SEM846020406S SEM846020406SE SEM846020456S SEM846020456SE SEM846020506S SEM846020506SE SEM84606020090 SEM84606020090E SEM84606030090 SEM84606030090E SEM84608025100 SEM84608025100E SEM84608035100 SEM84608035100E SEM84610030100 SEM84610030100E SEM84610040100 SEM84610040100E SEM84612032110 SEM84612032110E SEM84612045110 SEM84612045110E

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape BALL NOSE
Size Min R0.05
Size Max R6.0
Length Extended Neck
Coating Y-Coating

Product Data
Workpiece Material P M K H
Corner Radius Tolerance 0.005
Cutting Shape Ball Nose
Hardened Steels(HRc40~45) Great
Helix Angle Square 30
Length Extended Neck
No. Flutes 2
Operation Profiling, Side Milling, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide

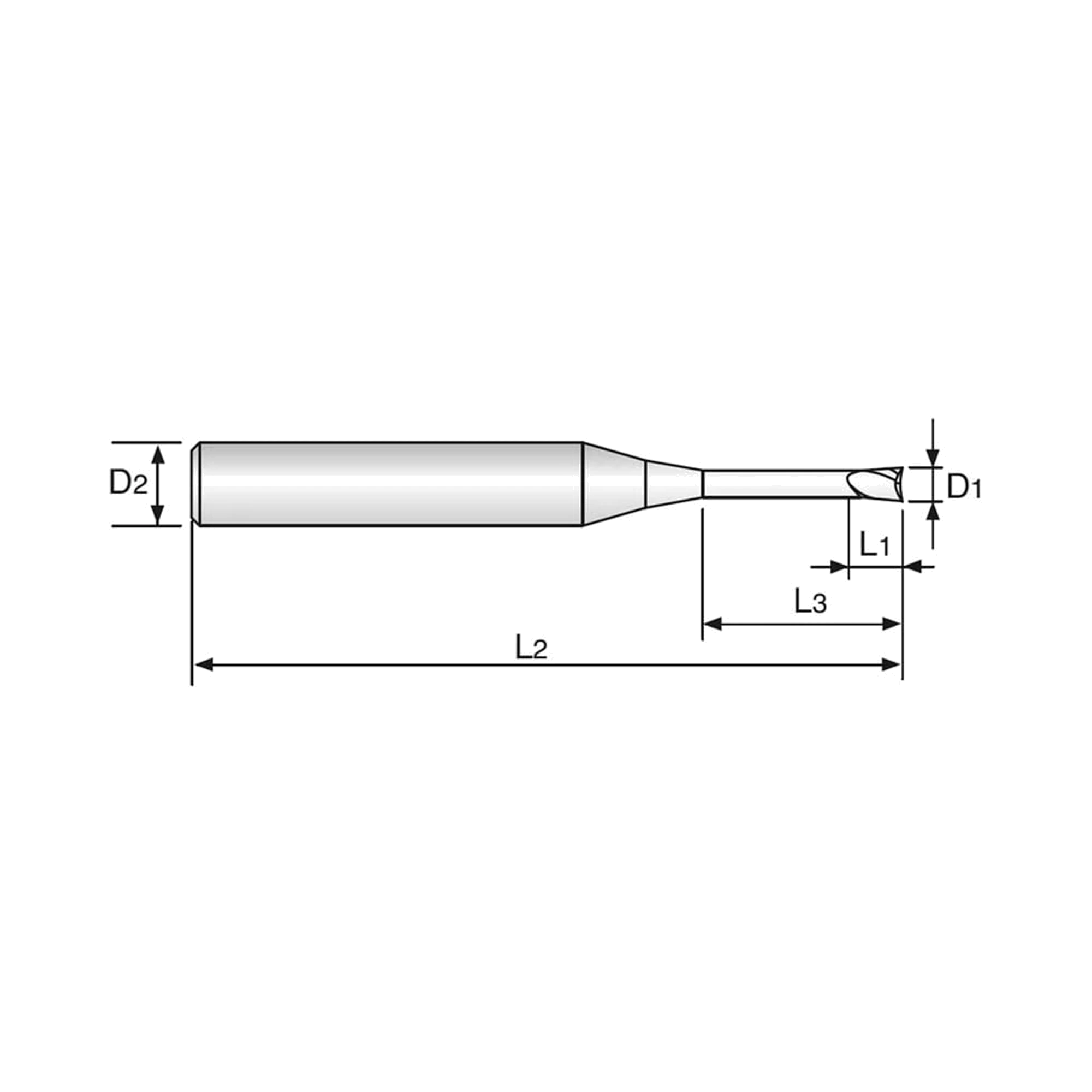

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEM84600101 0.1 4 0.1 40 0~-0.012 h5 2 SEM84600101E 0.1 4 0.1 40 0~-0.012 h5 2 SEM84600201 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600201E 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600202 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600202E 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600203 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600203E 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600301 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600301E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600302 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600302E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600303 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600303E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600304 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600304E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600305 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600305E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600401 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600401E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600402 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600402E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600403 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600403E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600404 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600404E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600405 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600405E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600406 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600406E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600408 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600408E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600410 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600410E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600501 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600501E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600502 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600502E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600503 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600503E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600504 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600504E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600505 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600505E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600506 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600506E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600508 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600508E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600510 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600510E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600512 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600512E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600514 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600514E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600516 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600516E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600601 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600601E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600602 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600602E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600603 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600603E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600604 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600604E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600605 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600605E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600606 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600606E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600608 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600608E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600610 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600610E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600612 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600612E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600614 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600614E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600616 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600616E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600702 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600702E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600704 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600704E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600706 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600706E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600708 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600708E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600710 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600710E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600712 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600712E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600801 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600801E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600802 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600802E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600803 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600803E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600804 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600804E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600805 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600805E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600806 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600806E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600808 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600808E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600810 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600810E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600812 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600812E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600814 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600814E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600816 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600816E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600820 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600820E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600904 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600904E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600906 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600906E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600908 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600908E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600910 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600910E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84601002 1 4 1 50 0~-0.012 h5 2 SEM84601002E 1 4 1 50 0~-0.012 h5 2 SEM84601003 1 4 1 50 0~-0.012 h5 2 SEM84601003E 1 4 1 50 0~-0.012 h5 2 SEM84601004 1 4 1 50 0~-0.012 h5 2 SEM84601004E 1 4 1 50 0~-0.012 h5 2 SEM84601005 1 4 1 50 0~-0.012 h5 2 SEM84601005E 1 4 1 50 0~-0.012 h5 2 SEM84601006 1 4 1 50 0~-0.012 h5 2 SEM84601006E 1 4 1 50 0~-0.012 h5 2 SEM84601007 1 4 1 50 0~-0.012 h5 2 SEM84601007E 1 4 1 50 0~-0.012 h5 2 SEM84601008 1 4 1 50 0~-0.012 h5 2 SEM84601008E 1 4 1 50 0~-0.012 h5 2 SEM84601009 1 4 1 50 0~-0.012 h5 2 SEM84601009E 1 4 1 50 0~-0.012 h5 2 SEM84601010 1 4 1 50 0~-0.012 h5 2 SEM84601010E 1 4 1 50 0~-0.012 h5 2 SEM84601012 1 4 1 50 0~-0.012 h5 2 SEM84601012E 1 4 1 50 0~-0.012 h5 2 SEM84601014 1 4 1 50 0~-0.012 h5 2 SEM84601014E 1 4 1 50 0~-0.012 h5 2 SEM84601016 1 4 1 50 0~-0.012 h5 2 SEM84601016E 1 4 1 50 0~-0.012 h5 2 SEM84601018 1 4 1 50 0~-0.012 h5 2 SEM84601018E 1 4 1 50 0~-0.012 h5 2 SEM84601020 1 4 1 50 0~-0.012 h5 2 SEM84601020E 1 4 1 50 0~-0.012 h5 2 SEM84601022 1 4 1 60 0~-0.012 h5 2 SEM84601022E 1 4 1 60 0~-0.012 h5 2 SEM84601026 1 4 1 60 0~-0.012 h5 2 SEM84601026E 1 4 1 60 0~-0.012 h5 2 SEM84601030 1 4 1 70 0~-0.012 h5 2 SEM84601030E 1 4 1 70 0~-0.012 h5 2 SEM84601040 1 4 1 80 0~-0.012 h5 2 SEM84601040E 1 4 1 80 0~-0.012 h5 2 SEM84601050 1 4 1 100 0~-0.012 h5 2 SEM84601050E 1 4 1 100 0~-0.012 h5 2 SEM84601204 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601204E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601206 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601206E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601208 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601208E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601210 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601210E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601212 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601212E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601216 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601216E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601220 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601220E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601226 1.2 4 1.2 60 0~-0.012 h5 2 SEM84601226E 1.2 4 1.2 60 0~-0.012 h5 2 SEM84601406 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601406E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601408 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601408E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601410 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601410E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601412 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601412E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601416 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601416E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601503 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601503E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601504 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601504E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601505 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601505E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601506 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601506E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601507 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601507E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601508 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601508E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601510 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601510E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601512 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601512E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601514 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601514E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601516 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601516E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601518 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601518E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601520 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601520E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601522 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601522E 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601526 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601526E 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601530 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601530E 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601535 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601535E 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601540 1.5 4 1.5 80 0~-0.012 h5 2 SEM84601540E 1.5 4 1.5 80 0~-0.012 h5 2 SEM84601604 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601604E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601606 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601606E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601608 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601608E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601610 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601610E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601612 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601612E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601616 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601616E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601620 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601620E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601804 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601804E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601806 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601806E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601808 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601808E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601810 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601810E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601812 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601812E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601816 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601816E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601820 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601820E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84602004 2 4 2 50 0~-0.012 h5 2 SEM84602004E 2 4 2 50 0~-0.012 h5 2 SEM84602006 2 4 2 50 0~-0.012 h5 2 SEM84602006E 2 4 2 50 0~-0.012 h5 2 SEM84602008 2 4 2 50 0~-0.012 h5 2 SEM84602008E 2 4 2 50 0~-0.012 h5 2 SEM84602010 2 4 2 50 0~-0.012 h5 2 SEM84602010E 2 4 2 50 0~-0.012 h5 2 SEM84602012 2 4 2 50 0~-0.012 h5 2 SEM84602012E 2 4 2 50 0~-0.012 h5 2 SEM84602014 2 4 2 50 0~-0.012 h5 2 SEM84602014E 2 4 2 50 0~-0.012 h5 2 SEM84602016 2 4 2 50 0~-0.012 h5 2 SEM84602016E 2 4 2 50 0~-0.012 h5 2 SEM84602018 2 4 2 50 0~-0.012 h5 2 SEM84602018E 2 4 2 50 0~-0.012 h5 2 SEM84602020 2 4 2 50 0~-0.012 h5 2 SEM84602020E 2 4 2 50 0~-0.012 h5 2 SEM84602022 2 4 2 60 0~-0.012 h5 2 SEM84602022E 2 4 2 60 0~-0.012 h5 2 SEM84602026 2 4 2 60 0~-0.012 h5 2 SEM84602026E 2 4 2 60 0~-0.012 h5 2 SEM84602030 2 4 2 70 0~-0.012 h5 2 SEM84602030E 2 4 2 70 0~-0.012 h5 2 SEM84602035 2 4 2 70 0~-0.012 h5 2 SEM84602035E 2 4 2 70 0~-0.012 h5 2 SEM84602040 2 4 2 80 0~-0.012 h5 2 SEM84602040E 2 4 2 80 0~-0.012 h5 2 SEM84602045 2 4 2 90 0~-0.012 h5 2 SEM84602045E 2 4 2 90 0~-0.012 h5 2 SEM84602050 2 4 2 100 0~-0.012 h5 2 SEM84602050E 2 4 2 100 0~-0.012 h5 2 SEM84602060 2 4 2 110 0~-0.012 h5 2 SEM84602060E 2 4 2 110 0~-0.012 h5 2 SEM84602508 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602508E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602510 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602510E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602512 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602512E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602516 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602516E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602520 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602520E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602522 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602522E 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602526 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602526E 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602530 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602530E 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602535 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602535E 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602540 2.5 4 2.5 80 0~-0.012 h5 2 SEM84602540E 2.5 4 2.5 80 0~-0.012 h5 2 SEM84602545 2.5 4 2.5 90 0~-0.012 h5 2 SEM84602545E 2.5 4 2.5 90 0~-0.012 h5 2 SEM84602550 2.5 4 2.5 100 0~-0.012 h5 2 SEM84602550E 2.5 4 2.5 100 0~-0.012 h5 2 SEM84603006 3 6 3 50 0~-0.012 h5 2 SEM84603006E 3 6 3 50 0~-0.012 h5 2 SEM84603008 3 6 3 50 0~-0.012 h5 2 SEM84603008E 3 6 3 50 0~-0.012 h5 2 SEM84603010 3 6 3 50 0~-0.012 h5 2 SEM84603010E 3 6 3 50 0~-0.012 h5 2 SEM84603012 3 6 3 50 0~-0.012 h5 2 SEM84603012E 3 6 3 50 0~-0.012 h5 2 SEM84603014 3 6 3 60 0~-0.012 h5 2 SEM84603014E 3 6 3 60 0~-0.012 h5 2 SEM84603016 3 6 3 60 0~-0.012 h5 2 SEM84603016E 3 6 3 60 0~-0.012 h5 2 SEM84603018 3 6 3 60 0~-0.012 h5 2 SEM84603018E 3 6 3 60 0~-0.012 h5 2 SEM84603020 3 6 3 60 0~-0.012 h5 2 SEM84603020E 3 6 3 60 0~-0.012 h5 2 SEM84603022 3 6 3 65 0~-0.012 h5 2 SEM84603022E 3 6 3 65 0~-0.012 h5 2 SEM84603026 3 6 3 65 0~-0.012 h5 2 SEM84603026E 3 6 3 65 0~-0.012 h5 2 SEM84603030 3 6 3 70 0~-0.012 h5 2 SEM84603030E 3 6 3 70 0~-0.012 h5 2 SEM84603035 3 6 3 70 0~-0.012 h5 2 SEM84603035E 3 6 3 70 0~-0.012 h5 2 SEM84603040 3 6 3 80 0~-0.012 h5 2 SEM84603040E 3 6 3 80 0~-0.012 h5 2 SEM84603045 3 6 3 90 0~-0.012 h5 2 SEM84603045E 3 6 3 90 0~-0.012 h5 2 SEM84603050 3 6 3 100 0~-0.012 h5 2 SEM84603050E 3 6 3 100 0~-0.012 h5 2 SEM84603060 3 6 3 100 0~-0.012 h5 2 SEM84603060E 3 6 3 100 0~-0.012 h5 2 SEM84604008 4 6 4 50 0~-0.012 h5 2 SEM84604008E 4 6 4 50 0~-0.012 h5 2 SEM84604010 4 6 4 50 0~-0.012 h5 2 SEM84604010E 4 6 4 50 0~-0.012 h5 2 SEM84604012 4 6 4 50 0~-0.012 h5 2 SEM84604012E 4 6 4 50 0~-0.012 h5 2 SEM84604014 4 6 4 60 0~-0.012 h5 2 SEM84604014E 4 6 4 60 0~-0.012 h5 2 SEM84604016 4 6 4 60 0~-0.012 h5 2 SEM84604016E 4 6 4 60 0~-0.012 h5 2 SEM84604018 4 6 4 60 0~-0.012 h5 2 SEM84604018E 4 6 4 60 0~-0.012 h5 2 SEM84604020 4 6 4 60 0~-0.012 h5 2 SEM84604020E 4 6 4 60 0~-0.012 h5 2 SEM84604022 4 6 4 65 0~-0.012 h5 2 SEM84604022E 4 6 4 65 0~-0.012 h5 2 SEM84604026 4 6 4 65 0~-0.012 h5 2 SEM84604026E 4 6 4 65 0~-0.012 h5 2 SEM84604030 4 6 4 70 0~-0.012 h5 2 SEM84604030E 4 6 4 70 0~-0.012 h5 2 SEM84604035 4 6 4 70 0~-0.012 h5 2 SEM84604035E 4 6 4 70 0~-0.012 h5 2 SEM84604040 4 6 4 80 0~-0.012 h5 2 SEM84604040E 4 6 4 80 0~-0.012 h5 2 SEM84604045 4 6 4 90 0~-0.012 h5 2 SEM84604045E 4 6 4 90 0~-0.012 h5 2 SEM84604050 4 6 4 100 0~-0.012 h5 2 SEM84604050E 4 6 4 100 0~-0.012 h5 2 SEM84604055 4 6 4 100 0~-0.012 h5 2 SEM84604055E 4 6 4 100 0~-0.012 h5 2 SEM84604060 4 6 4 100 0~-0.012 h5 2 SEM84604060E 4 6 4 100 0~-0.012 h5 2 SEM84605015 5 6 6 60 0~-0.012 h5 2 SEM84605015E 5 6 6 60 0~-0.012 h5 2 SEM84605020 5 6 6 60 0~-0.012 h5 2 SEM84605020E 5 6 6 60 0~-0.012 h5 2 SEM84605026 5 6 6 65 0~-0.012 h5 2 SEM84605026E 5 6 6 65 0~-0.012 h5 2 SEM84605030 5 6 6 70 0~-0.012 h5 2 SEM84605030E 5 6 6 70 0~-0.012 h5 2 SEM84605035 5 6 6 70 0~-0.012 h5 2 SEM84605035E 5 6 6 70 0~-0.012 h5 2 SEM84605040 5 6 6 80 0~-0.012 h5 2 SEM84605040E 5 6 6 80 0~-0.012 h5 2 SEM84605045 5 6 6 90 0~-0.012 h5 2 SEM84605045E 5 6 6 90 0~-0.012 h5 2 SEM84605050 5 6 6 100 0~-0.012 h5 2 SEM84605050E 5 6 6 100 0~-0.012 h5 2 SEM84605055 5 6 6 100 0~-0.012 h5 2 SEM84605055E 5 6 6 100 0~-0.012 h5 2 SEM84605060 5 6 6 100 0~-0.012 h5 2 SEM84605060E 5 6 6 100 0~-0.012 h5 2 SEM84606020 6 6 8 60 0~-0.012 h5 2 SEM84606020E 6 6 8 60 0~-0.012 h5 2 SEM84606030 6 6 8 60 0~-0.012 h5 2 SEM84606030E 6 6 8 60 0~-0.012 h5 2 SEM84608025 8 8 10 70 0~-0.015 h5 2 SEM84608025E 8 8 10 70 0~-0.015 h5 2 SEM84608035 8 8 10 70 0~-0.015 h5 2 SEM84608035E 8 8 10 70 0~-0.015 h5 2 SEM84610030 10 10 12 75 0~-0.015 h5 2 SEM84610030E 10 10 12 75 0~-0.015 h5 2 SEM84610040 10 10 12 75 0~-0.015 h5 2 SEM84610040E 10 10 12 75 0~-0.015 h5 2 SEM84612032 12 12 14 80 0~-0.015 h5 2 SEM84612032E 12 12 14 80 0~-0.015 h5 2 SEM84612045 12 12 14 80 0~-0.015 h5 2 SEM84612045E 12 12 14 80 0~-0.015 h5 2 SEM846001002 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001002E 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001003 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001003E 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001005 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001005E 0.1 4 0.1 40 0~-0.012 h5 2 SEM846002005 0.2 4 0.2 40 0~-0.012 h5 2 SEM846002005E 0.2 4 0.2 40 0~-0.012 h5 2 SEM846002015 0.2 4 0.2 40 0~-0.012 h5 2 SEM846002015E 0.2 4 0.2 40 0~-0.012 h5 2 SEM846003015 0.3 4 0.3 40 0~-0.012 h5 2 SEM846003015E 0.3 4 0.3 40 0~-0.012 h5 2 SEM846003025 0.3 4 0.3 40 0~-0.012 h5 2 SEM846003025E 0.3 4 0.3 40 0~-0.012 h5 2 SEM846004015 0.4 4 0.4 40 0~-0.012 h5 2 SEM846004015E 0.4 4 0.4 40 0~-0.012 h5 2 SEM846004025 0.4 4 0.4 40 0~-0.012 h5 2 SEM846004025E 0.4 4 0.4 40 0~-0.012 h5 2 SEM846005015 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005015E 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005016S 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005016SE 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005025 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005025E 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005026S 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005026SE 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005046S 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005046SE 0.5 6 0.5 45 0~-0.012 h5 2 SEM846006016S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006016SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006026S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006026SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006036S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006036SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006046S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006046SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006056S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006056SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006066S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006066SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006086S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006086SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006106S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006106SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006126S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006126SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006146S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006146SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006166S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006166SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846008016S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008016SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008026S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008026SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008036S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008036SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008046S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008046SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008056S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008056SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008066S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008066SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008086S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008086SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008106S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008106SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008126S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008126SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008146S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008146SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008166S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008166SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008206S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008206SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846010026S 1 6 1 50 0~-0.012 h5 2 SEM846010026SE 1 6 1 50 0~-0.012 h5 2 SEM846010036S 1 6 1 50 0~-0.012 h5 2 SEM846010036SE 1 6 1 50 0~-0.012 h5 2 SEM846010046S 1 6 1 50 0~-0.012 h5 2 SEM846010046SE 1 6 1 50 0~-0.012 h5 2 SEM846010056S 1 6 1 50 0~-0.012 h5 2 SEM846010056SE 1 6 1 50 0~-0.012 h5 2 SEM846010066S 1 6 1 50 0~-0.012 h5 2 SEM846010066SE 1 6 1 50 0~-0.012 h5 2 SEM846010076S 1 6 1 50 0~-0.012 h5 2 SEM846010076SE 1 6 1 50 0~-0.012 h5 2 SEM846010086S 1 6 1 50 0~-0.012 h5 2 SEM846010086SE 1 6 1 50 0~-0.012 h5 2 SEM846010096S 1 6 1 50 0~-0.012 h5 2 SEM846010096SE 1 6 1 50 0~-0.012 h5 2 SEM846010106S 1 6 1 50 0~-0.012 h5 2 SEM846010106SE 1 6 1 50 0~-0.012 h5 2 SEM846010126S 1 6 1 50 0~-0.012 h5 2 SEM846010126SE 1 6 1 50 0~-0.012 h5 2 SEM846010146S 1 6 1 50 0~-0.012 h5 2 SEM846010146SE 1 6 1 50 0~-0.012 h5 2 SEM846010166S 1 6 1 50 0~-0.012 h5 2 SEM846010166SE 1 6 1 50 0~-0.012 h5 2 SEM846010186S 1 6 1 50 0~-0.012 h5 2 SEM846010186SE 1 6 1 50 0~-0.012 h5 2 SEM846010206S 1 6 1 50 0~-0.012 h5 2 SEM846010206SE 1 6 1 50 0~-0.012 h5 2 SEM846010226S 1 6 1 60 0~-0.012 h5 2 SEM846010226SE 1 6 1 60 0~-0.012 h5 2 SEM846010266S 1 6 1 60 0~-0.012 h5 2 SEM846010266SE 1 6 1 60 0~-0.012 h5 2 SEM846010306S 1 6 1 70 0~-0.012 h5 2 SEM846010306SE 1 6 1 70 0~-0.012 h5 2 SEM846015036S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015036SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015046S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015046SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015066S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015066SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015086S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015086SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015106S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015106SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015126S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015126SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015146S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015146SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015166S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015166SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015186S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015186SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015206S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015206SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015226S 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015226SE 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015266S 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015266SE 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015306S 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015306SE 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015356S 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015356SE 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015406S 1.5 6 1.5 80 0~-0.012 h5 2 SEM846015406SE 1.5 6 1.5 80 0~-0.012 h5 2 SEM846020046S 2 6 2 50 0~-0.012 h5 2 SEM846020046SE 2 6 2 50 0~-0.012 h5 2 SEM846020066S 2 6 2 50 0~-0.012 h5 2 SEM846020066SE 2 6 2 50 0~-0.012 h5 2 SEM846020086S 2 6 2 50 0~-0.012 h5 2 SEM846020086SE 2 6 2 50 0~-0.012 h5 2 SEM846020106S 2 6 2 50 0~-0.012 h5 2 SEM846020106SE 2 6 2 50 0~-0.012 h5 2 SEM846020126S 2 6 2 50 0~-0.012 h5 2 SEM846020126SE 2 6 2 50 0~-0.012 h5 2 SEM846020146S 2 6 2 50 0~-0.012 h5 2 SEM846020146SE 2 6 2 50 0~-0.012 h5 2 SEM846020166S 2 6 2 50 0~-0.012 h5 2 SEM846020166SE 2 6 2 50 0~-0.012 h5 2 SEM846020186S 2 6 2 50 0~-0.012 h5 2 SEM846020186SE 2 6 2 50 0~-0.012 h5 2 SEM846020206S 2 6 2 50 0~-0.012 h5 2 SEM846020206SE 2 6 2 50 0~-0.012 h5 2 SEM846020226S 2 6 2 60 0~-0.012 h5 2 SEM846020226SE 2 6 2 60 0~-0.012 h5 2 SEM846020266S 2 6 2 60 0~-0.012 h5 2 SEM846020266SE 2 6 2 60 0~-0.012 h5 2 SEM846020306S 2 6 2 70 0~-0.012 h5 2 SEM846020306SE 2 6 2 70 0~-0.012 h5 2 SEM846020356S 2 6 2 70 0~-0.012 h5 2 SEM846020356SE 2 6 2 70 0~-0.012 h5 2 SEM846020406S 2 6 2 80 0~-0.012 h5 2 SEM846020406SE 2 6 2 80 0~-0.012 h5 2 SEM846020456S 2 6 2 90 0~-0.012 h5 2 SEM846020456SE 2 6 2 90 0~-0.012 h5 2 SEM846020506S 2 6 2 100 0~-0.012 h5 2 SEM846020506SE 2 6 2 100 0~-0.012 h5 2 SEM84606020090 6 6 12 90 0~-0.012 h5 2 SEM84606020090E 6 6 12 90 0~-0.012 h5 2 SEM84606030090 6 6 12 90 0~-0.012 h5 2 SEM84606030090E 6 6 12 90 0~-0.012 h5 2 SEM84608025100 8 8 14 100 0~-0.015 h5 2 SEM84608025100E 8 8 14 100 0~-0.015 h5 2 SEM84608035100 8 8 14 100 0~-0.015 h5 2 SEM84608035100E 8 8 14 100 0~-0.015 h5 2 SEM84610030100 10 10 18 100 0~-0.015 h5 2 SEM84610030100E 10 10 18 100 0~-0.015 h5 2 SEM84610040100 10 10 18 100 0~-0.015 h5 2 SEM84610040100E 10 10 18 100 0~-0.015 h5 2 SEM84612032110 12 12 22 110 0~-0.015 h5 2 SEM84612032110E 12 12 22 110 0~-0.015 h5 2 SEM84612045110 12 12 22 110 0~-0.015 h5 2 SEM84612045110E 12 12 22 110 0~-0.015 h5 2
Profiling
Side Milling
Small Part
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
P

Non-alloy steel

Excellent Excellent
HRc
13252832
HB
125190250270300
P

Low alloy steel

Excellent Excellent
HRc
10293238
HB
180275300350
P

High alloy & tool steel

Excellent Excellent
HRc
1535
HB
200325
K

Grey cast iron

Good Good
HRc
1026
HB
180260
K

Nodular cast iron

Good Good
HRc
325
HB
160250
K

Malleable cast iron

Good Good
HRc
21
HB
130230
H

Hardened steels & cast irons

Excellent Excellent
HRc
384041
HB
400630
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEM84600101 0.1 4 0.1 40 0~-0.012 h5 2 SEM84600101E 0.1 4 0.1 40 0~-0.012 h5 2 SEM84600201 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600201E 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600202 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600202E 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600203 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600203E 0.2 4 0.2 40 0~-0.012 h5 2 SEM84600301 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600301E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600302 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600302E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600303 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600303E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600304 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600304E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600305 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600305E 0.3 4 0.3 40 0~-0.012 h5 2 SEM84600401 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600401E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600402 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600402E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600403 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600403E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600404 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600404E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600405 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600405E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600406 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600406E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600408 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600408E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600410 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600410E 0.4 4 0.4 40 0~-0.012 h5 2 SEM84600501 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600501E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600502 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600502E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600503 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600503E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600504 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600504E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600505 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600505E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600506 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600506E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600508 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600508E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600510 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600510E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600512 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600512E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600514 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600514E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600516 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600516E 0.5 4 0.5 45 0~-0.012 h5 2 SEM84600601 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600601E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600602 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600602E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600603 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600603E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600604 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600604E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600605 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600605E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600606 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600606E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600608 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600608E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600610 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600610E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600612 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600612E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600614 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600614E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600616 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600616E 0.6 4 0.6 45 0~-0.012 h5 2 SEM84600702 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600702E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600704 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600704E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600706 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600706E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600708 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600708E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600710 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600710E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600712 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600712E 0.7 4 0.7 45 0~-0.012 h5 2 SEM84600801 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600801E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600802 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600802E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600803 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600803E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600804 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600804E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600805 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600805E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600806 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600806E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600808 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600808E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600810 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600810E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600812 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600812E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600814 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600814E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600816 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600816E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600820 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600820E 0.8 4 0.8 45 0~-0.012 h5 2 SEM84600904 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600904E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600906 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600906E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600908 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600908E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600910 0.9 4 0.9 45 0~-0.012 h5 2 SEM84600910E 0.9 4 0.9 45 0~-0.012 h5 2 SEM84601002 1 4 1 50 0~-0.012 h5 2 SEM84601002E 1 4 1 50 0~-0.012 h5 2 SEM84601003 1 4 1 50 0~-0.012 h5 2 SEM84601003E 1 4 1 50 0~-0.012 h5 2 SEM84601004 1 4 1 50 0~-0.012 h5 2 SEM84601004E 1 4 1 50 0~-0.012 h5 2 SEM84601005 1 4 1 50 0~-0.012 h5 2 SEM84601005E 1 4 1 50 0~-0.012 h5 2 SEM84601006 1 4 1 50 0~-0.012 h5 2 SEM84601006E 1 4 1 50 0~-0.012 h5 2 SEM84601007 1 4 1 50 0~-0.012 h5 2 SEM84601007E 1 4 1 50 0~-0.012 h5 2 SEM84601008 1 4 1 50 0~-0.012 h5 2 SEM84601008E 1 4 1 50 0~-0.012 h5 2 SEM84601009 1 4 1 50 0~-0.012 h5 2 SEM84601009E 1 4 1 50 0~-0.012 h5 2 SEM84601010 1 4 1 50 0~-0.012 h5 2 SEM84601010E 1 4 1 50 0~-0.012 h5 2 SEM84601012 1 4 1 50 0~-0.012 h5 2 SEM84601012E 1 4 1 50 0~-0.012 h5 2 SEM84601014 1 4 1 50 0~-0.012 h5 2 SEM84601014E 1 4 1 50 0~-0.012 h5 2 SEM84601016 1 4 1 50 0~-0.012 h5 2 SEM84601016E 1 4 1 50 0~-0.012 h5 2 SEM84601018 1 4 1 50 0~-0.012 h5 2 SEM84601018E 1 4 1 50 0~-0.012 h5 2 SEM84601020 1 4 1 50 0~-0.012 h5 2 SEM84601020E 1 4 1 50 0~-0.012 h5 2 SEM84601022 1 4 1 60 0~-0.012 h5 2 SEM84601022E 1 4 1 60 0~-0.012 h5 2 SEM84601026 1 4 1 60 0~-0.012 h5 2 SEM84601026E 1 4 1 60 0~-0.012 h5 2 SEM84601030 1 4 1 70 0~-0.012 h5 2 SEM84601030E 1 4 1 70 0~-0.012 h5 2 SEM84601040 1 4 1 80 0~-0.012 h5 2 SEM84601040E 1 4 1 80 0~-0.012 h5 2 SEM84601050 1 4 1 100 0~-0.012 h5 2 SEM84601050E 1 4 1 100 0~-0.012 h5 2 SEM84601204 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601204E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601206 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601206E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601208 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601208E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601210 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601210E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601212 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601212E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601216 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601216E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601220 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601220E 1.2 4 1.2 50 0~-0.012 h5 2 SEM84601226 1.2 4 1.2 60 0~-0.012 h5 2 SEM84601226E 1.2 4 1.2 60 0~-0.012 h5 2 SEM84601406 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601406E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601408 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601408E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601410 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601410E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601412 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601412E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601416 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601416E 1.4 4 1.4 50 0~-0.012 h5 2 SEM84601503 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601503E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601504 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601504E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601505 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601505E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601506 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601506E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601507 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601507E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601508 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601508E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601510 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601510E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601512 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601512E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601514 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601514E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601516 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601516E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601518 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601518E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601520 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601520E 1.5 4 1.5 50 0~-0.012 h5 2 SEM84601522 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601522E 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601526 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601526E 1.5 4 1.5 60 0~-0.012 h5 2 SEM84601530 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601530E 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601535 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601535E 1.5 4 1.5 70 0~-0.012 h5 2 SEM84601540 1.5 4 1.5 80 0~-0.012 h5 2 SEM84601540E 1.5 4 1.5 80 0~-0.012 h5 2 SEM84601604 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601604E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601606 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601606E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601608 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601608E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601610 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601610E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601612 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601612E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601616 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601616E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601620 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601620E 1.6 4 1.6 50 0~-0.012 h5 2 SEM84601804 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601804E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601806 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601806E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601808 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601808E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601810 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601810E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601812 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601812E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601816 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601816E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601820 1.8 4 1.8 50 0~-0.012 h5 2 SEM84601820E 1.8 4 1.8 50 0~-0.012 h5 2 SEM84602004 2 4 2 50 0~-0.012 h5 2 SEM84602004E 2 4 2 50 0~-0.012 h5 2 SEM84602006 2 4 2 50 0~-0.012 h5 2 SEM84602006E 2 4 2 50 0~-0.012 h5 2 SEM84602008 2 4 2 50 0~-0.012 h5 2 SEM84602008E 2 4 2 50 0~-0.012 h5 2 SEM84602010 2 4 2 50 0~-0.012 h5 2 SEM84602010E 2 4 2 50 0~-0.012 h5 2 SEM84602012 2 4 2 50 0~-0.012 h5 2 SEM84602012E 2 4 2 50 0~-0.012 h5 2 SEM84602014 2 4 2 50 0~-0.012 h5 2 SEM84602014E 2 4 2 50 0~-0.012 h5 2 SEM84602016 2 4 2 50 0~-0.012 h5 2 SEM84602016E 2 4 2 50 0~-0.012 h5 2 SEM84602018 2 4 2 50 0~-0.012 h5 2 SEM84602018E 2 4 2 50 0~-0.012 h5 2 SEM84602020 2 4 2 50 0~-0.012 h5 2 SEM84602020E 2 4 2 50 0~-0.012 h5 2 SEM84602022 2 4 2 60 0~-0.012 h5 2 SEM84602022E 2 4 2 60 0~-0.012 h5 2 SEM84602026 2 4 2 60 0~-0.012 h5 2 SEM84602026E 2 4 2 60 0~-0.012 h5 2 SEM84602030 2 4 2 70 0~-0.012 h5 2 SEM84602030E 2 4 2 70 0~-0.012 h5 2 SEM84602035 2 4 2 70 0~-0.012 h5 2 SEM84602035E 2 4 2 70 0~-0.012 h5 2 SEM84602040 2 4 2 80 0~-0.012 h5 2 SEM84602040E 2 4 2 80 0~-0.012 h5 2 SEM84602045 2 4 2 90 0~-0.012 h5 2 SEM84602045E 2 4 2 90 0~-0.012 h5 2 SEM84602050 2 4 2 100 0~-0.012 h5 2 SEM84602050E 2 4 2 100 0~-0.012 h5 2 SEM84602060 2 4 2 110 0~-0.012 h5 2 SEM84602060E 2 4 2 110 0~-0.012 h5 2 SEM84602508 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602508E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602510 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602510E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602512 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602512E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602516 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602516E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602520 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602520E 2.5 4 2.5 50 0~-0.012 h5 2 SEM84602522 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602522E 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602526 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602526E 2.5 4 2.5 60 0~-0.012 h5 2 SEM84602530 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602530E 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602535 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602535E 2.5 4 2.5 70 0~-0.012 h5 2 SEM84602540 2.5 4 2.5 80 0~-0.012 h5 2 SEM84602540E 2.5 4 2.5 80 0~-0.012 h5 2 SEM84602545 2.5 4 2.5 90 0~-0.012 h5 2 SEM84602545E 2.5 4 2.5 90 0~-0.012 h5 2 SEM84602550 2.5 4 2.5 100 0~-0.012 h5 2 SEM84602550E 2.5 4 2.5 100 0~-0.012 h5 2 SEM84603006 3 6 3 50 0~-0.012 h5 2 SEM84603006E 3 6 3 50 0~-0.012 h5 2 SEM84603008 3 6 3 50 0~-0.012 h5 2 SEM84603008E 3 6 3 50 0~-0.012 h5 2 SEM84603010 3 6 3 50 0~-0.012 h5 2 SEM84603010E 3 6 3 50 0~-0.012 h5 2 SEM84603012 3 6 3 50 0~-0.012 h5 2 SEM84603012E 3 6 3 50 0~-0.012 h5 2 SEM84603014 3 6 3 60 0~-0.012 h5 2 SEM84603014E 3 6 3 60 0~-0.012 h5 2 SEM84603016 3 6 3 60 0~-0.012 h5 2 SEM84603016E 3 6 3 60 0~-0.012 h5 2 SEM84603018 3 6 3 60 0~-0.012 h5 2 SEM84603018E 3 6 3 60 0~-0.012 h5 2 SEM84603020 3 6 3 60 0~-0.012 h5 2 SEM84603020E 3 6 3 60 0~-0.012 h5 2 SEM84603022 3 6 3 65 0~-0.012 h5 2 SEM84603022E 3 6 3 65 0~-0.012 h5 2 SEM84603026 3 6 3 65 0~-0.012 h5 2 SEM84603026E 3 6 3 65 0~-0.012 h5 2 SEM84603030 3 6 3 70 0~-0.012 h5 2 SEM84603030E 3 6 3 70 0~-0.012 h5 2 SEM84603035 3 6 3 70 0~-0.012 h5 2 SEM84603035E 3 6 3 70 0~-0.012 h5 2 SEM84603040 3 6 3 80 0~-0.012 h5 2 SEM84603040E 3 6 3 80 0~-0.012 h5 2 SEM84603045 3 6 3 90 0~-0.012 h5 2 SEM84603045E 3 6 3 90 0~-0.012 h5 2 SEM84603050 3 6 3 100 0~-0.012 h5 2 SEM84603050E 3 6 3 100 0~-0.012 h5 2 SEM84603060 3 6 3 100 0~-0.012 h5 2 SEM84603060E 3 6 3 100 0~-0.012 h5 2 SEM84604008 4 6 4 50 0~-0.012 h5 2 SEM84604008E 4 6 4 50 0~-0.012 h5 2 SEM84604010 4 6 4 50 0~-0.012 h5 2 SEM84604010E 4 6 4 50 0~-0.012 h5 2 SEM84604012 4 6 4 50 0~-0.012 h5 2 SEM84604012E 4 6 4 50 0~-0.012 h5 2 SEM84604014 4 6 4 60 0~-0.012 h5 2 SEM84604014E 4 6 4 60 0~-0.012 h5 2 SEM84604016 4 6 4 60 0~-0.012 h5 2 SEM84604016E 4 6 4 60 0~-0.012 h5 2 SEM84604018 4 6 4 60 0~-0.012 h5 2 SEM84604018E 4 6 4 60 0~-0.012 h5 2 SEM84604020 4 6 4 60 0~-0.012 h5 2 SEM84604020E 4 6 4 60 0~-0.012 h5 2 SEM84604022 4 6 4 65 0~-0.012 h5 2 SEM84604022E 4 6 4 65 0~-0.012 h5 2 SEM84604026 4 6 4 65 0~-0.012 h5 2 SEM84604026E 4 6 4 65 0~-0.012 h5 2 SEM84604030 4 6 4 70 0~-0.012 h5 2 SEM84604030E 4 6 4 70 0~-0.012 h5 2 SEM84604035 4 6 4 70 0~-0.012 h5 2 SEM84604035E 4 6 4 70 0~-0.012 h5 2 SEM84604040 4 6 4 80 0~-0.012 h5 2 SEM84604040E 4 6 4 80 0~-0.012 h5 2 SEM84604045 4 6 4 90 0~-0.012 h5 2 SEM84604045E 4 6 4 90 0~-0.012 h5 2 SEM84604050 4 6 4 100 0~-0.012 h5 2 SEM84604050E 4 6 4 100 0~-0.012 h5 2 SEM84604055 4 6 4 100 0~-0.012 h5 2 SEM84604055E 4 6 4 100 0~-0.012 h5 2 SEM84604060 4 6 4 100 0~-0.012 h5 2 SEM84604060E 4 6 4 100 0~-0.012 h5 2 SEM84605015 5 6 6 60 0~-0.012 h5 2 SEM84605015E 5 6 6 60 0~-0.012 h5 2 SEM84605020 5 6 6 60 0~-0.012 h5 2 SEM84605020E 5 6 6 60 0~-0.012 h5 2 SEM84605026 5 6 6 65 0~-0.012 h5 2 SEM84605026E 5 6 6 65 0~-0.012 h5 2 SEM84605030 5 6 6 70 0~-0.012 h5 2 SEM84605030E 5 6 6 70 0~-0.012 h5 2 SEM84605035 5 6 6 70 0~-0.012 h5 2 SEM84605035E 5 6 6 70 0~-0.012 h5 2 SEM84605040 5 6 6 80 0~-0.012 h5 2 SEM84605040E 5 6 6 80 0~-0.012 h5 2 SEM84605045 5 6 6 90 0~-0.012 h5 2 SEM84605045E 5 6 6 90 0~-0.012 h5 2 SEM84605050 5 6 6 100 0~-0.012 h5 2 SEM84605050E 5 6 6 100 0~-0.012 h5 2 SEM84605055 5 6 6 100 0~-0.012 h5 2 SEM84605055E 5 6 6 100 0~-0.012 h5 2 SEM84605060 5 6 6 100 0~-0.012 h5 2 SEM84605060E 5 6 6 100 0~-0.012 h5 2 SEM84606020 6 6 8 60 0~-0.012 h5 2 SEM84606020E 6 6 8 60 0~-0.012 h5 2 SEM84606030 6 6 8 60 0~-0.012 h5 2 SEM84606030E 6 6 8 60 0~-0.012 h5 2 SEM84608025 8 8 10 70 0~-0.015 h5 2 SEM84608025E 8 8 10 70 0~-0.015 h5 2 SEM84608035 8 8 10 70 0~-0.015 h5 2 SEM84608035E 8 8 10 70 0~-0.015 h5 2 SEM84610030 10 10 12 75 0~-0.015 h5 2 SEM84610030E 10 10 12 75 0~-0.015 h5 2 SEM84610040 10 10 12 75 0~-0.015 h5 2 SEM84610040E 10 10 12 75 0~-0.015 h5 2 SEM84612032 12 12 14 80 0~-0.015 h5 2 SEM84612032E 12 12 14 80 0~-0.015 h5 2 SEM84612045 12 12 14 80 0~-0.015 h5 2 SEM84612045E 12 12 14 80 0~-0.015 h5 2 SEM846001002 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001002E 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001003 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001003E 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001005 0.1 4 0.1 40 0~-0.012 h5 2 SEM846001005E 0.1 4 0.1 40 0~-0.012 h5 2 SEM846002005 0.2 4 0.2 40 0~-0.012 h5 2 SEM846002005E 0.2 4 0.2 40 0~-0.012 h5 2 SEM846002015 0.2 4 0.2 40 0~-0.012 h5 2 SEM846002015E 0.2 4 0.2 40 0~-0.012 h5 2 SEM846003015 0.3 4 0.3 40 0~-0.012 h5 2 SEM846003015E 0.3 4 0.3 40 0~-0.012 h5 2 SEM846003025 0.3 4 0.3 40 0~-0.012 h5 2 SEM846003025E 0.3 4 0.3 40 0~-0.012 h5 2 SEM846004015 0.4 4 0.4 40 0~-0.012 h5 2 SEM846004015E 0.4 4 0.4 40 0~-0.012 h5 2 SEM846004025 0.4 4 0.4 40 0~-0.012 h5 2 SEM846004025E 0.4 4 0.4 40 0~-0.012 h5 2 SEM846005015 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005015E 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005016S 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005016SE 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005025 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005025E 0.5 4 0.5 45 0~-0.012 h5 2 SEM846005026S 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005026SE 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005046S 0.5 6 0.5 45 0~-0.012 h5 2 SEM846005046SE 0.5 6 0.5 45 0~-0.012 h5 2 SEM846006016S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006016SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006026S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006026SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006036S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006036SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006046S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006046SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006056S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006056SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006066S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006066SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006086S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006086SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006106S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006106SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006126S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006126SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006146S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006146SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006166S 0.6 6 0.6 45 0~-0.012 h5 2 SEM846006166SE 0.6 6 0.6 45 0~-0.012 h5 2 SEM846008016S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008016SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008026S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008026SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008036S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008036SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008046S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008046SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008056S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008056SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008066S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008066SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008086S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008086SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008106S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008106SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008126S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008126SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008146S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008146SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008166S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008166SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008206S 0.8 6 0.8 45 0~-0.012 h5 2 SEM846008206SE 0.8 6 0.8 45 0~-0.012 h5 2 SEM846010026S 1 6 1 50 0~-0.012 h5 2 SEM846010026SE 1 6 1 50 0~-0.012 h5 2 SEM846010036S 1 6 1 50 0~-0.012 h5 2 SEM846010036SE 1 6 1 50 0~-0.012 h5 2 SEM846010046S 1 6 1 50 0~-0.012 h5 2 SEM846010046SE 1 6 1 50 0~-0.012 h5 2 SEM846010056S 1 6 1 50 0~-0.012 h5 2 SEM846010056SE 1 6 1 50 0~-0.012 h5 2 SEM846010066S 1 6 1 50 0~-0.012 h5 2 SEM846010066SE 1 6 1 50 0~-0.012 h5 2 SEM846010076S 1 6 1 50 0~-0.012 h5 2 SEM846010076SE 1 6 1 50 0~-0.012 h5 2 SEM846010086S 1 6 1 50 0~-0.012 h5 2 SEM846010086SE 1 6 1 50 0~-0.012 h5 2 SEM846010096S 1 6 1 50 0~-0.012 h5 2 SEM846010096SE 1 6 1 50 0~-0.012 h5 2 SEM846010106S 1 6 1 50 0~-0.012 h5 2 SEM846010106SE 1 6 1 50 0~-0.012 h5 2 SEM846010126S 1 6 1 50 0~-0.012 h5 2 SEM846010126SE 1 6 1 50 0~-0.012 h5 2 SEM846010146S 1 6 1 50 0~-0.012 h5 2 SEM846010146SE 1 6 1 50 0~-0.012 h5 2 SEM846010166S 1 6 1 50 0~-0.012 h5 2 SEM846010166SE 1 6 1 50 0~-0.012 h5 2 SEM846010186S 1 6 1 50 0~-0.012 h5 2 SEM846010186SE 1 6 1 50 0~-0.012 h5 2 SEM846010206S 1 6 1 50 0~-0.012 h5 2 SEM846010206SE 1 6 1 50 0~-0.012 h5 2 SEM846010226S 1 6 1 60 0~-0.012 h5 2 SEM846010226SE 1 6 1 60 0~-0.012 h5 2 SEM846010266S 1 6 1 60 0~-0.012 h5 2 SEM846010266SE 1 6 1 60 0~-0.012 h5 2 SEM846010306S 1 6 1 70 0~-0.012 h5 2 SEM846010306SE 1 6 1 70 0~-0.012 h5 2 SEM846015036S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015036SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015046S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015046SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015066S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015066SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015086S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015086SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015106S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015106SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015126S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015126SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015146S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015146SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015166S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015166SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015186S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015186SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015206S 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015206SE 1.5 6 1.5 50 0~-0.012 h5 2 SEM846015226S 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015226SE 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015266S 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015266SE 1.5 6 1.5 60 0~-0.012 h5 2 SEM846015306S 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015306SE 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015356S 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015356SE 1.5 6 1.5 70 0~-0.012 h5 2 SEM846015406S 1.5 6 1.5 80 0~-0.012 h5 2 SEM846015406SE 1.5 6 1.5 80 0~-0.012 h5 2 SEM846020046S 2 6 2 50 0~-0.012 h5 2 SEM846020046SE 2 6 2 50 0~-0.012 h5 2 SEM846020066S 2 6 2 50 0~-0.012 h5 2 SEM846020066SE 2 6 2 50 0~-0.012 h5 2 SEM846020086S 2 6 2 50 0~-0.012 h5 2 SEM846020086SE 2 6 2 50 0~-0.012 h5 2 SEM846020106S 2 6 2 50 0~-0.012 h5 2 SEM846020106SE 2 6 2 50 0~-0.012 h5 2 SEM846020126S 2 6 2 50 0~-0.012 h5 2 SEM846020126SE 2 6 2 50 0~-0.012 h5 2 SEM846020146S 2 6 2 50 0~-0.012 h5 2 SEM846020146SE 2 6 2 50 0~-0.012 h5 2 SEM846020166S 2 6 2 50 0~-0.012 h5 2 SEM846020166SE 2 6 2 50 0~-0.012 h5 2 SEM846020186S 2 6 2 50 0~-0.012 h5 2 SEM846020186SE 2 6 2 50 0~-0.012 h5 2 SEM846020206S 2 6 2 50 0~-0.012 h5 2 SEM846020206SE 2 6 2 50 0~-0.012 h5 2 SEM846020226S 2 6 2 60 0~-0.012 h5 2 SEM846020226SE 2 6 2 60 0~-0.012 h5 2 SEM846020266S 2 6 2 60 0~-0.012 h5 2 SEM846020266SE 2 6 2 60 0~-0.012 h5 2 SEM846020306S 2 6 2 70 0~-0.012 h5 2 SEM846020306SE 2 6 2 70 0~-0.012 h5 2 SEM846020356S 2 6 2 70 0~-0.012 h5 2 SEM846020356SE 2 6 2 70 0~-0.012 h5 2 SEM846020406S 2 6 2 80 0~-0.012 h5 2 SEM846020406SE 2 6 2 80 0~-0.012 h5 2 SEM846020456S 2 6 2 90 0~-0.012 h5 2 SEM846020456SE 2 6 2 90 0~-0.012 h5 2 SEM846020506S 2 6 2 100 0~-0.012 h5 2 SEM846020506SE 2 6 2 100 0~-0.012 h5 2 SEM84606020090 6 6 12 90 0~-0.012 h5 2 SEM84606020090E 6 6 12 90 0~-0.012 h5 2 SEM84606030090 6 6 12 90 0~-0.012 h5 2 SEM84606030090E 6 6 12 90 0~-0.012 h5 2 SEM84608025100 8 8 14 100 0~-0.015 h5 2 SEM84608025100E 8 8 14 100 0~-0.015 h5 2 SEM84608035100 8 8 14 100 0~-0.015 h5 2 SEM84608035100E 8 8 14 100 0~-0.015 h5 2 SEM84610030100 10 10 18 100 0~-0.015 h5 2 SEM84610030100E 10 10 18 100 0~-0.015 h5 2 SEM84610040100 10 10 18 100 0~-0.015 h5 2 SEM84610040100E 10 10 18 100 0~-0.015 h5 2 SEM84612032110 12 12 22 110 0~-0.015 h5 2 SEM84612032110E 12 12 22 110 0~-0.015 h5 2 SEM84612045110 12 12 22 110 0~-0.015 h5 2 SEM84612045110E 12 12 22 110 0~-0.015 h5 2

Video

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand

View the range

Carbide End Mills for High Speed & High Accuracy Machining

You Might Also Like

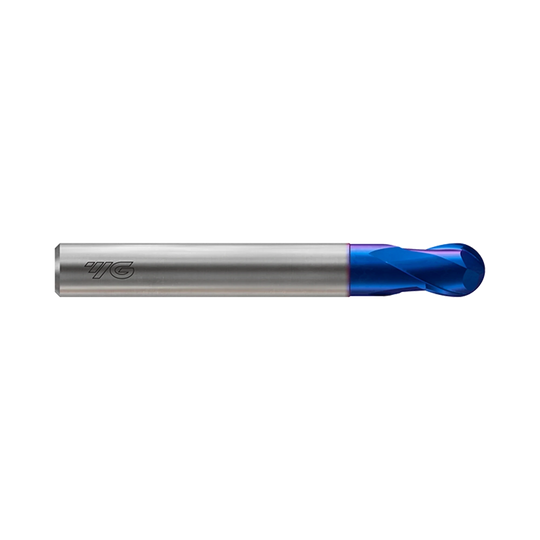

(G8A28) X5070 Carbide, 2Flute Ball Nose End Mill, Regular Length for (HRc45 to HRc70) (G8A28) X5070 Carbide, 2Flute Ball Nose End Mill, Regular Length for (HRc45 to HRc70)

(G8A28) X5070 Carbide, 2Flute Ball Nose End Mill, Regular Length for (HRc45 to HRc70)

2-Flute Ball Nose for HRc45–70
Pricing available on request
5 days
YG-1 LEGEND BLUE YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND move square side cutting YG-1 LEGEND SHANK PLAIN
Request Quote
View Comparison
(G8A38) X5070 Carbide, 2Flute Ball Nose End Mill, Extended Neck for (HRc45 to HRc70) (G8A38) X5070 Carbide, 2Flute Ball Nose End Mill, Extended Neck for (HRc45 to HRc70)

(G8A38) X5070 Carbide, 2Flute Ball Nose End Mill, Extended Neck for (HRc45 to HRc70)

2-Flute Ball Nose Extended-Neck for HRc45–70
From $64.68INC GST
From $58.80 EX GST
Available in Mill Diameter (mm)
1.0 1.2 1.5 +14
In stock
YG-1 LEGEND BLUE YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND move ball profiling YG-1 LEGEND SHANK PLAIN
Add to Cart
View Comparison
(G8A46) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70) (G8A46) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70)

(G8A46) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70)

Pricing available on request
5 days
YG-1 LEGEND BLUE YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND move ball profiling YG-1 LEGEND SHANK PLAIN
Request Quote
View Comparison
(G8A53) X5070 Carbide, 2Flute Ball Nose End Mill, Miniature Type for (HRc45 to HRc70) (G8A53) X5070 Carbide, 2Flute Ball Nose End Mill, Miniature Type for (HRc45 to HRc70)

(G8A53) X5070 Carbide, 2Flute Ball Nose End Mill, Miniature Type for (HRc45 to HRc70)

2-Flute Miniature Ball Nose for HRc45–70
From $82.83INC GST
From $75.30 EX GST
Available in Mill Diameter (mm)
0.4 0.5 0.6 +5
In stock
YG-1 LEGEND BLUE YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND move ball profiling YG-1 LEGEND SHANK PLAIN
Request Quote
View Comparison

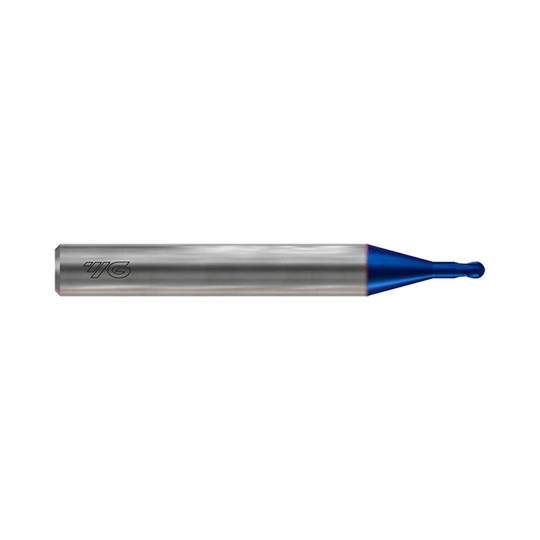

(G8A54) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70) (G8A54) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70)

(G8A54) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70)

2-Flute Ball Nose Rib-Processing for HRc45–70
From $83.38INC GST
From $75.80 EX GST
Available in Mill Diameter (mm)
0.5 0.6 0.8 +4
In stock
YG-1 LEGEND BLUE YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND move ball profiling YG-1 LEGEND SHANK PLAIN
Add to Cart
View Comparison

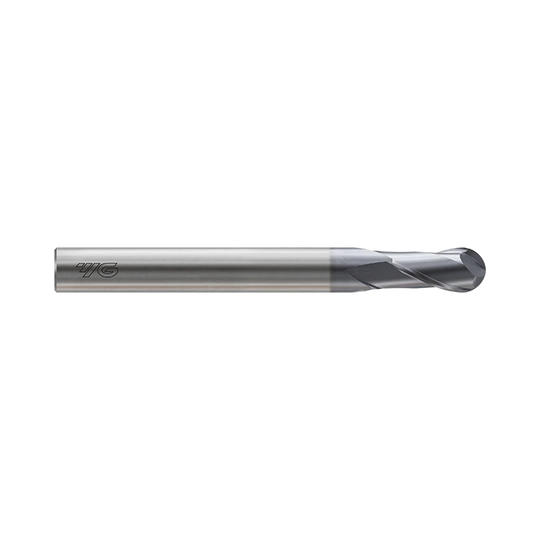

(GM813) X-Power Pro Carbide 2Flute Ball Nose End Mill, Long Length (GM813) X-Power Pro Carbide 2Flute Ball Nose End Mill, Long Length

(GM813) X-Power Pro Carbide 2Flute Ball Nose End Mill, Long Length

From $54.56INC GST
From $49.60 EX GST
Available in Mill Diameter (mm)
1.0 2.0 3.0 +8
In stock
YG-1 LEGEND Y COATING YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND SHANK PLAIN
Add to Cart
View Comparison
(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length (GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length

(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length

From $55.00INC GST
From $50.00 EX GST
Available in Mill Diameter (mm)
1.0 2.0 3.0 +6
In stock
YG-1 LEGEND Y COATING YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND SHANK PLAIN
Request Quote
View Comparison
(GM886) X-Power Pro Carbide 2Flute Corner Radius Rib Processing End Mill, (GM886) X-Power Pro Carbide 2Flute Corner Radius Rib Processing End Mill,

(GM886) X-Power Pro Carbide 2Flute Corner Radius Rib Processing End Mill,

From $65.12INC GST
From $59.20 EX GST
Available in Mill Diameter (mm)
0.5 0.6 0.8 +8
In stock
YG-1 LEGEND Y COATING YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND SHANK PLAIN
Add to Cart
View Comparison

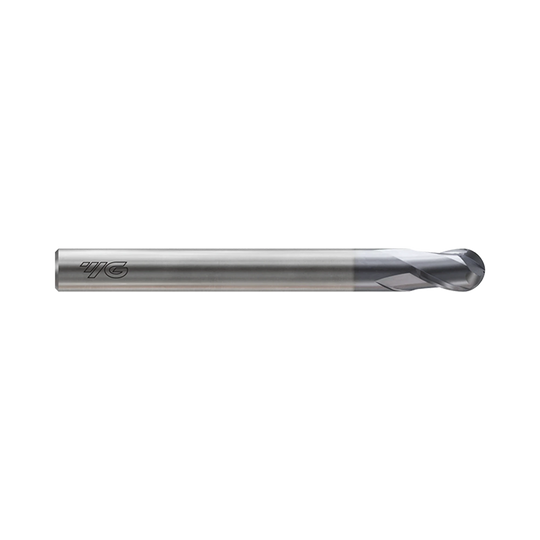

4G MILL 2 Flute 30°Helix Ball End Mill (SEMD98) 4G MILL 2 Flute 30°Helix Ball End Mill (SEMD98)
