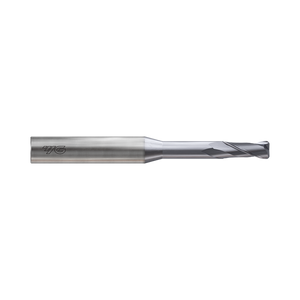

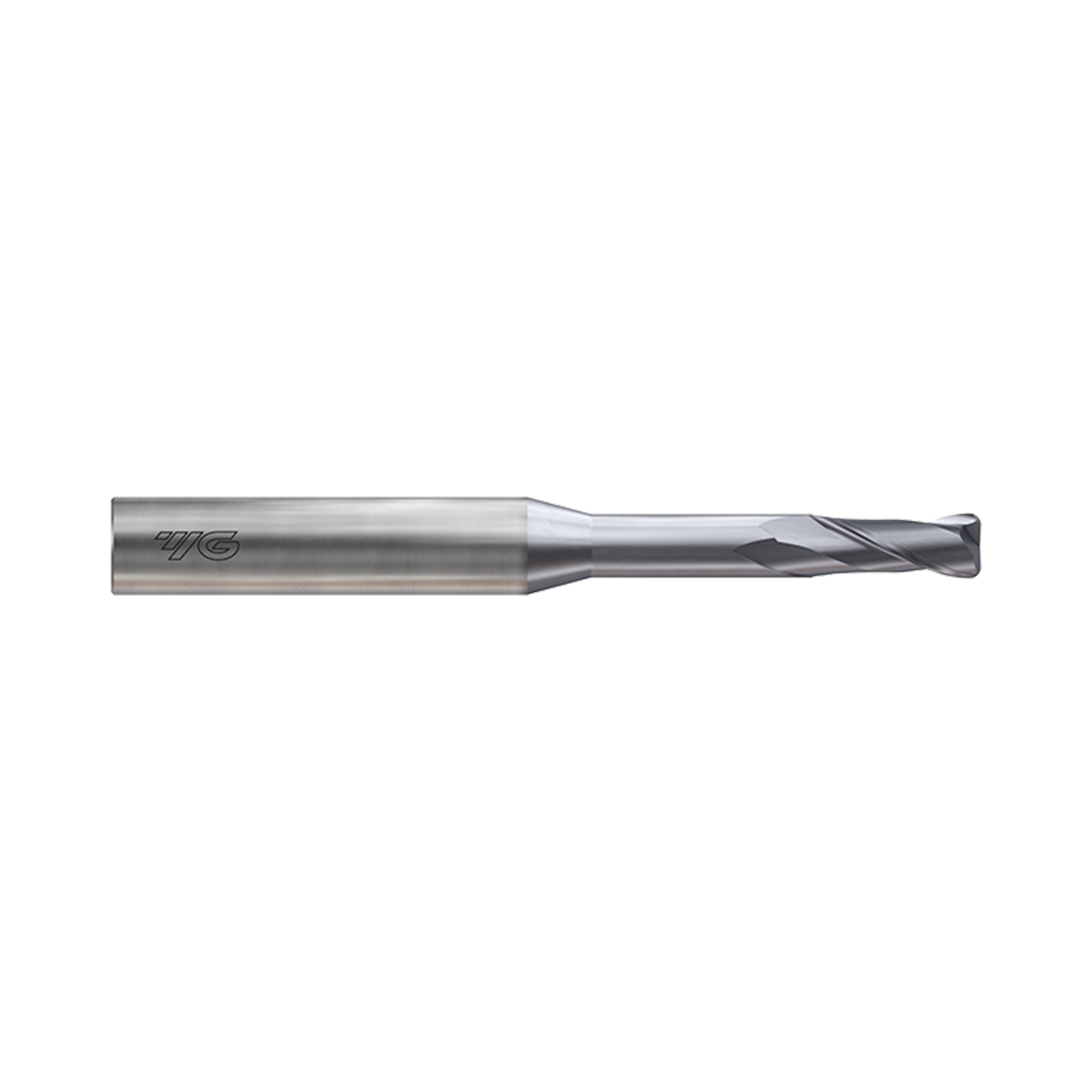

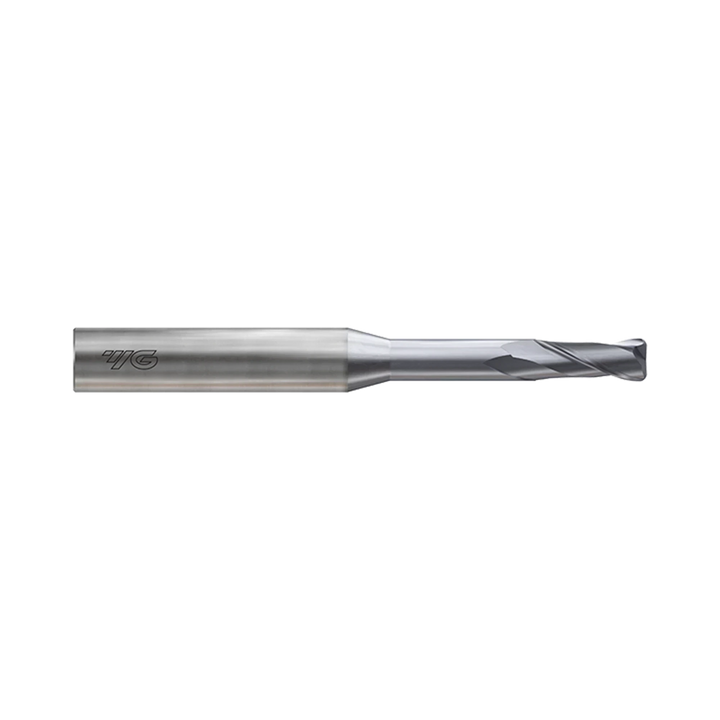

4G MILL 2 Flute 30°Helix Rib Corner Radius End Mill (SEME61)

  • $110.55INC GST $100.50 EX GST
4G MILL 2 Flute 30°Helix Rib Corner Radius End Mill (SEME61)
4G MILL 2 Flute 30°Helix Rib Corner Radius End Mill (SEME61)

4G MILL 2 Flute 30°Helix Rib Corner Radius End Mill (SEME61)

  • $110.55INC GST $100.50 EX GST

Code: SEME6100200201E

P K H
Mill Diameter (mm)
Corner Radius (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Corner Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Length below shank (mm)Neck dia. (mm)Stock Price Qty Add
SEME6100200201E0.2R0.0240.04.00.31.00.17 5 days $100.50
SEME6100300201E0.3R0.0240.04.00.51.00.27 5 days $88.00
SEME6100400501E0.4R0.0540.04.00.61.00.37 5 days $88.00
SEME6100500501E0.5R0.0545.04.00.71.00.45 5 days $73.20
SEME6100600502E0.6R0.0545.04.00.92.00.55 5 days $73.20
SEME6100700504E0.7R0.0545.04.01.24.00.65 5 days $73.20
SEME6100800502E0.8R0.0545.04.01.22.00.75 5 days $73.20
SEME6101000503E1R0.0550.04.01.53.00.95 5 days $64.20
SEME6101200504E1.2R0.0550.04.01.84.01.15 5 days $64.20
SEME6101500504E1.5R0.0550.04.02.34.01.45 5 days $62.90
SEME610200106E2R0.150.04.03.06.01.95 5 days $64.20
SEME610250108E2.5R0.150.04.04.08.02.4 5 days $64.20
SEME610300108E3R0.150.06.04.58.02.85 5 days $72.60
SEME610400110E4R0.150.06.06.010.03.85 5 days $72.60
SEME6105001E5R0.160.06.08.015.04.85 5 days $75.00
SEME6106001E6R0.160.06.09.020.05.85 5 days $75.00
SEME6108003E8R0.370.08.012.025.07.7 5 days $116.10
SEME6110002E10R0.275.010.015.030.09.7 5 days $151.30
SEME6112002E12R0.280.012.018.032.011.7 5 days $204.00
SEME6116005E16R0.5100.016.016.035.015.7 5 days $432.50
SEME6120005E20R0.5100.020.020.040.019.7 5 days $554.30

Add 4G MILL 2 Flute 30°Helix Rib Corner Radius End Mill (SEME61) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The SEME61 series 2 flute slot drill range is available in diameters ranging from 0.2-20mm with a long neck design to prevent interference from the shank. The 4G Mill range from YG-1 offers unbeatable performance and accuracy in high speed machining of all carbon or alloy steels, pre-hardened steels (up to HRc55), stainless steel and cast iron. The micrograin carbide substrate and Y1200 coating offers extreme cutting life in temperatures up to 1,200°C.

  • Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
  • YG-1's Y1200 coating & premium micrograin carbide substrate
  • HSC - High speed cutting
  • Due to new coating and tool geometry, 4G Mills can machine up to 1200°C with outstanding wear resistance
  • Available with various corner radius from R0.02mm to R2.0mm
Product Data
Workpiece Material P K H
Corner Radius Tolerance 0.01, 0.015
Cutting Shape Corner Radius
Hardened Steels(HRc40~45) Great
Helix Angle Square 30
Length Extended Neck
No. Flutes 2
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide
Flutes 2
Helix Angle 30°
Cutting Edge Shape Corner Radius
Size Min D0.2
Size Max D20.0
Length Extended Neck
Coating Y-Coating

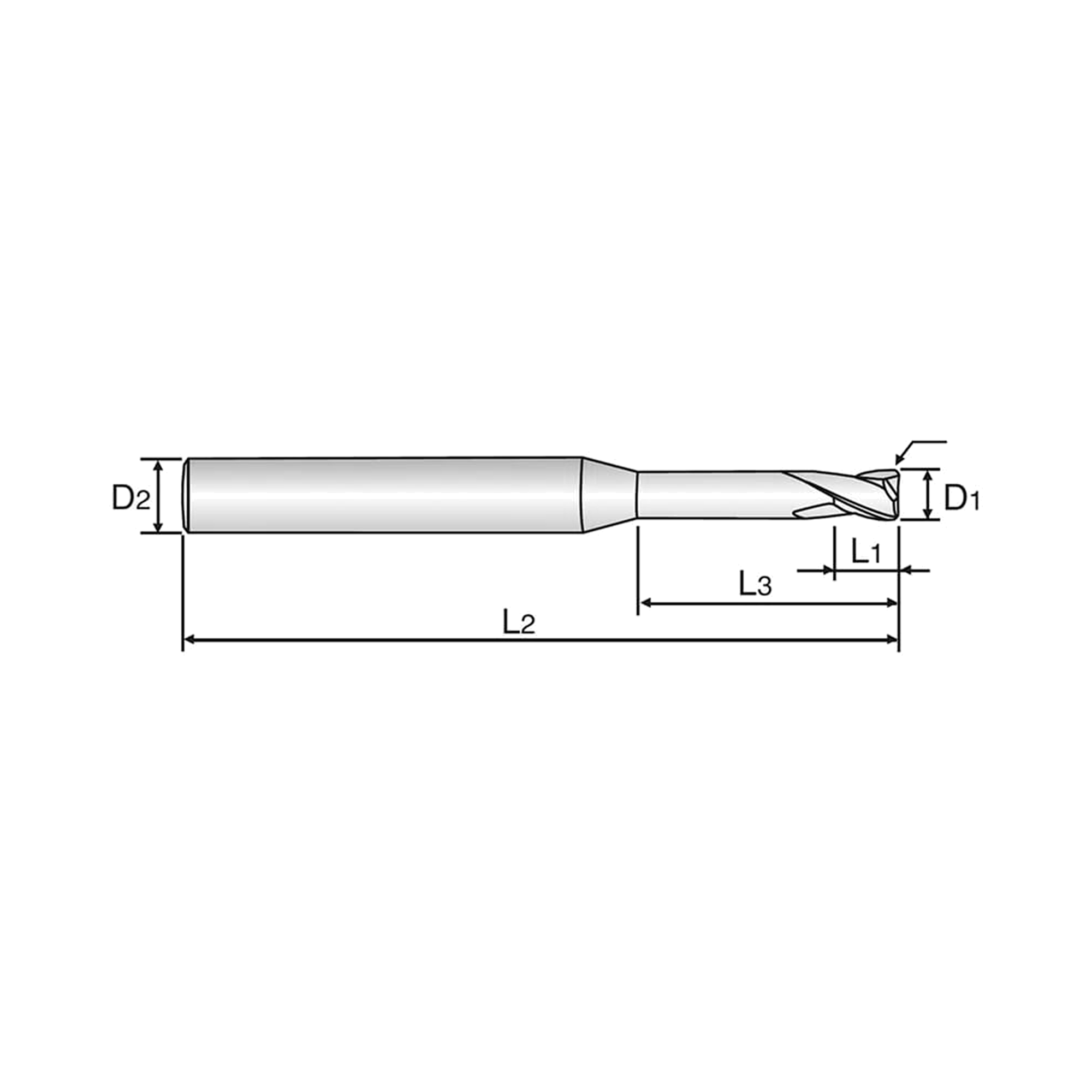

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME6105001 5 6 8 60 0~-0.012 h5 2 SEME6105001E 5 6 8 60 0~-0.012 h5 2 SEME6105002 5 6 8 60 0~-0.012 h5 2 SEME6105010 5 6 8 60 0~-0.012 h5 2 SEME6105015 5 6 8 60 0~-0.012 h5 2 SEME6105020 5 6 8 60 0~-0.012 h5 2 SEME6106001 6 6 9 60 0~-0.012 h5 2 SEME6106001E 6 6 9 60 0~-0.012 h5 2 SEME6106005 6 6 9 60 0~-0.012 h5 2 SEME6106010E 6 6 9 60 0~-0.012 h5 2 SEME6106015 6 6 9 60 0~-0.012 h5 2 SEME6106020 6 6 9 60 0~-0.012 h5 2 SEME6106020E 6 6 9 60 0~-0.012 h5 2 SEME6108001 8 8 12 70 0~-0.015 h5 2 SEME6108005 8 8 12 70 0~-0.015 h5 2 SEME6108005E 8 8 12 70 0~-0.015 h5 2 SEME6108010 8 8 12 70 0~-0.015 h5 2 SEME6108015 8 8 12 70 0~-0.015 h5 2 SEME6108015E 8 8 12 70 0~-0.015 h5 2 SEME6108020 8 8 12 70 0~-0.015 h5 2 SEME6108020E 8 8 12 70 0~-0.015 h5 2 SEME6110001 10 10 15 75 0~-0.015 h5 2 SEME6110001E 10 10 15 75 0~-0.015 h5 2 SEME6110003 10 10 15 75 0~-0.015 h5 2 SEME6110010 10 10 15 75 0~-0.015 h5 2 SEME6110010E 10 10 15 75 0~-0.015 h5 2 SEME6110015 10 10 15 75 0~-0.015 h5 2 SEME6110015E 10 10 15 75 0~-0.015 h5 2 SEME6112005 12 12 18 80 0~-0.015 h5 2 SEME6112005E 12 12 18 80 0~-0.015 h5 2 SEME6112010 12 12 18 80 0~-0.015 h5 2 SEME6112010E 12 12 18 80 0~-0.015 h5 2 SEME6112015 12 12 18 80 0~-0.015 h5 2 SEME6112015E 12 12 18 80 0~-0.015 h5 2 SEME6112020E 12 12 18 80 0~-0.015 h5 2 SEME6116010 16 16 20 100 0~-0.015 h5 2 SEME6120010 20 20 25 100 0~-0.015 h5 2 SEME6120010E 20 20 25 100 0~-0.015 h5 2 SEME610040102 0.4 4 0.6 40 0~-0.012 h5 2 SEME610050102S6SE 0.5 6 0.4 45 0~-0.012 h5 2 SEME610050104 0.5 4 0.7 45 0~-0.012 h5 2 SEME610050104S6SE 0.5 6 0.4 45 0~-0.012 h5 2 SEME610060110 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060202 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060202E 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060203 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060206 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060210 0.6 4 0.9 45 0~-0.012 h5 2 SEME610070102 0.7 4 1.2 45 0~-0.012 h5 2 SEME610070104 0.7 4 1.2 45 0~-0.012 h5 2 SEME610070202 0.7 4 1.2 45 0~-0.012 h5 2 SEME610070210 0.7 4 1.2 45 0~-0.012 h5 2 SEME610080102 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080103 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080108 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080110 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080202 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080202E 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080203 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080204 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080206 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080208 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080210 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080210E 0.8 4 1.2 45 0~-0.012 h5 2 SEME610100105E 1 4 1.5 50 0~-0.012 h5 2 SEME610100108 1 4 1.5 50 0~-0.012 h5 2 SEME610100110 1 4 1.5 50 0~-0.012 h5 2 SEME610100114 1 4 1.5 50 0~-0.012 h5 2 SEME610100203 1 4 1.5 50 0~-0.012 h5 2 SEME610100203E 1 4 1.5 50 0~-0.012 h5 2 SEME610100204 1 4 1.5 50 0~-0.012 h5 2 SEME610100204E 1 4 1.5 50 0~-0.012 h5 2 SEME610100205E 1 4 1.5 50 0~-0.012 h5 2 SEME610100206E 1 4 1.5 50 0~-0.012 h5 2 SEME610100208E 1 4 1.5 50 0~-0.012 h5 2 SEME610100210 1 4 1.5 50 0~-0.012 h5 2 SEME610100212 1 4 1.5 50 0~-0.012 h5 2 SEME610100214 1 4 1.5 50 0~-0.012 h5 2 SEME610100304 1 4 1.5 50 0~-0.012 h5 2 SEME610100308 1 4 1.5 50 0~-0.012 h5 2 SEME610100314E 1 4 1.5 50 0~-0.012 h5 2 SEME610100316 1 4 1.5 50 0~-0.012 h5 2 SEME610100316E 1 4 1.5 50 0~-0.012 h5 2 SEME610100320 1 4 1.5 50 0~-0.012 h5 2 SEME610100320E 1 4 1.5 50 0~-0.012 h5 2 SEME610120106 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120110 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120120 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120203E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120206 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120206E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120210 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120210E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120212 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120216E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120220 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120303 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120303E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120304 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120304E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120306E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120308 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120308E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120310 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120310E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120312 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120316 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120320 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120320E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610150104 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150108 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150110 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150114 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150122 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150206 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150212 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150216 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150226 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150304 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150304E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150306 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150306E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150308E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150310 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150310E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150312 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150314 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150314E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150316 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150316E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150320 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150320E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150322 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150322E 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150326 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150326E 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150506 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150506E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150508 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150508E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150512 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150512E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150516 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150520 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150522 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150526 1.5 4 2.3 60 0~-0.012 h5 2 SEME610200108 2 4 3 50 0~-0.012 h5 2 SEME610200114 2 4 3 50 0~-0.012 h5 2 SEME610200122 2 4 3 60 0~-0.012 h5 2 SEME610200126 2 4 3 60 0~-0.012 h5 2 SEME610200216 2 4 3 50 0~-0.012 h5 2 SEME610200220 2 4 3 50 0~-0.012 h5 2 SEME610200222 2 4 3 60 0~-0.012 h5 2 SEME610200306 2 4 3 50 0~-0.012 h5 2 SEME610200306E 2 4 3 50 0~-0.012 h5 2 SEME610200308 2 4 3 50 0~-0.012 h5 2 SEME610200308E 2 4 3 50 0~-0.012 h5 2 SEME610200310 2 4 3 50 0~-0.012 h5 2 SEME610200310E 2 4 3 50 0~-0.012 h5 2 SEME610200312E 2 4 3 50 0~-0.012 h5 2 SEME610200330 2 4 3 70 0~-0.012 h5 2 SEME610200506 2 4 3 50 0~-0.012 h5 2 SEME610200520 2 4 3 50 0~-0.012 h5 2 SEME610200522E 2 4 3 60 0~-0.012 h5 2 SEME610200530 2 4 3 70 0~-0.012 h5 2 SEME610200530E 2 4 3 70 0~-0.012 h5 2 SEME610250108 2.5 4 4 50 0~-0.012 h5 2 SEME610250114 2.5 4 4 50 0~-0.012 h5 2 SEME610250116 2.5 4 4 50 0~-0.012 h5 2 SEME610250126 2.5 4 4 60 0~-0.012 h5 2 SEME610250210 2.5 4 4 50 0~-0.012 h5 2 SEME610250214 2.5 4 4 50 0~-0.012 h5 2 SEME610250310 2.5 4 4 50 0~-0.012 h5 2 SEME610250330 2.5 4 4 70 0~-0.012 h5 2 SEME610250508 2.5 4 4 50 0~-0.012 h5 2 SEME610250508 2.5 6 4 50 0~-0.012 h5 2 SEME610250508E 2.5 4 4 50 0~-0.012 h5 2 SEME610250510 2.5 4 4 50 0~-0.012 h5 2 SEME610250510 2.5 6 4 50 0~-0.012 h5 2 SEME610250516 2.5 4 4 50 0~-0.012 h5 2 SEME610250516 2.5 6 4 50 0~-0.012 h5 2 SEME610300112E 3 6 4.5 50 0~-0.012 h5 2 SEME610300114 3 6 4.5 60 0~-0.012 h5 2 SEME610300116E 3 6 4.5 60 0~-0.012 h5 2 SEME610300120 3 6 4.5 60 0~-0.012 h5 2 SEME610300120E 3 6 4.5 60 0~-0.012 h5 2 SEME610300126 3 6 4.5 65 0~-0.012 h5 2 SEME610300126E 3 6 4.5 65 0~-0.012 h5 2 SEME610300130 3 6 4.5 70 0~-0.012 h5 2 SEME610300130E 3 6 4.5 70 0~-0.012 h5 2 SEME610300135 3 6 4.5 70 0~-0.012 h5 2 SEME610300135E 3 6 4.5 70 0~-0.012 h5 2 SEME610300140 3 6 4.5 80 0~-0.012 h5 2 SEME610300140E 3 6 4.5 80 0~-0.012 h5 2 SEME610300214 3 6 4.5 60 0~-0.012 h5 2 SEME610300216 3 6 4.5 60 0~-0.012 h5 2 SEME610300226 3 6 4.5 65 0~-0.012 h5 2 SEME610300230 3 6 4.5 70 0~-0.012 h5 2 SEME610300235 3 6 4.5 70 0~-0.012 h5 2 SEME610300240 3 6 4.5 80 0~-0.012 h5 2 SEME610300314 3 6 4.5 60 0~-0.012 h5 2 SEME610300330 3 6 4.5 70 0~-0.012 h5 2 SEME610300510 3 6 4.5 50 0~-0.012 h5 2 SEME610300512 3 6 4.5 50 0~-0.012 h5 2 SEME610300512E 3 6 4.5 50 0~-0.012 h5 2 SEME610300514 3 6 4.5 60 0~-0.012 h5 2 SEME610300516 3 6 4.5 60 0~-0.012 h5 2 SEME610300520 3 6 4.5 60 0~-0.012 h5 2 SEME610300520E 3 6 4.5 60 0~-0.012 h5 2 SEME610300526 3 6 4.5 65 0~-0.012 h5 2 SEME610300526E 3 6 4.5 65 0~-0.012 h5 2 SEME610300530 3 6 4.5 70 0~-0.012 h5 2 SEME610300530E 3 6 4.5 70 0~-0.012 h5 2 SEME610300535 3 6 4.5 70 0~-0.012 h5 2 SEME610300535E 3 6 4.5 70 0~-0.012 h5 2 SEME610300540 3 6 4.5 80 0~-0.012 h5 2 SEME610301008 3 6 4.5 50 0~-0.012 h5 2 SEME610301008E 3 6 4.5 50 0~-0.012 h5 2 SEME610301010 3 6 4.5 50 0~-0.012 h5 2 SEME610301012 3 6 4.5 50 0~-0.012 h5 2 SEME610301012E 3 6 4.5 50 0~-0.012 h5 2 SEME610301014 3 6 4.5 60 0~-0.012 h5 2 SEME610301016 3 6 4.5 60 0~-0.012 h5 2 SEME610301026 3 6 4.5 65 0~-0.012 h5 2 SEME610301026E 3 6 4.5 65 0~-0.012 h5 2 SEME610301030 3 6 4.5 70 0~-0.012 h5 2 SEME610301030E 3 6 4.5 70 0~-0.012 h5 2 SEME610301035 3 6 4.5 70 0~-0.012 h5 2 SEME610301035E 3 6 4.5 70 0~-0.012 h5 2 SEME610400110 4 6 6 50 0~-0.012 h5 2 SEME610400110E 4 6 6 50 0~-0.012 h5 2 SEME610400112 4 6 6 50 0~-0.012 h5 2 SEME610400112E 4 6 6 50 0~-0.012 h5 2 SEME610400114 4 6 6 60 0~-0.012 h5 2 SEME610400114E 4 6 6 60 0~-0.012 h5 2 SEME610400116E 4 6 6 60 0~-0.012 h5 2 SEME610400120 4 6 6 60 0~-0.012 h5 2 SEME610400120E 4 6 6 60 0~-0.012 h5 2 SEME610400126 4 6 6 65 0~-0.012 h5 2 SEME610400126E 4 6 6 65 0~-0.012 h5 2 SEME610400130 4 6 6 70 0~-0.012 h5 2 SEME610400130E 4 6 6 70 0~-0.012 h5 2 SEME610400135 4 6 6 70 0~-0.012 h5 2 SEME610400135E 4 6 6 70 0~-0.012 h5 2 SEME610400140 4 6 6 80 0~-0.012 h5 2 SEME610400140E 4 6 6 80 0~-0.012 h5 2 SEME610400145 4 6 6 90 0~-0.012 h5 2 SEME610400145E 4 6 6 90 0~-0.012 h5 2 SEME610400150 4 6 6 100 0~-0.012 h5 2 SEME610400150E 4 6 6 100 0~-0.012 h5 2 SEME610400220 4 6 6 60 0~-0.012 h5 2 SEME610400230 4 6 6 70 0~-0.012 h5 2 SEME610400235 4 6 6 70 0~-0.012 h5 2 SEME610400310 4 6 6 50 0~-0.012 h5 2 SEME610400312E 4 6 6 50 0~-0.012 h5 2 SEME610400326 4 6 6 65 0~-0.012 h5 2 SEME610400345 4 6 6 90 0~-0.012 h5 2 SEME610400350 4 6 6 100 0~-0.012 h5 2 SEME610400510 4 6 6 50 0~-0.012 h5 2 SEME610400512E 4 6 6 50 0~-0.012 h5 2 SEME610400514 4 6 6 60 0~-0.012 h5 2 SEME610400516 4 6 6 60 0~-0.012 h5 2 SEME610400520 4 6 6 60 0~-0.012 h5 2 SEME610400526 4 6 6 65 0~-0.012 h5 2 SEME610400526E 4 6 6 65 0~-0.012 h5 2 SEME610400530 4 6 6 70 0~-0.012 h5 2 SEME610400530E 4 6 6 70 0~-0.012 h5 2 SEME610400535 4 6 6 70 0~-0.012 h5 2 SEME610400540 4 6 6 80 0~-0.012 h5 2 SEME610400540E 4 6 6 80 0~-0.012 h5 2 SEME610400545 4 6 6 90 0~-0.012 h5 2 SEME610400550 4 6 6 100 0~-0.012 h5 2 SEME610400550E 4 6 6 100 0~-0.012 h5 2 SEME610401010 4 6 6 50 0~-0.012 h5 2 SEME610401010E 4 6 6 50 0~-0.012 h5 2 SEME610401012E 4 6 6 50 0~-0.012 h5 2 SEME610401014 4 6 6 60 0~-0.012 h5 2 SEME610401014E 4 6 6 60 0~-0.012 h5 2 SEME610401016 4 6 6 60 0~-0.012 h5 2 SEME610401016E 4 6 6 60 0~-0.012 h5 2 SEME610401020 4 6 6 60 0~-0.012 h5 2 SEME610401026 4 6 6 65 0~-0.012 h5 2 SEME610401030 4 6 6 70 0~-0.012 h5 2 SEME610401035 4 6 6 70 0~-0.012 h5 2 SEME610401035E 4 6 6 70 0~-0.012 h5 2 SEME610401040 4 6 6 80 0~-0.012 h5 2 SEME610401040E 4 6 6 80 0~-0.012 h5 2 SEME610401045 4 6 6 90 0~-0.012 h5 2 SEME610401050 4 6 6 100 0~-0.012 h5 2 SEME610401050E 4 6 6 100 0~-0.012 h5 2 SEME610600524E 6 6 9 90 0~-0.012 h5 2 SEME6100200201 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200202 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200202E 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200501 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200502 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200502E 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100300201 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300201E 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300202 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300203 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300203E 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300501 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300501E 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300502 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300502S6SE 0.3 6 0.25 40 0~-0.012 h5 2 SEME6100300503 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100400501 0.4 4 0.6 40 0~-0.012 h5 2 SEME6100500501 0.5 4 0.7 45 0~-0.012 h5 2 SEME6100500503 0.5 4 0.7 45 0~-0.012 h5 2 SEME6100500506E 0.5 4 0.7 45 0~-0.012 h5 2 SEME6100600502E 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600503 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600504E 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600506 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600508 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600510 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100700502 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100700504 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100700506 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100700510 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100800502 0.8 4 1.2 45 0~-0.012 h5 2 SEME6100800506 0.8 4 1.2 45 0~-0.012 h5 2 SEME6100800508 0.8 4 1.2 45 0~-0.012 h5 2 SEME6101000503 1 4 1.5 50 0~-0.012 h5 2 SEME6101000504 1 4 1.5 50 0~-0.012 h5 2 SEME6101000505E 1 4 1.5 50 0~-0.012 h5 2 SEME6101000506 1 4 1.5 50 0~-0.012 h5 2 SEME6101000510 1 4 1.5 50 0~-0.012 h5 2 SEME6101000512 1 4 1.5 50 0~-0.012 h5 2 SEME6101000514 1 4 1.5 50 0~-0.012 h5 2 SEME6101000520 1 4 1.5 50 0~-0.012 h5 2 SEME6101000520E 1 4 1.5 50 0~-0.012 h5 2 SEME6101200503 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200503E 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200506 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200506E 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200508 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200510E 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200512 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200516 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200520 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101500506 1.5 4 2.3 50 0~-0.012 h5 2 SEME6101500508 1.5 4 2.3 50 0~-0.012 h5 2 SEME6101500516 1.5 4 2.3 50 0~-0.012 h5 2 SEME6101500522 1.5 4 2.3 60 0~-0.012 h5 2 SEME6101500526 1.5 4 2.3 60 0~-0.012 h5 2 SEME6102005086SE 2 6 3 50 0~-0.012 h5 2 SEME6106003090 6 6 15 90 0~-0.012 h5 2 SEME6106005090 6 6 15 90 0~-0.012 h5 2 SEME6106005090E 6 6 15 90 0~-0.012 h5 2 SEME6106010090 6 6 15 90 0~-0.012 h5 2 SEME6106010090E 6 6 15 90 0~-0.012 h5 2 SEME6108005100E 8 8 20 100 0~-0.015 h5 2 SEME6108010100 8 8 20 100 0~-0.015 h5 2 SEME6110005100 10 10 25 100 0~-0.015 h5 2 SEME6110010100 10 10 25 100 0~-0.015 h5 2 SEME6110010100E 10 10 25 100 0~-0.015 h5 2 SEME6112005110 12 12 30 110 0~-0.015 h5 2 SEME6112005110 12 12 30 110 0~-0.015 h5 2 SEME6112010110 12 12 30 110 0~-0.015 h5 2 SEME6112010110 12 12 30 110 0~-0.015 h5 2 SEME6112010110E 12 12 30 110 0~-0.015 h5 2 SEME6116010150 16 16 35 150 0~-0.015 h5 2 SEME6116010150E 16 16 35 150 0~-0.015 h5 2 SEME6120010150 20 20 40 150 0~-0.015 h5 2 SEME61002002005 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002002015 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002002015E 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002005015 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002005015E 0.2 4 0.3 40 0~-0.012 h5 2 SEME61003005015SE 0.3 4 0.25 40 0~-0.012 h5 2 SEME61004005015 0.4 4 0.6 40 0~-0.012 h5 2
Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
P

Non-alloy steel

Excellent Excellent
HRc
13252832
HB
125190250270300
P

Low alloy steel

Excellent Excellent
HRc
10293238
HB
180275300350
P

High alloy & tool steel

Excellent Excellent
HRc
1535
HB
200325
K

Grey cast iron

Good Good
HRc
1026
HB
180260
K

Nodular cast iron

Good Good
HRc
325
HB
160250
K

Malleable cast iron

Good Good
HRc
21
HB
130230
H

Hardened steels & cast irons

Excellent Excellent
HRc
384041
HB
400630
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME6105001 5 6 8 60 0~-0.012 h5 2 SEME6105001E 5 6 8 60 0~-0.012 h5 2 SEME6105002 5 6 8 60 0~-0.012 h5 2 SEME6105010 5 6 8 60 0~-0.012 h5 2 SEME6105015 5 6 8 60 0~-0.012 h5 2 SEME6105020 5 6 8 60 0~-0.012 h5 2 SEME6106001 6 6 9 60 0~-0.012 h5 2 SEME6106001E 6 6 9 60 0~-0.012 h5 2 SEME6106005 6 6 9 60 0~-0.012 h5 2 SEME6106010E 6 6 9 60 0~-0.012 h5 2 SEME6106015 6 6 9 60 0~-0.012 h5 2 SEME6106020 6 6 9 60 0~-0.012 h5 2 SEME6106020E 6 6 9 60 0~-0.012 h5 2 SEME6108001 8 8 12 70 0~-0.015 h5 2 SEME6108005 8 8 12 70 0~-0.015 h5 2 SEME6108005E 8 8 12 70 0~-0.015 h5 2 SEME6108010 8 8 12 70 0~-0.015 h5 2 SEME6108015 8 8 12 70 0~-0.015 h5 2 SEME6108015E 8 8 12 70 0~-0.015 h5 2 SEME6108020 8 8 12 70 0~-0.015 h5 2 SEME6108020E 8 8 12 70 0~-0.015 h5 2 SEME6110001 10 10 15 75 0~-0.015 h5 2 SEME6110001E 10 10 15 75 0~-0.015 h5 2 SEME6110003 10 10 15 75 0~-0.015 h5 2 SEME6110010 10 10 15 75 0~-0.015 h5 2 SEME6110010E 10 10 15 75 0~-0.015 h5 2 SEME6110015 10 10 15 75 0~-0.015 h5 2 SEME6110015E 10 10 15 75 0~-0.015 h5 2 SEME6112005 12 12 18 80 0~-0.015 h5 2 SEME6112005E 12 12 18 80 0~-0.015 h5 2 SEME6112010 12 12 18 80 0~-0.015 h5 2 SEME6112010E 12 12 18 80 0~-0.015 h5 2 SEME6112015 12 12 18 80 0~-0.015 h5 2 SEME6112015E 12 12 18 80 0~-0.015 h5 2 SEME6112020E 12 12 18 80 0~-0.015 h5 2 SEME6116010 16 16 20 100 0~-0.015 h5 2 SEME6120010 20 20 25 100 0~-0.015 h5 2 SEME6120010E 20 20 25 100 0~-0.015 h5 2 SEME610040102 0.4 4 0.6 40 0~-0.012 h5 2 SEME610050102S6SE 0.5 6 0.4 45 0~-0.012 h5 2 SEME610050104 0.5 4 0.7 45 0~-0.012 h5 2 SEME610050104S6SE 0.5 6 0.4 45 0~-0.012 h5 2 SEME610060110 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060202 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060202E 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060203 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060206 0.6 4 0.9 45 0~-0.012 h5 2 SEME610060210 0.6 4 0.9 45 0~-0.012 h5 2 SEME610070102 0.7 4 1.2 45 0~-0.012 h5 2 SEME610070104 0.7 4 1.2 45 0~-0.012 h5 2 SEME610070202 0.7 4 1.2 45 0~-0.012 h5 2 SEME610070210 0.7 4 1.2 45 0~-0.012 h5 2 SEME610080102 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080103 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080108 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080110 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080202 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080202E 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080203 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080204 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080206 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080208 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080210 0.8 4 1.2 45 0~-0.012 h5 2 SEME610080210E 0.8 4 1.2 45 0~-0.012 h5 2 SEME610100105E 1 4 1.5 50 0~-0.012 h5 2 SEME610100108 1 4 1.5 50 0~-0.012 h5 2 SEME610100110 1 4 1.5 50 0~-0.012 h5 2 SEME610100114 1 4 1.5 50 0~-0.012 h5 2 SEME610100203 1 4 1.5 50 0~-0.012 h5 2 SEME610100203E 1 4 1.5 50 0~-0.012 h5 2 SEME610100204 1 4 1.5 50 0~-0.012 h5 2 SEME610100204E 1 4 1.5 50 0~-0.012 h5 2 SEME610100205E 1 4 1.5 50 0~-0.012 h5 2 SEME610100206E 1 4 1.5 50 0~-0.012 h5 2 SEME610100208E 1 4 1.5 50 0~-0.012 h5 2 SEME610100210 1 4 1.5 50 0~-0.012 h5 2 SEME610100212 1 4 1.5 50 0~-0.012 h5 2 SEME610100214 1 4 1.5 50 0~-0.012 h5 2 SEME610100304 1 4 1.5 50 0~-0.012 h5 2 SEME610100308 1 4 1.5 50 0~-0.012 h5 2 SEME610100314E 1 4 1.5 50 0~-0.012 h5 2 SEME610100316 1 4 1.5 50 0~-0.012 h5 2 SEME610100316E 1 4 1.5 50 0~-0.012 h5 2 SEME610100320 1 4 1.5 50 0~-0.012 h5 2 SEME610100320E 1 4 1.5 50 0~-0.012 h5 2 SEME610120106 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120110 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120120 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120203E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120206 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120206E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120210 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120210E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120212 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120216E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120220 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120303 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120303E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120304 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120304E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120306E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120308 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120308E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120310 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120310E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120312 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120316 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120320 1.2 4 1.8 50 0~-0.012 h5 2 SEME610120320E 1.2 4 1.8 50 0~-0.012 h5 2 SEME610150104 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150108 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150110 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150114 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150122 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150206 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150212 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150216 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150226 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150304 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150304E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150306 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150306E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150308E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150310 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150310E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150312 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150314 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150314E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150316 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150316E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150320 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150320E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150322 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150322E 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150326 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150326E 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150506 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150506E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150508 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150508E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150512 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150512E 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150516 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150520 1.5 4 2.3 50 0~-0.012 h5 2 SEME610150522 1.5 4 2.3 60 0~-0.012 h5 2 SEME610150526 1.5 4 2.3 60 0~-0.012 h5 2 SEME610200108 2 4 3 50 0~-0.012 h5 2 SEME610200114 2 4 3 50 0~-0.012 h5 2 SEME610200122 2 4 3 60 0~-0.012 h5 2 SEME610200126 2 4 3 60 0~-0.012 h5 2 SEME610200216 2 4 3 50 0~-0.012 h5 2 SEME610200220 2 4 3 50 0~-0.012 h5 2 SEME610200222 2 4 3 60 0~-0.012 h5 2 SEME610200306 2 4 3 50 0~-0.012 h5 2 SEME610200306E 2 4 3 50 0~-0.012 h5 2 SEME610200308 2 4 3 50 0~-0.012 h5 2 SEME610200308E 2 4 3 50 0~-0.012 h5 2 SEME610200310 2 4 3 50 0~-0.012 h5 2 SEME610200310E 2 4 3 50 0~-0.012 h5 2 SEME610200312E 2 4 3 50 0~-0.012 h5 2 SEME610200330 2 4 3 70 0~-0.012 h5 2 SEME610200506 2 4 3 50 0~-0.012 h5 2 SEME610200520 2 4 3 50 0~-0.012 h5 2 SEME610200522E 2 4 3 60 0~-0.012 h5 2 SEME610200530 2 4 3 70 0~-0.012 h5 2 SEME610200530E 2 4 3 70 0~-0.012 h5 2 SEME610250108 2.5 4 4 50 0~-0.012 h5 2 SEME610250114 2.5 4 4 50 0~-0.012 h5 2 SEME610250116 2.5 4 4 50 0~-0.012 h5 2 SEME610250126 2.5 4 4 60 0~-0.012 h5 2 SEME610250210 2.5 4 4 50 0~-0.012 h5 2 SEME610250214 2.5 4 4 50 0~-0.012 h5 2 SEME610250310 2.5 4 4 50 0~-0.012 h5 2 SEME610250330 2.5 4 4 70 0~-0.012 h5 2 SEME610250508 2.5 4 4 50 0~-0.012 h5 2 SEME610250508 2.5 6 4 50 0~-0.012 h5 2 SEME610250508E 2.5 4 4 50 0~-0.012 h5 2 SEME610250510 2.5 4 4 50 0~-0.012 h5 2 SEME610250510 2.5 6 4 50 0~-0.012 h5 2 SEME610250516 2.5 4 4 50 0~-0.012 h5 2 SEME610250516 2.5 6 4 50 0~-0.012 h5 2 SEME610300112E 3 6 4.5 50 0~-0.012 h5 2 SEME610300114 3 6 4.5 60 0~-0.012 h5 2 SEME610300116E 3 6 4.5 60 0~-0.012 h5 2 SEME610300120 3 6 4.5 60 0~-0.012 h5 2 SEME610300120E 3 6 4.5 60 0~-0.012 h5 2 SEME610300126 3 6 4.5 65 0~-0.012 h5 2 SEME610300126E 3 6 4.5 65 0~-0.012 h5 2 SEME610300130 3 6 4.5 70 0~-0.012 h5 2 SEME610300130E 3 6 4.5 70 0~-0.012 h5 2 SEME610300135 3 6 4.5 70 0~-0.012 h5 2 SEME610300135E 3 6 4.5 70 0~-0.012 h5 2 SEME610300140 3 6 4.5 80 0~-0.012 h5 2 SEME610300140E 3 6 4.5 80 0~-0.012 h5 2 SEME610300214 3 6 4.5 60 0~-0.012 h5 2 SEME610300216 3 6 4.5 60 0~-0.012 h5 2 SEME610300226 3 6 4.5 65 0~-0.012 h5 2 SEME610300230 3 6 4.5 70 0~-0.012 h5 2 SEME610300235 3 6 4.5 70 0~-0.012 h5 2 SEME610300240 3 6 4.5 80 0~-0.012 h5 2 SEME610300314 3 6 4.5 60 0~-0.012 h5 2 SEME610300330 3 6 4.5 70 0~-0.012 h5 2 SEME610300510 3 6 4.5 50 0~-0.012 h5 2 SEME610300512 3 6 4.5 50 0~-0.012 h5 2 SEME610300512E 3 6 4.5 50 0~-0.012 h5 2 SEME610300514 3 6 4.5 60 0~-0.012 h5 2 SEME610300516 3 6 4.5 60 0~-0.012 h5 2 SEME610300520 3 6 4.5 60 0~-0.012 h5 2 SEME610300520E 3 6 4.5 60 0~-0.012 h5 2 SEME610300526 3 6 4.5 65 0~-0.012 h5 2 SEME610300526E 3 6 4.5 65 0~-0.012 h5 2 SEME610300530 3 6 4.5 70 0~-0.012 h5 2 SEME610300530E 3 6 4.5 70 0~-0.012 h5 2 SEME610300535 3 6 4.5 70 0~-0.012 h5 2 SEME610300535E 3 6 4.5 70 0~-0.012 h5 2 SEME610300540 3 6 4.5 80 0~-0.012 h5 2 SEME610301008 3 6 4.5 50 0~-0.012 h5 2 SEME610301008E 3 6 4.5 50 0~-0.012 h5 2 SEME610301010 3 6 4.5 50 0~-0.012 h5 2 SEME610301012 3 6 4.5 50 0~-0.012 h5 2 SEME610301012E 3 6 4.5 50 0~-0.012 h5 2 SEME610301014 3 6 4.5 60 0~-0.012 h5 2 SEME610301016 3 6 4.5 60 0~-0.012 h5 2 SEME610301026 3 6 4.5 65 0~-0.012 h5 2 SEME610301026E 3 6 4.5 65 0~-0.012 h5 2 SEME610301030 3 6 4.5 70 0~-0.012 h5 2 SEME610301030E 3 6 4.5 70 0~-0.012 h5 2 SEME610301035 3 6 4.5 70 0~-0.012 h5 2 SEME610301035E 3 6 4.5 70 0~-0.012 h5 2 SEME610400110 4 6 6 50 0~-0.012 h5 2 SEME610400110E 4 6 6 50 0~-0.012 h5 2 SEME610400112 4 6 6 50 0~-0.012 h5 2 SEME610400112E 4 6 6 50 0~-0.012 h5 2 SEME610400114 4 6 6 60 0~-0.012 h5 2 SEME610400114E 4 6 6 60 0~-0.012 h5 2 SEME610400116E 4 6 6 60 0~-0.012 h5 2 SEME610400120 4 6 6 60 0~-0.012 h5 2 SEME610400120E 4 6 6 60 0~-0.012 h5 2 SEME610400126 4 6 6 65 0~-0.012 h5 2 SEME610400126E 4 6 6 65 0~-0.012 h5 2 SEME610400130 4 6 6 70 0~-0.012 h5 2 SEME610400130E 4 6 6 70 0~-0.012 h5 2 SEME610400135 4 6 6 70 0~-0.012 h5 2 SEME610400135E 4 6 6 70 0~-0.012 h5 2 SEME610400140 4 6 6 80 0~-0.012 h5 2 SEME610400140E 4 6 6 80 0~-0.012 h5 2 SEME610400145 4 6 6 90 0~-0.012 h5 2 SEME610400145E 4 6 6 90 0~-0.012 h5 2 SEME610400150 4 6 6 100 0~-0.012 h5 2 SEME610400150E 4 6 6 100 0~-0.012 h5 2 SEME610400220 4 6 6 60 0~-0.012 h5 2 SEME610400230 4 6 6 70 0~-0.012 h5 2 SEME610400235 4 6 6 70 0~-0.012 h5 2 SEME610400310 4 6 6 50 0~-0.012 h5 2 SEME610400312E 4 6 6 50 0~-0.012 h5 2 SEME610400326 4 6 6 65 0~-0.012 h5 2 SEME610400345 4 6 6 90 0~-0.012 h5 2 SEME610400350 4 6 6 100 0~-0.012 h5 2 SEME610400510 4 6 6 50 0~-0.012 h5 2 SEME610400512E 4 6 6 50 0~-0.012 h5 2 SEME610400514 4 6 6 60 0~-0.012 h5 2 SEME610400516 4 6 6 60 0~-0.012 h5 2 SEME610400520 4 6 6 60 0~-0.012 h5 2 SEME610400526 4 6 6 65 0~-0.012 h5 2 SEME610400526E 4 6 6 65 0~-0.012 h5 2 SEME610400530 4 6 6 70 0~-0.012 h5 2 SEME610400530E 4 6 6 70 0~-0.012 h5 2 SEME610400535 4 6 6 70 0~-0.012 h5 2 SEME610400540 4 6 6 80 0~-0.012 h5 2 SEME610400540E 4 6 6 80 0~-0.012 h5 2 SEME610400545 4 6 6 90 0~-0.012 h5 2 SEME610400550 4 6 6 100 0~-0.012 h5 2 SEME610400550E 4 6 6 100 0~-0.012 h5 2 SEME610401010 4 6 6 50 0~-0.012 h5 2 SEME610401010E 4 6 6 50 0~-0.012 h5 2 SEME610401012E 4 6 6 50 0~-0.012 h5 2 SEME610401014 4 6 6 60 0~-0.012 h5 2 SEME610401014E 4 6 6 60 0~-0.012 h5 2 SEME610401016 4 6 6 60 0~-0.012 h5 2 SEME610401016E 4 6 6 60 0~-0.012 h5 2 SEME610401020 4 6 6 60 0~-0.012 h5 2 SEME610401026 4 6 6 65 0~-0.012 h5 2 SEME610401030 4 6 6 70 0~-0.012 h5 2 SEME610401035 4 6 6 70 0~-0.012 h5 2 SEME610401035E 4 6 6 70 0~-0.012 h5 2 SEME610401040 4 6 6 80 0~-0.012 h5 2 SEME610401040E 4 6 6 80 0~-0.012 h5 2 SEME610401045 4 6 6 90 0~-0.012 h5 2 SEME610401050 4 6 6 100 0~-0.012 h5 2 SEME610401050E 4 6 6 100 0~-0.012 h5 2 SEME610600524E 6 6 9 90 0~-0.012 h5 2 SEME6100200201 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200202 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200202E 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200501 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200502 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100200502E 0.2 4 0.3 40 0~-0.012 h5 2 SEME6100300201 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300201E 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300202 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300203 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300203E 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300501 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300501E 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300502 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100300502S6SE 0.3 6 0.25 40 0~-0.012 h5 2 SEME6100300503 0.3 4 0.5 40 0~-0.012 h5 2 SEME6100400501 0.4 4 0.6 40 0~-0.012 h5 2 SEME6100500501 0.5 4 0.7 45 0~-0.012 h5 2 SEME6100500503 0.5 4 0.7 45 0~-0.012 h5 2 SEME6100500506E 0.5 4 0.7 45 0~-0.012 h5 2 SEME6100600502E 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600503 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600504E 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600506 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600508 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100600510 0.6 4 0.9 45 0~-0.012 h5 2 SEME6100700502 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100700504 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100700506 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100700510 0.7 4 1.2 45 0~-0.012 h5 2 SEME6100800502 0.8 4 1.2 45 0~-0.012 h5 2 SEME6100800506 0.8 4 1.2 45 0~-0.012 h5 2 SEME6100800508 0.8 4 1.2 45 0~-0.012 h5 2 SEME6101000503 1 4 1.5 50 0~-0.012 h5 2 SEME6101000504 1 4 1.5 50 0~-0.012 h5 2 SEME6101000505E 1 4 1.5 50 0~-0.012 h5 2 SEME6101000506 1 4 1.5 50 0~-0.012 h5 2 SEME6101000510 1 4 1.5 50 0~-0.012 h5 2 SEME6101000512 1 4 1.5 50 0~-0.012 h5 2 SEME6101000514 1 4 1.5 50 0~-0.012 h5 2 SEME6101000520 1 4 1.5 50 0~-0.012 h5 2 SEME6101000520E 1 4 1.5 50 0~-0.012 h5 2 SEME6101200503 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200503E 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200506 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200506E 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200508 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200510E 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200512 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200516 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101200520 1.2 4 1.8 50 0~-0.012 h5 2 SEME6101500506 1.5 4 2.3 50 0~-0.012 h5 2 SEME6101500508 1.5 4 2.3 50 0~-0.012 h5 2 SEME6101500516 1.5 4 2.3 50 0~-0.012 h5 2 SEME6101500522 1.5 4 2.3 60 0~-0.012 h5 2 SEME6101500526 1.5 4 2.3 60 0~-0.012 h5 2 SEME6102005086SE 2 6 3 50 0~-0.012 h5 2 SEME6106003090 6 6 15 90 0~-0.012 h5 2 SEME6106005090 6 6 15 90 0~-0.012 h5 2 SEME6106005090E 6 6 15 90 0~-0.012 h5 2 SEME6106010090 6 6 15 90 0~-0.012 h5 2 SEME6106010090E 6 6 15 90 0~-0.012 h5 2 SEME6108005100E 8 8 20 100 0~-0.015 h5 2 SEME6108010100 8 8 20 100 0~-0.015 h5 2 SEME6110005100 10 10 25 100 0~-0.015 h5 2 SEME6110010100 10 10 25 100 0~-0.015 h5 2 SEME6110010100E 10 10 25 100 0~-0.015 h5 2 SEME6112005110 12 12 30 110 0~-0.015 h5 2 SEME6112005110 12 12 30 110 0~-0.015 h5 2 SEME6112010110 12 12 30 110 0~-0.015 h5 2 SEME6112010110 12 12 30 110 0~-0.015 h5 2 SEME6112010110E 12 12 30 110 0~-0.015 h5 2 SEME6116010150 16 16 35 150 0~-0.015 h5 2 SEME6116010150E 16 16 35 150 0~-0.015 h5 2 SEME6120010150 20 20 40 150 0~-0.015 h5 2 SEME61002002005 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002002015 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002002015E 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002005015 0.2 4 0.3 40 0~-0.012 h5 2 SEME61002005015E 0.2 4 0.3 40 0~-0.012 h5 2 SEME61003005015SE 0.3 4 0.25 40 0~-0.012 h5 2 SEME61004005015 0.4 4 0.6 40 0~-0.012 h5 2
