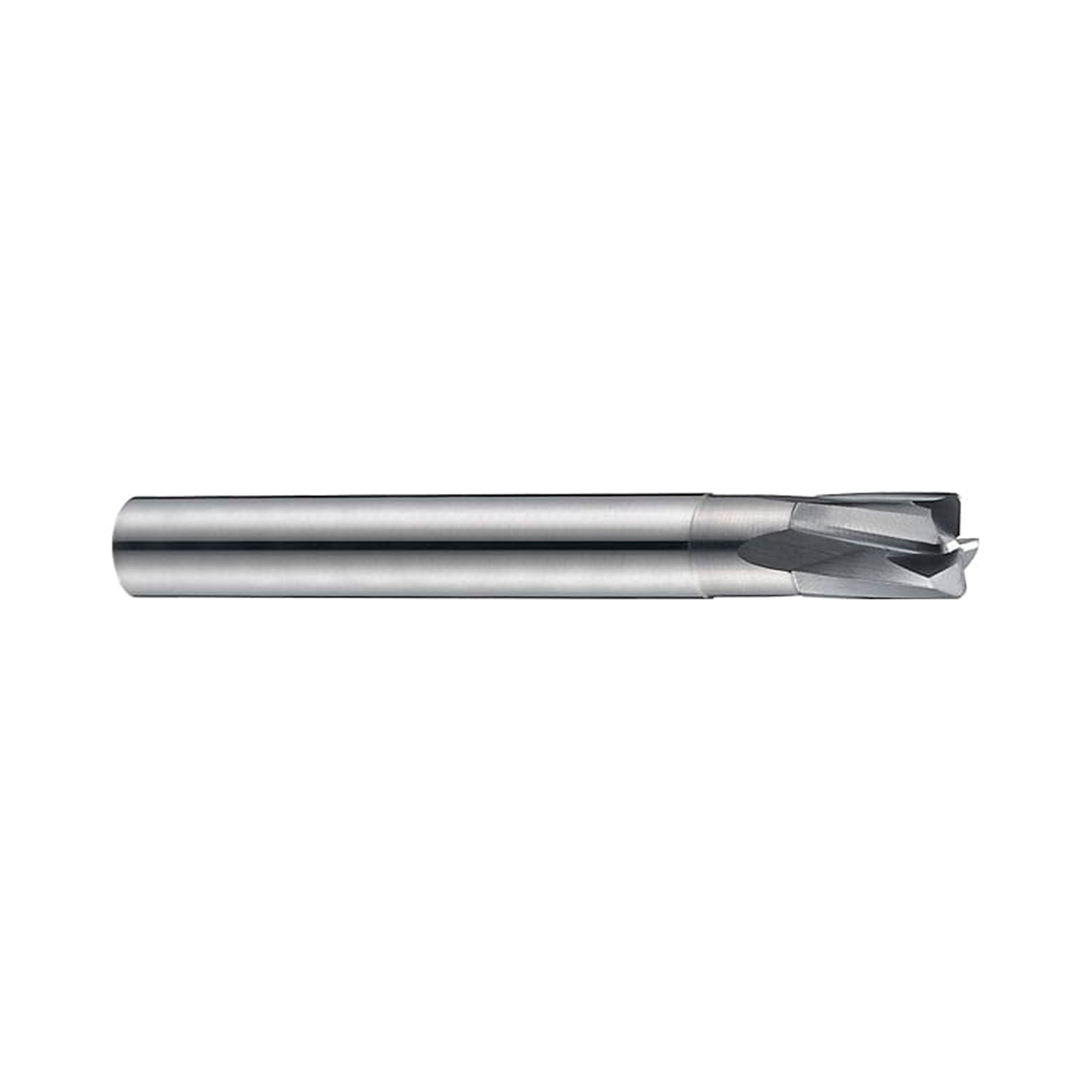

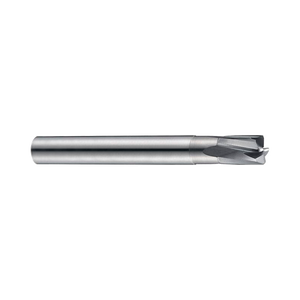

4G MILL 4 Flute 10°Helix Corner Radius End Mill (SEME66)

4G MILL 4 Flute 10°Helix Corner Radius End Mill (SEME66)
$0.00 INC GST $0.00 EX GST Price available on request
SKU
SEME66
Work materials
PKH
Tool material Carbide
Surface treatment YG-1 Y Coating
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add 4G MILL 4 Flute 10°Helix Corner Radius End Mill (SEME66) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Due to new coating and geometry, outstanding cutting ability and wear-resistance.
  • Excellent for cutting pre-hardened steels, carbon steels and alloy steels of molds and dies up to HRc55 and machine parts.
  • Tools can cut deep grooves without breaking due to high strength of taper neck.
  • Small corner radii applied to protect chipping of cutting edges.

Specifications

Flutes 4
Helix Angle 10°
Cutting Edge Shape Corner Radius
Size Min D0.1
Size Max D20.0
Length Extended Neck
Coating Y-Coating
Product Data
Workpiece Material P K H
Corner Radius Tolerance 0.02
Hardened Steels(HRc40~45) Great
Helix Angle Square 10
No. Flutes 4
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide

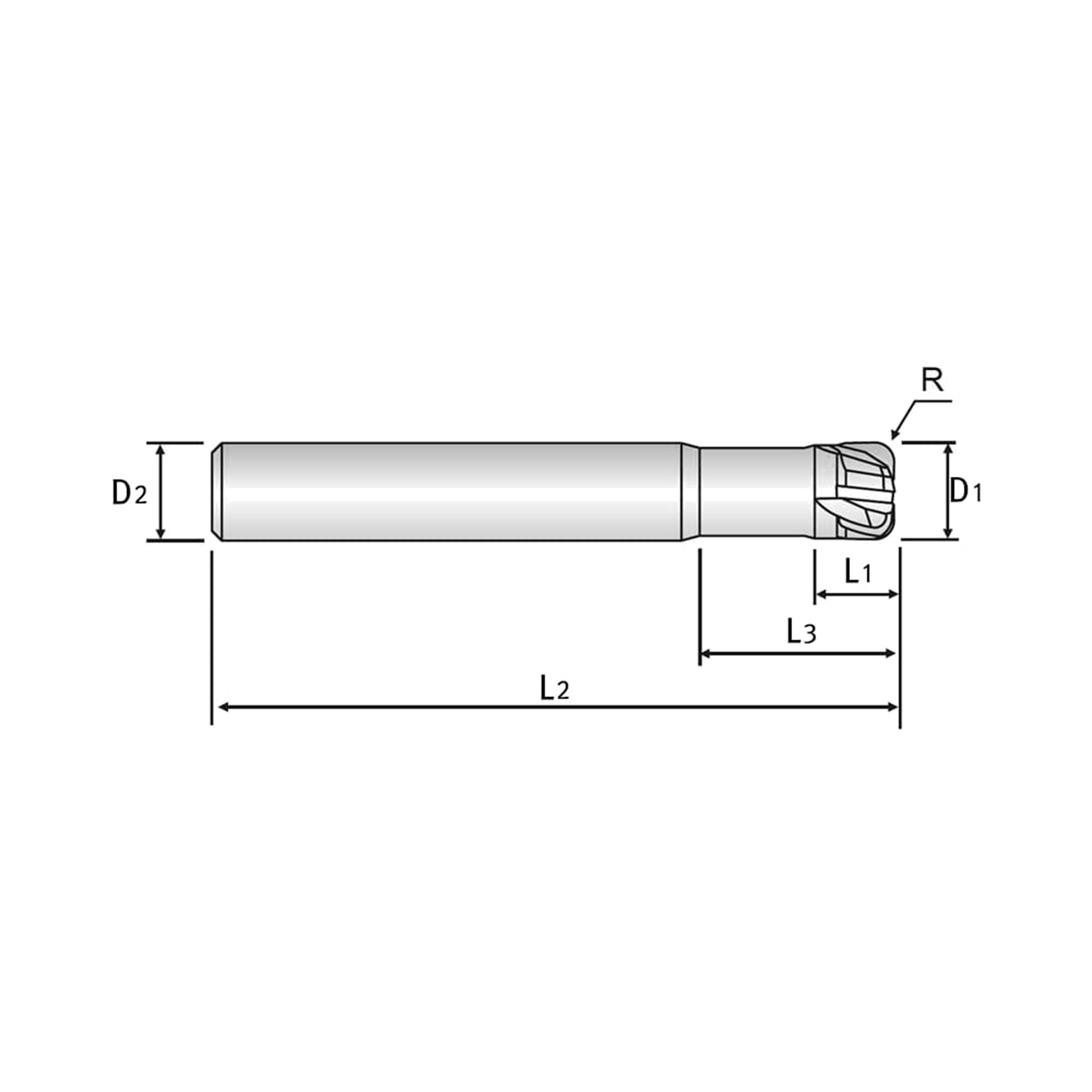

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME6601001 1 6 1 50 0~-0.030 h5 4 SEME6601002 1 6 1 50 0~-0.030 h5 4 SEME6601003 1 6 1 50 0~-0.030 h5 4 SEME6601502 1.5 6 1.5 50 0~-0.030 h5 4 SEME6601503 1.5 6 1.5 50 0~-0.030 h5 4 SEME6601505 1.5 6 1.5 50 0~-0.030 h5 4 SEME6602002 2 6 2 50 0~-0.030 h5 4 SEME6602003 2 6 2 50 0~-0.030 h5 4 SEME6602005 2 6 2 50 0~-0.030 h5 4 SEME6603002 3 6 3 50 0~-0.030 h5 4 SEME6603003 3 6 3 50 0~-0.030 h5 4 SEME6603005 3 6 3 50 0~-0.030 h5 4 SEME6604002 4 6 4 50 0~-0.030 h5 4 SEME6604003 4 6 4 50 0~-0.030 h5 4 SEME6604005 4 6 4 50 0~-0.030 h5 4 SEME6604010 4 6 4 50 0~-0.030 h5 4 SEME6606002 6 6 6 60 0~-0.030 h5 4 SEME6606003 6 6 6 60 0~-0.030 h5 4 SEME6606005 6 6 6 60 0~-0.030 h5 4 SEME6606010 6 6 6 60 0~-0.030 h5 4 SEME6606020 6 6 6 60 0~-0.030 h5 4 SEME6606002090 6 6 6 90 0~-0.030 h5 4 SEME6606003090 6 6 6 90 0~-0.030 h5 4 SEME6606005090 6 6 6 90 0~-0.030 h5 4 SEME6606010090 6 6 6 90 0~-0.030 h5 4 SEME6606020090 6 6 6 90 0~-0.030 h5 4 SEME6608002 8 8 8 70 0~-0.030 h5 4 SEME6608003 8 8 8 70 0~-0.030 h5 4 SEME6608005 8 8 8 70 0~-0.030 h5 4 SEME6608010 8 8 8 70 0~-0.030 h5 4 SEME6608020 8 8 8 70 0~-0.030 h5 4 SEME6608002100 8 8 8 100 0~-0.030 h5 4 SEME6608003100 8 8 8 100 0~-0.030 h5 4 SEME6608005100 8 8 8 100 0~-0.030 h5 4 SEME6608010100 8 8 8 100 0~-0.030 h5 4 SEME6608020100 8 8 8 100 0~-0.030 h5 4 SEME6610002 10 10 10 75 0~-0.030 h5 4 SEME6610003 10 10 10 75 0~-0.030 h5 4 SEME6610005 10 10 10 75 0~-0.030 h5 4 SEME6610010 10 10 10 75 0~-0.030 h5 4 SEME6610015 10 10 10 75 0~-0.030 h5 4 SEME6610020 10 10 10 75 0~-0.030 h5 4 SEME6610002100 10 10 10 100 0~-0.030 h5 4 SEME6610003100 10 10 10 100 0~-0.030 h5 4 SEME6610005100 10 10 10 100 0~-0.030 h5 4 SEME6610010100 10 10 10 100 0~-0.030 h5 4 SEME6610015100 10 10 10 100 0~-0.030 h5 4 SEME6610020100 10 10 10 100 0~-0.030 h5 4 SEME6612003 12 12 12 80 0~-0.030 h5 4 SEME6612005 12 12 12 80 0~-0.030 h5 4 SEME6612010 12 12 12 80 0~-0.030 h5 4 SEME6612015 12 12 12 80 0~-0.030 h5 4 SEME6612020 12 12 12 80 0~-0.030 h5 4 SEME6612030 12 12 12 80 0~-0.030 h5 4 SEME6612003110 12 12 12 110 0~-0.030 h5 4 SEME6612005110 12 12 12 110 0~-0.030 h5 4 SEME6612010110 12 12 12 110 0~-0.030 h5 4 SEME6612015110 12 12 12 110 0~-0.030 h5 4 SEME6612020110 12 12 12 110 0~-0.030 h5 4 SEME6612030110 12 12 12 110 0~-0.030 h5 4 SEME6616005 16 16 16 100 0~-0.030 h5 4 SEME6616010 16 16 16 100 0~-0.030 h5 4 SEME6616020 16 16 16 100 0~-0.030 h5 4 SEME6616005150 16 16 16 150 0~-0.030 h5 4 SEME6616010150 16 16 16 150 0~-0.030 h5 4 SEME6616020150 16 16 16 150 0~-0.030 h5 4 SEME6620005 20 20 20 100 0~-0.030 h5 4 SEME6620010 20 20 20 100 0~-0.030 h5 4 SEME6620020 20 20 20 100 0~-0.030 h5 4 SEME6620005150 20 20 20 150 0~-0.030 h5 4 SEME6620010150 20 20 20 150 0~-0.030 h5 4 SEME6620020150 20 20 20 150 0~-0.030 h5 4
Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 4–5
GoodVDI 1–3
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Hardened materials

3 grades
Hardened steel
GoodVDI 38
Chilled cast iron
ExcellentVDI 40
Hardened cast iron
GoodVDI 41

Cast iron

6 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17–18
Malleable cast iron
GoodVDI 19–20
VDI grade reference20 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelGood25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
18KNodular cast ironGood25025
19KMalleable cast ironGood130-
20KMalleable cast ironGood23021
38HHardened steelGood55055
40HChilled cast ironExcellent40042
41HHardened cast ironGood55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
