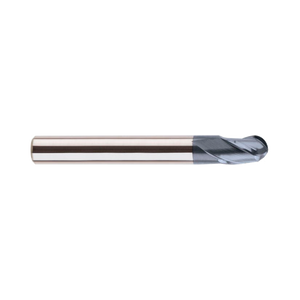

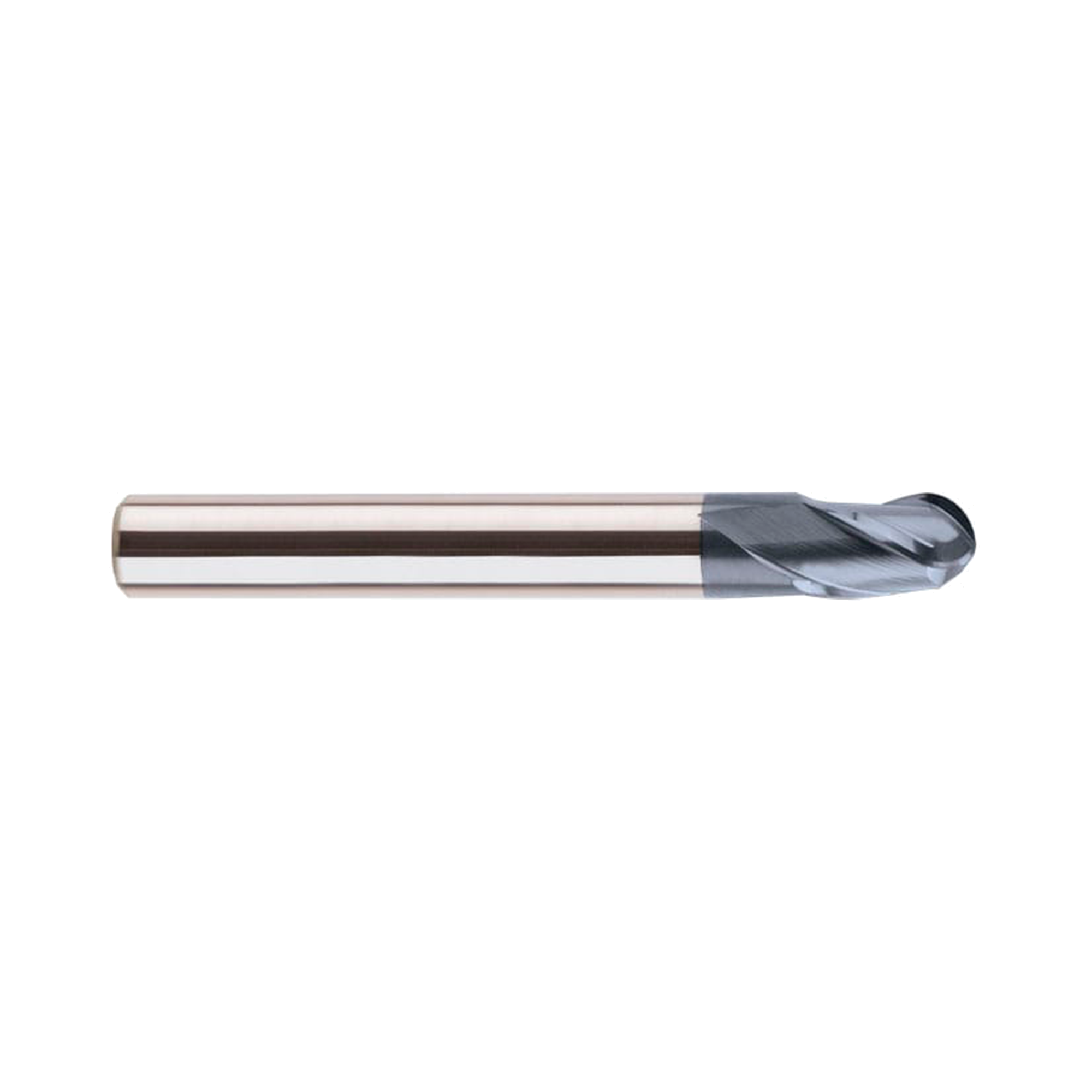

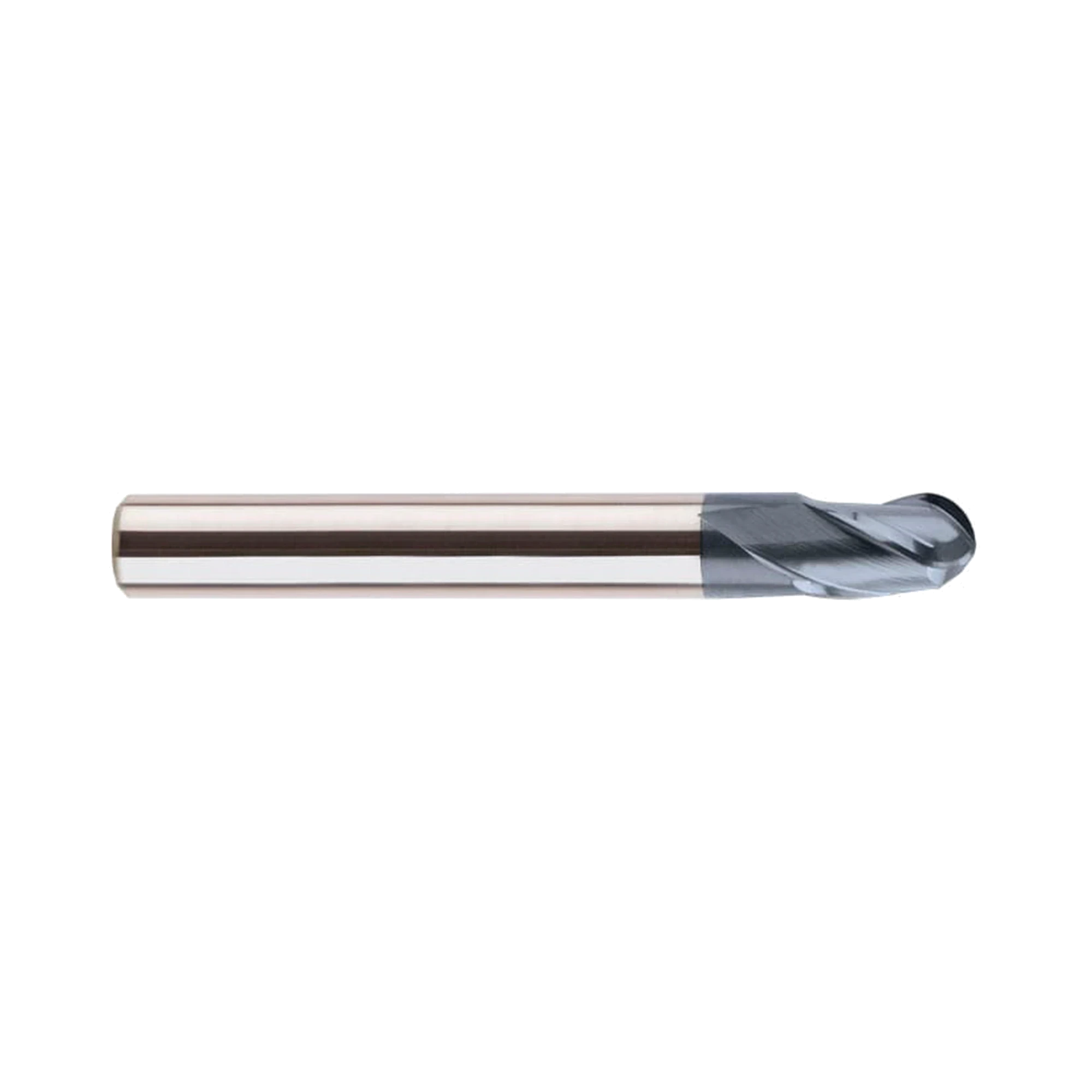

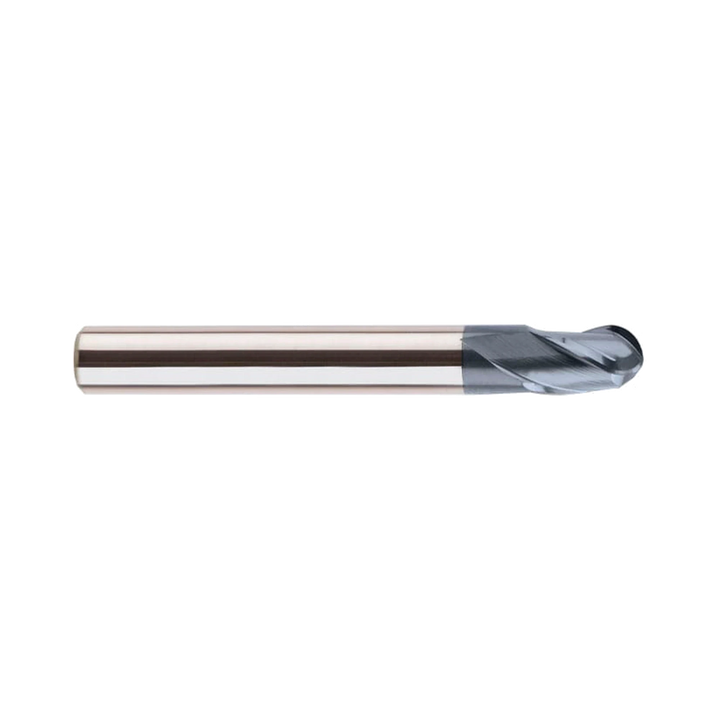

4G MILL 3 Flute 30°Helix Helix Ball End Mill (SEME59)

4G MILL 3 Flute 30°Helix Helix Ball End Mill (SEME59)
$0.00 INC GST $0.00 EX GST Price available on request
SKU
SEME59
P K H
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add 4G MILL 3 Flute 30°Helix Helix Ball End Mill (SEME59) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Due to new coating and geometry, outstanding cutting ability and wear-resistance.
  • Excellent performance when cutting pre-hardened steels up to HRc55 which are used for molds & dies.
  • Due to spherical type End mills, can machine various 3D profile of cofiguration.
  • Can be used for back milling and can increase feed rate due to spherical cutting edges.

Specifications

Flutes 3
Helix Angle 30°
Cutting Edge Shape BALL NOSE
Size Min R0.50
Size Max R6.0
Length -
Coating Y-Coating



Product Data
Workpiece Material P K H
Ball Radius Tolerance 0.01
Corner Radius Tolerance 0.005
Hardened Steels(HRc40~45) Excellent
Helix Angle Ball Nose 30
No. Flutes 3
Operation Profiling, Side Milling, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide

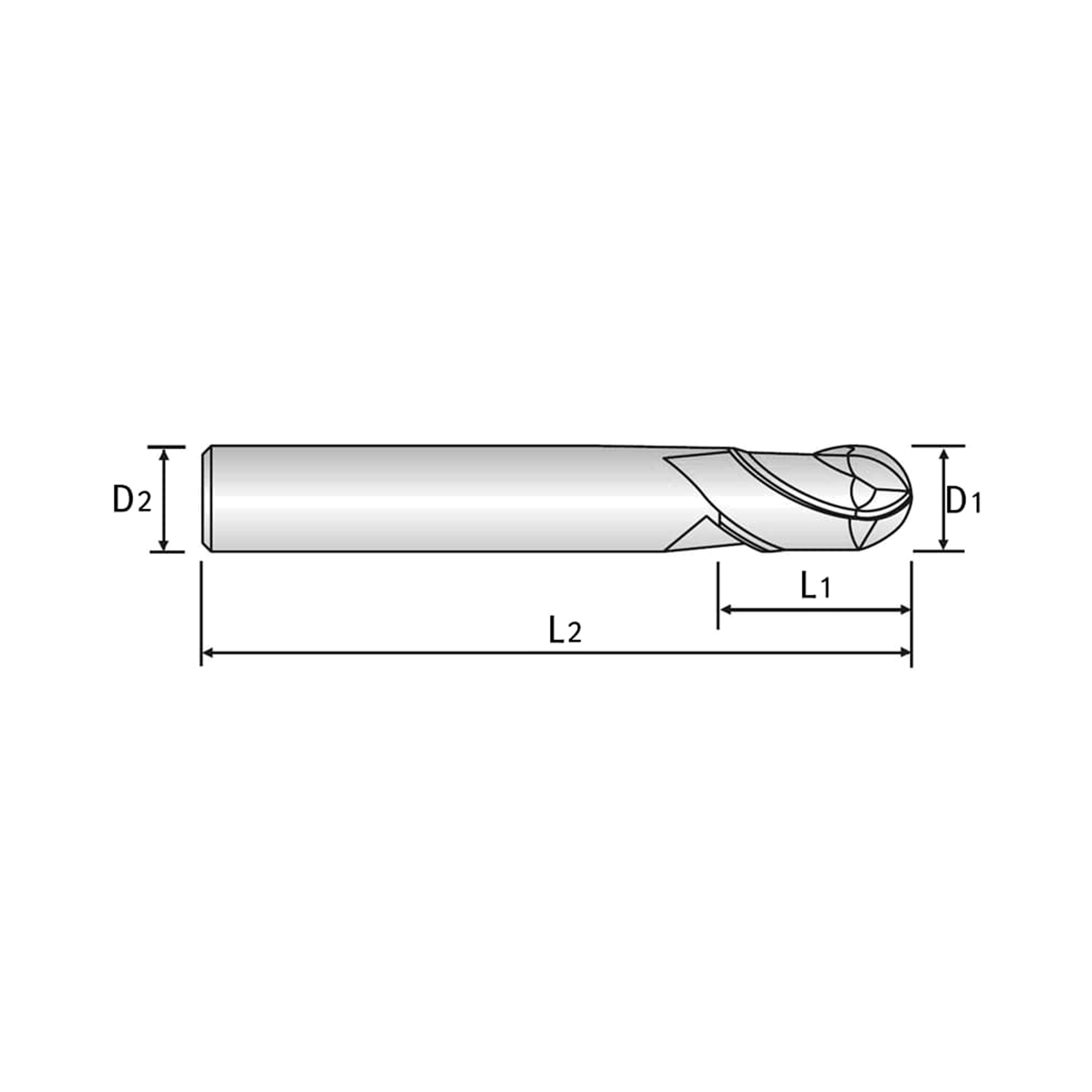

EDP No. Mill Diameter (D1) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME59010 1 0~-0.012 h5 3 SEME59015 1.5 0~-0.012 h5 3 SEME59020 2 0~-0.012 h5 3 SEME59030 3 0~-0.012 h5 3 SEME59040 4 0~-0.012 h5 3 SEME59050 5 0~-0.012 h5 3 SEME59060 6 0~-0.012 h5 3 SEME59080 8 0~-0.015 h5 3 SEME59100 10 0~-0.015 h5 3 SEME59120 12 0~-0.015 h5 3
Profiling
Side Milling
Small Part
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
H Hardened Steels (HRc45~55)

Excellent

Good Great Excellent
P

Non-alloy steel

Excellent Excellent
HRc
13252832
HB
125190250270300
P

Low alloy steel

Excellent Excellent
HRc
10293238
HB
180275300350
P

High alloy & tool steel

Excellent Excellent
HRc
1535
HB
200325
K

Grey cast iron

Good Good
HRc
1026
HB
180260
K

Nodular cast iron

Good Good
HRc
325
HB
160250
K

Malleable cast iron

Good Good
HRc
21
HB
130230
H

Hardened steels & cast irons

Excellent Excellent
HRc
384041
HB
400630

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
EDP No. Mill Diameter (D1) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME59010 1 0~-0.012 h5 3 SEME59015 1.5 0~-0.012 h5 3 SEME59020 2 0~-0.012 h5 3 SEME59030 3 0~-0.012 h5 3 SEME59040 4 0~-0.012 h5 3 SEME59050 5 0~-0.012 h5 3 SEME59060 6 0~-0.012 h5 3 SEME59080 8 0~-0.015 h5 3 SEME59100 10 0~-0.015 h5 3 SEME59120 12 0~-0.015 h5 3
