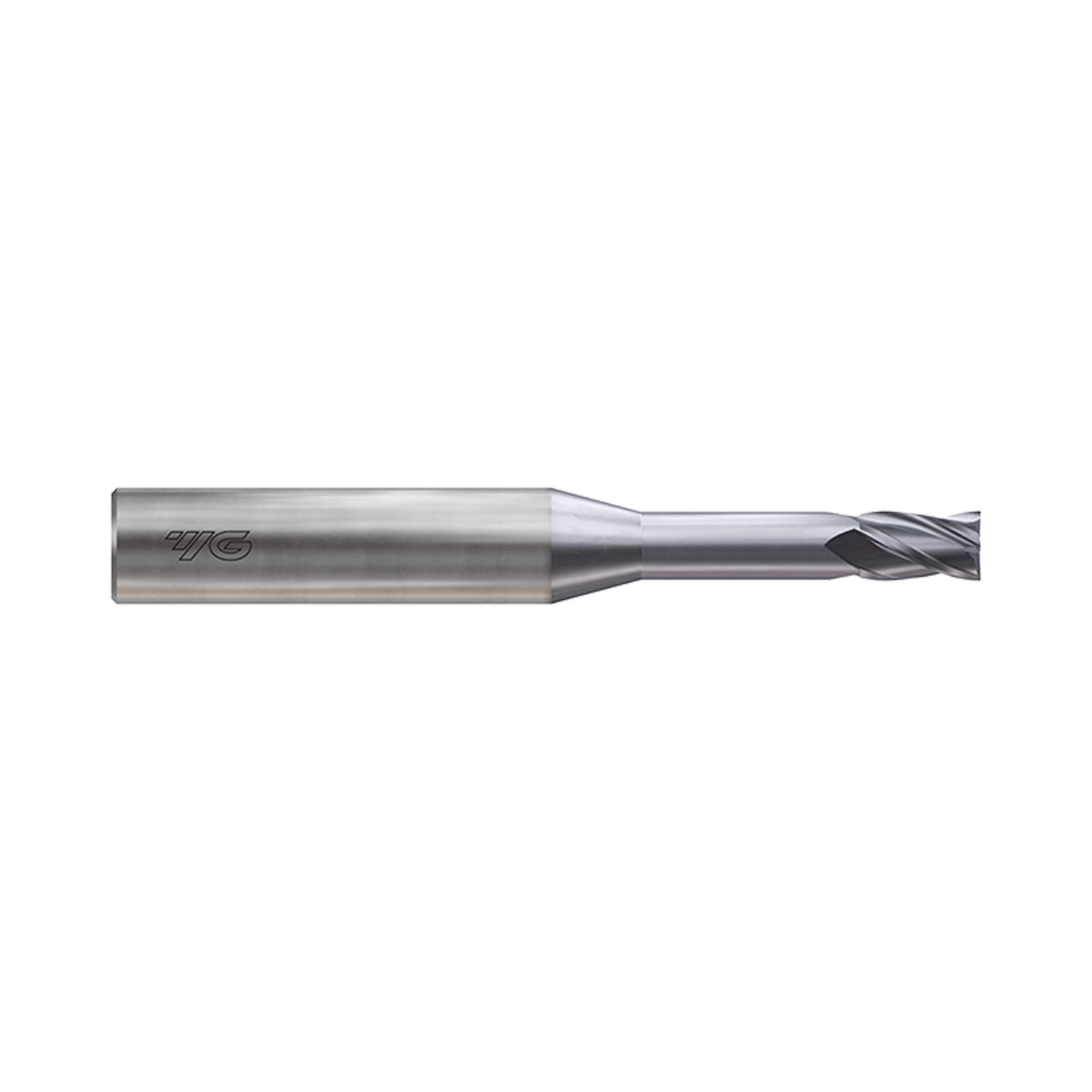

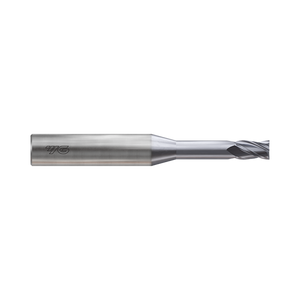

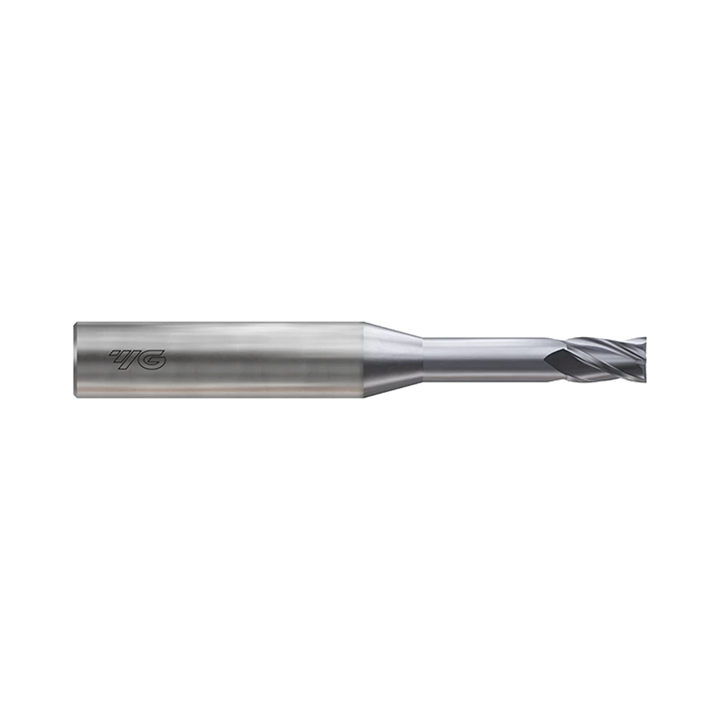

4G MILL 4 Flute 30°Helix Rib End Mill (SEME73)
Extended-Neck Four-Flute Rib End MillCode: SEME7301003E
-
Key Features
- Solid carbide construction with Y-Coating
- Four-flute 30° helix square geometry
- Extended-neck design for rib processing
Made in South Korea
Extended-neck access
Provides added clearance below the shank for rib and restricted-feature machining.
Square milling geometry
Four flutes and a 30° helix support the defined square cutting profile.
Useful compact range
Covers 1.0 to 12.0 mm diameters for detailed milling applications.

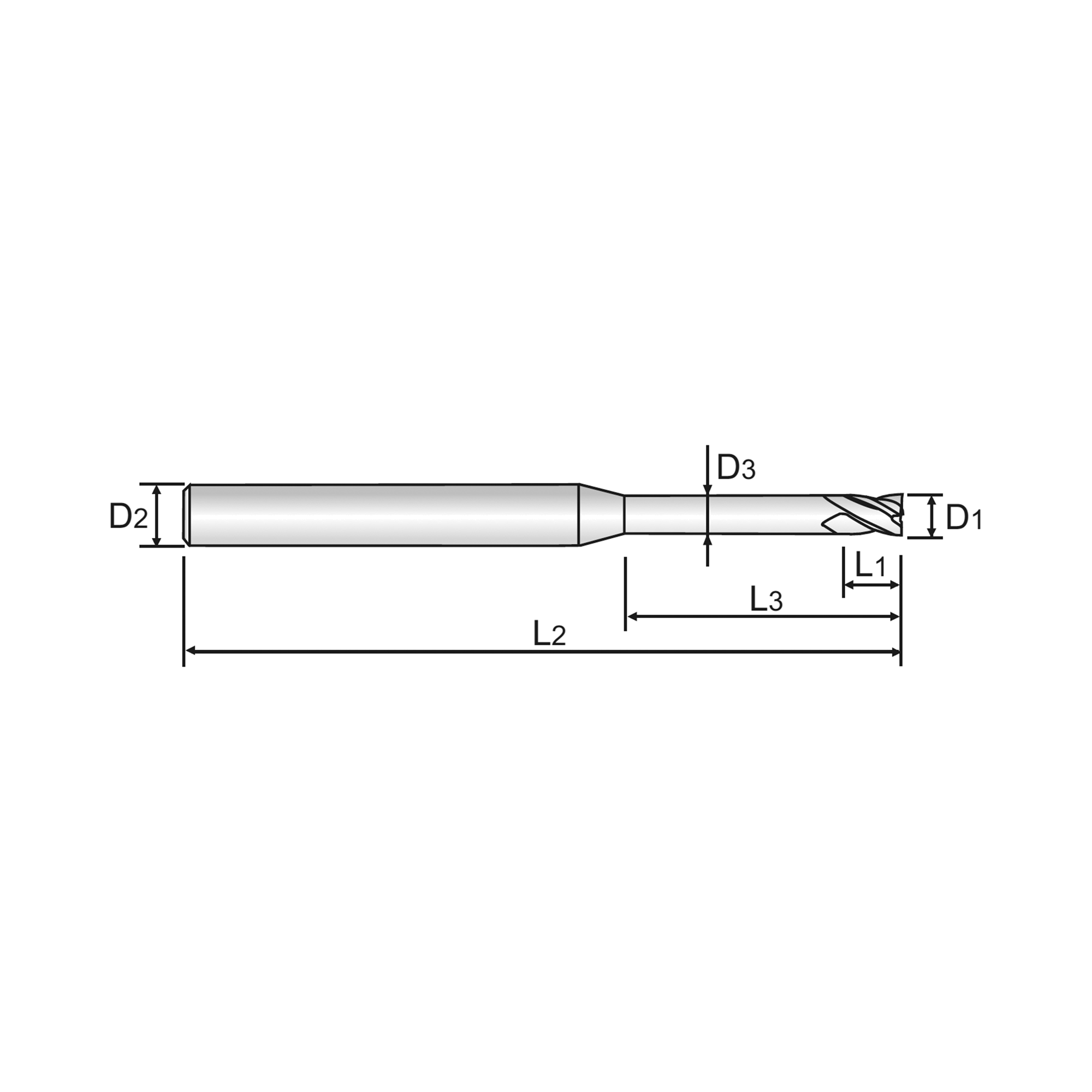

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| SEME7301003E | 1 | 50.0 | 4.0 | 1.5 | 3.0 | 0.95 | 5 days | $54.00 | ||
| SEME7301204E | 1.2 | 50.0 | 4.0 | 1.8 | 4.0 | 1.15 | 5 days | $54.00 | ||
| SEME7301504E | 1.5 | 50.0 | 4.0 | 2.3 | 4.0 | 1.45 | 5 days | $54.00 | ||
| SEME7302006E | 2 | 50.0 | 4.0 | 3.0 | 6.0 | 1.95 | 5 days | $54.00 | ||
| SEME7302508E | 2.5 | 50.0 | 4.0 | 4.0 | 8.0 | 2.4 | 5 days | $54.00 | ||
| SEME7303006E | 3 | 50.0 | 6.0 | 4.5 | 6.0 | 2.85 | 5 days | $61.00 | ||
| SEME7304008E | 4 | 50.0 | 6.0 | 6.0 | 8.0 | 3.85 | 5 days | $61.00 | ||
| SEME7305016E | 5 | 60.0 | 6.0 | 8.0 | 16.0 | 4.85 | 5 days | $63.30 | ||
| SEME7306015E | 6 | 60.0 | 6.0 | 9.0 | 15.0 | 5.85 | 5 days | $63.30 | ||
| SEME7308025E | 8 | 70.0 | 8.0 | 12.0 | 25.0 | 7.7 | 5 days | $116.50 | ||
| SEME7310030E | 10 | 75.0 | 10.0 | 15.0 | 30.0 | 9.7 | 5 days | $151.30 | ||
| SEME7312035E | 12 | 80.0 | 12.0 | 20.0 | 35.0 | 11.7 | 5 days | $179.90 |
Add 4G MILL 4 Flute 30°Helix Rib End Mill (SEME73) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 4G MILL SEME73 is a solid carbide four-flute rib-processing end mill with an extended neck. It is designed for square-profile milling where extra clearance below the shank is required. The 30° helix and four-flute geometry define this square cutting configuration. YG-1 specifies Y-Coating for the SEME73 series with a plain shank construction. The range covers 1.0 to 12.0 mm milling diameters for fine rib features. The extended neck assists access around deeper or restricted workpiece features. The product family is classified for ISO P, M and K material groups. Choose it for rib-processing operations requiring an extended-neck square end mill.
- Solid carbide construction with Y-Coating
- Four-flute 30° helix square geometry
- Extended-neck design for rib processing
- Plain shank configuration
- 1.0 to 12.0 mm milling diameter range
- ISO P M and K material group classification
