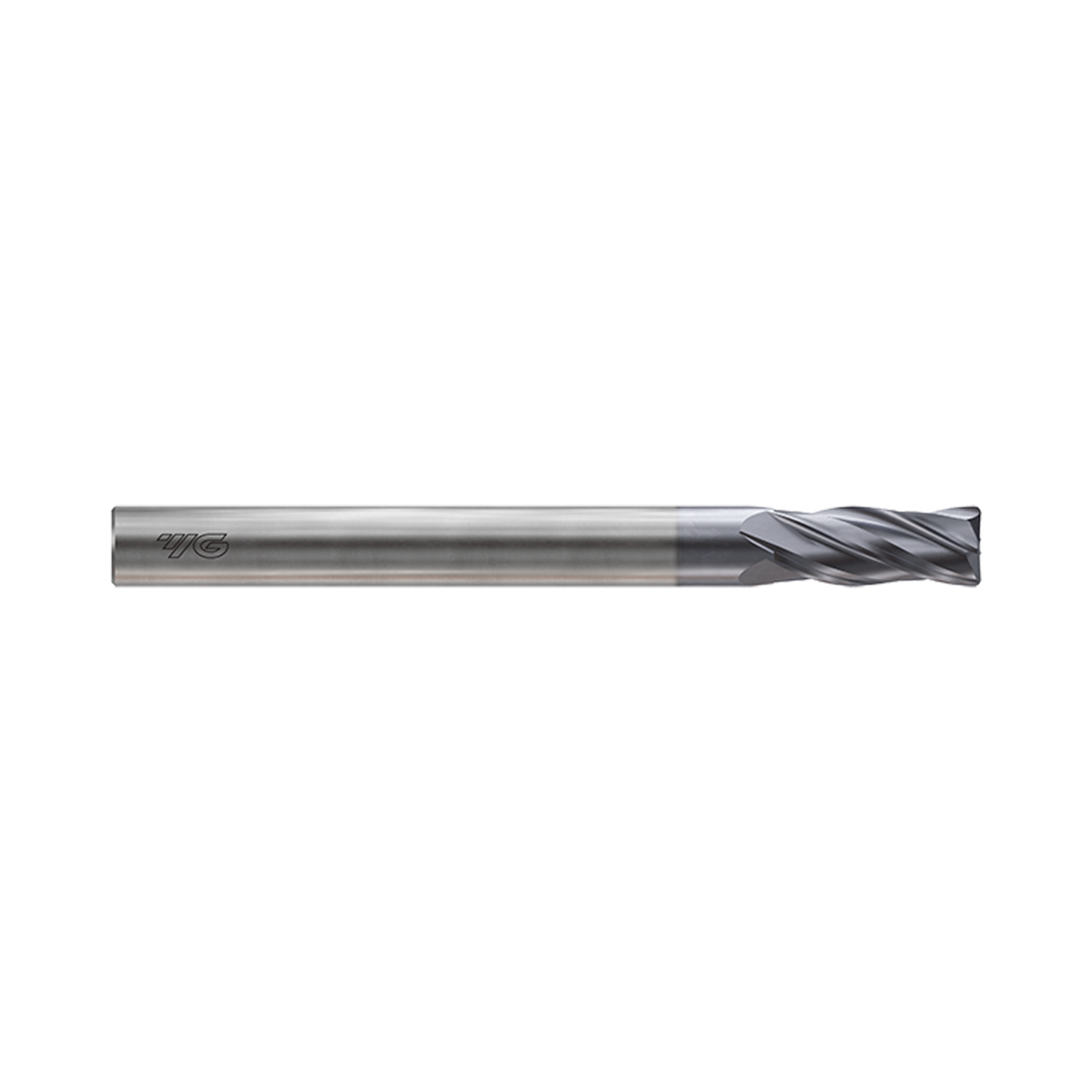

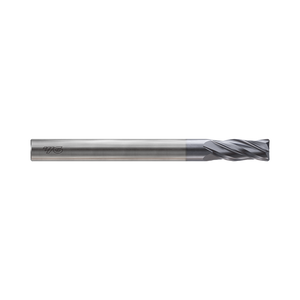

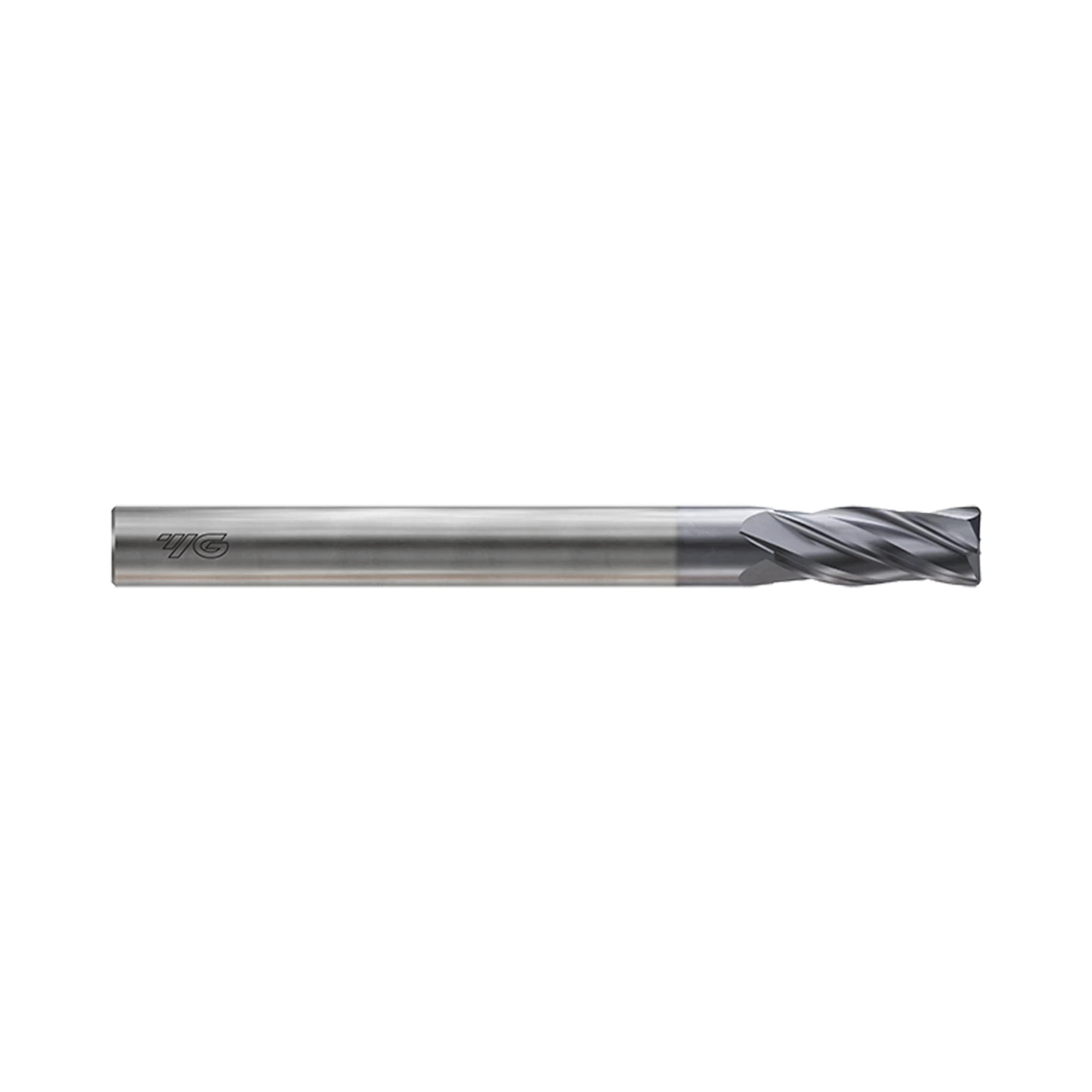

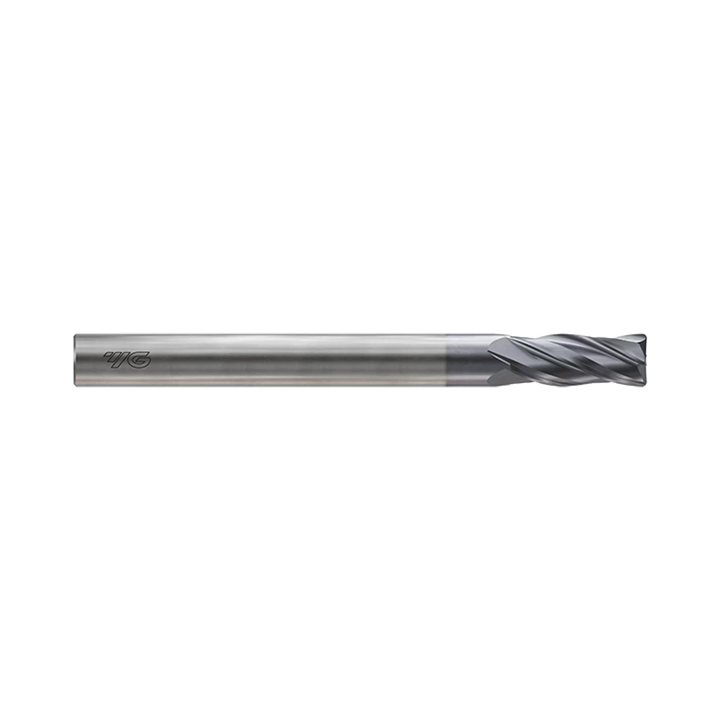

4G MILL 4 Flute Multiple Helix Corner Radius End Mill (SEME01)

Y-Coated 4-Flute Multiple Helix Corner Radius End Mill

4G MILL 4 Flute Multiple Helix Corner Radius End Mill (SEME01)
$73.92 INC GST $67.20 EX GST
SKU
SEME01010005E
Work materials
PKH

Key features

  • Carbide four-flute corner-radius design with Y-Coating
  • Machines prehardened steels up to HRc55
  • Multiple helix from 3 mm helps minimise vibration and cutting-edge wear
Tool material Carbide
Surface treatment YG-1 Y Coating
Mill Diameter (mm)
Corner Radius (mm)
Overall Length (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Reduced vibration

Multiple-helix geometry on 3 mm and larger tools helps minimise vibration and cutting-edge wear.

Mould and die ready

Designed for machining prehardened steels up to HRc55 used in mould and die applications.

Useful size coverage

Plain-shank variants cover 1 to 20 mm cutting diameters with R0.05 to R0.5 corner radii.

SKUMill Diameter (mm)Corner Radius (mm)Overall Length (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
SEME01010005E1.0R0.0550.050.06.02.5 1-2 Weeks $67.20
SEME0101001E1.0R0.150.0-6.02.5 1-2 Weeks $67.20
SEME0101002E1.0R0.250.0-6.02.5 1-2 Weeks $67.20
SEME0101003E1.0R0.350.0-6.02.5 In stock $67.20
SEME01012005E1.2R0.0550.050.06.03.0 1-2 Weeks $67.20
SEME0101201E1.2R0.150.0-6.03.0 1-2 Weeks $67.20
SEME0101202E1.2R0.250.0-6.03.0 1-2 Weeks $67.20
SEME0101203E1.2R0.350.0-6.03.0 1-2 Weeks $67.20
SEME01015005E1.5R0.0550.050.06.04.0 1-2 Weeks $67.20
SEME0101501E1.5R0.150.0-6.04.0 1-2 Weeks $67.20
SEME0101502E1.5R0.250.0-6.04.0 1-2 Weeks $67.20
SEME0101503E1.5R0.350.0-6.04.0 1-2 Weeks $67.20
SEME0101505E1.5R0.550.0-6.04.0 1-2 Weeks $67.20
SEME0102001E2.0R0.150.050.06.06.0 1-2 Weeks $67.20
SEME0102002E2.0R0.250.0-6.06.0 In stock $67.20
SEME0102003E2.0R0.350.0-6.06.0 1-2 Weeks $67.20
SEME0102005E2.0R0.550.0-6.06.0 1-2 Weeks $67.20
SEME0102501E2.5R0.160.060.06.07.0 1-2 Weeks $69.60
SEME0102502E2.5R0.260.0-6.07.0 1-2 Weeks $69.60
SEME0102503E2.5R0.360.0-6.07.0 1-2 Weeks $69.60
SEME0102505E2.5R0.560.0-6.07.0 In stock $69.60
SEME0103001E3.0R0.160.060.06.08.0 1-2 Weeks $69.60
SEME0103002E3.0R0.260.0-6.08.0 1-2 Weeks $69.60
SEME0103003E3.0R0.360.0-6.08.0 1-2 Weeks $69.60
SEME0103005E3.0R0.560.0-6.08.0 Low stock $69.60
SEME0103010E3.0R1.060.0-6.08.0 1-2 Weeks $69.60
SEME0103501E3.5R0.170.070.06.010.0 1-2 Weeks $72.30
SEME0103502E3.5R0.270.0-6.010.0 1-2 Weeks $72.30
SEME0103503E3.5R0.370.0-6.010.0 1-2 Weeks $72.30
SEME0103505E3.5R0.570.0-6.010.0 In stock $72.30
SEME01040014SE4.0R0.170.070.04.010.0 1-2 Weeks $70.80
SEME0104002E4.0R0.270.0-6.010.0 1-2 Weeks $72.30
SEME0104003E4.0R0.370.0-6.010.0 1-2 Weeks $72.30
SEME0104005E4.0R0.570.0-6.010.0 In stock $72.30
SEME01040051004SE4.0R0.5100.0-4.010.0 In stock $75.60
SEME0104010E4.0R1.070.0-6.010.0 1-2 Weeks $72.30
SEME0104501E4.5R0.180.080.06.011.0 1-2 Weeks $75.30
SEME0104502E4.5R0.280.0-6.011.0 1-2 Weeks $75.30
SEME0104503E4.5R0.380.0-6.011.0 1-2 Weeks $75.30
SEME0104505E4.5R0.580.0-6.011.0 In stock $79.00
SEME0105001E5.0R0.190.090.06.013.0 1-2 Weeks $78.50
SEME0105002E5.0R0.290.0-6.013.0 1-2 Weeks $78.50
SEME0105003E5.0R0.390.0-6.013.0 1-2 Weeks $78.50
SEME0105005E5.0R0.590.0-6.013.0 1-2 Weeks $78.50
SEME0105010E5.0R1.090.0-6.013.0 1-2 Weeks $78.50
SEME0105501E5.5R0.190.0-6.013.0 1-2 Weeks $78.50
SEME0105502E5.5R0.290.090.06.013.0 1-2 Weeks $78.50
SEME0105503E5.5R0.390.0-6.013.0 1-2 Weeks $78.50
SEME0105505E5.5R0.590.0-6.013.0 1-2 Weeks $78.50
SEME0105510E5.5R1.090.0-6.013.0 1-2 Weeks $78.50
SEME0106001060E6.0R0.160.060.06.015.0 1-2 Weeks $69.60
SEME0106001E6.0R0.190.0-6.015.0 1-2 Weeks $78.50
SEME0106002060E6.0R0.260.0-6.015.0 1-2 Weeks $69.60
SEME0106002E6.0R0.290.0-6.015.0 1-2 Weeks $78.50
SEME0106003E6.0R0.390.0-6.015.0 1-2 Weeks $78.50
SEME0106005E6.0R0.590.0-6.015.0 In stock $78.50
SEME0106005110E6.0R0.5110.0-6.015.0 1-2 Weeks $93.70
SEME0106005130E6.0R0.5130.0-6.015.0 1-2 Weeks $101.10
SEME0106010E6.0R1.090.0-6.015.0 1-2 Weeks $78.50
SEME0106010110E6.0R1.0110.0-6.015.0 In stock $93.70
SEME0106010130E6.0R1.0130.0-6.015.0 1-2 Weeks $101.10
SEME0106015E6.0R1.590.0-6.015.0 Low stock $78.50
SEME0106020E6.0R2.090.0-6.015.0 Low stock $78.50
SEME0107001E7.0R0.190.090.08.016.0 1-2 Weeks $121.10
SEME0107002E7.0R0.290.0-8.016.0 1-2 Weeks $121.10
SEME0107003E7.0R0.390.0-8.016.0 1-2 Weeks $121.10
SEME0107005E7.0R0.590.0-8.016.0 1-2 Weeks $121.10
SEME0107020E7.0R2.090.0-8.016.0 1-2 Weeks $121.10
SEME0108001E8.0R0.1100.0-8.020.0 1-2 Weeks $126.20
SEME0108002E8.0R0.2100.0-8.020.0 1-2 Weeks $126.20
SEME0108003070E8.0R0.370.070.08.020.0 1-2 Weeks $111.80
SEME0108003E8.0R0.3100.0-8.020.0 In stock $126.20
SEME0108005070E8.0R0.570.0-8.020.0 1-2 Weeks $111.80
SEME0108005E8.0R0.5100.0-8.020.0 1-2 Weeks $126.20
SEME0108005120E8.0R0.5120.0-8.020.0 1-2 Weeks $149.60
SEME0108005150E8.0R0.5150.0-8.020.0 1-2 Weeks $169.00
SEME0108010070E8.0R1.070.0-8.020.0 1-2 Weeks $111.80
SEME0108010E8.0R1.0100.0-8.020.0 In stock $126.20
SEME0108010120E8.0R1.0120.0-8.020.0 1-2 Weeks $149.60
SEME0108010150E8.0R1.0150.0-8.020.0 1-2 Weeks $168.10
SEME0108015E8.0R1.5100.0-8.020.0 1-2 Weeks $126.20
SEME0108020E8.0R2.0100.0-8.020.0 1-2 Weeks $126.20
SEME0108025E8.0R2.5100.0-8.020.0 1-2 Weeks $126.20
SEME0108030E8.0R3.0100.0-8.020.0 Low stock $126.20
SEME0110001E10.0R0.1100.0-10.025.0 1-2 Weeks $162.30
SEME0110002E10.0R0.2100.0-10.025.0 1-2 Weeks $162.30
SEME0110003075E10.0R0.375.075.010.025.0 1-2 Weeks $147.20
SEME0110003E10.0R0.3100.0-10.025.0 1-2 Weeks $162.30
SEME0110005075E10.0R0.575.0-10.025.0 1-2 Weeks $147.20
SEME0110005E10.0R0.5100.0-10.025.0 1-2 Weeks $162.30
SEME0110005130E10.0R0.5130.0-10.022.0 1-2 Weeks $193.00
SEME0110005150E10.0R0.5150.0-10.022.0 Low stock $216.80
SEME0110010075E10.0R1.075.0-10.025.0 Low stock $135.50
SEME0110010E10.0R1.0100.0-10.025.0 1-2 Weeks $162.30
SEME0110010130E10.0R1.0130.0-10.022.0 1-2 Weeks $193.00
SEME0110010150E10.0R1.0150.0-10.022.0 In stock $216.80
SEME0110015E10.0R1.5100.0-10.025.0 1-2 Weeks $162.30
SEME0110020E10.0R2.0100.0-10.025.0 1-2 Weeks $162.30
SEME0110025E10.0R2.5100.0-10.025.0 1-2 Weeks $162.30
SEME0110030E10.0R3.0100.0-10.025.0 Low stock $162.30
SEME0110040E10.0R4.0100.0-10.025.0 1-2 Weeks $162.30
SEME0111002E11.0R0.2110.0110.012.025.0 1-2 Weeks $223.30
SEME0111003E11.0R0.3110.0-12.025.0 1-2 Weeks $223.30
SEME0111005E11.0R0.5110.0-12.025.0 1-2 Weeks $223.30
SEME0111010E11.0R1.0110.0-12.025.0 1-2 Weeks $223.30
SEME0111020E11.0R2.0110.0-12.025.0 1-2 Weeks $223.30
SEME0112001E12.0R0.1110.0-12.030.0 1-2 Weeks $223.30
SEME0112002E12.0R0.2110.0-12.030.0 1-2 Weeks $223.30
SEME0112003080E12.0R0.380.080.012.030.0 Low stock $198.90
SEME0112003E12.0R0.3110.0-12.030.0 1-2 Weeks $223.30
SEME0112005080E12.0R0.580.0-12.030.0 1-2 Weeks $198.90
SEME0112005E12.0R0.5110.0-12.030.0 Low stock $223.30
SEME0112005130E12.0R0.5130.0-12.030.0 1-2 Weeks $241.40
SEME0112005150E12.0R0.5150.0-12.030.0 1-2 Weeks $274.20
SEME0112010080E12.0R1.080.0-12.030.0 1-2 Weeks $198.90
SEME0112010E12.0R1.0110.0-12.030.0 Low stock $223.30
SEME0112010130E12.0R1.0130.0-12.030.0 1-2 Weeks $241.40
SEME0112010150E12.0R1.0150.0-12.030.0 Low stock $274.00
SEME0112015E12.0R1.5110.0-12.030.0 1-2 Weeks $223.30
SEME0112020E12.0R2.0110.0-12.030.0 Low stock $223.30
SEME0112025E12.0R2.5110.0-12.030.0 1-2 Weeks $223.30
SEME0112030E12.0R3.0110.0-12.030.0 1-2 Weeks $223.30
SEME0112040E12.0R4.0110.0-12.030.0 1-2 Weeks $223.30
SEME0112050E12.0R5.0110.0-12.030.0 1-2 Weeks $223.30
SEME0114005E14.0R0.5150.0150.012.035.0 1-2 Weeks $455.80
SEME0114010E14.0R1.0150.0-16.035.0 1-2 Weeks $455.80
SEME0114020E14.0R2.0150.0-16.035.0 1-2 Weeks $455.80
SEME0116005E16.0R0.5150.0150.016.032.0 1-2 Weeks $537.30
SEME0116010E16.0R1.0150.0-16.032.0 1-2 Weeks $537.30
SEME0116015E16.0R1.5150.0-16.032.0 1-2 Weeks $537.30
SEME0116020E16.0R2.0150.0-16.032.0 Low stock $537.30
SEME0120005E20.0R0.5150.0150.020.038.0 1-2 Weeks $690.10
SEME0120010E20.0R1.0150.0-20.038.0 1-2 Weeks $690.10
SEME0120015E20.0R1.5150.0-20.038.0 1-2 Weeks $690.10
SEME0120020E20.0R2.0150.0-20.038.0 1-2 Weeks $690.10

Add 4G MILL 4 Flute Multiple Helix Corner Radius End Mill (SEME01) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

YG-1 4G MILL SEME01 is a carbide four-flute corner-radius end mill with Y-Coating and multiple-helix geometry. It is designed for machining prehardened steels up to HRc55 in mould and die applications. Multiple-helix geometry on diameters of 3 mm and above helps minimise vibration and cutting-edge wear. Smaller diameters below 3 mm use a 30° helix for compact milling work. The plain-shank selection spans 1 to 20 mm cutting diameters for varied component features. Selected variants provide corner radii from R0.05 to R0.5 for controlled edge transitions. Four flutes support efficient profiling and finishing where a radiused tool corner is required. The tool geometry supports strong cutting ability and wear resistance. This makes it suitable for precision mould components requiring durable edge geometry in prehardened steel.

  • Carbide four-flute corner-radius design with Y-Coating
  • Machines prehardened steels up to HRc55
  • Multiple helix from 3 mm helps minimise vibration and cutting-edge wear
  • 30° helix on diameters below 3 mm
  • Plain-shank cutting diameters from 1 to 20 mm
  • Corner radii from R0.05 to R0.5
Product Data
Cutting Shape Corner Radius
Helix Angle 30°, Multiple
Length Extra Long
No. Flutes 4
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide

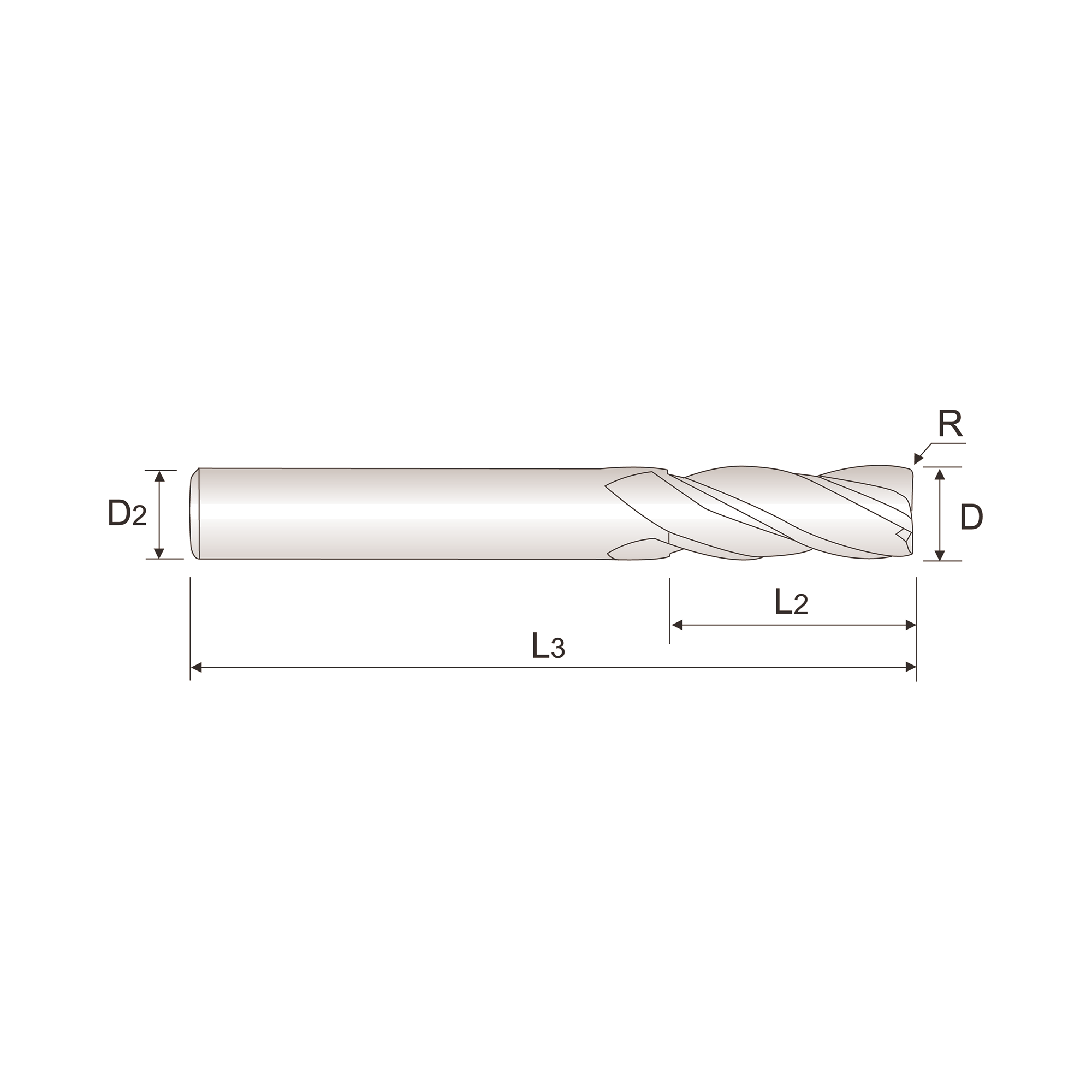

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME0101001E 1 6 2.5 50 0~-0.030 h5 4 SEME0101002E 1 6 2.5 50 0~-0.030 h5 4 SEME0101003 1 6 2.5 50 0~-0.030 h5 4 SEME0101003E 1 6 2.5 50 0~-0.030 h5 4 SEME0101201E 1.2 6 3 50 0~-0.030 h5 4 SEME0101202 1.2 6 3 50 0~-0.030 h5 4 SEME0101202E 1.2 6 3 50 0~-0.030 h5 4 SEME0101203 1.2 6 3 50 0~-0.030 h5 4 SEME0101203E 1.2 6 3 50 0~-0.030 h5 4 SEME0101502 1.5 6 4 50 0~-0.030 h5 4 SEME0101503 1.5 6 4 50 0~-0.030 h5 4 SEME0101503E 1.5 6 4 50 0~-0.030 h5 4 SEME0101505 1.5 6 4 50 0~-0.030 h5 4 SEME0101505E 1.5 6 4 50 0~-0.030 h5 4 SEME0102001 2 6 6 50 0~-0.030 h5 4 SEME0102001E 2 6 6 50 0~-0.030 h5 4 SEME0102002 2 6 6 50 0~-0.030 h5 4 SEME0102002E 2 6 6 50 0~-0.030 h5 4 SEME0102003 2 6 6 50 0~-0.030 h5 4 SEME0102003E 2 6 6 50 0~-0.030 h5 4 SEME0102005 2 6 6 50 0~-0.030 h5 4 SEME0102005E 2 6 6 50 0~-0.030 h5 4 SEME0102501 2.5 6 7 60 0~-0.030 h5 4 SEME0102501E 2.5 6 7 60 0~-0.030 h5 4 SEME0102502 2.5 6 7 60 0~-0.030 h5 4 SEME0102502E 2.5 6 7 60 0~-0.030 h5 4 SEME0102503 2.5 6 7 60 0~-0.030 h5 4 SEME0102503E 2.5 6 7 60 0~-0.030 h5 4 SEME0102505 2.5 6 7 60 0~-0.030 h5 4 SEME0102505E 2.5 6 7 60 0~-0.030 h5 4 SEME0103001 3 6 8 60 0~-0.030 h5 4 SEME0103001E 3 6 8 60 0~-0.030 h5 4 SEME0103002 3 6 8 60 0~-0.030 h5 4 SEME0103003 3 6 8 60 0~-0.030 h5 4 SEME0103003E 3 6 8 60 0~-0.030 h5 4 SEME0103005 3 6 8 60 0~-0.030 h5 4 SEME0103005E 3 6 8 60 0~-0.030 h5 4 SEME0103010 3 6 8 60 0~-0.030 h5 4 SEME0103010E 3 6 8 60 0~-0.030 h5 4 SEME0103501 3.5 6 10 70 0~-0.030 h5 4 SEME0103501E 3.5 6 10 70 0~-0.030 h5 4 SEME0103502 3.5 6 10 70 0~-0.030 h5 4 SEME0103502E 3.5 6 10 70 0~-0.030 h5 4 SEME0103503 3.5 6 10 70 0~-0.030 h5 4 SEME0103503E 3.5 6 10 70 0~-0.030 h5 4 SEME0103505 3.5 6 10 70 0~-0.030 h5 4 SEME0103505E 3.5 6 10 70 0~-0.030 h5 4 SEME0104001 4 6 10 70 0~-0.030 h5 4 SEME0104001E 4 6 10 70 0~-0.030 h5 4 SEME0104002 4 6 10 70 0~-0.030 h5 4 SEME0104002E 4 6 10 70 0~-0.030 h5 4 SEME0104003 4 6 10 70 0~-0.030 h5 4 SEME0104003E 4 6 10 70 0~-0.030 h5 4 SEME0104005 4 6 10 70 0~-0.030 h5 4 SEME0104005E 4 6 10 70 0~-0.030 h5 4 SEME0104010 4 6 10 70 0~-0.030 h5 4 SEME0104010E 4 6 10 70 0~-0.030 h5 4 SEME0104501 4.5 6 11 80 0~-0.030 h5 4 SEME0104501E 4.5 6 11 80 0~-0.030 h5 4 SEME0104502 4.5 6 11 80 0~-0.030 h5 4 SEME0104503 4.5 6 11 80 0~-0.030 h5 4 SEME0104503E 4.5 6 11 80 0~-0.030 h5 4 SEME0104505 4.5 6 11 80 0~-0.030 h5 4 SEME0104505E 4.5 6 11 80 0~-0.030 h5 4 SEME0105001 5 6 13 90 0~-0.030 h5 4 SEME0105001E 5 6 13 90 0~-0.030 h5 4 SEME0105002 5 6 13 90 0~-0.030 h5 4 SEME0105003 5 6 13 90 0~-0.030 h5 4 SEME0105003E 5 6 13 90 0~-0.030 h5 4 SEME0105005 5 6 13 90 0~-0.030 h5 4 SEME0105010 5 6 13 90 0~-0.030 h5 4 SEME0105010E 5 6 13 90 0~-0.030 h5 4 SEME0105501 5.5 6 13 90 0~-0.030 h5 4 SEME0105501E 5.5 6 13 90 0~-0.030 h5 4 SEME0105502 5.5 6 13 90 0~-0.030 h5 4 SEME0105503 5.5 6 13 90 0~-0.030 h5 4 SEME0105503E 5.5 6 13 90 0~-0.030 h5 4 SEME0105505 5.5 6 13 90 0~-0.030 h5 4 SEME0105510 5.5 6 13 90 0~-0.030 h5 4 SEME0105510E 5.5 6 13 90 0~-0.030 h5 4 SEME0106001 6 6 15 90 0~-0.030 h5 4 SEME0106001E 6 6 15 90 0~-0.030 h5 4 SEME0106002 6 6 15 90 0~-0.030 h5 4 SEME0106002E 6 6 15 90 0~-0.030 h5 4 SEME0106003 6 6 15 90 0~-0.030 h5 4 SEME0106003E 6 6 15 90 0~-0.030 h5 4 SEME0106005 6 6 15 90 0~-0.030 h5 4 SEME0106010 6 6 15 90 0~-0.030 h5 4 SEME0106010E 6 6 15 90 0~-0.030 h5 4 SEME0106015E 6 6 15 90 0~-0.030 h5 4 SEME0106020 6 6 15 90 0~-0.030 h5 4 SEME0106020E 6 6 15 90 0~-0.030 h5 4 SEME0107001 7 8 16 90 0~-0.030 h5 4 SEME0107001E 7 8 16 90 0~-0.030 h5 4 SEME0107002E 7 8 16 90 0~-0.030 h5 4 SEME0107003 7 8 16 90 0~-0.030 h5 4 SEME0107003E 7 8 16 90 0~-0.030 h5 4 SEME0107010 7 8 16 90 0~-0.030 h5 4 SEME0107020E 7 8 16 90 0~-0.030 h5 4 SEME0108001 8 8 20 100 0~-0.030 h5 4 SEME0108001E 8 8 20 100 0~-0.030 h5 4 SEME0108002 8 8 20 100 0~-0.030 h5 4 SEME0108003E 8 8 20 100 0~-0.030 h5 4 SEME0108005E 8 8 20 100 0~-0.030 h5 4 SEME0108010 8 8 20 100 0~-0.030 h5 4 SEME0108010E 8 8 20 100 0~-0.030 h5 4 SEME0108015 8 8 20 100 0~-0.030 h5 4 SEME0108015E 8 8 20 100 0~-0.030 h5 4 SEME0108025 8 8 20 100 0~-0.030 h5 4 SEME0110001 10 10 25 100 0~-0.030 h5 4 SEME0110001E 10 10 25 100 0~-0.030 h5 4 SEME0110002 10 10 25 100 0~-0.030 h5 4 SEME0110003E 10 10 25 100 0~-0.030 h5 4 SEME0110005 10 10 25 100 0~-0.030 h5 4 SEME0110005E 10 10 25 100 0~-0.030 h5 4 SEME0110010 10 10 25 100 0~-0.030 h5 4 SEME0110010E 10 10 25 100 0~-0.030 h5 4 SEME0110015E 10 10 25 100 0~-0.030 h5 4 SEME0110025E 10 10 25 100 0~-0.030 h5 4 SEME0110030 10 10 25 100 0~-0.030 h5 4 SEME0111002 11 12 25 110 0~-0.030 h5 4 SEME0111003 11 12 25 110 0~-0.030 h5 4 SEME0111003E 11 12 25 110 0~-0.030 h5 4 SEME0111005E 11 12 25 110 0~-0.030 h5 4 SEME0111010E 11 12 25 110 0~-0.030 h5 4 SEME0111020E 11 12 25 110 0~-0.030 h5 4 SEME0112001 12 12 30 110 0~-0.030 h5 4 SEME0112001E 12 12 30 110 0~-0.030 h5 4 SEME0112002 12 12 30 110 0~-0.030 h5 4 SEME0112003E 12 12 30 110 0~-0.030 h5 4 SEME0112005E 12 12 30 110 0~-0.030 h5 4 SEME0112010 12 12 30 110 0~-0.030 h5 4 SEME0112015E 12 12 30 110 0~-0.030 h5 4 SEME0112020E 12 12 30 110 0~-0.030 h5 4 SEME0112025E 12 12 30 110 0~-0.030 h5 4 SEME0114005 14 16 35 150 0~-0.030 h5 4 SEME0114005E 14 16 35 150 0~-0.030 h5 4 SEME0114010E 14 16 35 150 0~-0.030 h5 4 SEME0114020 14 16 35 150 0~-0.030 h5 4 SEME0116005E 16 16 32 150 0~-0.030 h5 4 SEME0116010 16 16 32 150 0~-0.030 h5 4 SEME0116010E 16 16 32 150 0~-0.030 h5 4 SEME0116015 16 16 32 150 0~-0.030 h5 4 SEME0116015E 16 16 32 150 0~-0.030 h5 4 SEME0116020E 16 16 32 150 0~-0.030 h5 4 SEME0120005E 20 20 38 150 0~-0.030 h5 4 SEME0120010 20 20 38 150 0~-0.030 h5 4 SEME0120010E 20 20 38 150 0~-0.030 h5 4 SEME0120015 20 20 38 150 0~-0.030 h5 4 SEME0120015E 20 20 38 150 0~-0.030 h5 4 SEME0120020 20 20 38 150 0~-0.030 h5 4 SEME01010005 1 6 2.5 50 0~-0.030 h5 4 SEME01012005E 1.2 6 3 50 0~-0.030 h5 4 SEME01040014S 4 4 10 70 0~-0.030 h5 4 SEME01040014SE 4 4 10 70 0~-0.030 h5 4 SEME01040024S 4 4 10 70 0~-0.030 h5 4 SEME01040024SE 4 4 10 70 0~-0.030 h5 4 SEME01040034S 4 4 10 70 0~-0.030 h5 4 SEME01040034SE 4 4 10 70 0~-0.030 h5 4 SEME01040054S 4 4 10 70 0~-0.030 h5 4 SEME01040054SE 4 4 10 70 0~-0.030 h5 4 SEME01040104S 4 4 10 70 0~-0.030 h5 4 SEME0106001060 6 6 15 60 0~-0.030 h5 4 SEME0106001060E 6 6 15 60 0~-0.030 h5 4 SEME0106003060 6 6 15 60 0~-0.030 h5 4 SEME0106005060 6 6 15 60 0~-0.030 h5 4 SEME0106005110 6 6 15 110 0~-0.030 h5 4 SEME0106005130 6 6 15 130 0~-0.030 h5 4 SEME0106010110 6 6 15 110 0~-0.030 h5 4 SEME0106010110E 6 6 15 110 0~-0.030 h5 4 SEME0106010130 6 6 15 130 0~-0.030 h5 4 SEME0108003070E 8 8 20 70 0~-0.030 h5 4 SEME0108005070 8 8 20 70 0~-0.030 h5 4 SEME0108005070E 8 8 20 70 0~-0.030 h5 4 SEME0108005120 8 8 20 120 0~-0.030 h5 4 SEME0108005150 8 8 20 150 0~-0.030 h5 4 SEME0108010150 8 8 20 150 0~-0.030 h5 4 SEME0110003075E 10 10 25 75 0~-0.030 h5 4 SEME0110005130E 10 10 22 130 0~-0.030 h5 4 SEME0110005150 10 10 22 150 0~-0.030 h5 4 SEME0110005150E 10 10 22 150 0~-0.030 h5 4 SEME0110010075 10 10 25 75 0~-0.030 h5 4 SEME0110010075E 10 10 25 75 0~-0.030 h5 4 SEME0110010130 10 10 22 130 0~-0.030 h5 4 SEME0110010130E 10 10 22 130 0~-0.030 h5 4 SEME0110010150 10 10 22 150 0~-0.030 h5 4 SEME0110010150E 10 10 22 150 0~-0.030 h5 4 SEME0112003080E 12 12 30 80 0~-0.030 h5 4 SEME0112005150 12 12 30 130 0~-0.030 h5 4 SEME0112005150 12 12 30 150 0~-0.030 h5 4 SEME0112010080 12 12 30 80 0~-0.030 h5 4 SEME0112010080E 12 12 30 80 0~-0.030 h5 4 SEME0112010130 12 12 30 130 0~-0.030 h5 4 SEME0112010130E 12 12 30 130 0~-0.030 h5 4 SEME0112010150E 12 12 30 150 0~-0.030 h5 4 SEME01040011004S 4 4 10 100 0~-0.030 h5 4 SEME01040011004SE 4 4 10 100 0~-0.030 h5 4 SEME01040021004S 4 4 10 100 0~-0.030 h5 4 SEME01040021004SE 4 4 10 100 0~-0.030 h5 4 SEME01040031004S 4 4 10 100 0~-0.030 h5 4 SEME01040031004SE 4 4 10 100 0~-0.030 h5 4 SEME01040051004S 4 4 10 100 0~-0.030 h5 4 SEME01040051004SE 4 4 10 100 0~-0.030 h5 4 SEME01040101004S 4 4 10 100 0~-0.030 h5 4 SEME01040101004SE 4 4 10 100 0~-0.030
Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 4–5
GoodVDI 1–3
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Hardened materials

3 grades
Hardened steel
GoodVDI 38
Chilled cast iron
ExcellentVDI 40
Hardened cast iron
GoodVDI 41

Cast iron

6 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17–18
Malleable cast iron
GoodVDI 19–20
VDI grade reference20 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelGood25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
18KNodular cast ironGood25025
19KMalleable cast ironGood130-
20KMalleable cast ironGood23021
38HHardened steelGood55055
40HChilled cast ironExcellent40042
41HHardened cast ironGood55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for 4G MILL 4 Flute Multiple Helix Corner Radius End Mill (SEME01)

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME0101001E 1 6 2.5 50 0~-0.030 h5 4 SEME0101002E 1 6 2.5 50 0~-0.030 h5 4 SEME0101003 1 6 2.5 50 0~-0.030 h5 4 SEME0101003E 1 6 2.5 50 0~-0.030 h5 4 SEME0101201E 1.2 6 3 50 0~-0.030 h5 4 SEME0101202 1.2 6 3 50 0~-0.030 h5 4 SEME0101202E 1.2 6 3 50 0~-0.030 h5 4 SEME0101203 1.2 6 3 50 0~-0.030 h5 4 SEME0101203E 1.2 6 3 50 0~-0.030 h5 4 SEME0101502 1.5 6 4 50 0~-0.030 h5 4 SEME0101503 1.5 6 4 50 0~-0.030 h5 4 SEME0101503E 1.5 6 4 50 0~-0.030 h5 4 SEME0101505 1.5 6 4 50 0~-0.030 h5 4 SEME0101505E 1.5 6 4 50 0~-0.030 h5 4 SEME0102001 2 6 6 50 0~-0.030 h5 4 SEME0102001E 2 6 6 50 0~-0.030 h5 4 SEME0102002 2 6 6 50 0~-0.030 h5 4 SEME0102002E 2 6 6 50 0~-0.030 h5 4 SEME0102003 2 6 6 50 0~-0.030 h5 4 SEME0102003E 2 6 6 50 0~-0.030 h5 4 SEME0102005 2 6 6 50 0~-0.030 h5 4 SEME0102005E 2 6 6 50 0~-0.030 h5 4 SEME0102501 2.5 6 7 60 0~-0.030 h5 4 SEME0102501E 2.5 6 7 60 0~-0.030 h5 4 SEME0102502 2.5 6 7 60 0~-0.030 h5 4 SEME0102502E 2.5 6 7 60 0~-0.030 h5 4 SEME0102503 2.5 6 7 60 0~-0.030 h5 4 SEME0102503E 2.5 6 7 60 0~-0.030 h5 4 SEME0102505 2.5 6 7 60 0~-0.030 h5 4 SEME0102505E 2.5 6 7 60 0~-0.030 h5 4 SEME0103001 3 6 8 60 0~-0.030 h5 4 SEME0103001E 3 6 8 60 0~-0.030 h5 4 SEME0103002 3 6 8 60 0~-0.030 h5 4 SEME0103003 3 6 8 60 0~-0.030 h5 4 SEME0103003E 3 6 8 60 0~-0.030 h5 4 SEME0103005 3 6 8 60 0~-0.030 h5 4 SEME0103005E 3 6 8 60 0~-0.030 h5 4 SEME0103010 3 6 8 60 0~-0.030 h5 4 SEME0103010E 3 6 8 60 0~-0.030 h5 4 SEME0103501 3.5 6 10 70 0~-0.030 h5 4 SEME0103501E 3.5 6 10 70 0~-0.030 h5 4 SEME0103502 3.5 6 10 70 0~-0.030 h5 4 SEME0103502E 3.5 6 10 70 0~-0.030 h5 4 SEME0103503 3.5 6 10 70 0~-0.030 h5 4 SEME0103503E 3.5 6 10 70 0~-0.030 h5 4 SEME0103505 3.5 6 10 70 0~-0.030 h5 4 SEME0103505E 3.5 6 10 70 0~-0.030 h5 4 SEME0104001 4 6 10 70 0~-0.030 h5 4 SEME0104001E 4 6 10 70 0~-0.030 h5 4 SEME0104002 4 6 10 70 0~-0.030 h5 4 SEME0104002E 4 6 10 70 0~-0.030 h5 4 SEME0104003 4 6 10 70 0~-0.030 h5 4 SEME0104003E 4 6 10 70 0~-0.030 h5 4 SEME0104005 4 6 10 70 0~-0.030 h5 4 SEME0104005E 4 6 10 70 0~-0.030 h5 4 SEME0104010 4 6 10 70 0~-0.030 h5 4 SEME0104010E 4 6 10 70 0~-0.030 h5 4 SEME0104501 4.5 6 11 80 0~-0.030 h5 4 SEME0104501E 4.5 6 11 80 0~-0.030 h5 4 SEME0104502 4.5 6 11 80 0~-0.030 h5 4 SEME0104503 4.5 6 11 80 0~-0.030 h5 4 SEME0104503E 4.5 6 11 80 0~-0.030 h5 4 SEME0104505 4.5 6 11 80 0~-0.030 h5 4 SEME0104505E 4.5 6 11 80 0~-0.030 h5 4 SEME0105001 5 6 13 90 0~-0.030 h5 4 SEME0105001E 5 6 13 90 0~-0.030 h5 4 SEME0105002 5 6 13 90 0~-0.030 h5 4 SEME0105003 5 6 13 90 0~-0.030 h5 4 SEME0105003E 5 6 13 90 0~-0.030 h5 4 SEME0105005 5 6 13 90 0~-0.030 h5 4 SEME0105010 5 6 13 90 0~-0.030 h5 4 SEME0105010E 5 6 13 90 0~-0.030 h5 4 SEME0105501 5.5 6 13 90 0~-0.030 h5 4 SEME0105501E 5.5 6 13 90 0~-0.030 h5 4 SEME0105502 5.5 6 13 90 0~-0.030 h5 4 SEME0105503 5.5 6 13 90 0~-0.030 h5 4 SEME0105503E 5.5 6 13 90 0~-0.030 h5 4 SEME0105505 5.5 6 13 90 0~-0.030 h5 4 SEME0105510 5.5 6 13 90 0~-0.030 h5 4 SEME0105510E 5.5 6 13 90 0~-0.030 h5 4 SEME0106001 6 6 15 90 0~-0.030 h5 4 SEME0106001E 6 6 15 90 0~-0.030 h5 4 SEME0106002 6 6 15 90 0~-0.030 h5 4 SEME0106002E 6 6 15 90 0~-0.030 h5 4 SEME0106003 6 6 15 90 0~-0.030 h5 4 SEME0106003E 6 6 15 90 0~-0.030 h5 4 SEME0106005 6 6 15 90 0~-0.030 h5 4 SEME0106010 6 6 15 90 0~-0.030 h5 4 SEME0106010E 6 6 15 90 0~-0.030 h5 4 SEME0106015E 6 6 15 90 0~-0.030 h5 4 SEME0106020 6 6 15 90 0~-0.030 h5 4 SEME0106020E 6 6 15 90 0~-0.030 h5 4 SEME0107001 7 8 16 90 0~-0.030 h5 4 SEME0107001E 7 8 16 90 0~-0.030 h5 4 SEME0107002E 7 8 16 90 0~-0.030 h5 4 SEME0107003 7 8 16 90 0~-0.030 h5 4 SEME0107003E 7 8 16 90 0~-0.030 h5 4 SEME0107010 7 8 16 90 0~-0.030 h5 4 SEME0107020E 7 8 16 90 0~-0.030 h5 4 SEME0108001 8 8 20 100 0~-0.030 h5 4 SEME0108001E 8 8 20 100 0~-0.030 h5 4 SEME0108002 8 8 20 100 0~-0.030 h5 4 SEME0108003E 8 8 20 100 0~-0.030 h5 4 SEME0108005E 8 8 20 100 0~-0.030 h5 4 SEME0108010 8 8 20 100 0~-0.030 h5 4 SEME0108010E 8 8 20 100 0~-0.030 h5 4 SEME0108015 8 8 20 100 0~-0.030 h5 4 SEME0108015E 8 8 20 100 0~-0.030 h5 4 SEME0108025 8 8 20 100 0~-0.030 h5 4 SEME0110001 10 10 25 100 0~-0.030 h5 4 SEME0110001E 10 10 25 100 0~-0.030 h5 4 SEME0110002 10 10 25 100 0~-0.030 h5 4 SEME0110003E 10 10 25 100 0~-0.030 h5 4 SEME0110005 10 10 25 100 0~-0.030 h5 4 SEME0110005E 10 10 25 100 0~-0.030 h5 4 SEME0110010 10 10 25 100 0~-0.030 h5 4 SEME0110010E 10 10 25 100 0~-0.030 h5 4 SEME0110015E 10 10 25 100 0~-0.030 h5 4 SEME0110025E 10 10 25 100 0~-0.030 h5 4 SEME0110030 10 10 25 100 0~-0.030 h5 4 SEME0111002 11 12 25 110 0~-0.030 h5 4 SEME0111003 11 12 25 110 0~-0.030 h5 4 SEME0111003E 11 12 25 110 0~-0.030 h5 4 SEME0111005E 11 12 25 110 0~-0.030 h5 4 SEME0111010E 11 12 25 110 0~-0.030 h5 4 SEME0111020E 11 12 25 110 0~-0.030 h5 4 SEME0112001 12 12 30 110 0~-0.030 h5 4 SEME0112001E 12 12 30 110 0~-0.030 h5 4 SEME0112002 12 12 30 110 0~-0.030 h5 4 SEME0112003E 12 12 30 110 0~-0.030 h5 4 SEME0112005E 12 12 30 110 0~-0.030 h5 4 SEME0112010 12 12 30 110 0~-0.030 h5 4 SEME0112015E 12 12 30 110 0~-0.030 h5 4 SEME0112020E 12 12 30 110 0~-0.030 h5 4 SEME0112025E 12 12 30 110 0~-0.030 h5 4 SEME0114005 14 16 35 150 0~-0.030 h5 4 SEME0114005E 14 16 35 150 0~-0.030 h5 4 SEME0114010E 14 16 35 150 0~-0.030 h5 4 SEME0114020 14 16 35 150 0~-0.030 h5 4 SEME0116005E 16 16 32 150 0~-0.030 h5 4 SEME0116010 16 16 32 150 0~-0.030 h5 4 SEME0116010E 16 16 32 150 0~-0.030 h5 4 SEME0116015 16 16 32 150 0~-0.030 h5 4 SEME0116015E 16 16 32 150 0~-0.030 h5 4 SEME0116020E 16 16 32 150 0~-0.030 h5 4 SEME0120005E 20 20 38 150 0~-0.030 h5 4 SEME0120010 20 20 38 150 0~-0.030 h5 4 SEME0120010E 20 20 38 150 0~-0.030 h5 4 SEME0120015 20 20 38 150 0~-0.030 h5 4 SEME0120015E 20 20 38 150 0~-0.030 h5 4 SEME0120020 20 20 38 150 0~-0.030 h5 4 SEME01010005 1 6 2.5 50 0~-0.030 h5 4 SEME01012005E 1.2 6 3 50 0~-0.030 h5 4 SEME01040014S 4 4 10 70 0~-0.030 h5 4 SEME01040014SE 4 4 10 70 0~-0.030 h5 4 SEME01040024S 4 4 10 70 0~-0.030 h5 4 SEME01040024SE 4 4 10 70 0~-0.030 h5 4 SEME01040034S 4 4 10 70 0~-0.030 h5 4 SEME01040034SE 4 4 10 70 0~-0.030 h5 4 SEME01040054S 4 4 10 70 0~-0.030 h5 4 SEME01040054SE 4 4 10 70 0~-0.030 h5 4 SEME01040104S 4 4 10 70 0~-0.030 h5 4 SEME0106001060 6 6 15 60 0~-0.030 h5 4 SEME0106001060E 6 6 15 60 0~-0.030 h5 4 SEME0106003060 6 6 15 60 0~-0.030 h5 4 SEME0106005060 6 6 15 60 0~-0.030 h5 4 SEME0106005110 6 6 15 110 0~-0.030 h5 4 SEME0106005130 6 6 15 130 0~-0.030 h5 4 SEME0106010110 6 6 15 110 0~-0.030 h5 4 SEME0106010110E 6 6 15 110 0~-0.030 h5 4 SEME0106010130 6 6 15 130 0~-0.030 h5 4 SEME0108003070E 8 8 20 70 0~-0.030 h5 4 SEME0108005070 8 8 20 70 0~-0.030 h5 4 SEME0108005070E 8 8 20 70 0~-0.030 h5 4 SEME0108005120 8 8 20 120 0~-0.030 h5 4 SEME0108005150 8 8 20 150 0~-0.030 h5 4 SEME0108010150 8 8 20 150 0~-0.030 h5 4 SEME0110003075E 10 10 25 75 0~-0.030 h5 4 SEME0110005130E 10 10 22 130 0~-0.030 h5 4 SEME0110005150 10 10 22 150 0~-0.030 h5 4 SEME0110005150E 10 10 22 150 0~-0.030 h5 4 SEME0110010075 10 10 25 75 0~-0.030 h5 4 SEME0110010075E 10 10 25 75 0~-0.030 h5 4 SEME0110010130 10 10 22 130 0~-0.030 h5 4 SEME0110010130E 10 10 22 130 0~-0.030 h5 4 SEME0110010150 10 10 22 150 0~-0.030 h5 4 SEME0110010150E 10 10 22 150 0~-0.030 h5 4 SEME0112003080E 12 12 30 80 0~-0.030 h5 4 SEME0112005150 12 12 30 130 0~-0.030 h5 4 SEME0112005150 12 12 30 150 0~-0.030 h5 4 SEME0112010080 12 12 30 80 0~-0.030 h5 4 SEME0112010080E 12 12 30 80 0~-0.030 h5 4 SEME0112010130 12 12 30 130 0~-0.030 h5 4 SEME0112010130E 12 12 30 130 0~-0.030 h5 4 SEME0112010150E 12 12 30 150 0~-0.030 h5 4 SEME01040011004S 4 4 10 100 0~-0.030 h5 4 SEME01040011004SE 4 4 10 100 0~-0.030 h5 4 SEME01040021004S 4 4 10 100 0~-0.030 h5 4 SEME01040021004SE 4 4 10 100 0~-0.030 h5 4 SEME01040031004S 4 4 10 100 0~-0.030 h5 4 SEME01040031004SE 4 4 10 100 0~-0.030 h5 4 SEME01040051004S 4 4 10 100 0~-0.030 h5 4 SEME01040051004SE 4 4 10 100 0~-0.030 h5 4 SEME01040101004S 4 4 10 100 0~-0.030 h5 4 SEME01040101004SE 4 4 10 100 0~-0.030

Video

Sale

You Might Also Like

Resources

Understanding the Basics of Endmills

Understanding the Basics of Endmills

Endmills are indispensable tools in machining, renowned for their versatility and precision. Whether you’re a seasoned operator or new to machining, understanding...
Connor Urquhart Connor Urquhart

Article

Service & Delivery

How do I purchase my items?

Excision products are available through 300+ local distributors around Australia. Some products may also have buy online options available for online purchase through our distributors.

Find your local distributor

What delivery services do we offer?

We freight out of Melbourne every day for 1-3 days delivery to your local distributor. We also offer upon request (for an extra charge):

  • Send direct
  • Air frieght for small urgent items

How do I return an item?

We offer lifetime returns. If you’re unhappy with your purchase, you can return unused items to us for free – no questions asked.

Have a question about this product?

Contact Sales

+61 (03) 5551 4555

Mon - Fri 7am - 5pm
