4G MILL 4 Flute Multiple Helix End Mill (SEME36)

Four-flute carbide multiple helix end mill

4G MILL 4 Flute Multiple Helix End Mill (SEME36)
$57.86 INC GST $52.60 EX GST
SKU
SEME36008E
Work materials
PMKH

Key features

  • Four-flute carbide end mill construction
  • Multiple helix cutting geometry
  • Metric mill diameters from 0.8 to 25 mm
Tool material Carbide
Surface treatment YG-1 Y Coating
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Metric size coverage

Mill diameters from 0.8 to 25 mm support a broad selection of metric milling requirements.

Four-flute format

The four-flute carbide configuration provides a consistent tool format throughout the SEME36 family.

Multiple helix geometry

Multiple helix geometry distinguishes this SEME36 series within the YG-1 4G MILL range.

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
SEME36008E0.840.04.01.6 1-2 Weeks $52.60
SEME36009E0.940.04.01.8 1-2 Weeks $52.60
SEME36010E1.050.06.02.5 1-2 Weeks $50.90
SEME36012E1.250.06.03.0 1-2 Weeks $50.90
SEME36015E1.550.06.04.0 In stock $50.90
SEME36020E2.050.04.06.0 In stock $50.90
SEME36025E2.550.06.07.0 In stock $50.90
SEME36030E3.050.06.08.0 In stock $55.50
SEME36035E3.550.06.010.0 1-2 Weeks $55.50
SEME36040E4.050.06.010.0 1-2 Weeks $55.50
SEME36045E4.550.06.014.0 1-2 Weeks $50.90
SEME36050E5.060.06.015.0 1-2 Weeks $68.10
SEME36055E5.560.06.015.0 1-2 Weeks $54.00
SEME36060E6.060.06.015.0 1-2 Weeks $68.10
SEME36065E6.560.08.018.0 1-2 Weeks $83.60
SEME36070E7.060.08.020.0 In stock $91.40
SEME36075E7.560.08.020.0 1-2 Weeks $83.60
SEME36080E8.070.08.020.0 1-2 Weeks $119.70
SEME36085E8.570.010.022.0 1-2 Weeks $112.70
SEME36090E9.070.010.022.0 Low stock $119.70
SEME36095E9.570.010.024.0 1-2 Weeks $112.70
SEME36100E10.075.010.025.0 Low stock $126.70
SEME36105E10.575.012.026.0 1-2 Weeks $146.90
SEME36110E11.075.012.030.0 1-2 Weeks $146.90
SEME36115E11.580.012.030.0 1-2 Weeks $147.50
SEME36120E12.080.012.030.0 Low stock $156.70
SEME36130E13.0100.012.035.0 1-2 Weeks $229.80
SEME36140E14.0100.016.035.0 1-2 Weeks $312.10
SEME36150E15.0100.016.038.0 Low stock $276.00
SEME36160E16.0100.016.040.0 1-2 Weeks $312.10
SEME36170E17.0100.016.042.0 Low stock $493.10
SEME36180E18.0100.016.045.0 1-2 Weeks $417.90
SEME36190E19.0100.020.045.0 1-2 Weeks $516.40
SEME36200E20.0100.020.045.0 1-2 Weeks $516.40
SEME36210E21.0100.020.045.0 1-2 Weeks $559.60
SEME36220E22.0100.020.045.0 1-2 Weeks $559.60
SEME36230E23.0120.025.050.0 1-2 Weeks $820.70
SEME36250E25.0120.025.050.0 1-2 Weeks $820.70

Add 4G MILL 4 Flute Multiple Helix End Mill (SEME36) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

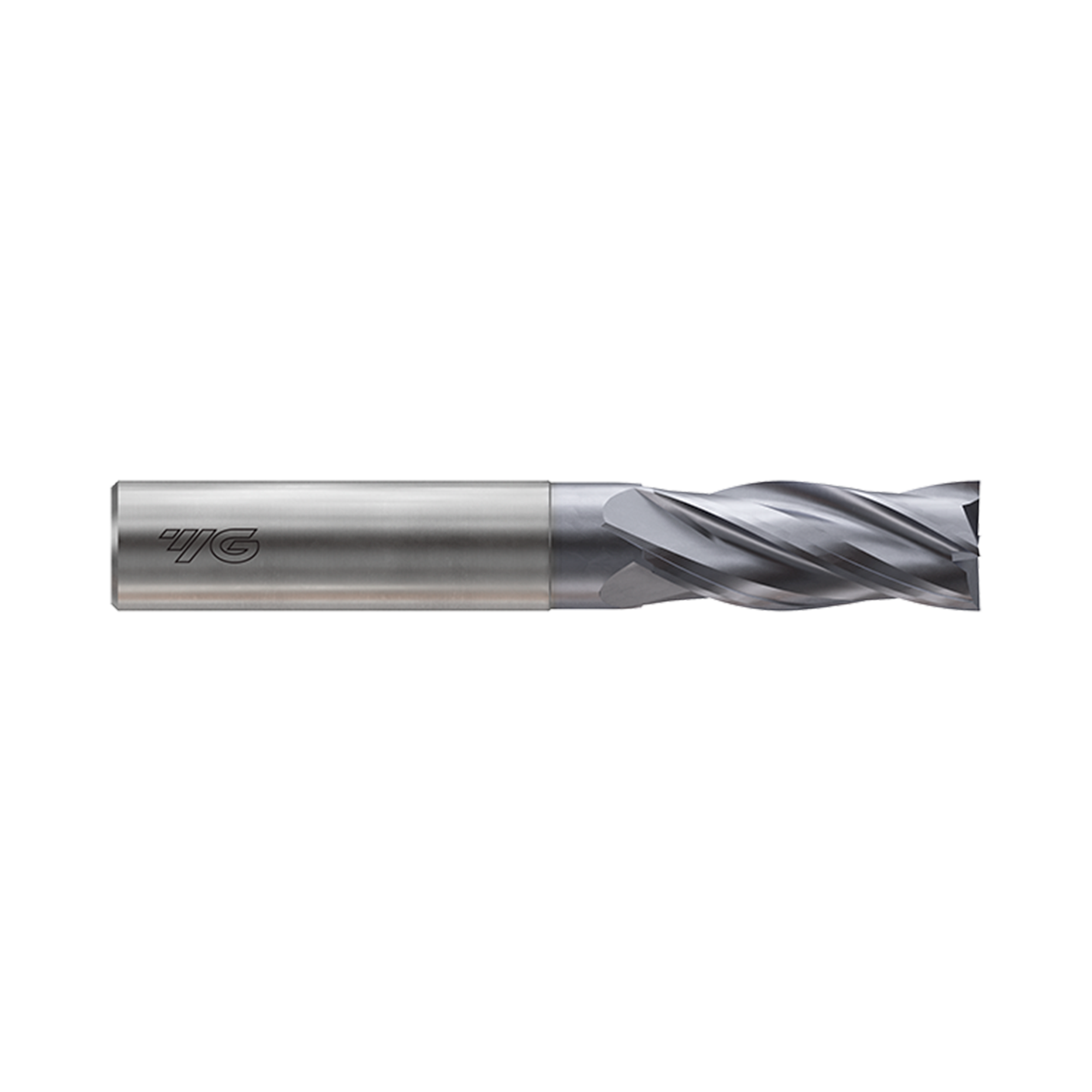

YG-1 4G MILL SEME36 is a four-flute carbide multiple helix end mill for metric milling. It is identified by YG-1 for high-performance steel and cast iron milling applications. The SEME36 series combines a square end, four flutes and a multiple helix cutting geometry. Available mill diameters span 0.8 to 25 mm, with shank, cut and overall lengths varying by size. The range covers compact 40 mm overall-length tools through 120 mm overall-length tools. These metric cutters support standardised tooling selection where four-flute multiple helix end mills are required. Select the listed diameter and related dimensions to match the intended machining setup.

  • Four-flute carbide end mill construction
  • Multiple helix cutting geometry
  • Metric mill diameters from 0.8 to 25 mm
  • Overall lengths from 40 to 120 mm
  • YG-1 high-performance steel and cast iron series
Product Data
Cutting Shape Square
Helix Angle 30°, Multiple
No. Flutes 4
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide

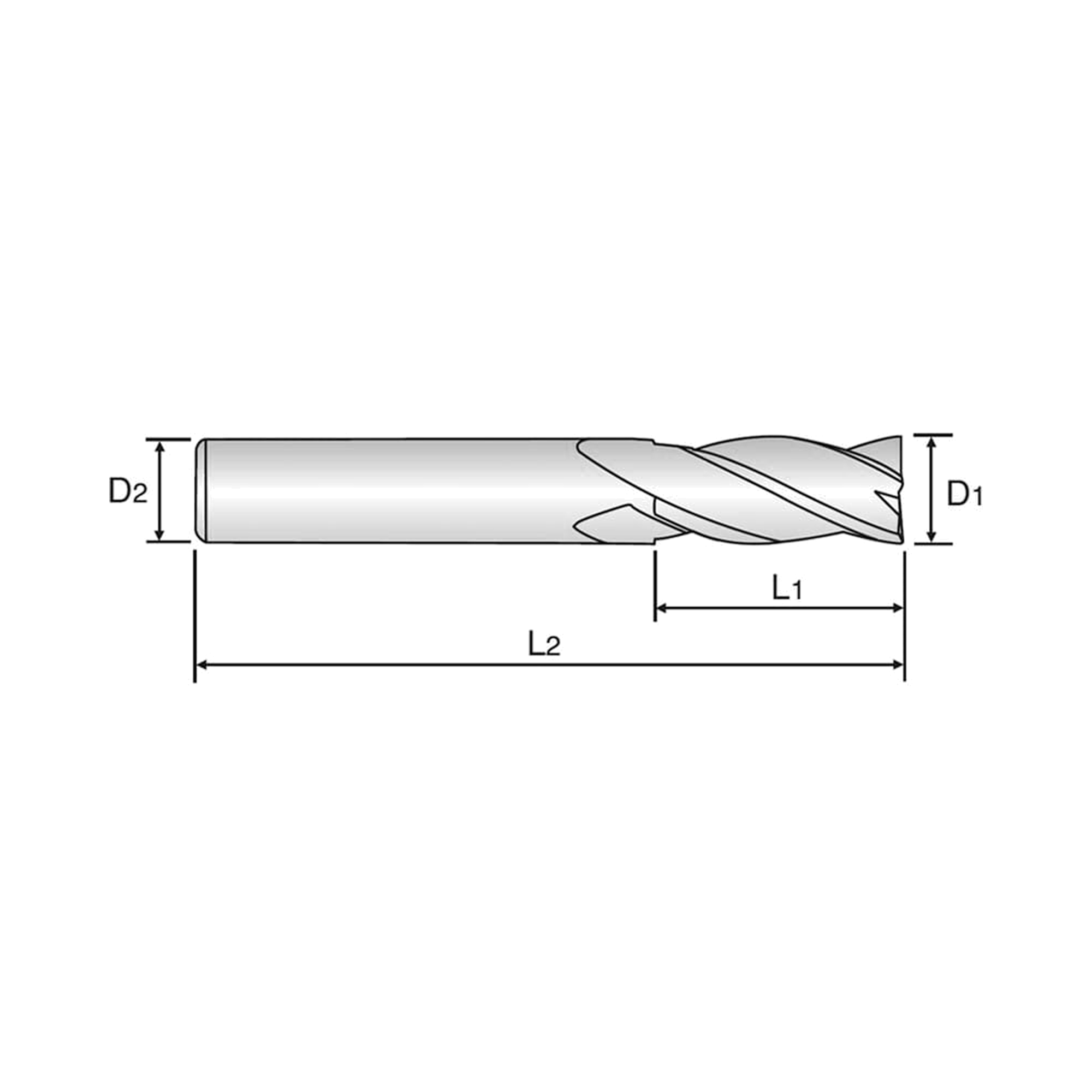

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME36008 0.8 4 1.6 40 0~-0.030 h5 4 SEME36008E 0.8 4 1.6 40 0~-0.030 h5 4 SEME36009 0.9 4 1.8 40 0~-0.030 h5 4 SEME36009E 0.9 4 1.8 40 0~-0.030 h5 4 SEME36010 1 6 2.5 50 0~-0.030 h5 4 SEME36010E 1 6 2.5 50 0~-0.030 h5 4 SEME36012 1.2 6 3 50 0~-0.030 h5 4 SEME36012E 1.2 6 3 50 0~-0.030 h5 4 SEME36015 1.5 6 4 50 0~-0.030 h5 4 SEME36015E 1.5 6 4 50 0~-0.030 h5 4 SEME36020 2 6 6 50 0~-0.030 h5 4 SEME36020E 2 6 6 50 0~-0.030 h5 4 SEME36025 2.5 6 7 50 0~-0.030 h5 4 SEME36025E 2.5 6 7 50 0~-0.030 h5 4 SEME36030 3 6 8 50 0~-0.030 h5 4 SEME36030E 3 6 8 50 0~-0.030 h5 4 SEME36035 3.5 6 10 50 0~-0.030 h5 4 SEME36035E 3.5 6 10 50 0~-0.030 h5 4 SEME36040 4 6 10 50 0~-0.030 h5 4 SEME36040E 4 6 10 50 0~-0.030 h5 4 SEME36045 4.5 6 14 50 0~-0.030 h5 4 SEME36045E 4.5 6 14 50 0~-0.030 h5 4 SEME36050 5 6 15 60 0~-0.030 h5 4 SEME36050E 5 6 15 60 0~-0.030 h5 4 SEME36055 5.5 6 15 60 0~-0.030 h5 4 SEME36055E 5.5 6 15 60 0~-0.030 h5 4 SEME36060 6 6 15 60 0~-0.030 h5 4 SEME36060E 6 6 15 60 0~-0.030 h5 4 SEME36065 6.5 8 18 60 0~-0.030 h5 4 SEME36065E 6.5 8 18 60 0~-0.030 h5 4 SEME36070 7 8 20 60 0~-0.030 h5 4 SEME36070E 7 8 20 60 0~-0.030 h5 4 SEME36075 7.5 8 20 60 0~-0.030 h5 4 SEME36075E 7.5 8 20 60 0~-0.030 h5 4 SEME36080 8 8 20 70 0~-0.030 h5 4 SEME36080E 8 8 20 70 0~-0.030 h5 4 SEME36085 8.5 10 22 70 0~-0.030 h5 4 SEME36085E 8.5 10 22 70 0~-0.030 h5 4 SEME36090 9 10 22 70 0~-0.030 h5 4 SEME36090E 9 10 22 70 0~-0.030 h5 4 SEME36095 9.5 10 24 70 0~-0.030 h5 4 SEME36095E 9.5 10 24 70 0~-0.030 h5 4 SEME36100 10 10 25 75 0~-0.030 h5 4 SEME36100E 10 10 25 75 0~-0.030 h5 4 SEME36105 10.5 12 26 75 0~-0.030 h5 4 SEME36105E 10.5 12 26 75 0~-0.030 h5 4 SEME36110 11 12 30 75 0~-0.030 h5 4 SEME36110E 11 12 30 75 0~-0.030 h5 4 SEME36115 11.5 12 30 80 0~-0.030 h5 4 SEME36115E 11.5 12 30 80 0~-0.030 h5 4 SEME36120 12 12 30 80 0~-0.030 h5 4 SEME36120E 12 12 30 80 0~-0.030 h5 4 SEME36130 13 12 35 100 0~-0.030 h5 4 SEME36130E 13 12 35 100 0~-0.030 h5 4 SEME36140 14 16 35 100 0~-0.030 h5 4 SEME36140E 14 16 35 100 0~-0.030 h5 4 SEME36150 15 16 38 100 0~-0.030 h5 4 SEME36150E 15 16 38 100 0~-0.030 h5 4 SEME36160 16 16 40 100 0~-0.030 h5 4 SEME36160E 16 16 40 100 0~-0.030 h5 4 SEME36170 17 16 42 100 0~-0.030 h5 4 SEME36170E 17 16 42 100 0~-0.030 h5 4 SEME36180 18 16 45 100 0~-0.030 h5 4 SEME36180E 18 16 45 100 0~-0.030 h5 4 SEME36190 19 20 45 100 0~-0.030 h5 4 SEME36190E 19 20 45 100 0~-0.030 h5 4 SEME36200 20 20 45 100 0~-0.030 h5 4 SEME36200E 20 20 45 100 0~-0.030 h5 4 SEME36210 21 20 45 100 0~-0.030 h5 4 SEME36210E 21 20 45 100 0~-0.030 h5 4 SEME36220 22 20 45 100 0~-0.030 h5 4 SEME36220E 22 20 45 100 0~-0.030 h5 4 SEME36230 23 25 50 120 0~-0.030 h5 4 SEME36230E 23 25 50 120 0~-0.030 h5 4 SEME36240 24 25 50 120 0~-0.030 h5 4 SEME36240E 24 25 50 120 0~-0.030 h5 4 SEME36250 25 25 50 120 0~-0.030 h5 4 SEME36250E 25 25 50 120 0~-0.030 h5 4 SEME3614012S 14 12 35 100 0~-0.030 h5 4 SEME3614012SE 14 12 35 100 0~-0.030 h5 4 SEME3614014S 14 14 35 100 0~-0.030 h5 4 SEME3614014SE 14 14 35 100 0~-0.030 h5 4 SEME3618018S 18 18 45 100 0~-0.030 h5 4 SEME3618018SE 18 18 45 100 0~-0.030 h5 4
Side Milling
Small Part
Slotting
Die Sinking
Facing

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 4–5
GoodVDI 1–3
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Cast iron

6 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17–18
Malleable cast iron
GoodVDI 19–20

Stainless steel

1 grade
Stainless steel
GoodVDI 14

Hardened materials

3 grades
Hardened steel
GoodVDI 38
Chilled cast iron
ExcellentVDI 40
Hardened cast iron
GoodVDI 41
VDI grade reference21 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelGood25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
14MStainless steelGood18010
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
18KNodular cast ironGood25025
19KMalleable cast ironGood130-
20KMalleable cast ironGood23021
38HHardened steelGood55055
40HChilled cast ironExcellent40042
41HHardened cast ironGood55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for 4G MILL 4 Flute Multiple Helix End Mill (SEME36)

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME36008 0.8 4 1.6 40 0~-0.030 h5 4 SEME36008E 0.8 4 1.6 40 0~-0.030 h5 4 SEME36009 0.9 4 1.8 40 0~-0.030 h5 4 SEME36009E 0.9 4 1.8 40 0~-0.030 h5 4 SEME36010 1 6 2.5 50 0~-0.030 h5 4 SEME36010E 1 6 2.5 50 0~-0.030 h5 4 SEME36012 1.2 6 3 50 0~-0.030 h5 4 SEME36012E 1.2 6 3 50 0~-0.030 h5 4 SEME36015 1.5 6 4 50 0~-0.030 h5 4 SEME36015E 1.5 6 4 50 0~-0.030 h5 4 SEME36020 2 6 6 50 0~-0.030 h5 4 SEME36020E 2 6 6 50 0~-0.030 h5 4 SEME36025 2.5 6 7 50 0~-0.030 h5 4 SEME36025E 2.5 6 7 50 0~-0.030 h5 4 SEME36030 3 6 8 50 0~-0.030 h5 4 SEME36030E 3 6 8 50 0~-0.030 h5 4 SEME36035 3.5 6 10 50 0~-0.030 h5 4 SEME36035E 3.5 6 10 50 0~-0.030 h5 4 SEME36040 4 6 10 50 0~-0.030 h5 4 SEME36040E 4 6 10 50 0~-0.030 h5 4 SEME36045 4.5 6 14 50 0~-0.030 h5 4 SEME36045E 4.5 6 14 50 0~-0.030 h5 4 SEME36050 5 6 15 60 0~-0.030 h5 4 SEME36050E 5 6 15 60 0~-0.030 h5 4 SEME36055 5.5 6 15 60 0~-0.030 h5 4 SEME36055E 5.5 6 15 60 0~-0.030 h5 4 SEME36060 6 6 15 60 0~-0.030 h5 4 SEME36060E 6 6 15 60 0~-0.030 h5 4 SEME36065 6.5 8 18 60 0~-0.030 h5 4 SEME36065E 6.5 8 18 60 0~-0.030 h5 4 SEME36070 7 8 20 60 0~-0.030 h5 4 SEME36070E 7 8 20 60 0~-0.030 h5 4 SEME36075 7.5 8 20 60 0~-0.030 h5 4 SEME36075E 7.5 8 20 60 0~-0.030 h5 4 SEME36080 8 8 20 70 0~-0.030 h5 4 SEME36080E 8 8 20 70 0~-0.030 h5 4 SEME36085 8.5 10 22 70 0~-0.030 h5 4 SEME36085E 8.5 10 22 70 0~-0.030 h5 4 SEME36090 9 10 22 70 0~-0.030 h5 4 SEME36090E 9 10 22 70 0~-0.030 h5 4 SEME36095 9.5 10 24 70 0~-0.030 h5 4 SEME36095E 9.5 10 24 70 0~-0.030 h5 4 SEME36100 10 10 25 75 0~-0.030 h5 4 SEME36100E 10 10 25 75 0~-0.030 h5 4 SEME36105 10.5 12 26 75 0~-0.030 h5 4 SEME36105E 10.5 12 26 75 0~-0.030 h5 4 SEME36110 11 12 30 75 0~-0.030 h5 4 SEME36110E 11 12 30 75 0~-0.030 h5 4 SEME36115 11.5 12 30 80 0~-0.030 h5 4 SEME36115E 11.5 12 30 80 0~-0.030 h5 4 SEME36120 12 12 30 80 0~-0.030 h5 4 SEME36120E 12 12 30 80 0~-0.030 h5 4 SEME36130 13 12 35 100 0~-0.030 h5 4 SEME36130E 13 12 35 100 0~-0.030 h5 4 SEME36140 14 16 35 100 0~-0.030 h5 4 SEME36140E 14 16 35 100 0~-0.030 h5 4 SEME36150 15 16 38 100 0~-0.030 h5 4 SEME36150E 15 16 38 100 0~-0.030 h5 4 SEME36160 16 16 40 100 0~-0.030 h5 4 SEME36160E 16 16 40 100 0~-0.030 h5 4 SEME36170 17 16 42 100 0~-0.030 h5 4 SEME36170E 17 16 42 100 0~-0.030 h5 4 SEME36180 18 16 45 100 0~-0.030 h5 4 SEME36180E 18 16 45 100 0~-0.030 h5 4 SEME36190 19 20 45 100 0~-0.030 h5 4 SEME36190E 19 20 45 100 0~-0.030 h5 4 SEME36200 20 20 45 100 0~-0.030 h5 4 SEME36200E 20 20 45 100 0~-0.030 h5 4 SEME36210 21 20 45 100 0~-0.030 h5 4 SEME36210E 21 20 45 100 0~-0.030 h5 4 SEME36220 22 20 45 100 0~-0.030 h5 4 SEME36220E 22 20 45 100 0~-0.030 h5 4 SEME36230 23 25 50 120 0~-0.030 h5 4 SEME36230E 23 25 50 120 0~-0.030 h5 4 SEME36240 24 25 50 120 0~-0.030 h5 4 SEME36240E 24 25 50 120 0~-0.030 h5 4 SEME36250 25 25 50 120 0~-0.030 h5 4 SEME36250E 25 25 50 120 0~-0.030 h5 4 SEME3614012S 14 12 35 100 0~-0.030 h5 4 SEME3614012SE 14 12 35 100 0~-0.030 h5 4 SEME3614014S 14 14 35 100 0~-0.030 h5 4 SEME3614014SE 14 14 35 100 0~-0.030 h5 4 SEME3618018S 18 18 45 100 0~-0.030 h5 4 SEME3618018SE 18 18 45 100 0~-0.030 h5 4
