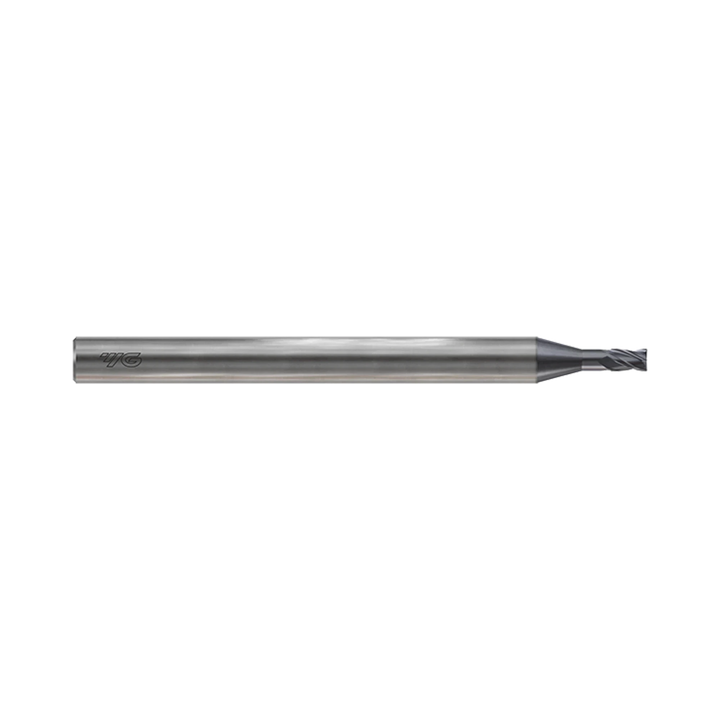

4G MILL 4 Flute Multiple Helix Rib Corner Radius End Mill (SEME64)

Name: 4G MILL 4 Flute Multiple Helix Rib Corner Radius End Mill (SEME64)
Brand: Excision Pty Ltd
SKU: SEME640100104E
Price: 60.00 AUD
Availability: InStock

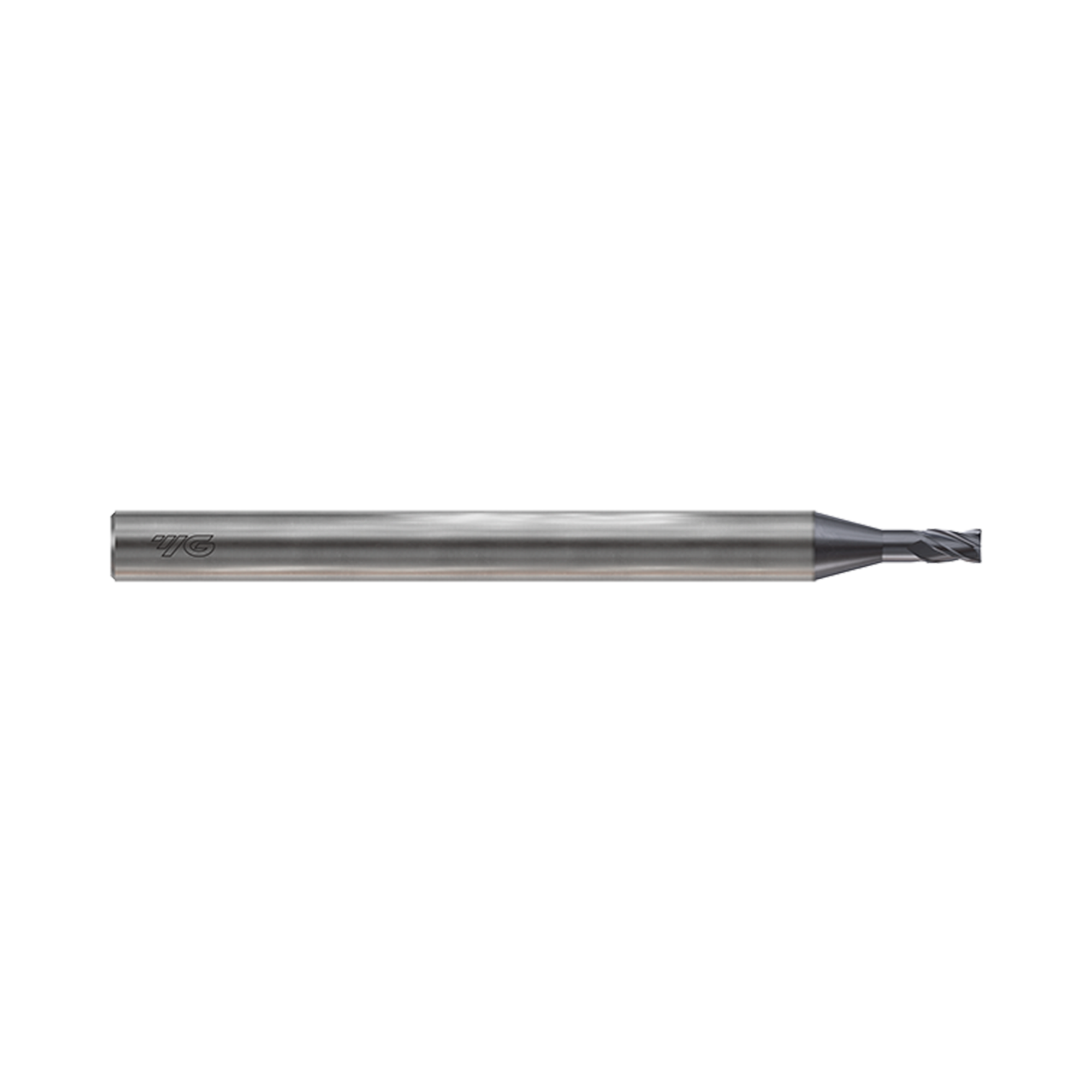

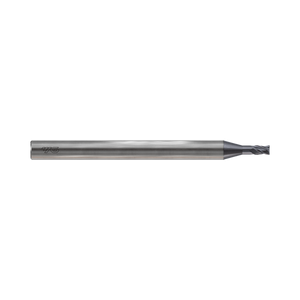

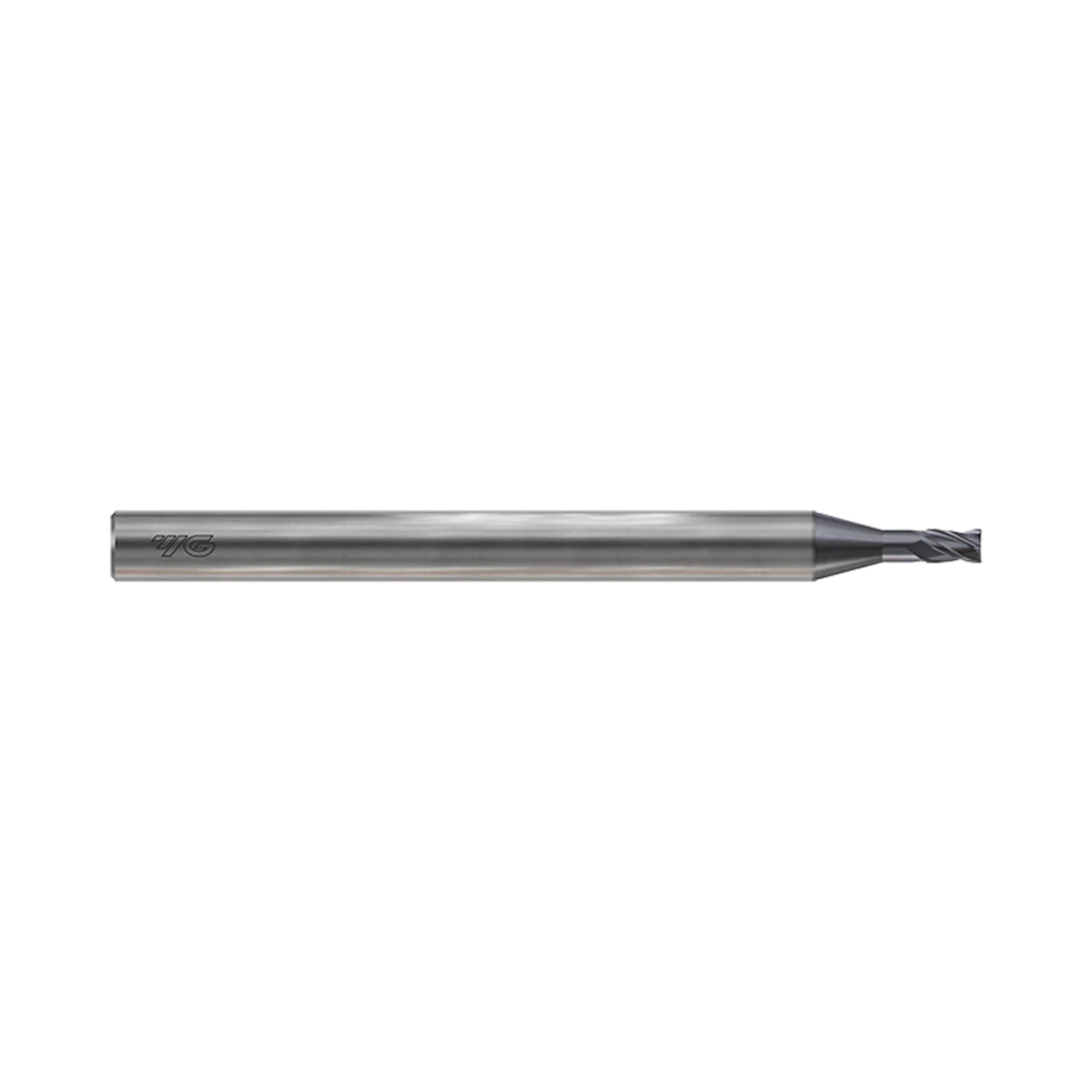

Carbide 4 Flute Corner Radius End Mill with Extended Neck

$66.00 INC GST $60.00 EX GST Price available on request

SKU: SEME640100104E

Work materials

P K H

Key features

Carbide corner radius end mill with four flutes
Extended neck design
Y coating for cutting ability and wear resistance

Tool material Carbide

Surface treatment YG-1 Y Coating

Mill Diameter (mm)

Corner Radius (mm)

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Extended-neck access

The extended neck profile supports machining around mould and die features.

Controlled cutting geometry

Four flutes and a corner radius profile suit precise steel machining operations.

Series-specific helix design

Multiple Helix geometry on 3.0 mm and larger tools helps minimise vibration and cutting wear.

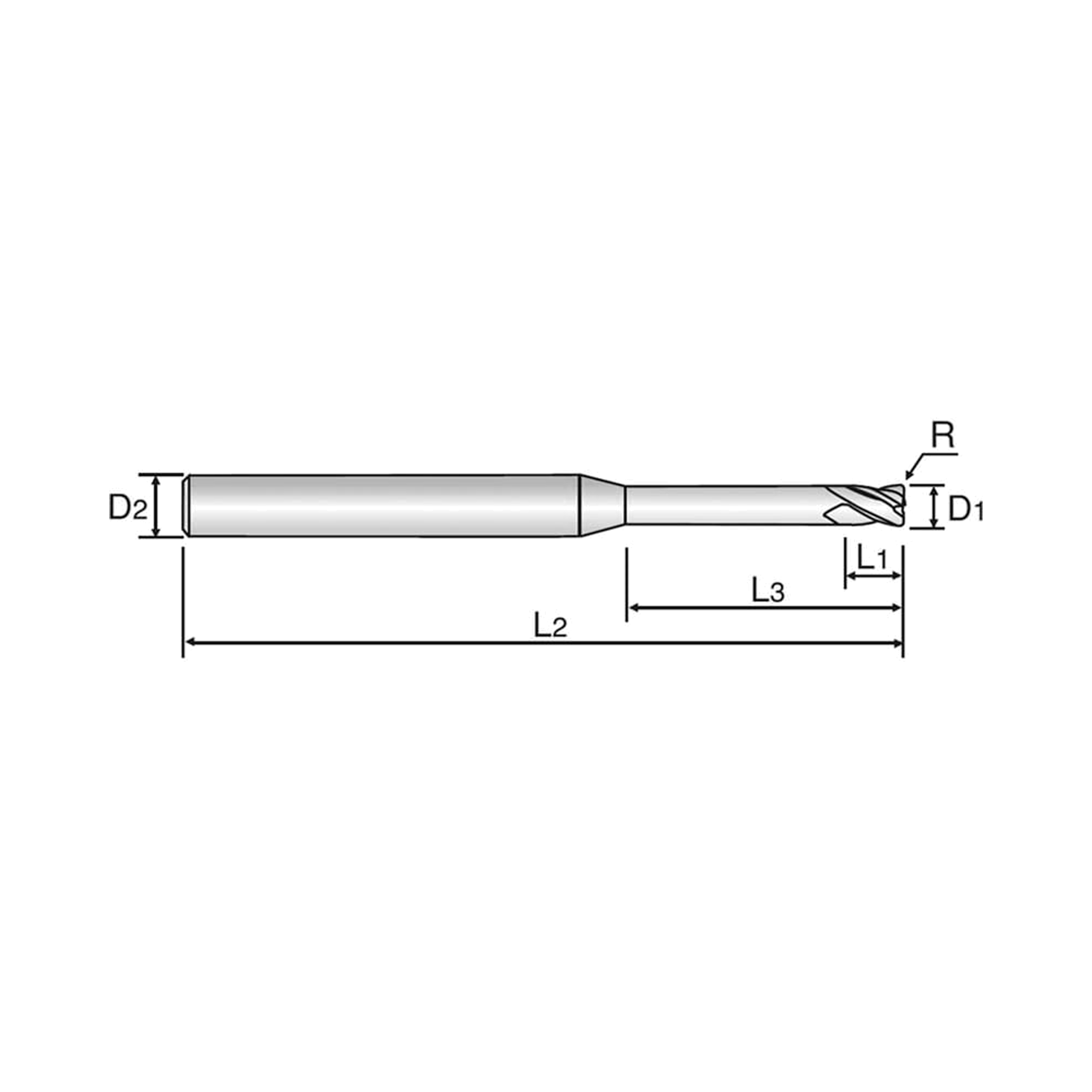

SKU	Mill Diameter (mm)	Corner Radius (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	Length below shank (mm)	Neck dia. (mm)	Stock	Price
SEME640100104E	1.0	R0.1	50.0	4.0	1.5	4.0	0.95	1-2 Weeks	$60.00
SEME6401200512E	1.2	R0.05	50.0	4.0	1.8	12.0	1.15	1-2 Weeks	$60.00
SEME6401500504E	1.5	R0.05	50.0	4.0	2.3	4.0	1.45	1-2 Weeks	$60.00
SEME640200106E	2.0	R0.1	50.0	4.0	3.0	6.0	1.95	1-2 Weeks	$60.00
SEME640250108E	2.5	R0.1	50.0	4.0	4.0	8.0	2.4	1-2 Weeks	$60.00
SEME640300108E	3.0	R0.1	50.0	6.0	4.5	8.0	2.85	1-2 Weeks	$67.80
SEME640400110E	4.0	R0.1	50.0	6.0	6.0	10.0	3.85	1-2 Weeks	$67.80
SEME6405001E	5.0	R0.1	60.0	6.0	8.0	15.0	4.85	Low stock	$74.20
SEME6406001E	6.0	R0.1	60.0	6.0	9.0	20.0	5.85	1-2 Weeks	$70.10
SEME6408002E	8.0	R0.2	70.0	8.0	12.0	25.0	7.7	In stock	$108.60
SEME6410001E	10.0	R0.1	75.0	10.0	15.0	30.0	9.7	1-2 Weeks	$141.40
SEME6412002E	12.0	R0.2	80.0	12.0	18.0	32.0	11.7	In stock	$190.70
SEME6416005E	16.0	R0.5	100.0	16.0	20.0	35.0	15.7	Low stock	$404.30
SEME6420005E	20.0	R0.5	100.0	20.0	35.0	40.0	19.7	1-2 Weeks	$440.60

Add 4G MILL 4 Flute Multiple Helix Rib Corner Radius End Mill (SEME64) to comparison

View Comparison

Overview
Specifications
Operation
Work Material
Reviews

Product Description

YG-1 4G MILL SEME64 is a carbide, four-flute corner radius end mill with extended neck. It is designed for precision machining of prehardened steels up to HRc55 used in mould and die work. The SEME64 family combines a corner-radius cutting profile with four carbide cutting flutes. Y coating and updated tool geometry support cutting ability and wear resistance. Diameters span 1.0 to 20.0 mm, with corner radii selected by individual SKU. Tools from 3.0 mm diameter use multiple helix geometry to minimise vibration and cutting wear. Smaller-than-3.0 mm tools use a 30° helix; 3.0 mm and larger tools use Multiple Helix.

Carbide corner radius end mill with four flutes
Extended neck design
Y coating for cutting ability and wear resistance
Suitable for prehardened steels up to HRc55
Multiple Helix geometry on 3.0 mm and larger diameters
1.0 to 20.0 mm diameter range

Product Data

Cutting Shape	Corner Radius
Helix Angle	30°, Multiple
Length	Extended Neck
No. Flutes	4
Operation	Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type	Plain
Surface Treatment	YG-1 Y Coating
Tool Material	Carbide

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME6405001E 5 6 8 60 0~-0.030 h5 4 SEME6405002 5 6 8 60 0~-0.030 h5 4 SEME6405003 5 6 8 60 0~-0.030 h5 4 SEME6405005 5 6 8 60 0~-0.030 h5 4 SEME6405005E 5 6 8 60 0~-0.030 h5 4 SEME6405010 5 6 8 60 0~-0.030 h5 4 SEME6405010E 5 6 8 60 0~-0.030 h5 4 SEME6405015 5 6 8 60 0~-0.030 h5 4 SEME6405015E 5 6 8 60 0~-0.030 h5 4 SEME6405020 5 6 8 60 0~-0.030 h5 4 SEME6405020E 5 6 8 60 0~-0.030 h5 4 SEME6406001E 6 6 9 60 0~-0.030 h5 4 SEME6406002 6 6 9 60 0~-0.030 h5 4 SEME6406003 6 6 9 60 0~-0.030 h5 4 SEME6406005 6 6 9 60 0~-0.030 h5 4 SEME6406010 6 6 9 60 0~-0.030 h5 4 SEME6406010E 6 6 9 60 0~-0.030 h5 4 SEME6406015 6 6 9 60 0~-0.030 h5 4 SEME6406015E 6 6 9 60 0~-0.030 h5 4 SEME6406020 6 6 9 60 0~-0.030 h5 4 SEME6406020E 6 6 9 60 0~-0.030 h5 4 SEME6408001E 8 8 12 70 0~-0.030 h5 4 SEME6408002 8 8 12 70 0~-0.030 h5 4 SEME6408002E 8 8 12 70 0~-0.030 h5 4 SEME6408010 8 8 12 70 0~-0.030 h5 4 SEME6408015 8 8 12 70 0~-0.030 h5 4 SEME6408015E 8 8 12 70 0~-0.030 h5 4 SEME6408020 8 8 12 70 0~-0.030 h5 4 SEME6408020E 8 8 12 70 0~-0.030 h5 4 SEME6410001E 10 10 15 75 0~-0.030 h5 4 SEME6410002 10 10 15 75 0~-0.030 h5 4 SEME6410005E 10 10 15 75 0~-0.030 h5 4 SEME6410010 10 10 15 75 0~-0.030 h5 4 SEME6410010E 10 10 15 75 0~-0.030 h5 4 SEME6410015 10 10 15 75 0~-0.030 h5 4 SEME6410015E 10 10 15 75 0~-0.030 h5 4 SEME6410020 10 10 15 75 0~-0.030 h5 4 SEME6410020E 10 10 15 75 0~-0.030 h5 4 SEME6412002 12 12 18 80 0~-0.030 h5 4 SEME6412003 12 12 18 80 0~-0.030 h5 4 SEME6412003E 12 12 18 80 0~-0.030 h5 4 SEME6412005E 12 12 18 80 0~-0.030 h5 4 SEME6412010 12 12 18 80 0~-0.030 h5 4 SEME6412010E 12 12 18 80 0~-0.030 h5 4 SEME6412015 12 12 18 80 0~-0.030 h5 4 SEME6412020 12 12 18 80 0~-0.030 h5 4 SEME6412020E 12 12 18 80 0~-0.030 h5 4 SEME6416005 16 16 20 100 0~-0.030 h5 4 SEME6416005E 16 16 20 100 0~-0.030 h5 4 SEME6416010 16 16 20 100 0~-0.030 h5 4 SEME6416010E 16 16 20 100 0~-0.030 h5 4 SEME6420005 20 20 25 100 0~-0.030 h5 4 SEME6420010 20 20 25 100 0~-0.030 h5 4 SEME6420010E 20 20 25 100 0~-0.030 h5 4 SEME640100103 1 4 1.5 50 0~-0.030 h5 4 SEME640100103E 1 4 1.5 50 0~-0.030 h5 4 SEME640100104E 1 4 1.5 50 0~-0.030 h5 4 SEME640100106 1 4 1.5 50 0~-0.030 h5 4 SEME640100108 1 4 1.5 50 0~-0.030 h5 4 SEME640100108E 1 4 1.5 50 0~-0.030 h5 4 SEME640100112 1 4 1.5 50 0~-0.030 h5 4 SEME640100112E 1 4 1.5 50 0~-0.030 h5 4 SEME640100114E 1 4 1.5 50 0~-0.030 h5 4 SEME640100116 1 4 1.5 50 0~-0.030 h5 4 SEME640100116E 1 4 1.5 50 0~-0.030 h5 4 SEME640100120E 1 4 1.5 50 0~-0.030 h5 4 SEME640100203 1 4 1.5 50 0~-0.030 h5 4 SEME640100204 1 4 1.5 50 0~-0.030 h5 4 SEME640100206 1 4 1.5 50 0~-0.030 h5 4 SEME640100206E 1 4 1.5 50 0~-0.030 h5 4 SEME640100208 1 4 1.5 50 0~-0.030 h5 4 SEME640100208E 1 4 1.5 50 0~-0.030 h5 4 SEME640100210 1 4 1.5 50 0~-0.030 h5 4 SEME640100210E 1 4 1.5 50 0~-0.030 h5 4 SEME640100212 1 4 1.5 50 0~-0.030 h5 4 SEME640100212E 1 4 1.5 50 0~-0.030 h5 4 SEME640100214 1 4 1.5 50 0~-0.030 h5 4 SEME640100216 1 4 1.5 50 0~-0.030 h5 4 SEME640100220 1 4 1.5 50 0~-0.030 h5 4 SEME640100303 1 4 1.5 50 0~-0.030 h5 4 SEME640100303E 1 4 1.5 50 0~-0.030 h5 4 SEME640100304 1 4 1.5 50 0~-0.030 h5 4 SEME640100304E 1 4 1.5 50 0~-0.030 h5 4 SEME640100306E 1 4 1.5 50 0~-0.030 h5 4 SEME640100308E 1 4 1.5 50 0~-0.030 h5 4 SEME640100310 1 4 1.5 50 0~-0.030 h5 4 SEME640100312 1 4 1.5 50 0~-0.030 h5 4 SEME640100312E 1 4 1.5 50 0~-0.030 h5 4 SEME640100314 1 4 1.5 50 0~-0.030 h5 4 SEME640100314E 1 4 1.5 50 0~-0.030 h5 4 SEME640100316 1 4 1.5 50 0~-0.030 h5 4 SEME640100316E 1 4 1.5 50 0~-0.030 h5 4 SEME640100320 1 4 1.5 50 0~-0.030 h5 4 SEME640100320E 1 4 1.5 50 0~-0.030 h5 4 SEME640120103 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120103E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120104 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120104E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120106E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120108 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120108E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120110 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120110E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120112E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120116 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120116E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120120E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120203 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120203E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120204 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120204E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120208 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120208E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120210 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120212 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120212E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120220 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120220E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120303 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120304 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120306 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120306E 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120310 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120312 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120316 1.2 4 1.8 50 0~-0.030 h5 4 SEME640120320 1.2 4 1.8 50 0~-0.030 h5 4 SEME640150106 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150108 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150108E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150110 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150110E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150112 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150114E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150116E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150120 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150122 1.5 4 2.3 60 0~-0.030 h5 4 SEME640150122E 1.5 4 2.3 60 0~-0.030 h5 4 SEME640150126 1.5 4 2.3 60 0~-0.030 h5 4 SEME640150204E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150206 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150206E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150208 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150208E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150210 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150210E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150212 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150214 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150216 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150220 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150222 1.5 4 2.3 60 0~-0.030 h5 4 SEME640150226 1.5 4 2.3 60 0~-0.030 h5 4 SEME640150226E 1.5 4 2.3 60 0~-0.030 h5 4 SEME640150304 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150304E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150306 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150306E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150308 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150308E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150310 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150310E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150312 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150312E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150314E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150316E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150320 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150320E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150322 1.5 4 2.3 60 0~-0.030 h5 4 SEME640150322E 1.5 4 2.3 60 0~-0.030 h5 4 SEME640150326 1.5 4 2.3 60 0~-0.030 h5 4 SEME640150326E 1.5 4 2.3 60 0~-0.030 h5 4 SEME640150512E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150514E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150516E 1.5 4 2.3 50 0~-0.030 h5 4 SEME640150526 1.5 4 2.3 60 0~-0.030 h5 4 SEME640150526E 1.5 4 2.3 60 0~-0.030 h5 4 SEME640200106 2 4 3 50 0~-0.030 h5 4 SEME640200108 2 4 3 50 0~-0.030 h5 4 SEME640200110 2 4 3 50 0~-0.030 h5 4 SEME640200112 2 4 3 50 0~-0.030 h5 4 SEME640200112E 2 4 3 50 0~-0.030 h5 4 SEME640200114 2 4 3 50 0~-0.030 h5 4 SEME640200114E 2 4 3 50 0~-0.030 h5 4 SEME640200116 2 4 3 50 0~-0.030 h5 4 SEME640200116E 2 4 3 50 0~-0.030 h5 4 SEME640200120 2 4 3 50 0~-0.030 h5 4 SEME640200120E 2 4 3 50 0~-0.030 h5 4 SEME640200122 2 4 3 60 0~-0.030 h5 4 SEME640200122E 2 4 3 60 0~-0.030 h5 4 SEME640200126 2 4 3 60 0~-0.030 h5 4 SEME640200126E 2 4 3 60 0~-0.030 h5 4 SEME640200130 2 4 3 70 0~-0.030 h5 4 SEME640200130E 2 4 3 70 0~-0.030 h5 4 SEME640200206 2 4 3 50 0~-0.030 h5 4 SEME640200206E 2 4 3 50 0~-0.030 h5 4 SEME640200208 2 4 3 50 0~-0.030 h5 4 SEME640200208E 2 4 3 50 0~-0.030 h5 4 SEME640200210 2 4 3 50 0~-0.030 h5 4 SEME640200212 2 4 3 50 0~-0.030 h5 4 SEME640200214 2 4 3 50 0~-0.030 h5 4 SEME640200216 2 4 3 50 0~-0.030 h5 4 SEME640200220 2 4 3 50 0~-0.030 h5 4 SEME640200220E 2 4 3 50 0~-0.030 h5 4 SEME640200222 2 4 3 60 0~-0.030 h5 4 SEME640200222E 2 4 3 60 0~-0.030 h5 4 SEME640200226 2 4 3 60 0~-0.030 h5 4 SEME640200226E 2 4 3 60 0~-0.030 h5 4 SEME640200230E 2 4 3 70 0~-0.030 h5 4 SEME640200306 2 4 3 50 0~-0.030 h5 4 SEME640200308 2 4 3 50 0~-0.030 h5 4 SEME640200310 2 4 3 50 0~-0.030 h5 4 SEME640200312 2 4 3 50 0~-0.030 h5 4 SEME640200312E 2 4 3 50 0~-0.030 h5 4 SEME640200314 2 4 3 50 0~-0.030 h5 4 SEME640200316 2 4 3 50 0~-0.030 h5 4 SEME640200320 2 4 3 50 0~-0.030 h5 4 SEME640200320E 2 4 3 50 0~-0.030 h5 4 SEME640200322 2 4 3 60 0~-0.030 h5 4 SEME640200322E 2 4 3 60 0~-0.030 h5 4 SEME640200326 2 4 3 60 0~-0.030 h5 4 SEME640200326E 2 4 3 60 0~-0.030 h5 4 SEME640200330 2 4 3 70 0~-0.030 h5 4 SEME640200330E 2 4 3 70 0~-0.030 h5 4 SEME640200506 2 4 3 50 0~-0.030 h5 4 SEME640200506E 2 4 3 50 0~-0.030 h5 4 SEME640200508 2 4 3 50 0~-0.030 h5 4 SEME640200508E 2 4 3 50 0~-0.030 h5 4 SEME640200510 2 4 3 50 0~-0.030 h5 4 SEME640200510E 2 4 3 50 0~-0.030 h5 4 SEME640200512 2 4 3 50 0~-0.030 h5 4 SEME640200512E 2 4 3 50 0~-0.030 h5 4 SEME640200514 2 4 3 50 0~-0.030 h5 4 SEME640200514E 2 4 3 50 0~-0.030 h5 4 SEME640250108 2.5 4 4 50 0~-0.030 h5 4 SEME640250108E 2.5 4 4 50 0~-0.030 h5 4 SEME640250110 2.5 4 4 50 0~-0.030 h5 4 SEME640250110E 2.5 4 4 50 0~-0.030 h5 4 SEME640250112 2.5 4 4 50 0~-0.030 h5 4 SEME640250112E 2.5 4 4 50 0~-0.030 h5 4 SEME640250114 2.5 4 4 50 0~-0.030 h5 4 SEME640250114E 2.5 4 4 50 0~-0.030 h5 4 SEME640250116 2.5 4 4 50 0~-0.030 h5 4 SEME640250116E 2.5 4 4 50 0~-0.030 h5 4 SEME640250120 2.5 4 4 50 0~-0.030 h5 4 SEME640250120E 2.5 4 4 50 0~-0.030 h5 4 SEME640250126 2.5 4 4 60 0~-0.030 h5 4 SEME640250126E 2.5 4 4 60 0~-0.030 h5 4 SEME640250130 2.5 4 4 70 0~-0.030 h5 4 SEME640250130E 2.5 4 4 70 0~-0.030 h5 4 SEME640250208 2.5 4 4 50 0~-0.030 h5 4 SEME640250212 2.5 4 4 50 0~-0.030 h5 4 SEME640250212E 2.5 4 4 50 0~-0.030 h5 4 SEME640250214 2.5 4 4 50 0~-0.030 h5 4 SEME640250214E 2.5 4 4 50 0~-0.030 h5 4 SEME640250216 2.5 4 4 50 0~-0.030 h5 4 SEME640250216E 2.5 4 4 50 0~-0.030 h5 4 SEME640250220 2.5 4 4 50 0~-0.030 h5 4 SEME640250220E 2.5 4 4 50 0~-0.030 h5 4 SEME640250226 2.5 4 4 60 0~-0.030 h5 4 SEME640250226E 2.5 4 4 60 0~-0.030 h5 4 SEME640250230 2.5 4 4 70 0~-0.030 h5 4 SEME640250230E 2.5 4 4 70 0~-0.030 h5 4 SEME640250308 2.5 4 4 50 0~-0.030 h5 4 SEME640250308E 2.5 4 4 50 0~-0.030 h5 4 SEME640250312 2.5 4 4 50 0~-0.030 h5 4 SEME640250312E 2.5 4 4 50 0~-0.030 h5 4 SEME640250320E 2.5 4 4 50 0~-0.030 h5 4 SEME640250326 2.5 4 4 60 0~-0.030 h5 4 SEME640250330 2.5 4 4 70 0~-0.030 h5 4 SEME640250330E 2.5 4 4 70 0~-0.030 h5 4 SEME640250512 2.5 4 4 50 0~-0.030 h5 4 SEME640250512E 2.5 4 4 50 0~-0.030 h5 4 SEME640250514 2.5 4 4 50 0~-0.030 h5 4 SEME640250514E 2.5 4 4 50 0~-0.030 h5 4 SEME640250516 2.5 4 4 50 0~-0.030 h5 4 SEME640250516E 2.5 4 4 50 0~-0.030 h5 4 SEME640250520 2.5 4 4 50 0~-0.030 h5 4 SEME640250520E 2.5 4 4 50 0~-0.030 h5 4 SEME640250526 2.5 4 4 60 0~-0.030 h5 4 SEME640250526E 2.5 4 4 60 0~-0.030 h5 4 SEME640250530 2.5 4 4 70 0~-0.030 h5 4 SEME640250530E 2.5 4 4 70 0~-0.030 h5 4 SEME640300108 3 6 4.5 50 0~-0.030 h5 4 SEME640300108E 3 6 4.5 50 0~-0.030 h5 4 SEME640300110 3 6 4.5 50 0~-0.030 h5 4 SEME640300110E 3 6 4.5 50 0~-0.030 h5 4 SEME640300114E 3 6 4.5 60 0~-0.030 h5 4 SEME640300116E 3 6 4.5 60 0~-0.030 h5 4 SEME640300120E 3 6 4.5 60 0~-0.030 h5 4 SEME640300140E 3 6 4.5 80 0~-0.030 h5 4 SEME640300208 3 6 4.5 50 0~-0.030 h5 4 SEME640300208E 3 6 4.5 50 0~-0.030 h5 4 SEME640300210 3 6 4.5 50 0~-0.030 h5 4 SEME640300210E 3 6 4.5 50 0~-0.030 h5 4 SEME640300212 3 6 4.5 50 0~-0.030 h5 4 SEME640300212E 3 6 4.5 50 0~-0.030 h5 4 SEME640300214 3 6 4.5 60 0~-0.030 h5 4 SEME640300214E 3 6 4.5 60 0~-0.030 h5 4 SEME640300216 3 6 4.5 60 0~-0.030 h5 4 SEME640300216E 3 6 4.5 60 0~-0.030 h5 4 SEME640300220 3 6 4.5 60 0~-0.030 h5 4 SEME640300220E 3 6 4.5 60 0~-0.030 h5 4 SEME640300226 3 6 4.5 65 0~-0.030 h5 4 SEME640300226E 3 6 4.5 65 0~-0.030 h5 4 SEME640300230 3 6 4.5 70 0~-0.030 h5 4 SEME640300230E 3 6 4.5 70 0~-0.030 h5 4 SEME640300235 3 6 4.5 70 0~-0.030 h5 4 SEME640300235E 3 6 4.5 70 0~-0.030 h5 4 SEME640300240 3 6 4.5 80 0~-0.030 h5 4 SEME640300240E 3 6 4.5 80 0~-0.030 h5 4 SEME640300308 3 6 4.5 50 0~-0.030 h5 4 SEME640300308E 3 6 4.5 50 0~-0.030 h5 4 SEME640300310 3 6 4.5 50 0~-0.030 h5 4 SEME640300310E 3 6 4.5 50 0~-0.030 h5 4 SEME640300312 3 6 4.5 50 0~-0.030 h5 4 SEME640300312E 3 6 4.5 50 0~-0.030 h5 4 SEME640300314 3 6 4.5 60 0~-0.030 h5 4 SEME640300316 3 6 4.5 60 0~-0.030 h5 4 SEME640300320 3 6 4.5 60 0~-0.030 h5 4 SEME640300320E 3 6 4.5 60 0~-0.030 h5 4 SEME640300326 3 6 4.5 65 0~-0.030 h5 4 SEME640300330E 3 6 4.5 70 0~-0.030 h5 4 SEME640300335 3 6 4.5 70 0~-0.030 h5 4 SEME640300335E 3 6 4.5 70 0~-0.030 h5 4 SEME640300340 3 6 4.5 80 0~-0.030 h5 4 SEME640300508 3 6 4.5 50 0~-0.030 h5 4 SEME640300508E 3 6 4.5 50 0~-0.030 h5 4 SEME640300510 3 6 4.5 50 0~-0.030 h5 4 SEME640300510E 3 6 4.5 50 0~-0.030 h5 4 SEME640300512 3 6 4.5 50 0~-0.030 h5 4 SEME640300512E 3 6 4.5 50 0~-0.030 h5 4 SEME640300514 3 6 4.5 60 0~-0.030 h5 4 SEME640300514E 3 6 4.5 60 0~-0.030 h5 4 SEME640300520 3 6 4.5 60 0~-0.030 h5 4 SEME640300526 3 6 4.5 65 0~-0.030 h5 4 SEME640300530 3 6 4.5 70 0~-0.030 h5 4 SEME640300535 3 6 4.5 70 0~-0.030 h5 4 SEME640300540 3 6 4.5 80 0~-0.030 h5 4 SEME640301008 3 6 4.5 50 0~-0.030 h5 4 SEME640301008E 3 6 4.5 50 0~-0.030 h5 4 SEME640301010 3 6 4.5 50 0~-0.030 h5 4 SEME640301010E 3 6 4.5 50 0~-0.030 h5 4 SEME640301012 3 6 4.5 50 0~-0.030 h5 4 SEME640301012E 3 6 4.5 50 0~-0.030 h5 4 SEME640301014 3 6 4.5 60 0~-0.030 h5 4 SEME640301014E 3 6 4.5 60 0~-0.030 h5 4 SEME640301016 3 6 4.5 60 0~-0.030 h5 4 SEME640301016E 3 6 4.5 60 0~-0.030 h5 4 SEME640301020 3 6 4.5 60 0~-0.030 h5 4 SEME640301026 3 6 4.5 65 0~-0.030 h5 4 SEME640301026E 3 6 4.5 65 0~-0.030 h5 4 SEME640301030 3 6 4.5 70 0~-0.030 h5 4 SEME640301030E 3 6 4.5 70 0~-0.030 h5 4 SEME640301035 3 6 4.5 70 0~-0.030 h5 4 SEME640301035E 3 6 4.5 70 0~-0.030 h5 4 SEME640301040E 3 6 4.5 80 0~-0.030 h5 4 SEME640400110E 4 6 6 50 0~-0.030 h5 4 SEME640400112E 4 6 6 50 0~-0.030 h5 4 SEME640400114E 4 6 6 60 0~-0.030 h5 4 SEME640400120E 4 6 6 60 0~-0.030 h5 4 SEME640400126E 4 6 6 65 0~-0.030 h5 4 SEME640400130E 4 6 6 70 0~-0.030 h5 4 SEME640400135E 4 6 6 70 0~-0.030 h5 4 SEME640400140E 4 6 6 80 0~-0.030 h5 4 SEME640400150E 4 6 6 100 0~-0.030 h5 4 SEME640400210 4 6 6 50 0~-0.030 h5 4 SEME640400210E 4 6 6 50 0~-0.030 h5 4 SEME640400212 4 6 6 50 0~-0.030 h5 4 SEME640400212E 4 6 6 50 0~-0.030 h5 4 SEME640400214 4 6 6 60 0~-0.030 h5 4 SEME640400214E 4 6 6 60 0~-0.030 h5 4 SEME640400216 4 6 6 60 0~-0.030 h5 4 SEME640400216E 4 6 6 60 0~-0.030 h5 4 SEME640400220 4 6 6 60 0~-0.030 h5 4 SEME640400220E 4 6 6 60 0~-0.030 h5 4 SEME640400226 4 6 6 65 0~-0.030 h5 4 SEME640400226E 4 6 6 65 0~-0.030 h5 4 SEME640400230 4 6 6 70 0~-0.030 h5 4 SEME640400230E 4 6 6 70 0~-0.030 h5 4 SEME640400235 4 6 6 70 0~-0.030 h5 4 SEME640400235E 4 6 6 70 0~-0.030 h5 4 SEME640400240 4 6 6 80 0~-0.030 h5 4 SEME640400245 4 6 6 90 0~-0.030 h5 4 SEME640400250 4 6 6 100 0~-0.030 h5 4 SEME640400250E 4 6 6 100 0~-0.030 h5 4 SEME640400312 4 6 6 50 0~-0.030 h5 4 SEME640400316 4 6 6 60 0~-0.030 h5 4 SEME640400320 4 6 6 60 0~-0.030 h5 4 SEME640400326 4 6 6 65 0~-0.030 h5 4 SEME640400330 4 6 6 70 0~-0.030 h5 4 SEME640400340 4 6 6 80 0~-0.030 h5 4 SEME640400345 4 6 6 90 0~-0.030 h5 4 SEME640400350 4 6 6 100 0~-0.030 h5 4 SEME640400512 4 6 6 50 0~-0.030 h5 4 SEME640400514 4 6 6 60 0~-0.030 h5 4 SEME640400516 4 6 6 60 0~-0.030 h5 4 SEME640400520 4 6 6 60 0~-0.030 h5 4 SEME640400526 4 6 6 65 0~-0.030 h5 4 SEME640400526E 4 6 6 65 0~-0.030 h5 4 SEME640400530 4 6 6 70 0~-0.030 h5 4 SEME640400535 4 6 6 70 0~-0.030 h5 4 SEME640400540 4 6 6 80 0~-0.030 h5 4 SEME640400545 4 6 6 90 0~-0.030 h5 4 SEME640400550 4 6 6 100 0~-0.030 h5 4 SEME640400550E 4 6 6 100 0~-0.030 h5 4 SEME640401010 4 6 6 50 0~-0.030 h5 4 SEME640401010E 4 6 6 50 0~-0.030 h5 4 SEME640401012 4 6 6 50 0~-0.030 h5 4 SEME640401012E 4 6 6 50 0~-0.030 h5 4 SEME640401014 4 6 6 60 0~-0.030 h5 4 SEME640401016 4 6 6 60 0~-0.030 h5 4 SEME640401020 4 6 6 60 0~-0.030 h5 4 SEME640401020E 4 6 6 60 0~-0.030 h5 4 SEME640401026 4 6 6 65 0~-0.030 h5 4 SEME640401026E 4 6 6 65 0~-0.030 h5 4 SEME640401030 4 6 6 70 0~-0.030 h5 4 SEME640401035 4 6 6 70 0~-0.030 h5 4 SEME640401035E 4 6 6 70 0~-0.030 h5 4 SEME640401040 4 6 6 80 0~-0.030 h5 4 SEME640401040E 4 6 6 80 0~-0.030 h5 4 SEME640401045 4 6 6 90 0~-0.030 h5 4 SEME640401045E 4 6 6 90 0~-0.030 h5 4 SEME640401050 4 6 6 100 0~-0.030 h5 4 SEME640401050E 4 6 6 100 0~-0.030 h5 4 SEME6401000503 1 4 1.5 50 0~-0.030 h5 4 SEME6401000504 1 4 1.5 50 0~-0.030 h5 4 SEME6401000504E 1 4 1.5 50 0~-0.030 h5 4 SEME6401000506 1 4 1.5 50 0~-0.030 h5 4 SEME6401000506E 1 4 1.5 50 0~-0.030 h5 4 SEME6401000508 1 4 1.5 50 0~-0.030 h5 4 SEME6401000508E 1 4 1.5 50 0~-0.030 h5 4 SEME6401000510 1 4 1.5 50 0~-0.030 h5 4 SEME6401000510E 1 4 1.5 50 0~-0.030 h5 4 SEME6401000512 1 4 1.5 50 0~-0.030 h5 4 SEME6401000514 1 4 1.5 50 0~-0.030 h5 4 SEME6401000514E 1 4 1.5 50 0~-0.030 h5 4 SEME6401000516 1 4 1.5 50 0~-0.030 h5 4 SEME6401000516E 1 4 1.5 50 0~-0.030 h5 4 SEME6401000520 1 4 1.5 50 0~-0.030 h5 4 SEME6401000520E 1 4 1.5 50 0~-0.030 h5 4 SEME6401200503 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200503E 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200504 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200504E 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200506 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200506E 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200508 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200510 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200510E 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200512 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200516 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200516E 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200520 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401200520E 1.2 4 1.8 50 0~-0.030 h5 4 SEME6401500504 1.5 4 2.3 50 0~-0.030 h5 4 SEME6401500506 1.5 4 2.3 50 0~-0.030 h5 4 SEME6401500506E 1.5 4 2.3 50 0~-0.030 h5 4 SEME6401500508 1.5 4 2.3 50 0~-0.030 h5 4 SEME6401500508E 1.5 4 2.3 50 0~-0.030 h5 4 SEME6401500510 1.5 4 2.3 50 0~-0.030 h5 4 SEME6401500512 1.5 4 2.3 50 0~-0.030 h5 4 SEME6401500512E 1.5 4 2.3 50 0~-0.030 h5 4 SEME6401500516 1.5 4 2.3 50 0~-0.030 h5 4 SEME6401500520 1.5 4 2.3 50 0~-0.030 h5 4 SEME6401500522 1.5 4 2.3 60 0~-0.030 h5 4 SEME6401500522E 1.5 4 2.3 60 0~-0.030 h5 4 SEME6401500526E 1.5 4 2.3 60 0~-0.030 h5 4 SEME6406003090 6 6 15 90 0~-0.030 h5 4 SEME6406010090 6 6 15 90 0~-0.030 h5 4 SEME6408003100 8 8 20 100 0~-0.030 h5 4 SEME6408003100E 8 8 20 100 0~-0.030 h5 4 SEME6408005100 8 8 20 100 0~-0.030 h5 4 SEME6408010100E 8 8 20 100 0~-0.030 h5 4 SEME6410003100 10 10 25 100 0~-0.030 h5 4 SEME6410003100E 10 10 25 100 0~-0.030 h5 4 SEME6410005100 10 10 25 100 0~-0.030 h5 4 SEME6410010100 10 10 25 100 0~-0.030 h5 4 SEME6410010100E 10 10 25 100 0~-0.030 h5 4 SEME6412003110 12 12 30 110 0~-0.030 h5 4 SEME6412003110E 12 12 30 110 0~-0.030 h5 4 SEME6412005110 12 12 30 110 0~-0.030 h5 4 SEME6412005110E 12 12 30 110 0~-0.030 h5 4 SEME6412010110 12 12 30 110 0~-0.030 h5 4 SEME6412010110E 12 12 30 110 0~-0.030 h5 4 SEME6416005150 16 20 35 150 0~-0.030 h5 4 SEME6416005150E 16 20 35 150 0~-0.030 h5 4 SEME6416010150 16 20 35 150 0~-0.030 h5 4 SEME6416010150E 16 20 35 150 0~-0.030 h5 4 SEME6420005150 20 20 40 150 0~-0.030 h5 4 SEME6420005150E 20 20 40 150 0~-0.030 h5 4 SEME6420010150E 20 20 40 150 0~-0.030 h5 4 SEME641601015020 16 20 35 150 0~-0.030 h5 4

Side Milling

Small Part

Slotting

Die Sinking

Facing

Corner

Helical Interpol

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades

Non-alloy steel

ExcellentVDI 4–5

GoodVDI 1–3

Low-alloy steel

ExcellentVDI 7–9

GoodVDI 6

High-alloy and tool steel

ExcellentVDI 11

GoodVDI 10

Hardened materials

3 grades

Hardened steel

GoodVDI 38

Chilled cast iron

ExcellentVDI 40

Hardened cast iron

GoodVDI 41

Cast iron

6 grades

Grey cast iron

GoodVDI 15–16

Nodular cast iron

GoodVDI 17–18

Malleable cast iron

GoodVDI 19–20

VDI grade reference20 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDI	Work material	Recommendation	HB ref.	HRC ref.
1	PNon-alloy steel	Good	125	-
2	PNon-alloy steel	Good	190	13
3	PNon-alloy steel	Good	250	25
4	PNon-alloy steel	Excellent	270	28
5	PNon-alloy steel	Excellent	300	32
6	PLow-alloy steel	Good	180	10
7	PLow-alloy steel	Excellent	275	29
8	PLow-alloy steel	Excellent	300	32
9	PLow-alloy steel	Excellent	350	38
10	PHigh-alloy and tool steel	Good	200	15
11	PHigh-alloy and tool steel	Excellent	325	35
15	KGrey cast iron	Good	180	10
16	KGrey cast iron	Good	260	26
17	KNodular cast iron	Good	160	3
18	KNodular cast iron	Good	250	25
19	KMalleable cast iron	Good	130	-
20	KMalleable cast iron	Good	230	21
38	HHardened steel	Good	550	55
40	HChilled cast iron	Excellent	400	42
41	HHardened cast iron	Good	550	55

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
