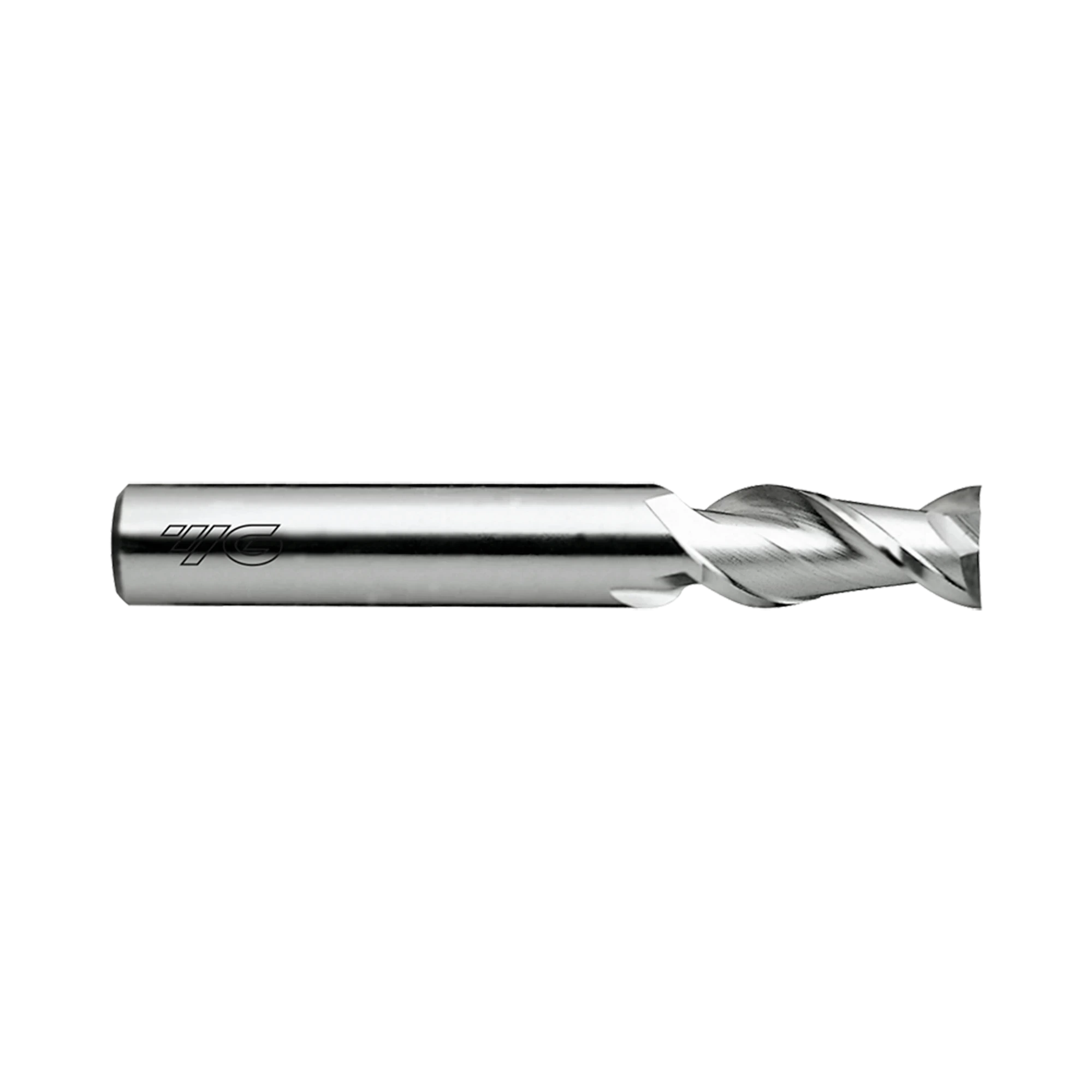

ALU-POWER 2 Flute 45°Helix Long End Mill (E5521)

ALU-POWER 2 Flute 45°Helix Long End Mill (E5521)
$28.49 INC GST $25.90 EX GST
SKU
E5521030
N
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
2 2 Year Warranty
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
E55210303.057.06.08.0 No stock $25.90
E55210404.057.06.011.0 No stock $35.20
E55210505.057.06.013.0 No stock $35.20
E55210606.057.06.013.0 No stock $35.20
E55210808.063.08.019.0 No stock $56.20
E552110010.072.010.022.0 No stock $62.10
E552112012.083.012.026.0 No stock $118.70
E552114014.083.014.026.0 No stock $161.80
E552116016.092.016.032.0 No stock $204.00
E552118018.092.018.032.0 No stock $265.20
E552120020.0104.020.038.0 No stock $343.30

Add ALU-POWER 2 Flute 45°Helix Long End Mill (E5521) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

The E5521 series carbide Alu-Power cutters from YG-1 range from 3-20mm in diameter. These 2 flute cutters come with a flat/weldon shank and have improved surface finish and chip evacuation on Aluminium and Non-Ferrous materials.

  • Suitable for high speed machining in aluminium and other non-ferrous machining.
  • Special geometries & lapped flutes ensures the best chip control and surface finish on aluminium.
  • Deep flute pockets prevent swarf clogging up the tool.
  • Cylindrical relief reduces chipping of corner edges.
  • Micrograin Carbide Substrate.
  • Sharp cutting edges with mirror finish machining.
  • Ultra-high metal removal rates possible with WAVE-CUT.
Product Data
Workpiece Material N
Chamfer Angle 45
Cutting Shape Corner Radius
Helix Angle Square 45
Length of Cut 11, 13, 19, 22, 26, 32, 38, 8
Mill Diameter Tolerance 0~-0.015
No. Flutes 2
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Overall Length 104, 57, 63, 72, 83, 92
Shank Diameter Tolerance h5
Shank Type Flat
Surface Treatment Uncoated
Tool Material Carbide
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E5521030 3 6 8 57 0~-0.015 h5 2 E5521040 4 6 11 57 0~-0.015 h5 2 E5521050 5 6 13 57 0~-0.015 h5 2 E5521060 6 6 13 57 0~-0.015 h5 2 E5521080 8 8 19 63 0~-0.015 h5 2 E5521100 10 10 22 72 0~-0.015 h5 2 E5521120 12 12 26 83 0~-0.015 h5 2 E5521140 14 14 26 83 0~-0.015 h5 2 E5521160 16 16 32 92 0~-0.015 h5 2 E5521180 18 18 32 92 0~-0.015 h5 2 E5521200 20 20 38 104 0~-0.015 h5 2
Side Milling
Small Part
Slotting
Die Sinking
Facing
N Aluminium

Excellent

Good Great Excellent

No VDI recommendations set for this product.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Machining calculator

Cutting speeds and feeds for ALU-POWER 2 Flute 45°Helix Long End Mill (E5521)

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (Fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E5521030 3 6 8 57 0~-0.015 h5 2 E5521040 4 6 11 57 0~-0.015 h5 2 E5521050 5 6 13 57 0~-0.015 h5 2 E5521060 6 6 13 57 0~-0.015 h5 2 E5521080 8 8 19 63 0~-0.015 h5 2 E5521100 10 10 22 72 0~-0.015 h5 2 E5521120 12 12 26 83 0~-0.015 h5 2 E5521140 14 14 26 83 0~-0.015 h5 2 E5521160 16 16 32 92 0~-0.015 h5 2 E5521180 18 18 32 92 0~-0.015 h5 2 E5521200 20 20 38 104 0~-0.015 h5 2
