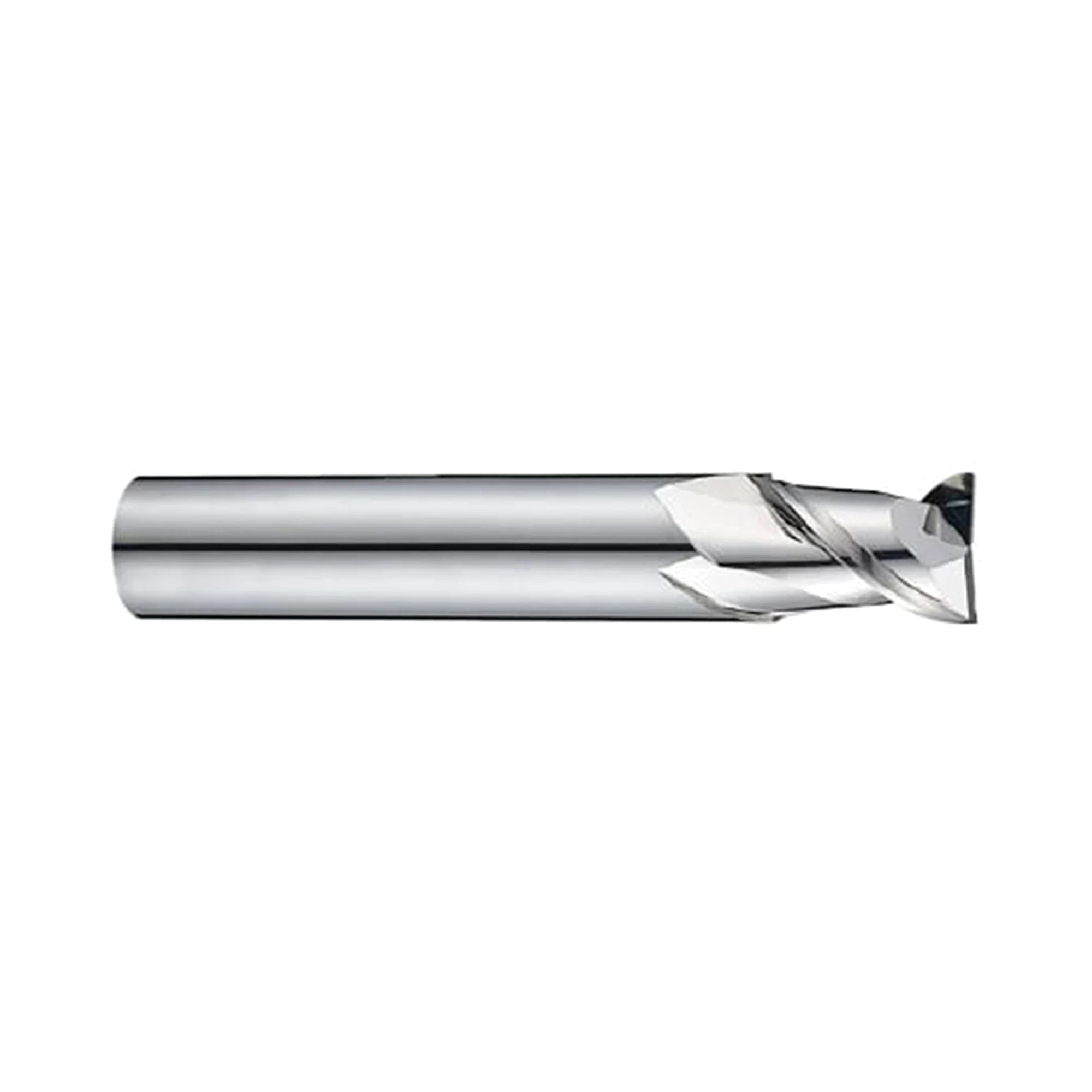

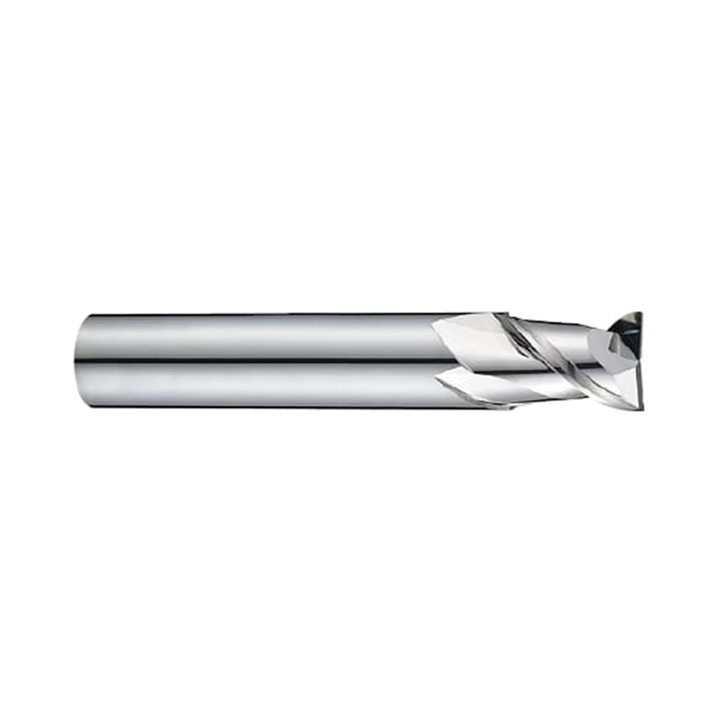

Two-flute 45° helix solid carbide end mill
Loading 3D model…
Made in South Korea
Mirror surface geometry supports excellent surface finish and reduces corner-edge chipping.
The series provides superior chip evacuation for high-speed aluminium machining.
Eleven listed diameters cover 3–20 mm with matched plain shanks.

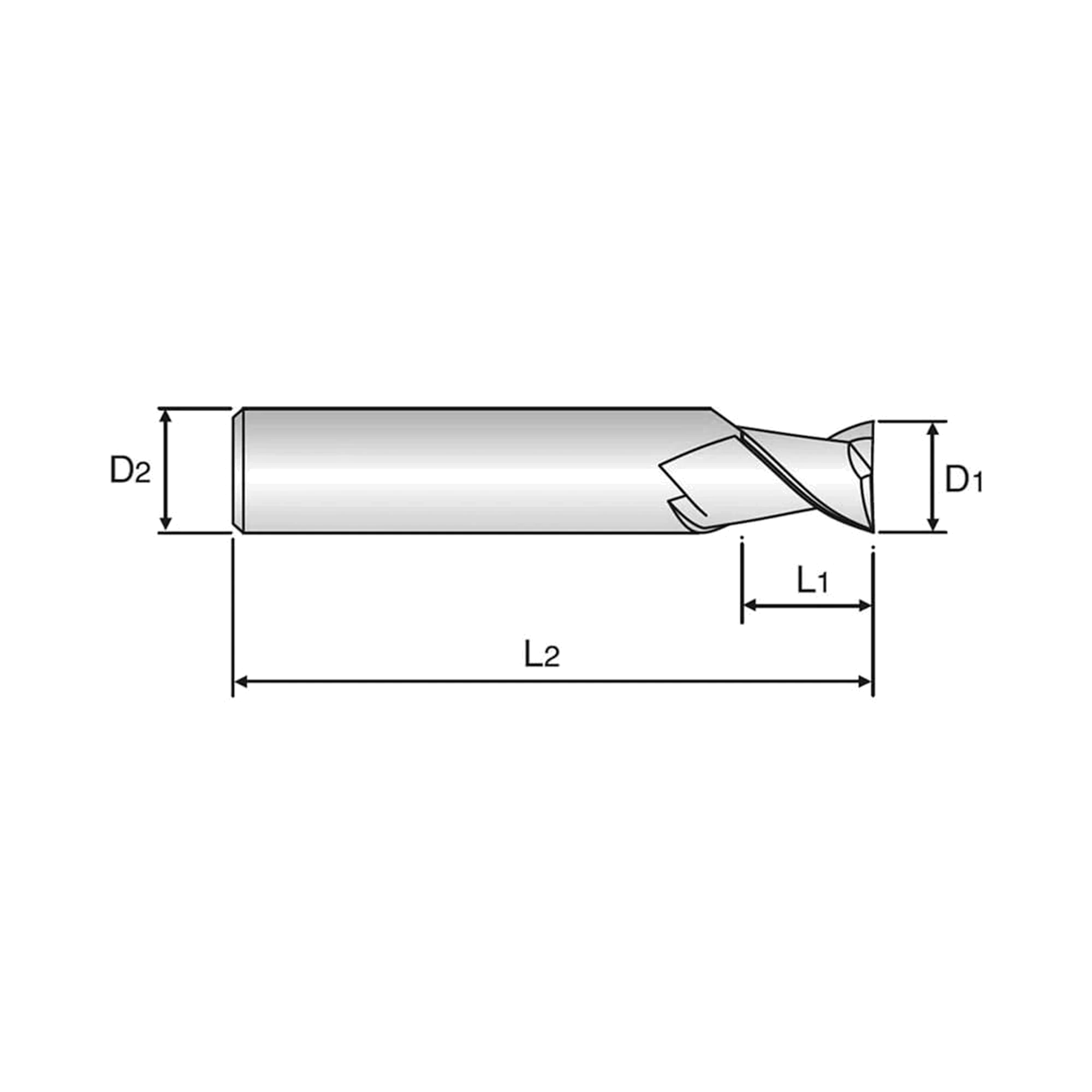

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| E5E48030 | 3.0 | 57.0 | 6.0 | 12.0 | STEPDXF | In stock | $22.10 | ||
| E5E48040 | 4.0 | 50.0 | 6.0 | 5.0 | STEPDXF | In stock | $32.50 | ||
| E5E48050 | 5.0 | 54.0 | 6.0 | 8.0 | STEPDXF | In stock | $32.50 | ||
| E5E48060 | 6.0 | 54.0 | 6.0 | 9.0 | STEPDXF | Low stock | $32.50 | ||
| E5E48080 | 8.0 | 54.0 | 6.0 | 10.0 | STEPDXF | In stock | $47.80 | ||
| E5E48100 | 10.0 | 58.0 | 8.0 | 12.0 | STEPDXF | In stock | $61.20 | ||
| E5E48120 | 12.0 | 66.0 | 10.0 | 14.0 | STEPDXF | In stock | $83.80 | ||
| E5E48140 | 14.0 | 73.0 | 12.0 | 16.0 | STEPDXF | 1-2 Weeks | $153.60 | ||
| E5E48160 | 16.0 | 75.0 | 14.0 | 18.0 | STEPDXF | Low stock | $148.70 | ||
| E5E48180 | 18.0 | 82.0 | 16.0 | 22.0 | STEPDXF | 1-2 Weeks | $251.90 | ||
| E5E48200 | 20.0 | 84.0 | 18.0 | 24.0 | STEPDXF | 1-2 Weeks | $249.20 |
Add (E5E48) Alu-Power Carbide 2Flute End Mill, Short Length, Plain Shank to comparison
View ComparisonYG-1 E5E48 Alu-Power is a solid carbide two-flute short-length end mill with a 45° helix. Designed for high-speed machining, it cuts aluminium and other non-ferrous materials using a plain shank. Its mirror surface supports excellent surface finish, while the geometry reliably provides superior chip evacuation. The design reduces chipping of corner edges for cleaner finished machining results in aluminium and non-ferrous applications. The range covers 3–20 mm milling diameters, with 5–26 mm lengths of cut. Overall lengths range from 50–92 mm, with matched shank diameters from 6–20 mm. Its uncoated construction retains the defined Alu-Power milling geometry for aluminium applications.
| Cutting Shape | Corner Radius |
| Length | Short |
| No. Flutes | 2 |
| Tool Material | Carbide |
VDI 3323 recommendations for this tool.
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 21 | NWrought aluminium | Excellent | 60 | - |
| 22 | NWrought aluminium | Excellent | 100 | - |
| 23 | NCast aluminium | Excellent | 75 | - |
| 24 | NCast aluminium | Excellent | 90 | - |
| 25 | NCast aluminium | Good | 130 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
