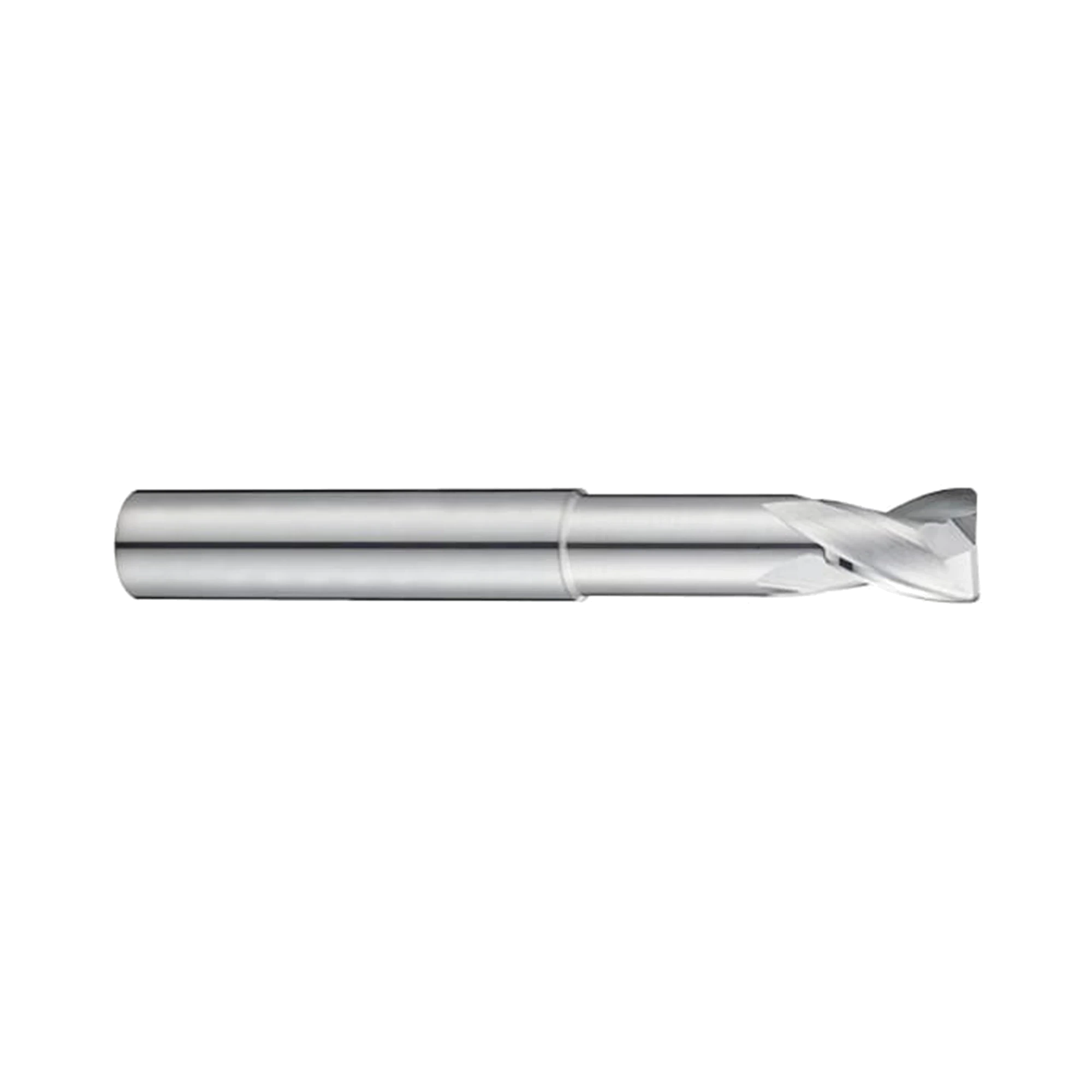

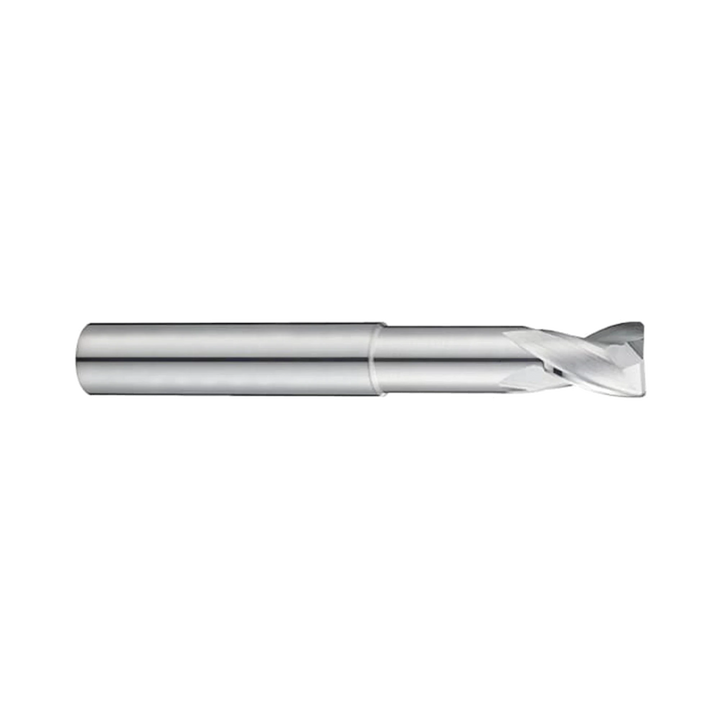

(E5909) Alu-Power Carbide 2Flute Corner Radius End Mill, Plain Shank
Two-flute carbide corner radius end mill with neck
Loading 3D model…
$39.82
INC GST
$36.20
EX GST
Price available on request
Unit price per
- SKU
- E5909060
Work materials
Key features
- Uncoated solid carbide two-flute corner radius end mill
- Designed for aluminium aluminium alloys and non-ferrous materials
- Neck relief provides extended reach below the shank
Made in South Korea
Free standard delivery on orders over
$500.
If you're not 100% happy with your purchase, we'll replace or refund.
Made for non-ferrous machining
Designed for aluminium, aluminium alloys and non-ferrous materials.
Corner protection
Corner-radius geometry helps avoid chipping problems at the cutting edge.
Practical reach
Neck relief provides clearance below the shank for deeper machining access.
Add (E5909) Alu-Power Carbide 2Flute Corner Radius End Mill, Plain Shank to comparison
View Comparison- Overview
- Work Material
- Speeds & Feeds
- Reviews
Application
Product Description

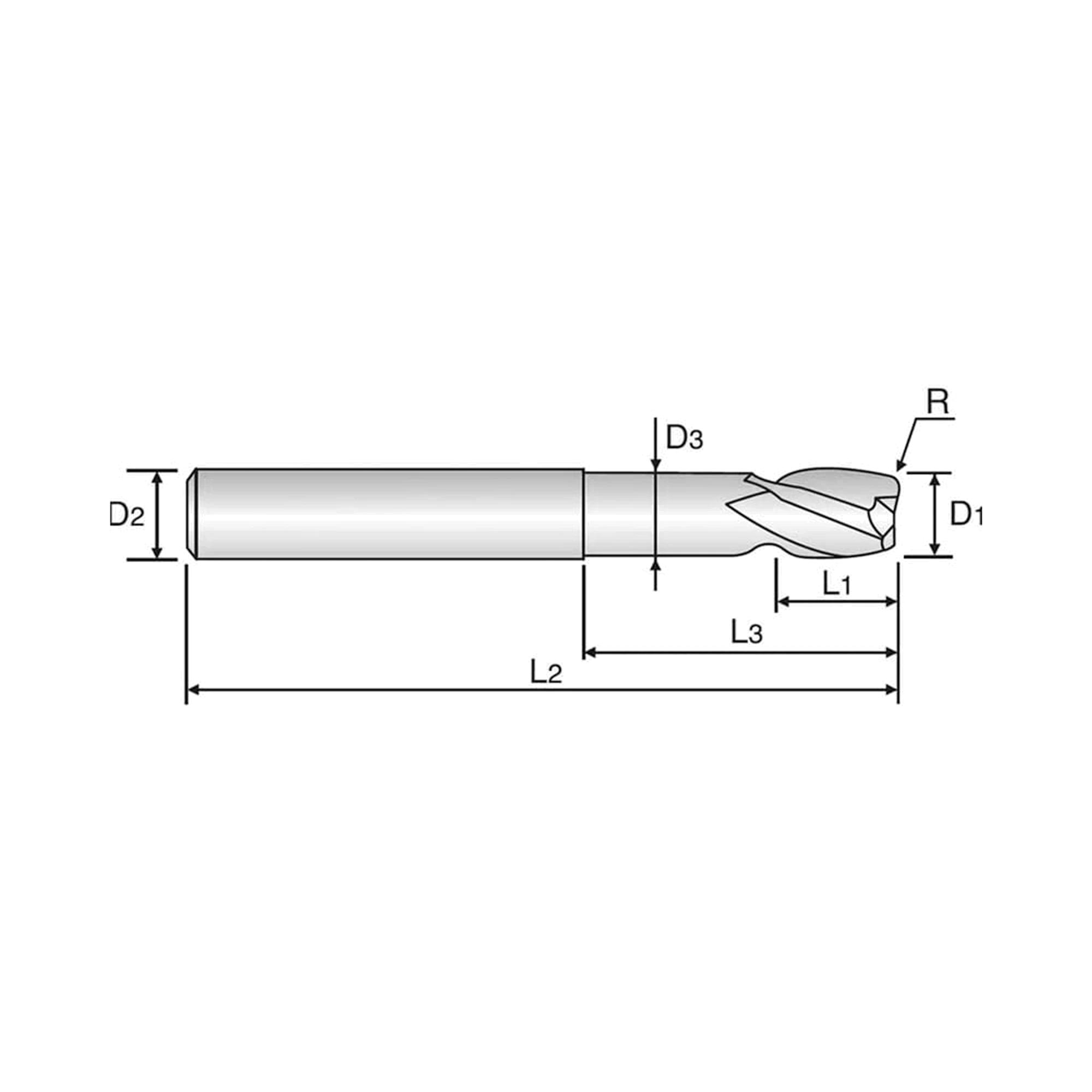

YG-1 E5909 Alu-Power carbide corner radius end mills are uncoated, two-flute tools with neck relief. Designed for machining aluminium, aluminium alloys and non-ferrous materials, they support accurate milling operations. Corner radii help avoid chipping problems, while the geometry is specified for superior chip evacuation. Two listed sizes combine 6.0 mm diameter with R0.5 and 8.0 mm with R0.6 corners. Each tool uses a plain shank and maintains a corner-radius tolerance of ±0.01 mm. The 6.0 mm tool has 8 mm length of cut and 60 mm overall length. The 8.0 mm tool has 10 mm length of cut and 70 mm overall length.
- Uncoated solid carbide two-flute corner radius end mill
- Designed for aluminium aluminium alloys and non-ferrous materials
- Neck relief provides extended reach below the shank
- Corner radius helps avoid chipping problems
- Superior chip evacuation geometry
- Plain shank with ±0.01 mm corner-radius tolerance
Product Data
| Cutting Shape | Corner Radius |
| Length | Short |
| No. Flutes | 2 |
Work materials
VDI 3323 recommendations for this tool.
ExcellentGood
Non-ferrous materials
8 gradesWrought aluminium
Cast aluminium
Copper, bronze and brass
VDI grade reference8 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 21 | NWrought aluminium | Excellent | 60 | - |
| 22 | NWrought aluminium | Excellent | 100 | - |
| 23 | NCast aluminium | Excellent | 75 | - |
| 24 | NCast aluminium | Excellent | 90 | - |
| 25 | NCast aluminium | Good | 130 | - |
| 26 | NCopper, bronze and brass | Good | 110 | - |
| 27 | NCopper, bronze and brass | Good | 90 | - |
| 28 | NCopper, bronze and brass | Good | 100 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
