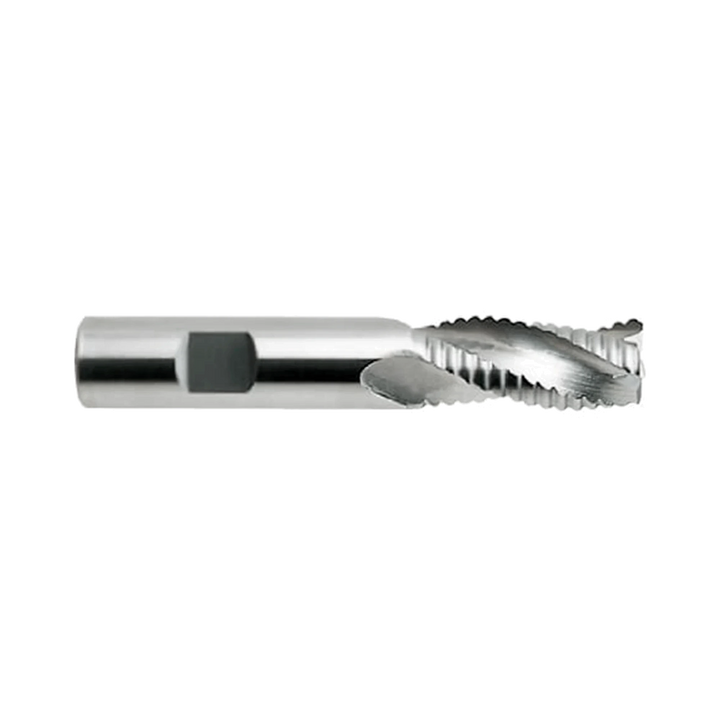

(E5742) Alu-Power Carbide 3Flute Roughing End Mill, Long Length, Plain Shank
3-Flute Long-Length Carbide Roughing End Mill
- SKU
- E5742060
Key features
- Features solid-carbide construction with three flutes
- Uses an uncoated cutting configuration
- Offers a 30° helix and chamfered cutting end
Made in South Korea
Long-Reach Roughing
Long-length geometry supports roughing applications requiring extended tool reach.
Aluminium and Copper Focus
The Alu-Power configuration provides excellent cutting qualities for aluminium and copper machining.
Useful Diameter Range
Eleven listed variants cover mill diameters from 6.0 to 25.0 mm.

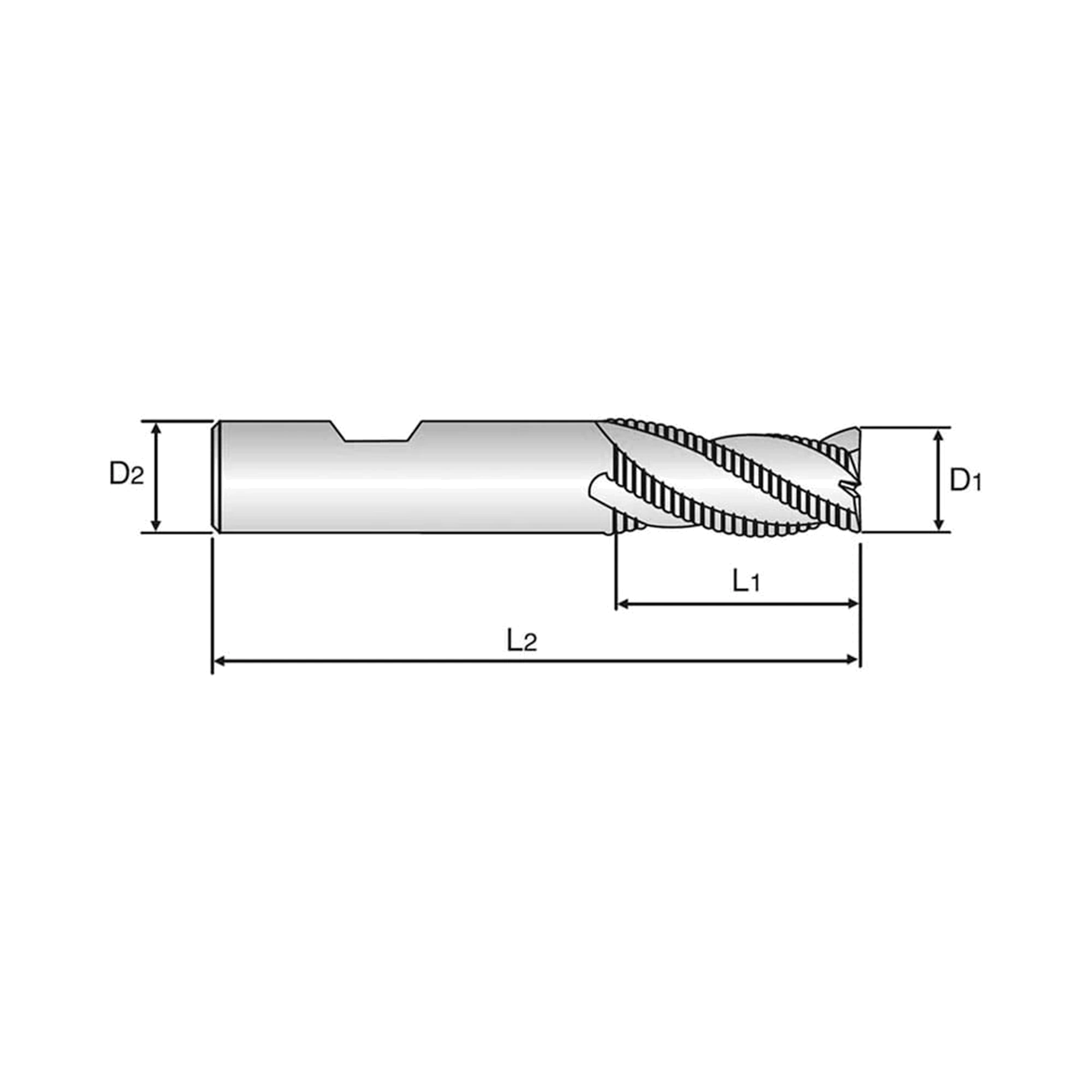

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| E5742060 | 6.0 | 57.0 | 6.0 | 16.0 | Low stock | $51.40 | ||
| E5742070 | 7.0 | 63.0 | 8.0 | 16.0 | 1-2 Weeks | $55.40 | ||
| E5742080 | 8.0 | 63.0 | 8.0 | 16.0 | In stock | $55.40 | ||
| E5742090 | 9.0 | 72.0 | 10.0 | 19.0 | 1-2 Weeks | $79.30 | ||
| E5742100 | 10.0 | 72.0 | 10.0 | 22.0 | Low stock | $79.30 | ||
| E5742120 | 12.0 | 83.0 | 12.0 | 26.0 | Low stock | $114.50 | ||
| E5742140 | 14.0 | 83.0 | 14.0 | 26.0 | 1-2 Weeks | $180.60 | ||
| E5742160 | 16.0 | 92.0 | 16.0 | 32.0 | Low stock | $192.70 | ||
| E5742180 | 18.0 | 92.0 | 18.0 | 32.0 | 1-2 Weeks | $320.90 | ||
| E5742200 | 20.0 | 104.0 | 20.0 | 38.0 | 1-2 Weeks | $304.60 | ||
| E5742250 | 25.0 | 121.0 | 25.0 | 45.0 | 1-2 Weeks | $472.00 |
Add (E5742) Alu-Power Carbide 3Flute Roughing End Mill, Long Length, Plain Shank to comparison
View Comparison- Overview
- Speeds & Feeds
- Reviews
YG-1 Alu-Power E5742 is a solid-carbide, three-flute long-length roughing end mill with a plain shank. Its uncoated geometry provides excellent cutting qualities for aluminium and copper machining applications. The long-length roughing form supports material removal where extended reach is required. A 30° helix and chamfered cutting end complement its roughing design. Available mill diameters span 6.0 to 25.0 mm across the listed E5742 variants. It is intended for milling aluminium wrought alloys, aluminium cast alloys, copper, bronze and brass. The documented geometry includes a cylindrical margin, primary and secondary reliefs, plus a chip pocket. The series sits within YG-1’s solid-carbide Alu-Power end mill range.
- Features solid-carbide construction with three flutes
- Uses an uncoated cutting configuration
- Offers a 30° helix and chamfered cutting end
- Covers 6.0 to 25.0 mm mill diameters
- Uses a plain shank
- Provides excellent cutting qualities for aluminium and copper
No specifications available.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
