(E5E39) Alu-Power Carbide 3Flute Roughing End Mill, Regular Length, Flat Shank

(E5E39) Alu-Power Carbide 3Flute Roughing End Mill, Regular Length, Flat Shank
$87.56 INC GST $79.60 EX GST
SKU
E5E39060
Work materials
PKN
Tool material Carbide
Surface treatment Uncoated
Mill Diameter (mm)
Chamfer (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

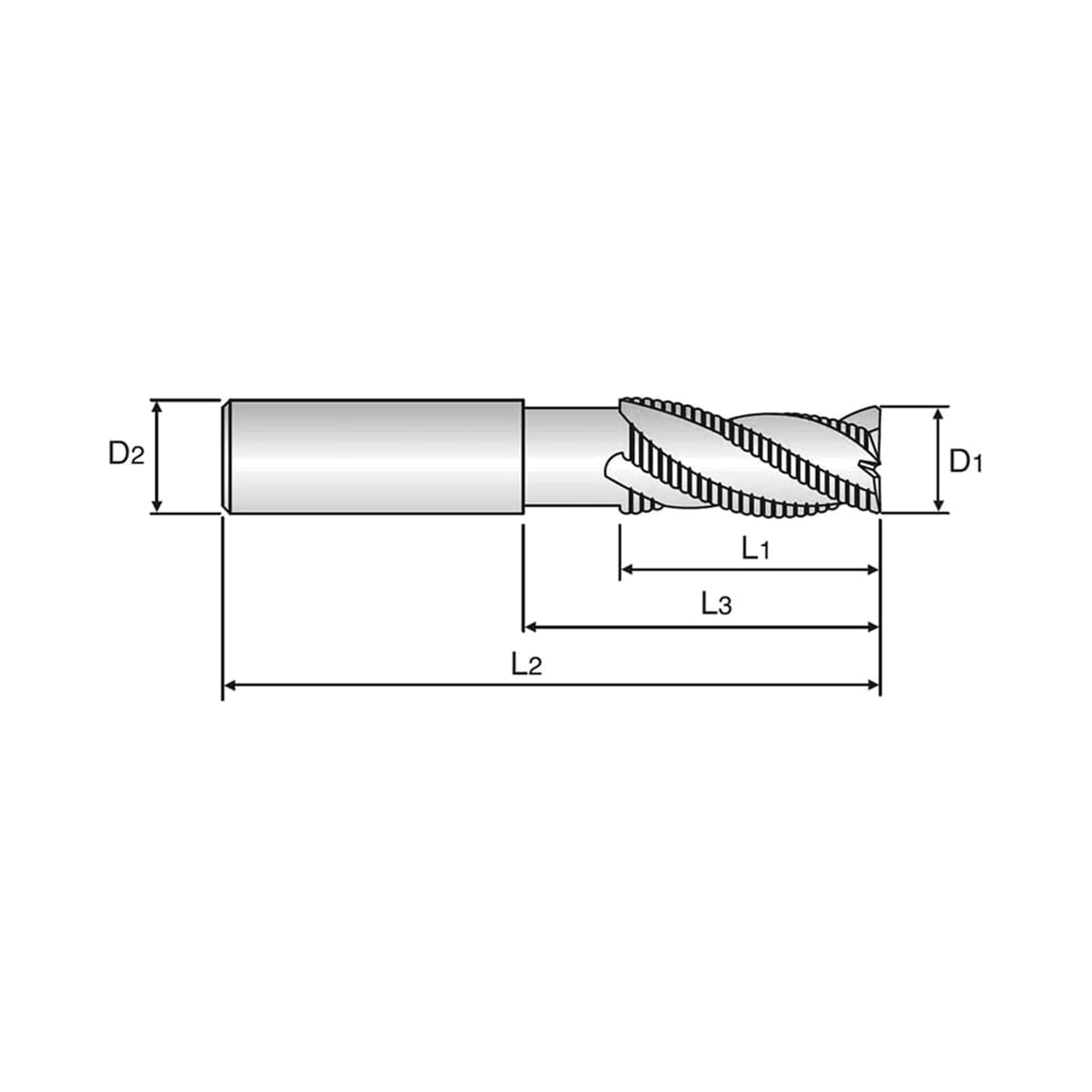

SKUMill Diameter (mm)Chamfer (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Length below shank (mm)Neck dia. (mm)CAD filesStock Price Qty Add
E5E390606.00.657.06.016.020.05.0STEPDXF 1-2 Weeks $79.60
E5E390808.00.663.08.016.025.07.0STEPDXF 1-2 Weeks $84.10
E5E3910010.00.672.010.022.030.09.0STEPDXF 1-2 Weeks $102.10
E5E3912012.00.683.012.026.036.010.5STEPDXF Low stock $130.40
E5E3916016.00.9192.016.032.042.014.5STEPDXF Low stock $218.10
E5E3920020.00.91104.020.038.052.018.5STEPDXF Low stock $345.50

Add (E5E39) Alu-Power Carbide 3Flute Roughing End Mill, Regular Length, Flat Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

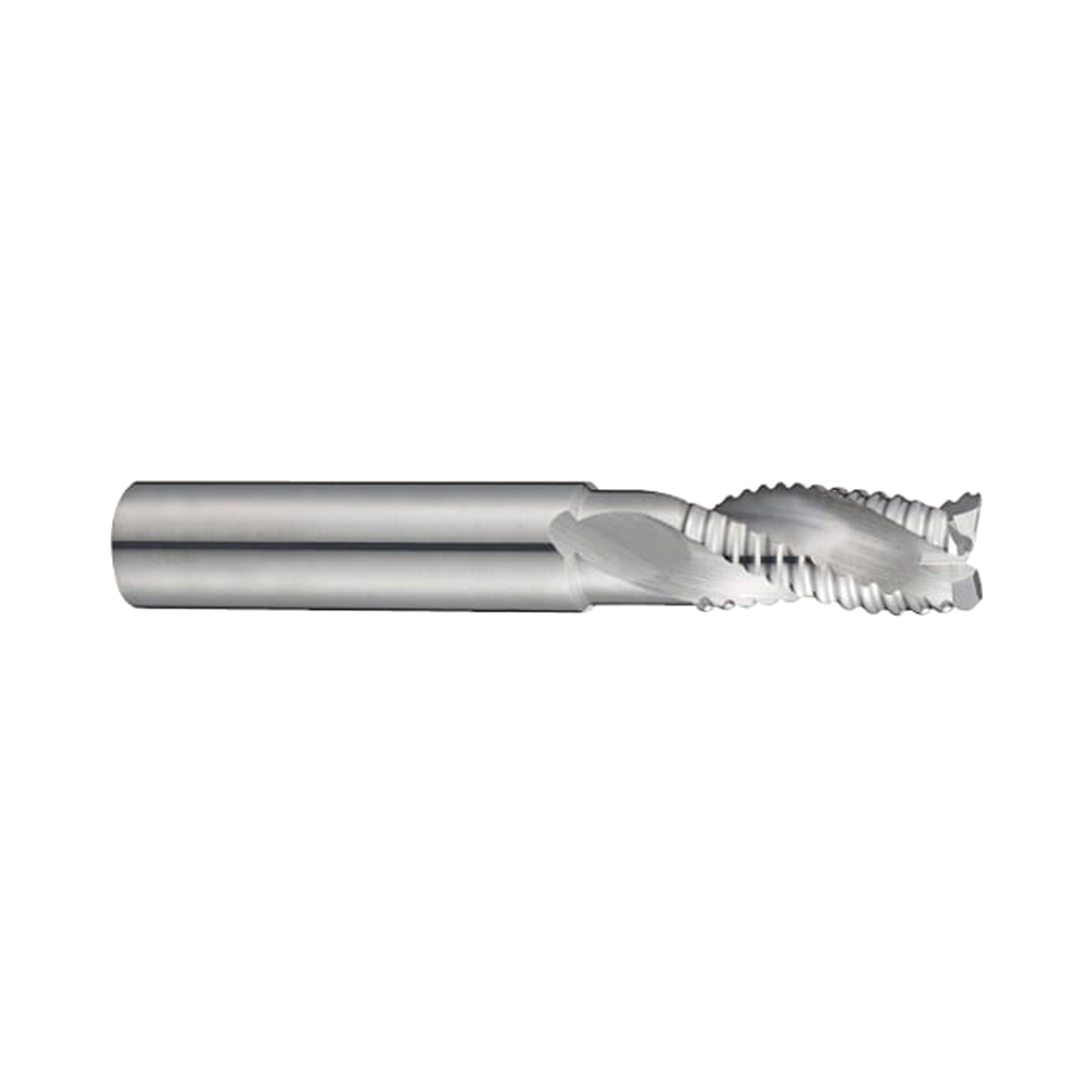

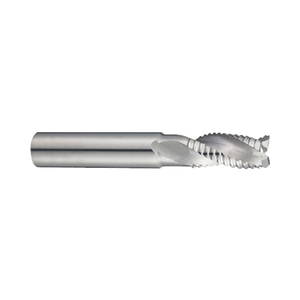

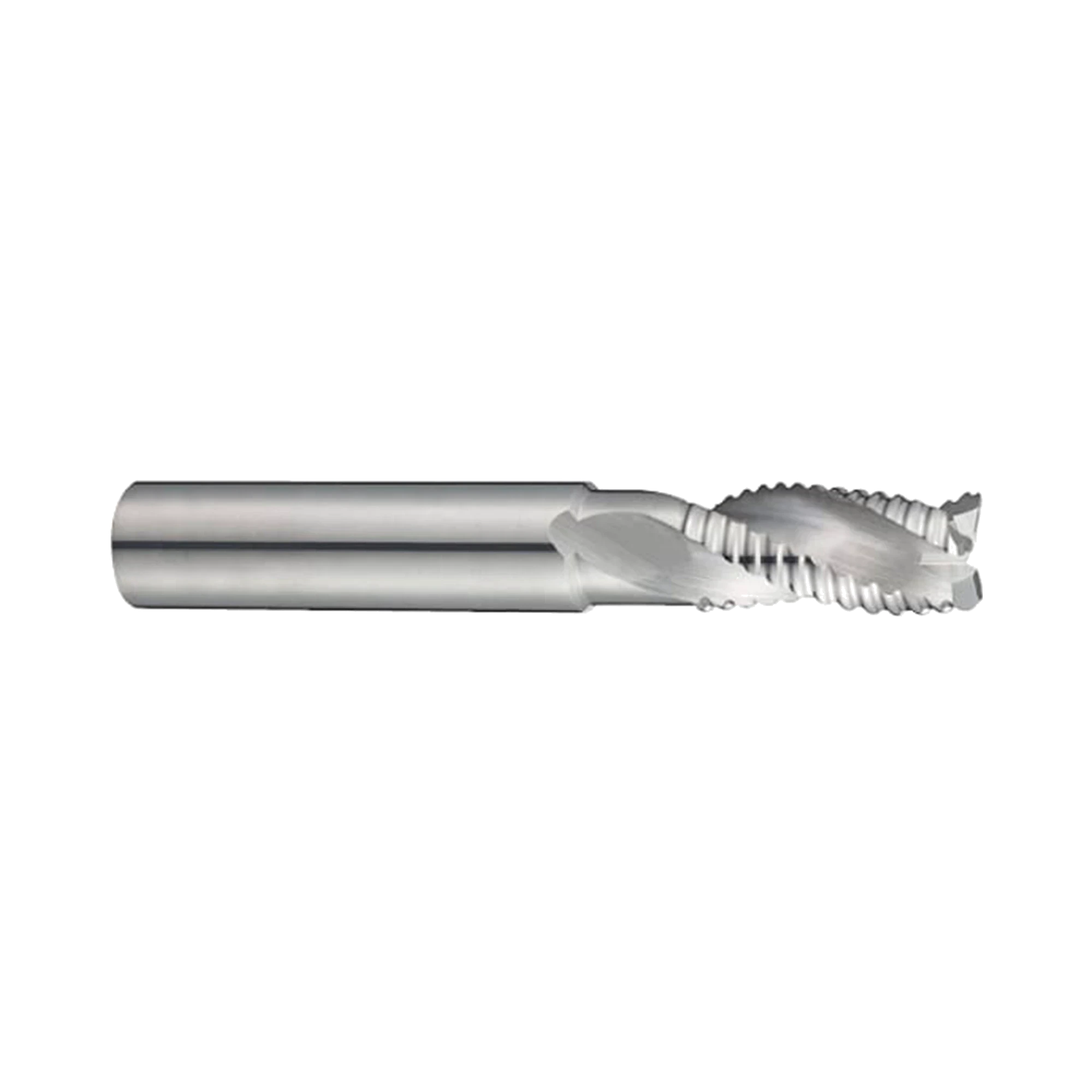

The E5E39 series carbide Alu-Power rippers from YG-1 range from 6-20mm in diameter. These plain shank 3 flute rougher cutters have a reduced neck and an aluminium pitch to prevent built up edge. These are ideal for heavy metal removal on Aluminium and Non-Ferrous materials.

  • Suitable for high speed machining of aluminium and other non-ferrous materials.
  • Special geometries & lapped flutes ensures the best chip control and surface finish on aluminium.
  • Reduced neck diameter for deep pocket machining.
  • Deep flute pockets prevent swarf clogging up the tool.
  • Aluminium pitch prevents built up edge.
  • Micrograin Carbide Substrate.
  • Sharp cutting edges with mirror finish machining.
  • Ultra-high metal removal rates possible with WAVE-CUT.
Product Data
Workpiece Material P K N
Chamfer Angle 45
Cutting Shape Chamfer Prep, Roughing
Helix Angle Square 30
Length Regular
No. Flutes 3
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Periphery Type Roughing - Aluminium
Shank Type 6535HA
Surface Treatment Uncoated
Tool Material Carbide
Tool Standard YG-1 Standard
Flutes 3
Helix Angle 30°
Cutting Edge Shape Roughing
Size Min D3.0
Size Max D20.0
Length Neck
Coated Uncoated
Side Milling
Small Part
Slotting
Die Sinking
Facing

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

8 grades
Non-alloy steel
GoodVDI 1–4
Low-alloy steel
GoodVDI 6–7
High-alloy and tool steel
GoodVDI 10–11

Non-ferrous materials

5 grades
Wrought aluminium
ExcellentVDI 21–22
Cast aluminium
ExcellentVDI 23–24
GoodVDI 25

Cast iron

6 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17–18
Malleable cast iron
GoodVDI 19–20
VDI grade reference19 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelGood25025
4PNon-alloy steelGood27028
6PLow-alloy steelGood18010
7PLow-alloy steelGood27529
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelGood32535
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
18KNodular cast ironGood25025
19KMalleable cast ironGood130-
20KMalleable cast ironGood23021
21NWrought aluminiumExcellent60-
22NWrought aluminiumExcellent100-
23NCast aluminiumExcellent75-
24NCast aluminiumExcellent90-
25NCast aluminiumGood130-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for (E5E39) Alu-Power Carbide 3Flute Roughing End Mill, Regular Length, Flat Shank

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.
