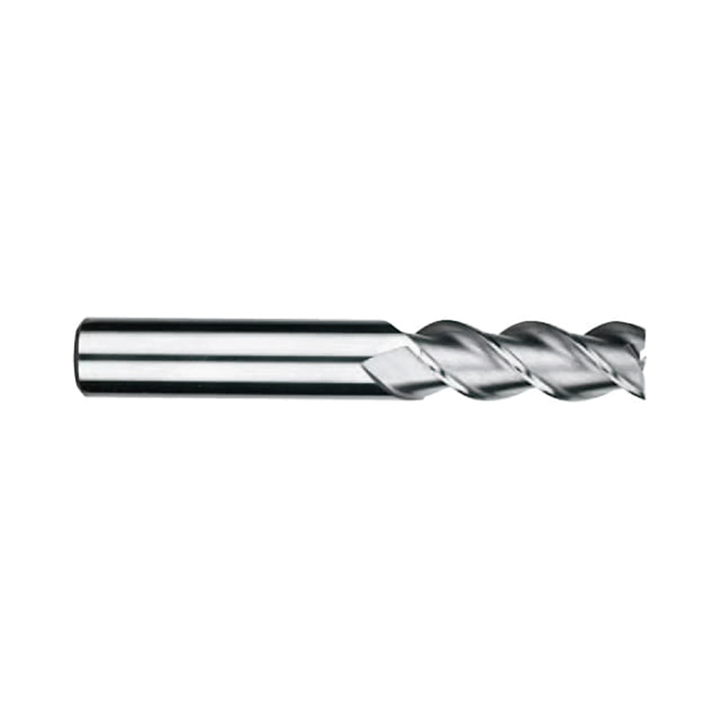

ALU-POWER 3 Flute 45°Helix Long End Mill (E5A18)

  • $0.00INC GST $0.00 EX GST
ALU-POWER 3 Flute 45°Helix Long End Mill (E5A18)
New

ALU-POWER 3 Flute 45°Helix Long End Mill (E5A18)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: E5A18

N
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ALU-POWER 3 Flute 45°Helix Long End Mill (E5A18) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
Product Description
  • Suitable for high-speed machining aluminmun, aluminum alloys and non-ferrous materials.
  • Excellent surface roughness thanks to Mirror Face of cutting edges.
  • Special flute geometry eliminates vibrations.
  • Precise tolerance of outside diameter is applied.
Product Data
Workpiece Material N
Cutting Shape Square
Helix Angle Square 45
No. Flutes 3
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment Uncoated
Tool Material Carbide
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E5A18030 3 6 10 50 0~-0.015 h5 3 E5A18040 4 6 13 50 0~-0.015 h5 3 E5A18050 5 6 17 55 0~-0.015 h5 3 E5A18060 6 6 17 55 0~-0.015 h5 3 E5A18070 7 8 22 65 0~-0.015 h5 3 E5A18080 8 8 22 65 0~-0.015 h5 3 E5A18090 9 10 27 70 0~-0.015 h5 3 E5A18100 10 10 27 70 0~-0.015 h5 3 E5A18110 11 12 32 80 0~-0.015 h5 3 E5A18120 12 12 32 80 0~-0.015 h5 3 E5A18130 13 12 35 85 0~-0.015 h5 3 E5A18140 14 16 37 85 0~-0.015 h5 3 E5A18150 15 16 42 90 0~-0.015 h5 3 E5A18160 16 16 42 90 0~-0.015 h5 3 E5A18180 18 18 47 110 0~-0.015 h5 3 E5A18200 20 20 47 110 0~-0.015 h5 3
Side Milling
Small Part
Slotting
Die Sinking
Facing
N Aluminium

Excellent

Good Great Excellent
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E5A18030 3 6 10 50 0~-0.015 h5 3 E5A18040 4 6 13 50 0~-0.015 h5 3 E5A18050 5 6 17 55 0~-0.015 h5 3 E5A18060 6 6 17 55 0~-0.015 h5 3 E5A18070 7 8 22 65 0~-0.015 h5 3 E5A18080 8 8 22 65 0~-0.015 h5 3 E5A18090 9 10 27 70 0~-0.015 h5 3 E5A18100 10 10 27 70 0~-0.015 h5 3 E5A18110 11 12 32 80 0~-0.015 h5 3 E5A18120 12 12 32 80 0~-0.015 h5 3 E5A18130 13 12 35 85 0~-0.015 h5 3 E5A18140 14 16 37 85 0~-0.015 h5 3 E5A18150 15 16 42 90 0~-0.015 h5 3 E5A18160 16 16 42 90 0~-0.015 h5 3 E5A18180 18 18 47 110 0~-0.015 h5 3 E5A18200 20 20 47 110 0~-0.015 h5 3

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand

View the range

Alu-Power Endmills

You Might Also Like

New

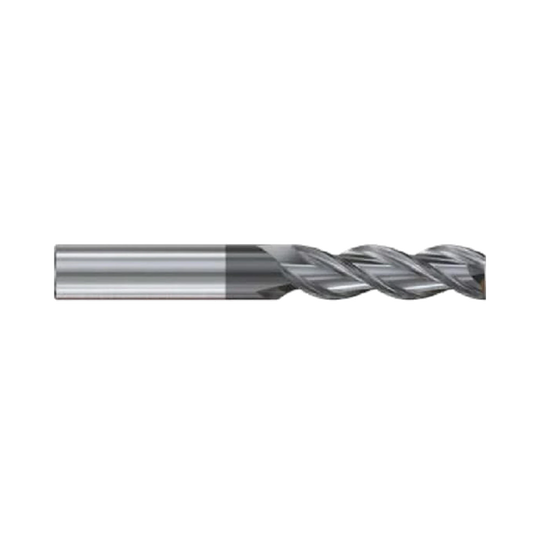

ALU-POWER HPC 3FL 37° Helix Chip-Breaker Corner Radius End Mill (JAH22) ALU-POWER HPC 3FL 37° Helix Chip-Breaker Corner Radius End Mill (JAH22)

ALU-POWER HPC 3FL 37° Helix Chip-Breaker Corner Radius End Mill (JAH22)

Pricing available on request
5 days
YG-1 LEGEND DLC YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX SQUARE 37 YG-1 LEGEND SHANK PLAIN
Request Quote
View Comparison
New

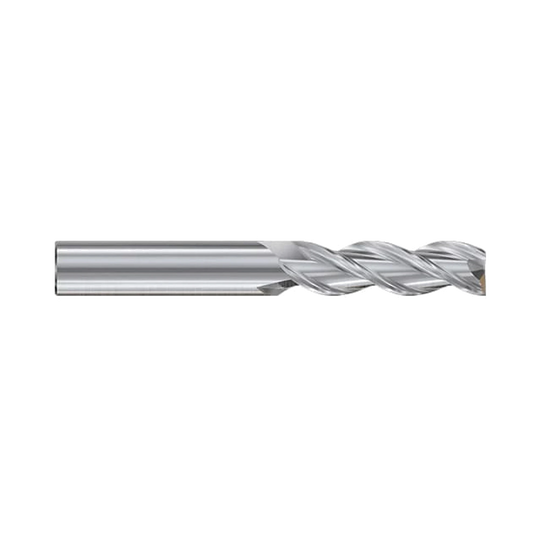

ALU-POWER HPC 3 Flute 37°Helix With Neck End Mill (E5H23) ALU-POWER HPC 3 Flute 37°Helix With Neck End Mill (E5H23)

ALU-POWER HPC 3 Flute 37°Helix With Neck End Mill (E5H23)

Pricing available on request
5 days
YG-1 LEGEND UNCOATED YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX SQUARE 37 YG-1 LEGEND SHANK PLAIN
Request Quote
View Comparison
New
ALU-POWER HPC 3 Flute 37°Helix End Mill (E5H22) ALU-POWER HPC 3 Flute 37°Helix End Mill (E5H22)

ALU-POWER HPC 3 Flute 37°Helix End Mill (E5H22)

Pricing available on request
5 days
YG-1 LEGEND UNCOATED YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX SQUARE 37 YG-1 LEGEND SHANK PLAIN
Request Quote
View Comparison
New

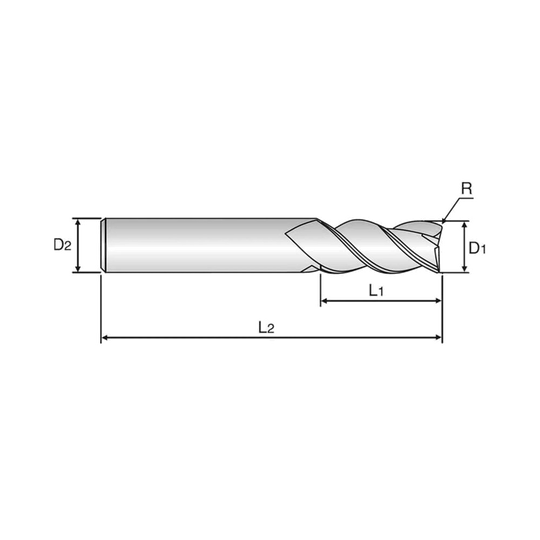

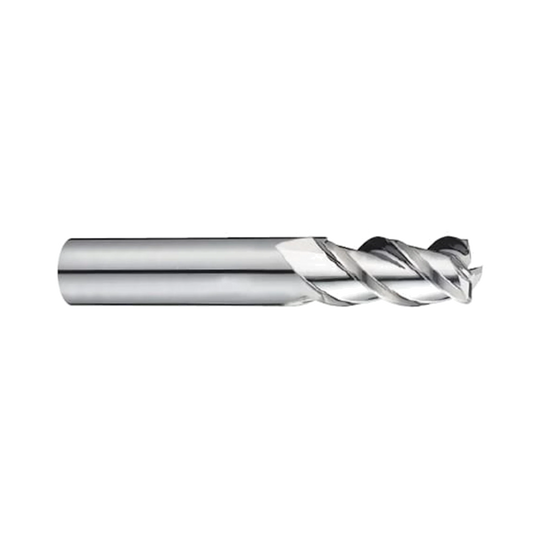

ALU-POWER 3 Flute 45°Helix Long Corner Radius End Mill (E5E51) ALU-POWER 3 Flute 45°Helix Long Corner Radius End Mill (E5E51)

ALU-POWER 3 Flute 45°Helix Long Corner Radius End Mill (E5E51)

From $23.10INC GST
From $21.00 EX GST
Available in Mill Diameter (mm)
3.0 4.0 5.0 +6
In stock
YG-1 LEGEND UNCOATED YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX SQUARE 45 YG-1 LEGEND move square side cutting YG-1 LEGEND SHANK PLAIN
Add to Cart
View Comparison
New

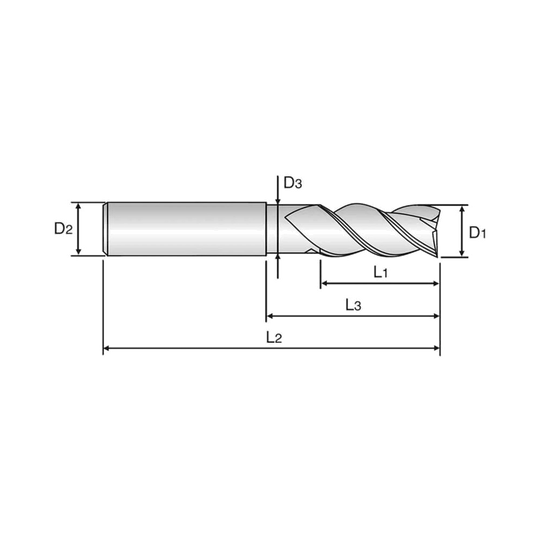

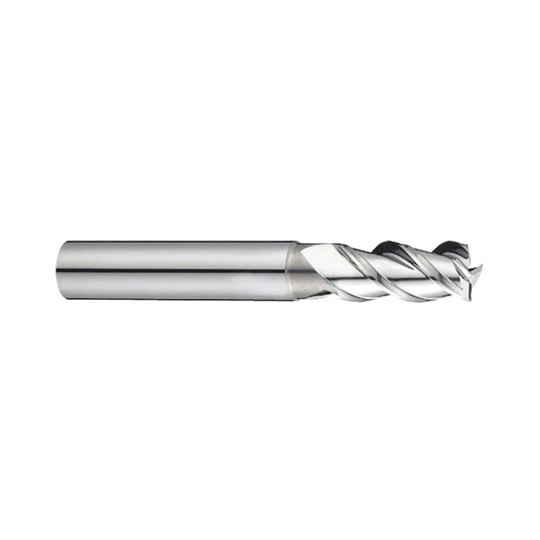

ALU-POWER 3 Flute 45°Helix With Neck End Mill (E5E50) ALU-POWER 3 Flute 45°Helix With Neck End Mill (E5E50)

ALU-POWER 3 Flute 45°Helix With Neck End Mill (E5E50)

From $33.44INC GST
From $30.40 EX GST
Available in Mill Diameter (mm)
3.0 4.0 5.0 +6
In stock
YG-1 LEGEND UNCOATED YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX SQUARE 45 YG-1 LEGEND move square side cutting YG-1 LEGEND SHANK PLAIN
Add to Cart
View Comparison
New

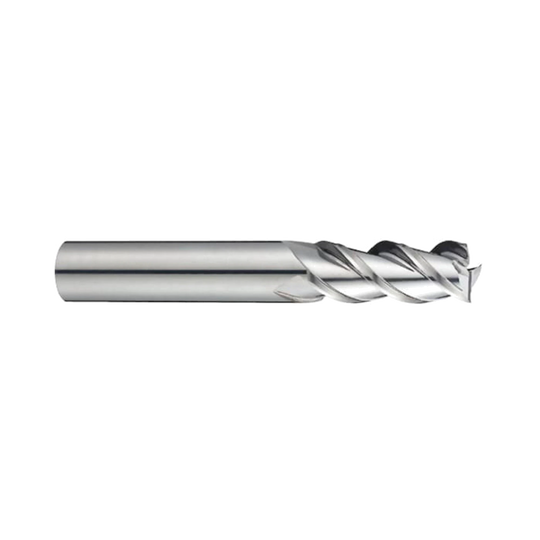

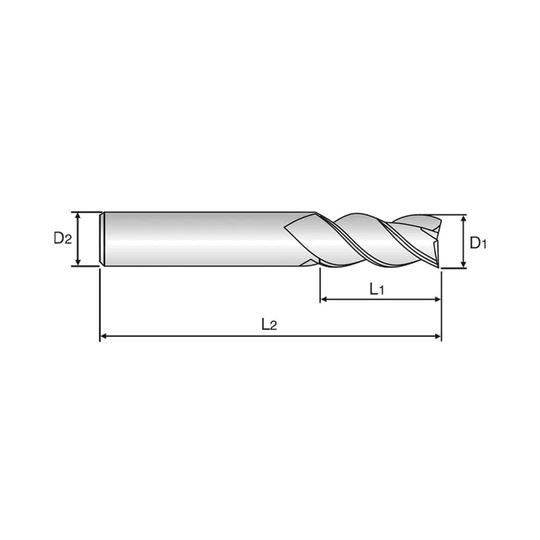

ALU-POWER 3 Flute 45°Helix Long End Mill (E5E49) ALU-POWER 3 Flute 45°Helix Long End Mill (E5E49)
