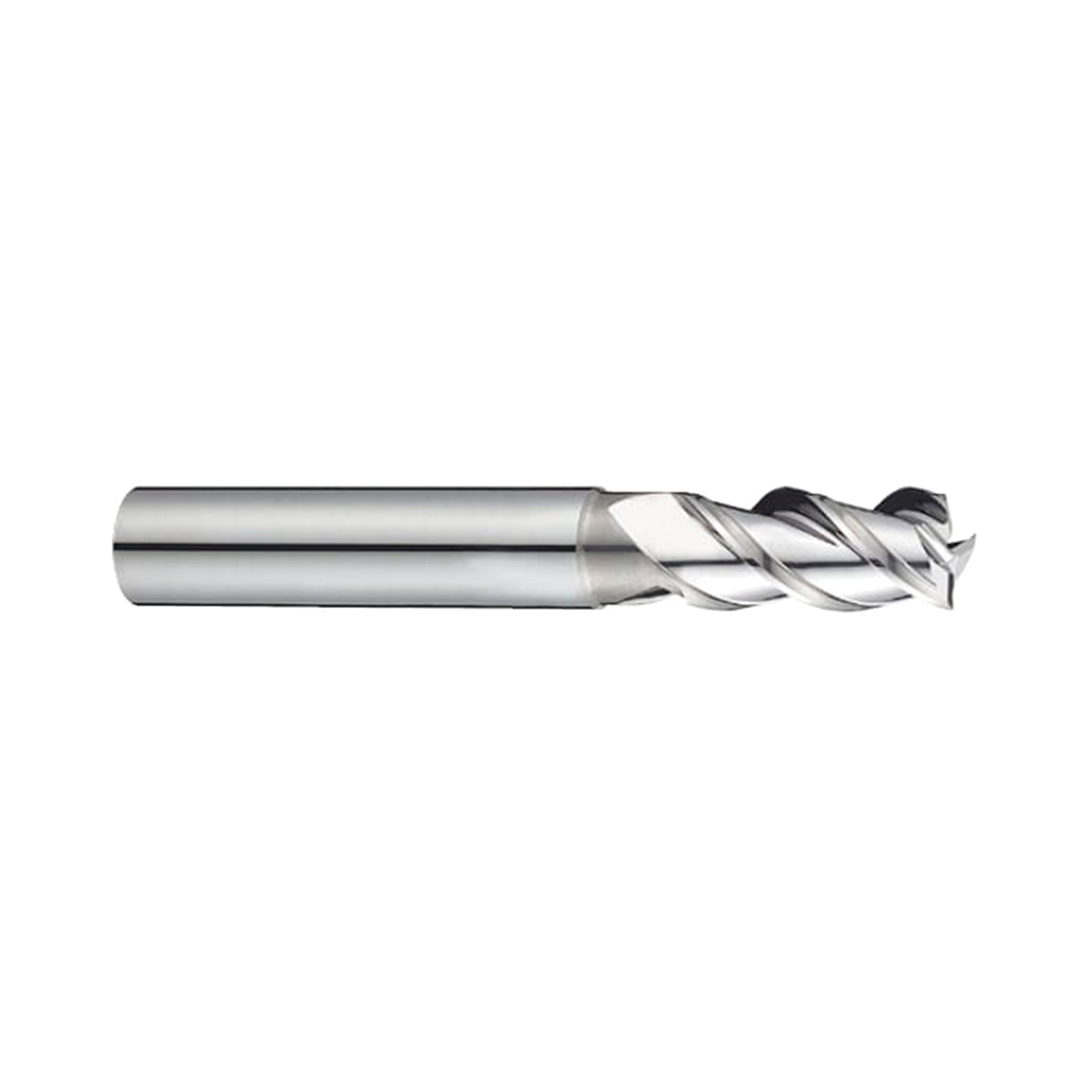

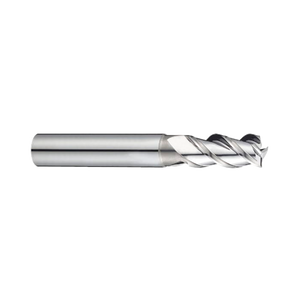

(E5E50) Alu-Power Carbide 3Flute End Mill, Regular Length, Plain Shank

Three-flute 45° helix carbide end mill with neck

(E5E50) Alu-Power Carbide 3Flute End Mill, Regular Length, Plain Shank
$33.44 INC GST $30.40 EX GST
SKU
E5E50030
Work materials
N

Key features

  • Solid carbide three-flute end mill with a 45° helix and neck
  • Uncoated cutter with mirror-surface flutes
  • Optimised cutting edges support increased tool life
Tool material Carbide
Surface treatment Bright
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Purpose-built for non-ferrous milling

Recommended for aluminium wrought alloys, alloyed aluminium castings, copper, bronze and brass.

Mirror-finished flute surfaces

Mirror-surface flutes support effective chip evacuation and surface finish.

Necked cutter geometry

The reduced neck profile provides a practical cutter form for recessed milling features.

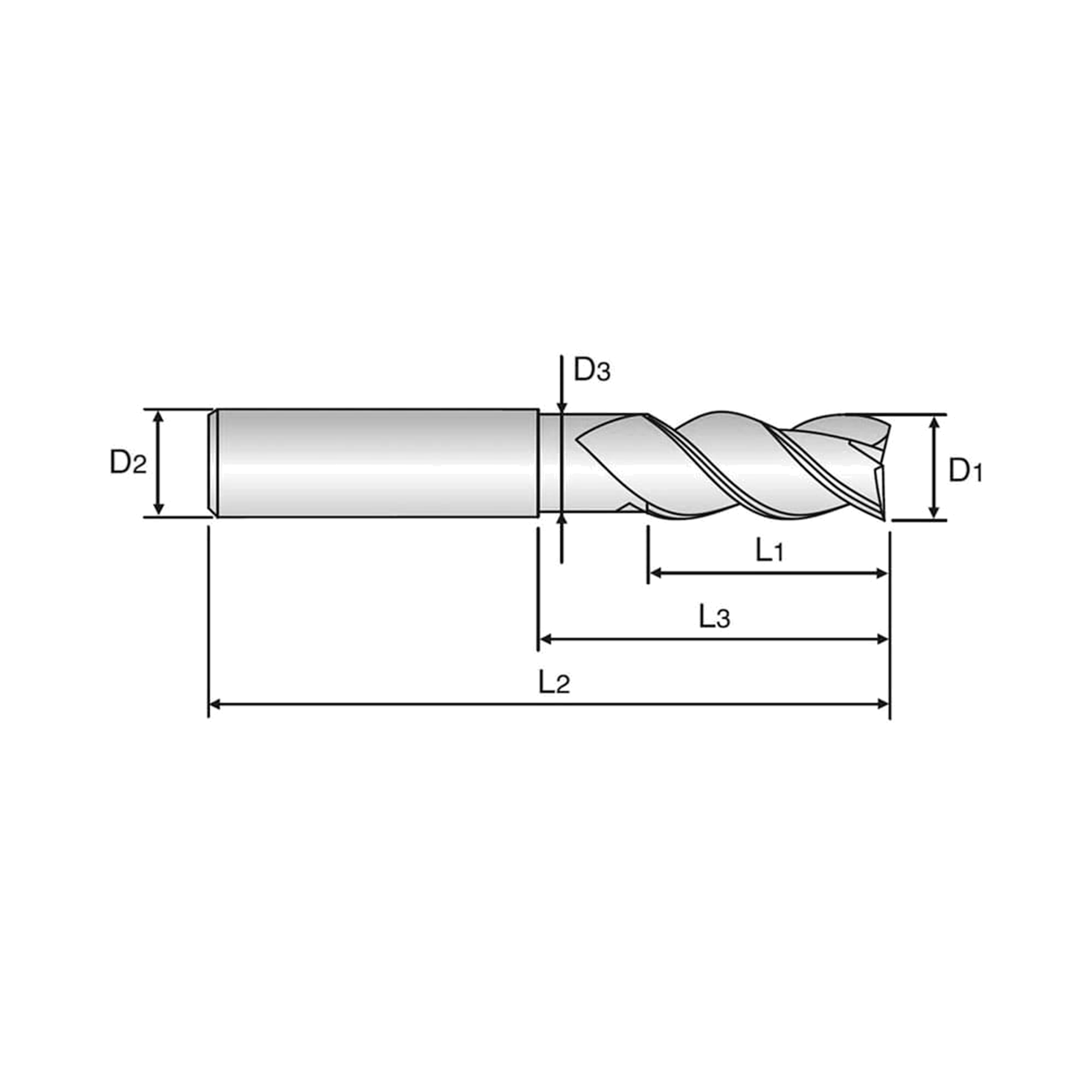

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Length below shank (mm)Neck dia. (mm)CAD filesStock Price Qty Add
E5E500303.057.06.08.012.02.7STEPDXF In stock $30.40
E5E500404.057.06.011.018.03.7STEPDXF Low stock $45.90
E5E500505.057.06.013.018.04.7STEPDXF In stock $45.90
E5E500606.057.06.013.018.05.7STEPDXF In stock $45.90
E5E500808.063.08.021.025.07.4STEPDXF In stock $63.20
E5E5010010.072.010.022.030.09.2STEPDXF Low stock $77.90
E5E5012012.083.012.026.036.011.0STEPDXF In stock $118.30
E5E5016016.092.016.036.042.015.0STEPDXF Low stock $187.80
E5E5020020.0104.020.041.052.019.0STEPDXF Low stock $316.00

Add (E5E50) Alu-Power Carbide 3Flute End Mill, Regular Length, Plain Shank to comparison

View Comparison
  • Overview
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

YG-1 E5E50 Alu-Power solid carbide end mills are uncoated three-flute, 45° helix cutters with a neck. Designed for aluminium and copper materials, they provide a square-end profile for non-ferrous milling applications. Mirror-surface flutes promote chip evacuation and surface finish, while optimised cutting edges support increased tool life. The regular-length plain-shank family covers 3 to 20 mm milling diameters.

Each cutter combines a reduced neck diameter with an h6 plain shank. The three-flute geometry and 45° helix are specified consistently throughout the E5E50 range. Available variants use 6, 8, 10, 12, 16 and 20 mm shank diameters. Use them on aluminium wrought alloys, alloyed aluminium castings, copper, bronze and brass.

  • Solid carbide three-flute end mill with a 45° helix and neck
  • Uncoated cutter with mirror-surface flutes
  • Optimised cutting edges support increased tool life
  • Suitable for aluminium and copper materials
  • Square-end profile for non-ferrous milling
  • Regular-length plain-shank sizes from 3 to 20 mm
Product Data
Cutting Shape Square
Length Regular
No. Flutes 3
Surface Treatment Bright
Tool Material Carbide

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Non-ferrous materials

5 grades
Wrought aluminium
ExcellentVDI 21–22
Cast aluminium
ExcellentVDI 23–24
GoodVDI 25
VDI grade reference5 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
21NWrought aluminiumExcellent60-
22NWrought aluminiumExcellent100-
23NCast aluminiumExcellent75-
24NCast aluminiumExcellent90-
25NCast aluminiumGood130-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for (E5E50) Alu-Power Carbide 3Flute End Mill, Regular Length, Plain Shank

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.
